SPECIFICATIONS
AI Functions: Motion Detection
Alarm Action: FTP Photo,Email Photo,Local Alarm
App name: Other
Audio Output: None
Brand Name: HQCAM
Certification: CE
Color: black
Color Night Vision: No
Connectivity: RJ45
High Definition: 8.0 Megapixels
High-concerned chemical: None
IP Rating: Other
Installation: Normal
Lens (mm): 300x
Lens Quantity: Single Lens
Megapixels: 8MP
Minimum Illumination(Lux): 0.001
Operating Temperature: -10°-60°
Origin: Mainland China
Power Mode: Mains Electricity
Power Supply: Normal
Power Supply(V): 12
Scene: Indoor
Sensor: CMOS
Sensor Brand: Sony
Shell Material: Metal
Smart home platform: Other
Style: Box Camera
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Windows 7,Windows 10
TF Card: None
Video Compression Format: H.264,H.265
Zoom: None
Zoom type: None
is_customized: Yes

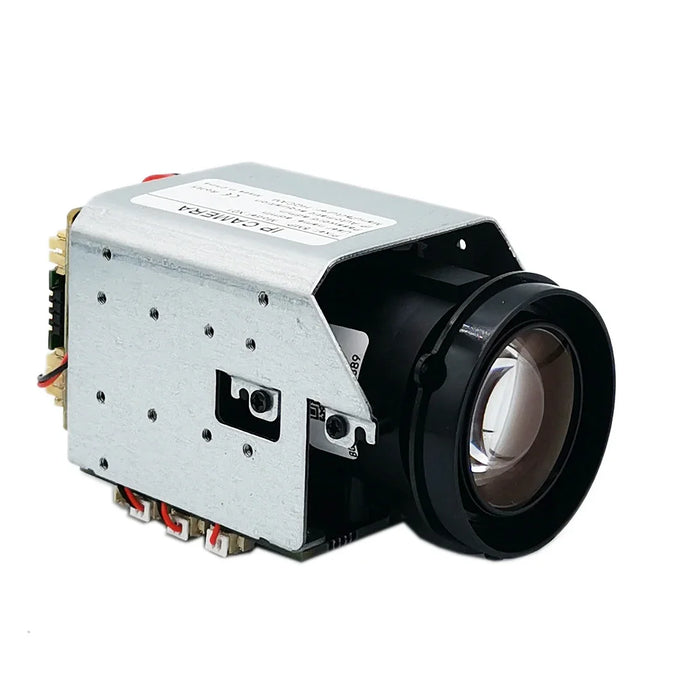

4K 8MP 30fps realtime IP Camera adopts highly integrated MSTAR339+IMX415 processor, extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard Support Hikvision protocol, and compatible with iVMS-4200, support RTSP, RTMP and other protocols, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;
| Model:JM800G-300 | |
| Operating system | embedded LINUX |
| Main processor | MSTAR339 |
| Image Sensor | SONY IMX415 1/2.8" Ultra Low Illumination CMOS Sensor |
| Day and night mode | Support |
| Compression standard | |
| Compression standard | Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
| Audio compression algorithm | G.726/G.711/AAC |
| Compressed transport stream | 512Kbps-12288bps, can be customized, |
| Images | |
| Maximum image size | 8MP (3840*2160) |
| Sharpness Special function | First stream:4K (3840*2160),3072*1728,2592*1944,2560*1440,2304*1296,1080P,720P support fog function, support WDR, HDR. Support strong light suppression function. |
| Second stream:720*480,VGA,640*360,480*360,CIF Third stream:1920*1080,720*480,CIF | |
| Video frame rate | 8mp 30fps,(3072*1728,2592*1944,2560*1440,2304*1296,30fps),(1080P,720P 6 0fps) |
| Character overlay | Support OSD name,time and date information overlay |
| Image settings | Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable |
| Network Function | |
| Storage function | Supports up to 256G Micro SD card storage and supports scheduled video storage |
| Motion detection | Four independent detection areas can be set (sensitivity 1-100 can be set) |
| Alarm linkage | alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server; |
| Network Protocol | Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP,RTMP,Hikvision Protocol. |
| Access Protocol | Supports ONVIF 2.4 Protocol |
| Interface | |
| Audio input | support External MIC |
| Audio output | External speaker |
| LAN interface | RJ45 10Base-T/100Base-TX, |
| IR night distance | support |
| LEN | 72x zoom,36X optics zoom 4.4-129mm and 2X digital ZOOM |
| waterproof level | indoor |
| WIFI | not support |
| Working temperature | -40 to +85 Celsius |
| power | DC12V 1A |
| Working Humidity | -10-95% |
Real case presentation
1X
amplification
Continue to enlarge
Continue to enlarge
