High-Accuracy Insulation Resistance Meter & RCD Tester UT-526 UNI-T 🔌📏✨
High-Accuracy Insulation Resistance Meter & RCD Tester UT-526 UNI-T 🔌📏✨
Couldn't load pickup availability
High-Accuracy Insulation Resistance Meter
Product Overview: The UT-526 meter is a sophisticated tool designed to measure insulation resistance up to 500MΩ and conduct RCD tests (Residual Current Devices). It also includes a Continuity function, allowing you to evaluate ground line loop resistance. ⚡️ Important: High voltage is crucial for precise insulation resistance measurement. Please exercise caution and follow the guidelines outlined in the device manual during operation.
Specifications:
| Resistance Measurement | Test Voltage 250 V: 0.05 MΩ ... 200 MΩ |
|---|---|
| Test Voltage 500 V: 0.05 MΩ ... 300 MΩ | |
| Test Voltage 1000 V: 0.05 MΩ ... 500 MΩ | |
| Measuring Accuracy | 0.05 MΩ ... 500 MΩ ± (5% + 5) |
| Open Circuit Voltage | Test Voltage + 10 % |
| Test Current | 0.9 mA ... 1.1 mA |
| Short-Circuit Current | < 1.8 mA |
| AC Voltage Measurement | 0 V ... 440 V ± (2% + 3) @ 1 V |
| DC Voltage Measurement | 0 V ... 440 V ± (2% + 3) @ 1 V |
| Measurement of Small Resistances | 0.01 Ω ... 2000 Ω ± (2% + 5) |
| Frequency Measurement | 20 Hz ... 100 Hz - for reference only |
| RCD Testing | Working Voltage: 220V ± 10 % |
| Test Current: 10mA / 30mA / 100mA / 300mA | |
| Switch-off Time Ranges: 0 ... 2000 ms ± (5% + 2) @ 10 mA | |
| 0 ... 500 ms ± (5% + 2) @ 30 mA | |
| 0 ... 300 ms ± (5% + 2) @ 100 mA | |
| 0 ... 300 ms ± (5% + 2) @ 300 mA |
Main Features:
- ⚠️ High voltage alert during measurements
- Phase switch 0° / 180° for RCD testing
- Automatic detection of AC/DC voltage
- Large, easy-to-read LCD display with backlight
- Buzzer for notifications
- Low battery warning
- Stylish and sturdy design
Additional Information:
- Operating Temperature: 0 °C ... 40 °C
- Permissible Relative Humidity: ≤ 85 % (non-condensing)
- Power Supply: 6 x 1.5V, type AA/LR6/FR6 battery - included
- Weight: 0.45 kg
- Dimensions: 150 x 100 x 71 mm
- Manufacturer / Brand: UNI-T
- Warranty: 2 years
Presentation:

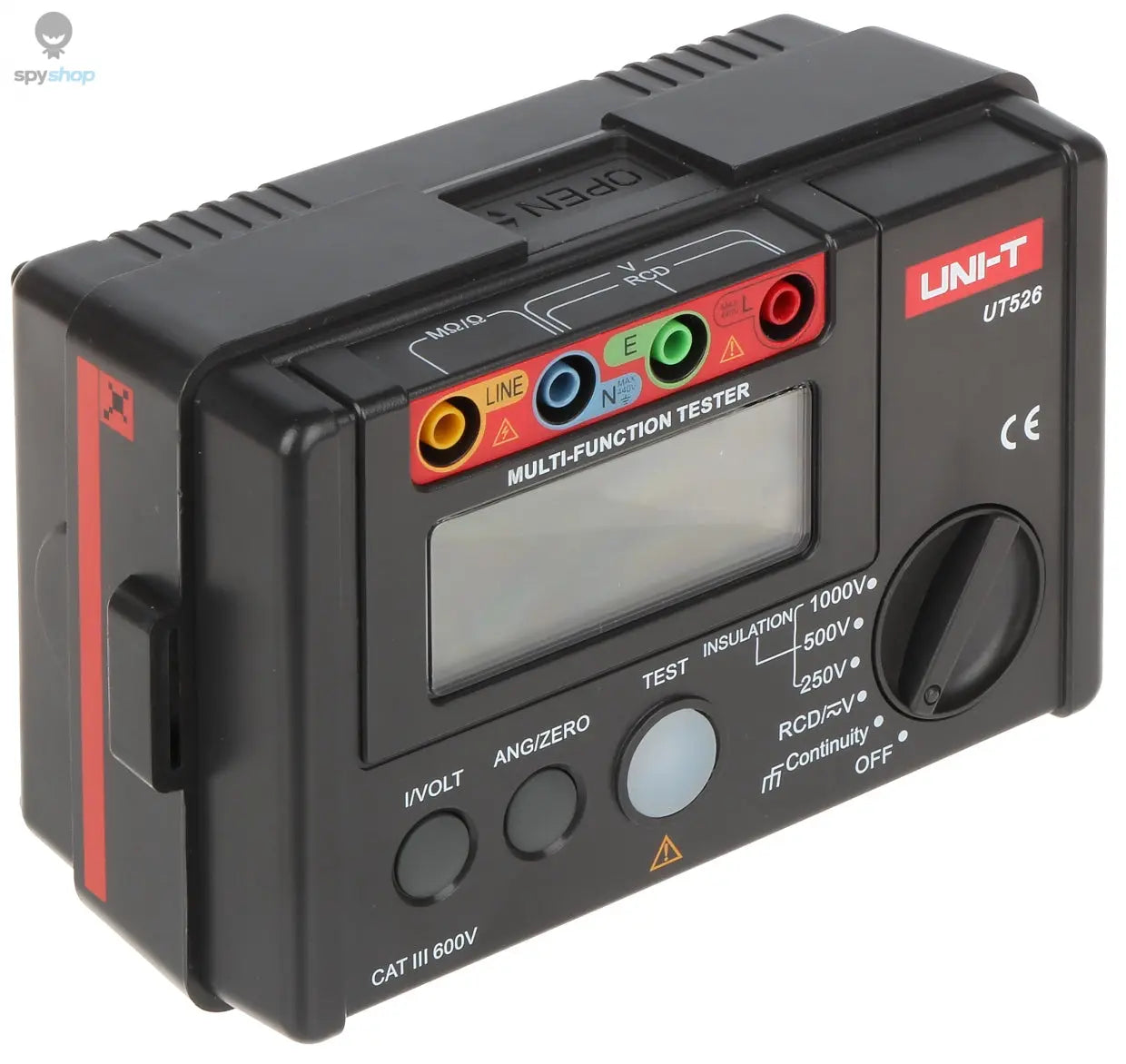

- Front Panel
- Front Panel Cover
- Rear View
- Battery Compartment for 6 x 1.5V AA
- Included in the Kit
- Device secured in a convenient case
Files:
- Data Sheet (100 KB)
- Manual EN (559 kB)
- GPSR (200 KB)
Packaging Details:
- Dimensions (L x W x H): 215x155x80 mm
- Package: Carton
- Gross Weight: 1.108 kg
Pros:
- Diverse measurement capabilities
- User-friendly interface with clear display
- Compact and portable design
- Durable build for long-lasting use
Cons:
- High voltage operation necessitates caution
- May require additional training for optimal use
Watch our YouTube video for a detailed demonstration!
Introducing the UT-526 UNI-T
The UT-526 UNI-T is a high-accuracy insulation resistance meter designed for electrical testing. It allows users to measure insulation resistance with precision to ensure electrical safety. Because electrical equipment can deteriorate over time, using a reliable insulation resistance meter is crucial. This device not only measures insulation resistance but also tests residual current devices (RCD), making it a versatile tool for electricians and technicians.
Key Features and Benefits
This insulation resistance meter offers a variety of features that enhance its usability. It measures insulation resistance up to 2000MΩ, providing accurate results that help identify potential electrical issues. Moreover, it is designed with user-friendly interfaces, making it easy for both professionals and beginners to operate. The UT-526 also includes automatic discharge functionality after tests, ensuring safety for users when working with high voltage.
Practical Applications
Professionals can employ the UT-526 in various practical scenarios, such as testing the insulation of wires and electrical installations. Because of its portability and durability, it is perfect for on-site testing in residential, commercial, and industrial settings. Furthermore, its RCD testing capabilities ensure that safety devices work correctly, giving users peace of mind. Thus, the UT-526 is an essential tool that enhances safety and reliability in electrical work.
