SPECIFICATIONS
Brand Name: WGWK
High Definition Support: 4K
High-concerned chemical: None
Image Stabilization: No image stabilization
Inbox adaptor: No
Model Number: WGWK-CHA-MINIA
NightShot Function: No
Origin: Mainland China
Parameters: 3/4/5/8MP
Pixels: 8 million
Power Source: DC
Sensor Size: 1/2.8 inches
Sensor Size (inches): 1/2.8 inches
Type: Professional
Use: Home
Weight: 301g-400g
【Best-selling products】 IP Network Camera, click the image for direct access to the purchase channel ▶
Enhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it's the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions. Note: The 10x zoom defaults to 6-60mm CS Mount lens
You can contact customer service to select the Lens you want, such as CS Mount Lens, M12 Mount Lens

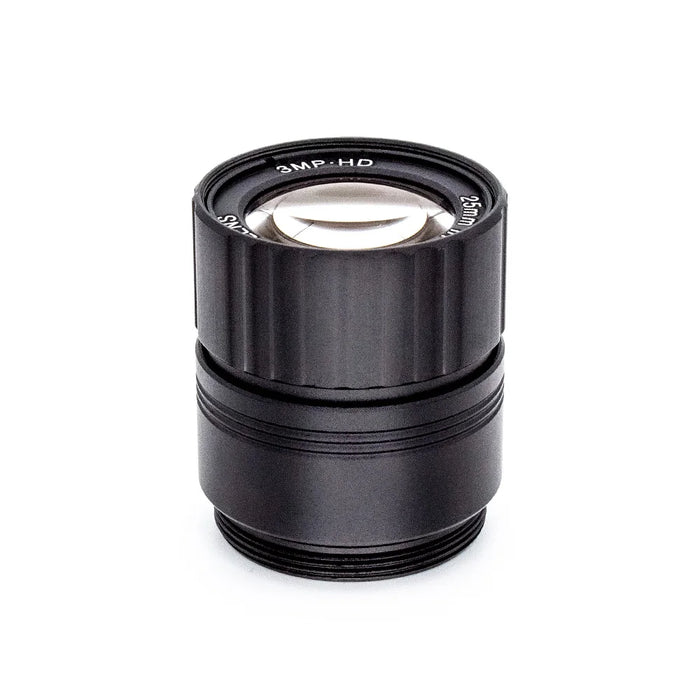

CS Lens option: 2.8mm,4mm,6mm,8mm,12mm,16mm,25mm,2.8-12mm,3.6-10mm,5-50mm,6-60mm,5-100mm
WGWK 4K MINI IP Camera 3/4/5/8MP Manual Zoom POE48V CS Lens Metal Box Industrial Inspection Security Webcam Video Surveillance
Note: Supports replacement of filters of other specifications. Available models include Narrowband 650nm/740nm/780nm/808nm/850nm/905nm/940nm/980nm, 700nm long wave pass, Infrared 650nm/850nm/940nm
If you need it, please contact customer service in time!
Contact customer service to change the color of the camera housing (Red /Blue )
And get a free camera stand when you purchase two or more
NOTE:
1. Not included Power Adapter, Please contact customer service if you need Power Adapter.（you can choose 48V POE to power on through Ethernet cable interface without the need for a power adapter)
2.Due to manual measurement, please allow an error of 2-3mm.
Experience our webcam, featuring high frame rates, excellent low-light performance, and optional lenses to ensure clear and detailed images. Its ultra-compact design is perfect for various embedded applications, elevating your visual experience to the next level!
1.High quality 3/4/5/8MP HD IP Camera
2.2.8-12mm/3.6-10mm/5-50mm/6-60mm/5-100mm Lens can choose
3.High frame rate MJPG– deliver 25fps in 2560x1440 resolution, 25fps in 1920X1080 resolution.
4.CMOS Sensor for high quality image and low power consumption.
5.Super small outline and thin profile for embedded applications.
6.high pixel technology for sharp image and accurate color reproduction.
7.low light performance – ideal for any lighting condition.
-3/4/5/8MP high-definition resolution, low illumination, clear and delicate images;
-Supports 2D/3D noise reduction and digital wide dynamic function;
-Advanced H.265+(compatible with H.265/H.264) video compression technology, ultra-low bit rate, high-definition image quality;
-Supports ONVIF protocol and can access third-party backend/platforms;
-Support mobile monitoring (iOS, Android);
-Support multiple cloud technologies, achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones and other functions;
Why H.265?
H.265 is a new video coding standard that delivers higher-quality network video with limited bandwidth, requiring only half the original bandwidth to play the same quality video.
Specification | 3/4/5/8MP | ||
System structure | Embedded RTOS design, dual-core 32-bit DSP(NT98566), pure hard compression | ||
Sensor | 8MP black light CMOS sensor; Color 0.0001Lux@F1.2, black and white 0.0001Lux@F1.2 | ||
Video processing | H265AI/H.265+(compatible with H.265/H.264) encoding, dual stream, AVI format; | ||
Image output | Main stream: 8MP 3840*2160@15fps; 5MP 2880*1616@25fps;4MP 2560*1440@25fps;3MP 2304*1296@25fps;2MP 1920*1080@25fps; | ||
Shutter | 1/50(1/60) second to 1/10,000 second | ||
Lens | Focal length and zoom lens, optional (2.8mm/4mm/6mm/8mm/12mm/16mm/25mm/2.8-12mm/3.6-10mm/5-50mm/6-60mm/5-100mm) | ||
Day-night switching mode | Support IR-CUT, IR-CUT coil internal resistance of 20 Ohm, power duration less than 200ma, voltage 3.5V-6V | ||
Noise reduction | Support 2D/3D noise reduction | ||
Wide dynamic | Supports digital wide dynamic | ||
Audio processing | G.711A COdec standard, supporting audio and video synchronization | ||
Audio interface | 1 input, level 2Vp-p, resistance 1kΩ, support pickup input; 1 channel output, resistance 16kΩ, 30mw output power, support to connect headphones or public amplifier | ||
Network interface | 1 RJ45 Ethernet interface, 10/100M adaptive; Support network protocols such as RTSP/FTP/DHCP/NTP/UPnP (combined with power interface) | ||
Signal interface | 1 photoresistor interface, 1 IR-CUT driver interface, support photoresistor input signal and IR-CUT, infrared lamp linkage | ||
Intelligent analysis | Supports humanoid detection, face detection, and customization of other intelligent functions | ||
Business function | Support WEB configuration, OSD, motion detection; Mobile detection alarm center reminder, screen pop-up linkage; Support MJPEG capture; Support client remote monitoring software, MYEYE platform and other system applications; Provide complete SDK development kit | ||
ONVIF protocol | support | ||
Mobile phone surveillance | Support mobile monitoring (iOS, Android) | ||
Power source | Power supply DC12V/2A, power consumption ≤3W | ||
Plate size | 38mm*38mm | ||
Instructions | Support POE power supply, light board drive voltage at 3.3V | ||
Rreliability | Comprehensive lightning protection, in line with national and international standards; 7*24 hours -10℃~65℃ high temperature test stable and reliable (including the whole machine test) | ||
About RTSP
Address stream:
Enter the network URL in Please enter network URL:
rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
10.6.3.57 This is the IP of the connected device
:554 This is the port number of the RTSP service, which can be changed in the device's network service
user=admin This is the login user name for the device
password= Password blank
channel=1 First channel
stream=0.sdp？Main code stream
stream=1.sdp？Auxiliary code stream
rtsp://192.168.1.10:554/user= admin&password=&channel=1&stream=0.sdp?
rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
10.6.3.57 is the device IP address
:554 is RTSP port，can reset in device network service
user=admin is device user’s name
password= no pass word
channel=1 refer to Channel No.1
stream=0.sdp？ mainstream
stream=1.sdp？ substream
About computer operation and use
Make sure the camera is connected to the power supply and network
(the signal light flashes to prove that everything is normal)
Step 1 : Install VMS
Contact customer service to obtain the installation package.
Step 2: Login VMS
UserName: admin,Password:admin
Step 3: Find your camera and add
APP download: Search XMEye in Apple Store
