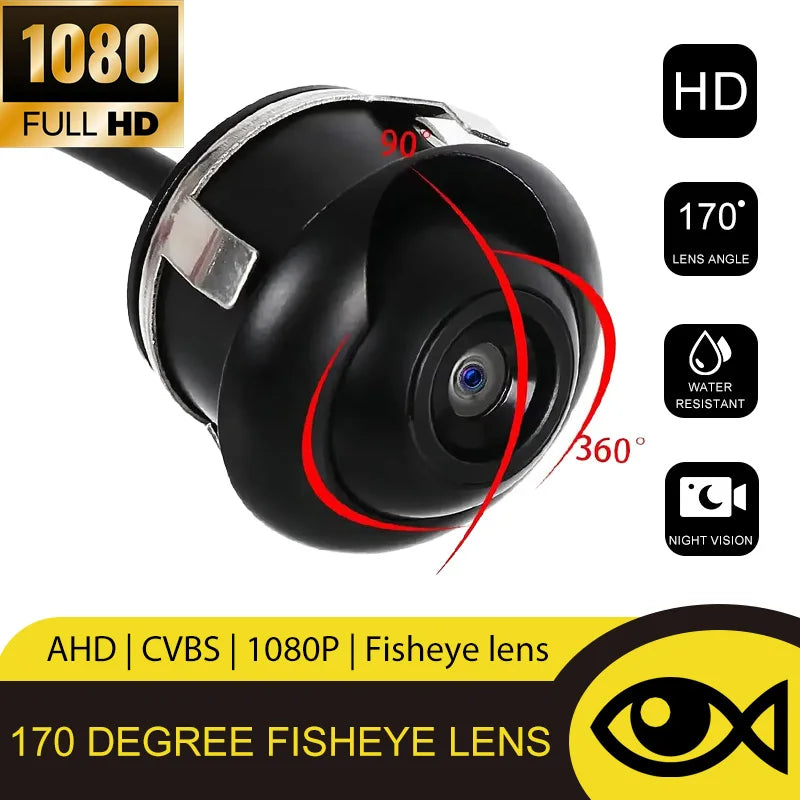

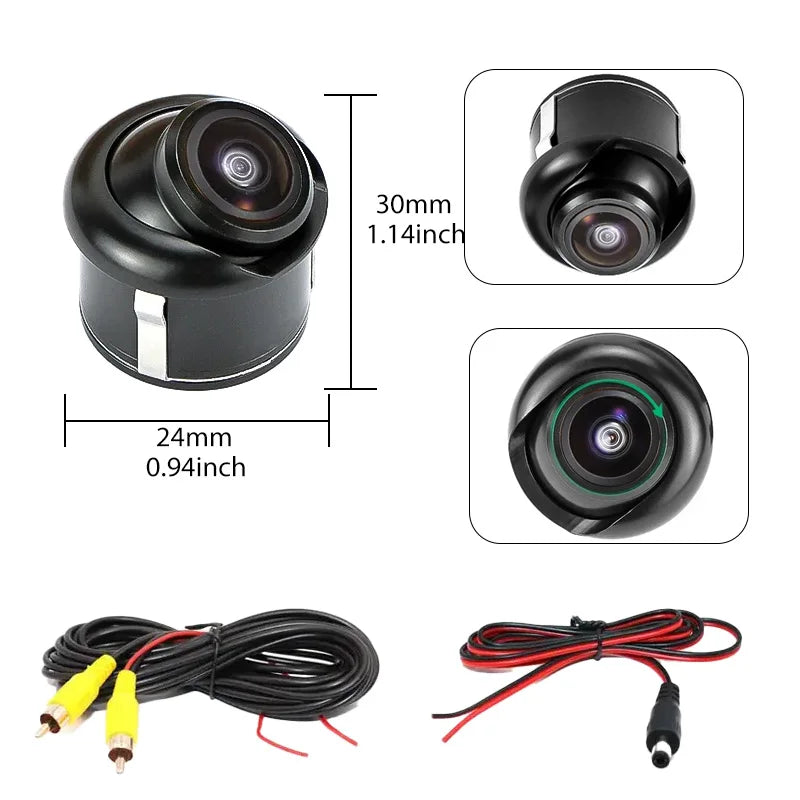

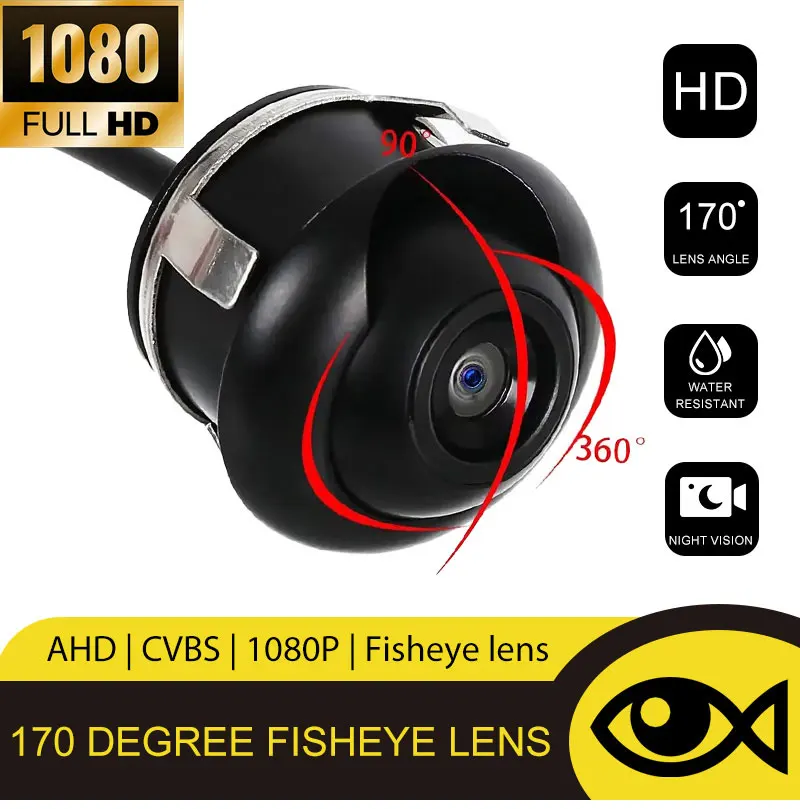

170° HD CCD Rear Camera 6m Night Vision Wide Angle View Universal Vehicle Backup Reversing Camera

Color Name:

046-CVBS-1080P 046-720P-1080P 046-CVBS 046-CVBS-720P

متغير

€33,95

€45,32

SPECIFICATIONS

Brand Name: First Safe

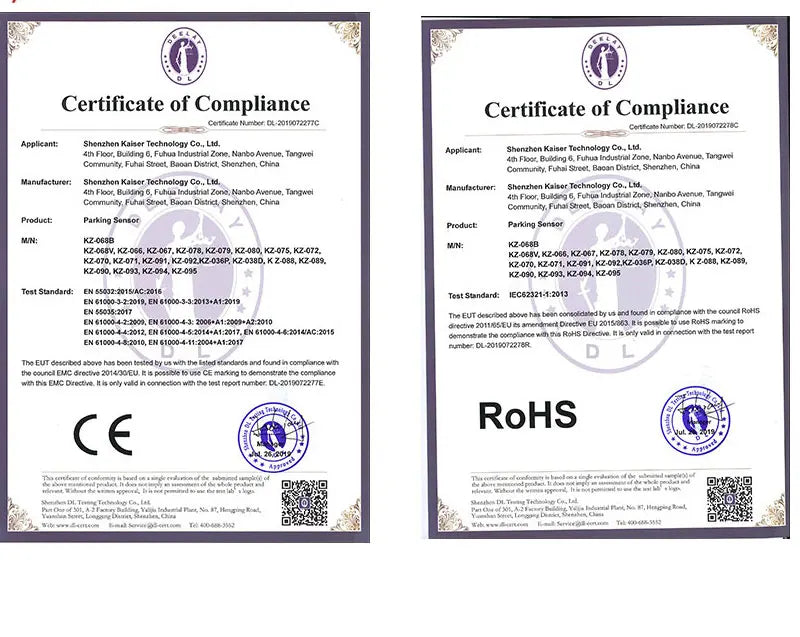

Certification: CE,RoHS

Choice: yes

Guiding Line: Yes

High-concerned chemical: None

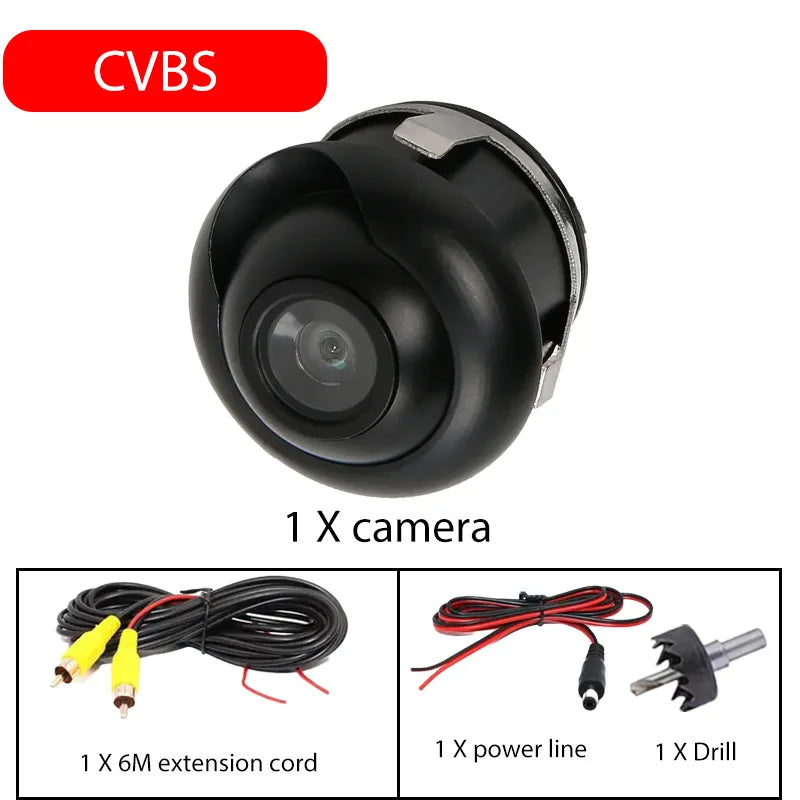

Length of Video Cable: 6M

Origin: Mainland China

Shell Material: Plastic

semi_Choice: yes

NOTE:

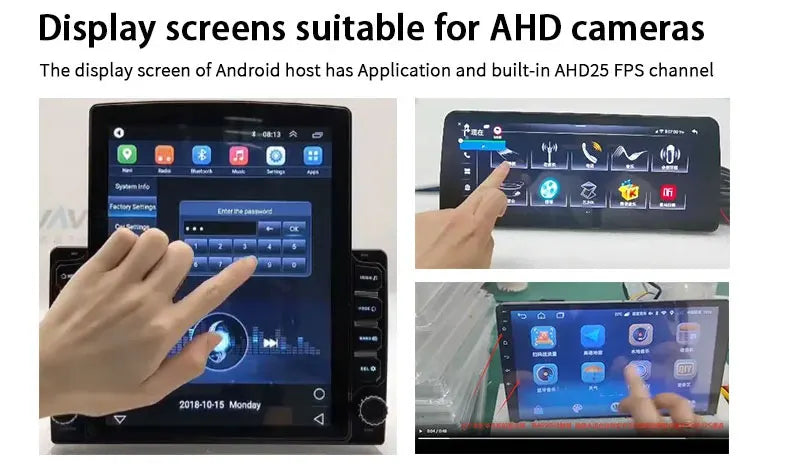

1. Please check if your Android monitor supports AHD720P/AHD1080P before purchasing

2. Our car camera only supports Android large screens. Please check carefully before purchasing

3.For HD screens, please purchase a CVBS camera.
For AHD screens, please check what signals you support.(If you are not sure about your screen, it is recommended to buy a cutoff cable model just in case.)

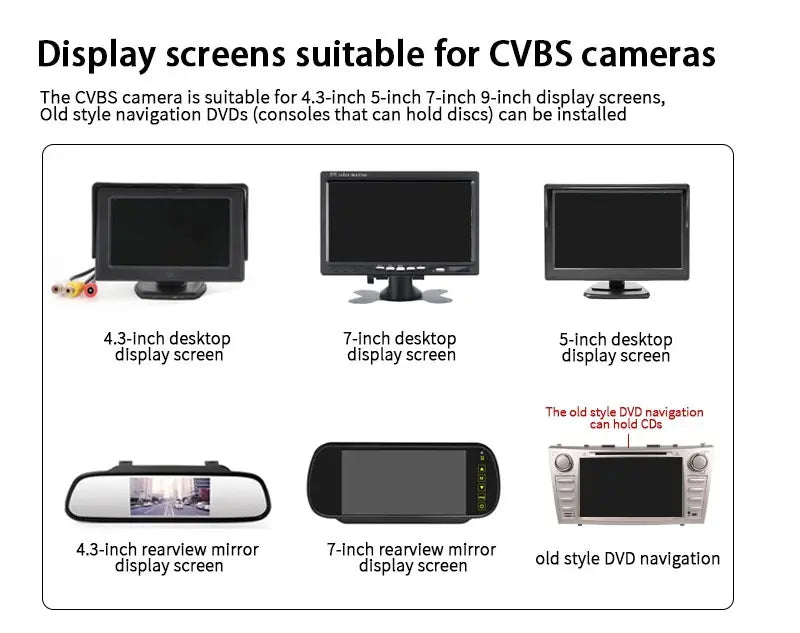

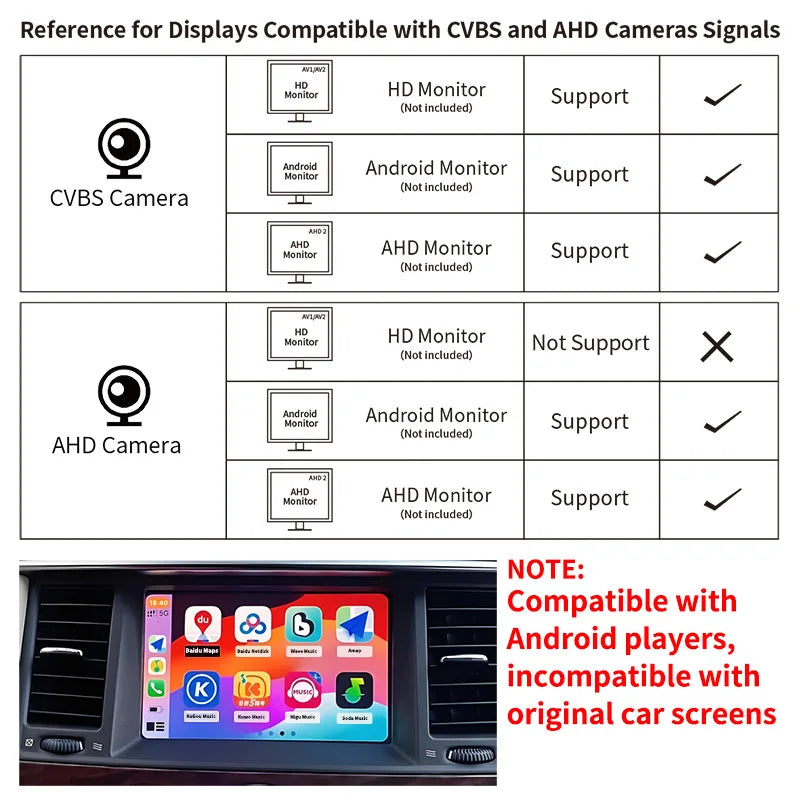

Cameras with CVBS CCD video signal is universal for all monitors,but AHD signal will only work with AHD monitor!

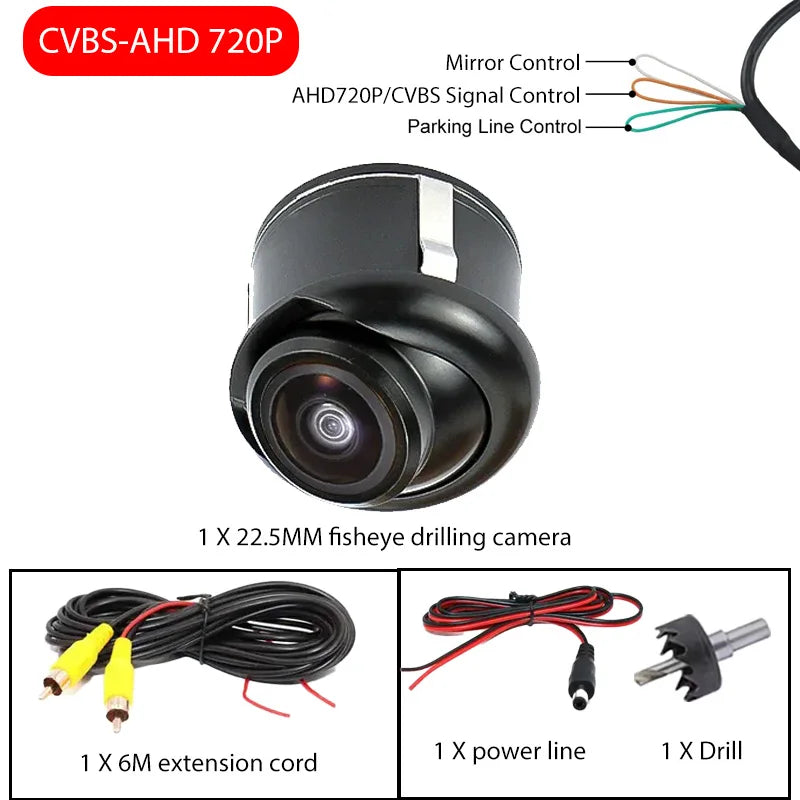

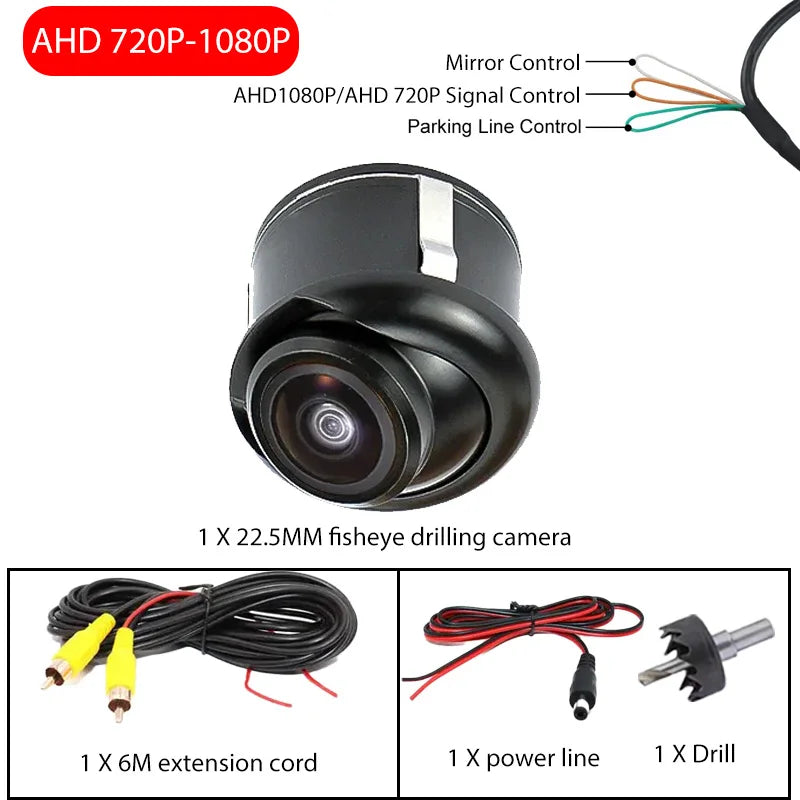

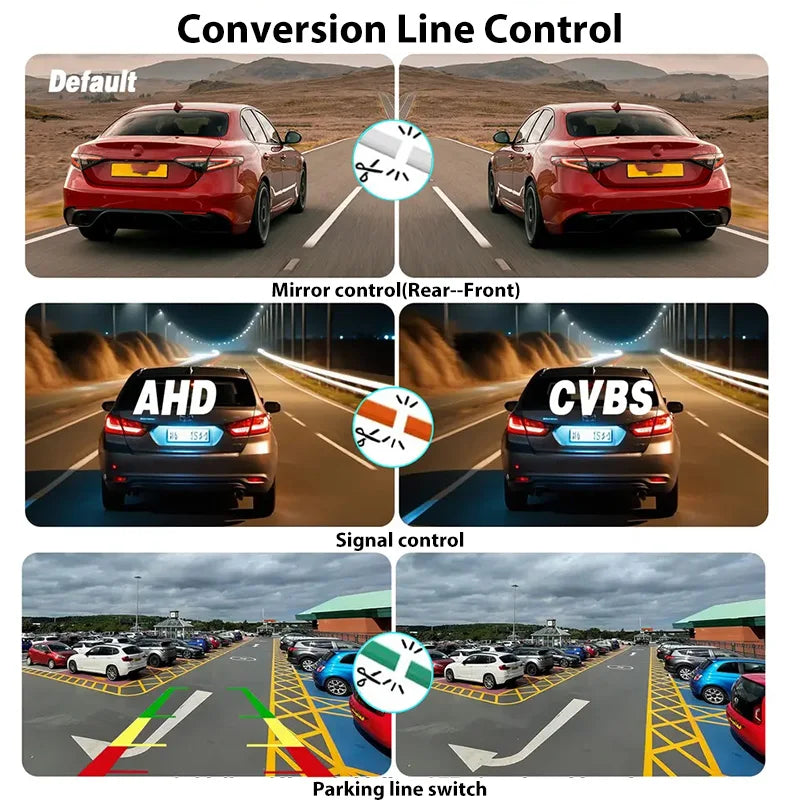

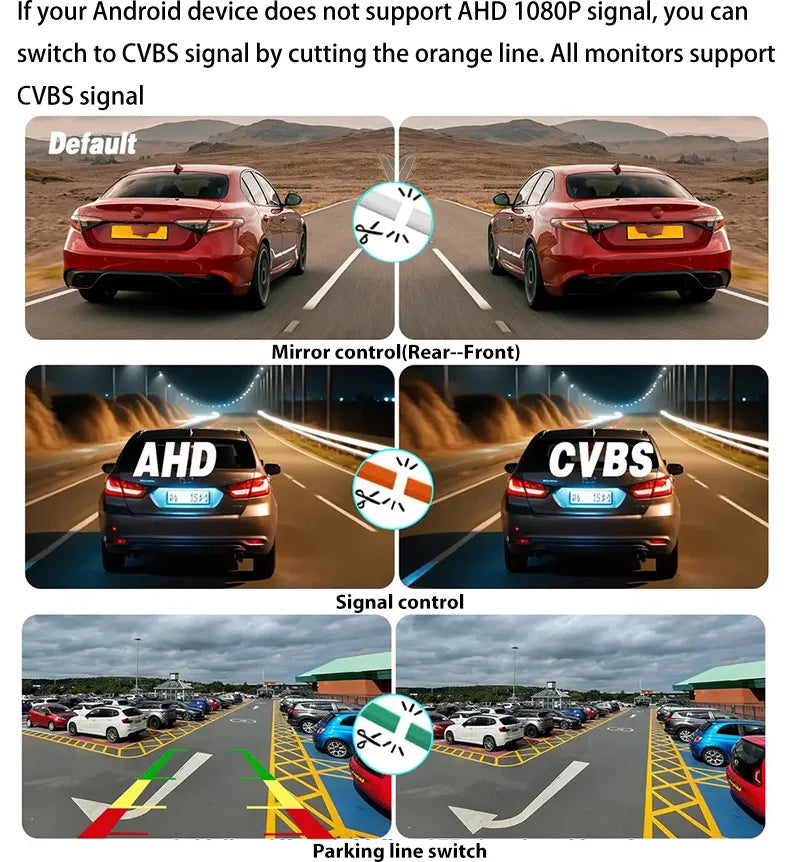

Functions Controlled by 3 Cables

Orange cable: AHD signal (default) — Cut the cable to switch to CVBS signal.

White cable: Mirror image (default) — Cut the cable to switch to front view mode.

Green cable: Parking Line ON (default) — Cut the cable to switch Parking Line OFF.

Note: CVBS camera uses NTSC standard, AHD 1080P camera uses PAL standard.

Example of Buyer's Questions

The camera display shows "No Signal," a black screen, or no image?

First, check whether your monitor supports the same signal type as the camera you purchased, and ensure all cables are properly connected.

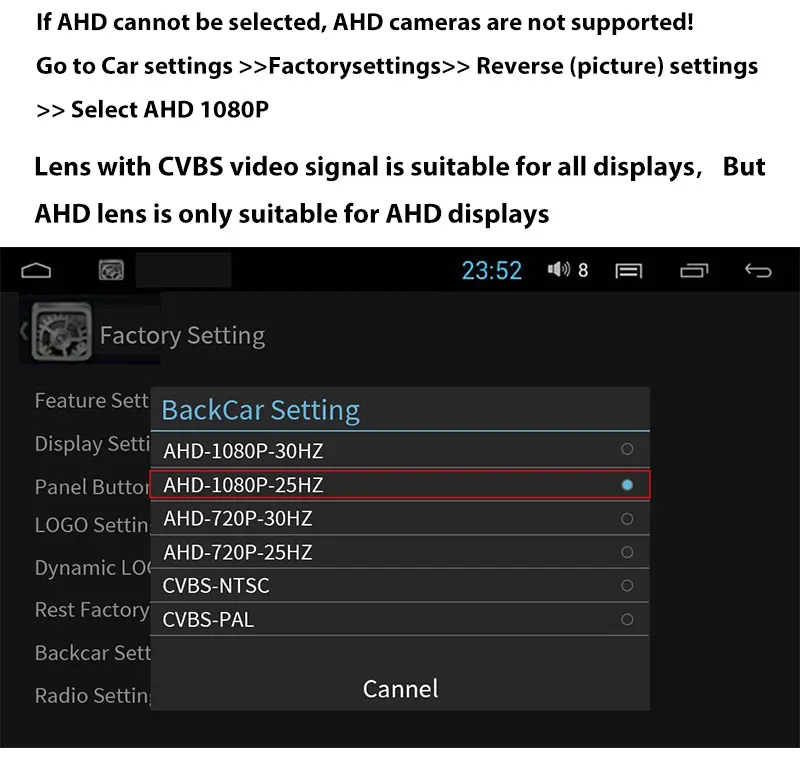

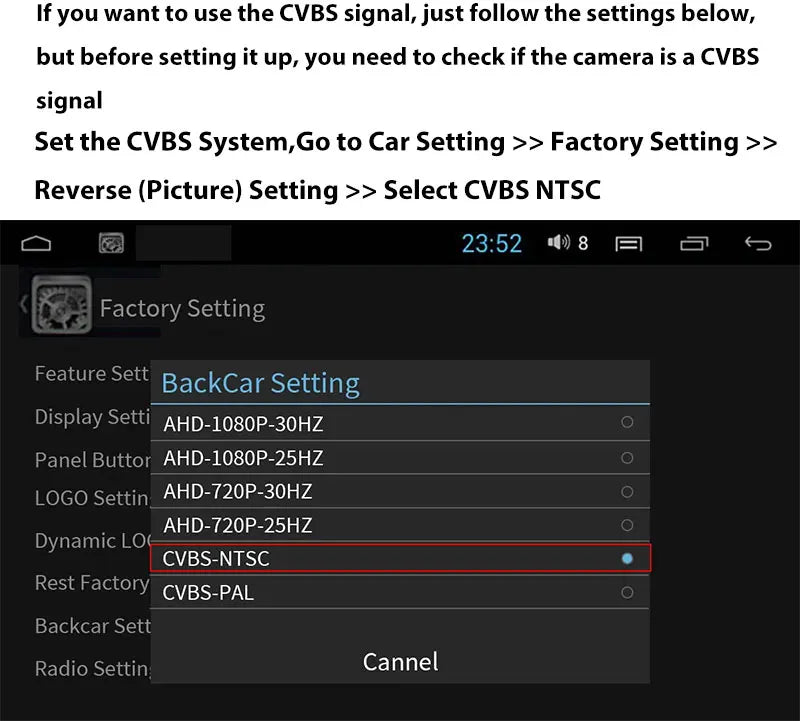

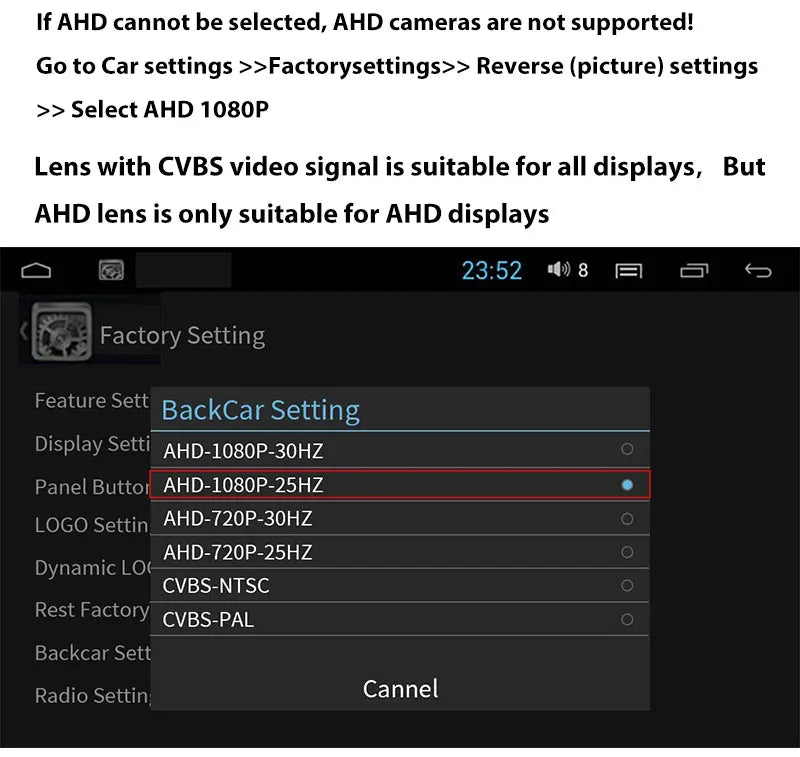

If the issue persists, open the Android media player, go to Settings, and locate the "Signal Format" or "System Mode" option. Make sure the signal format is correctly set to match what both your monitor and camera support.

(Android players generally have such an option, but the way to access it varies by device. If you cannot find it, you can contact your monitor seller for assistance.)

If you need to switch to 720P, you must cut the brown wire. After cutting, the camera will need to be re-powered.

Note: Cutting wires should be done carefully. Ensure the device is powered off before proceeding, and confirm this step is applicable to your specific model.
