220 V PTC Heater and Fan Assembly

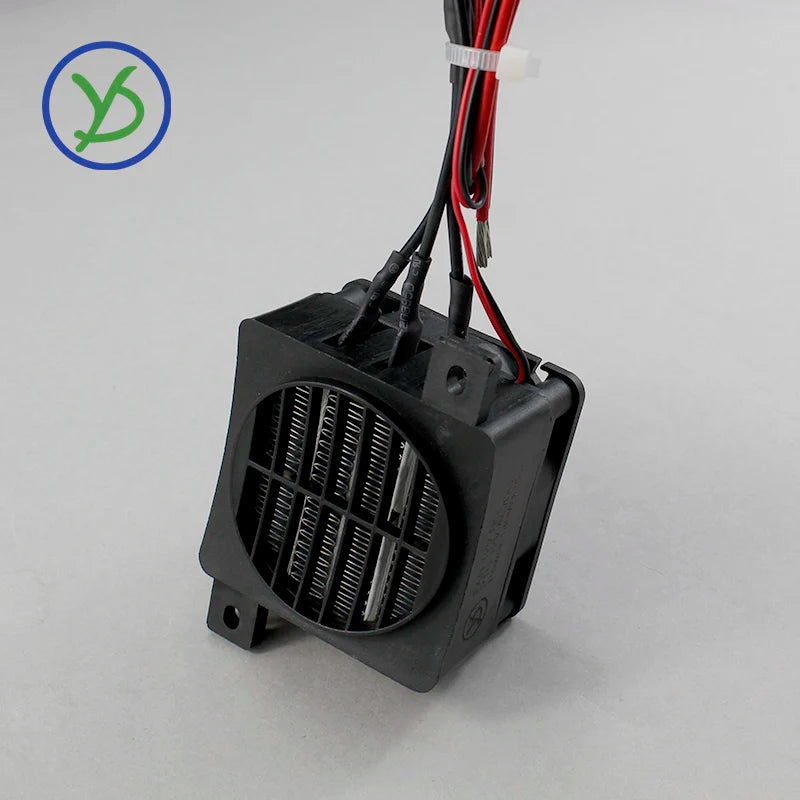

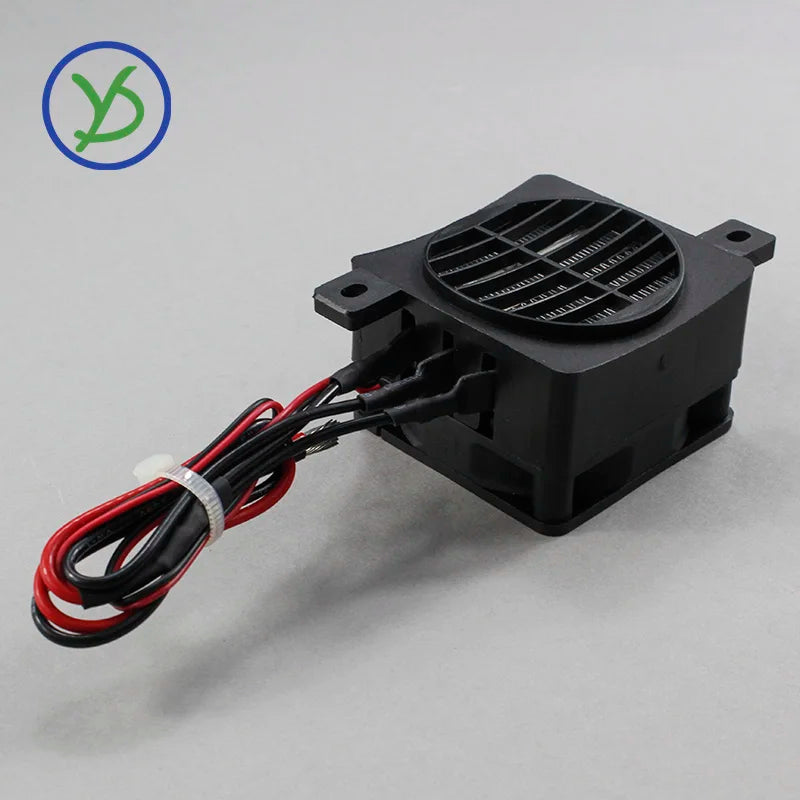

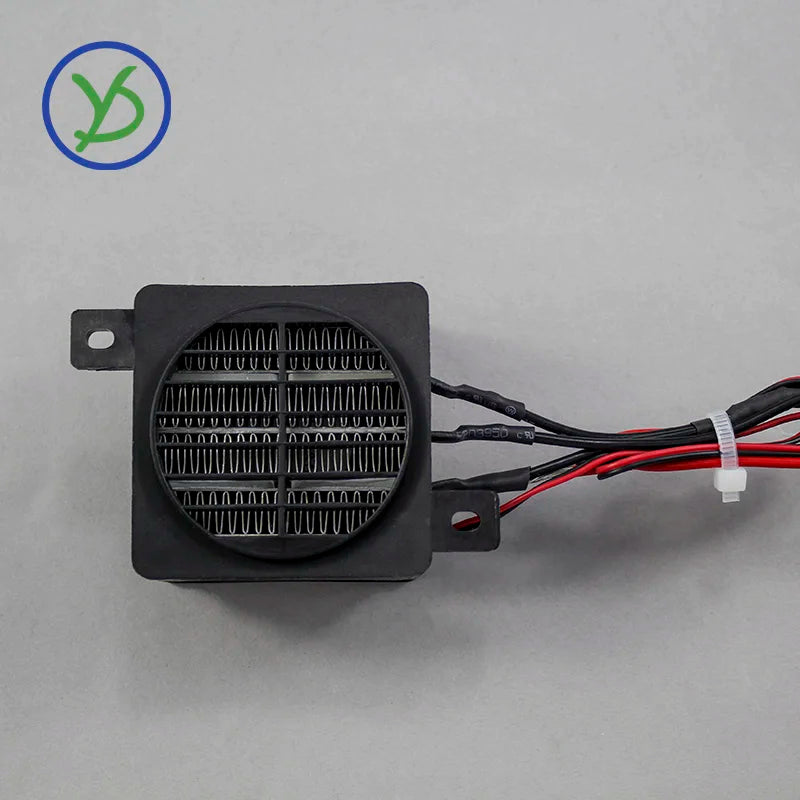

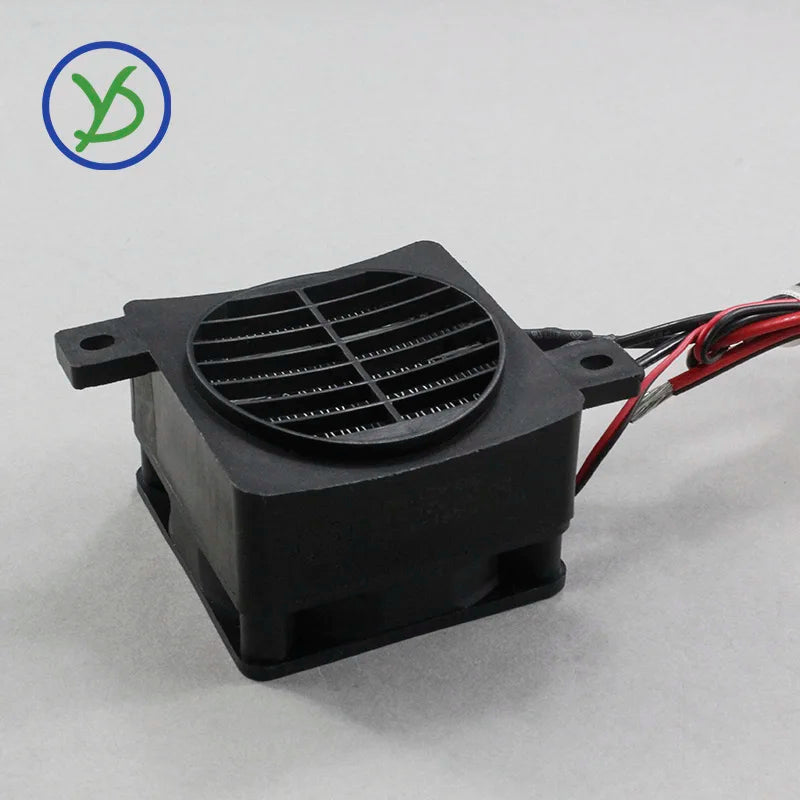

Add fan-assisted air heating to a properly designed equipment assembly. The MZ45-FJ400-220V combines a PTC heating element and fan in a compact component for integration inside a suitable system.

✅ Move air across the heating stage - The fan-assisted arrangement provides heated airflow as part of the equipment's designed air path.

✅ Plan the heating component into a compact layout - The small assembly can be positioned within a matching enclosure rather than adding a complete standalone heater.

Build the Heating Stage into the System

A heating component gives the equipment designer a starting point for arranging the airflow, mounting and temperature-control system. Plan the complete air path around the assembly rather than treating its nominal power as the only design requirement.

This is a 220V component, not a finished plug-in heater. The system needs suitable insulation, enclosure, wiring, thermal control and protection arranged by a competent person. Keep the actual operating load and cooling conditions within the delivered unit's specification.

Technical details

• Model: MZ45-FJ400-220V PTC heater/fan assembly
• 220V AC fan and heating input specification

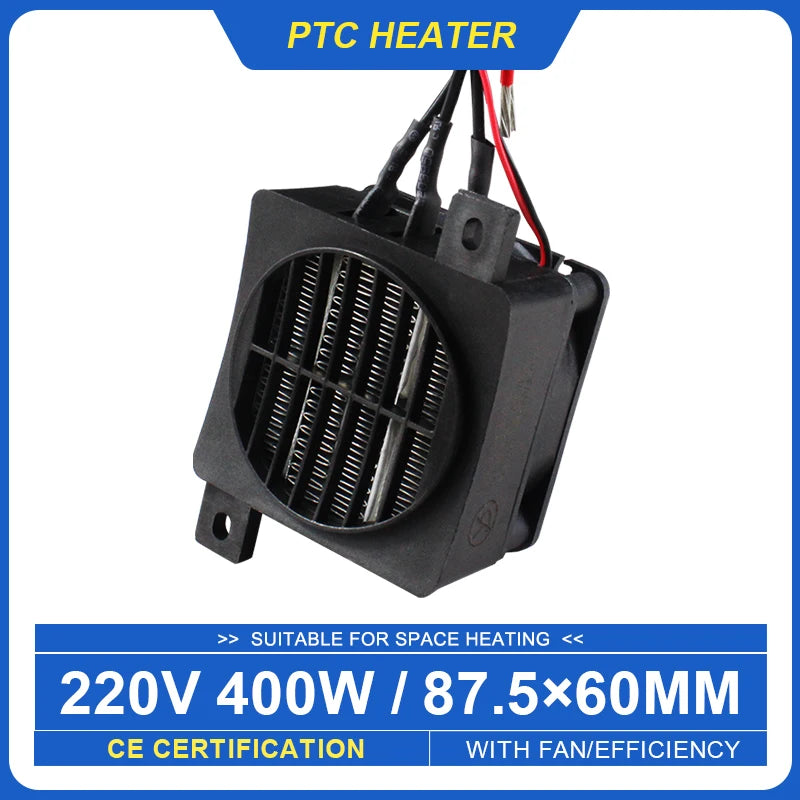

• Nominal 400W with stated +/-25% tolerance

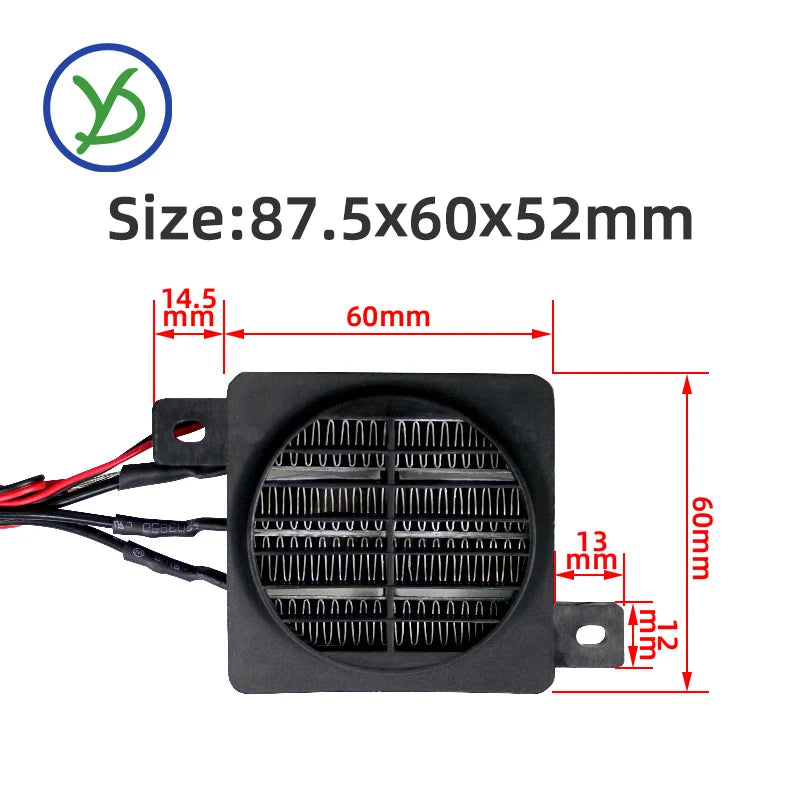

• Approx. 87.5 x 60 x 52mm; 4mm mounting holes
• Equipment component; complete enclosure and control system separately required

Plan the airflow and controls, then integrate the heating stage into a properly protected assembly.
