2-Position 3-Way DC Solenoid Valve for Water and Air

Coffee machines, water purifiers and small air lines often need a valve that opens on a DC signal and closes when the power stops. This two-position three-way valve comes in 6 V, 12 V and 24 V versions, handles water or air, and suits normally closed or normally open circuits. It suits small appliance repairs.

A small DC valve for switching water or air lines

✅ Matches your supply 6 V, 12 V and 24 V coils run from an adapter or controller you already have.

✅ Water or air, one valve the same body suits purifier lines and small air runs, so one spare covers both jobs.

✅ Replaces a valve in a coffee machine the low pressure range covers the small water lines inside purifiers and compact appliances.

✅ Pick the working mode normally closed or normally open operation, chosen to match how your controller switches the line.

✅ Built for repeated switching cycle tested beyond 50,000 open and close operations for dosing and refill routines.

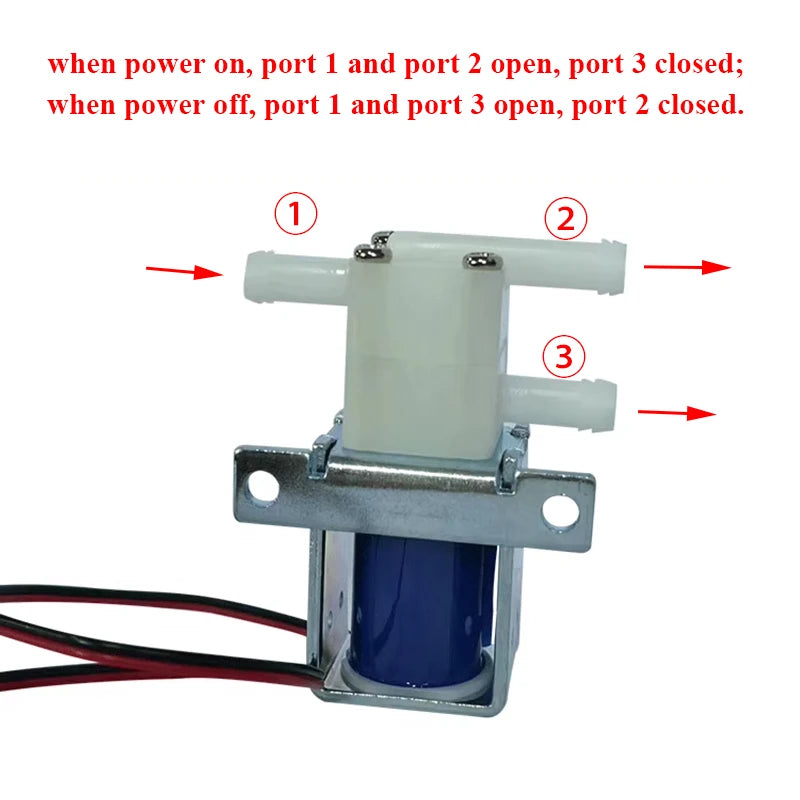

The port logic is simple. With power on, port 1 opens to port 2 and port 3 stays closed; with power off, port 1 opens to port 3 and port 2 closes. Plan your tubing around those two states before you order.

A common job is a water purifier or a coffee machine whose inlet valve has stopped switching. Read the coil voltage printed on the old part, then choose the 6 V, 12 V or 24 V version that matches it.

The package holds one mini valve. Tubing, push-fit connectors and a power supply are not part of it, so allow for those if this is a first build rather than a straight swap.

Keep the media to water or air and the temperature between 0 °C and 90 °C. The body is stainless steel, the coil draws under 6 W, and the valve carries a CE mark.

Technical details

• Model: 0640GB
• Type: 2-position, 3-way

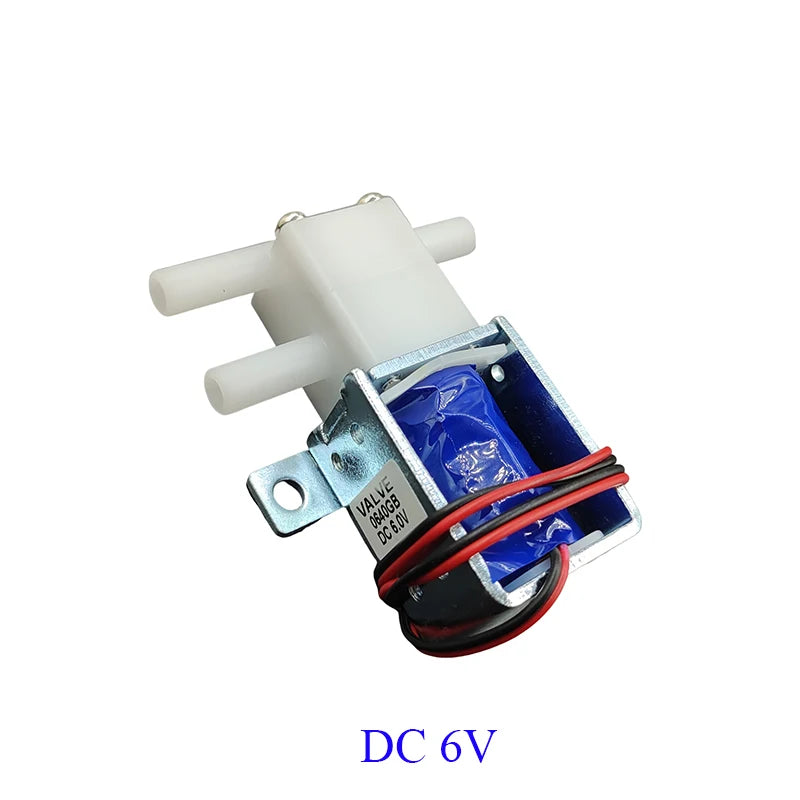

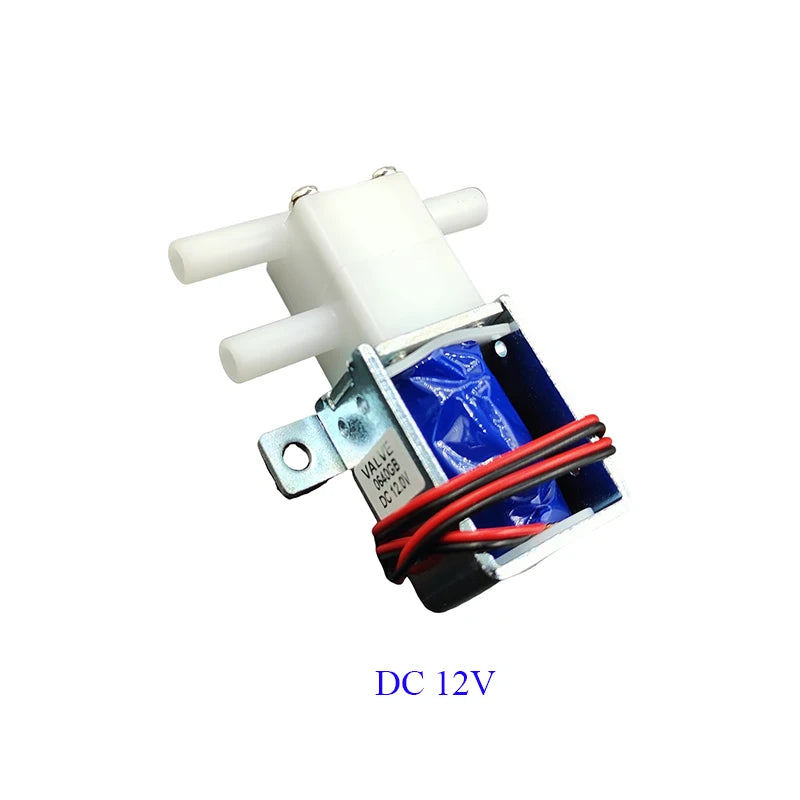

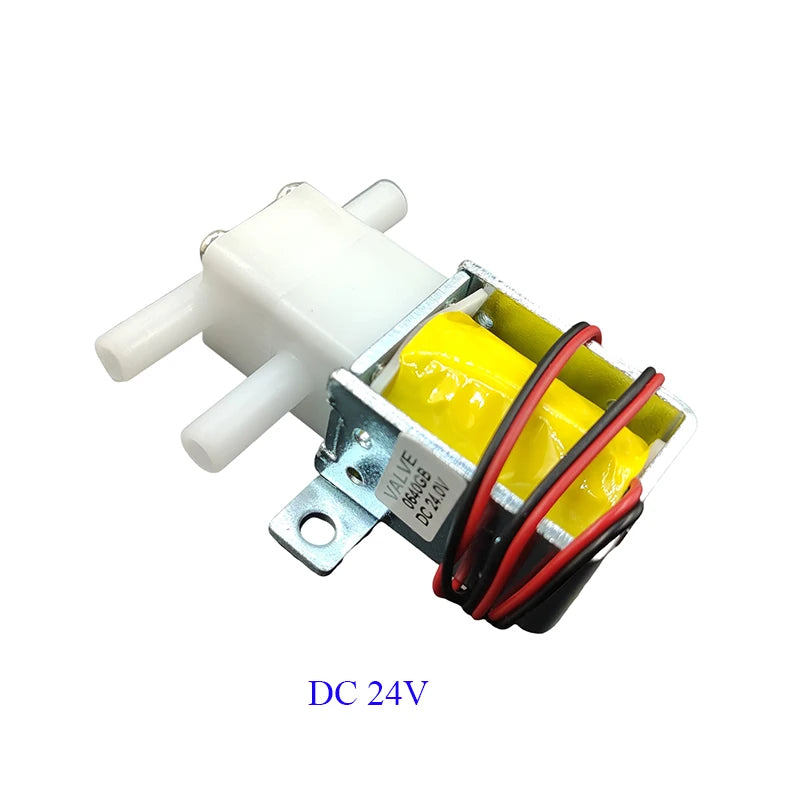

• Rated voltage: DC 6 V, 12 V or 24 V, one per variant
• Rated power: Below 6 W
• Pressure range: 0-300 kPa
• Media: Water or air
• Operating temperature: 0 °C to 90 °C
• Working mode: Normally closed and normally open
• Service life: Tested beyond 50,000 cycles
• Package contents: 1 × mini solenoid valve

Check the voltage and the normally open or closed mode on your machine, then order the matching valve.
