LK1002 Cabinet Cam Lock with Cap & 2 Keys, A or B
Replace a matching cabinet or enclosure cam lock while keeping the front profile compact. The LK1002 has a hinged cap and two keys, with tubular-key and cross-key options. It is for users checking the cut-out, cam reach and panel fit against the dimension diagram.
- ✅ Fit a matching enclosure opening — The threaded cam-lock body mounts through a prepared panel.
- ✅ Keep a spare access key separately — Two matching keys are supplied with the selected lock.
- ✅ Cover the key opening when not in use — A hinged front cap sits over the keyway.
- ✅ Choose the key format you need — Option A uses tubular keys; option B uses cross keys.
- ✅ Operate without electrical wiring — A mechanical rotating cam holds the closure.
Match the cut-out and cam before ordering
Option A is pictured with a tubular keyway and tubular keys. Option B uses a cross-shaped keyway and cross keys. Select one type; the package does not contain both lock styles. Do not assume existing keys will operate a replacement lock.
The illustrated front diameter is 31 mm and the cut-out diagram shows a 20.5 mm circular section with locating features extending to 23.7 mm. The cam is 16 mm wide with a stated 52 mm reach in the drawing. Confirm panel thickness, cam offset, rotation and engagement at the installation.
One selected lock and two keys are supplied. The stated material is zinc alloy with a chrome finish. The cap is not proof of a weatherproof seal, and no independent security certification is confirmed. Keyed-alike attributes do not establish matching keys across separate orders; confirm that arrangement before buying multiple locks.
Option A uses tubular keys; compare the cut-out diagram.
Option B uses cross keys with a different keyway.
Check body length, cut-out and cam geometry before fitting.

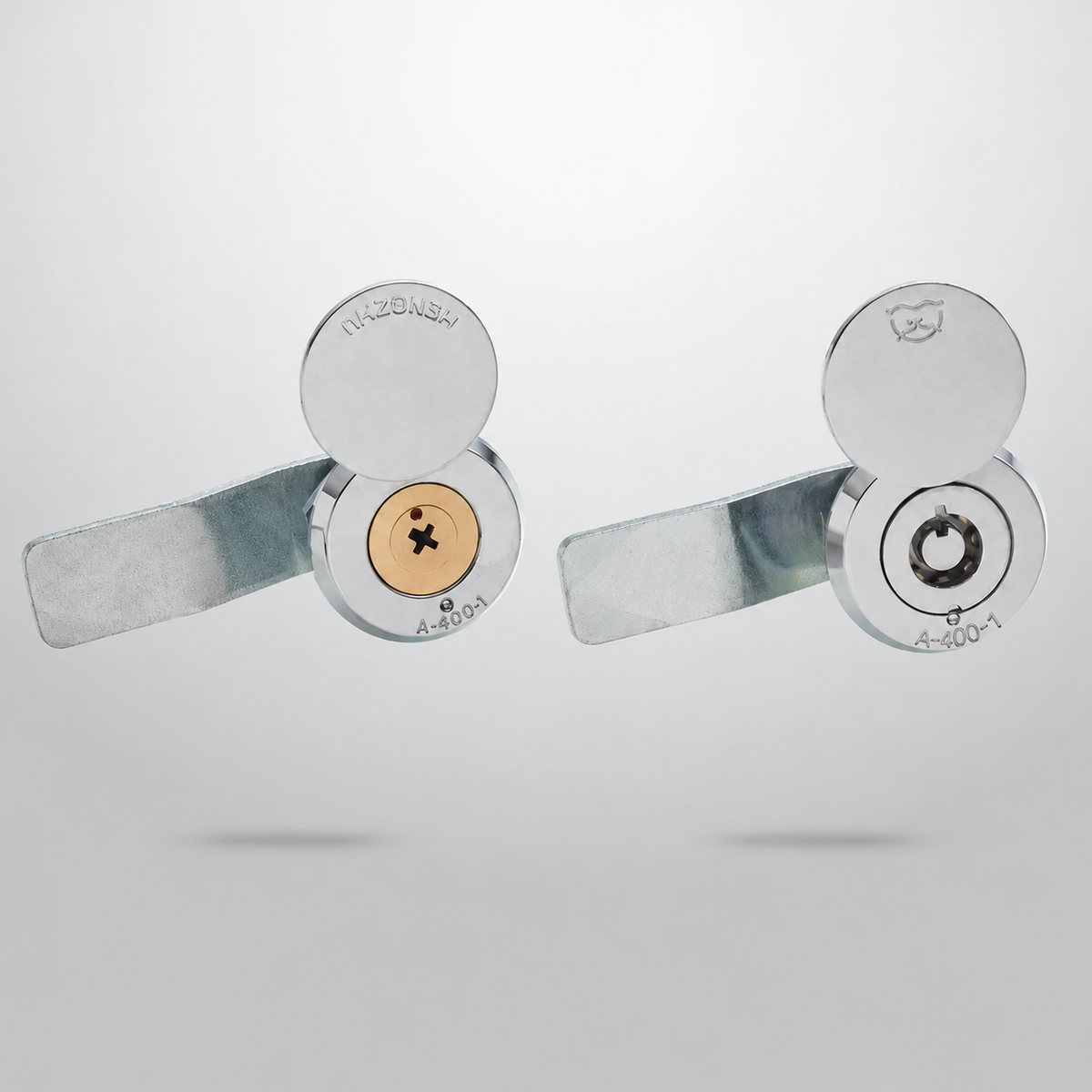

The front cap closes over the key opening.

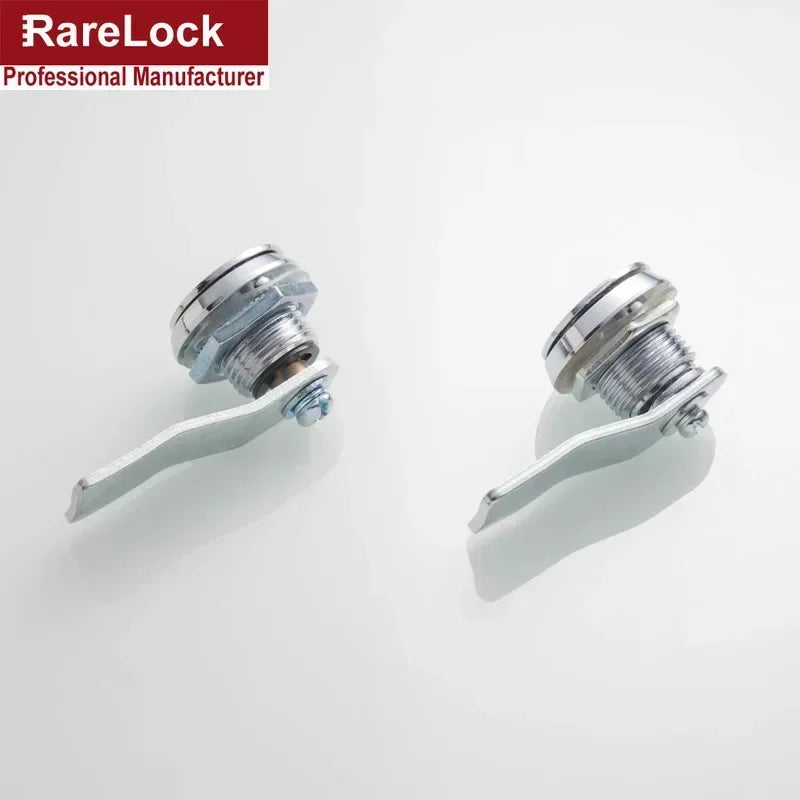

The threaded body fits a correctly prepared panel.
Choose one keyway style, not both.
Technical details
- Model: LK1002
- Type: capped cabinet cam lock
- Option A: tubular-key style
- Option B: cross-key style
- Material/finish stated: zinc alloy, chrome
- Front diameter illustrated: 31 mm
- Cut-out shown: 20.5 mm circle with locating features to 23.7 mm
- Cam drawing: 16 mm width, 52 mm stated reach
- Package: 1 selected lock and 2 keys
- Power: none required
Compare the complete fitting diagram and choose the keyway that suits your enclosure.
