IMX290 1080p 60fps HD-SDI Camera Module

This camera module gives you clear, high-definition imaging in tight spaces and challenging light, making it a strong fit for medical, industrial, and inspection systems.

Built around a 1/2.8 inch CMOS sensor, it captures 1080p video at up to 60fps with progressive scanning for smoother motion and sharper detail during live viewing and recording.

Why This Camera Module Works for Demanding Imaging Tasks

✅ Capture clearer detail in low light with 0.00001 Lux sensitivity.

✅ View smoother motion at full HD with 1080p at 60fps.

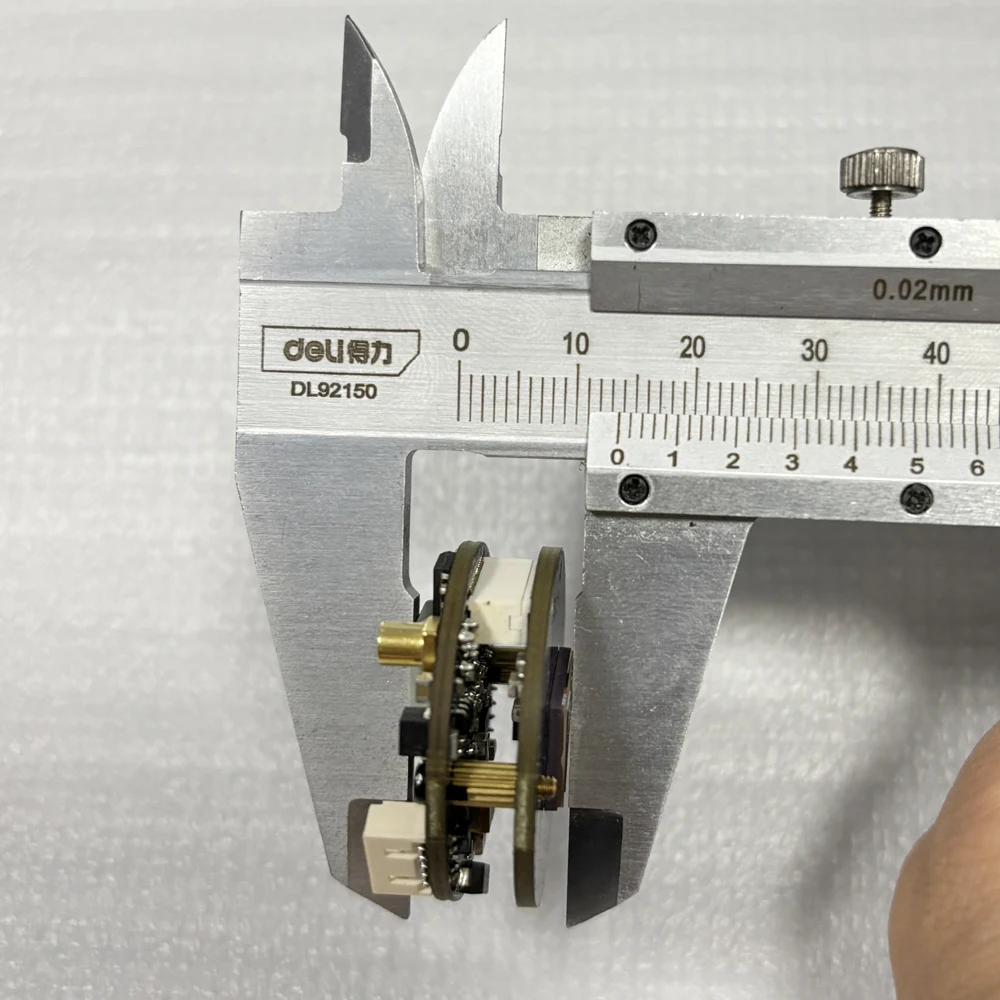

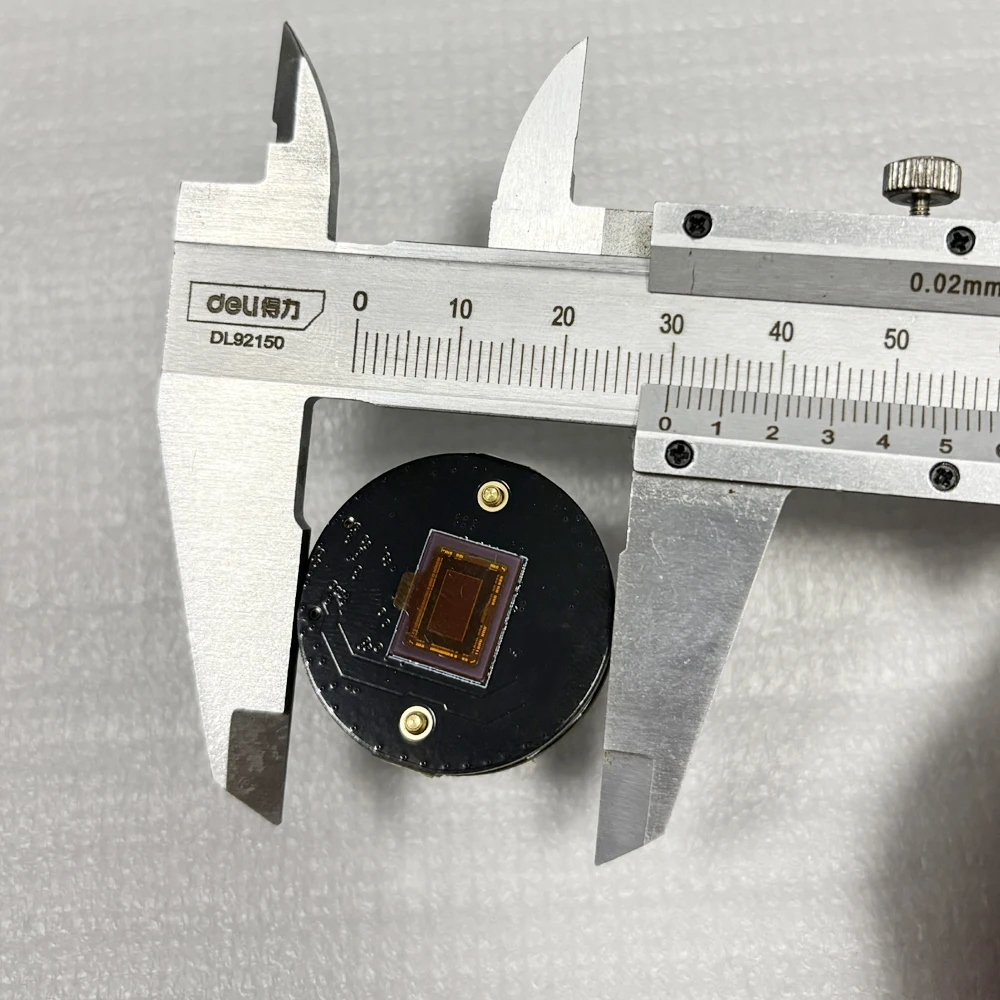

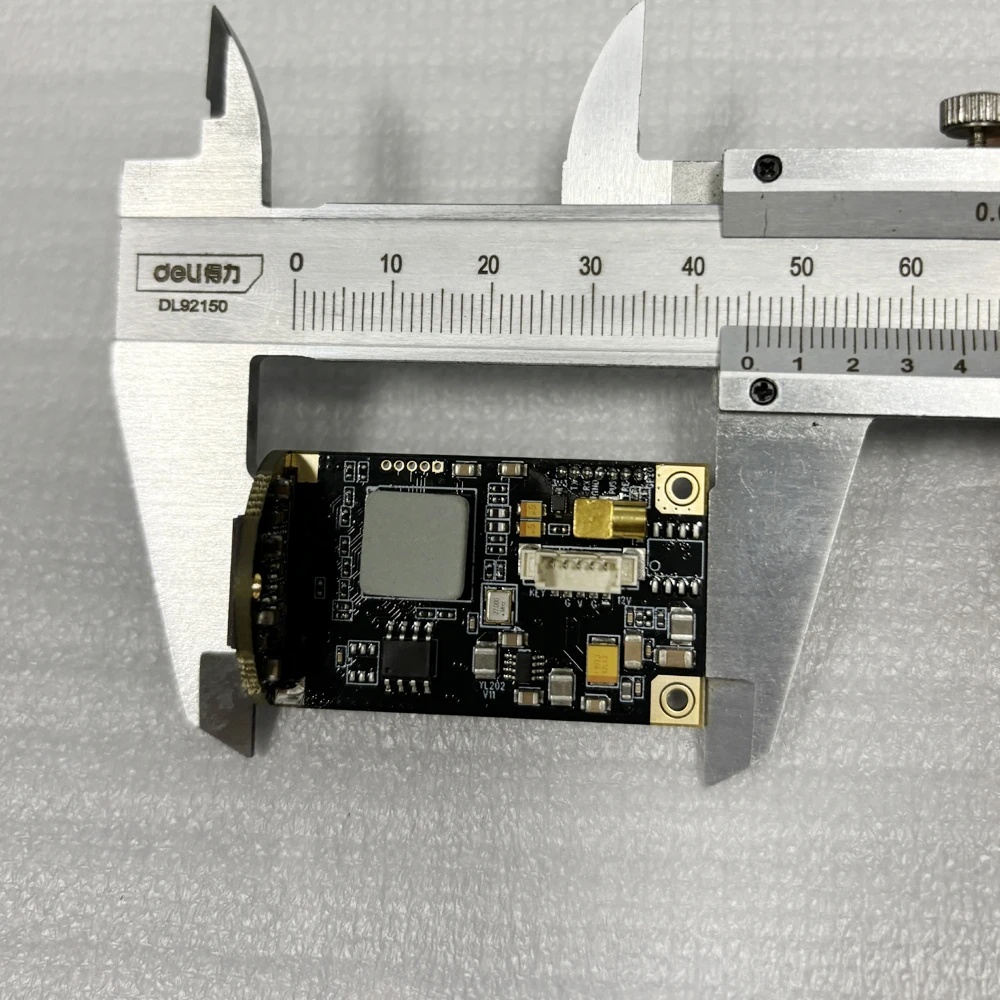

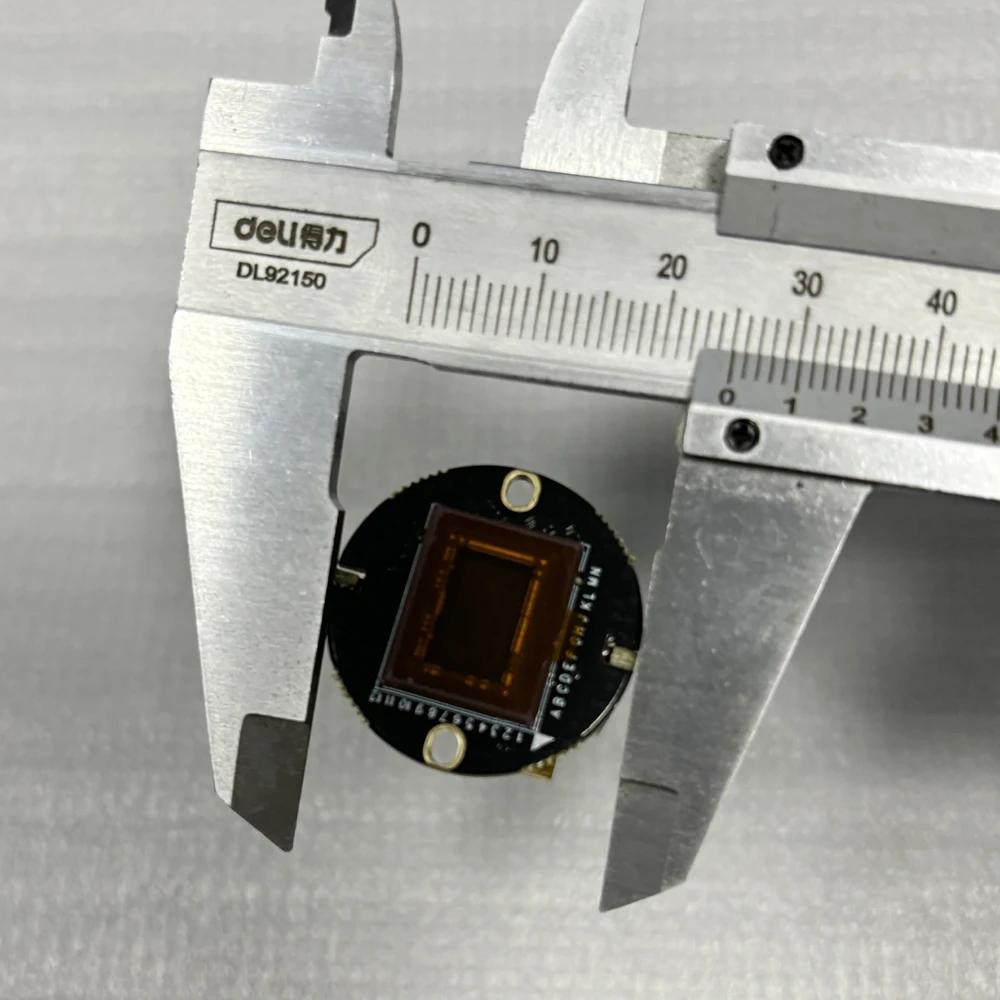

✅ Install it in compact equipment easily with the 30 x 30 mm size.

✅ Get flexible integration from EX-SDI, HD analog, and CVBS 960H outputs.

✅ See difficult scenes more clearly with 120dB WDR and BLC support.

✅ Reduce image noise in darker environments with 3DNR and DNR support.

✅ Operate reliably in harsh conditions with support down to -40°C.

For inspection and specialty imaging, the module also supports motion detection, privacy mask, picture freezing, one-button white balance, and digital zoom from 1.0X to 16.0X. EX-SDI transmission reaches 500 meters or more with BNC Cable 75-3, helping you place equipment where it works best.

With DC12V power input, low power consumption of less than 1.8W, and support for English and Chinese menus, it suits custom imaging builds that need dependable video output and practical control options.

Compact design fits space-limited imaging equipment.

Full HD output helps you inspect fine details.

Multiple outputs simplify system compatibility.

Low-light imaging improves visibility in darker scenes.

Progressive scanning delivers cleaner moving images.

WDR support helps balance bright and dark areas.

Digital zoom gives closer on-screen inspection.

Long-distance EX-SDI supports flexible installation layouts.

Technical layout shows the module's compact footprint.

Choose this camera module for compact, high-definition imaging performance.
