1080P 60fps EX-SDI Industrial Camera Module Board 25x42mm

This industrial camera module gives you sharp 1080P imaging at up to 60fps in a compact 25 x 42 mm board, making it easier to fit into custom inspection and detection systems.

Built for industrial inspection, underwater detection, and long-distance video transmission, it combines EX-SDI output with low-light sensitivity down to 0.00001Lux for clearer viewing where lighting is limited.

Why this industrial camera module works for your setup

✅ See finer inspection detail with 1080P progressive video at 60fps.

✅ Capture clearer images in dark conditions with 0.00001Lux low-light performance.

✅ Run video over longer distances with EX-SDI transmission up to 500 meters or above using BNC cable 75-3.

✅ Fit tight installations more easily thanks to the compact 25 x 42 mm board size.

✅ Handle high-contrast scenes better with WDR up to 120dB.

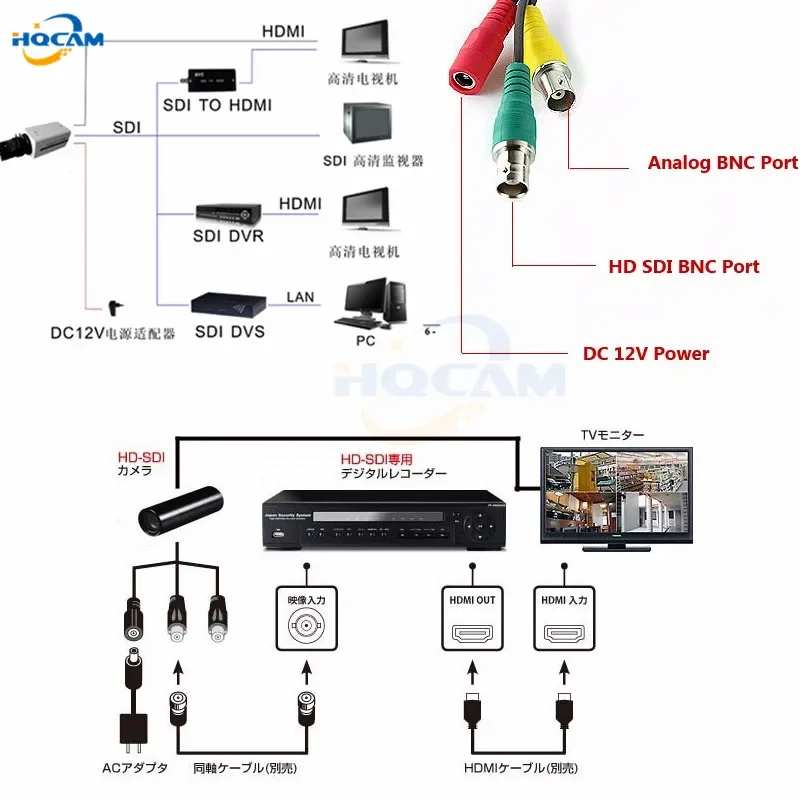

✅ Adapt the module to different systems with EX-SDI, HD-ADH, and CVBS output support.

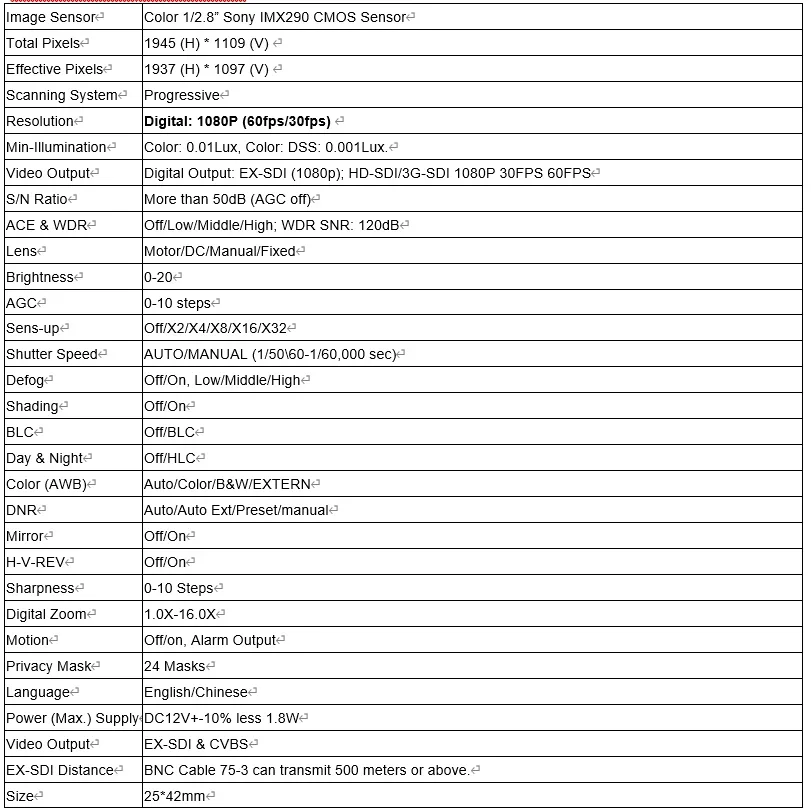

With IMX385 and IMX290 sensor options, a 1/2 inch sensor format, and approximately 2.38 MP effective pixels, this customized module is suited to low-light monitoring and custom camera integration. It also supports motion detection, OSD menu, privacy mask, DNR settings, and low temperature resistance.

Compact board design suits tight custom installations.

Multiple video outputs allow flexible system integration.

Choose this module for compact, long-range industrial imaging.
