LawMate HB-19 Handbag CCD Camera 700 TV Lines

The LawMate HB-19 handbag camera delivers discreet recording power with 700 TV Lines clarity. This covert camera blends easily into everyday settings for reliable surveillance.

LawMate HB-19 Handbag Camera – Benefits for You

✅ Capture clear evidence in varying lighting so you stay confident in day or low‑light situations.

✅ Blend effortlessly into public environments so your recording remains unnoticed.

✅ Enjoy a wide viewing angle so you cover more of the scene without frequent repositioning.

✅ Connect quickly to compatible DVRs so you don’t waste time with complex setup.

✅ Record continuous audio and video so you retain complete context during important operations.

✅ Rely on stable analog output so you experience smooth, dependable footage.

✅ Use the included accessories easily so your gear stays organized and ready for use.

Take your covert work to a more dependable level with a camera designed for smooth, discreet operation.

This handbag system integrates the performance of the popular BU‑19 camera into a ready‑to‑use bag that fits naturally into daily routines. Its lens captures detailed footage during both daylight and low‑illumination situations, which makes it valuable for private investigators, security professionals, and anyone requiring concealed monitoring.

The camera offers a 78‑degree field of view, giving you balanced coverage without distortion. Standard audio and video outputs allow easy pairing with external recording devices, making it a convenient tool for many surveillance setups.

It works seamlessly with the full PV series of surveillance DVRs, including models such as the PV‑1000 Touch5U, PV‑1000 Lite, PV‑500EVO2U, and PV‑500L4i. It can also integrate with wireless RF systems, offering flexible deployment options depending on your operational needs.

The HB‑19’s CCD sensor ensures strong color reproduction and reduced noise. Its low‑light sensitivity of 0.005 Lux helps maintain visibility when light conditions deteriorate, ensuring you don’t miss important details. Power efficiency also allows longer sessions when paired with a suitable DVR system.

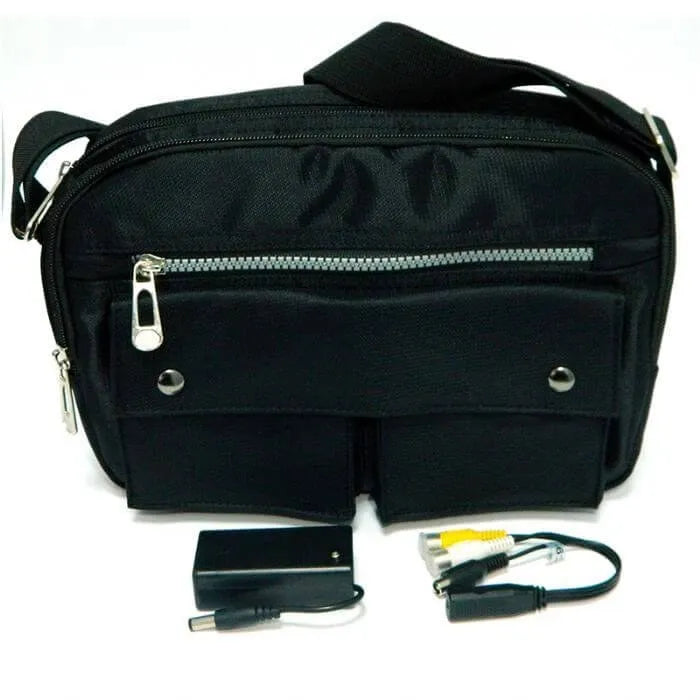

The included switching cable and battery holder allow smooth setup so you can get started quickly. The compact design of the sensor section helps maintain the natural appearance of the bag.

Technical Overview

The camera supports NTSC and PAL formats and uses a high‑quality 960H CCD sensor for its 700 TV Lines performance. It provides electronic shutter adjustment ranging from slow to extremely fast settings depending on the video standard. Audio capture is supported through an integrated microphone.

The composite video output uses a standard 75‑ohm interface, making it simple to connect to a wide range of AV devices. The unit operates on a 5V power supply and maintains steady performance with a typical current draw of 180 mA.

The system maintains compact dimensions and portable weight, making it comfortable to carry as a regular accessory while still functioning as a reliable surveillance tool.

How to Use the HB‑19

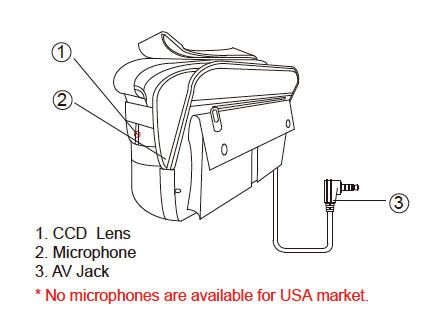

To set up, start by opening the handbag and accessing the AV output jack. Connect this jack to the CAM IN port on your chosen DVR. Inside the bag you will find a hidden compartment that can hold the DVR securely beneath a discreet inner layer.

If you need more detailed setup information, you can consult the included PDF guide, which explains advanced settings and configuration options.

The HB‑19 also benefits from a long operational lifespan, supported by thoughtful engineering and durable materials, making it suitable for frequent field use.

Enhance your surveillance toolkit with a concealed camera built for clarity, reliability, and professional covert work.
