Adjustable Woodworking Angle Guide, 45°, 90° or 180° Options
Set a reference angle while positioning boards for an assembly. This adjustable woodworking angle guide uses a marked scale, raised edges and a locking handle for suitable workpieces. It is for woodworking projects where you need to compare or hold an angle before fastening.
- ✅ Position boards to a chosen angle — Raised reference edges sit against suitable workpiece faces.
- ✅ Keep the setting while arranging the joint — A locking handle secures the adjusted guide.
- ✅ Read the angle during setup — A graduated scale marks the available adjustment range.
- ✅ Choose a guide for the joint — Three range options cover different acute and open angles.
Choose the adjustment range your assembly needs
The 45 degree option is illustrated for 22.5°–45°, the 90 degree option for 45°–90°, and the 180 degree option for 90°–180°. These are separate guides; no single option covers the complete combined range.
Place the guide against the workpieces, adjust it to the required mark and tighten the handle. Separate clamps in the photographs hold the boards against the guide; they are not included and the guide is not a replacement for secure workholding.
One selected guide is supplied. Timber, bench clamps and other tools are excluded. Check the joint with an appropriate reference before final assembly; no measurement-accuracy tolerance is stated.

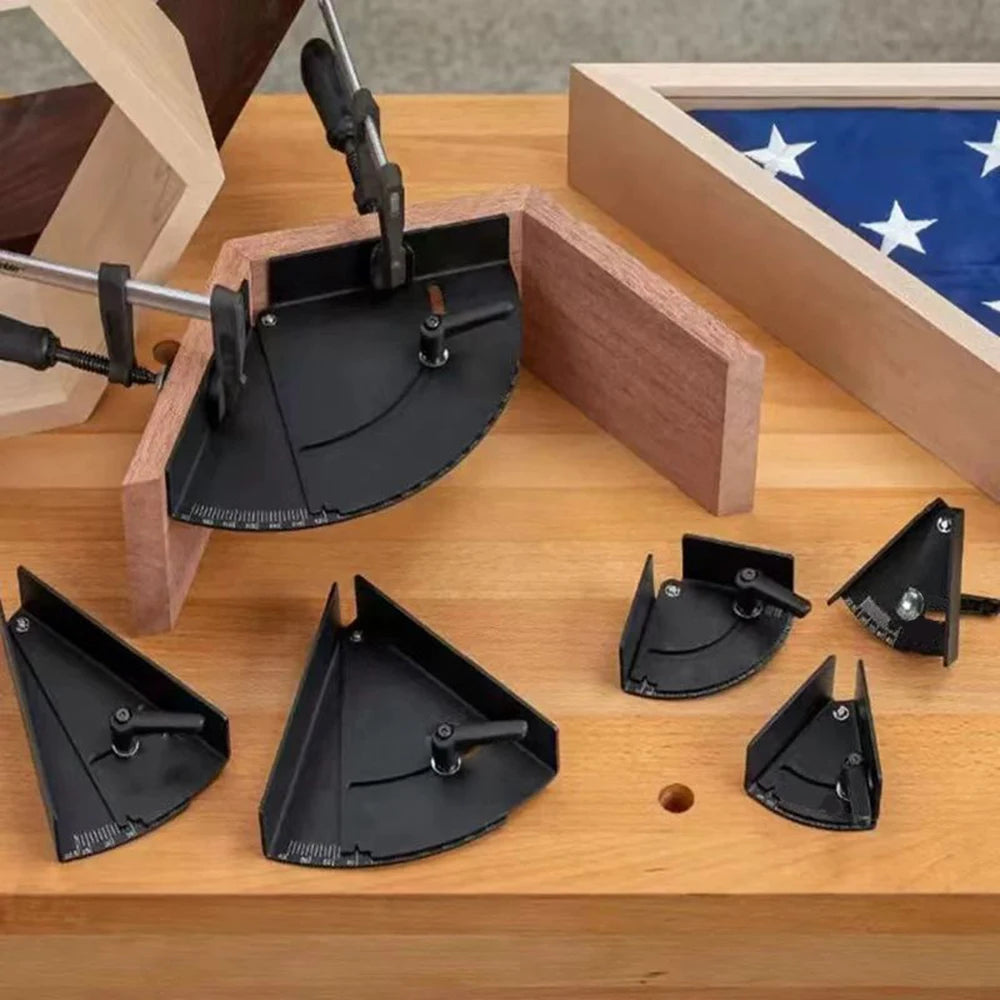

The pictured guides are separate options; clamps and timber are excluded.
Each option covers its own adjustment range.

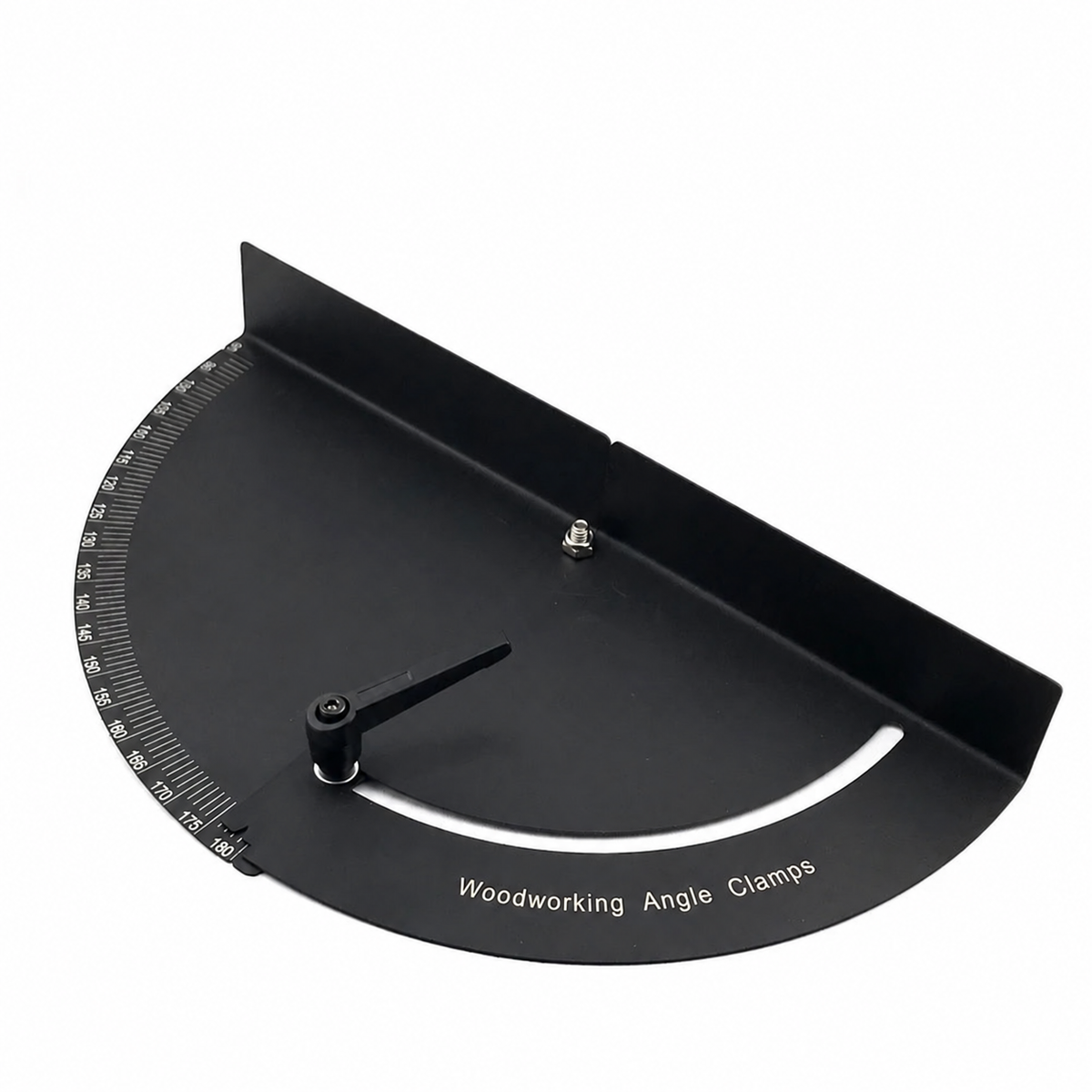

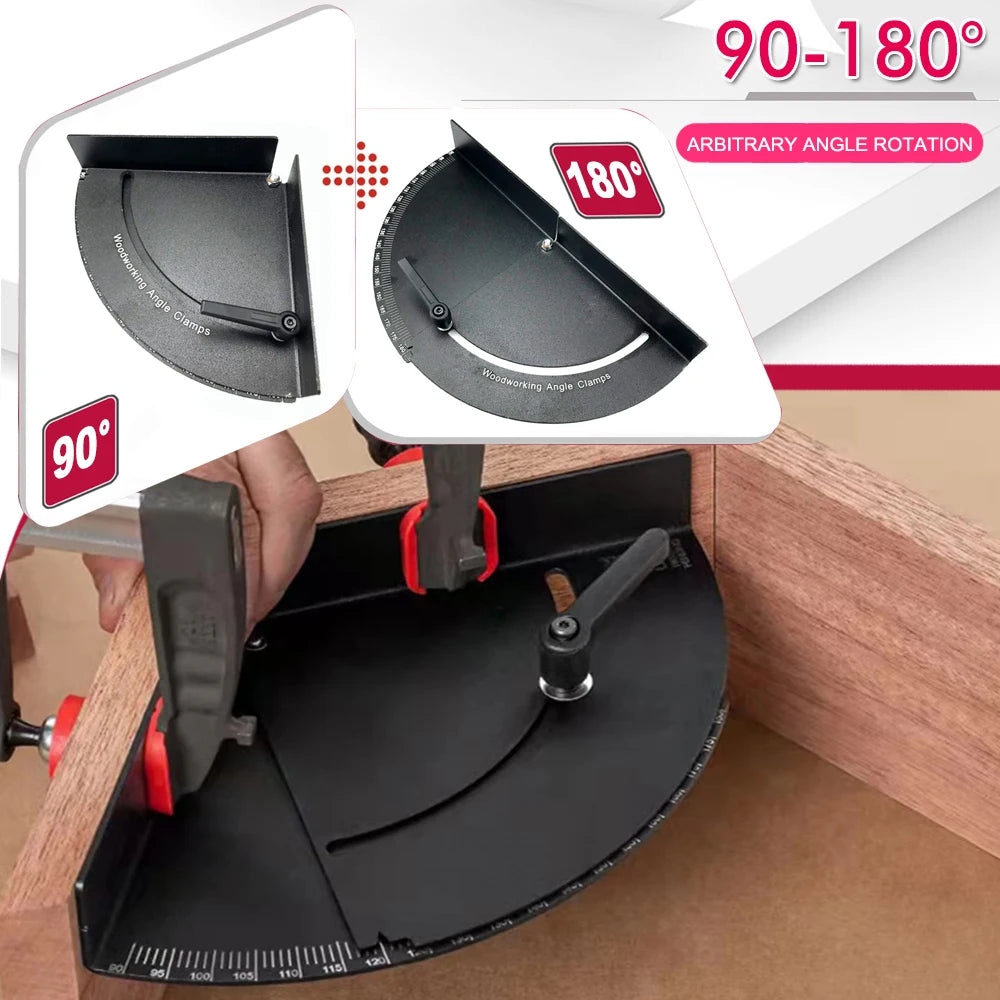

The 180 degree version covers the illustrated open-angle range.

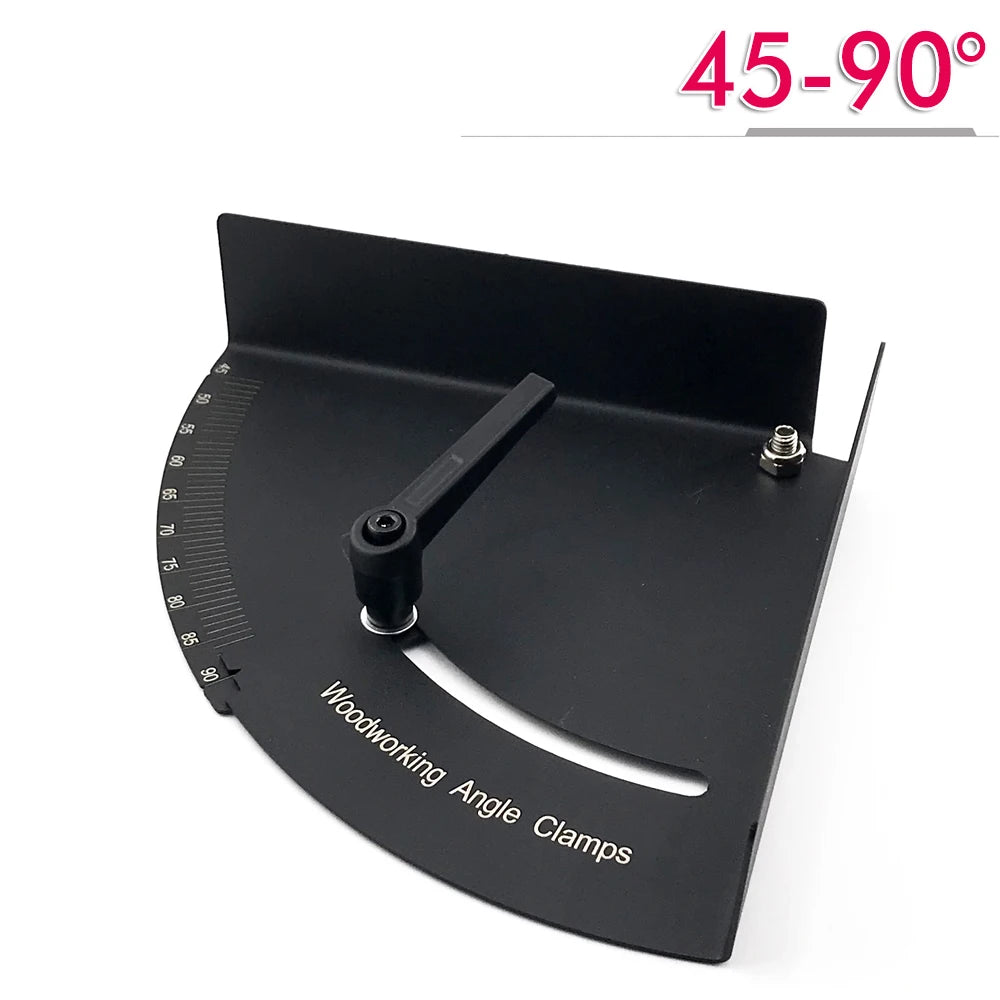

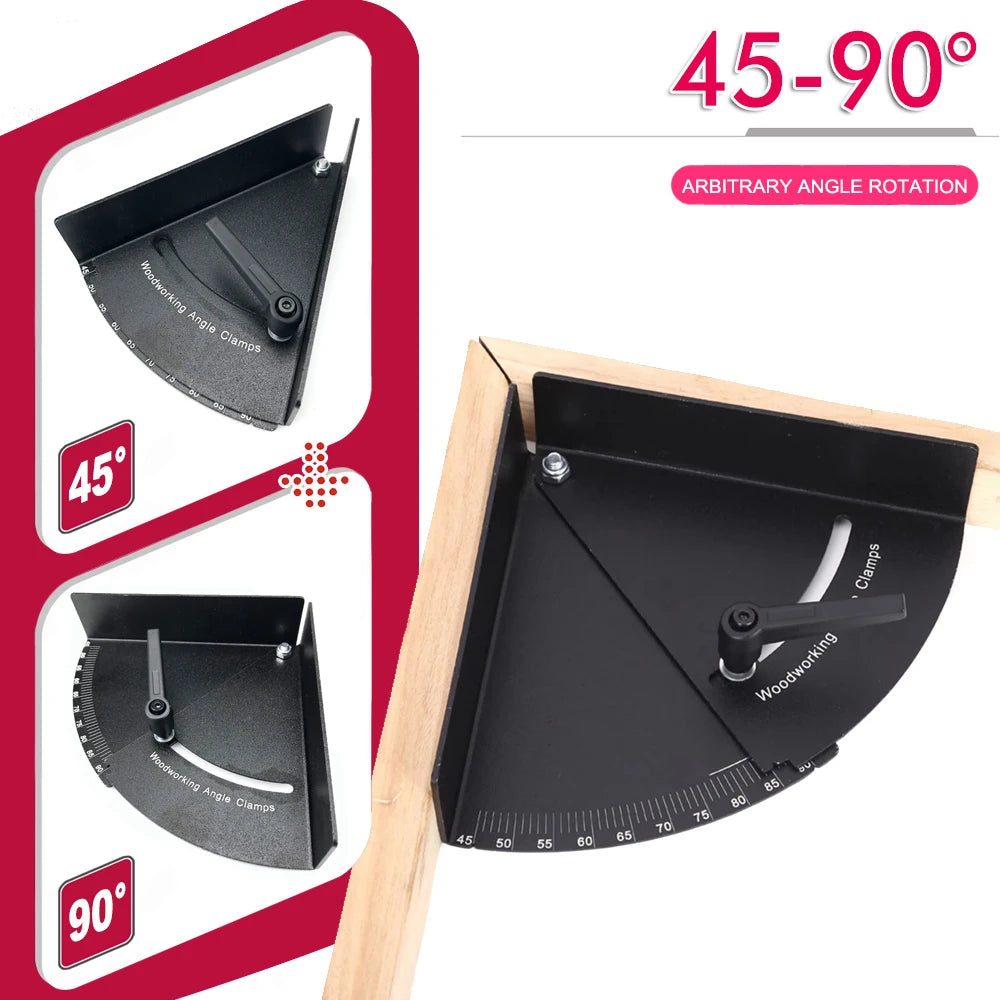

The 90 degree version covers the illustrated middle range.

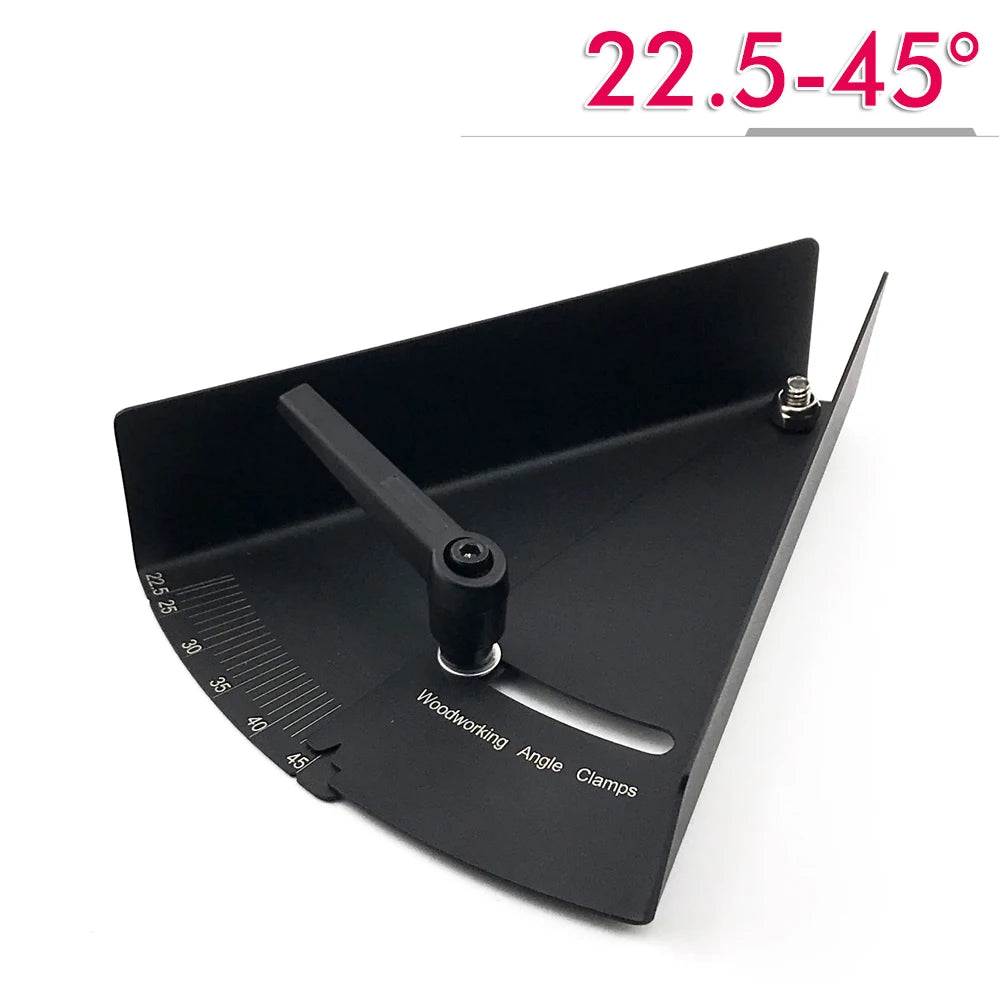

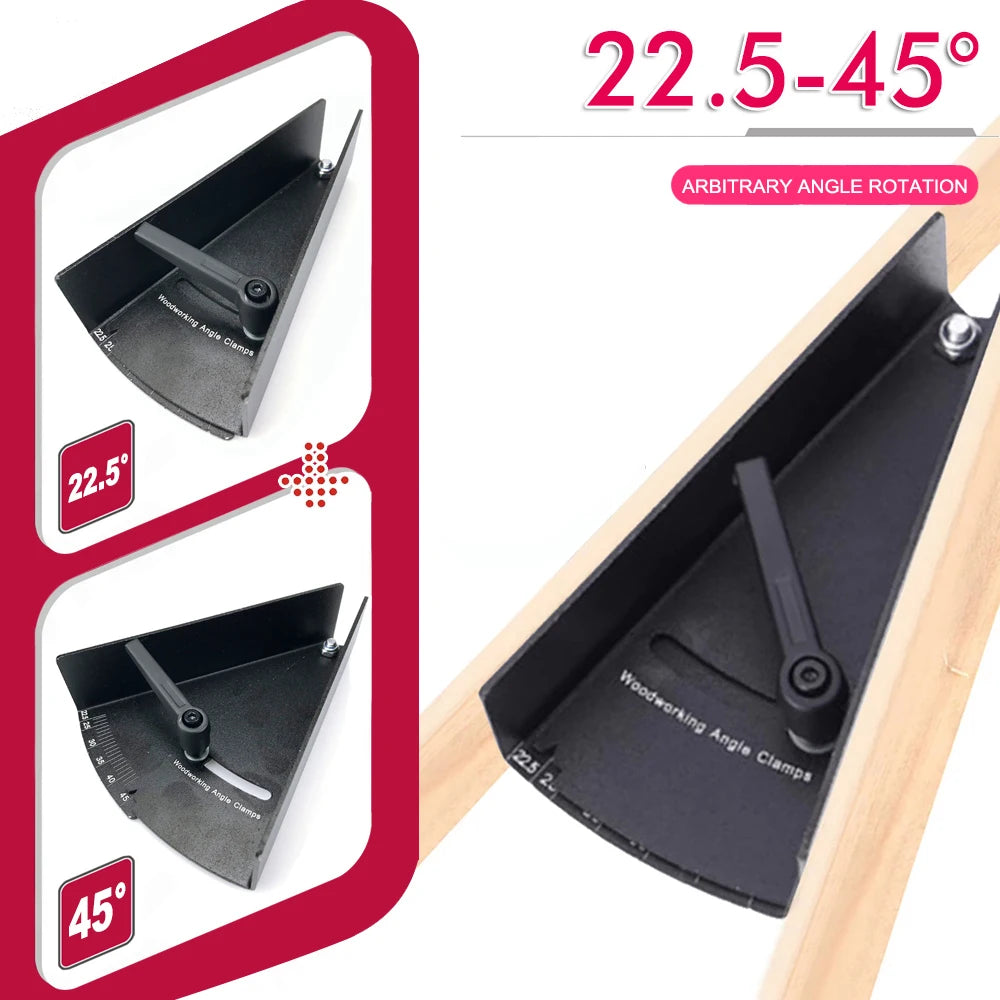

The 45 degree version covers the illustrated acute range.
The body has a black finished surface.
Graduations provide a visible angle reference.
Tighten the handle after selecting the angle.

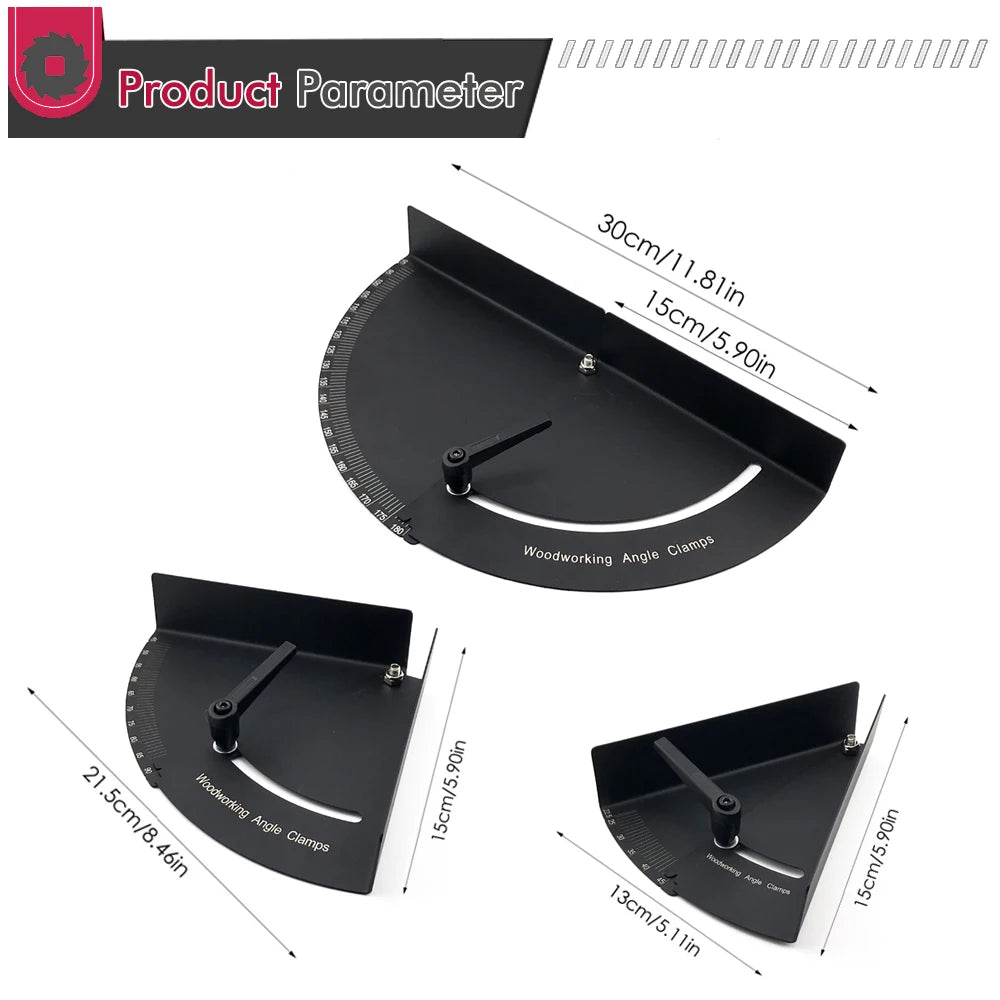

Compare the chosen format with the space around your assembly.
Technical details
- Product: adjustable woodworking angle guide
- Finish: black
- 45 degree option range: 22.5°–45°, illustrated
- 90 degree option range: 45°–90°, illustrated
- 180 degree option range: 90°–180°, illustrated
- Adjustment: pivoting plates and locking handle
- Reference: marked angular scale
- Package: 1 selected guide; bench clamps, timber and tools excluded
Choose the range for your joint and set a visible angle reference before fastening the assembly.
