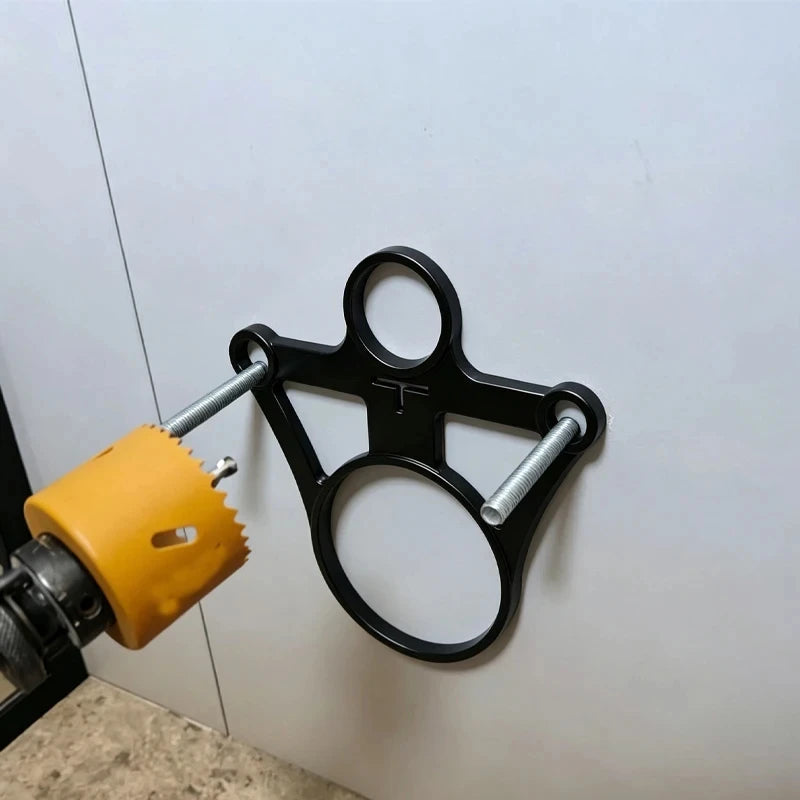

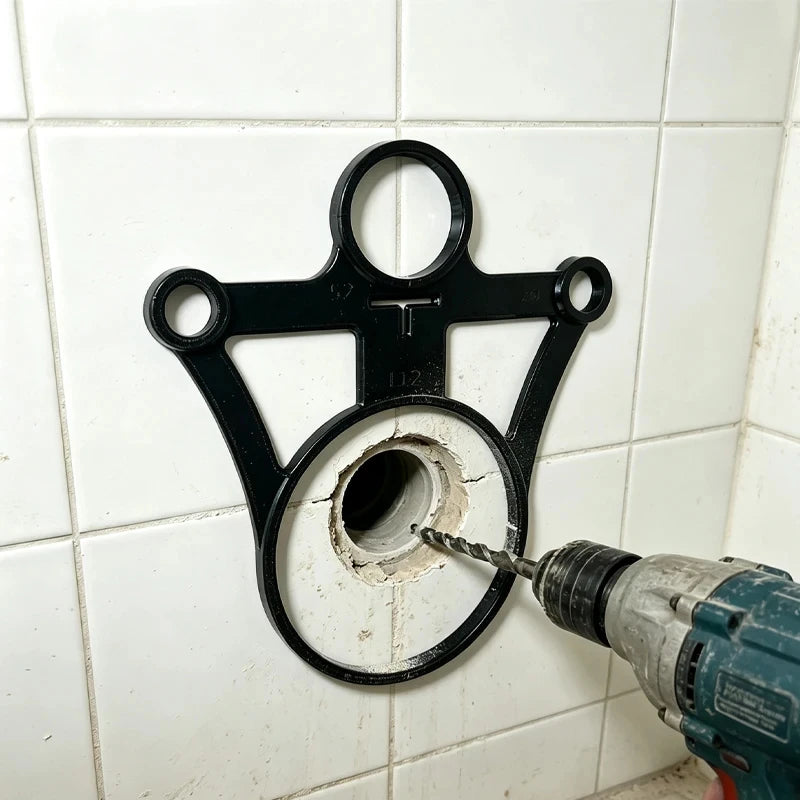

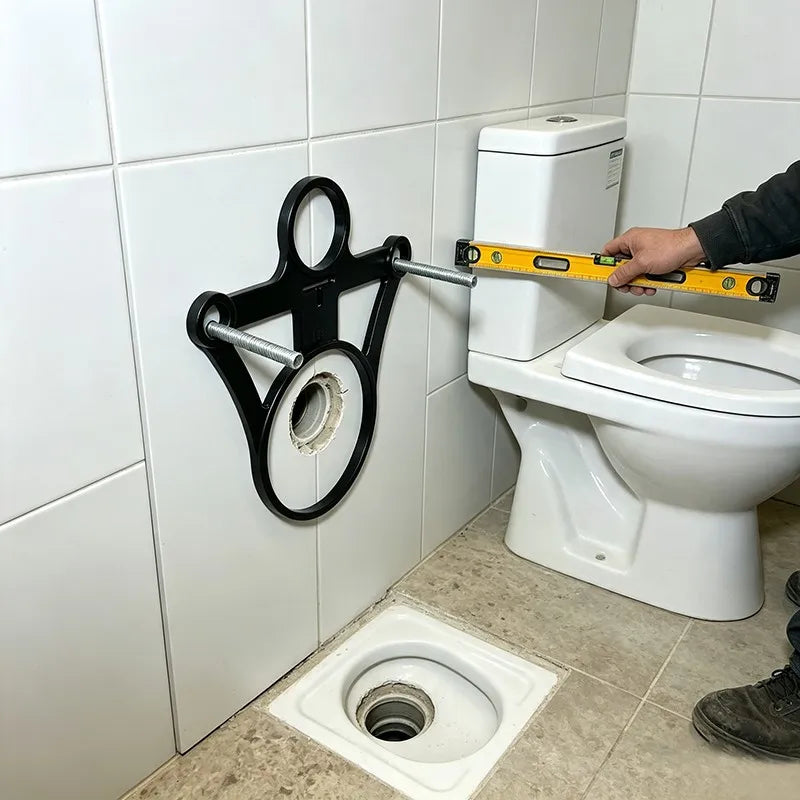

Wall-Hung Toilet Pipe Positioning Template

Transfer a compatible toilet-pipe layout before drilling. This lightweight template provides a physical guide for marking a wall-hung WC installation.

✅ Keep the layout together - The template places the relevant marking positions on one tool.

✅ Check before making holes - A dry positioning step helps compare the planned openings.

✅ Choose a visible tool colour - Black and orange options suit different work preferences.

Use the Fixture's Actual Dimensions

Match the template openings and spacing with the specific toilet and concealed frame. Confirm pipe positions and final wall depth before transferring marks.

The 3D-printed plastic template is an installation aid rather than a universal guarantee of fit. Check the final measurements independently before drilling tile or wall material.

Technical details

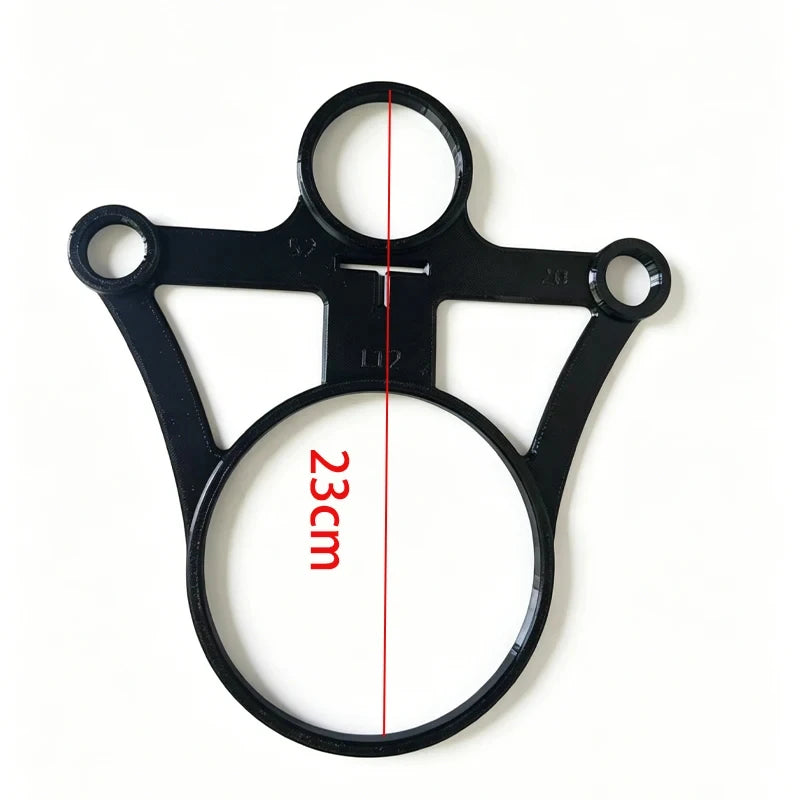

• Pipe-positioning template
• For compatible wall-hung WC layouts

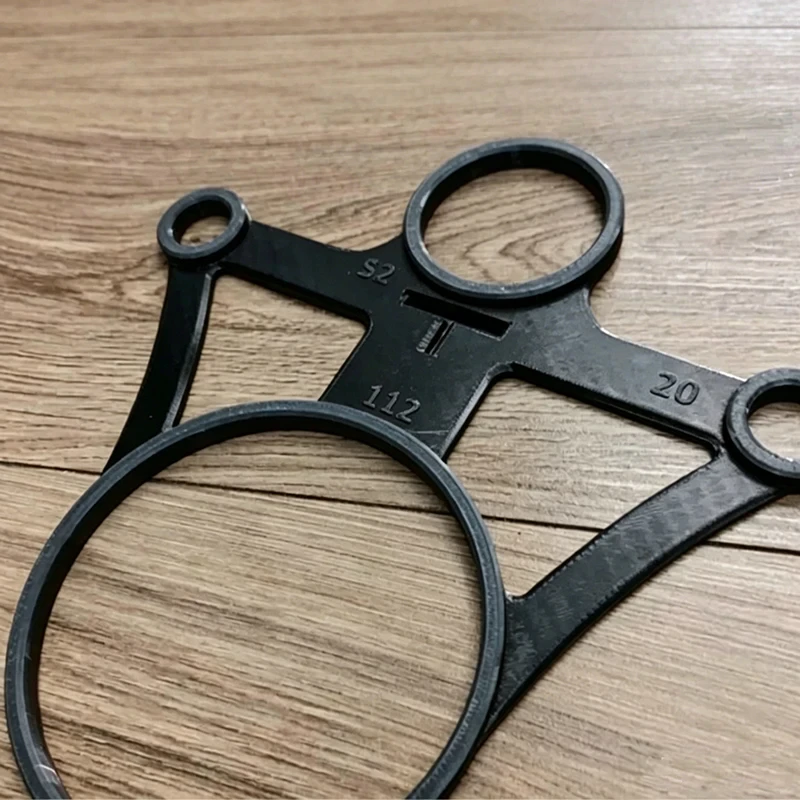

• 3D-printed plastic
• Model: A10724

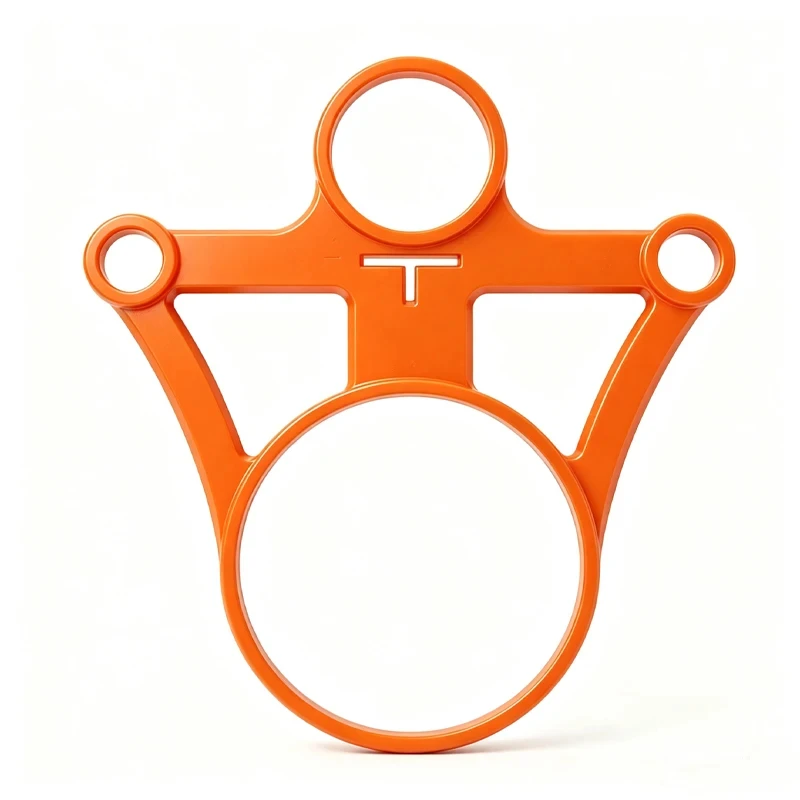

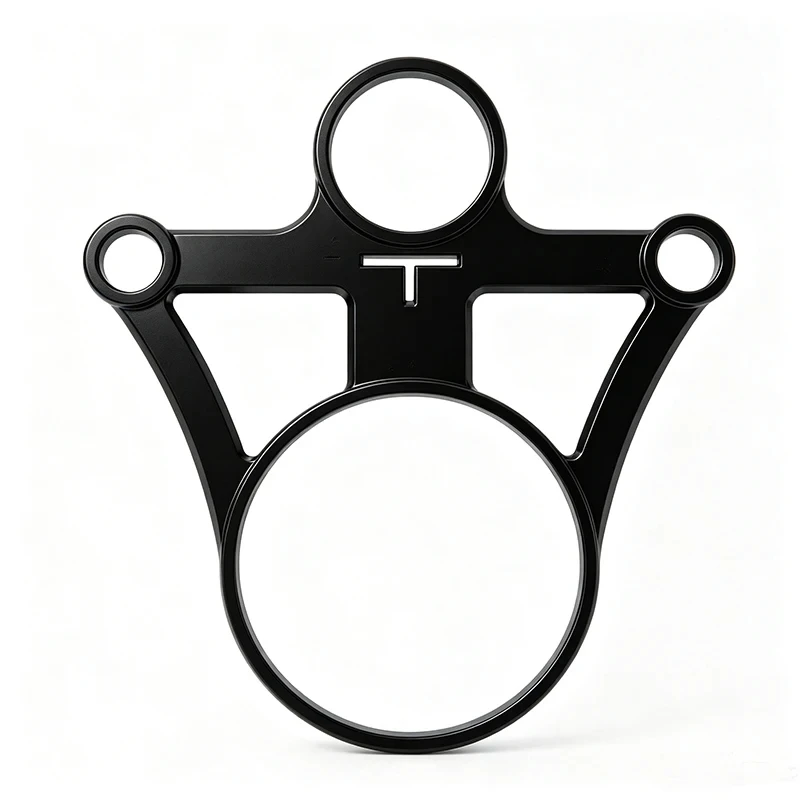

• Black / orange

Keep a matched layout guide ready for your bathroom installation.
