5-Mode Wall Scanner with LCD, Orange or Black
Gather another indication while planning a fixing on suitable plasterboard or timber-lined walls. This handheld scanner offers stud, metal and live-AC modes with an LCD and sound prompts. It is for home-improvement users who will verify the wall construction and services separately before drilling.
- ✅ Compare a wall along your proposed fixing line — Scan indications provide another reference during layout checks.
- ✅ Review the indicated area on the screen — The LCD presents signal bars and mode symbols.
- ✅ Hear a prompt while moving the tool — Audible indications accompany the scan display.
- ✅ Choose a setting for the check — Separate stud-depth, metal and AC modes are stated.
- ✅ Move between locations without a mains lead — The handheld unit uses a separate battery.
Use scan indications as part of a checked layout

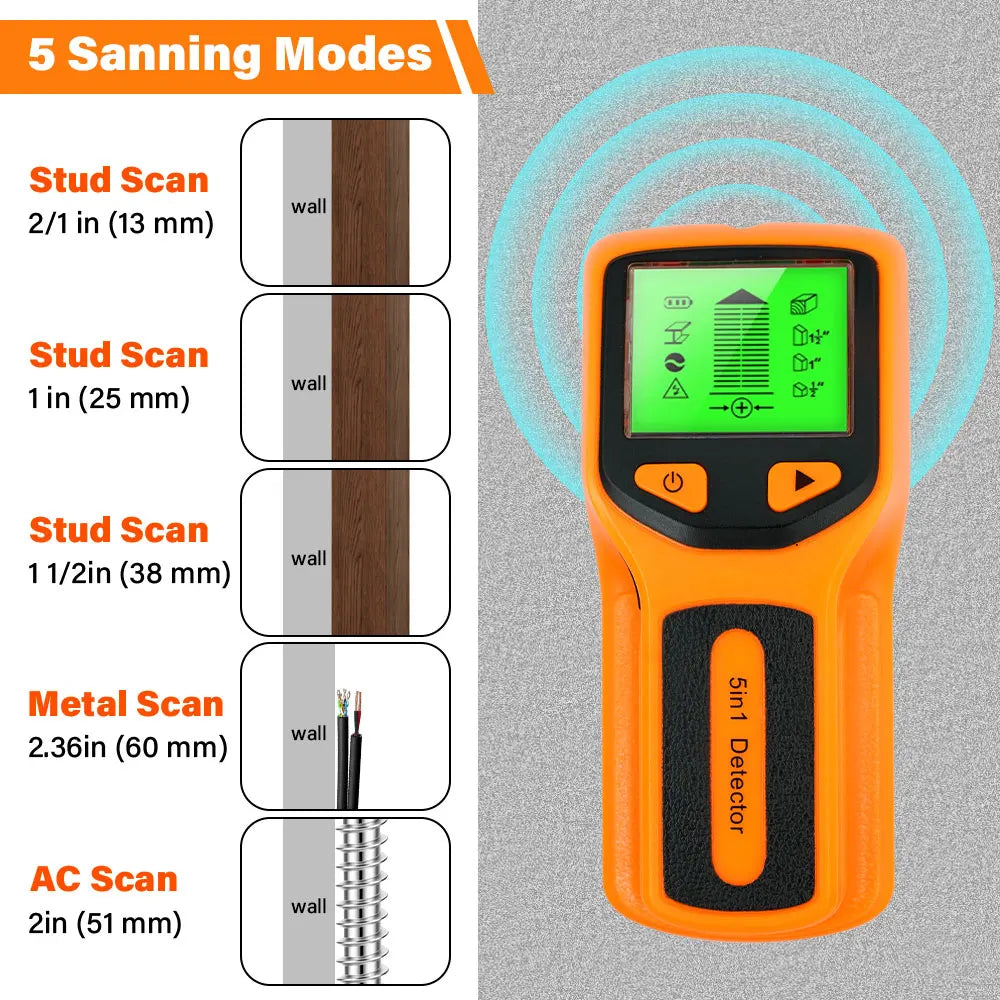

The five stated modes comprise three stud-depth settings, plus metal and AC scans. Stated maximum depths are 13, 25 and 38 mm for the stud settings, 60 mm for metal and 51 mm for live-AC indications. These are conditional figures, not guaranteed performance through every wall.
Calibrate and move the tool according to its instructions, keeping suitable contact with the surface. Wall layers, moisture, foil, object position and material can affect the result. No dependable PVC-pipe identification is confirmed. A blank reading does not prove a drilling point is clear or a cable is isolated.
One selected scanner is supplied, with orange or black body options. A 9 V 6F22 battery is required and not included. Drills, fixings and surrounding tools in the images are excluded. Verify services by appropriate additional methods and isolate supplies where needed before work.
Use as a scan indication aid, not a guarantee of a clear drilling point.
Three stud-depth settings plus metal and AC modes are stated.
LCD and sound prompts provide scan indications.
AC indication does not prove cable isolation or safe drilling.
Mode and signal symbols share the backlit screen.
Check wall construction and services independently.
The illustrated body is approximately 150 × 70 × 40 mm.
One selected scanner is supplied without a battery.
The black colour option is shown.
Technical details
- Type: handheld wall scanner
- Modes stated: 3 stud-depth settings, metal and live AC
- Stud depths stated: up to 13, 25 or 38 mm, subject to conditions
- Metal depth stated: up to 60 mm, subject to conditions
- Live-AC indication depth stated: up to 51 mm, subject to conditions
- Readout: backlit LCD and audible indications
- Power: 1 × 9 V 6F22 battery, not included
- Colour options: orange or black
- Package: 1 selected scanner; drill and fixings excluded
- Limitation: no guaranteed detection or confirmation that a drilling point is clear
Add another wall-checking reference to your layout kit and verify the fixing position before drilling.
