2 LAN 3G 4G Module for Camera IP PCB Board Router Wifi AP Cctv Unlocked ZTE AF790 ALK SIM Card Monitoring Mainboard Surveillance
SPECIFICATIONS
Brand Name: HQCAM
Certification: CE,FCC
Connectivity: Closed System/CCTV Wired
Dimensions (L x W x D)(mm): 51*38mm
High Definition: None
High-concerned chemical: None
Installation: Embedded
Internal Storage: None
LED Lamp: 2G/3G/4G Status light WIFI Status light
Lens (mm): mm
Lens Quantity: Single Lens
Megapixels: 1 MP
Model Number: AF790_4G Module
Network type: Micro SIM Card
Origin: Mainland China
Power Consumption(W): 12v
Power Supply: Normal
Power Supply(V): 12v
Sensor: CMOS
Smart home platform: None
Style: Mini Camera
Supported Mobile Systems: Symbian
Supported Operating Systems: Windows XP
TF Card: None
WiFi standard: Agreement:802.11b/g/n Up to 72Mbps
ZK: 40
Zoom: None
Zoom type: None
is_customized: Yes
item: 3G 4G Module for Wireless 3G 4G IP Camera
version: japan &EU&US Version
|
NOTICE:
Note:
Before purchasing, please know that the sku we listed only the 4G Module for camera ,not including camera , just accessory !
Pls select the version according the frequency channel in your country , so it can work your country sim card !
Please click the option to buy, the configuration described in the option photo is real
|

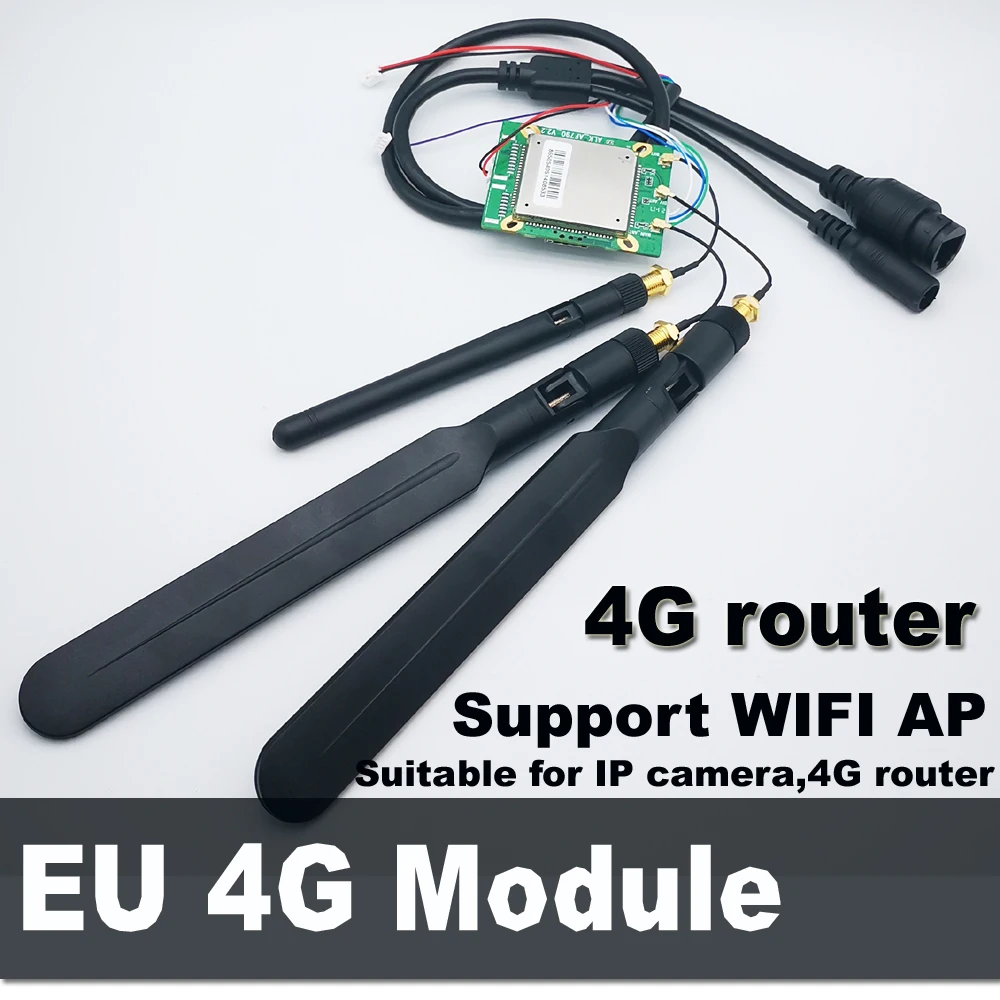

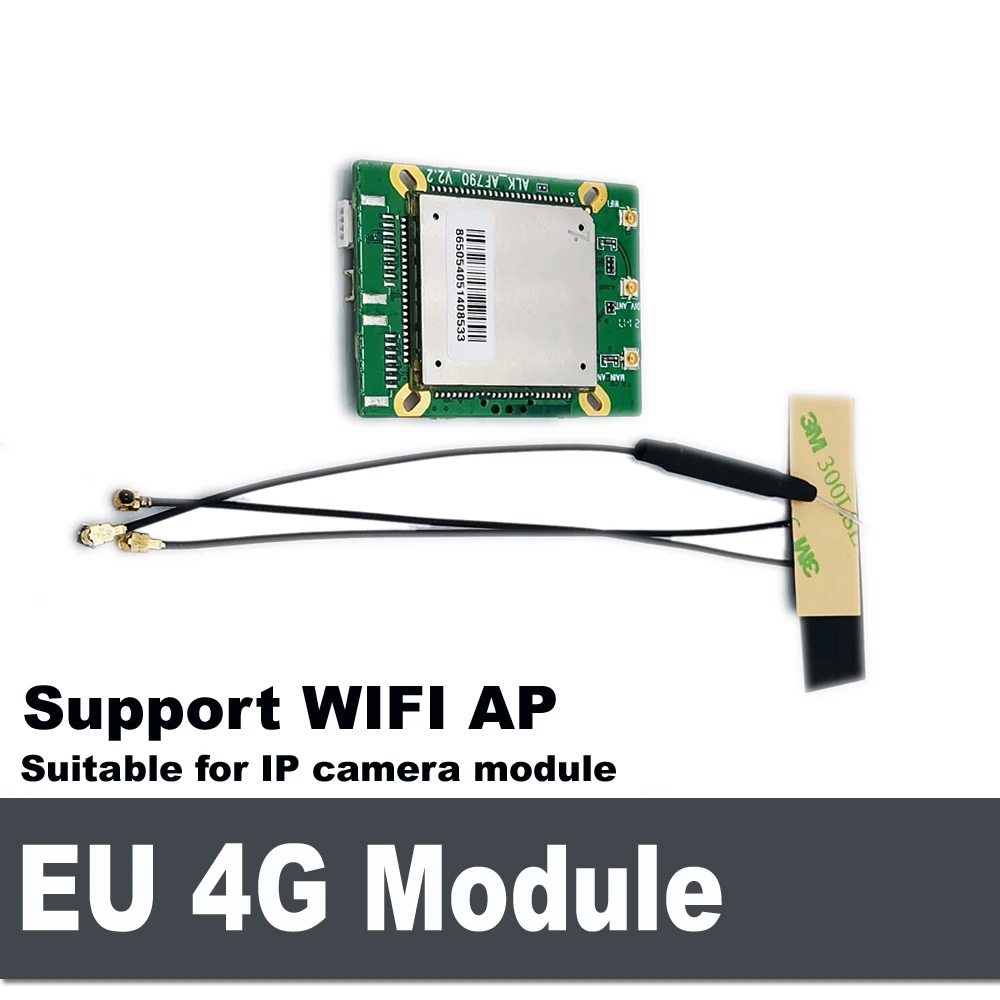

EU version Supported Frequency:(advice Europe,Australia,Asia and Africa)
4G FDD-LTE:B1 (2100Mhz),B3(1800MHZ),B7(2600Mhz),B8(900Mhz),B20(800Mhz)
4G TDD-LTE:B38(2600Mhz),B40(2300Mhz),B41(2500Mhz)
3G WCDMA/TD-SCDMA:B1(WCDMA 2100Mhz),B8(900Mhz)

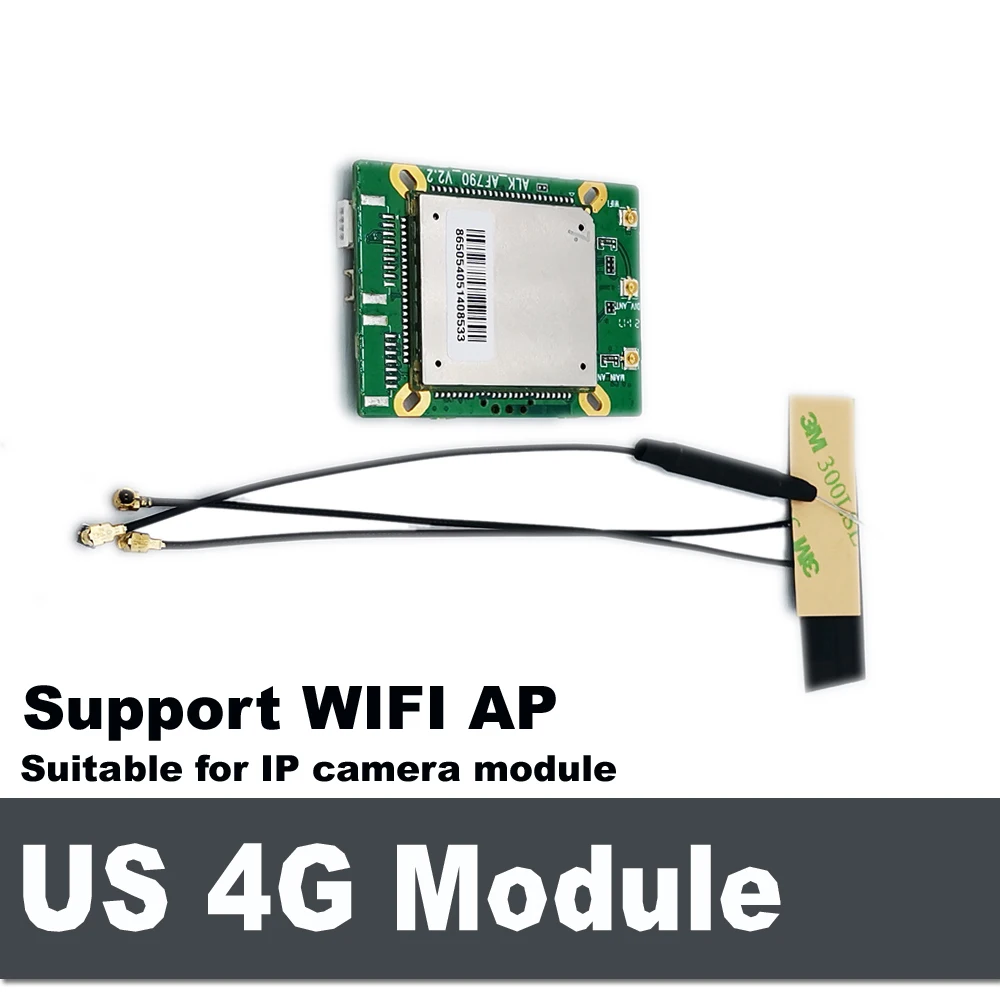

US version Supported Frequency:(advice North America and South America)
4G FDD-LTE:B1 (2100Mhz),B2(1900MHZ),B4(1700Mhz),B12(700Mhz),B13(700Mhz)
4G TDD-LTE:B38(2600Mhz),B40(2300Mhz),B41(2500Mhz)
3G WCDMA/TD-SCDMA:B1(WCDMA 2100Mhz),B8(900Mhz),B2(1900Mhz),B5(850Mhz).
module (default)
module (default)
Matters needing attention:
1. Wear anti-static bracelet or gloves before work
2. Please wiring in order
3. The USB interface is similar to the NIC interface, so please follow the illustration,so as not to burn down the settings
4.12V power interface, positive and negative pole should not connect in a wrong way
5. Chip burn, no warranty

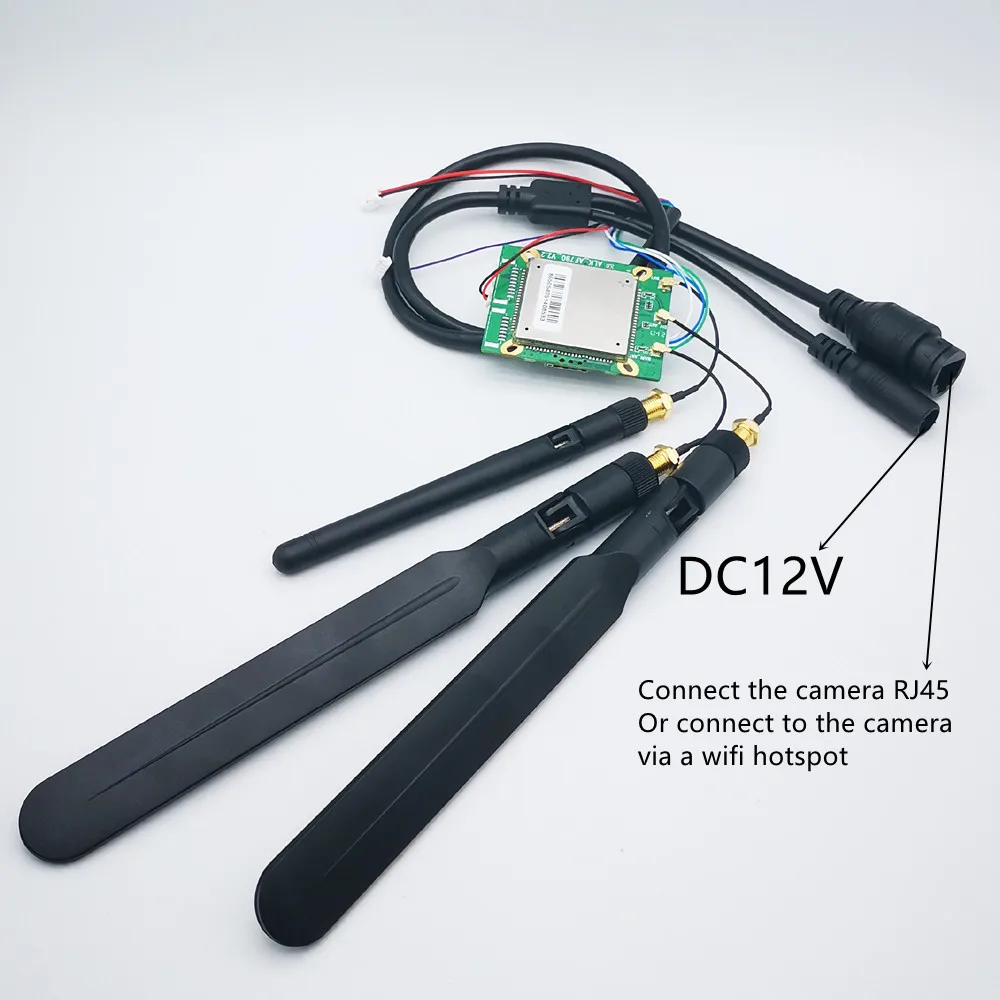

Connection mode:
USB couplet (need drive support)
LAN port couplet
Wireless WIF couplet
Industrial 4G module
Support 4G/3G/2G+Wi-Fi wireless access
4G wireless transmission rate up to 150Mbps
Can support 8 users accessing WIFI hotspots
Application field:
Security industry (video surveillance)
Self-help terminal equipment
Intelligent express cabinet
Public bicycle
Intelligent Industry Control
Smart Home
Citroen connect
Handheld law enforcement terminal
Acquisition equipment
Industrial router
3C product
Intelligent charging pile
