4K Ultra HD 8MP IP Camera Indoor H.265 Onvif Mini Small CCTV Night Vision IR 940nm POE Security Camera Inside Birdcage Machine
SPECIFICATIONS
AI Functions: Motion Detection
Alarm Action: FTP Photo,Email Photo
Audio Output: None
Brand Name: HQCAM
Certification: CE
Color: black
Color Night Vision: No
Compression Forma: Advanced H.265/H.264 video compression
Connectivity: IP/Network Wired
Dimensions (L x W x D)(mm): 40*40mm
High Definition: None
High-concerned chemical: None
Housing Material: Aluminum-alloy Metal
IR Distance(m): 10,1-10 meter
Installation: Embedded
Internal Storage: None
Lens (mm): 0MM
Lens Quantity: Single Lens
Megapixels: 8MP
Minimum Illumination(Lux): 0.001Lux F1.2
Model Number: 8mp ip camera
Operating Temperature: -10°-60°
Optional POE: 48V
Origin: Mainland China
Power Consumption(W): 12V2A(Not included Power Supply )
Power Supply: Normal
Power Supply(V): DC12V
Sensor: CMOS
Sensor Brand: Omnivision
Shell Material: Metal
Smart home platform: Other
Special Features: MINI
Specific: IR-CUT filte
Style: Mini Camera
Style1: Ip Camera
Style2: Cctv Camera
Style3: Security Camera
Style4: Surveillance Camera
Style5: Video Surveillance
Style6: Surveillance
Style7: ip camera poe
Style8: ip camera indoor
Style9: 940nm LED hid den
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Windows XP,Windows Vista
TF Card: None
Video Compression Format: H.264,H.265
Viewing Angle : 150°
Zoom: None
Zoom type: None
is_customized: Yes
8MP 4K Feature
Supporting Face detection, Humanoid detectionn, and supports customization of other smart functions;
8.0MP HD Black light illumination resolution, clear and fine images;
Support 2D/3D noise reduction, digital wide dynamic;
Advanced H.265(Compatible with H.264) video compression, Super low rate, high definition quality of image;
Professional anti-lightning, conform to GB/T17626.5 and IEC61000-4-5;
Support ONVIF, access third party;
Support various mobile monitoring(iPhone, Android);

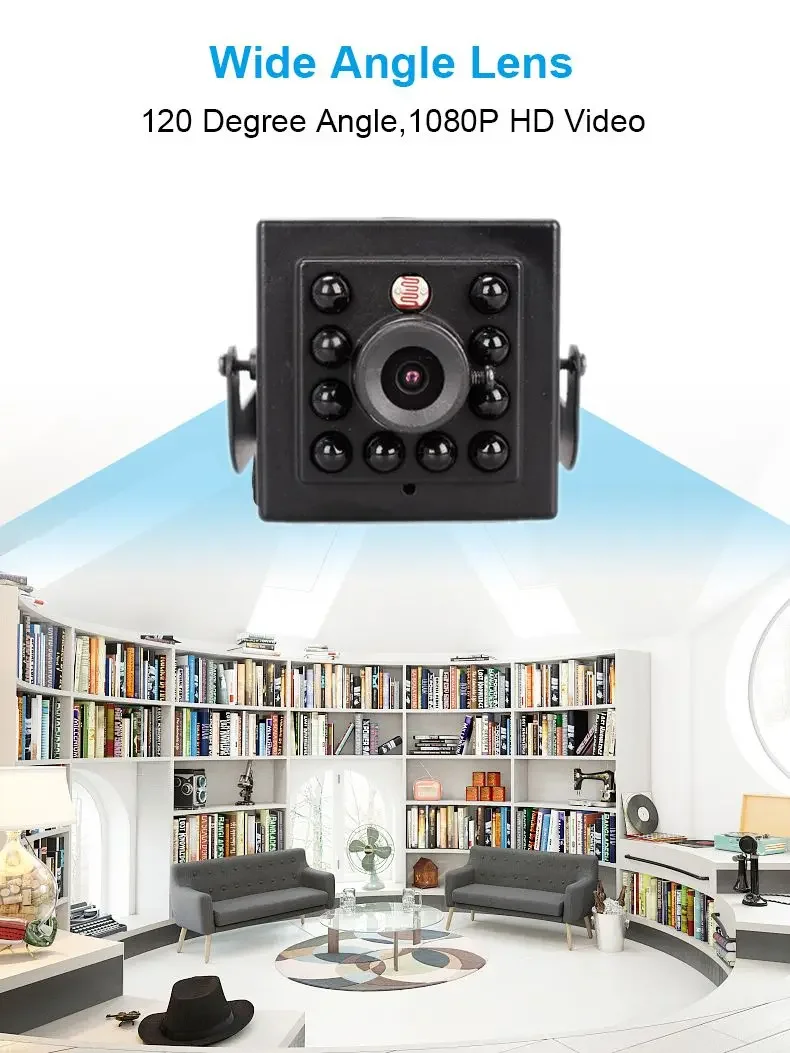

Different angle lens available
120 degree lens is 2.1mm, and the standard configuration is 3.6mm lens, about 90 degrees

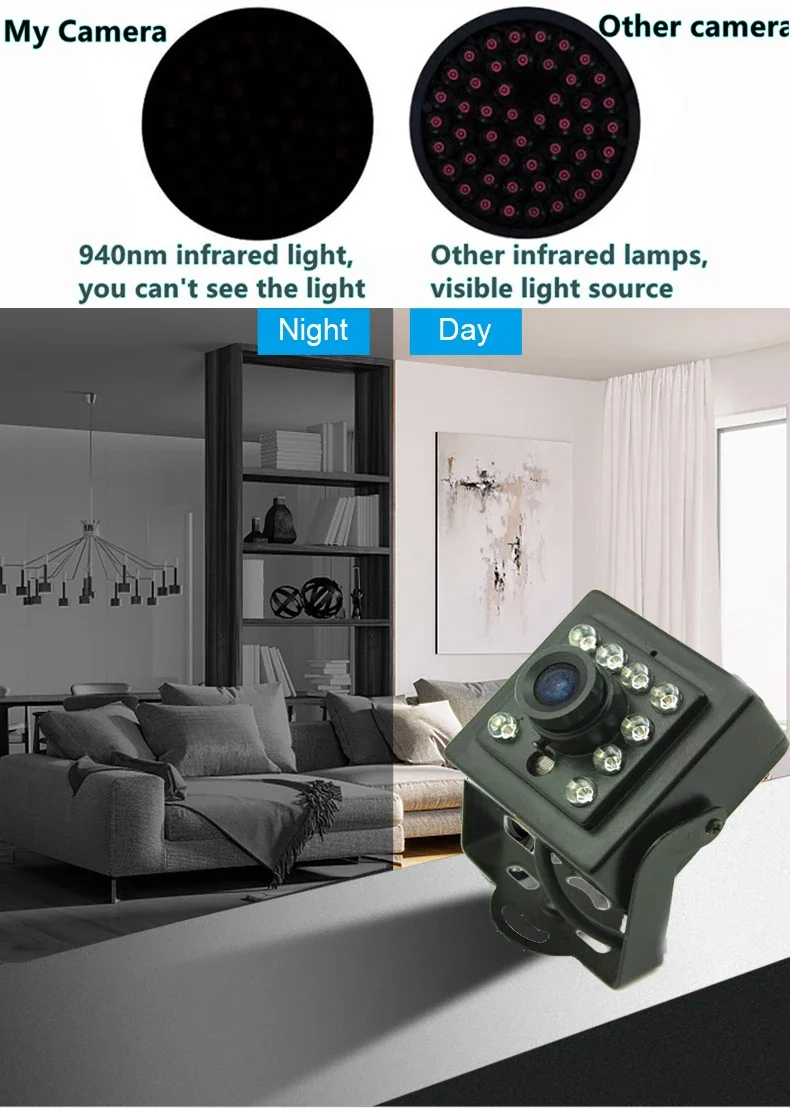

Hid-den infrared lamp
940nm infrared lamp, invisible light source to human eyes, no harm to birds and animals, very hid-den
OS |
Parameters |
4K 8MP |
kernel |
System |
|
Processor |
Mstar |
|
Video |
Image sensor |
8MP Super Low illuminance COMS image sensor |
Video Codec |
H.265 main profile and baseline |
|
LEN |
||
IR LED |
10pcs 940nm LED |
|
IR distance |
1-10M |
|
Support mobile phone |
All phone |
|
P2P |
PHONE,IE,P2P Client global Internet |
|
Video Resolution |
First stream:4K 8MP(3840*2160)@15fps/5MP(2880*1624)@25fps/4MP(2560*1440)@25fps/ 3MP(2304*1296)@25fps/2MP(1920*1080)@25fps can be set |
|
4K 8MP(3840*2160) |
||
Second stream:1280*720,800*448,704*576,640*360 |
||
Three stream:640*360/352*288 |
||
frame rate |
8MP:15fps,5MP:25fps,4MP:25fps,3MP:25fps,2MP:25fps |
|
Video compression |
32Kbits/S～12280Mbits/S |
|
Min.Lux |
Color>0.01 LUX B&W<0 LUX |
|
Store |
SD card |
NA |
Client/Browser |
Support |
|
Record |
Client |
support |
Browser |
Support |
|
SD CARD |
not Support |
|
Playback |
Client |
support |
Browser |
Support |
|
SD CARD |
not support |
|
SD Card |
not support SD card |
|
Audio |
Audio input |
Mic is builded in camera |
Audio output |
SNA |
|
Audio Codec |
G.726/G.711 |
|
Internet |
Internet face |
10Base-T/100Base-TX, POE |
Network Protocol |
TCP/IP,https,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP |
|
Access Protocol |
ONVIF |
|
Alarm |
Motion detection |
At most 4 respective regions |
Alarm linkage |
Alarm picture send E-mail, alarm images upload FTP server |
|
Snap |
Time snap |
Regular support capturing images to the FTP server |
safe |
User management |
Provide three levels of rights management (admin, user, guest), support to modify login user name and password |
Other |
Inter Power,consumption |
DC12V 2A/POE (The package does not provide a power adapter) |
Working temperature |
-40℃ ～ +55℃ |
|
Working Humidity |
10-95% |
|
