Wired Rear-View Camera, AHD/CVBS Options for Compatible Displays

See a rear-facing view on your existing screen when lining up a parking manoeuvre. This wired reversing camera comes in AHD and CVBS-compatible options for a matching camera input. It is for drivers upgrading a compatible aftermarket display, with installation and signal matching required.

• ✅ Check the view behind the vehicle — The rear-mounted camera sends video to a compatible in-car display during your manoeuvre.
• ✅ Line up against an on-screen reference — Parking guide lines provide a visual reference alongside your mirrors and direct checks.
• ✅ Set the viewing direction during installation — The side-screw bracket allows the camera angle to be adjusted before tightening.
• ✅ Choose an option to match your screen — AHD models and a CVBS-compatible option are available.
• ✅ Run video through a wired connection — Separate video and power connections form part of the installation.

Add a rear-facing view to a compatible screen

A rear camera adds another viewpoint when parking beside a kerb or positioning the vehicle in a bay. Its image appears on a separate compatible display; it does not detect obstacles or replace looking around the vehicle. Check the camera angle and the displayed guide lines after fitting.

Choose CAM720P or CAM1080P for the corresponding AHD input setting. CAM1080P-CVBS is the option offered for AHD/CVBS compatibility, while CAM003 is the four-LED camera type. Match both the signal format and resolution accepted by your radio or monitor before ordering; an RCA socket alone does not establish AHD compatibility.

One selected camera is supplied with its bracket and the illustrated video and power leads. The display is not included. The installation diagrams show a 12V connection arrangement; verify the received camera's wiring and power requirements before connection. Cable routing and reverse-trigger wiring depend on the vehicle and screen.

Match the selected camera's output format to the display before ordering.

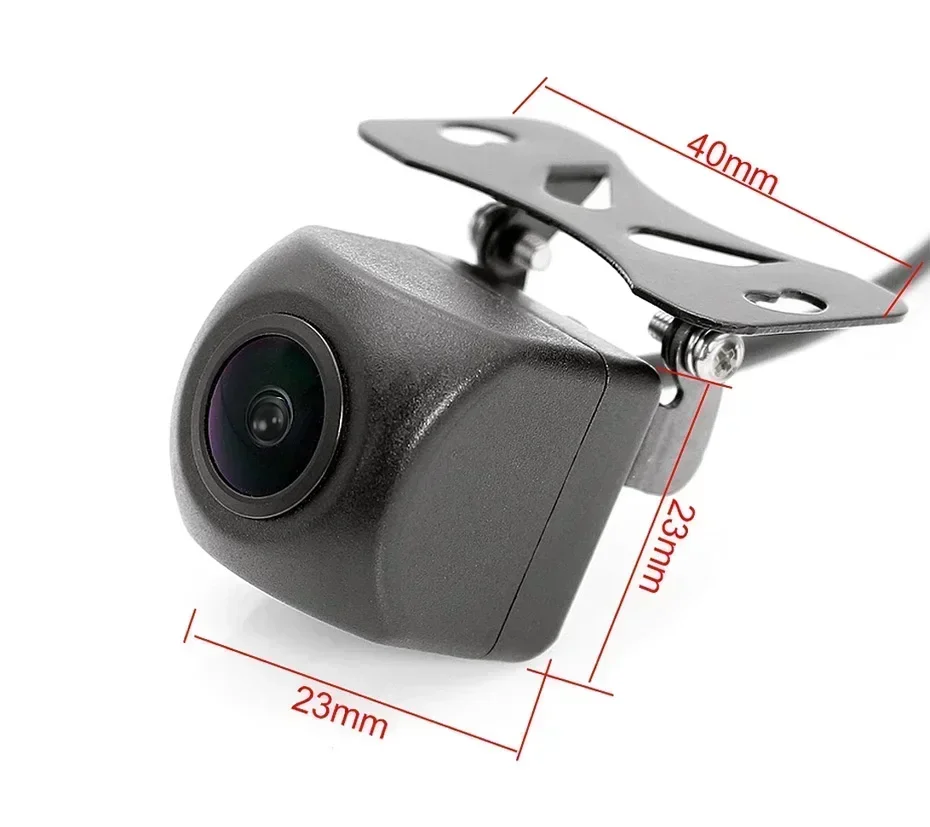

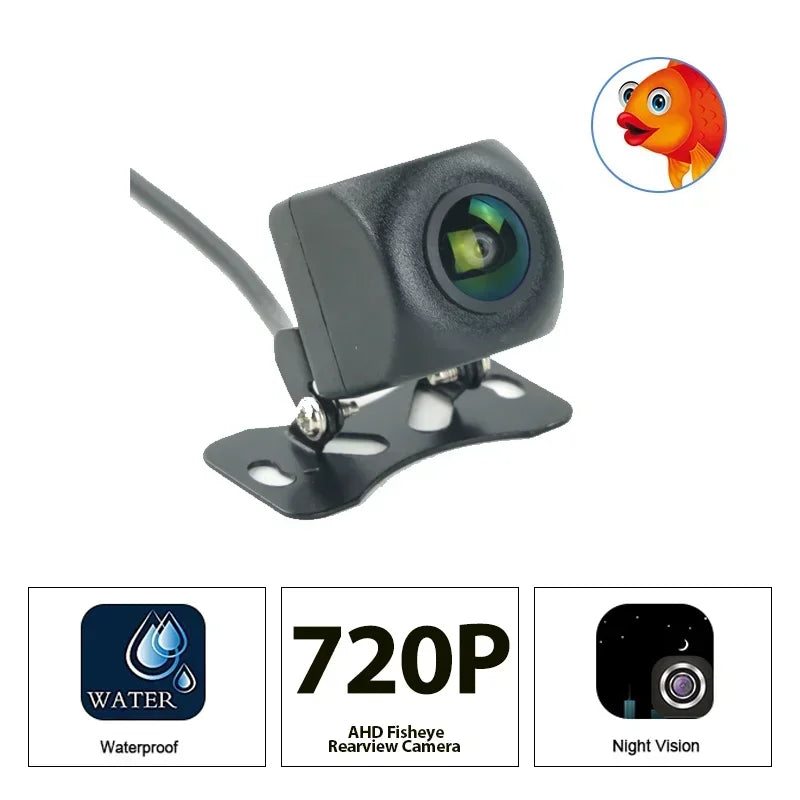

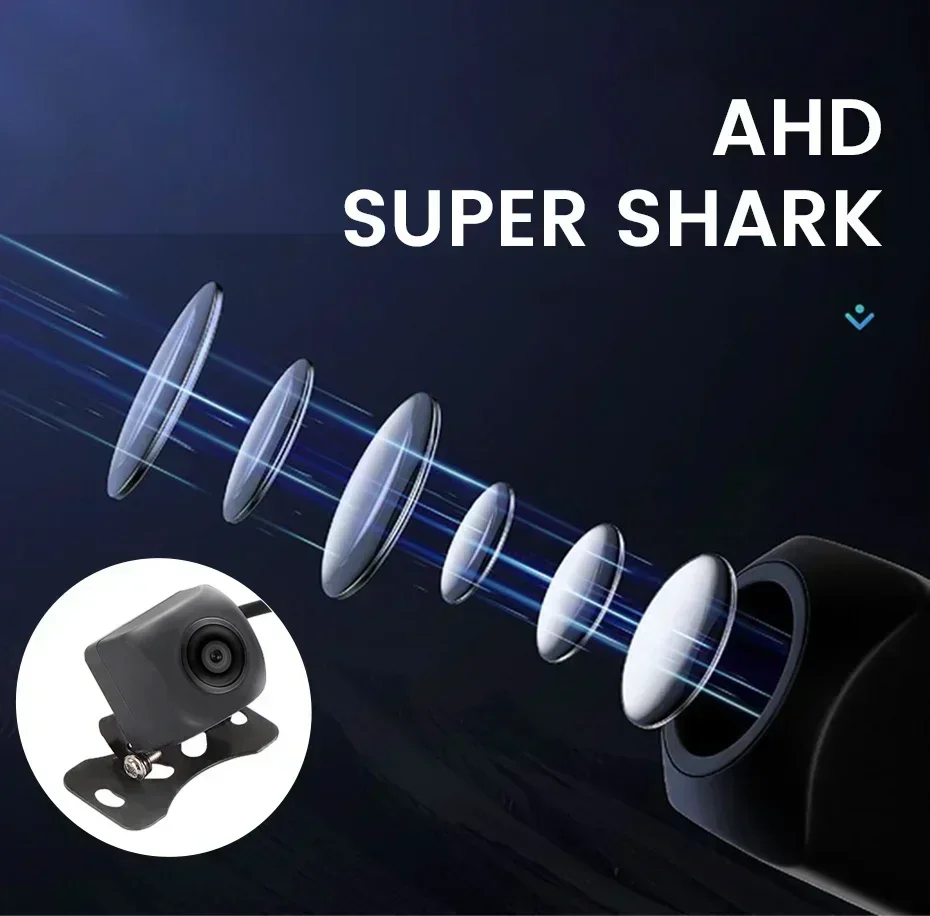

The AHD camera is shown with a compact lens housing.

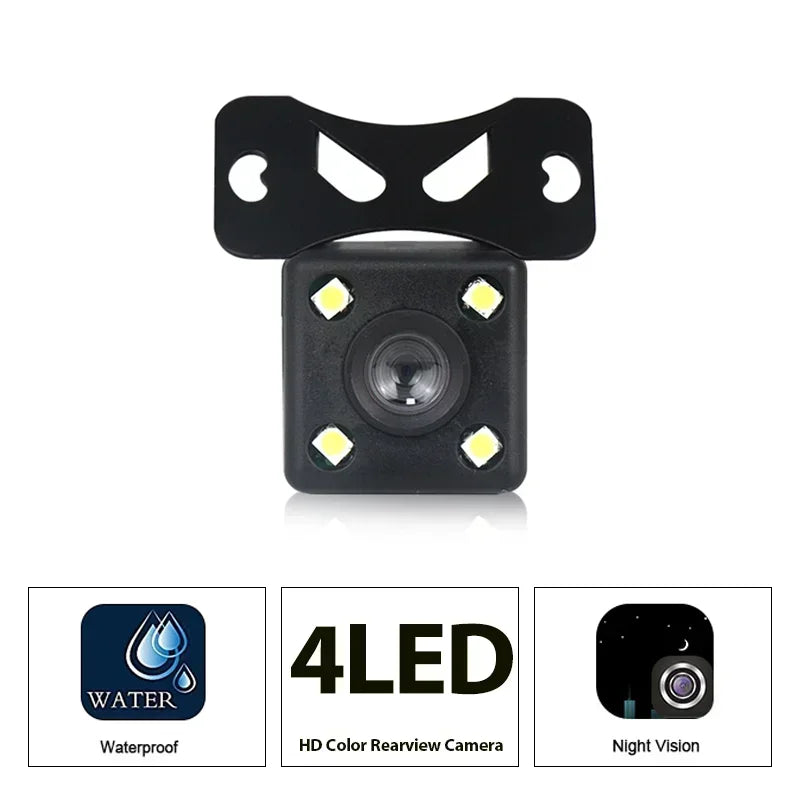

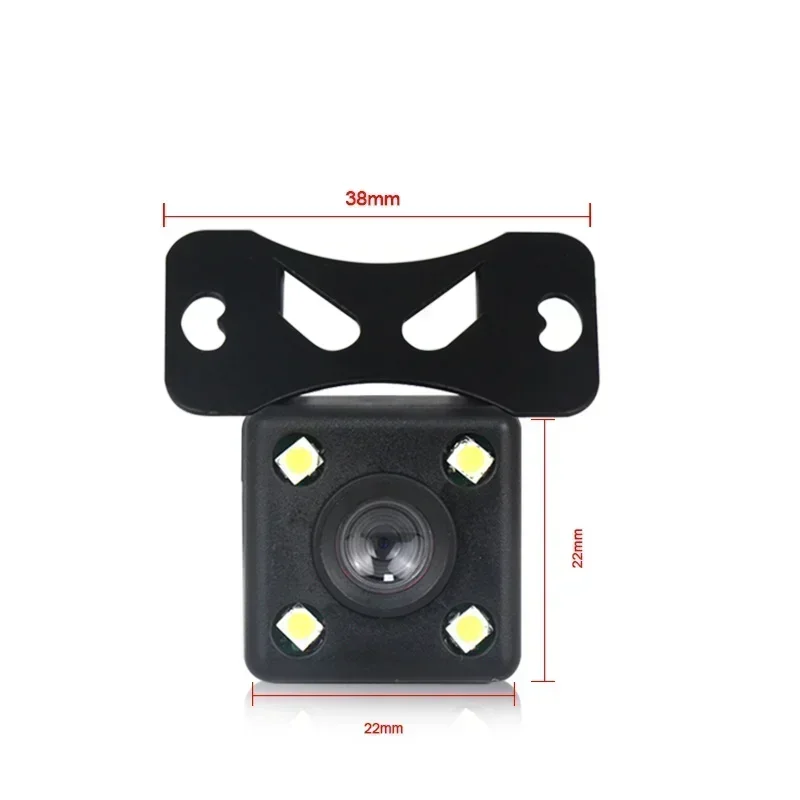

The four-LED CAM003 type has its own body and bracket dimensions.

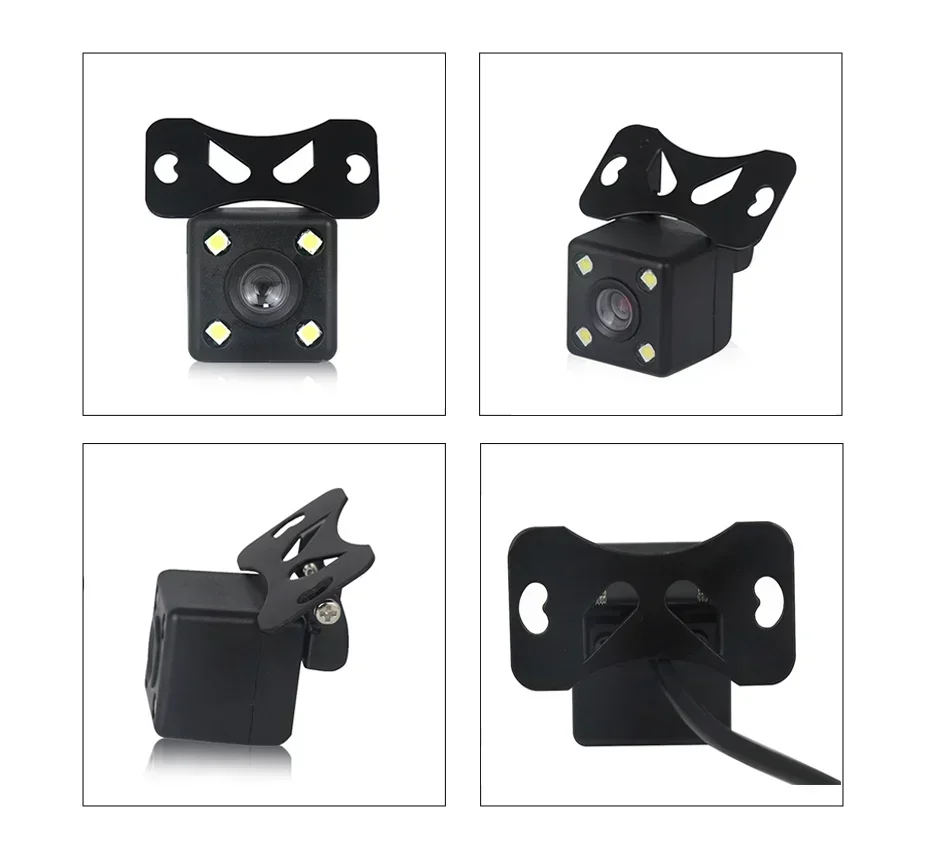

The CAM003 bracket tilts on side screws.

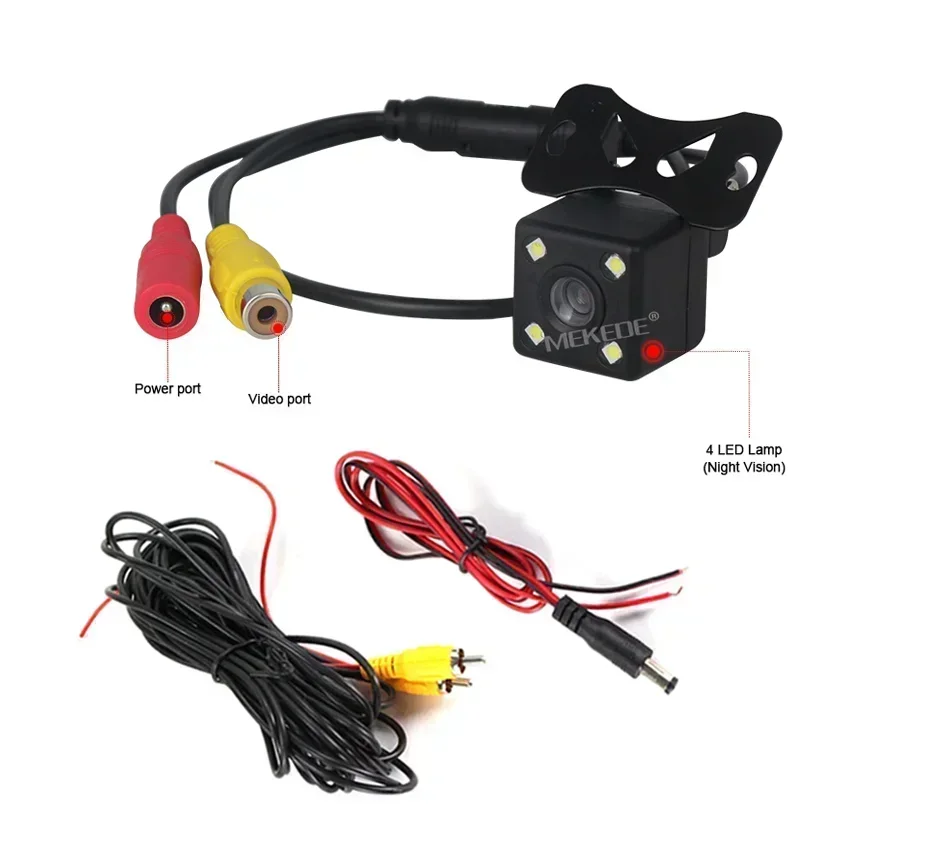

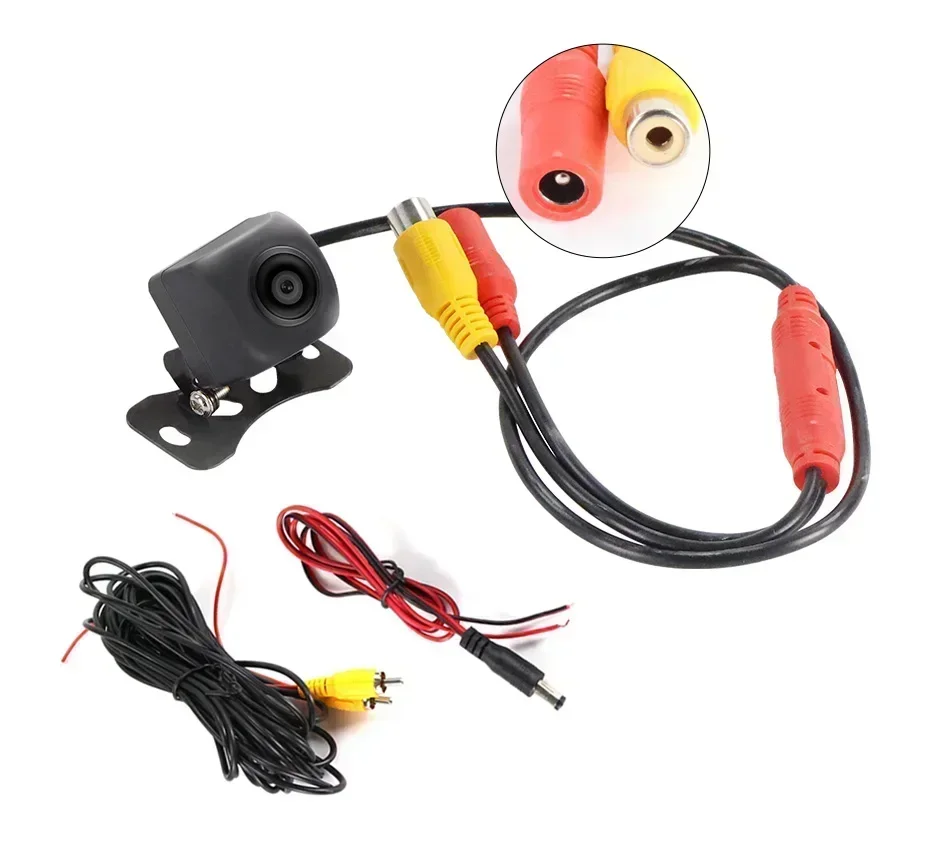

Video and power leads are separate from the camera body.

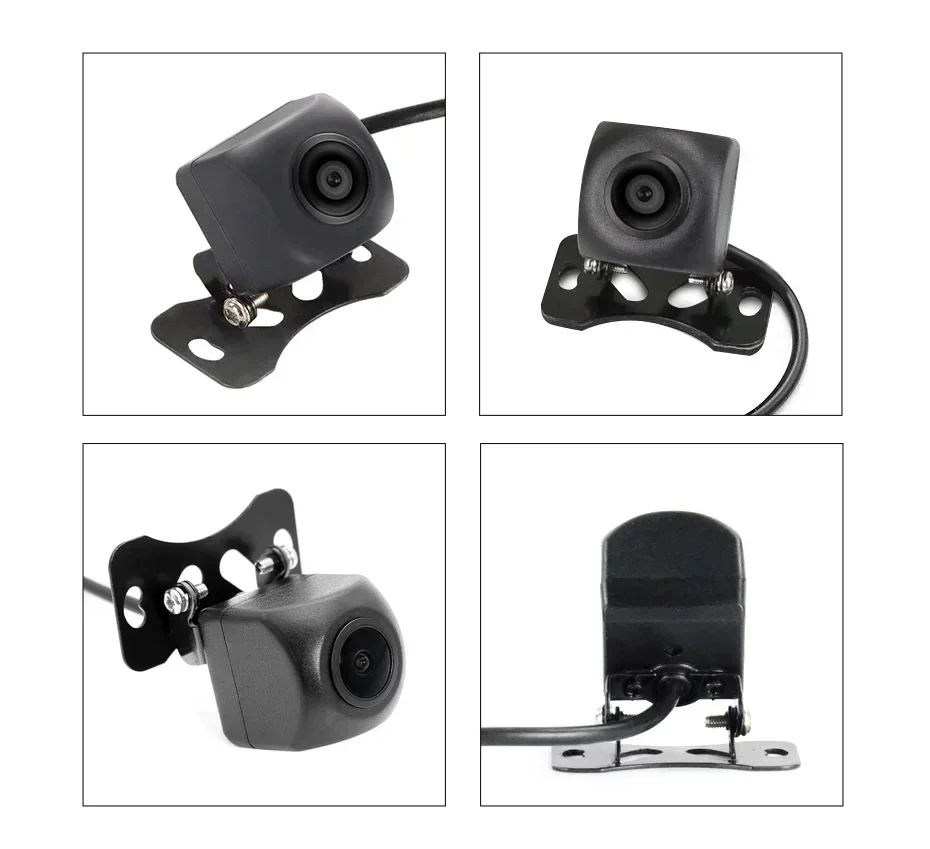

The AHD body is shown with a compact mounting bracket.

Set the angle before tightening the bracket screws.

The wired camera connects to a compatible display through its video lead.

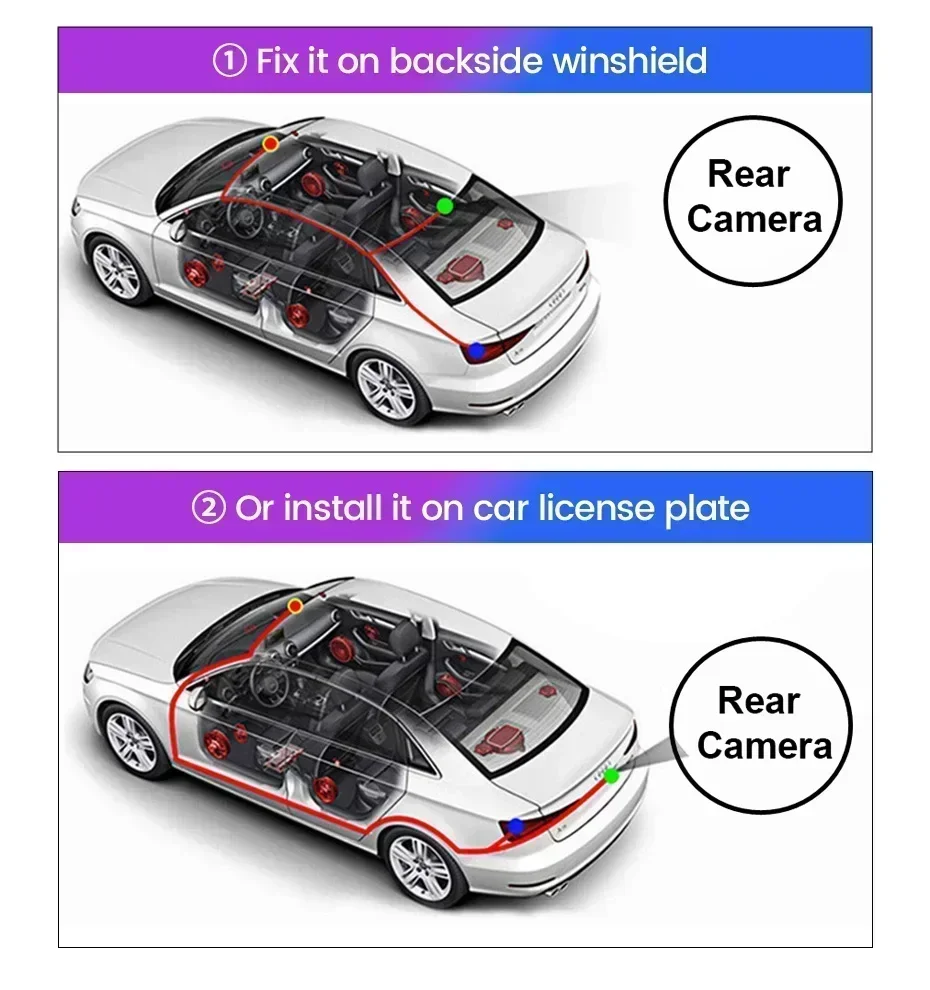

Choose a rear mounting position appropriate to the vehicle.

Route video to the display and power according to the actual installation instructions.

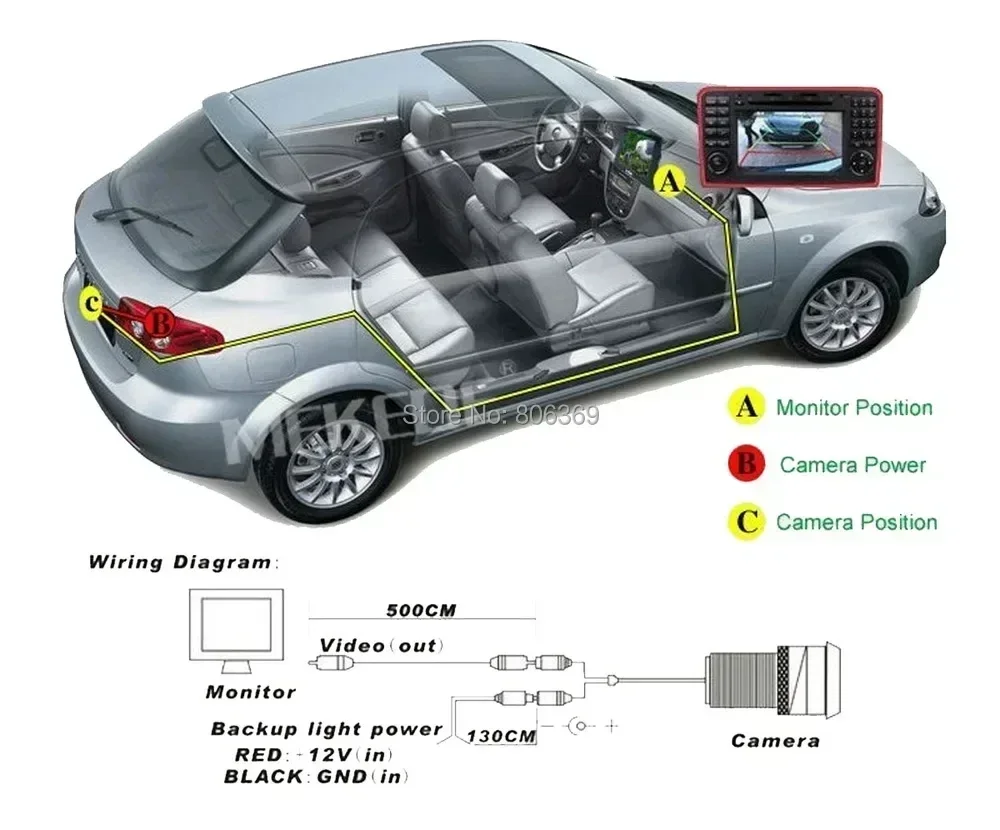

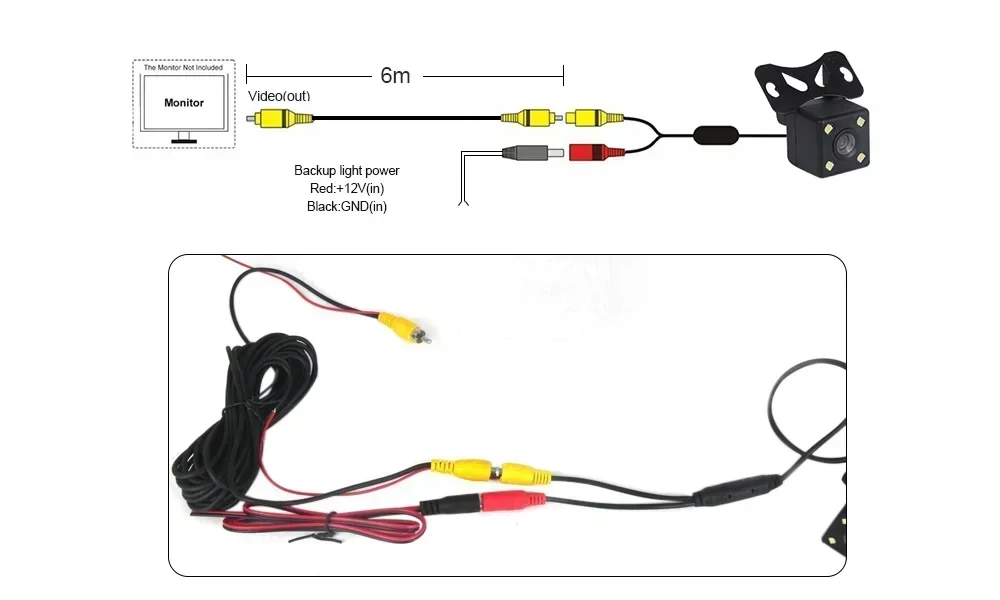

The illustration shows a separate video lead and power connection.

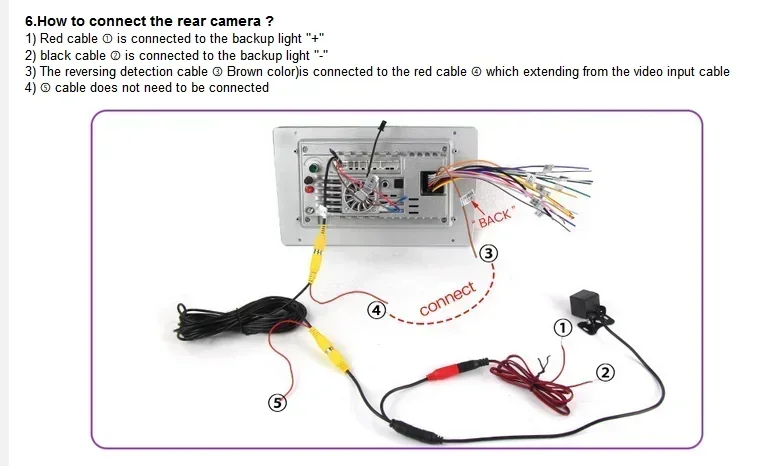

Radio reverse-trigger wiring depends on the head unit.

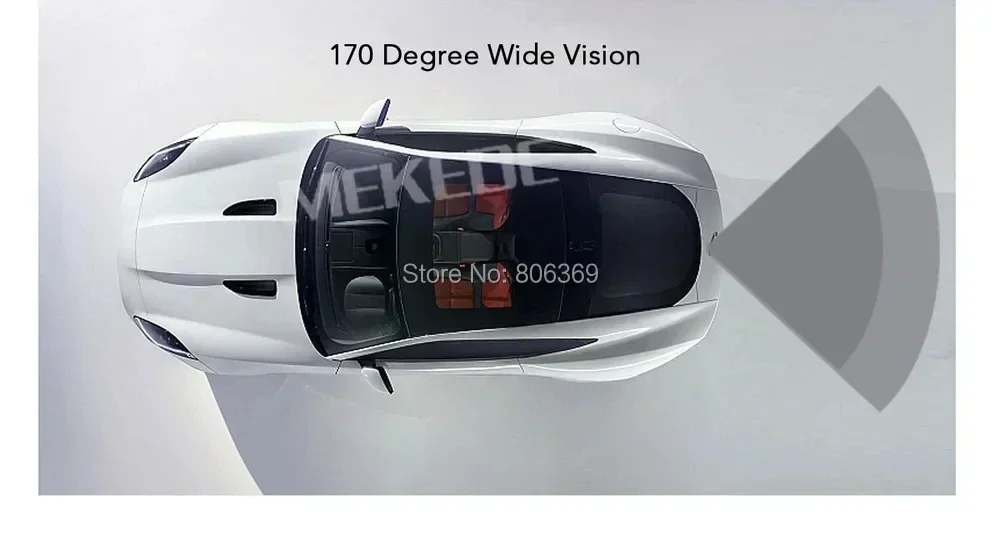

A rear-facing image adds a viewpoint; keep using mirrors and direct checks.

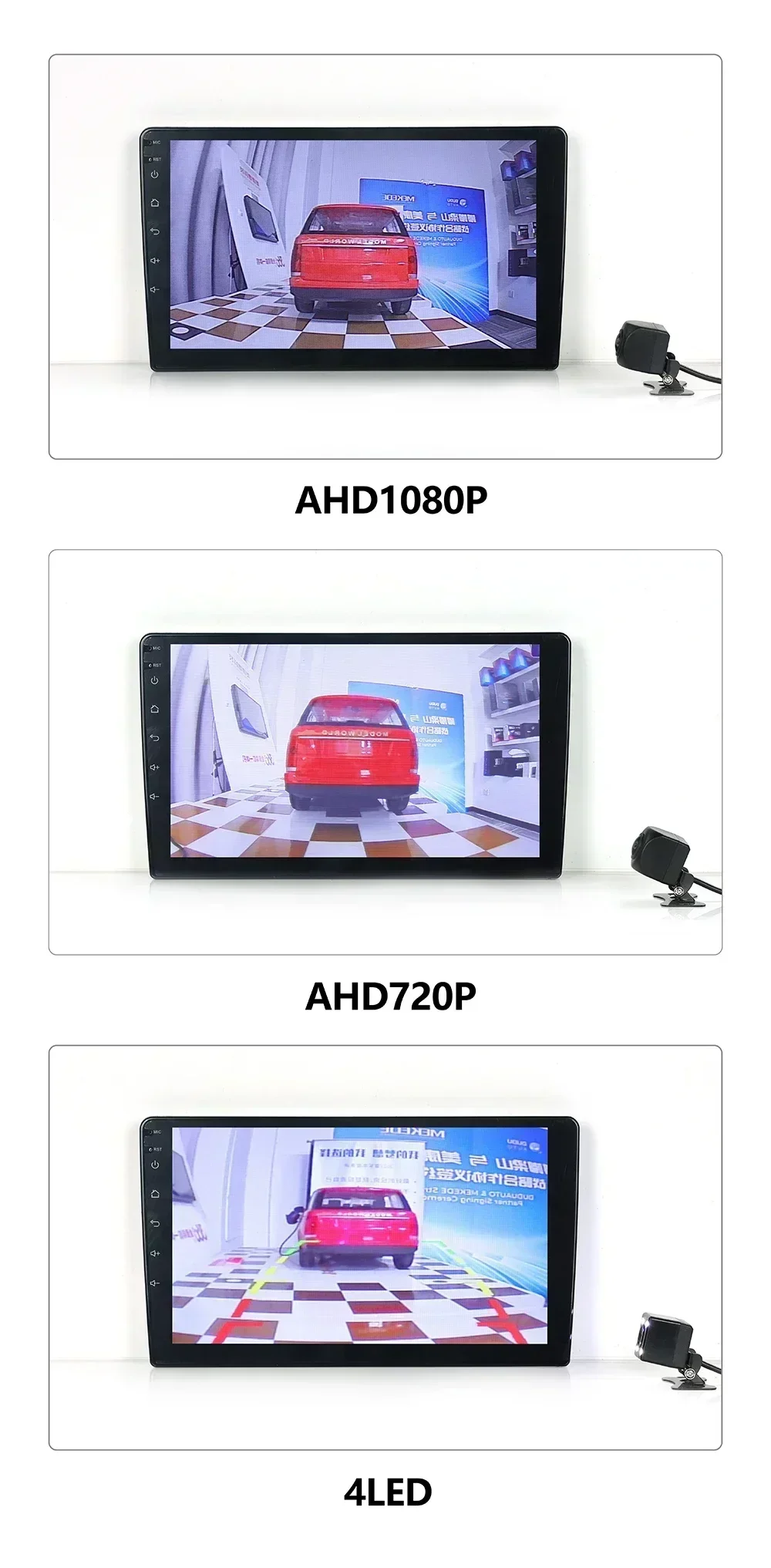

Displayed image appearance depends on the chosen camera and monitor.

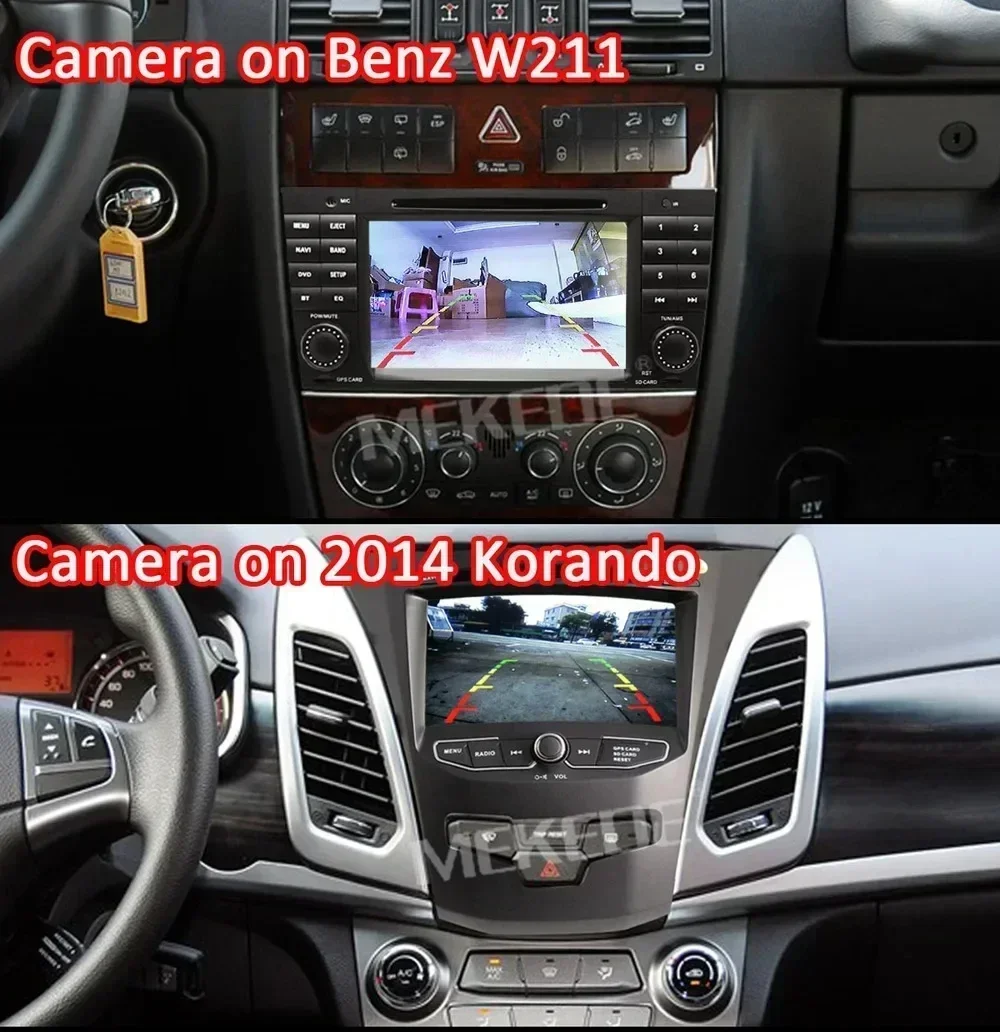

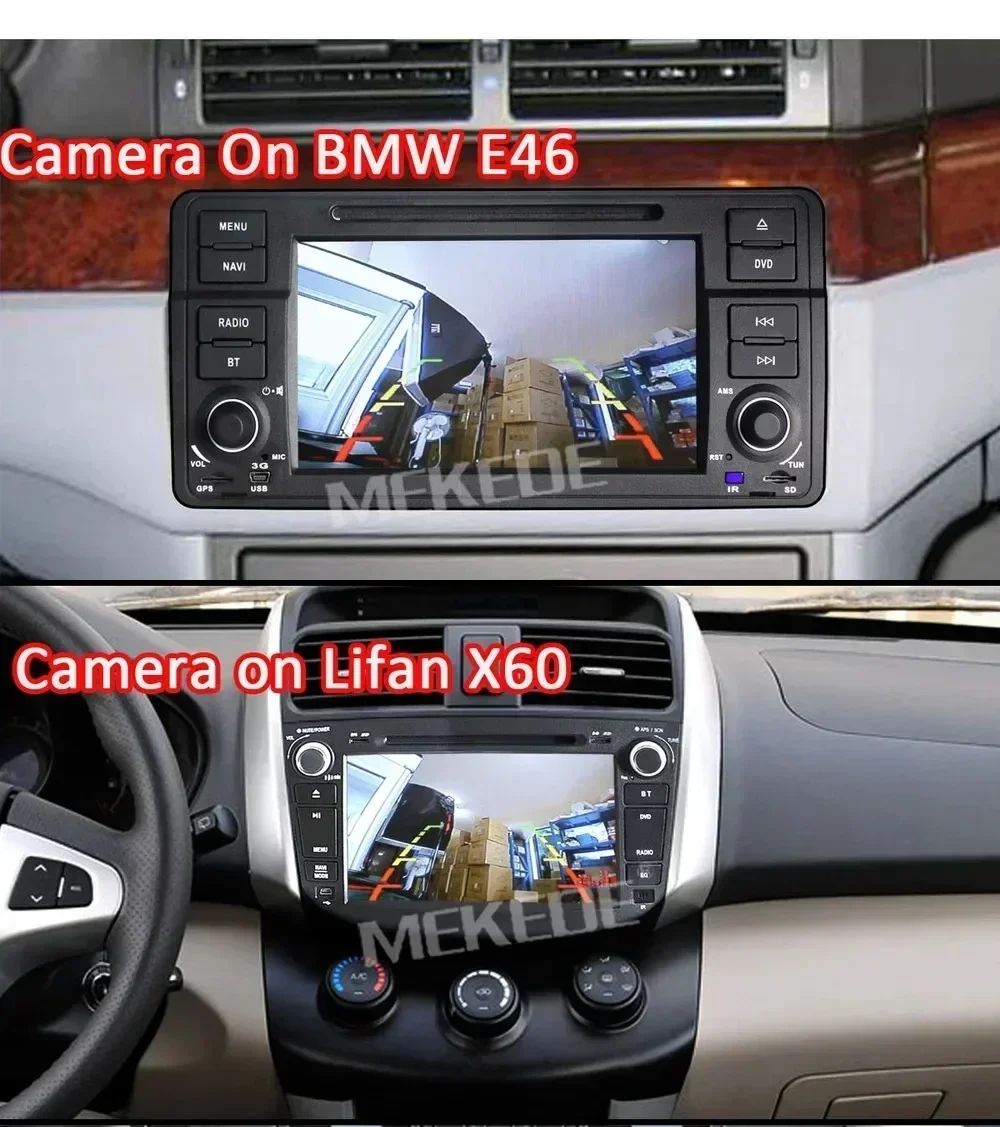

Example installation; vehicle-specific fit is not established by the photograph.

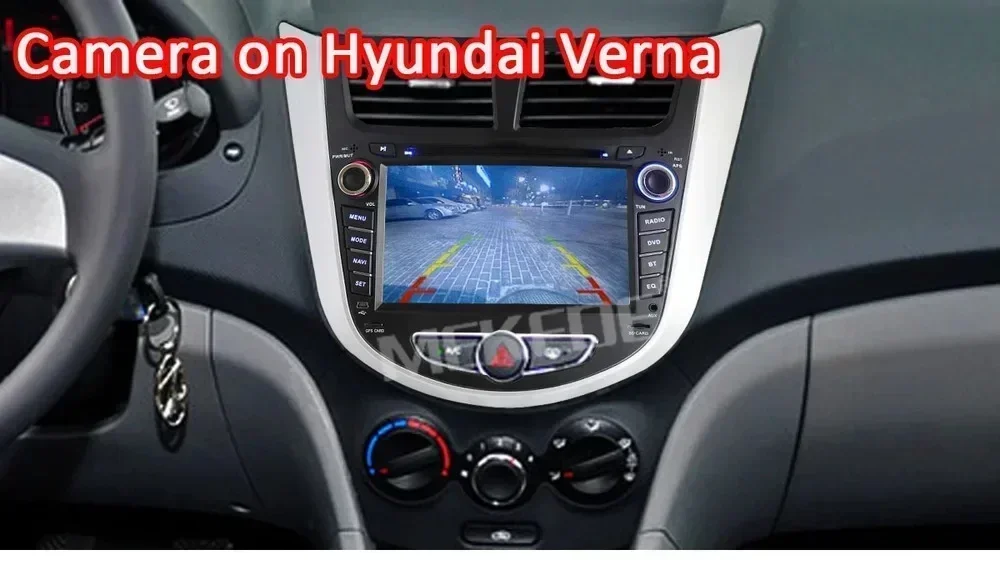

Example screen view with parking guide lines.

A compatible display is required and is not included.

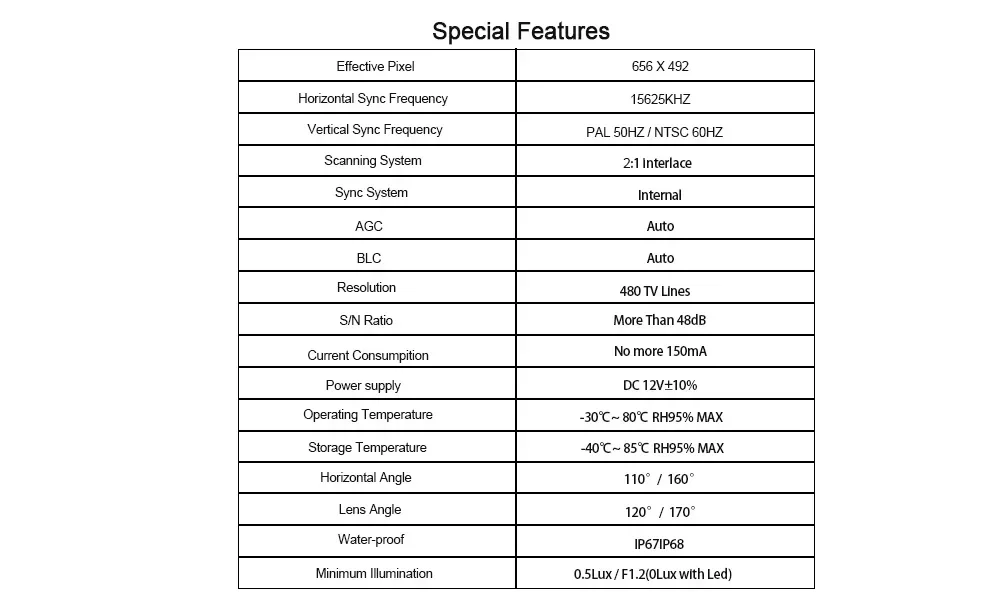

Technical details

• Product: wired rear-view parking camera
• Options: CAM1080P, CAM720P, CAM1080P-CVBS or CAM003
• Signal selection: AHD models; CAM1080P-CVBS offered for AHD/CVBS compatibility
• CAM003: four-LED camera type
• Guide lines: included in the camera feature specification
• Mounting: bracket with side angle-adjustment screws
• Connections: video and power leads
• Power arrangement illustrated: 12V; verify received model before connection
• Package: 1 selected camera, bracket and illustrated leads
• Exclusions: monitor/head unit and vehicle-specific adapters

Choose the camera option that matches your screen to add a useful rear-facing view to your parking setup.
