Cabinet LED Sensor Switch, Touch, Motion or Dual-Door Options
Choose how you operate cabinet lighting: touch a control point, use movement sensing or link it to the doors. This sensor range connects to a matched DC 12–24 V LED control system. It is for furniture-lighting projects where the sensor function and contact order are checked before fitting.
- ✅ Choose direct control while using a shelf — The Touch Sensor options provide touch on/off and dimming.
- ✅ Bring cabinet light on when opening the doors — Dual-door options operate with either door open.
- ✅ Choose automatic movement control — The Motion Sensor A option offers movement-triggered switching.
- ✅ Keep the control point compact — Small sensor heads and leads fit into a planned furniture-lighting layout.
- ✅ Select the right connection for your system — Separate A/B options accommodate the illustrated alternative contact orders.
Different sensors for different ways of using the cabinet
Touch Sensor A/B, Door Motion Sensor A/B and New Door Sensor A/B are separate choices; Motion Sensor A is also available. The touch version offers on/off and long-press dimming with compatible lighting. The door types switch according to door position, while the movement type uses its own trigger function. One selected sensor does not contain all those controls.
The gallery shows both + S − and − S + three-contact ports. Match the selected variant image and pin order to your actual driver/control box before connecting. Small round touch heads are illustrated at approximately 46 × 6 mm with a 2 m lead; the integrated New Door Sensor body is approximately 40 × 30 × 10 mm with a 1.8 m lead.
One selected sensor assembly and its lead are supplied. Lighting, driver, distribution box and power supply are separate. Use a compatible DC 12–24 V system and the actual selected sensor's load limit. The gallery makes mixed claims about sensing through panels; this description does not promise reliable operation through a particular material or thickness.
The range contains different sensor functions; choose the one required rather than assuming a combined controller.

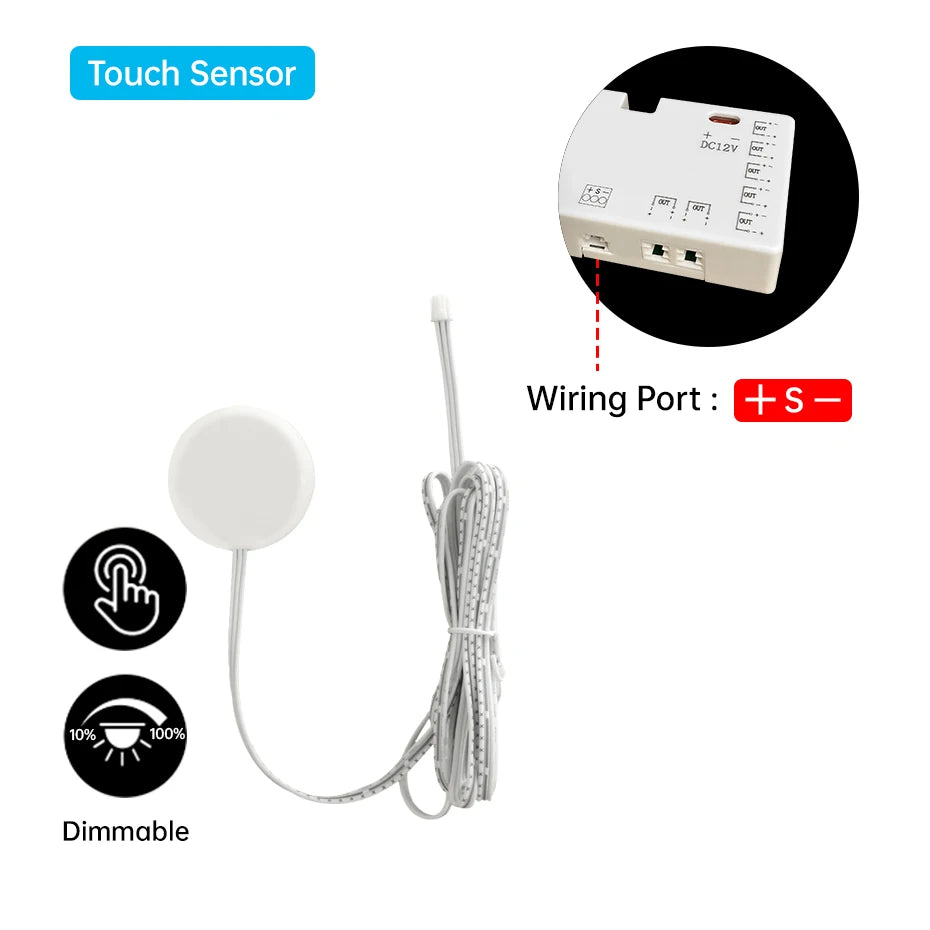

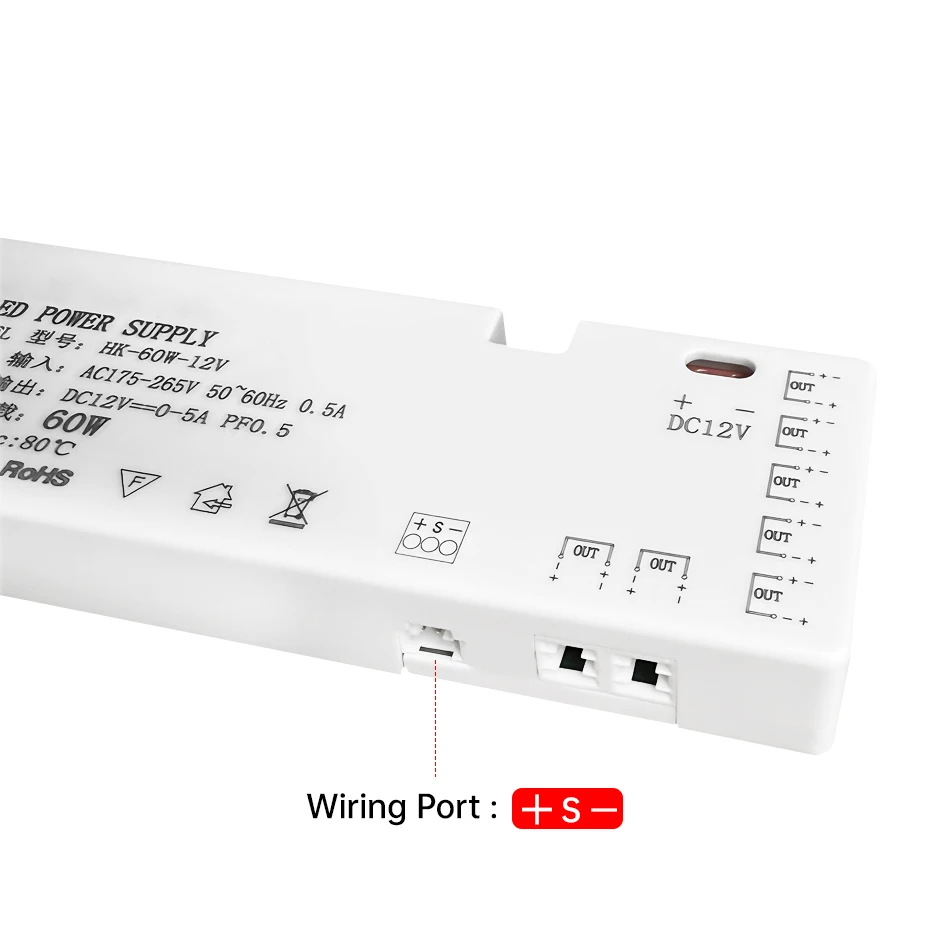

Match a + S − socket to the corresponding sensor wiring.
A − S + socket requires the other contact order.

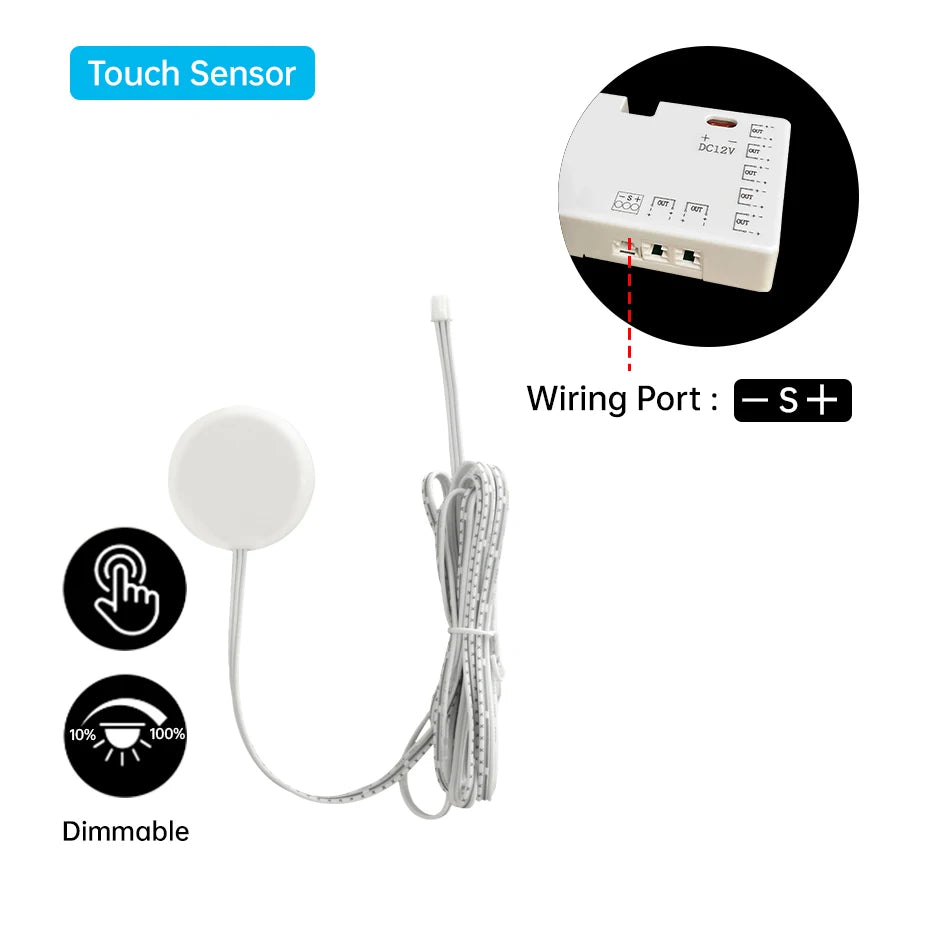

The touch option can be positioned behind a suitable tested control surface.

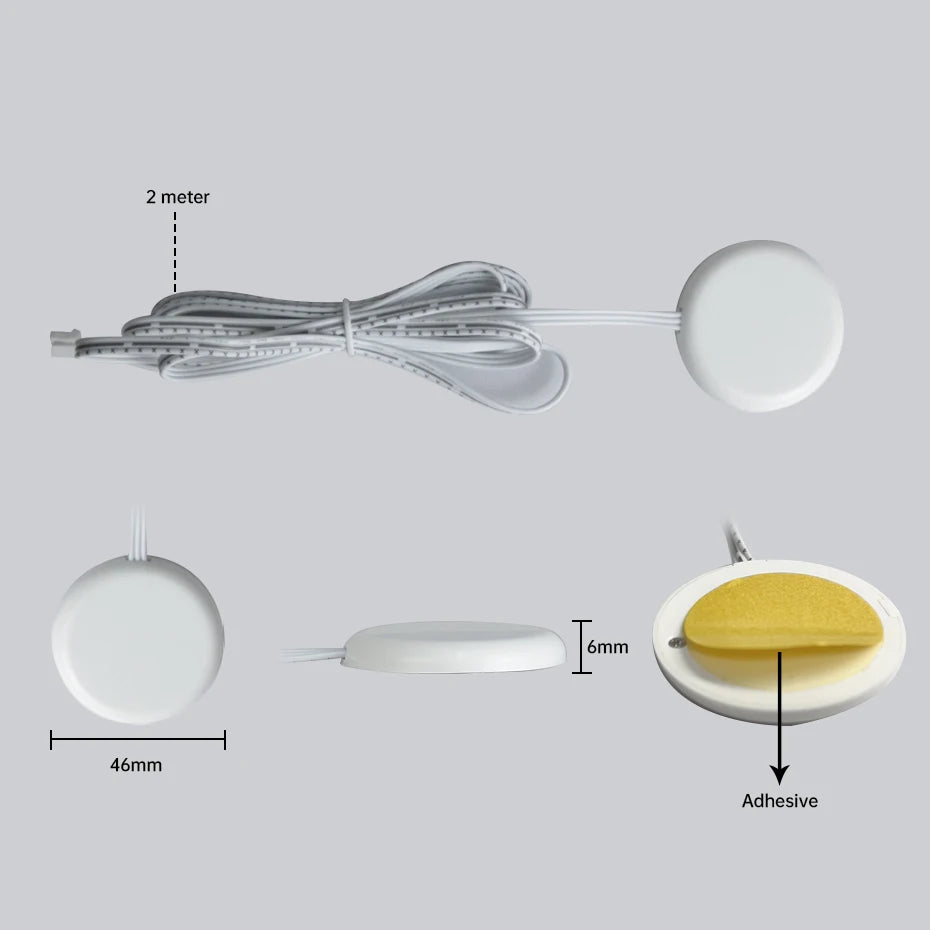

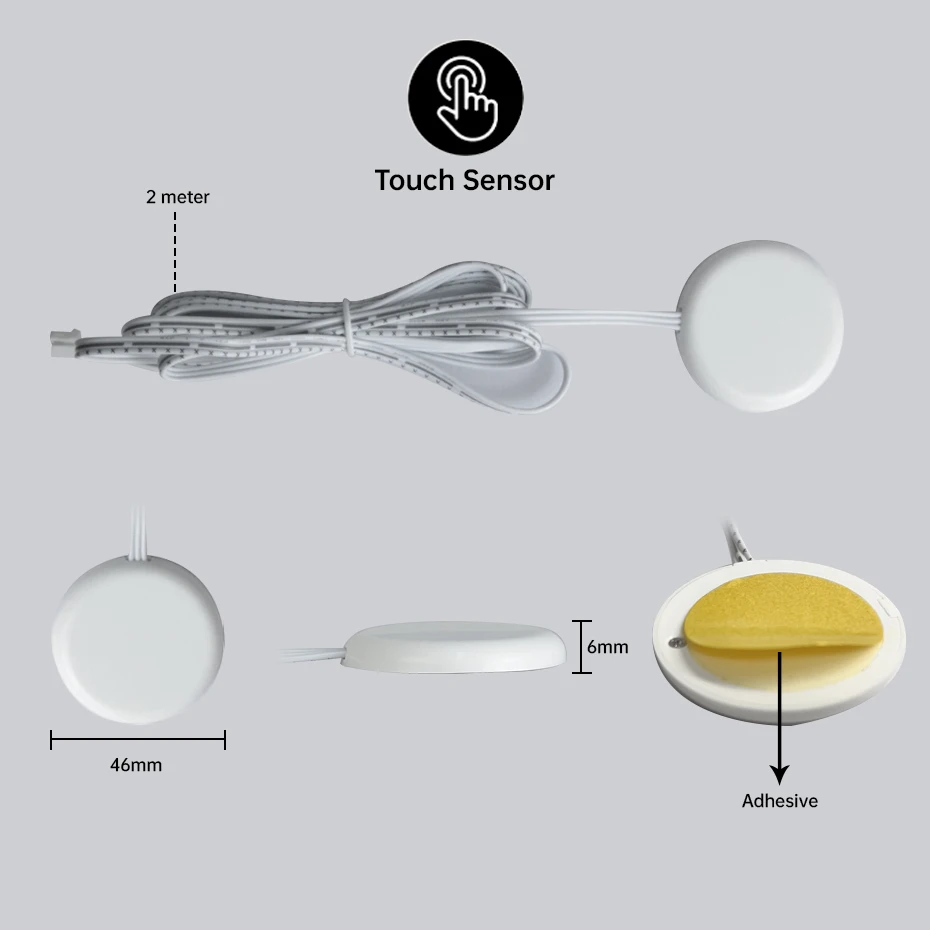

The touch head is illustrated approximately 46 × 6 mm with a 2 m lead.
Check operation at the chosen control surface before final fitting.
Long-press dimming belongs to the Touch Sensor option and requires compatible lighting.

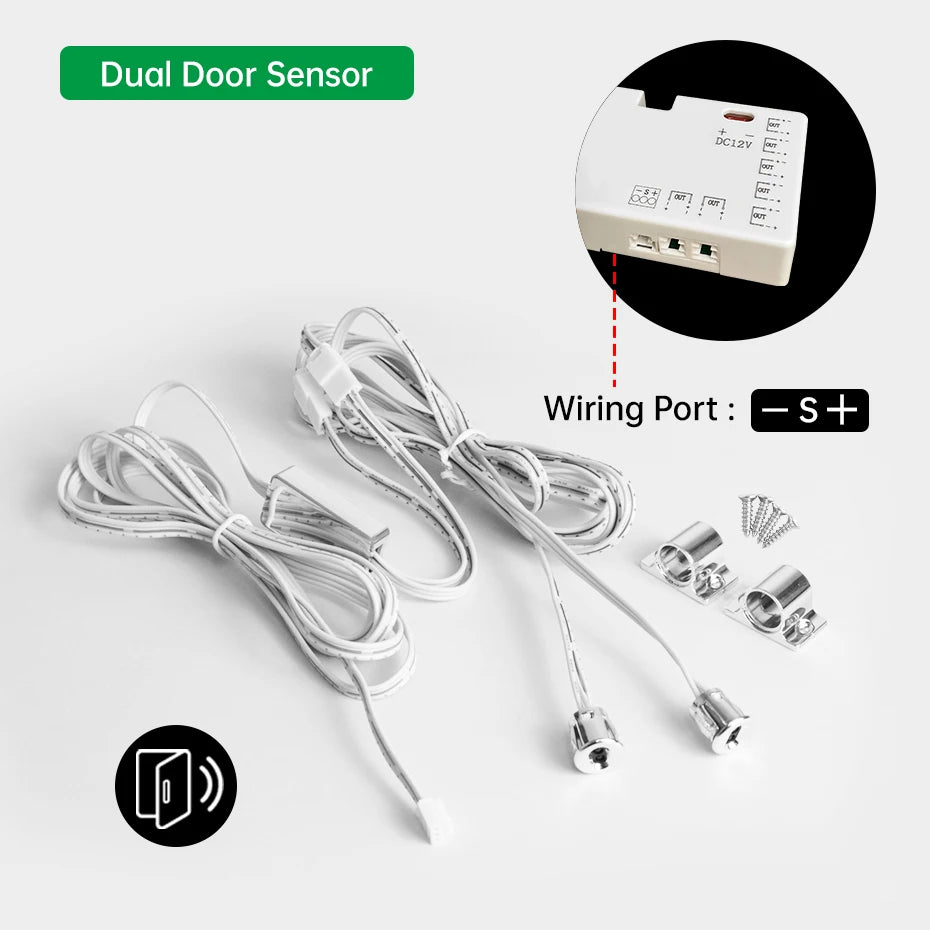

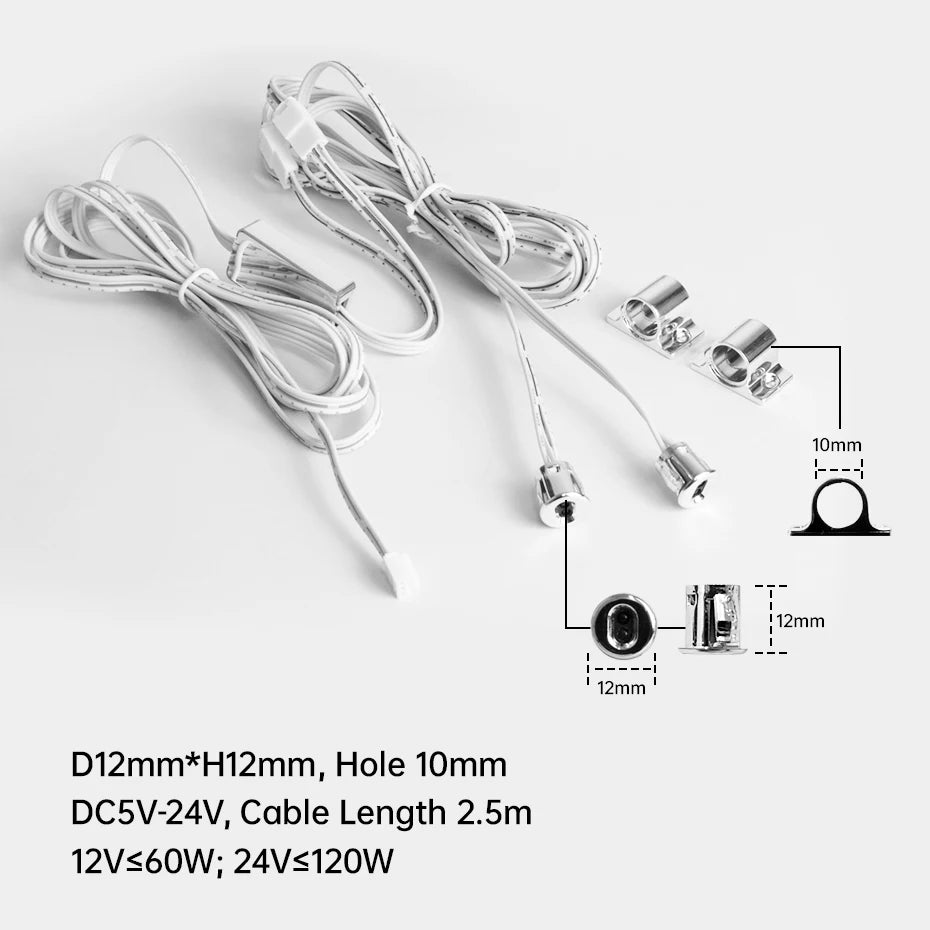

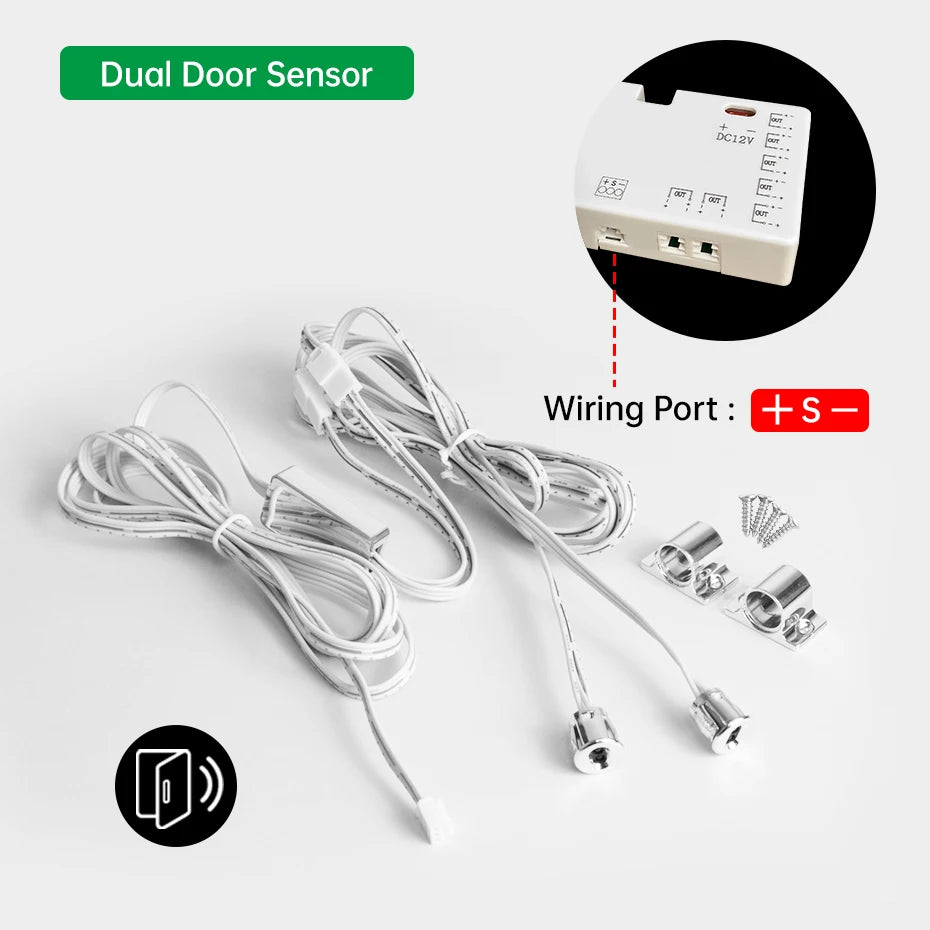

The separate door heads offer surface or recessed mounting arrangements.

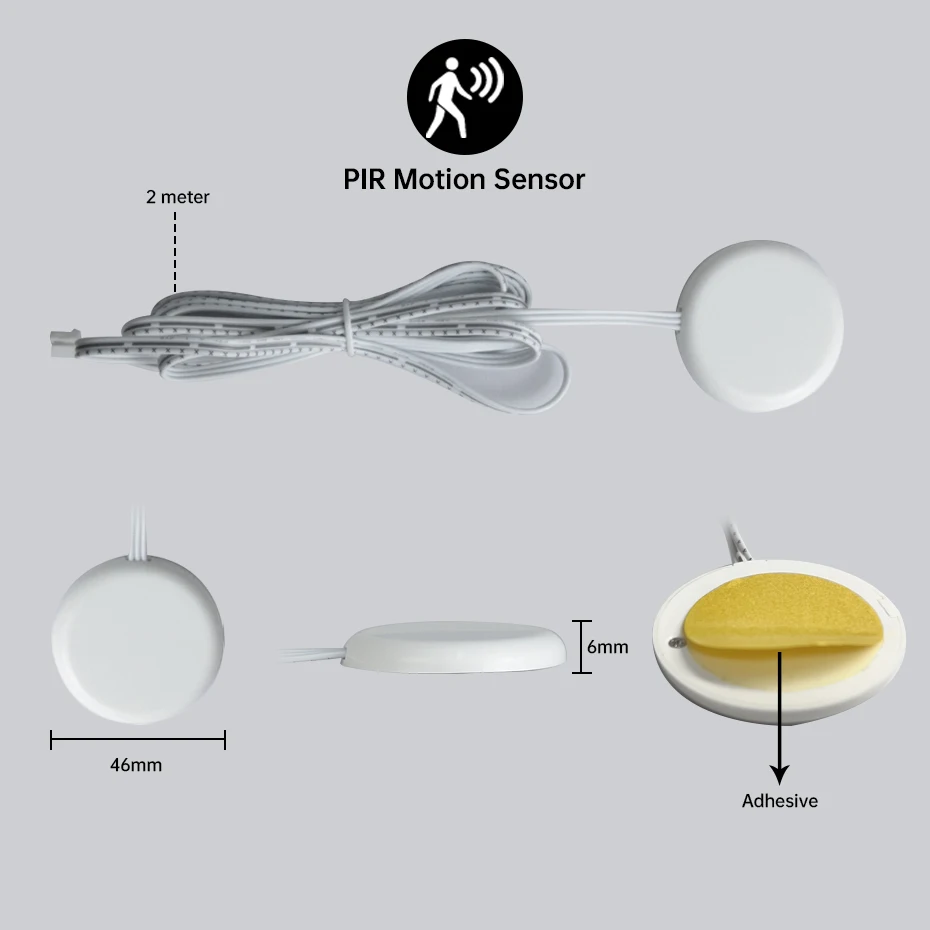

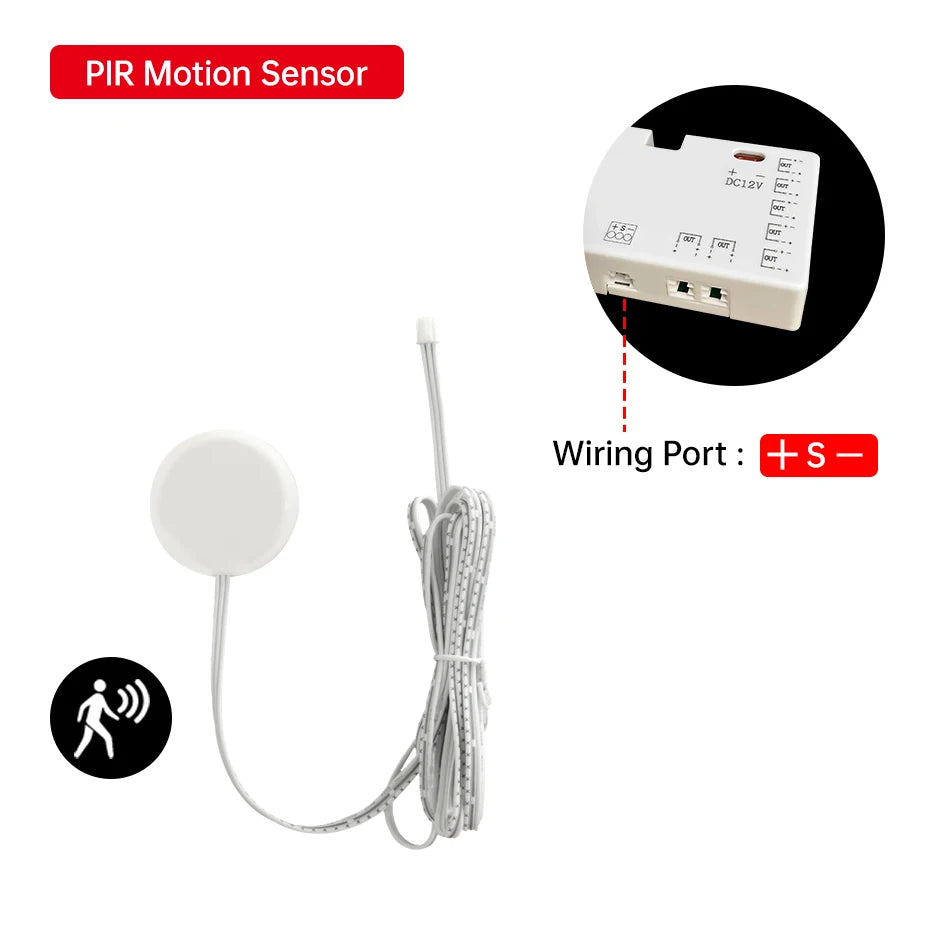

The movement sensor is a separate option from touch control.
Check the actual response at the intended position; panel penetration is not guaranteed.
Position the chosen movement-control option around the route where light is useful.
Door versions switch according to the cabinet-door positions.
Separate heads use different mounting dimensions from the integrated body.
The door function can operate with one or both doors open.

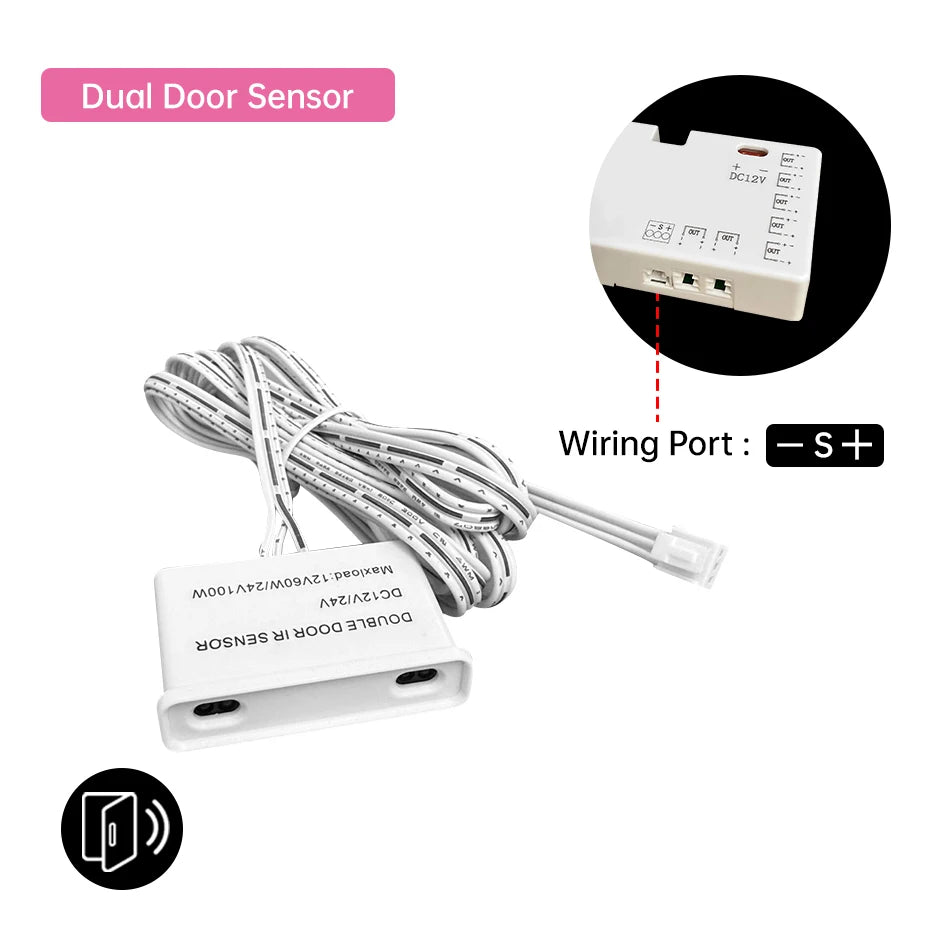

The integrated New Door Sensor is one alternative form factor.

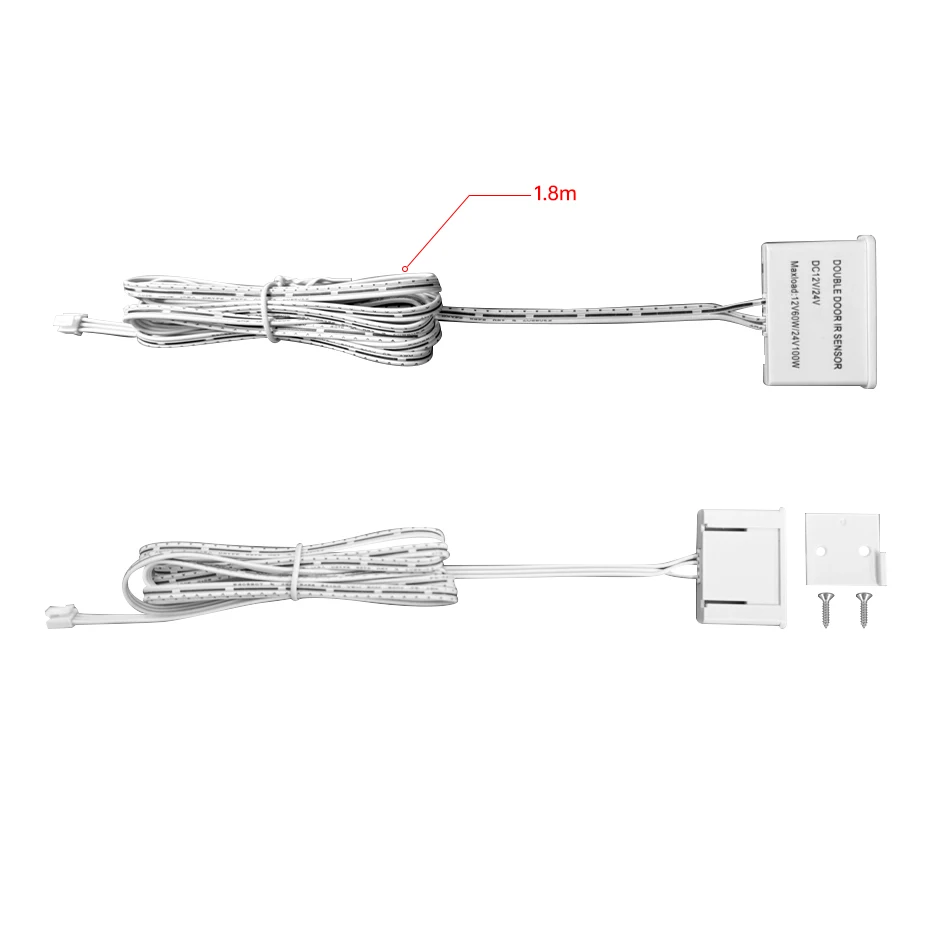

The integrated option has a nominal 1.8 m connection lead.
The compact integrated body needs a matched three-contact sensor port.

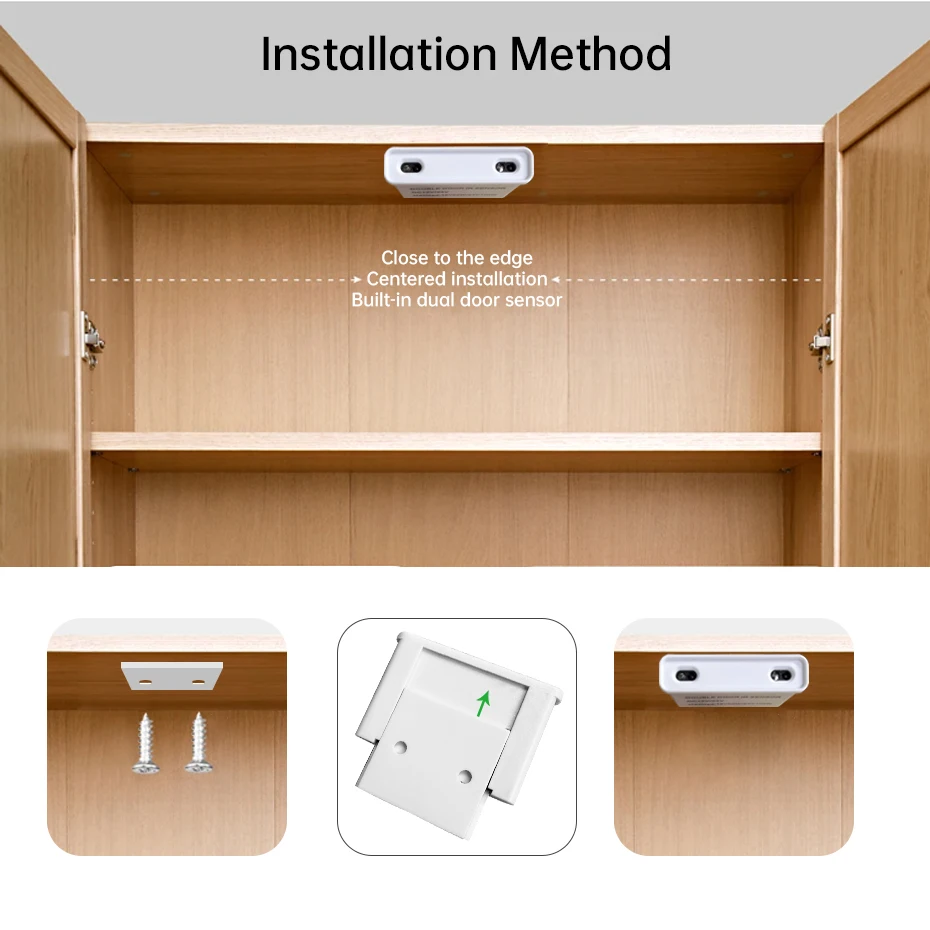

Fit the integrated unit centrally near the meeting door edges.
The removable plate provides a mounting arrangement for the integrated body.
Technical details
- System input specified: DC 12–24 V

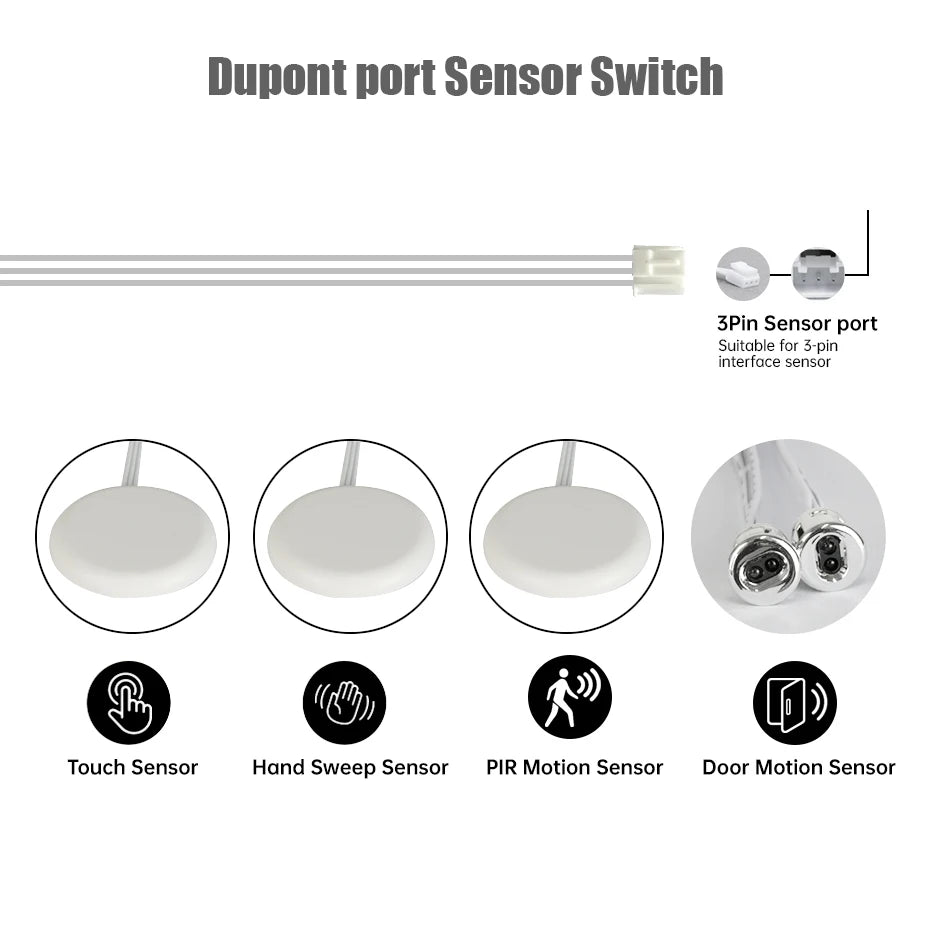

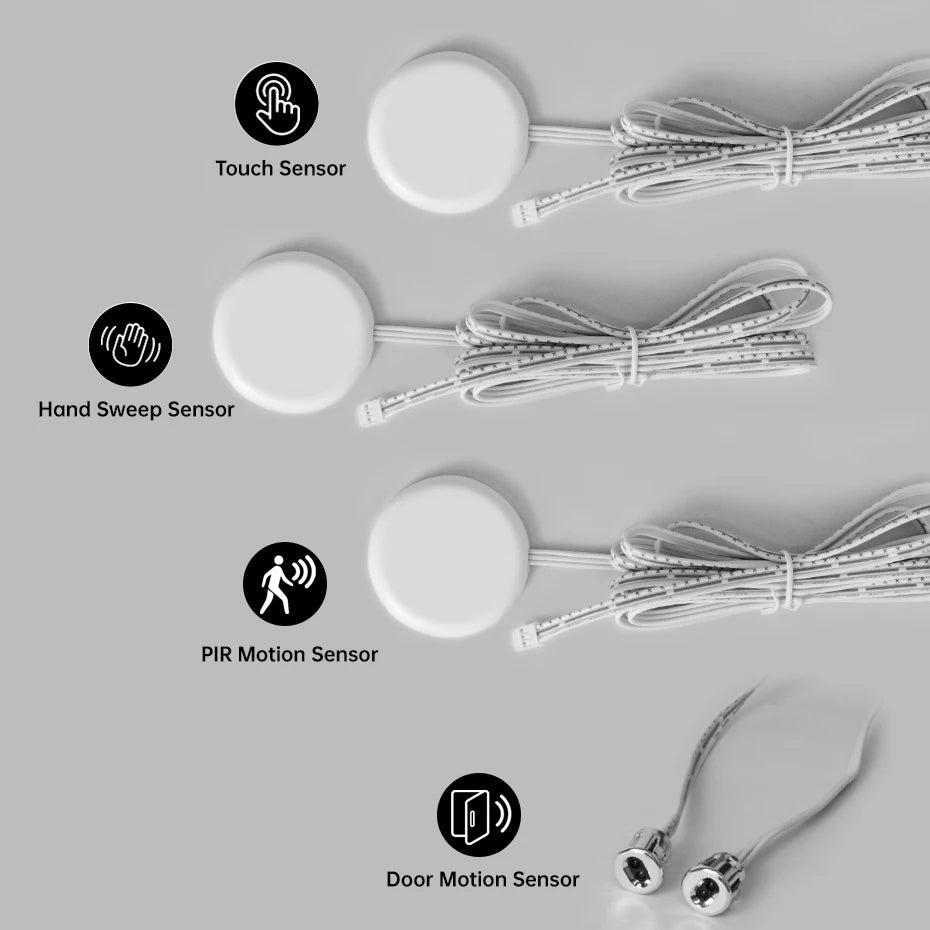

- Available: Touch Sensor A/B; Door Motion Sensor A/B; New Door Sensor A/B; Motion Sensor A
- Connections illustrated: three-contact + S − or − S +; verify selected variant

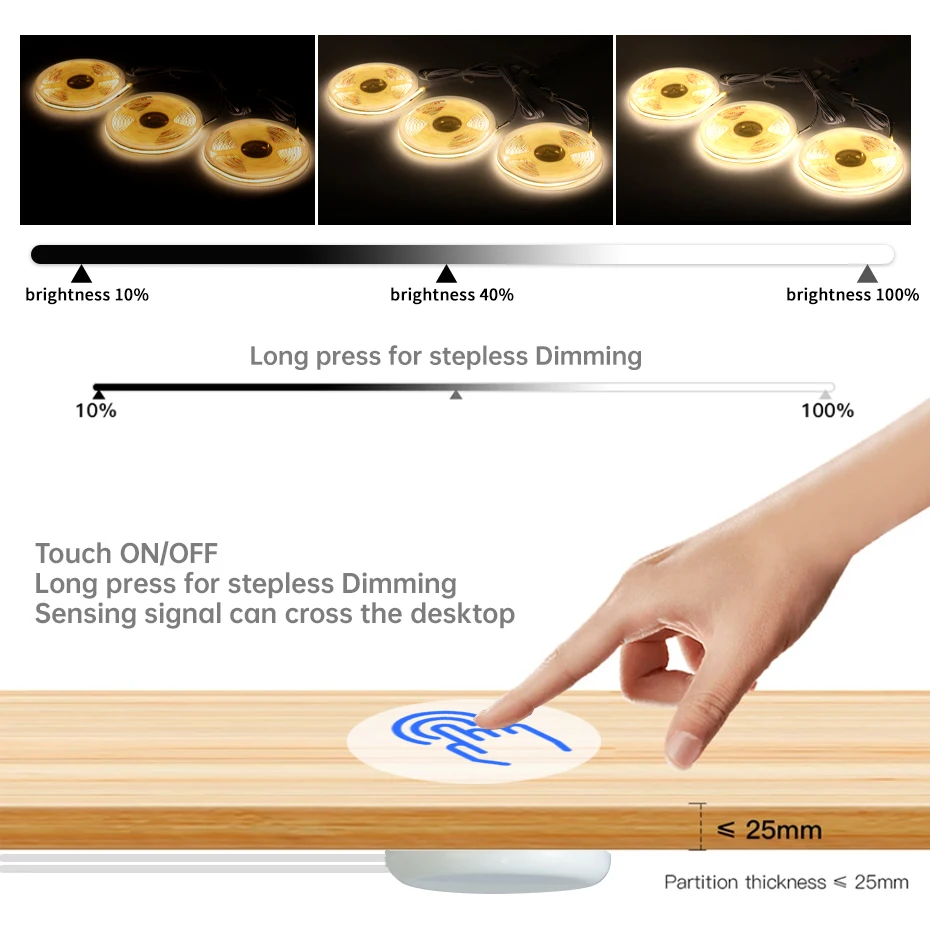

- Touch function: on/off with long-press dimming for compatible lighting
- Door function: on with either door open; off when both close
- Movement function: available only on the Motion Sensor option
- Round touch head approx.: Ø46 × 6 mm, 2 m lead

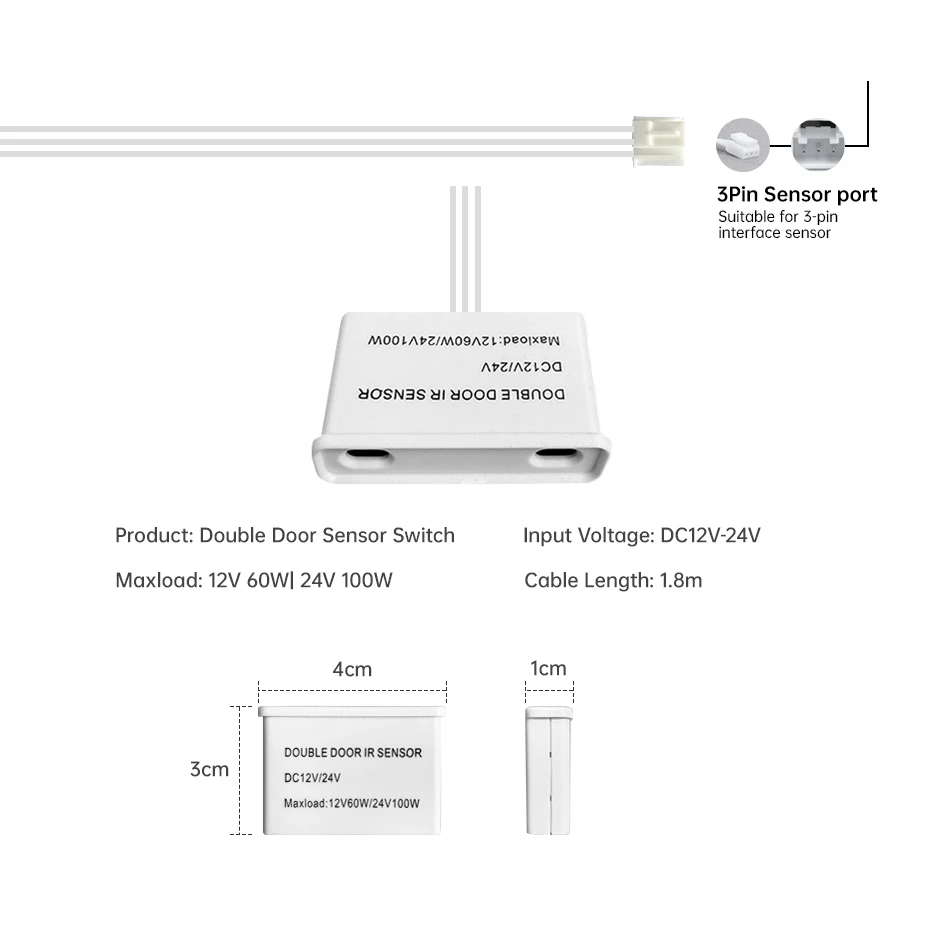

- Integrated door body approx.: 40 × 30 × 10 mm, 1.8 m lead
- Included: 1 selected sensor assembly and lead
- Not included: light, LED driver, control distribution box or supply
Match the sensor function and connector to your LED system, then put lighting control where you use the cabinet.
