12V Four-Sensor Parking Kit with Buzzer, 22 mm Sensors
Add an audible distance reference when manoeuvring slowly into a parking space. This wired parking kit uses four 22 mm bumper sensors and a separate buzzer with a compatible 12V installation. It is for drivers adding an aftermarket parking aid.
- ✅ Hear a distance-related reference — The buzzer changes its indication with the system's measured distance.
- ✅ Plan sensor positions across the rear bumper — Four wired sensors connect to the supplied control box.
- ✅ Keep the cabin fitting simple — A separate compact buzzer provides the audible output without a confirmed screen requirement.
- ✅ Choose a closer visual match — Sensor finish options let you select a colour for the bumper.
An audible parking aid with four wired sensors
The selected variants are four-sensor, 12V kits. General illustrations also show six- and eight-sensor layouts, but those extra sensors and functions are not part of these options. The four sensors, controller and buzzer need fitting and wiring to a suitable vehicle system; test the layout before completing the installation.

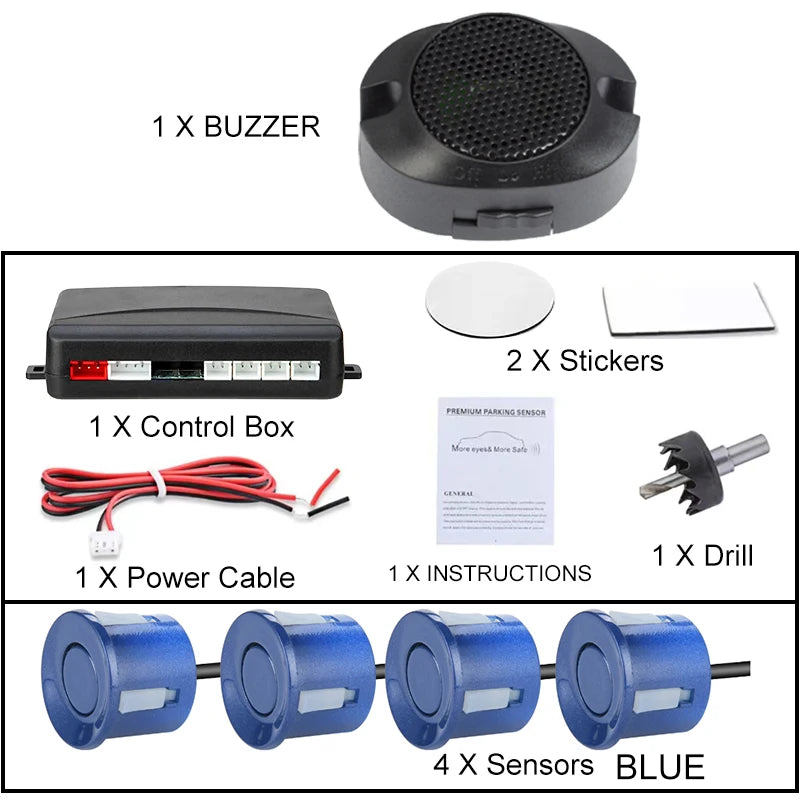

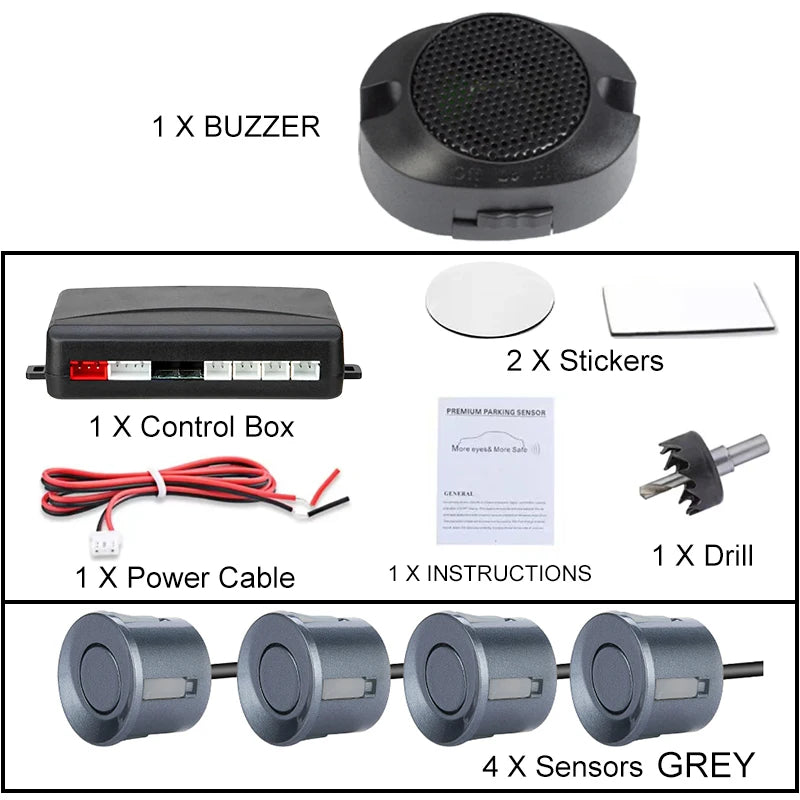

Choose from the available coded finishes: PL-WE, BE, GN, YW, MT-BK, RD, GY, WE, BK, SR or CE-GD. Each selection supplies one finish rather than every colour. The illustrated package includes four sensors, control box, buzzer, power lead, adhesive pads, hole-cutting bit and instructions. A visual display is not confirmed included.
The stated sensing and audible-warning ranges are references under suitable conditions, not guaranteed clearance. Small, angled, soft or low objects and installation conditions can affect readings. Continue direct observation and mirror checks during every manoeuvre.
The selected options supply four sensors, not the six/eight layouts also pictured.
The control box connects sensors, power and the buzzer.
General diagrams show other output options; a display is not confirmed included.

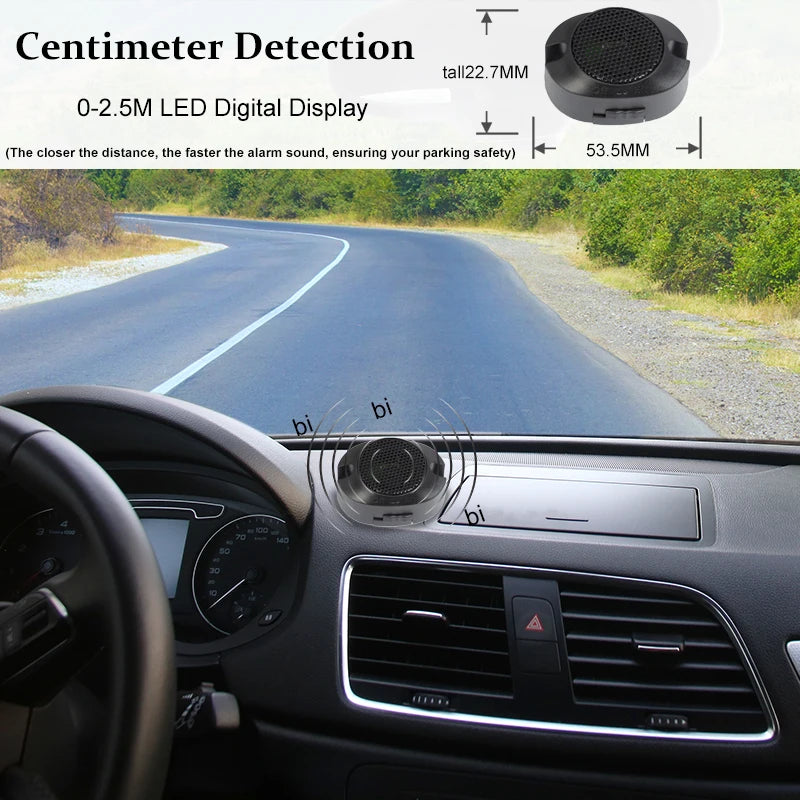

The buzzer is approximately 53.5 mm wide and 22.7 mm tall.
Use the four-sensor operating instructions for this kit.
Plan a suitable wired connection to the vehicle.
The six/eight-sensor diagram illustrates a different configuration.
Positioning and orientation affect the resulting readings.
Bumper installation requires suitably sized holes.
Keep sensor faces clear and align them as instructed.

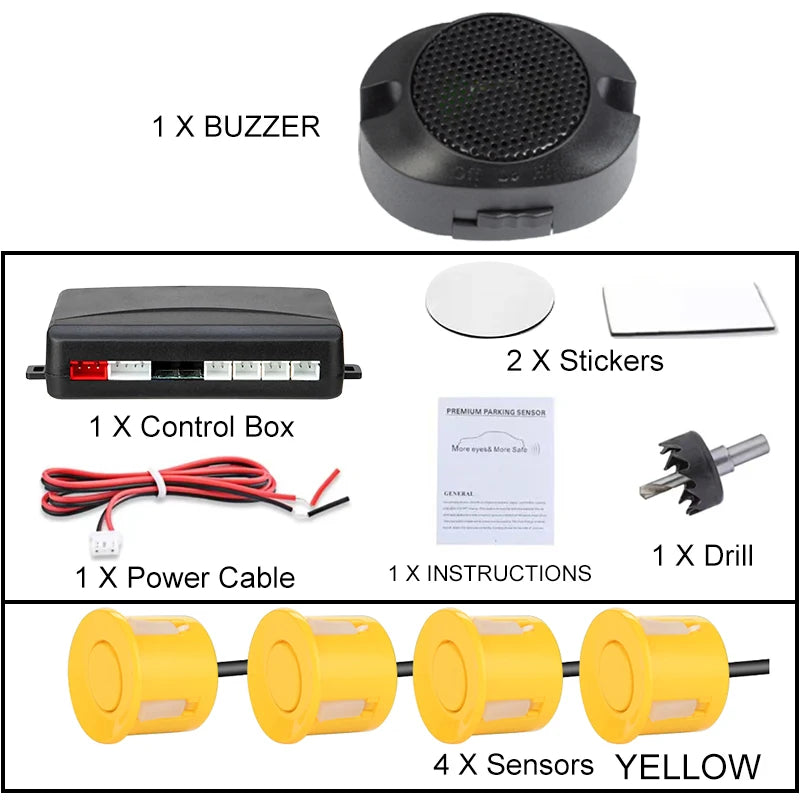

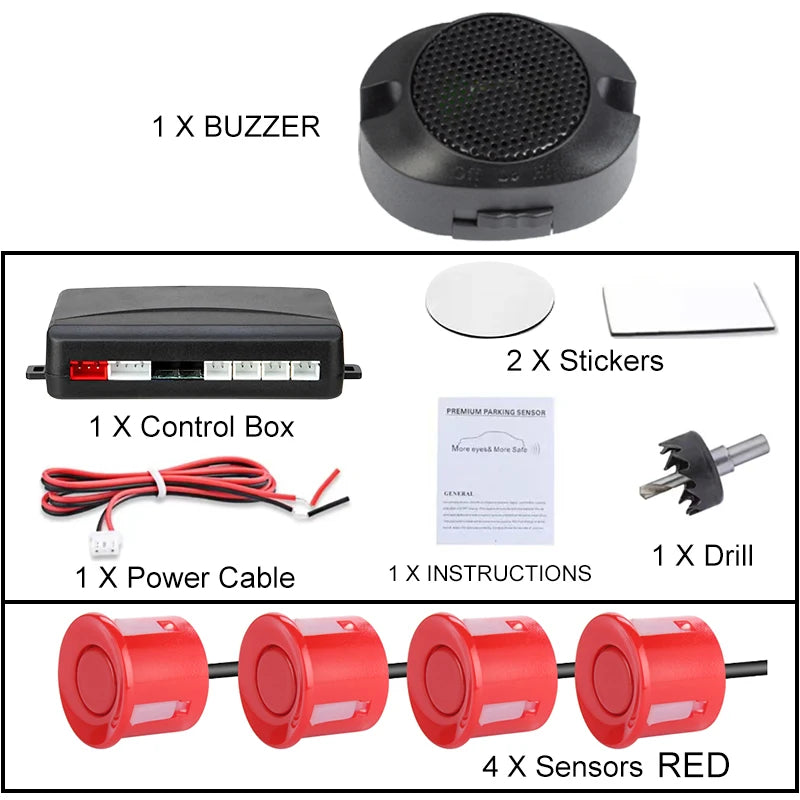

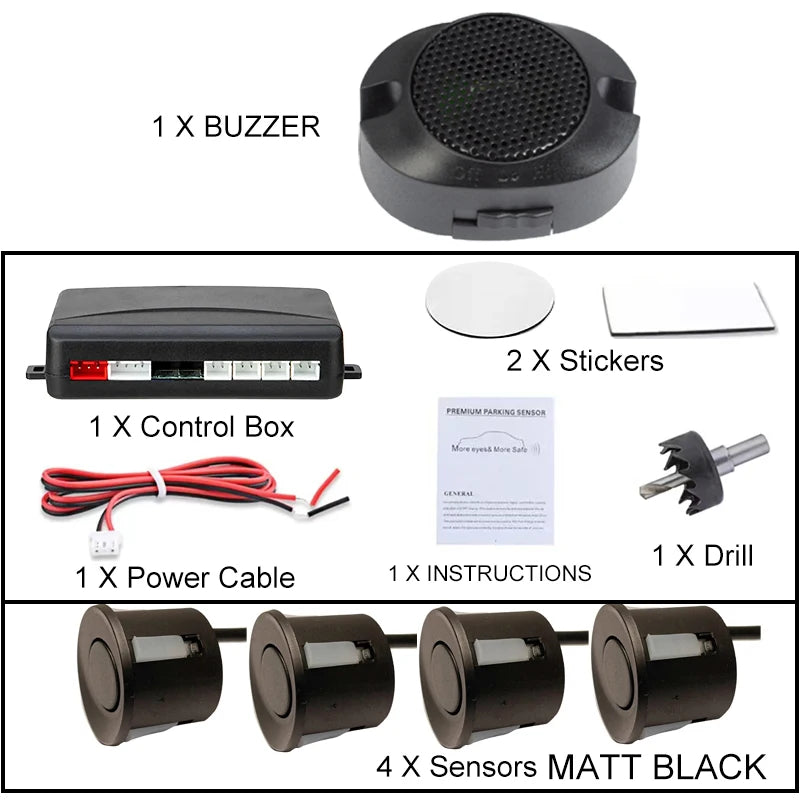

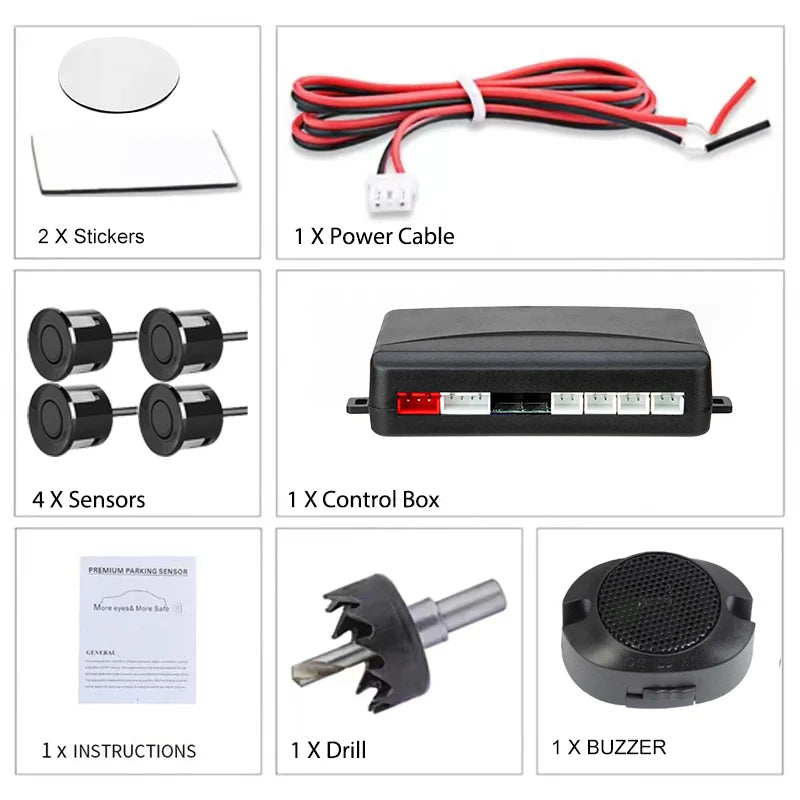

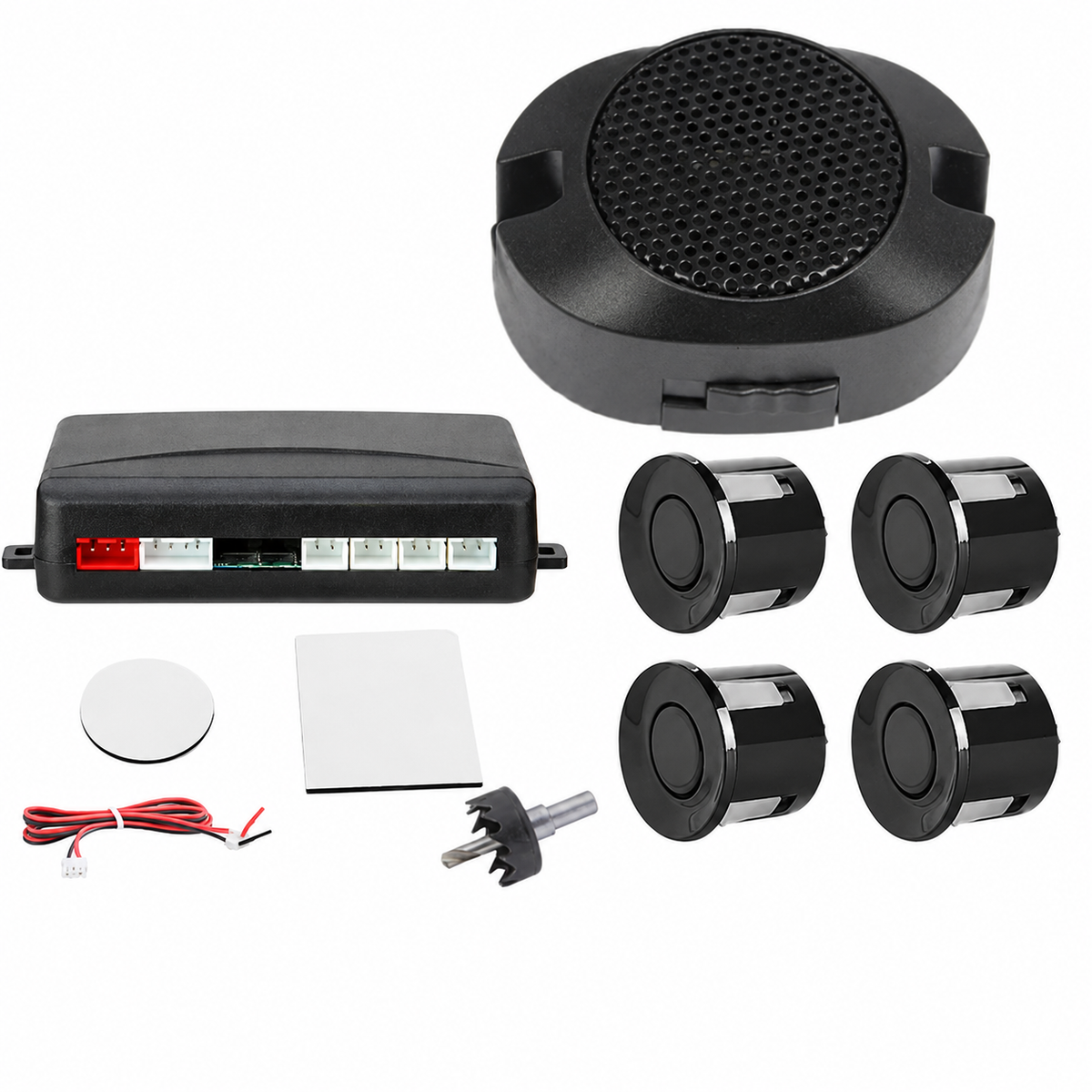

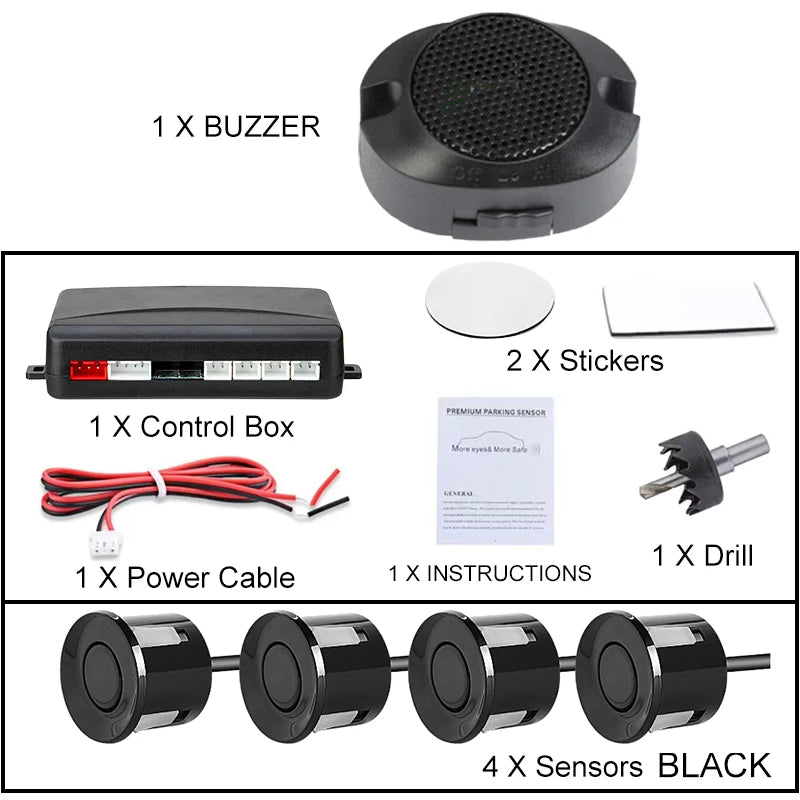

The illustrated four-sensor package includes the controller and buzzer.
Choose one available sensor finish.
Quoted ranges depend on conditions and correct installation.
Technical details
- Model: 080-4-22MM
- Supply: 12V DC
- Sensors: 4 wired units, 22 mm diameter
- Output: buzzer; display not confirmed included

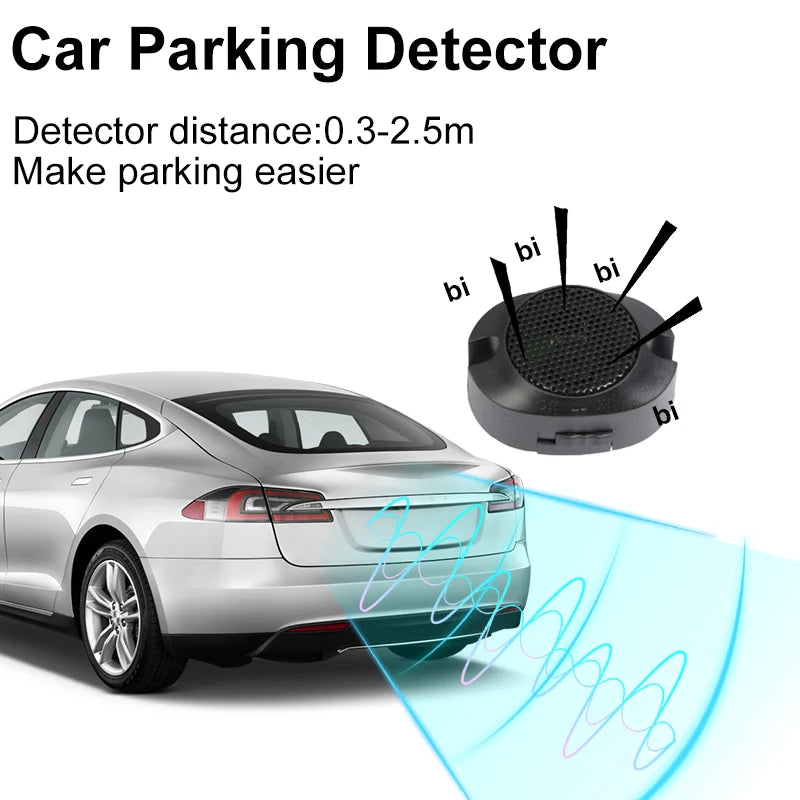

- Stated sensing range: 0.3–2.5 m
- Stated alarm range: 0.3–1.5 m
- Sensor lead length stated: approximately 2.3 m
- Power lead length stated: approximately 0.8 m
- Finish codes: PL-WE, BE, GN, YW, MT-BK, RD, GY, WE, BK, SR, CE-GD
- Illustrated contents: 4 sensors, controller, buzzer, power lead, pads, hole-cutting bit and instructions
Choose the sensor finish for your bumper and add an audible reference to a correctly fitted parking setup.
