12V Submersible Water Pump, 18W

Move water from a container through a matching hose instead of repeatedly lifting and pouring it. This submersible pump needs a compatible 12V supply and a suitable outlet connection. It is for owners assembling or replacing a small water-transfer system.

✅ Move water from the container — the submerged pump drives water towards the outlet hose.

✅ Plan a replacement — the compact body can be compared with an existing pump space.

✅ Place the connection away from the intake — the attached lead provides wiring reach.

✅ Build around your hose — the exposed outlet lets you check the connection before installation.

Build the Water Path Before Connecting Power

Measure the available pump space and hose connection first, then plan the height and length of the water path. Maximum flow and maximum lift are separate limits; do not expect both at once, as hose resistance and height reduce delivery.

Use the supplied wiring instructions and an appropriately rated, protected supply, with electrical joints kept dry. Confirm exact dimensions and connections before using it as a replacement in existing equipment.

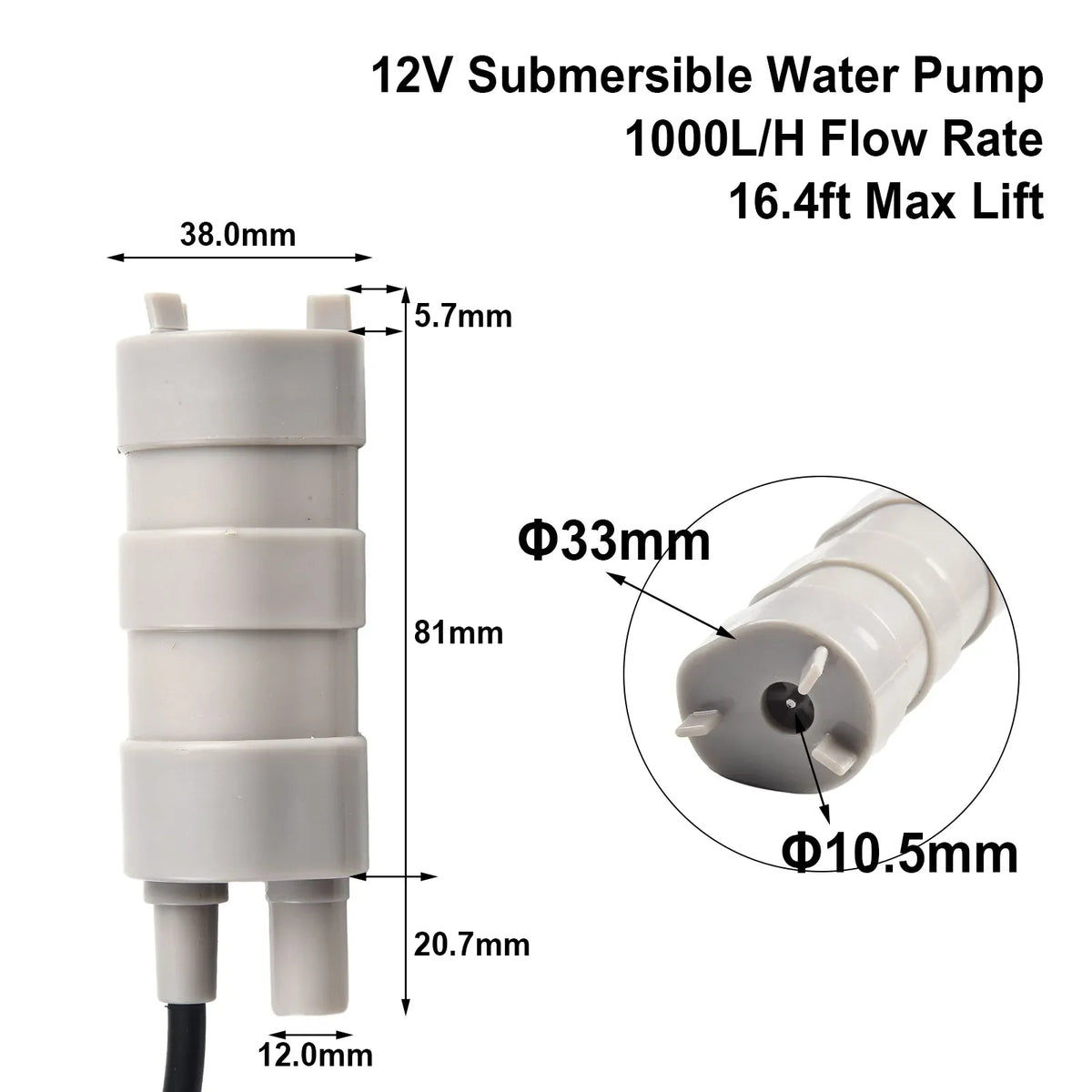

Use the dimension diagram to compare the body and outlet with your installation space before ordering.

The watering scene illustrates a possible system. Hose, spray nozzle and power equipment are not confirmed package contents.

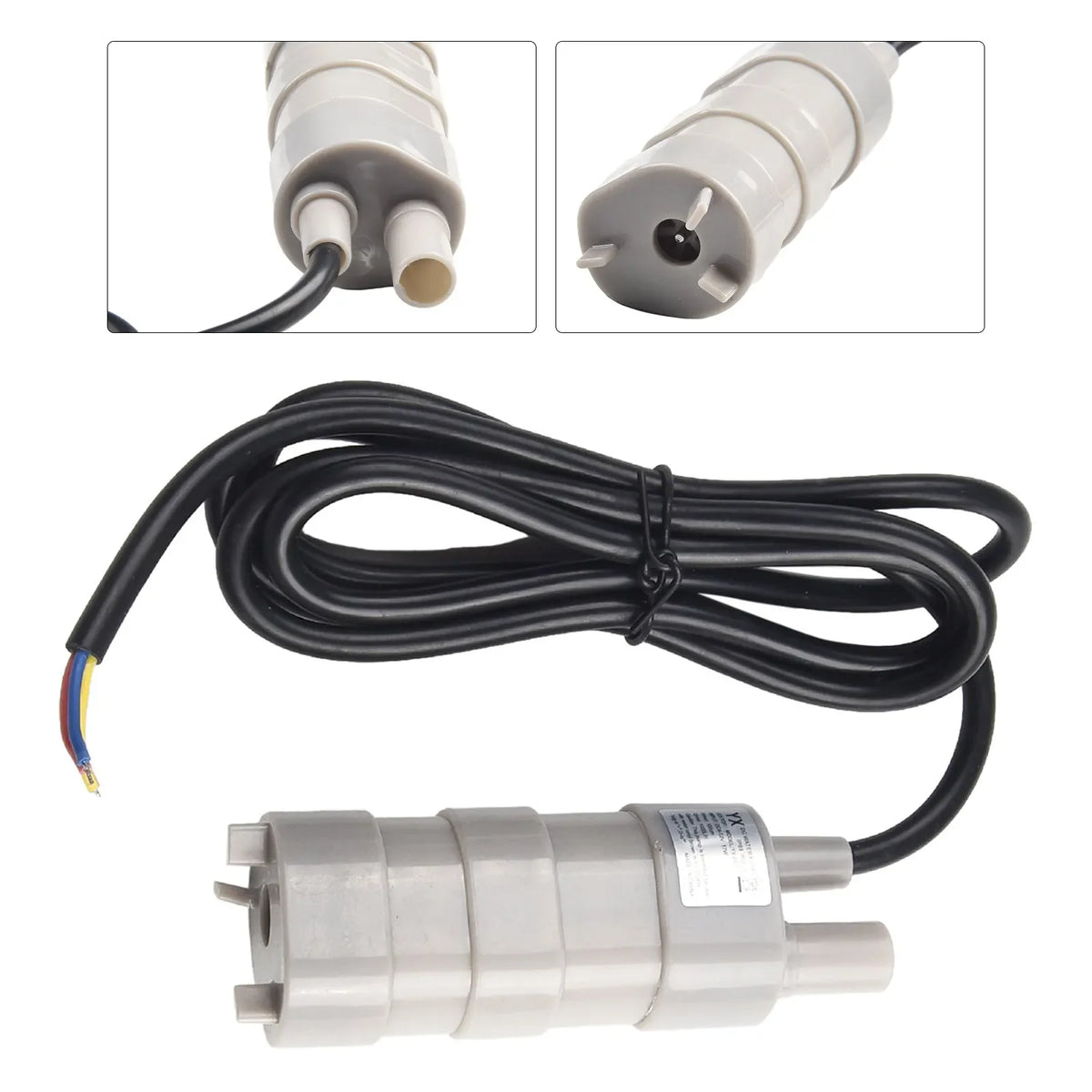

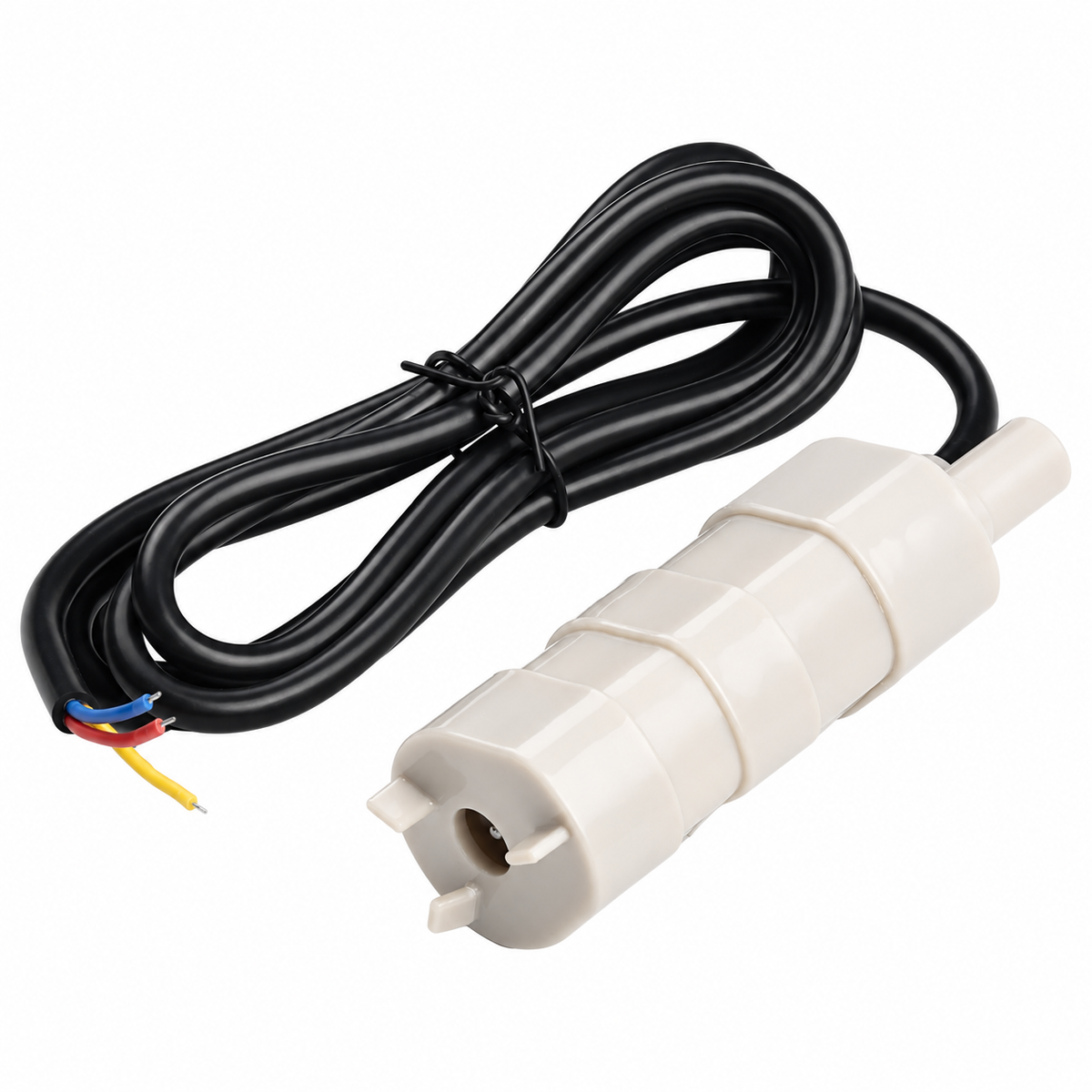

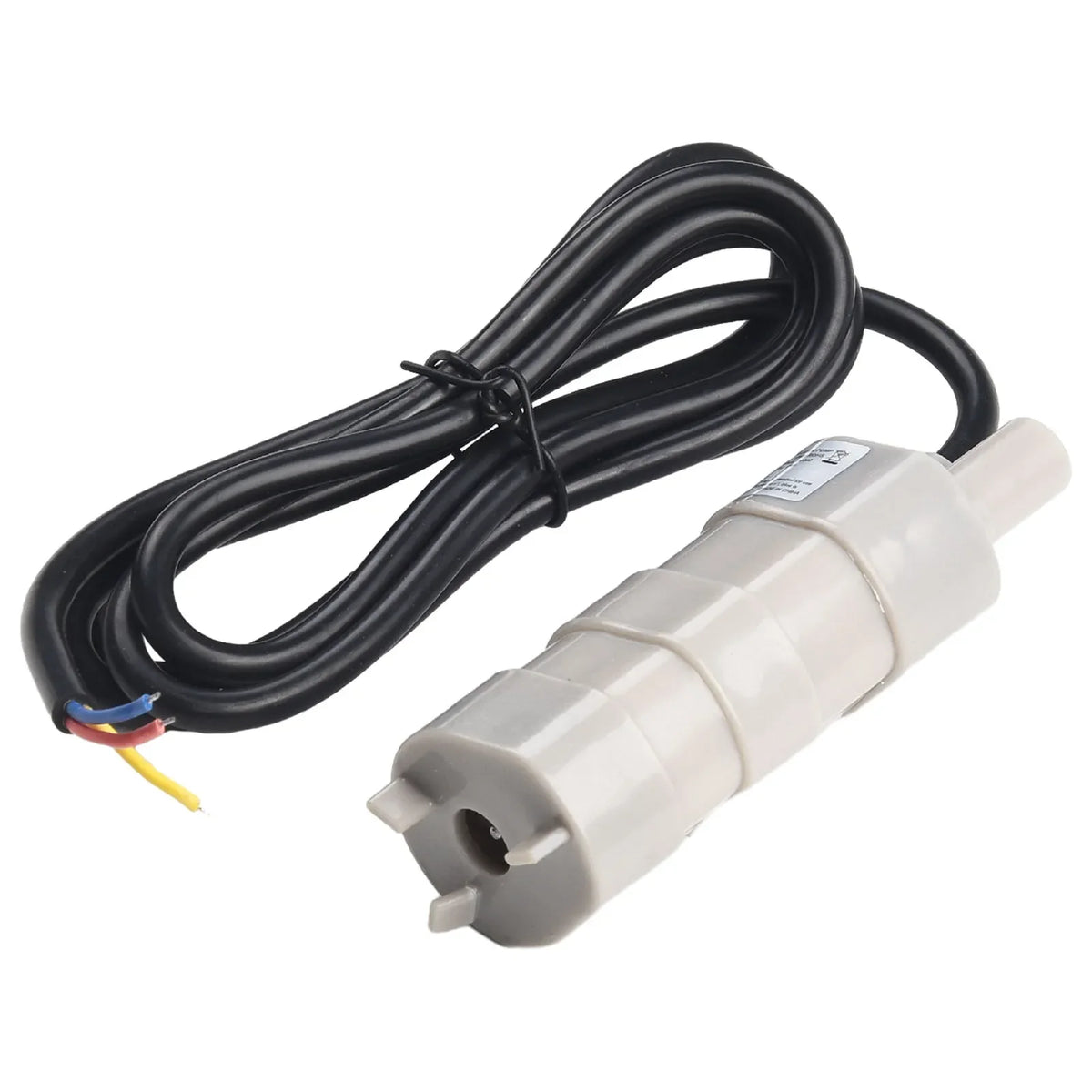

The pump and attached lead form the core of the assembly; plan your hose and power connection around them.

The lead ends require a suitable connection rather than plugging directly into a wall socket.

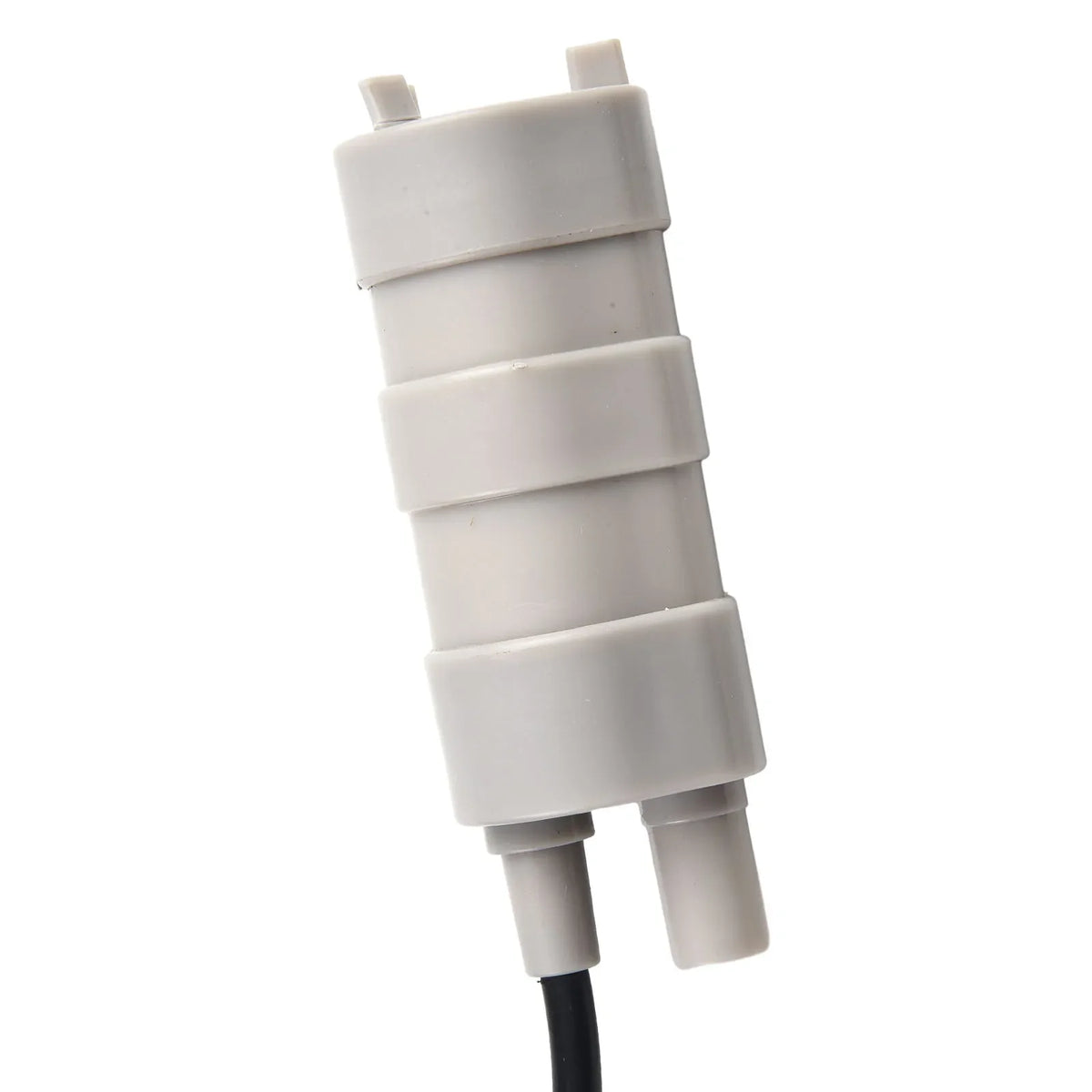

The slim body is useful when checking access through a container opening. Leave the intake unobstructed when installed.

Water enters at the bottom opening, so position the pump where that inlet remains clear.

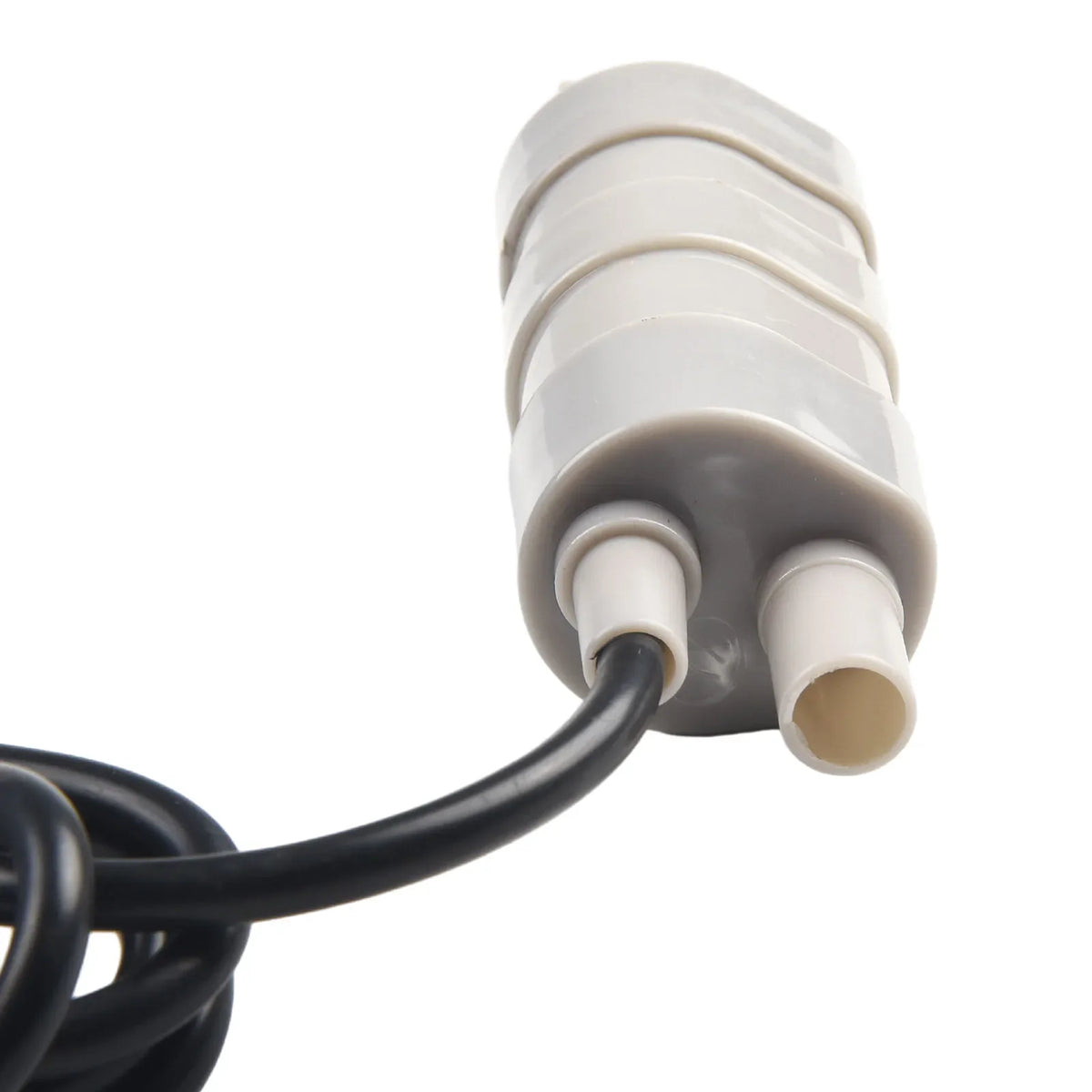

Compare the outlet's outside diameter with your hose before assembling the water path.

Route the lead to a dry, appropriately protected connection and follow the unit's wiring instructions.

Technical details

• Supply: 12V DC.
• Power: 18W.
• Material: ABS.
• Maximum stated flow: 1,000 litres/hour, dependent on installation.
• Maximum stated lift: approximately 5 m; not simultaneous with maximum flow.
• Outlet: approximately 12 mm outside diameter.
• Cable length: approximately 1.4 m.
• Package: one pump with attached lead.

Check the hose, supply and available space, then make water transfer less of a lifting job.
