5MP 4G PTZ Camera Module with 30X Optical Zoom

Monitor remote property without fixed internet using this 5MP PTZ camera module with 3G/4G SIM card support, 30x optical zoom, and RS485 control. It is designed for mobile network-based viewing in indoor or outdoor installations.

Remote Monitoring with Zoom and Mobile Network Access

✅ See distant details more clearly with 5MP video and a 30x optical zoom lens.

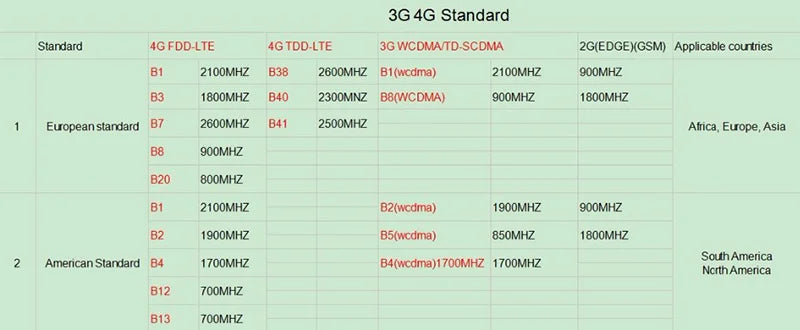

✅ Watch sites without router internet by using 3G or 4G SIM connectivity.

✅ Control pan, tilt, and zoom integration more easily through the RS485 interface.

✅ Store footage locally with TF card support up to 128GB.

✅ Stay aware of activity faster with human detection, motion alarms, and audio alarms.

✅ Use one module in more places thanks to indoor/outdoor use, metal housing, and -35C to +60C operation.

The 4.5-120mm lens, autofocus, and 90° viewing angle help you cover wide areas and then zoom in when you need closer detail. H.264 and H.265 compression support efficient video handling for remote surveillance.

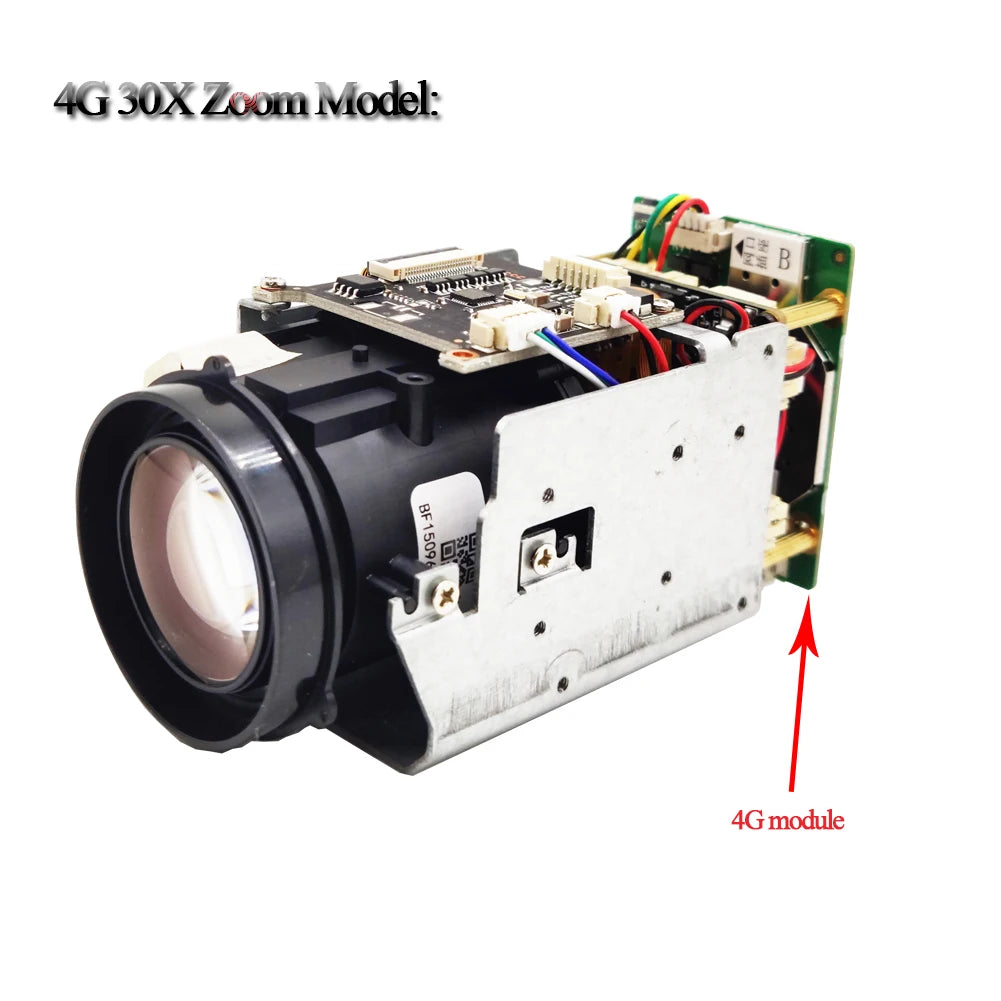

You can integrate this 38 x 38 mm board into a PTZ camera housing and control it through Pelco-D/P, Visca, ONVIF, RTSP, and P2P compatible systems. Audio output is available through 1CH RCA, and power consumption stays below 3W on 12V power.

For local recording and alerts, it supports TF card storage, local alarms, email photo, and FTP photo. In 4G mode, this module does not support router internet connection.

Compact board fits PTZ housing integration.

Long zoom supports clearer distant viewing.

SIM support enables mobile network monitoring.

RS485 control simplifies PTZ system integration.

Night vision extends visibility up to 50 meters.

Local storage reduces reliance on external recording.

Metal shell suits demanding installation environments.

Auto focus helps maintain a sharp image.

Audio output adds sound to video monitoring.

Ceiling installation supports flexible placement.

Human detection helps reduce unwanted alerts.

Multiple video standards improve system compatibility.

Compact dimensions fit space-sensitive builds.

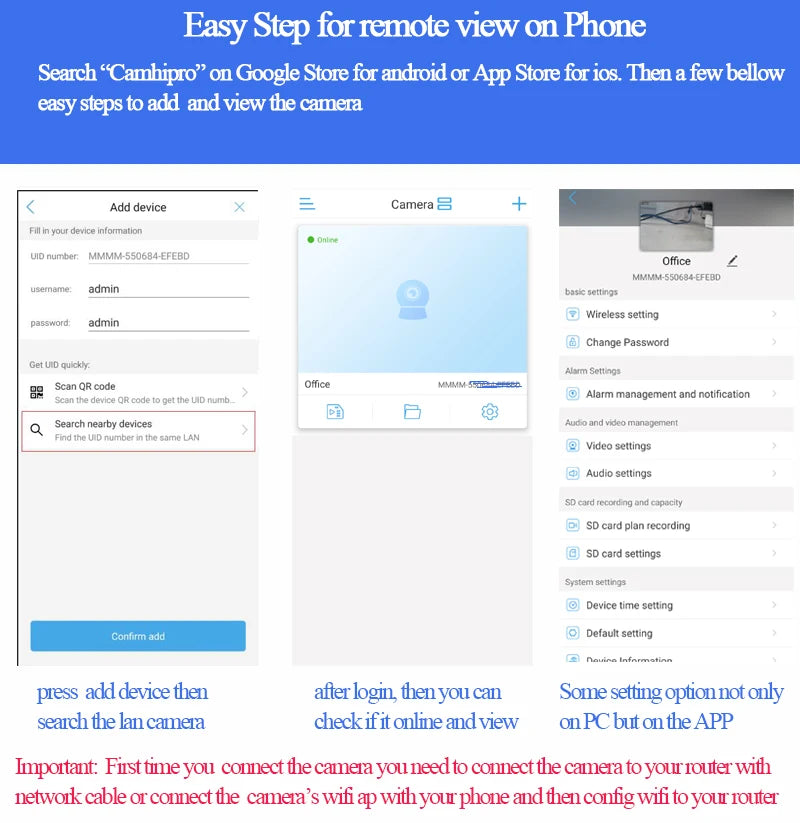

Works with Android, iOS, Windows, and macOS.

Clear wiring layout supports easier setup.

Choose this PTZ camera module for mobile network remote surveillance.
