TA500A/B/C Digital Tachometer, Contact & Optical Options
Check rotational speed using the measurement method your task allows. This handheld tachometer family offers optical TA500A, contact TA500B and dual-method TA500C options. It is for workshop and technical users comparing rotational readings or, on contact models, surface movement.
- ✅ Choose measurement without physical contact — The TA500A or TA500C optical mode reads a prepared reflective target from a distance.
- ✅ Measure surface movement with the right model — Contact TA500B and TA500C options use their matching contact attachments.
- ✅ Keep a reading for recording — Data hold retains the displayed value while you note the result.
- ✅ Compare changing readings — The maximum and minimum functions retain extremes during a measurement session.
- ✅ Read in a dim workspace — The backlit LCD gives the reading a lit background when needed.
Select the measurement method before the model
Choose TA500A for optical measurement, TA500B for contact measurement, or TA500C for both. TA500A is specified at 3–100,000 RPM; contact rotation on TA500B and TA500C is specified at 3–19,999 RPM. Only the contact-capable models provide the illustrated linear measurement units.
For optical work, prepare the reflective target while the machine is stopped and follow the operating instructions for positioning. The stated optical working distance is 50–500 mm. For contact work, use the appropriate supplied tip or wheel and the manufacturer's procedure; keep clear of exposed moving components.
All options require two 1.5 V AAA batteries, supplied separately. The selected meter comes with an instruction manual; optical packs show reflective material and contact packs show their attachments. Choose the model-specific pack image, since the TA500A does not include the TA500C's measurement methods.

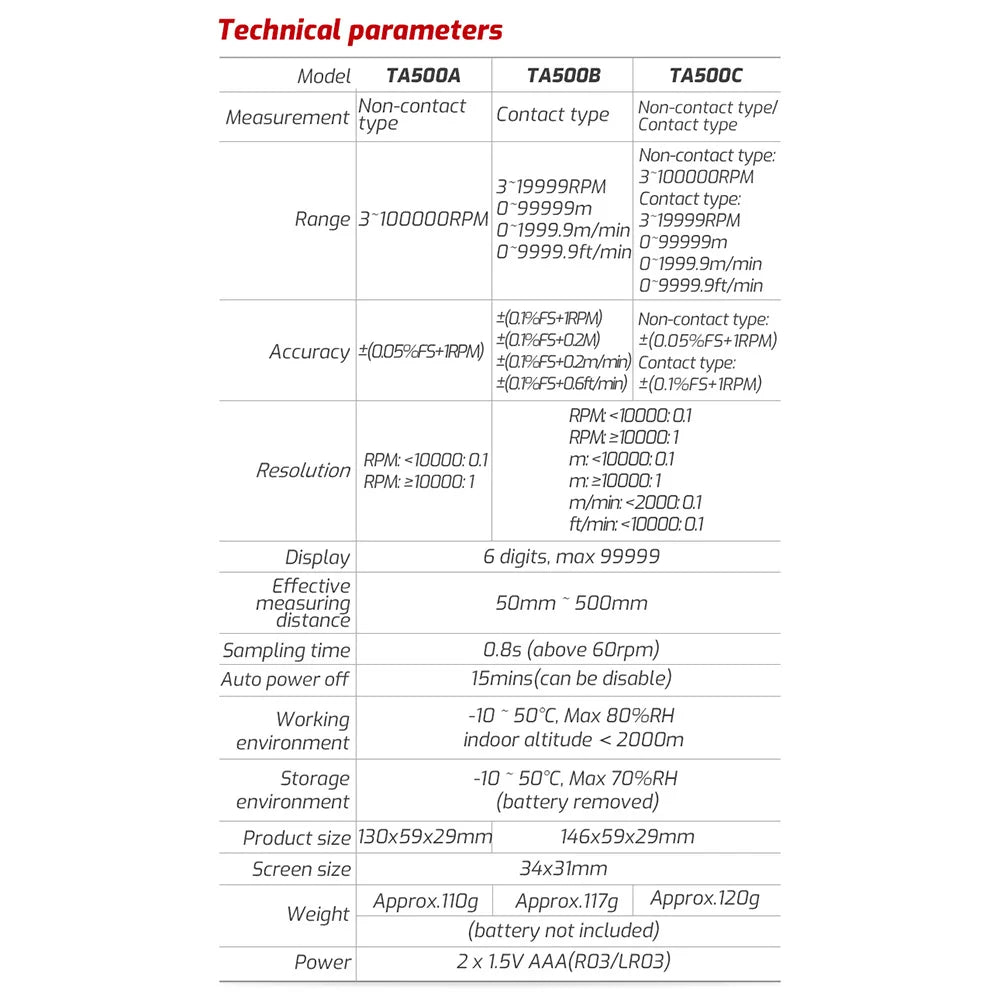

The comparison table separates optical-only, contact-only and dual-method models.

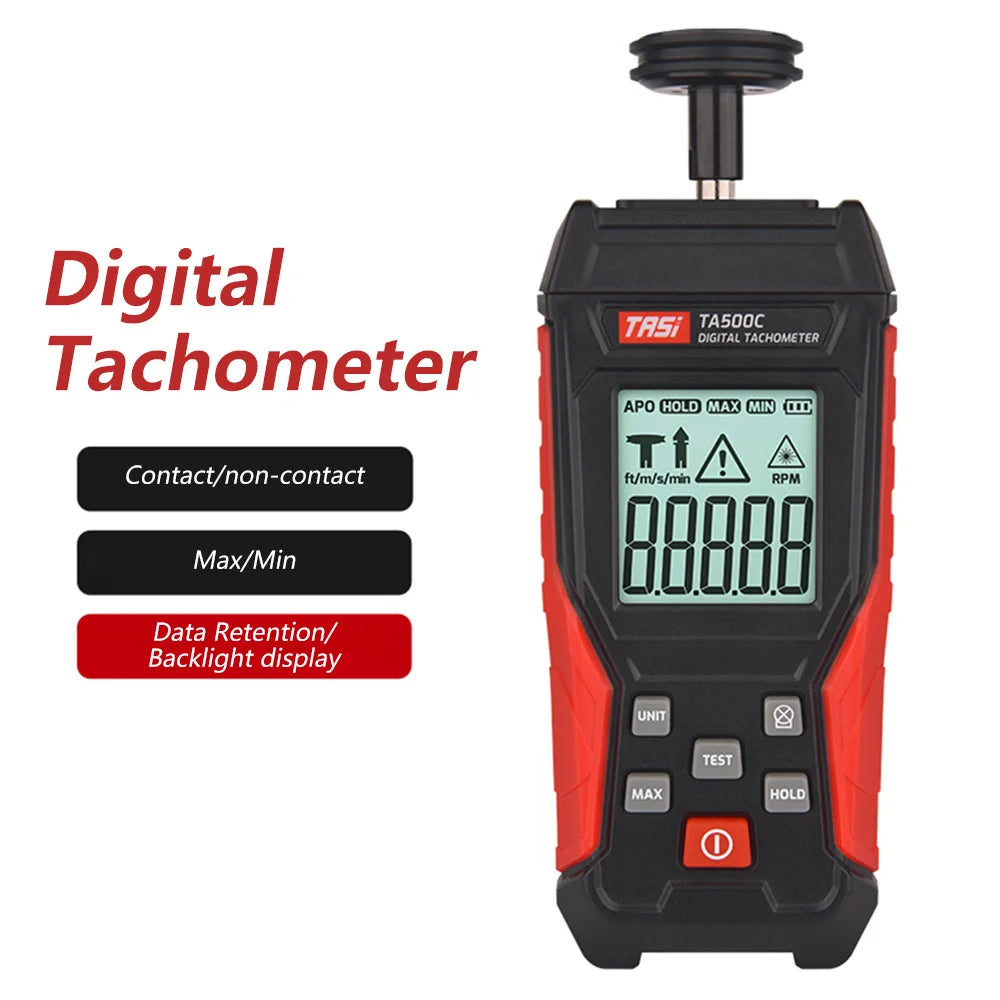

The TA500C example is the dual-method version, not the capability of every option.

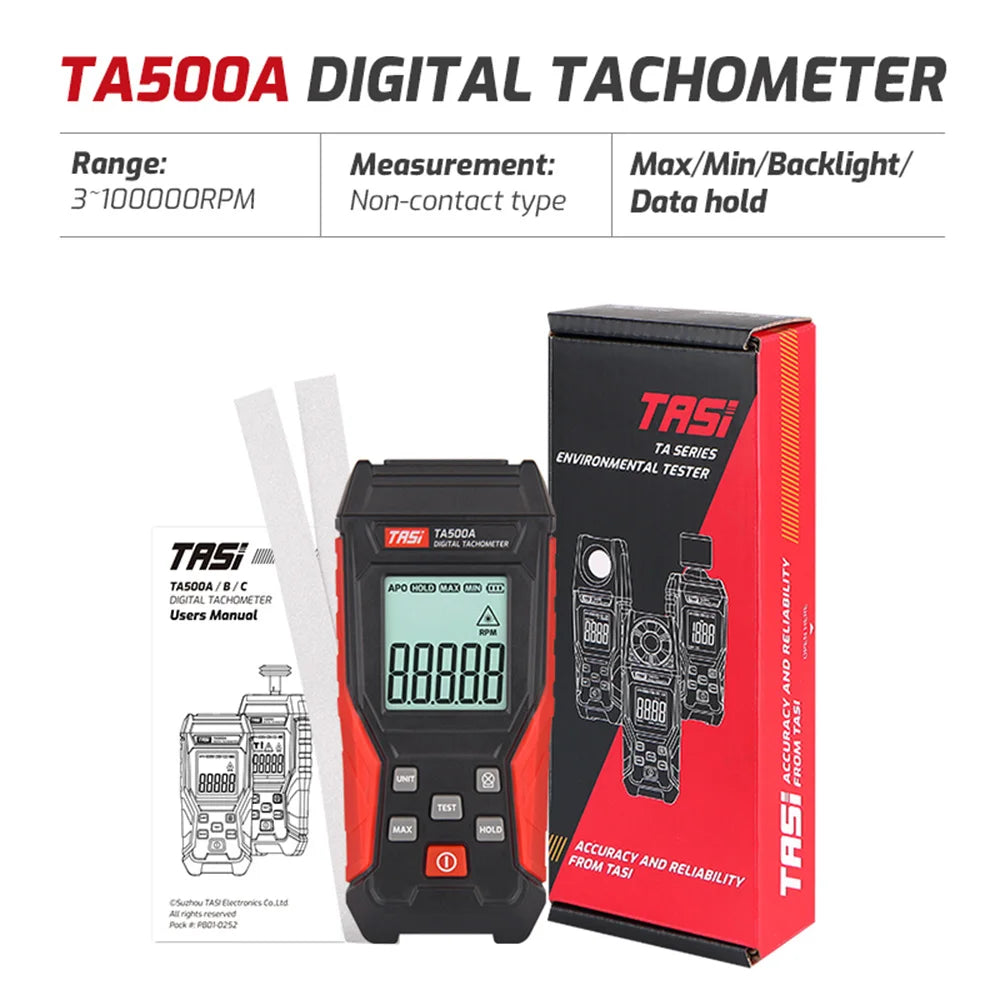

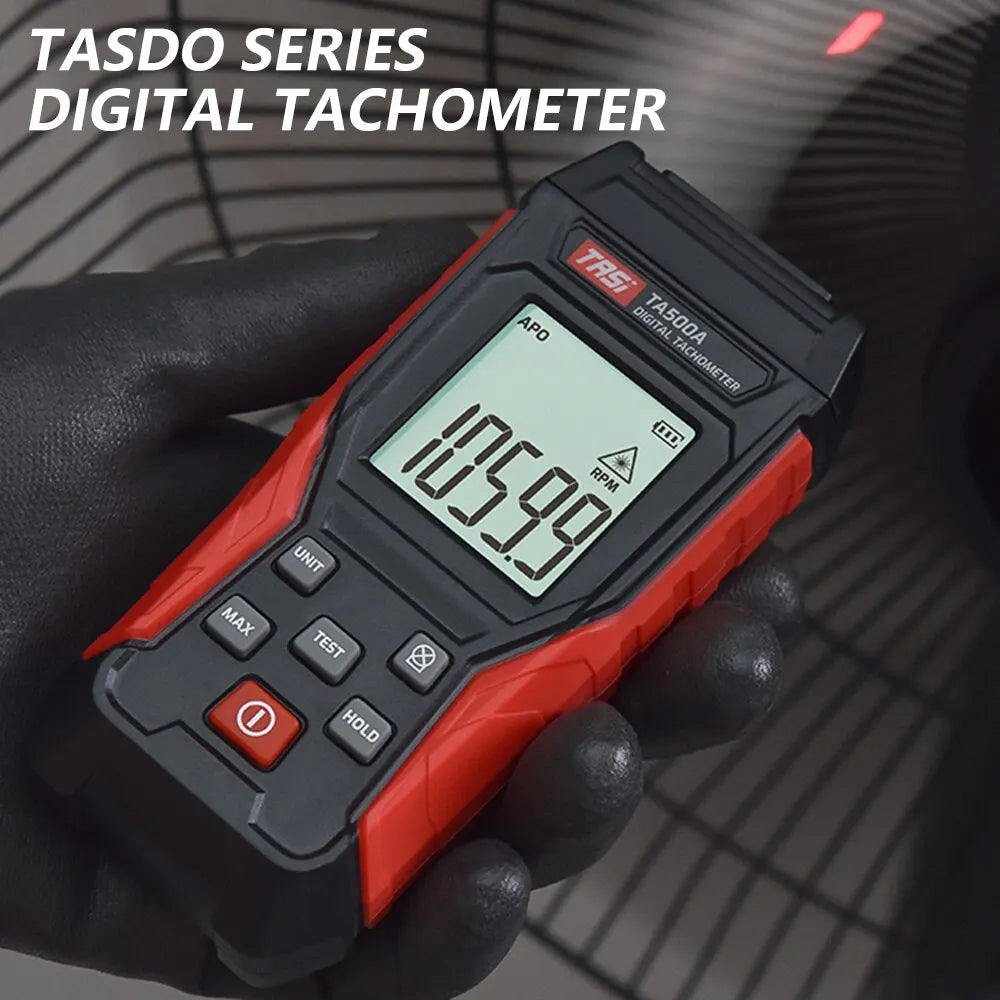

TA500A is the optical-only selection with reflective material shown.

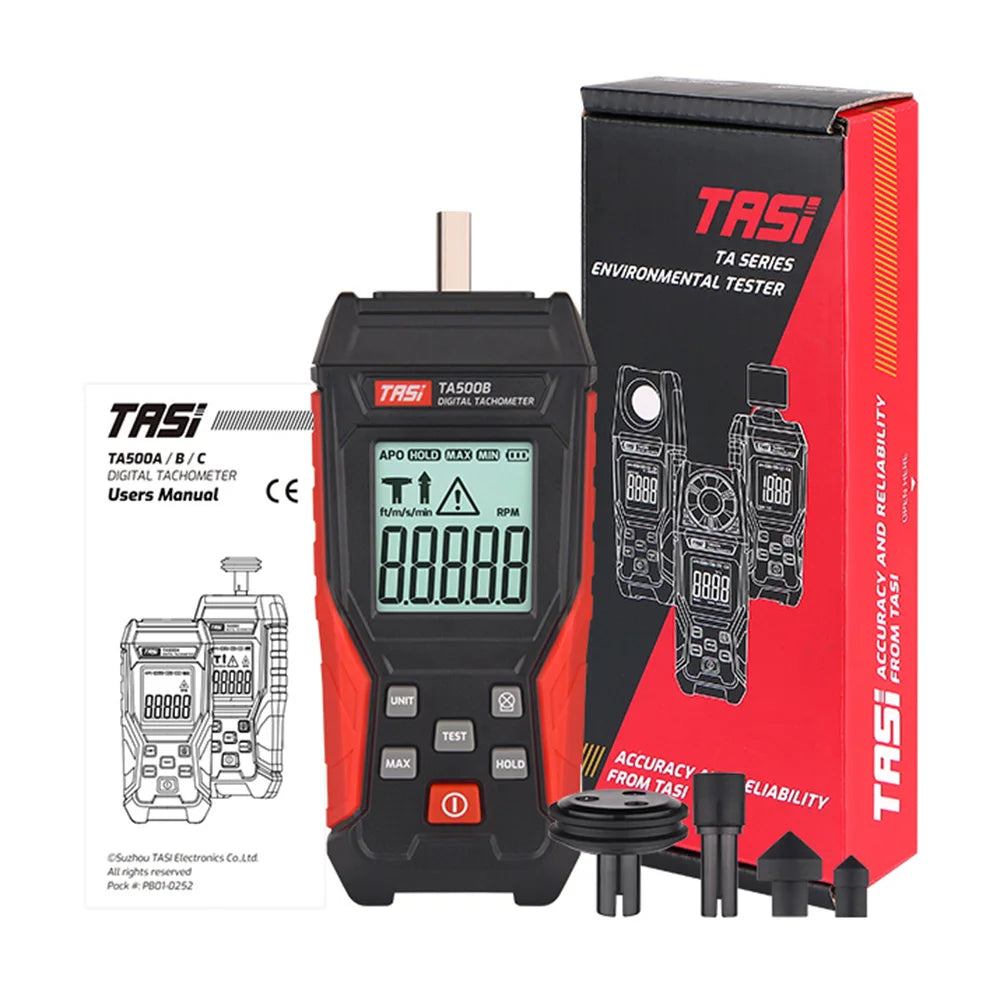

TA500B is the contact selection with its tip and wheel attachments shown.

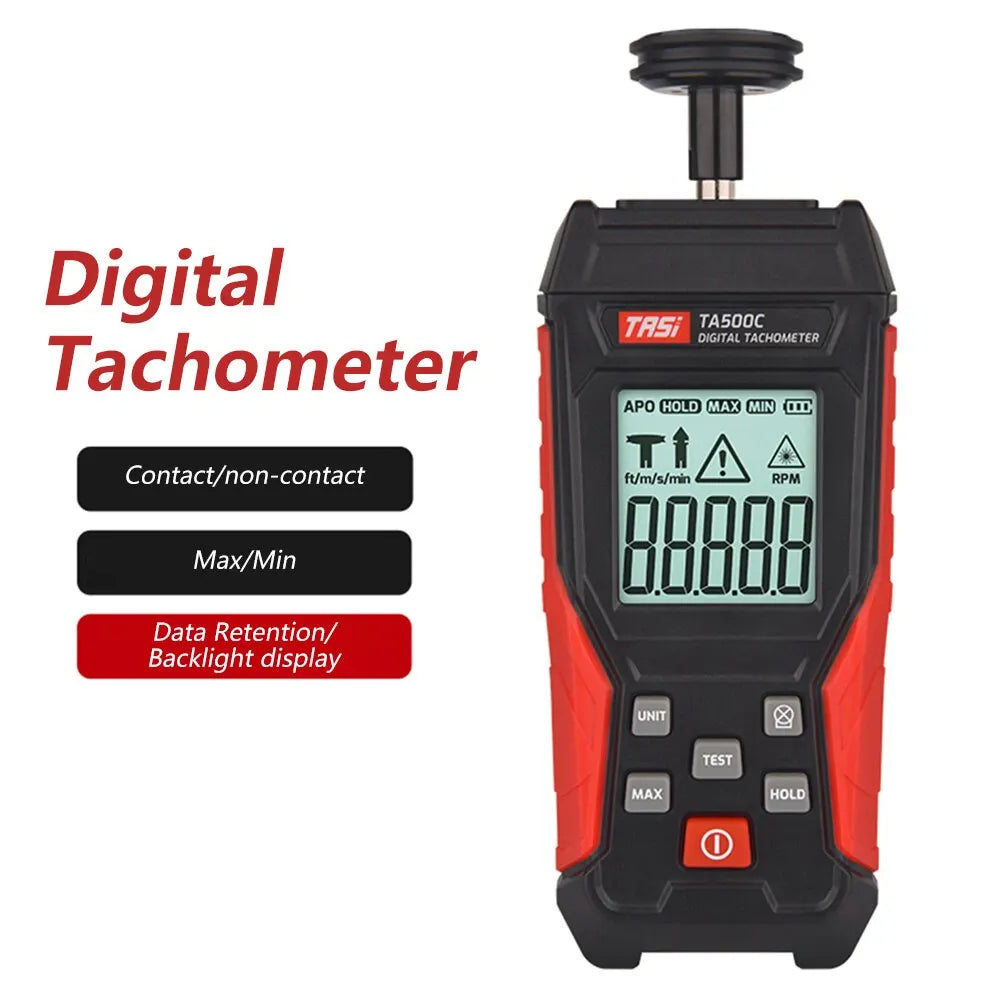

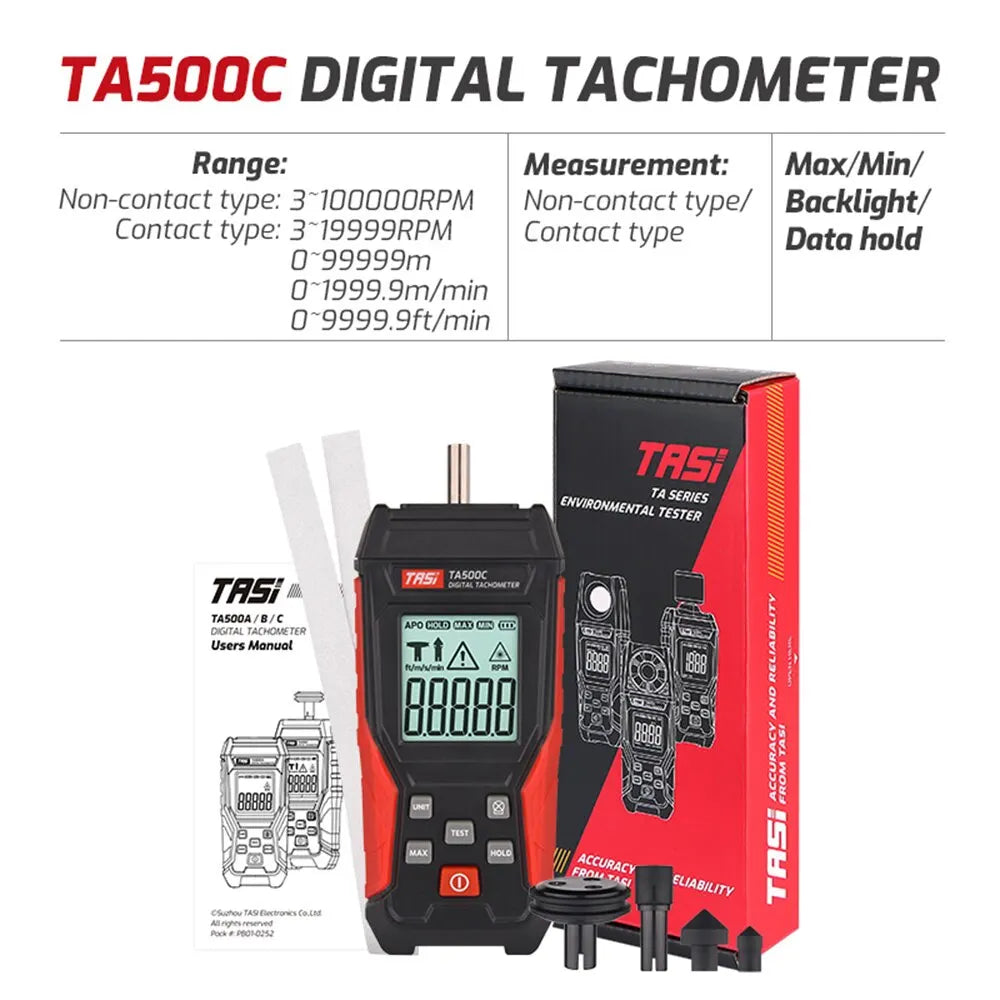

TA500C combines both methods and its corresponding accessories.

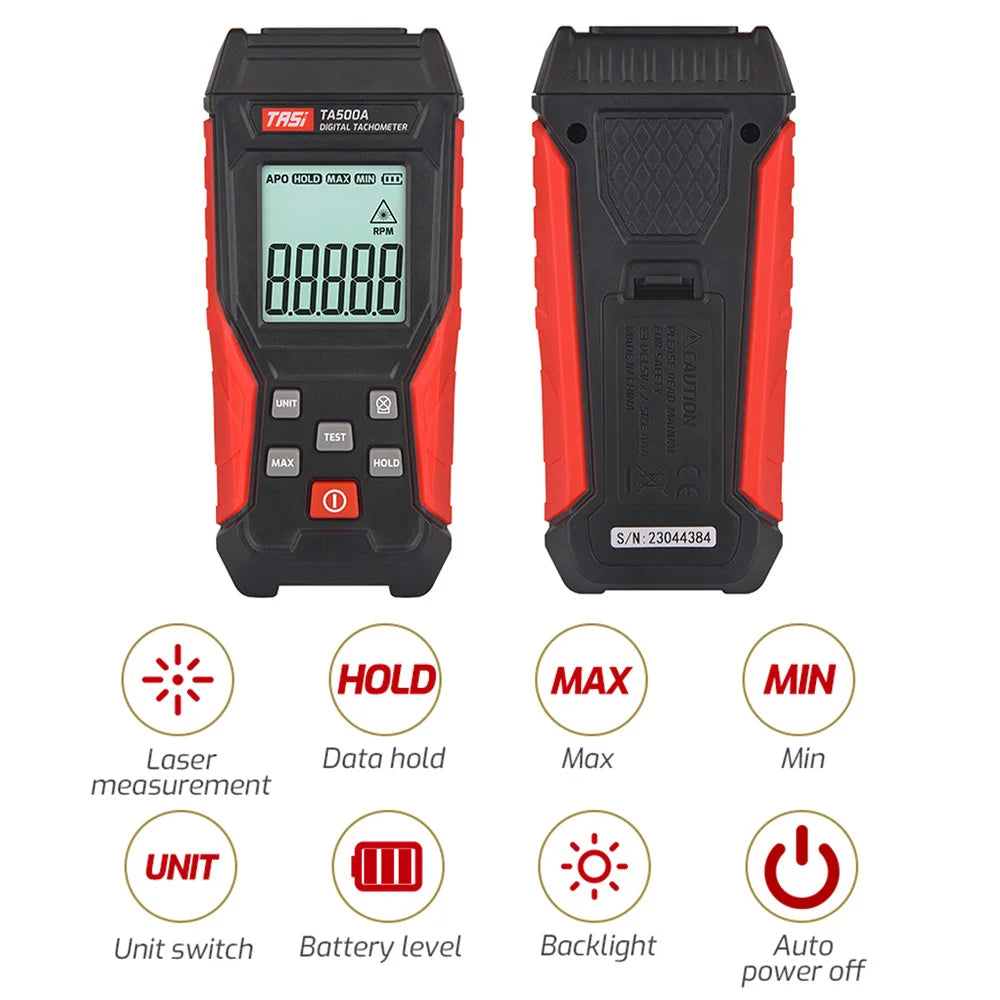

Data hold and maximum/minimum functions aid recording after a reading.

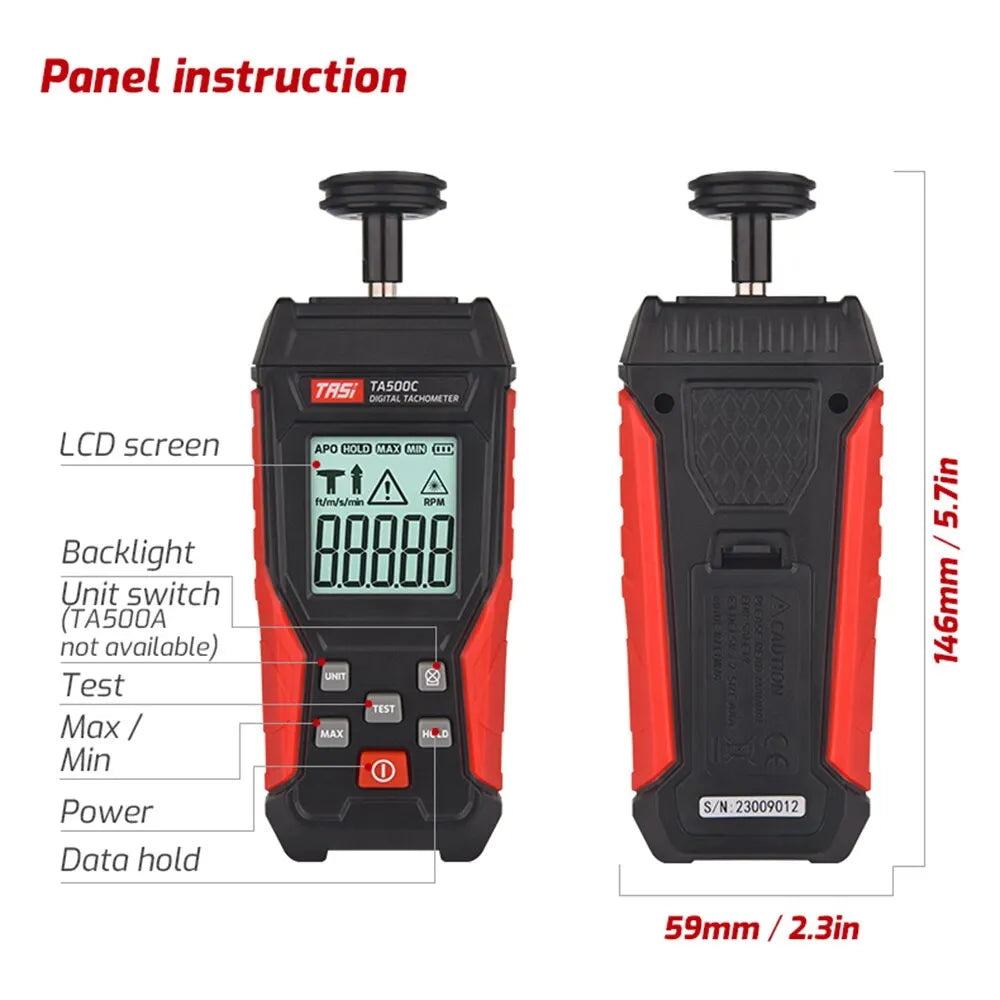

The illustrated unit-switch control does not add contact units to TA500A.

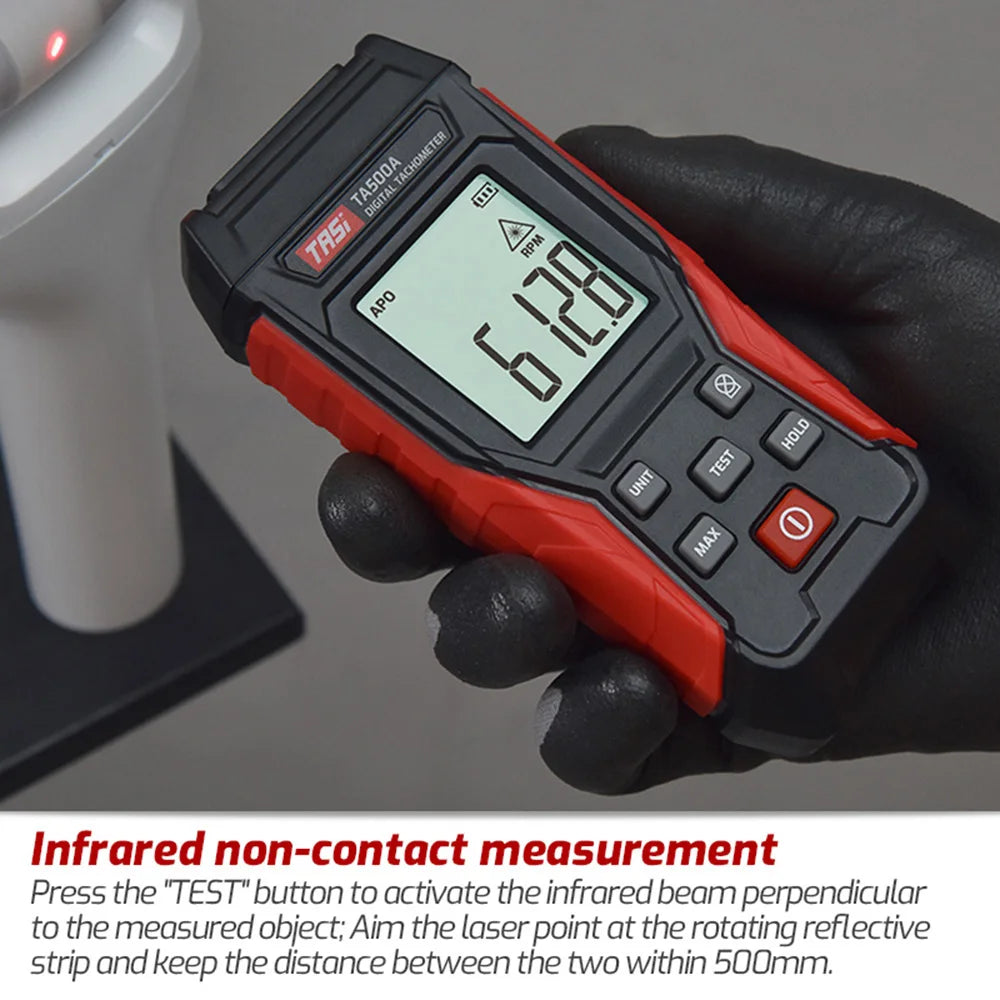

Use the specified optical working distance when measuring a prepared target.

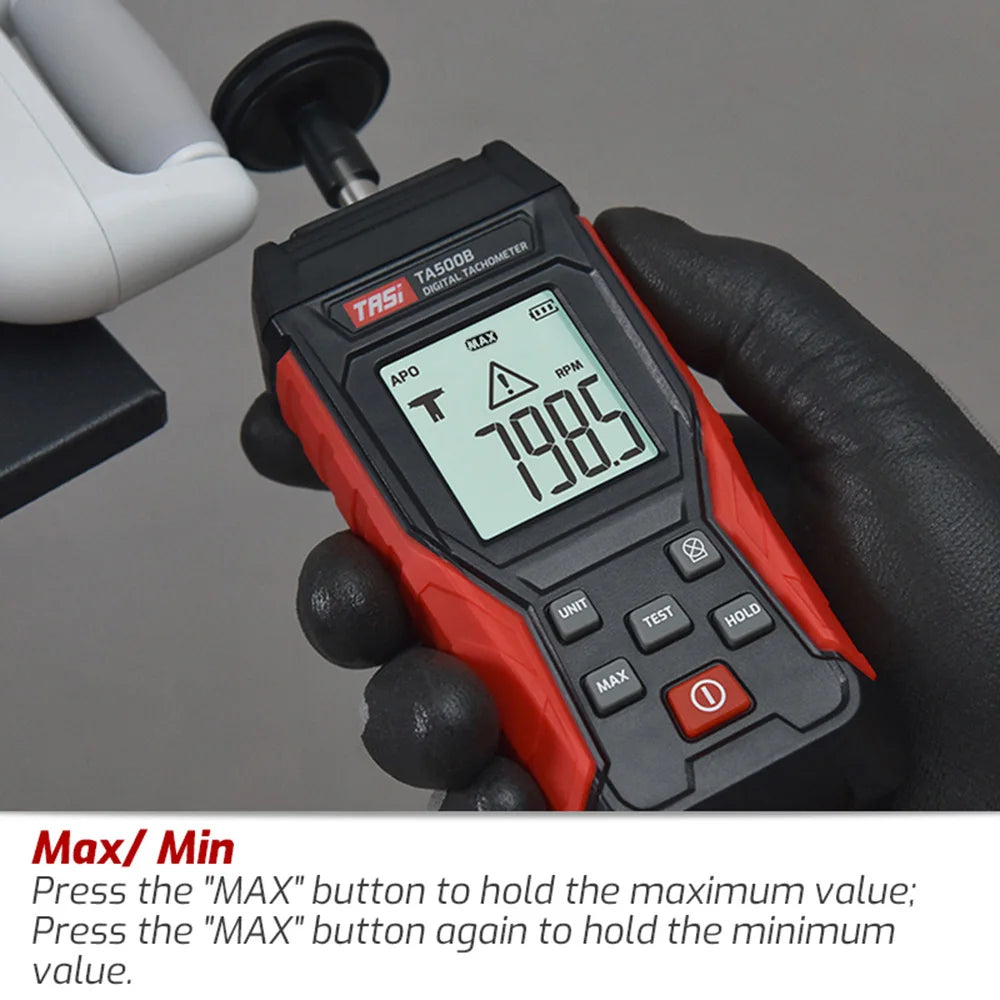

The maximum/minimum control lets you review extreme readings.

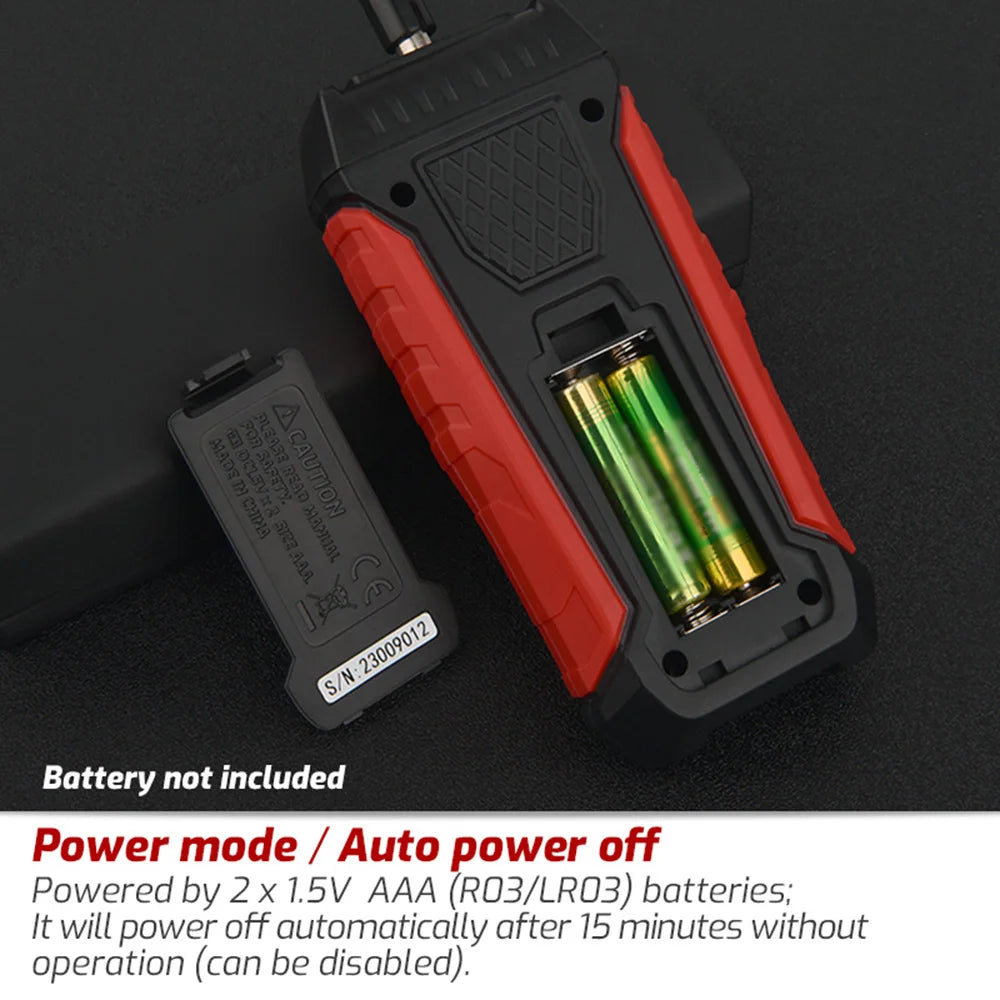

Fit two AAA batteries before use; batteries are not included.
Prepare the reflective target with the machine stopped before optical measurement.

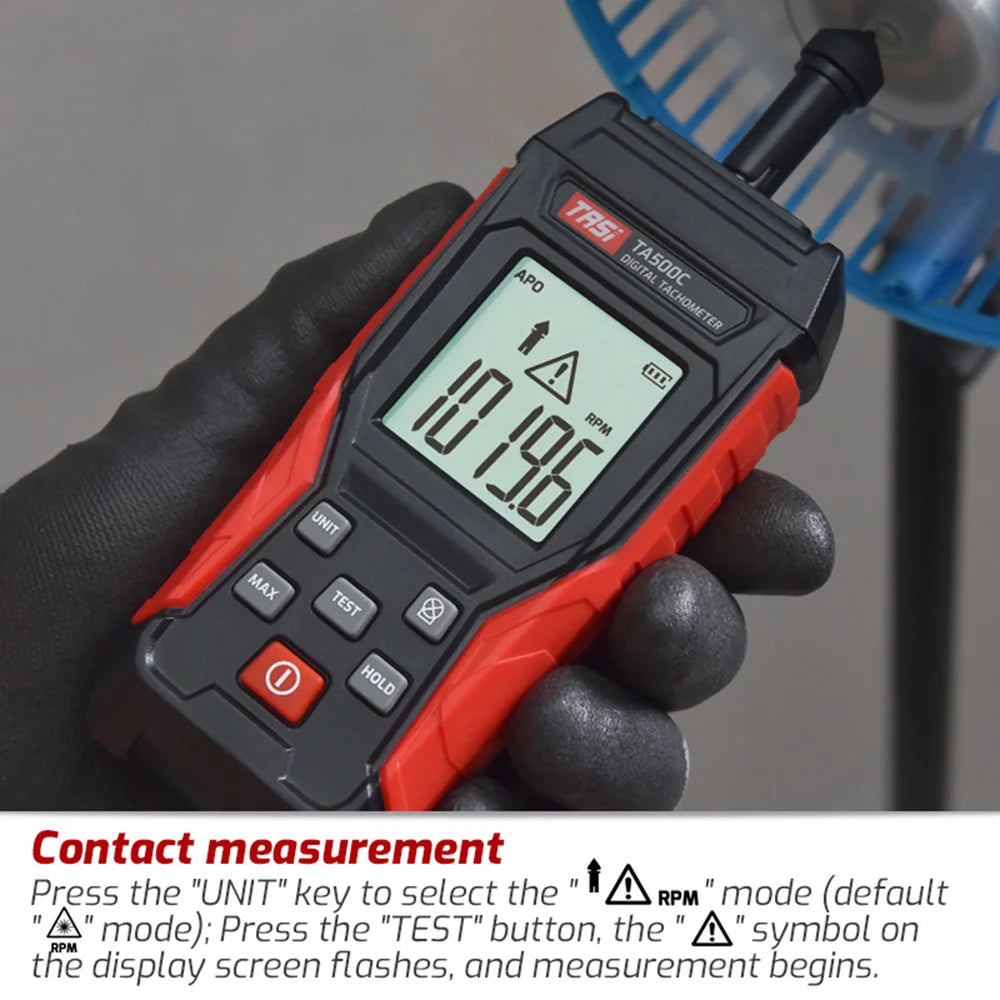

Contact-mode examples apply only to TA500B or TA500C.

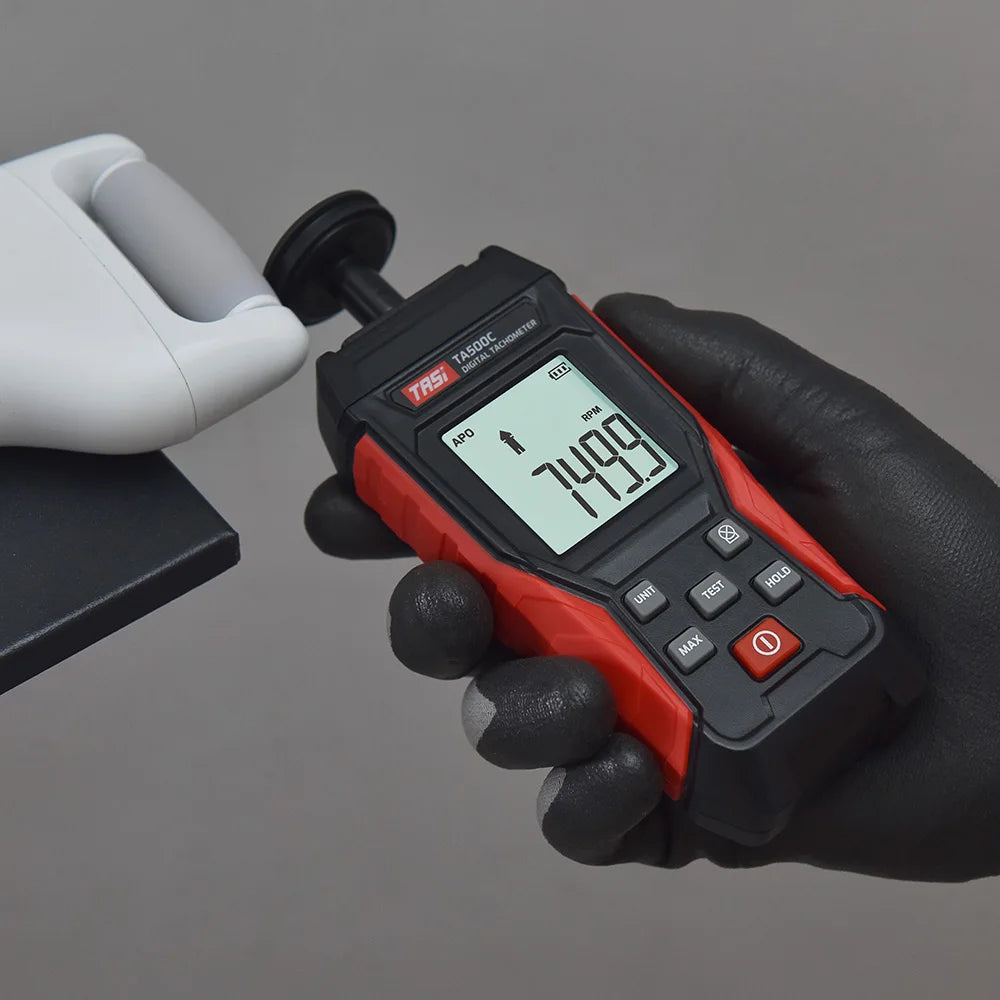

The wheel illustrates surface measurement on a contact-capable model.

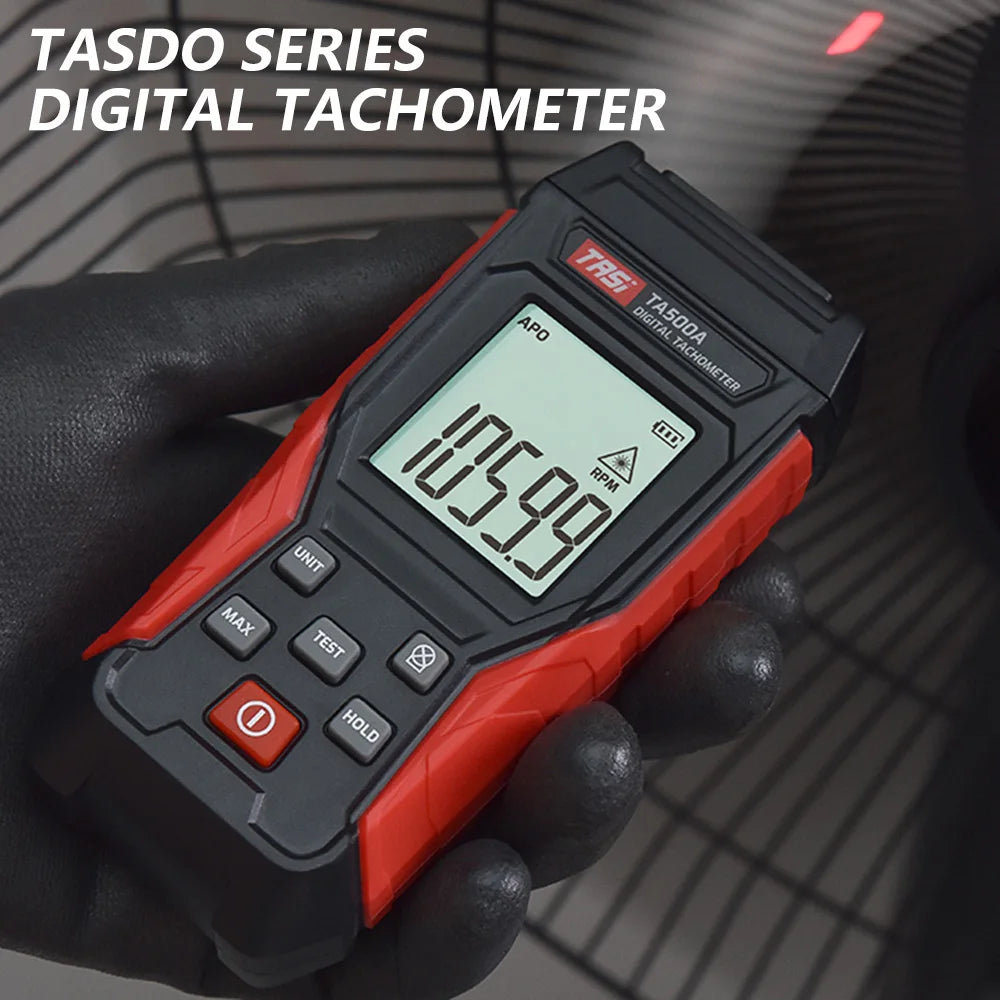

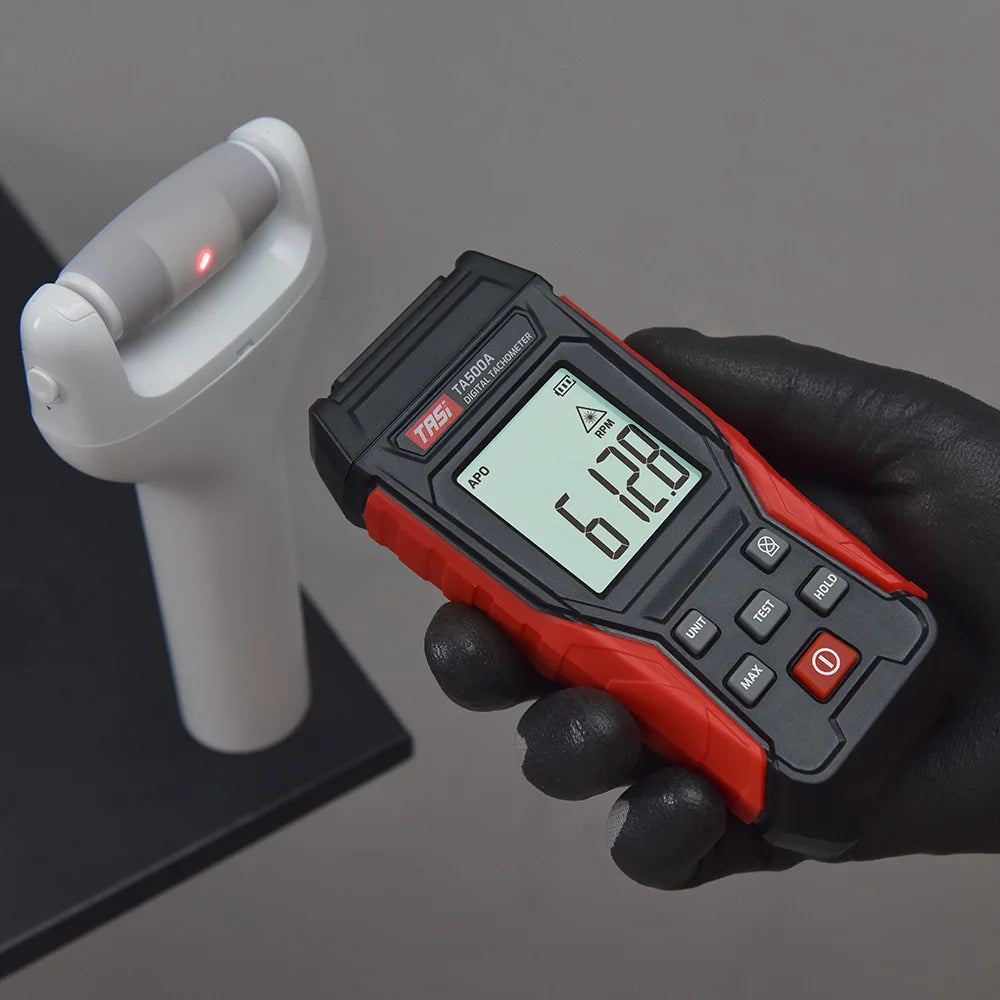

TA500A takes an optical reading without a contact tip.

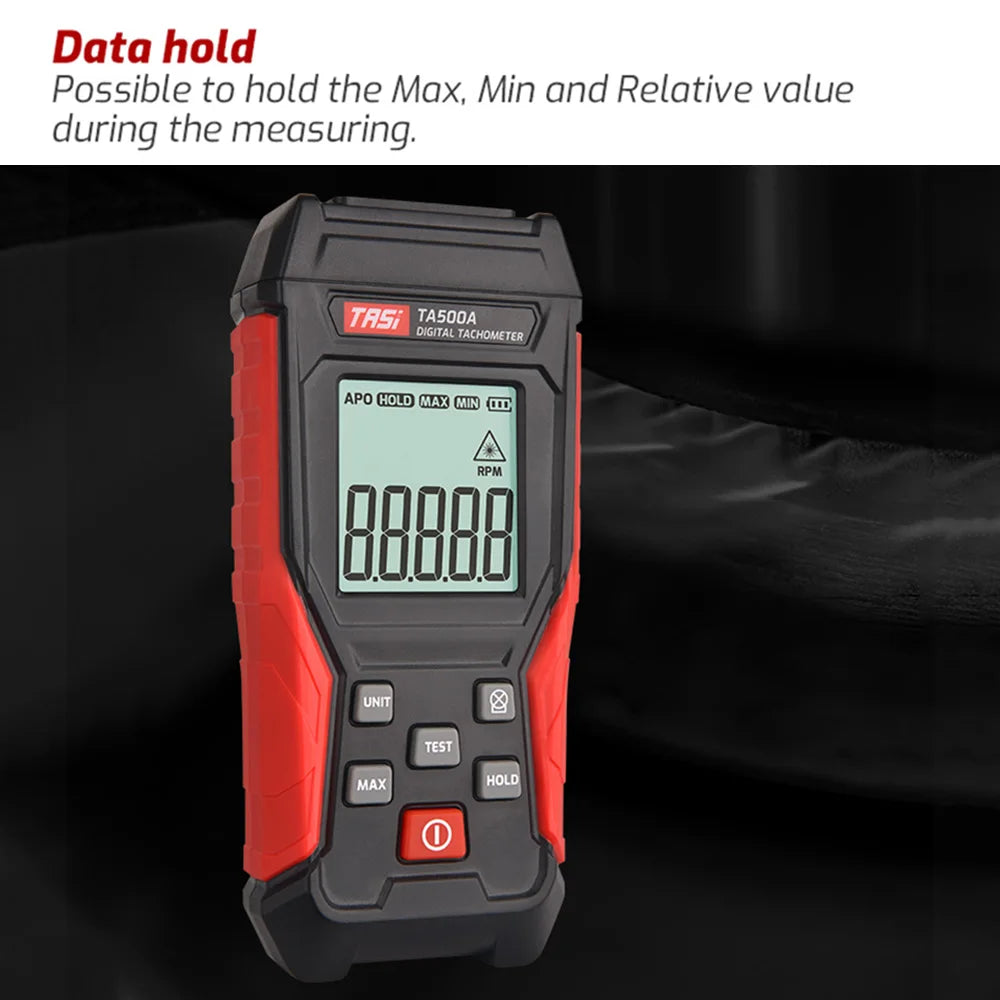

Use HOLD to keep a displayed reading while recording it.
Switch on the backlight when the display needs illumination.
Technical details
- Models: TA500A optical, TA500B contact, TA500C dual-method
- Optical RPM range: 3–100,000 RPM on TA500A/TA500C
- Contact RPM range: 3–19,999 RPM on TA500B/TA500C

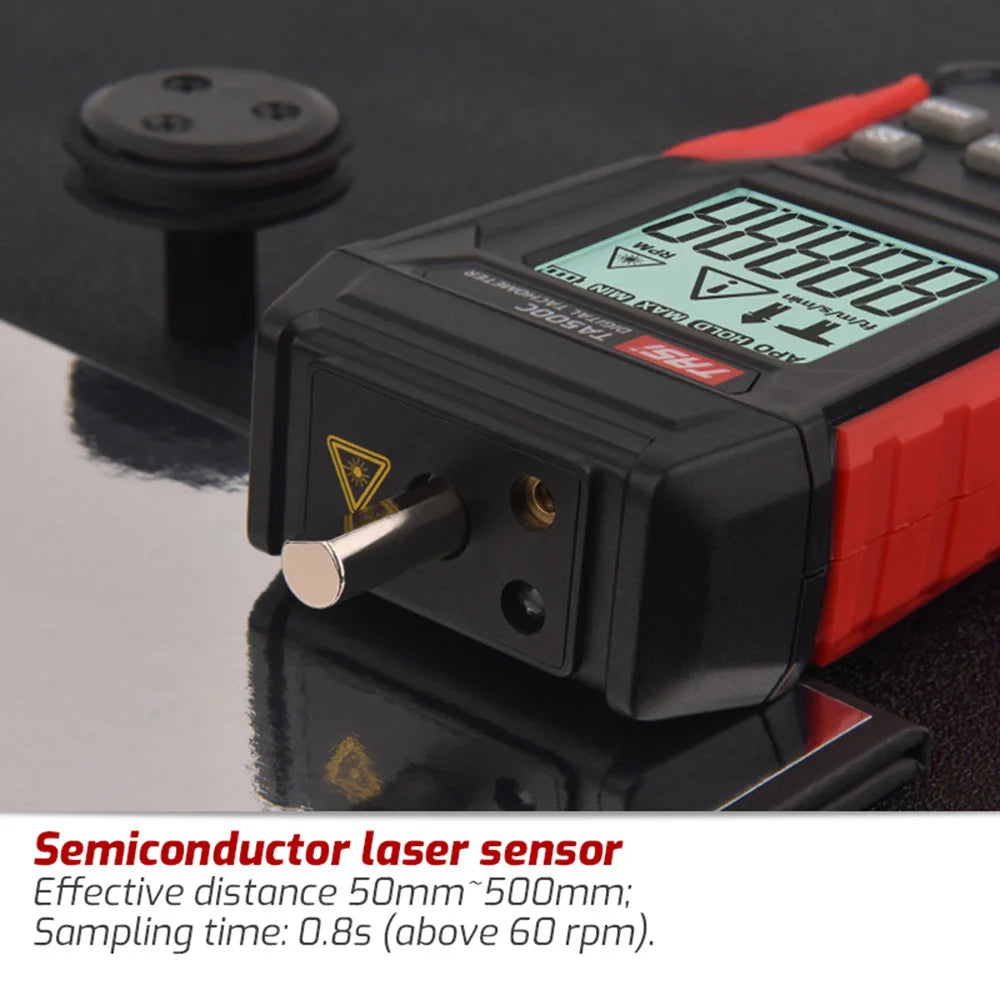

- Optical working distance: 50–500 mm
- Sampling time: 0.8 seconds above 60 RPM
- Functions: data hold, maximum/minimum and backlight
- Auto power-off: 15 minutes; can be disabled
- Power: 2 × 1.5 V AAA batteries, not included
- Package: selected meter and manual; reflective material/contact attachments depend on model
- Contact units: rotation and illustrated linear units on TA500B/TA500C
Choose optical, contact or dual-method measurement and match the selected model to the speed-checking task.
