7-Inch LED Work Light Bar for Matched 12V or 24V DC Systems
Put a wide work-light beam beside a vehicle or equipment task without holding a torch. This compact LED bar is specified for matched 12 V or 24 V DC systems. It is for users planning auxiliary task lighting with a suitable mounting point and correctly protected wiring.
- ✅ Light a nearby work area — The flood-beam layout spreads light rather than concentrating on one small spot.
- ✅ Aim towards the task — The adjustable end brackets change the bar's direction.
- ✅ Fit a low-profile light — The slim single-row body suits an installation with limited vertical space.
- ✅ Use a matched vehicle supply — The specified DC input accommodates suitable 12 V or 24 V systems.
A slim auxiliary bar for a properly matched installation
The six-section lens layout provides a stated 120° flood beam in 6000 K white. The aluminium-alloy body has a rear cooling profile, with separate end brackets for positioning the beam at the work rather than towards other users.
The nominal size is 7 inches. The gallery contains different detailed dimension drawings, so check the delivered bar and bracket clearance before preparing mounting holes. Input is specified as DC 10–30 V, with approximately 1 A at 12 V or 0.5 A at 24 V stated.
One LED work-light bar and bracket/hardware set are specified. A wiring harness, switch, fuse and power supply are not confirmed as included. IP67 is stated for the bar. The product is described here as auxiliary work lighting; no particular vehicle fit or road-use approval is confirmed.
One slim bar and mounting hardware are illustrated; no vehicle or supply is included.

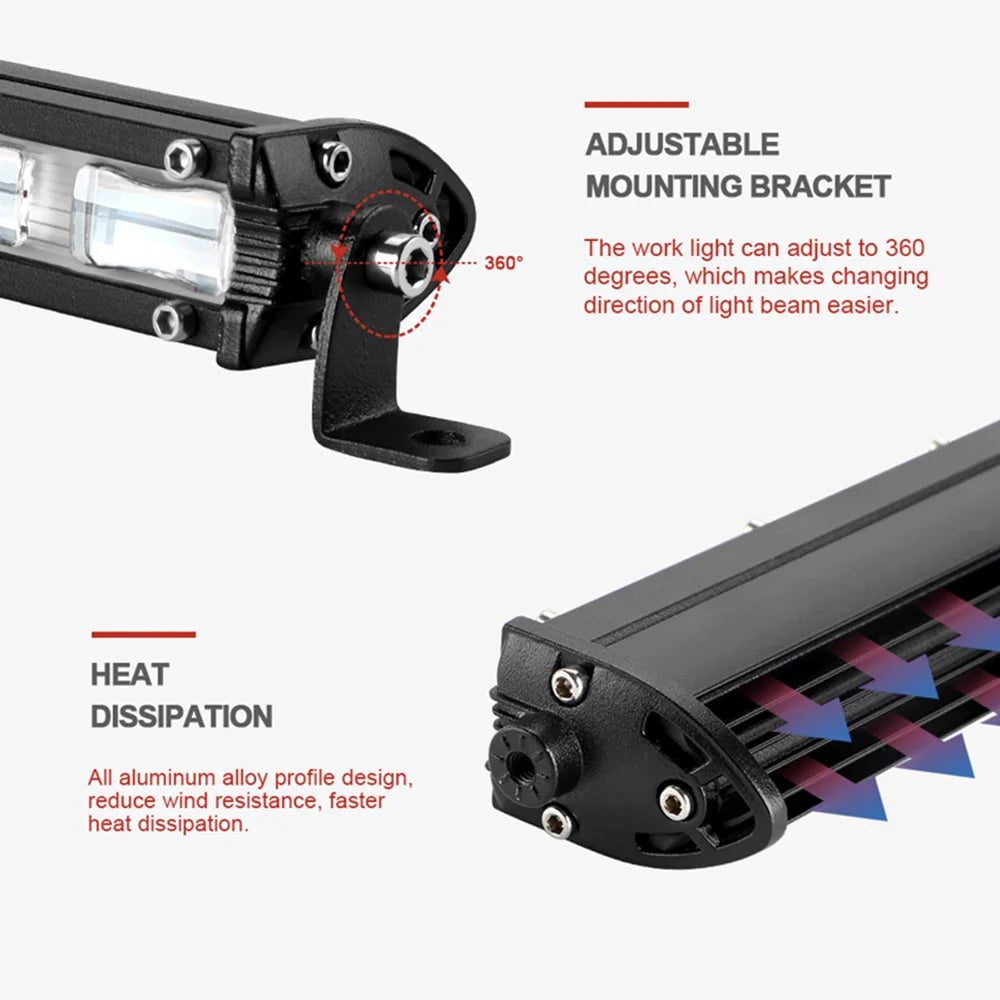

Adjust the end brackets to aim the bar and allow clearance around the rear cooling profile.
The single-row format provides a low-profile auxiliary-light layout.

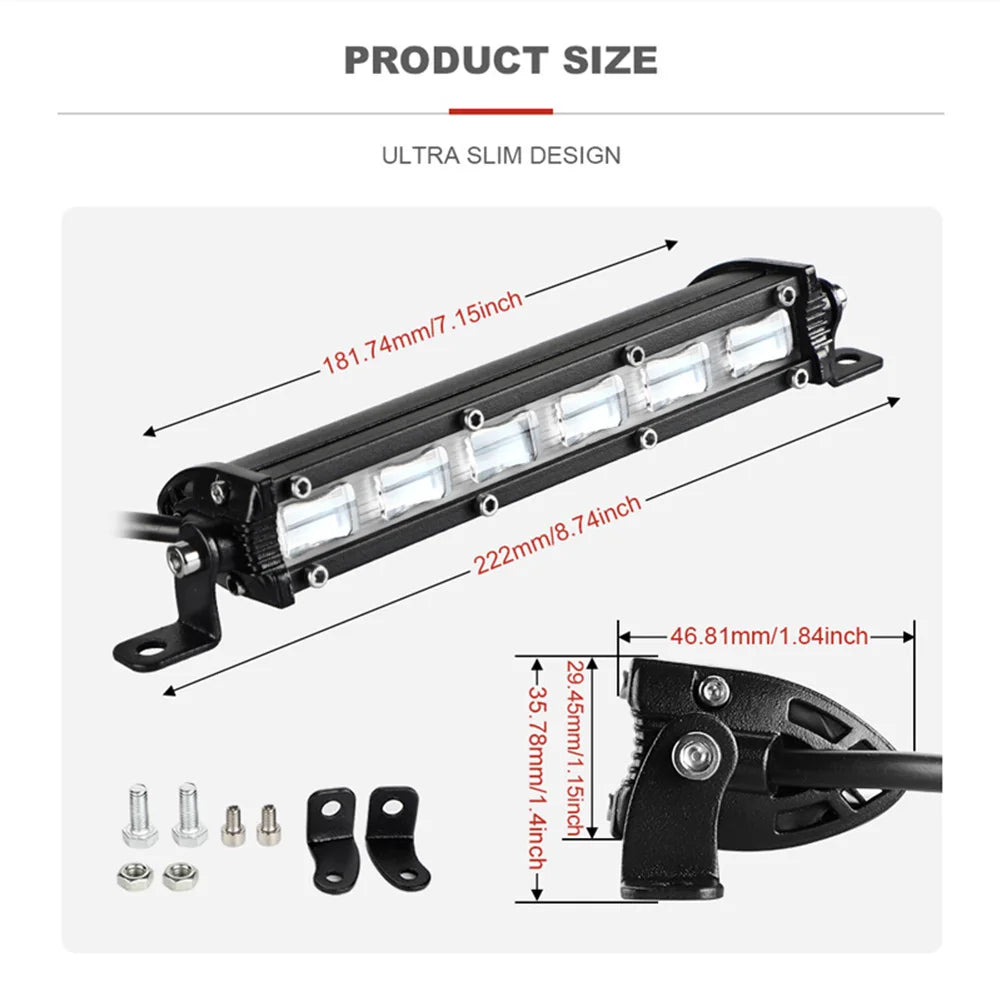

Check the delivered dimensions before preparing the mounting points.
The specified light colour is 6000 K white.

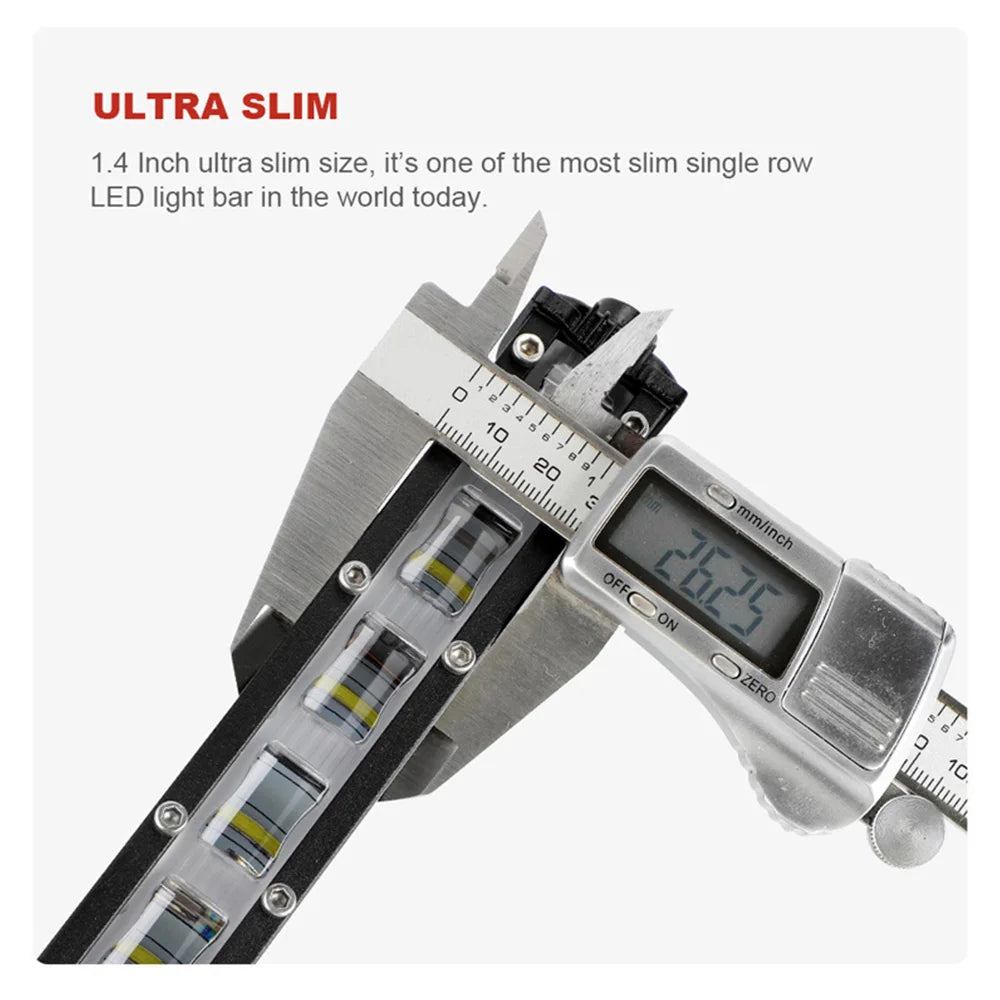

The narrow body keeps the installation profile low.

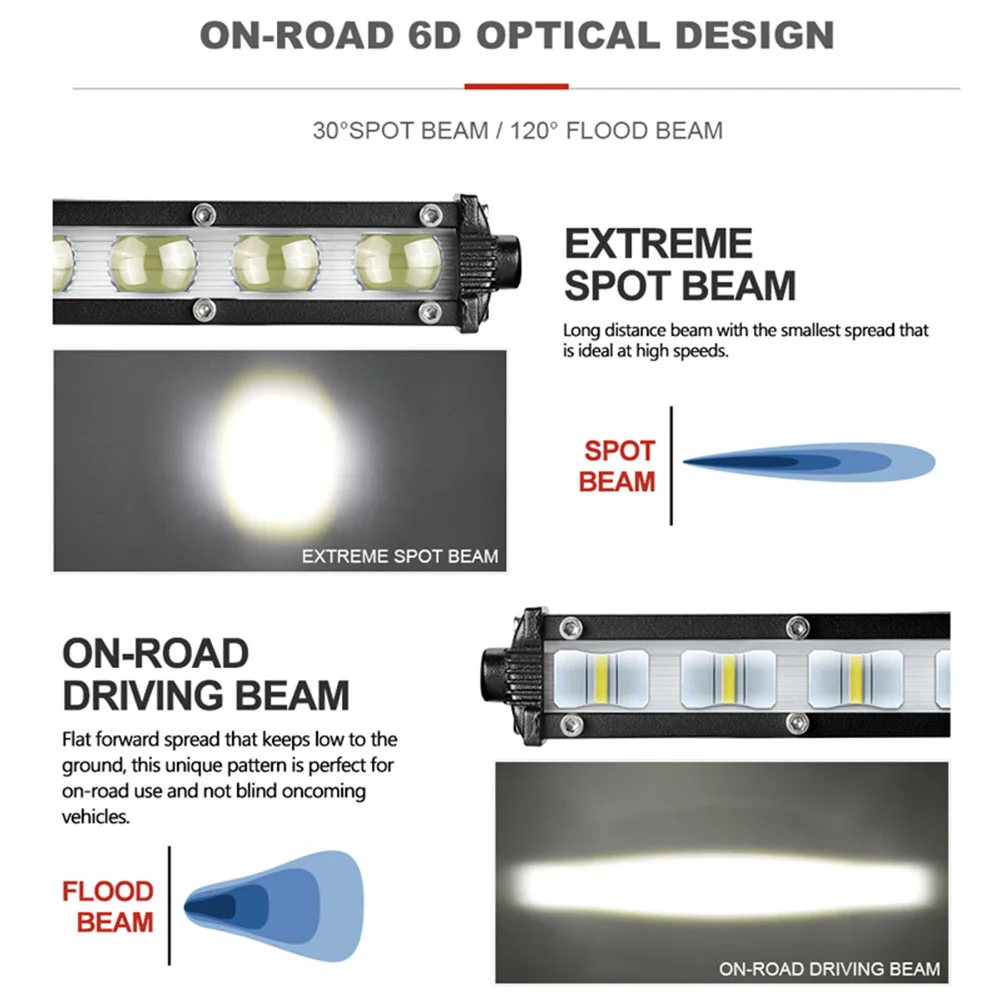

This option is described as a flood beam; no road-use approval is established by the graphic.
IP67 is stated for the light bar.
Vehicle scenes do not confirm fit on every illustrated platform.

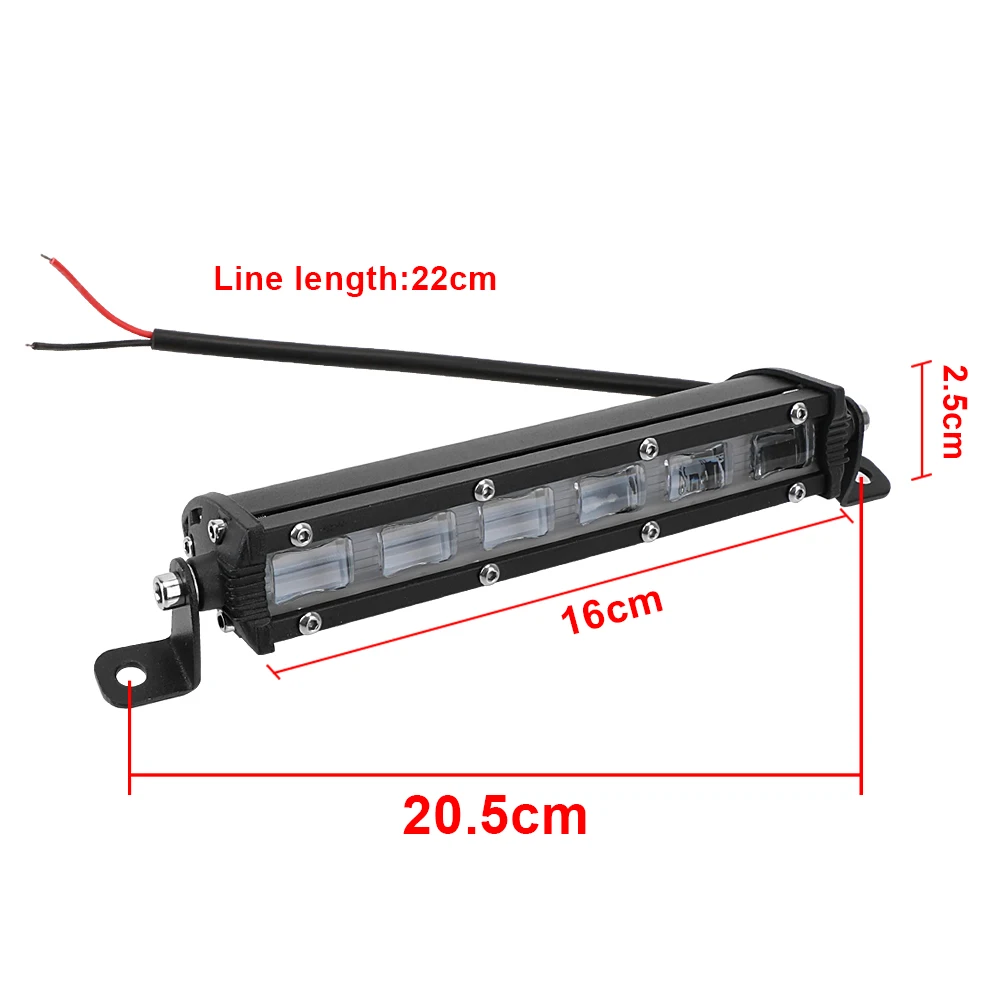

Check the actual bar and brackets because the gallery uses different dimension drawings.
The bar has a separate bare-ended lead for a suitable protected DC installation.
Technical details
- Item: nominal 7-inch LED work-light bar
- Input specified: DC 10–30 V; matched 12 V or 24 V systems
- Current stated: approx. 1 A at 12 V or 0.5 A at 24 V
- Beam specified: 120° flood
- Light colour: 6000 K white
- Body: aluminium-alloy profile
- Mounting: adjustable end brackets
- Rating stated: IP67
- Included: 1 bar and bracket/hardware set
- Not confirmed included: supply, harness, switch and fuse
Check the electrical and mounting requirements, then add an aimed flood beam to your next equipment task.
