GRM8 DIN-Rail Latching Relay, Contact/Voltage Options

Add impulse-controlled switching to a correctly designed control circuit with a GRM8 DIN-rail relay. Select both the contact arrangement and the supply version required by the installation.

• ✅ Use pulse-based control - the latching function changes state from a control input.
• ✅ Choose the contact arrangement - GRM8-01 and GRM8-02 offer different outputs.
• ✅ See relay status - an LED provides an indication at the module.

Select the Supply and Contacts Together

The AC230V version and the AC/DC12–240V version are separate products. Match the supply and control wiring to the actual unit diagram rather than assuming they are interchangeable.

The listed 16A AC1 rating applies to the specified load category, not every motor or LED load. A qualified installer must assess the circuit, enclosure, protective devices and terminal connections.

Technical details

• Mounting: DIN rail, one-module form.

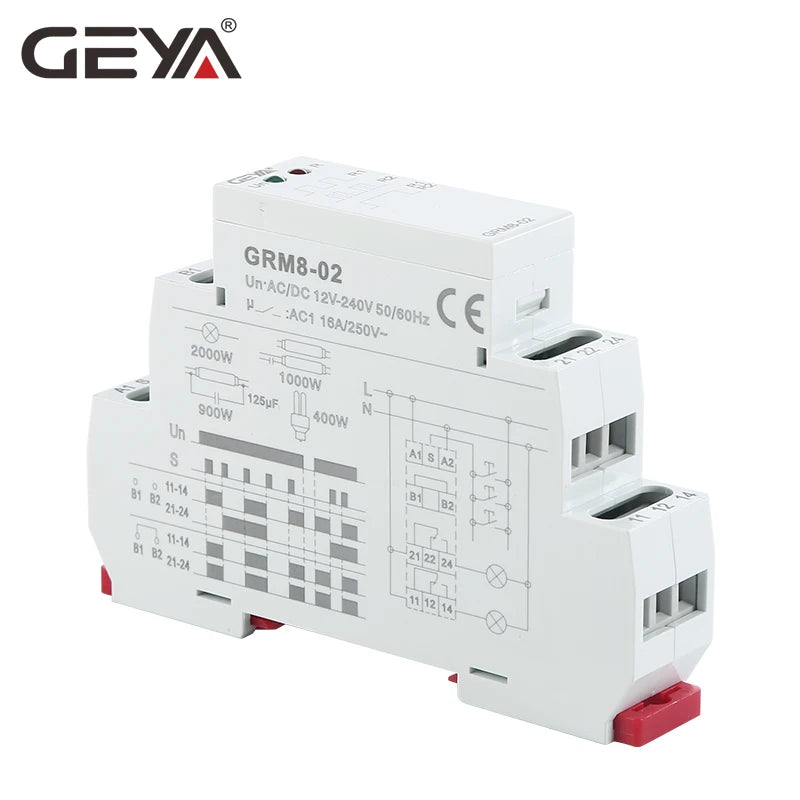

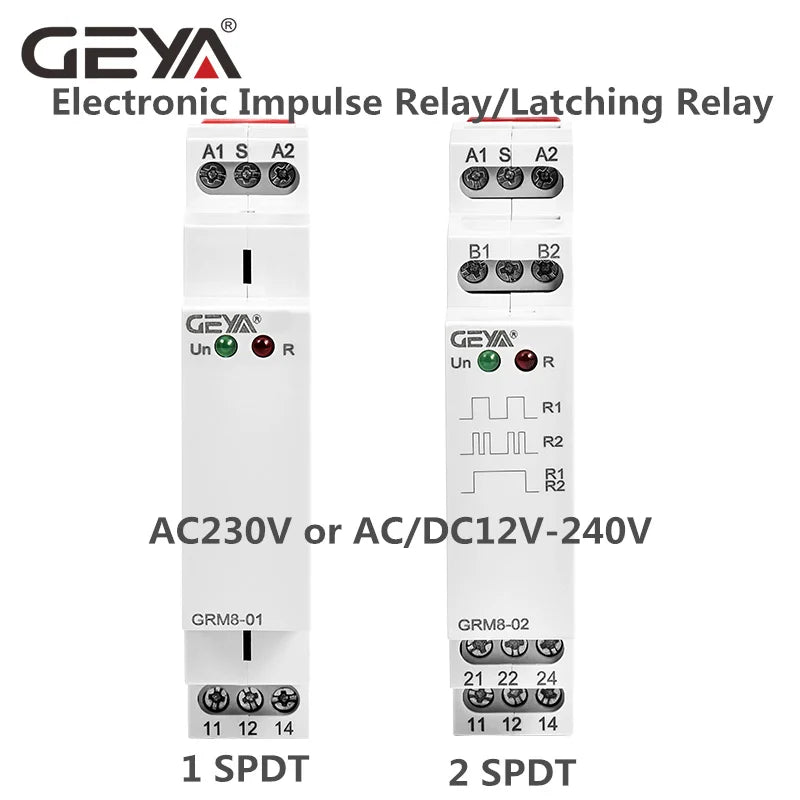

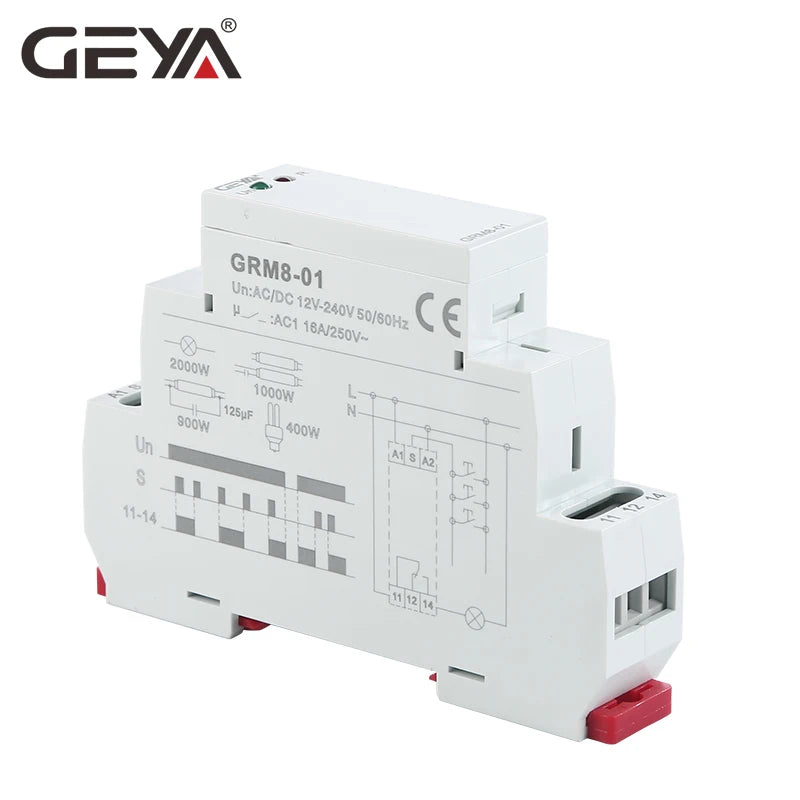

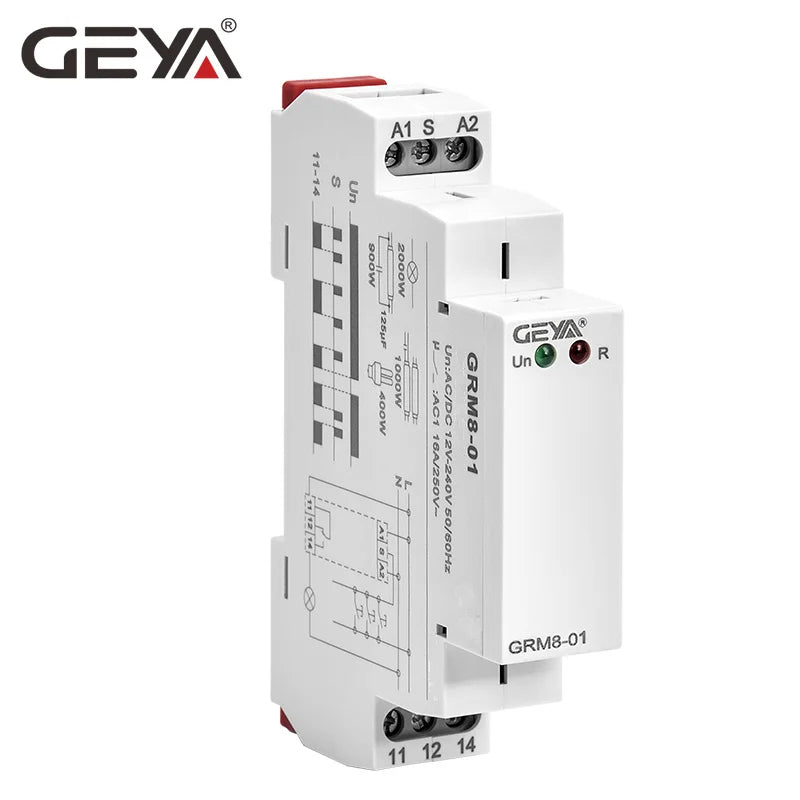

• GRM8-01: 1 SPDT; GRM8-02: 2 SPDT.

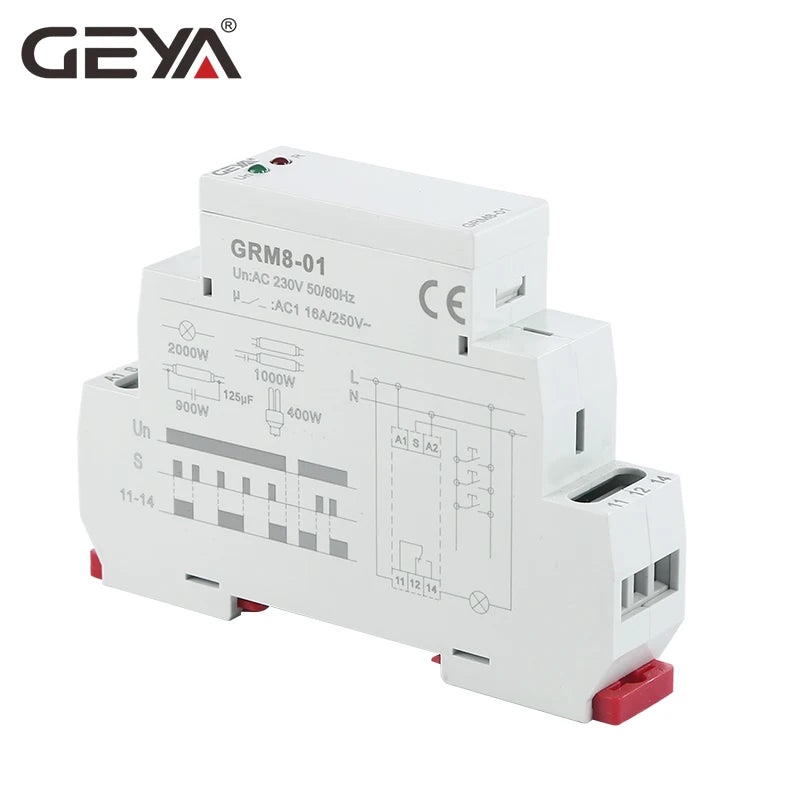

• Supply options: AC230V or AC/DC12–240V.
• Listed contact rating: 16A AC1.
• LED status indication.

Choose the relay variant specified for your control circuit.
