Skabslåged Installations- og Boremønster Jig

Support and position compatible cabinet door panels with an orange aluminium-alloy installation jig.

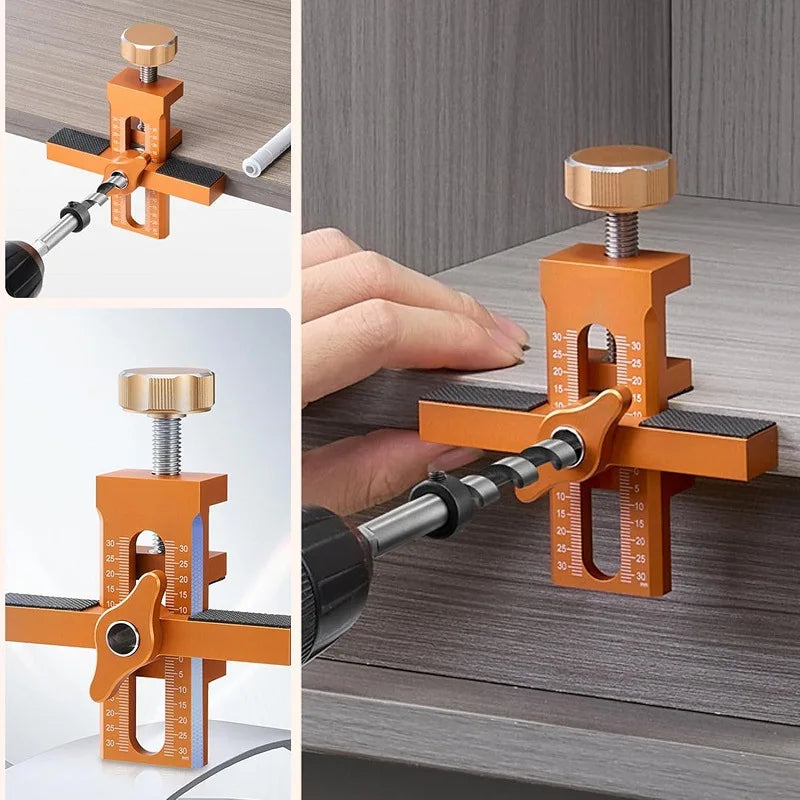

Position a cabinet door before fastening

• ✅ Support the panel during positioning – The jig provides a temporary support arrangement while you set the door height.

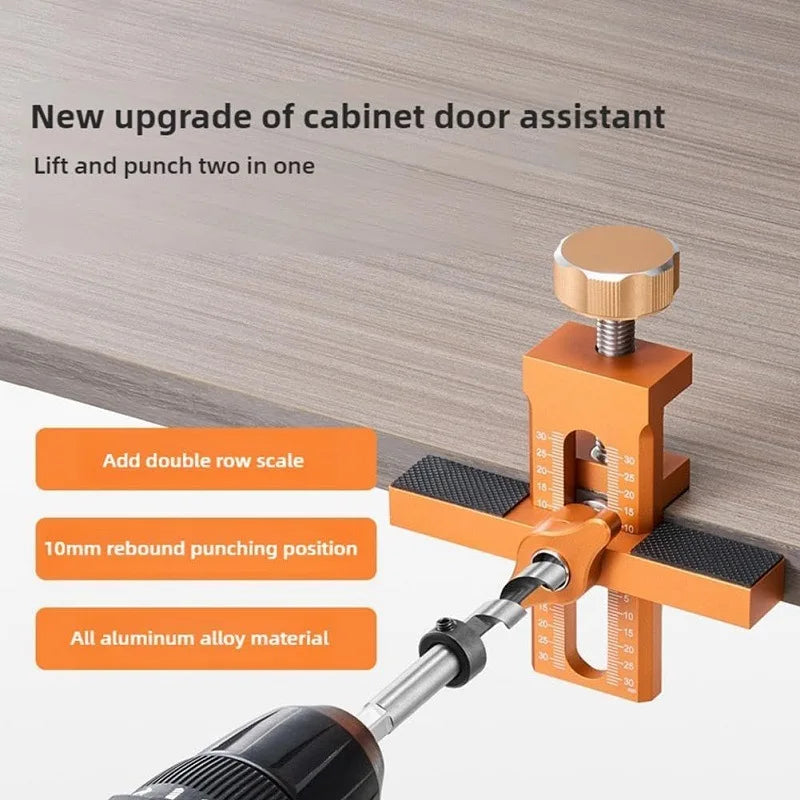

• ✅ Read the position from either direction – The bidirectional metric scale helps you work in different mounting positions.

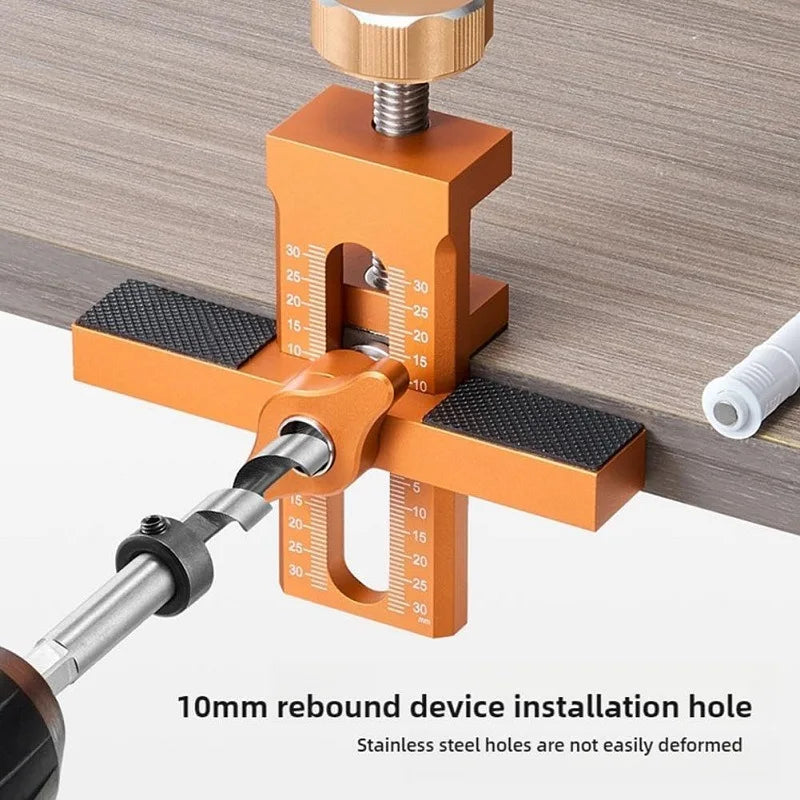

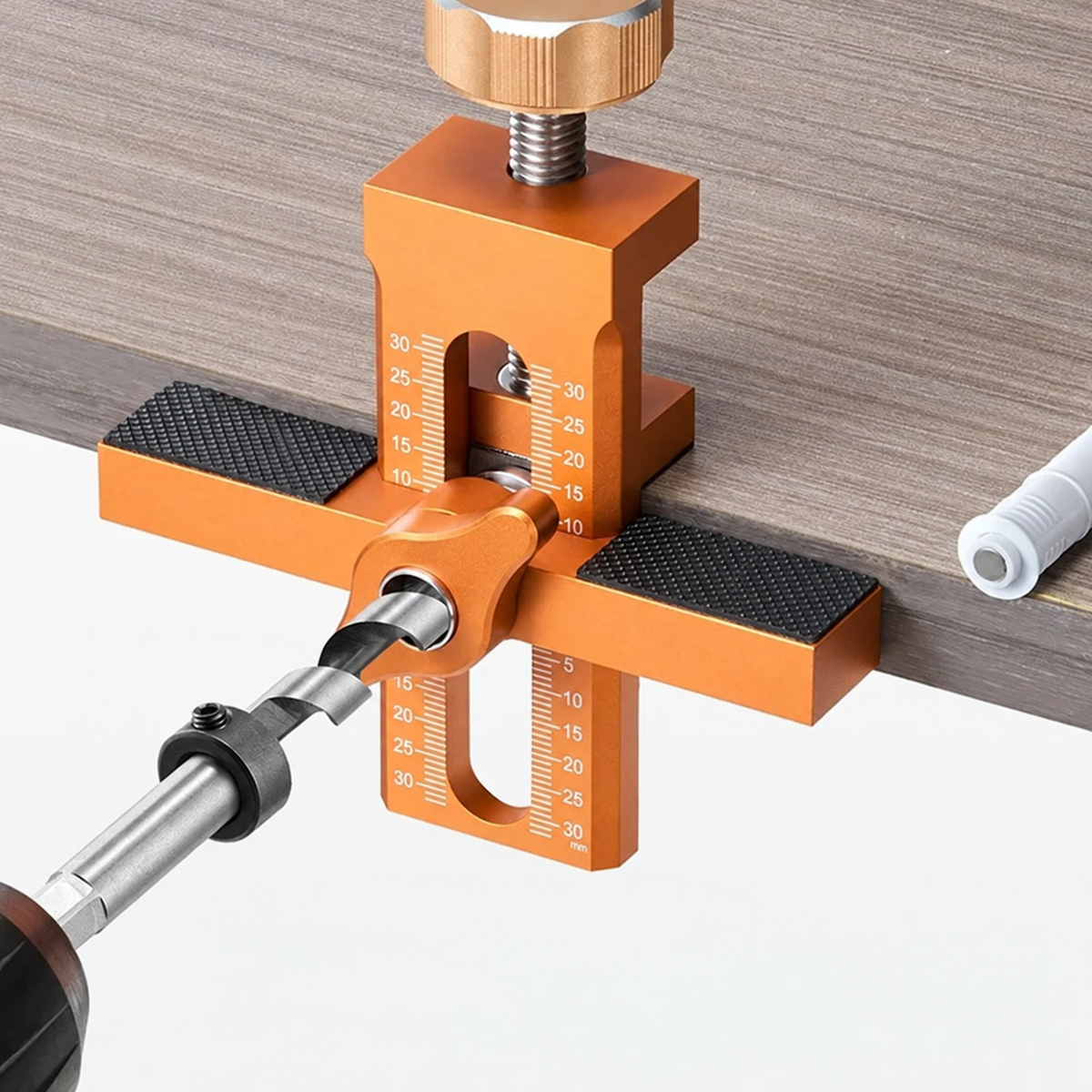

• ✅ Position a rebound-device hole – The drilling-guide arrangement supports the corresponding cabinet fitting task.

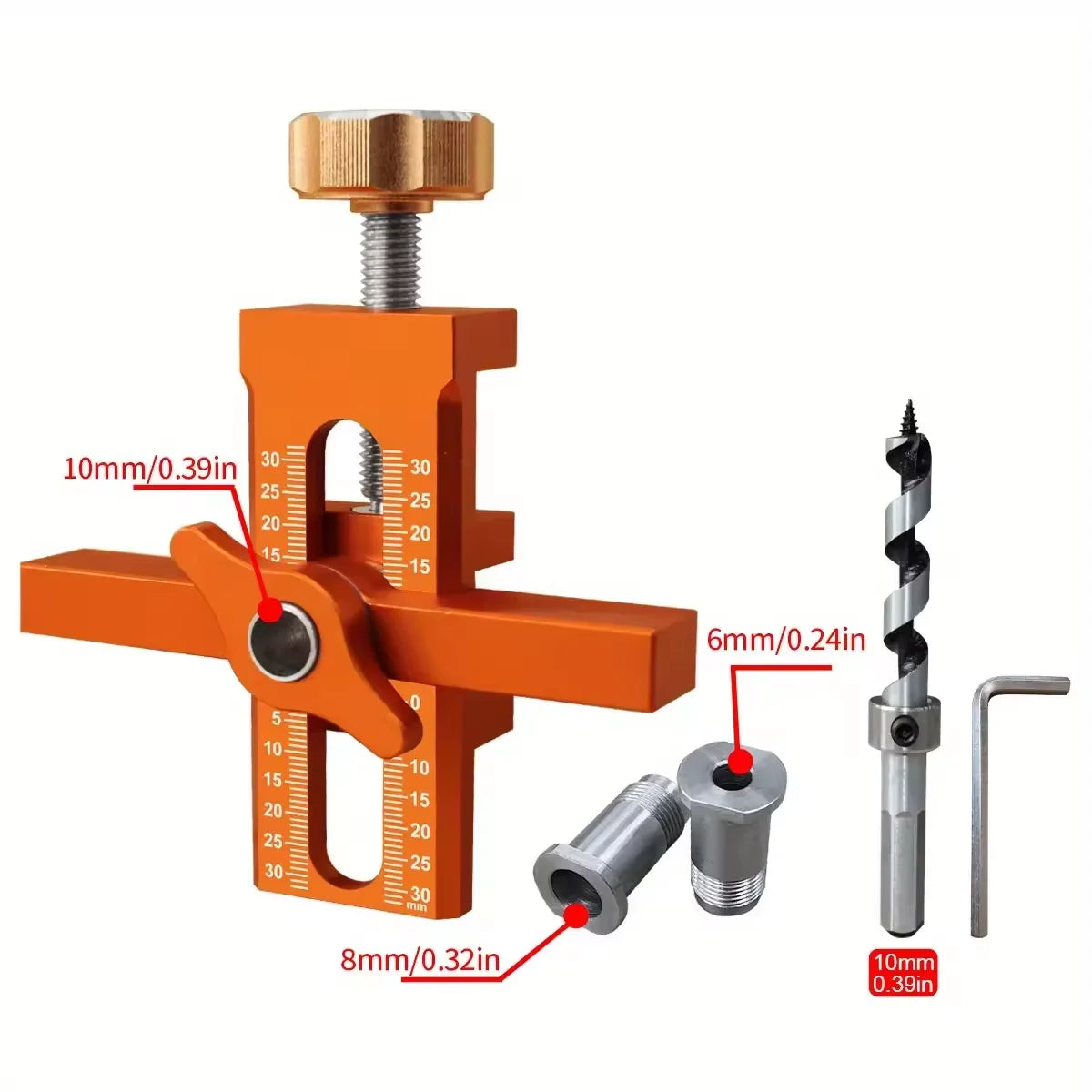

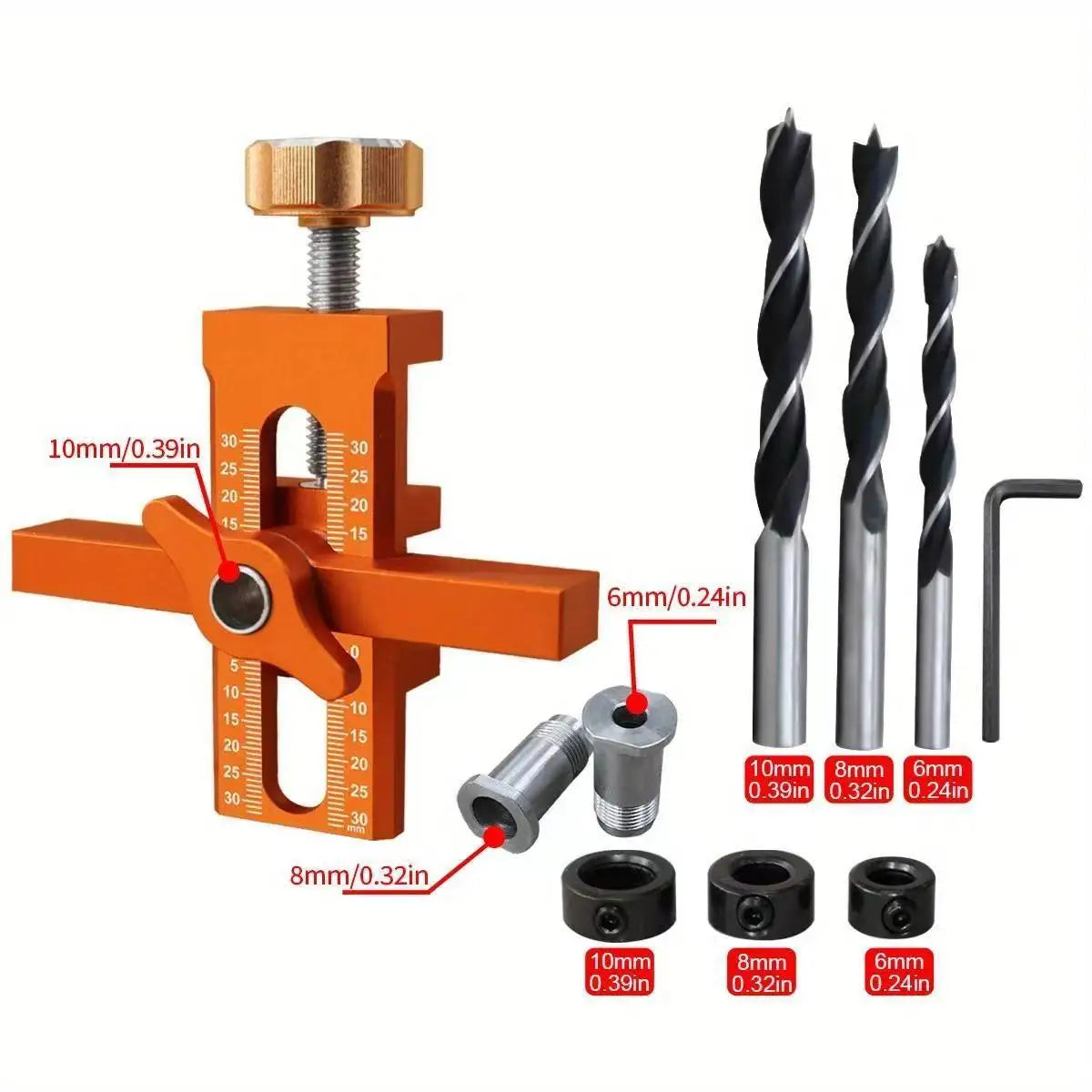

Check panel thickness, clearances and the selected Mounting Jig Kit A, B or C contents before use. Drill and cabinet hardware shown demonstrate use and are not established as included.

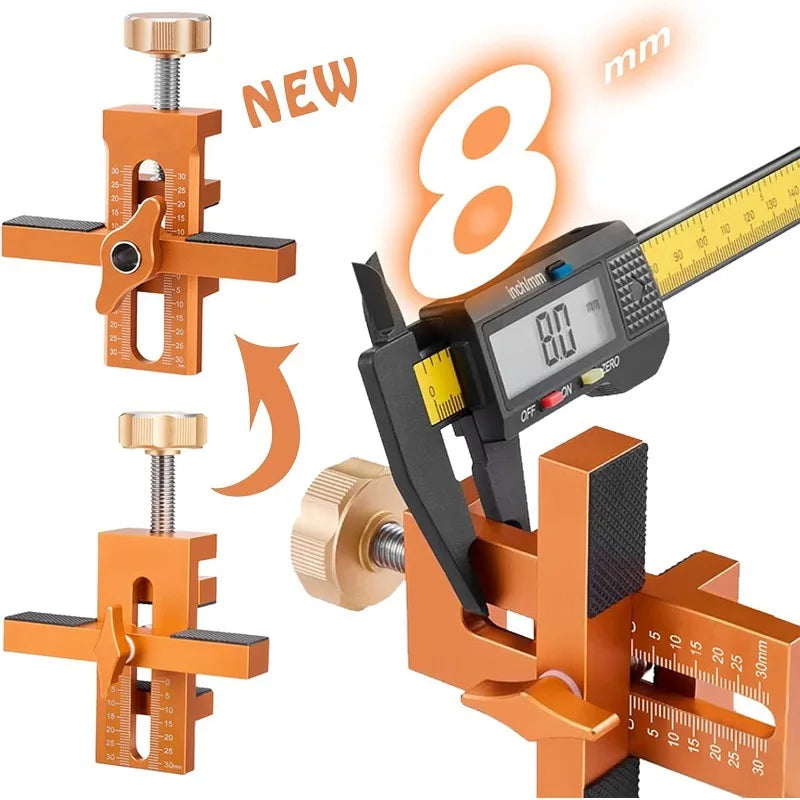

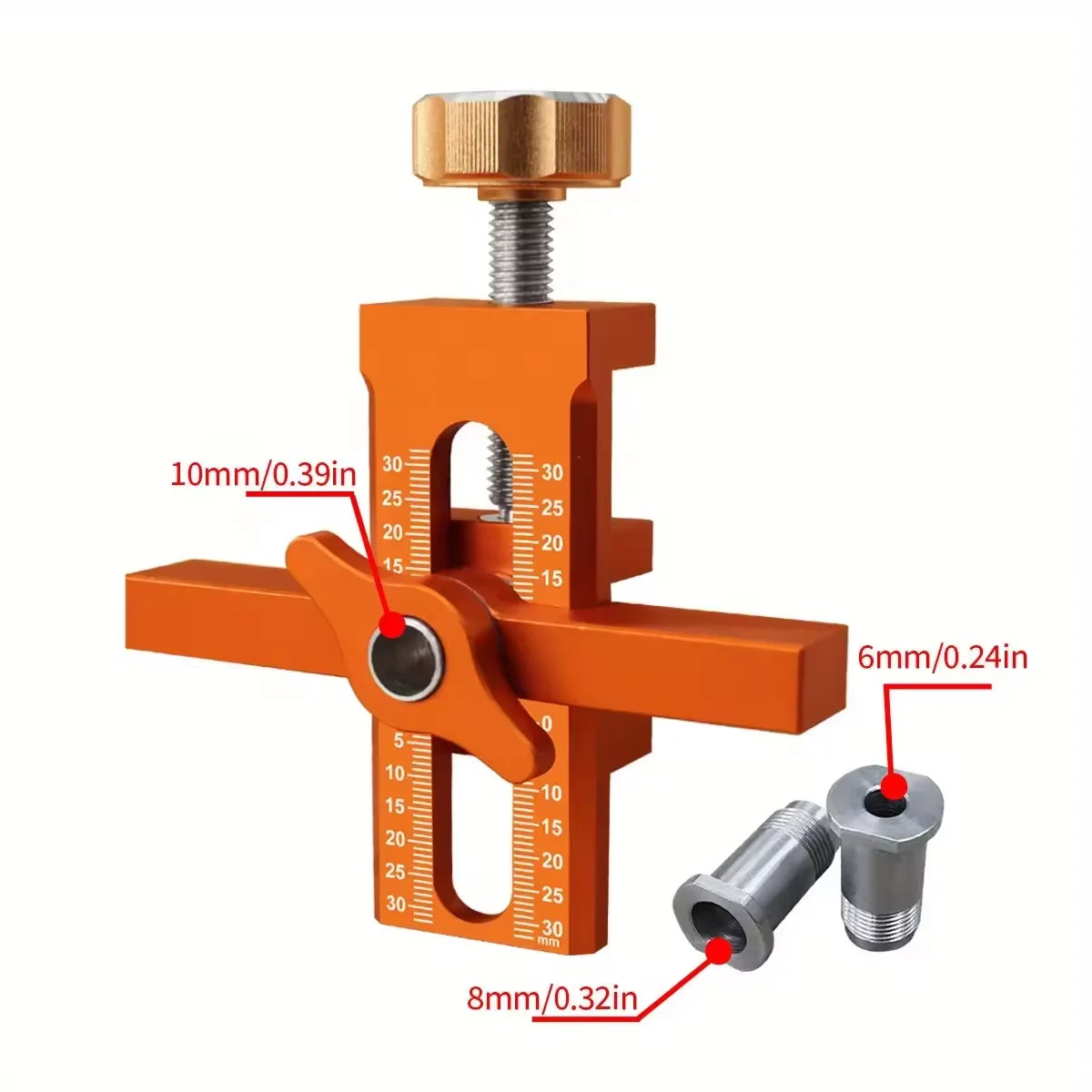

• Specifications: aluminium alloy; orange; metric scale; listed clamping range 7–41 mm.

Match the selected kit to your cabinet installation task. Explore more workshop tools.
