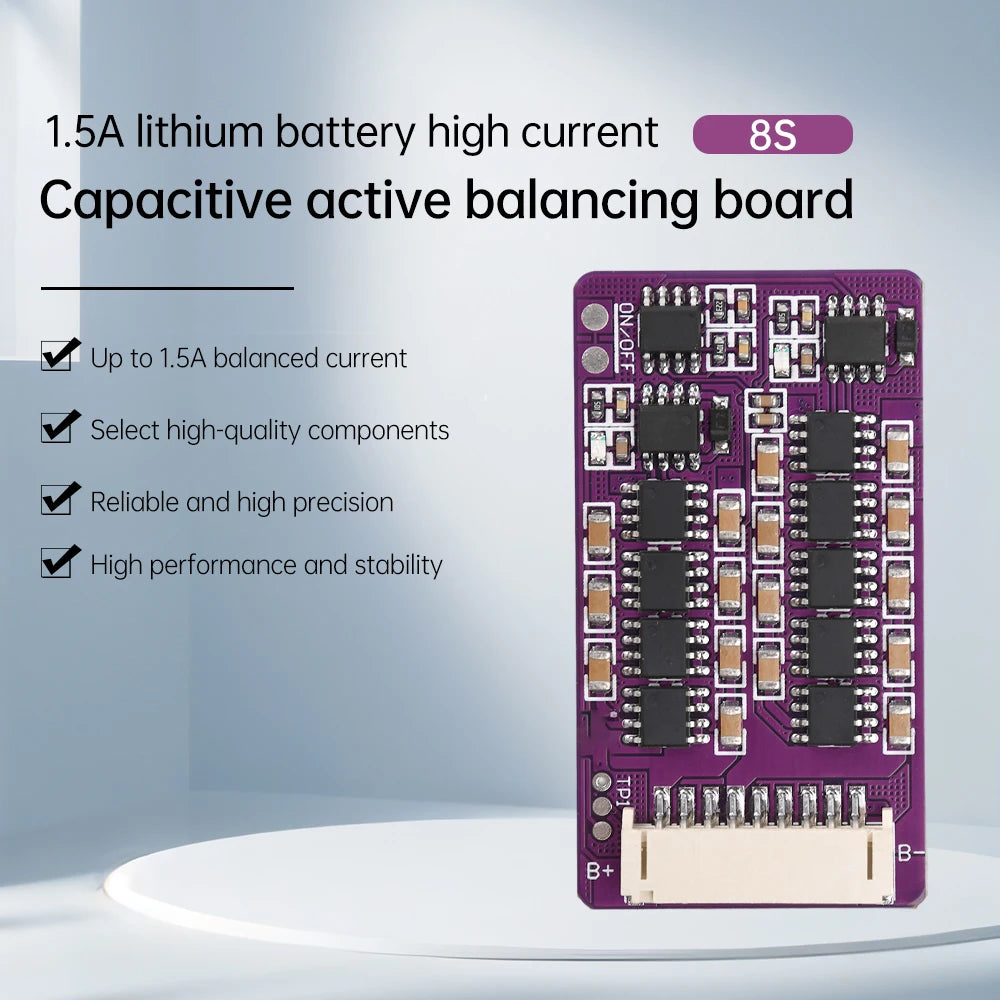

1.5 A Active Battery Balancer Board, 3S to 21S Lithium
Cells inside a pack drift apart as they age, and a passive board only burns off the difference as heat. This capacitive balancer moves charge between cells, with nine series versions from 3S to 21S and up to 1.5 A of balancing current. It suits pack builders, e-bike repairs and bench maintenance.
Level Pack Cells Instead of Draining the High Ones
✅ Bring a drifted pack back Add one to a pack whose cells have drifted, then level them before the next charge.

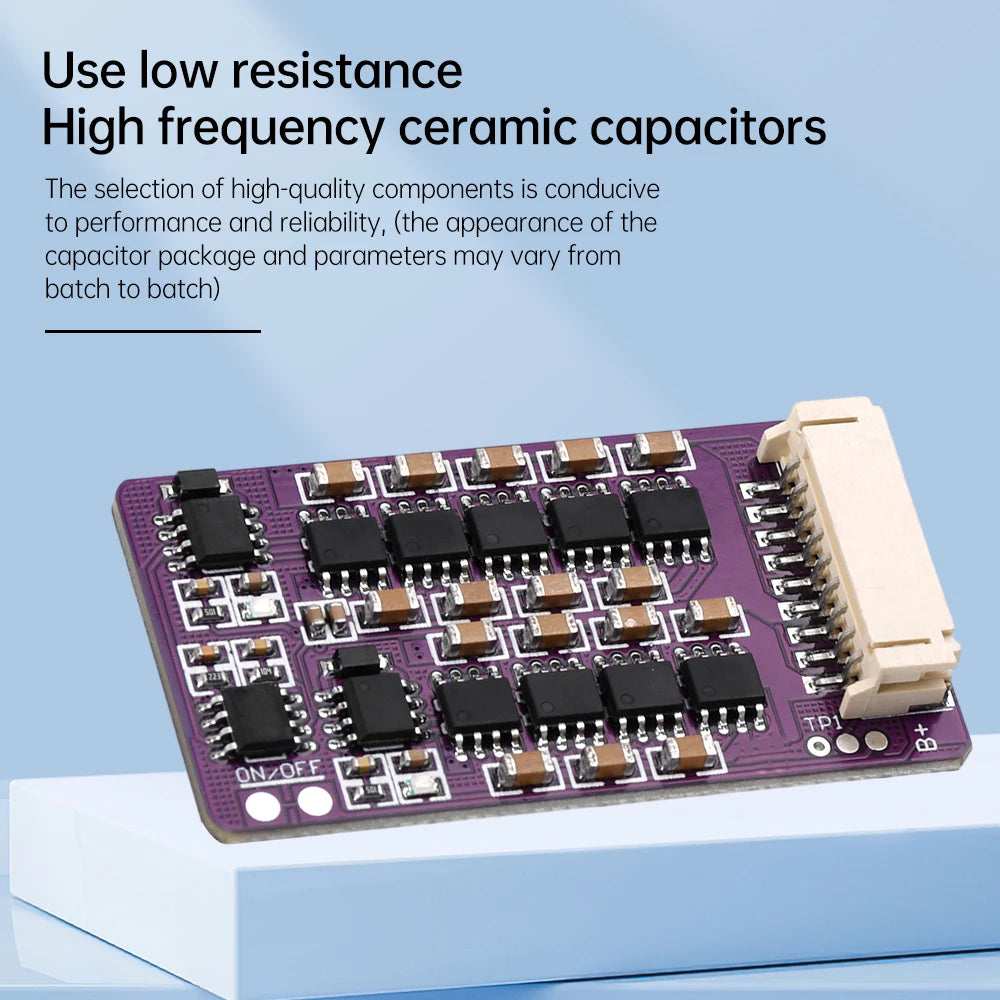

✅ Charge moves, not heat The capacitive circuit shifts energy between cells and runs cool, unlike a resistor board.

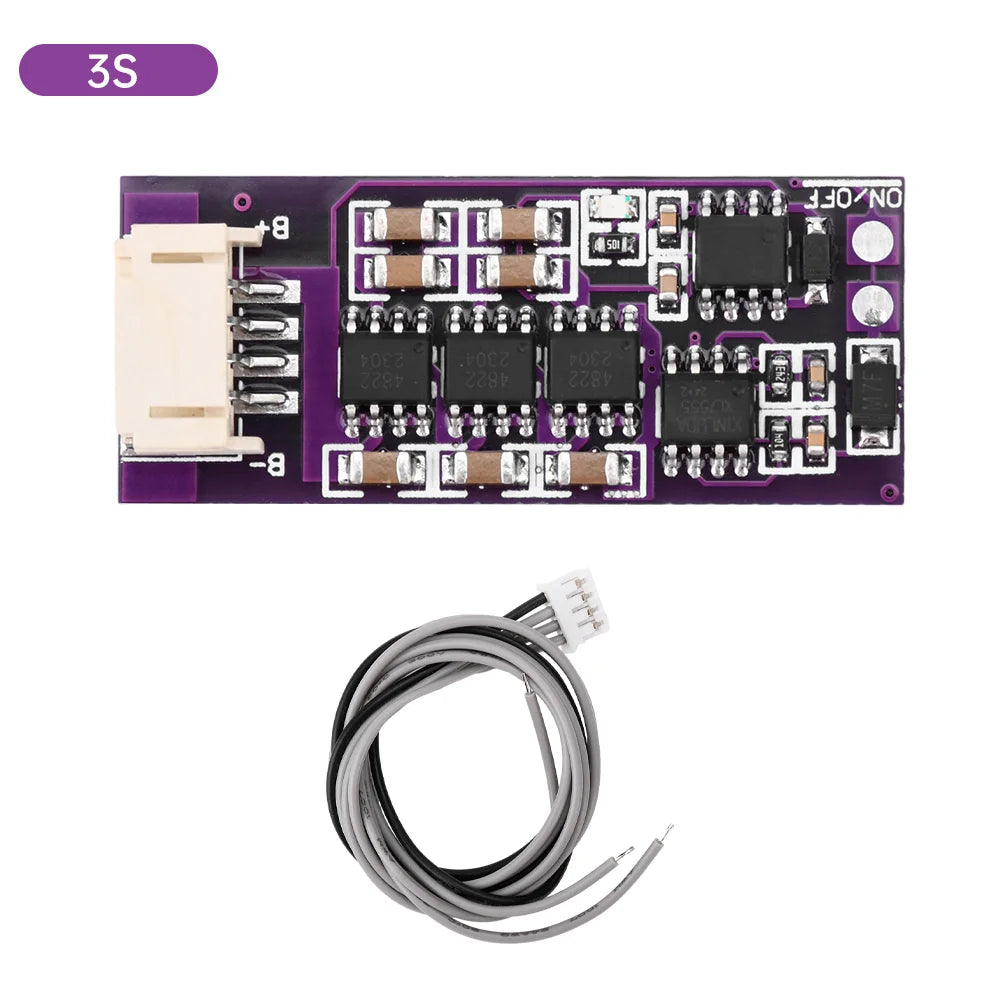

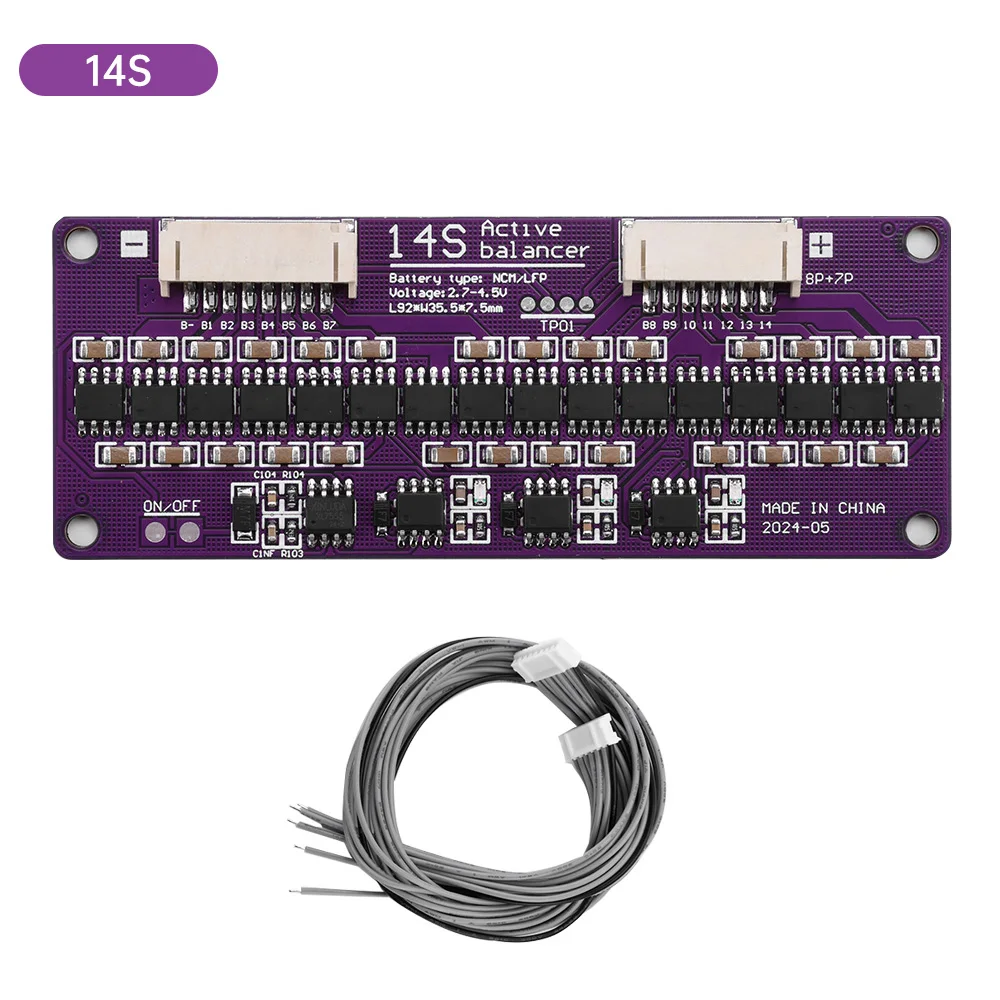

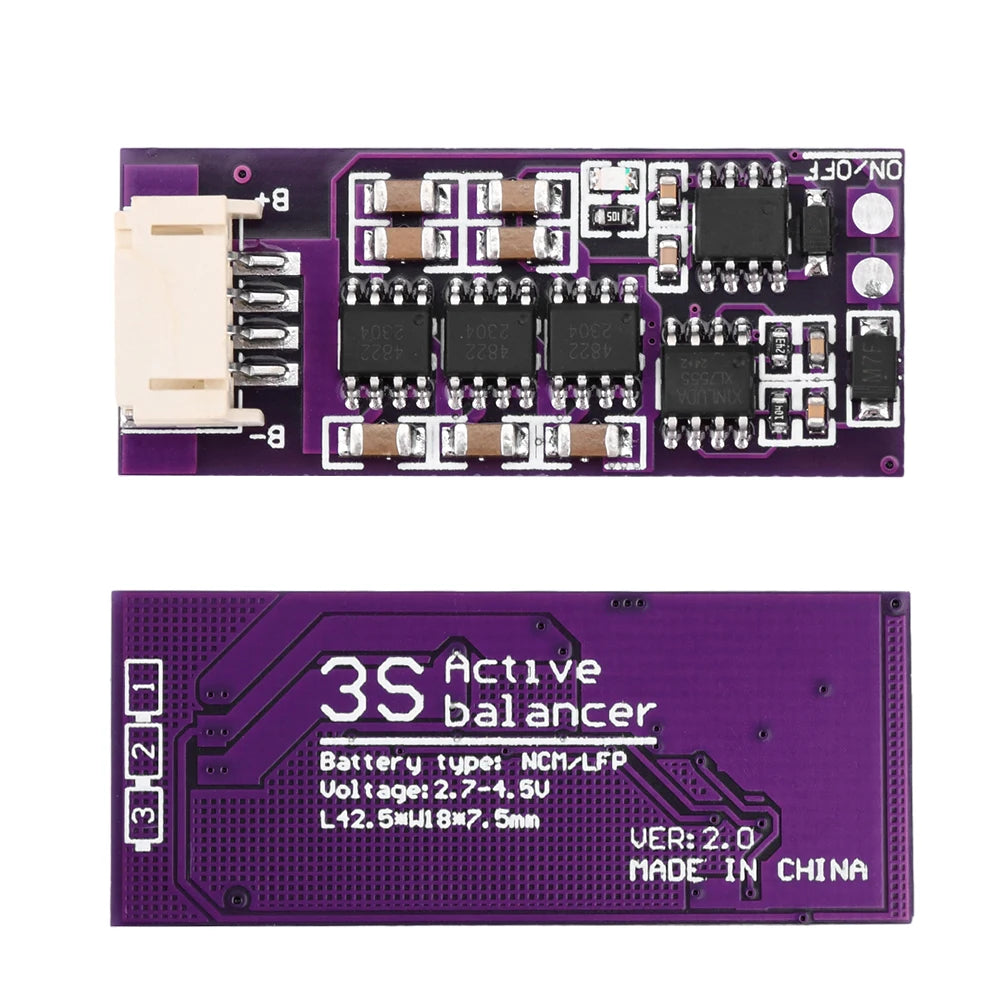

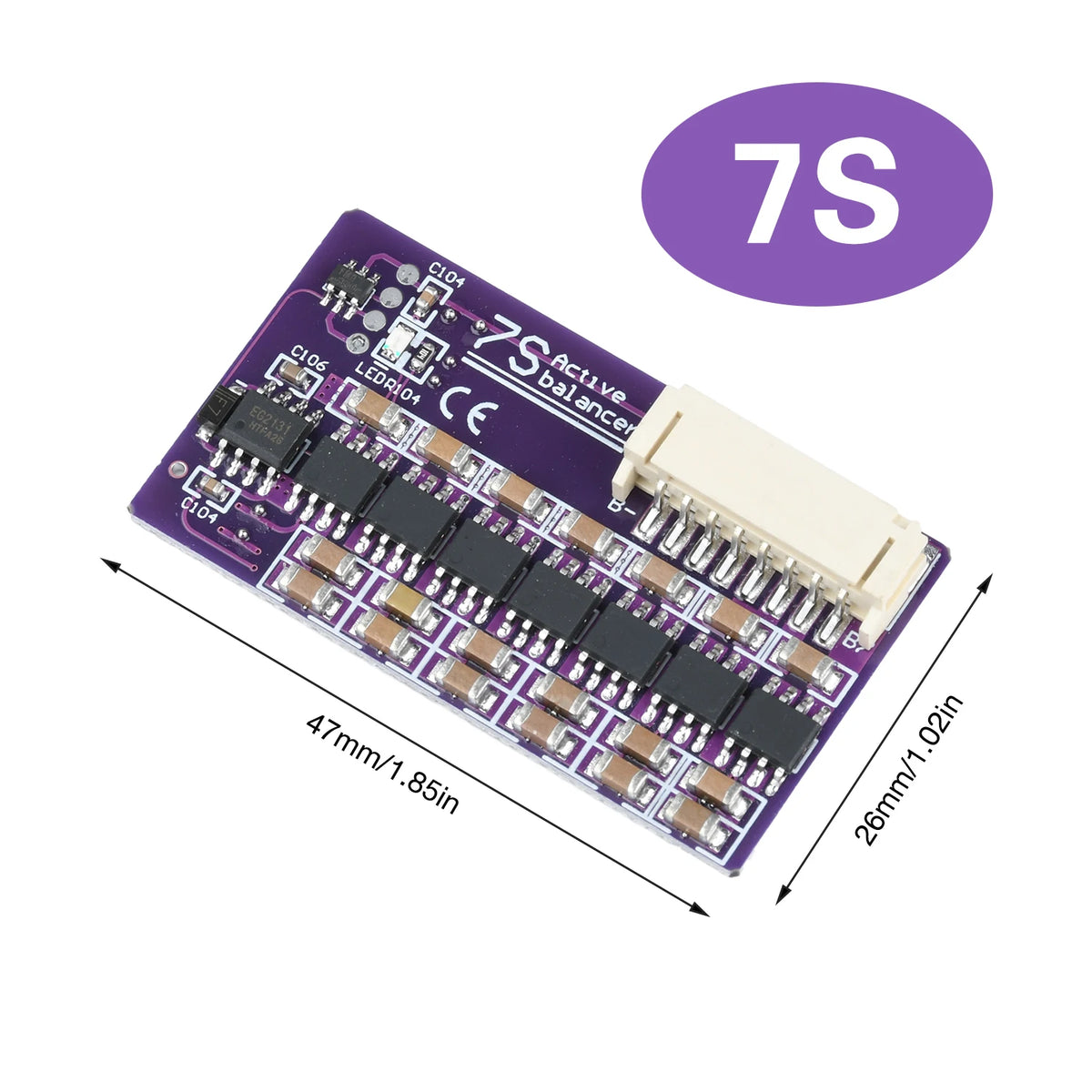

✅ Nine series versions Choose 3S, 4S, 5S, 6S, 7S, 8S, 14S, 17S or 21S to match your pack.
✅ Plug-in lead supplied The matching lead ends in a plug, so a bench test is wired in minutes.
✅ Keeps your protection board It runs independently of the BMS, so an existing protection board stays where it is.

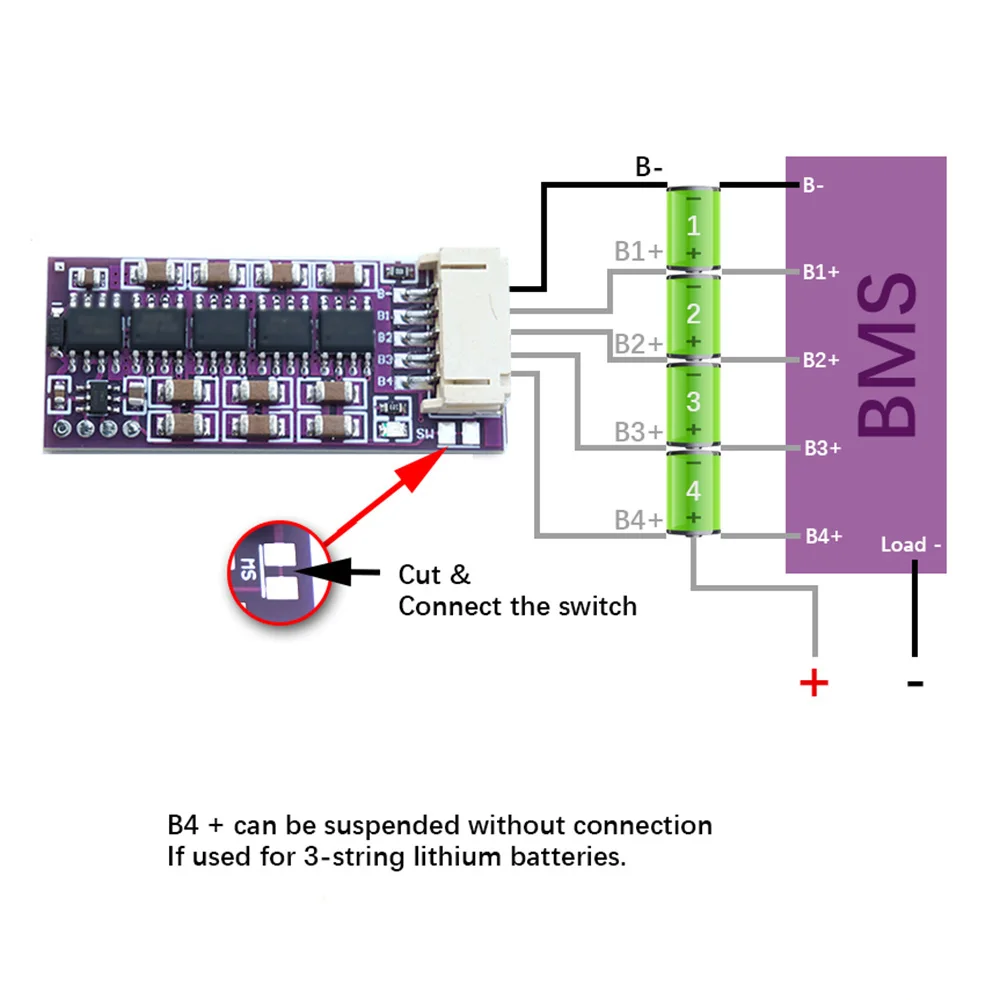

On the bench, the board takes the matching lead and works on its own: connect it across the pack, leave it to equalise, and disconnect when the cells settle. Nothing needs a phone, a laptop or a settings file, which is what makes it useful in a workshop with several packs on the go.

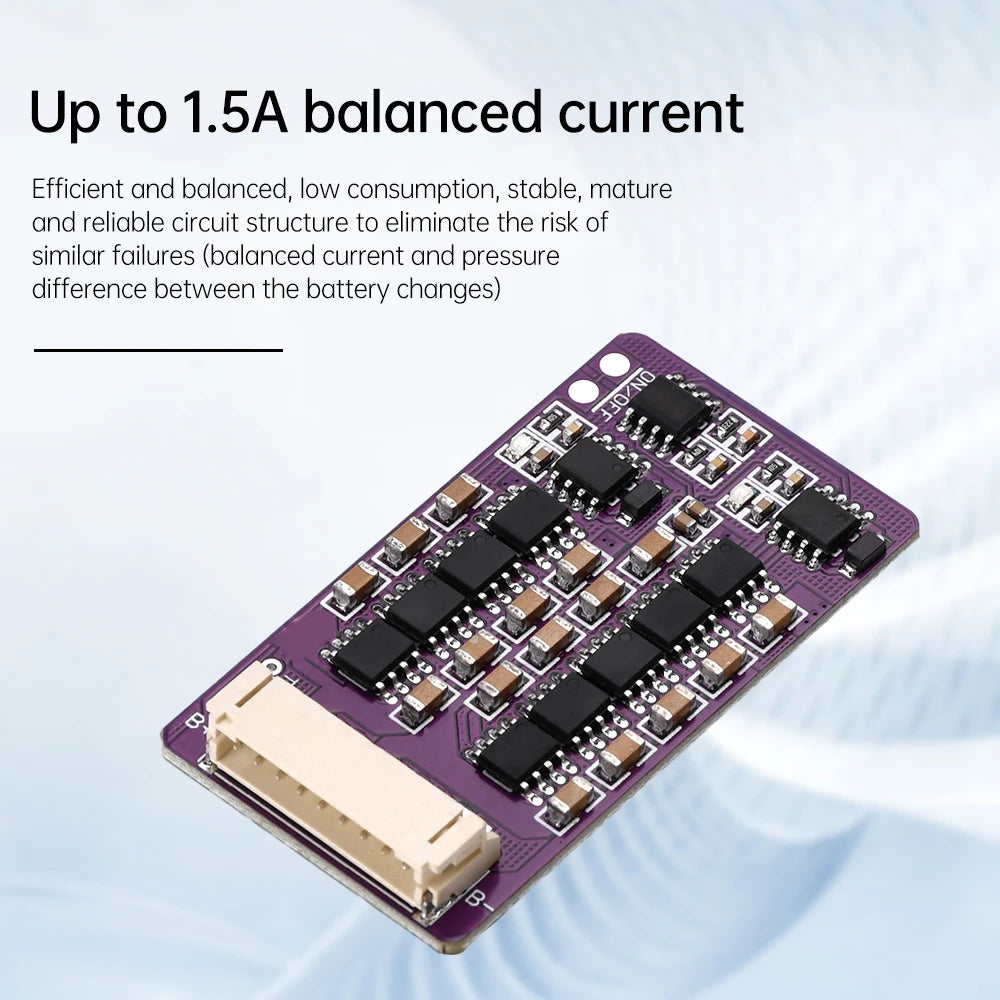

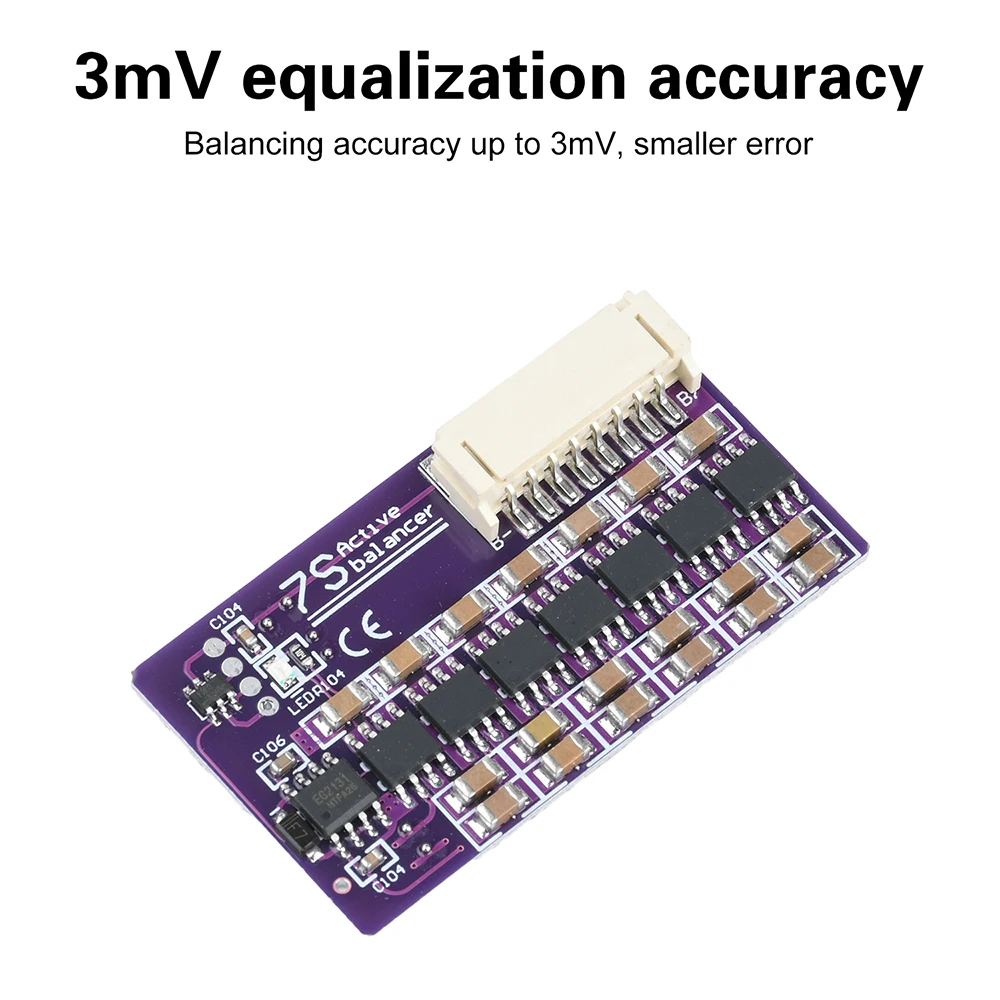

The 1.5 A figure is a ceiling rather than a fixed rate. Balancing current falls as the voltage difference between cells closes and as resistance in the wiring rises, so a badly drifted pack draws more at the start and almost nothing near the end. That is normal behaviour for this circuit, not a fault.
Match the series count to the pack rather than the other way round: the nine versions cover 3S, 4S, 5S, 6S, 7S, 8S, 14S, 17S and 21S groups, and the board is wired across the whole string. It equalises cells and does not replace a protection board or a charger.
It can sit inside a battery pack or outside it for maintenance work, so the same board can serve a build during assembly and then a repair job months later.
Technical details
- Function: Active capacitive cell equalisation

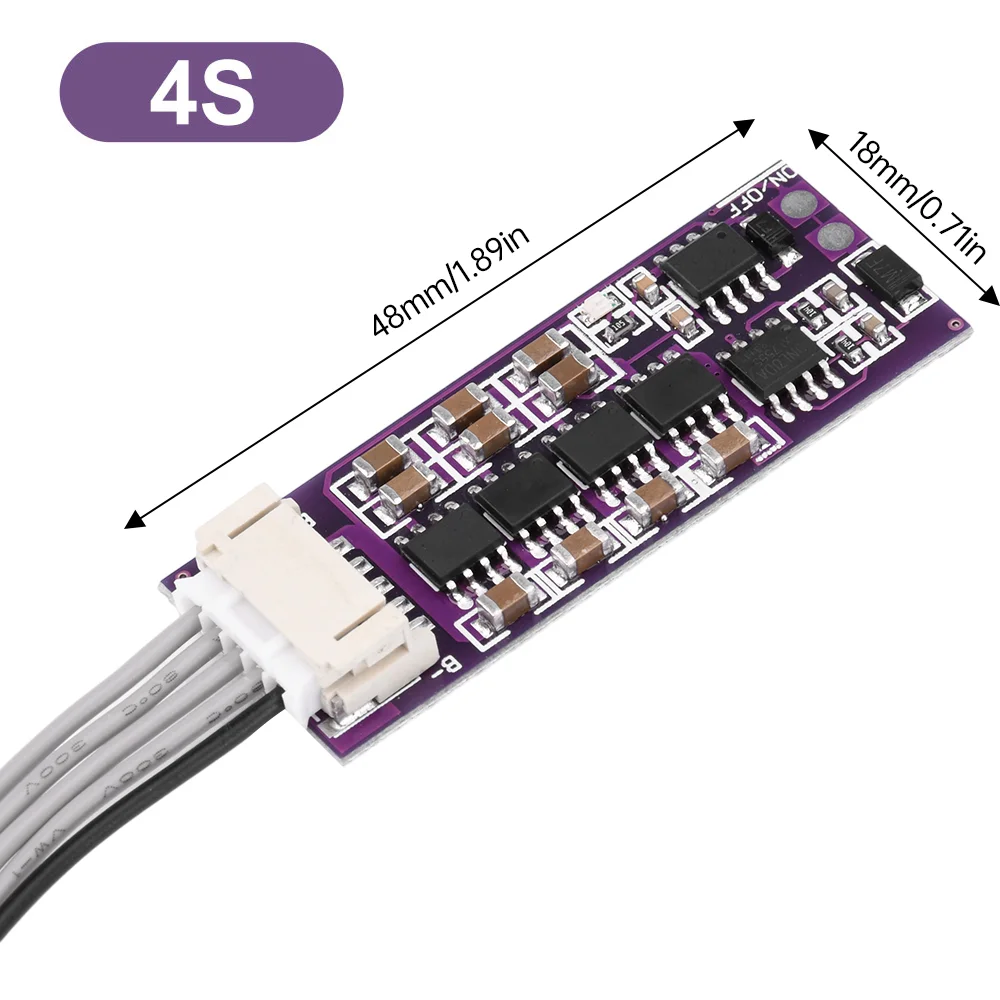

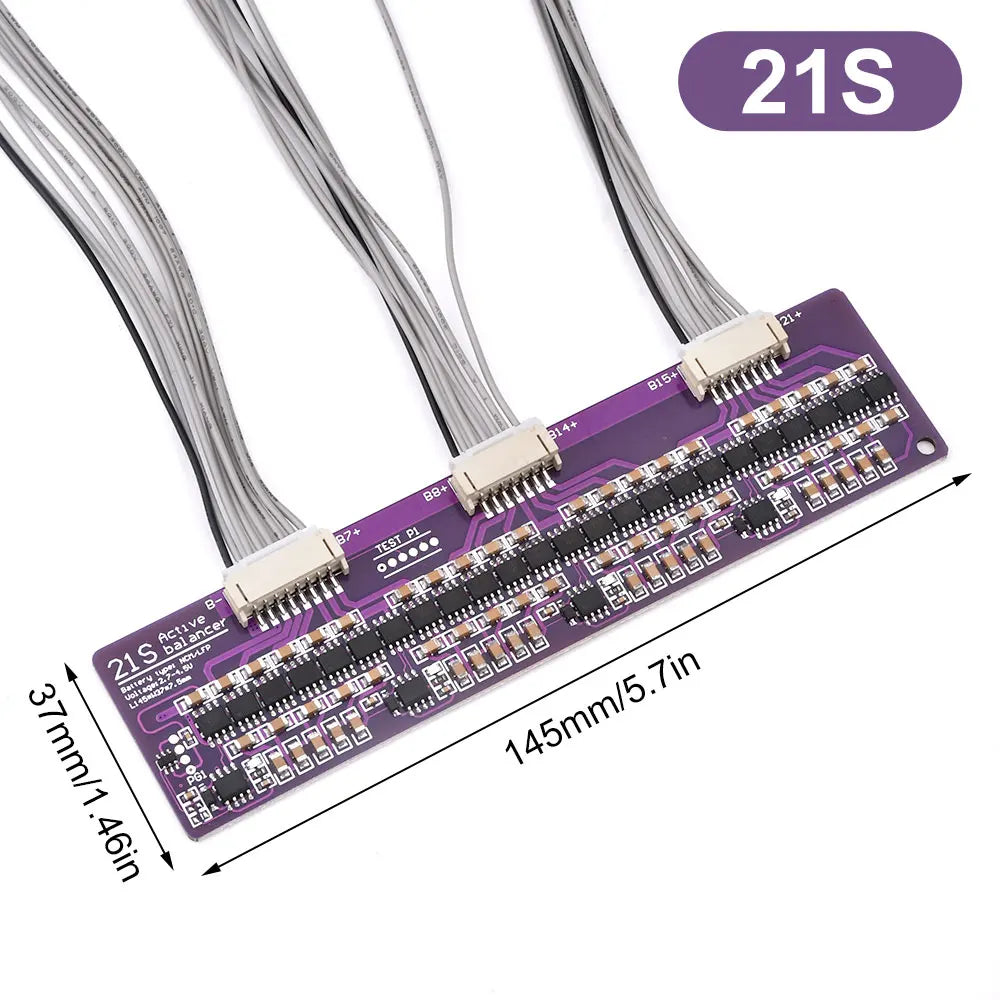

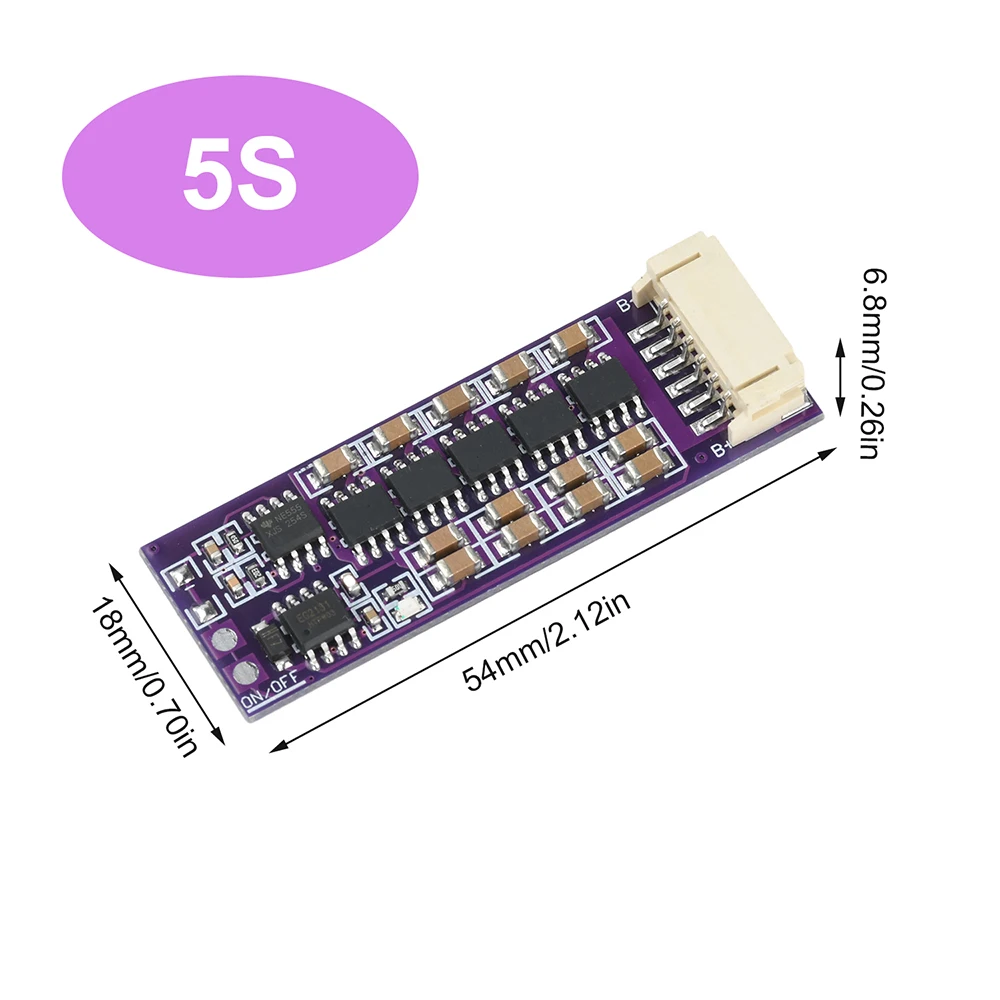

- Series versions: 3S, 4S, 5S, 6S, 7S, 8S, 14S, 17S, 21S
- Maximum balancing current: 1.5 A, varying with cell voltage difference and wiring resistance
- Battery types: LiFePO4, Li-ion (ternary) and LTO packs

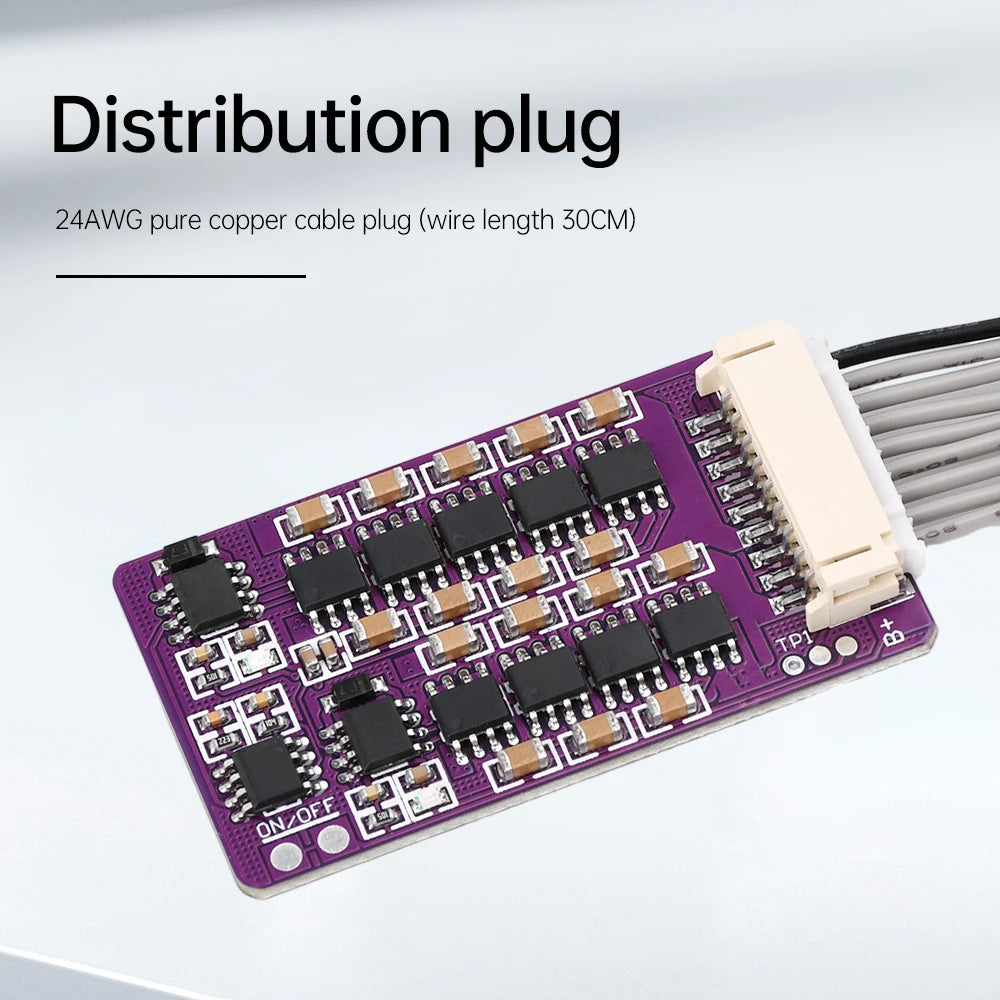

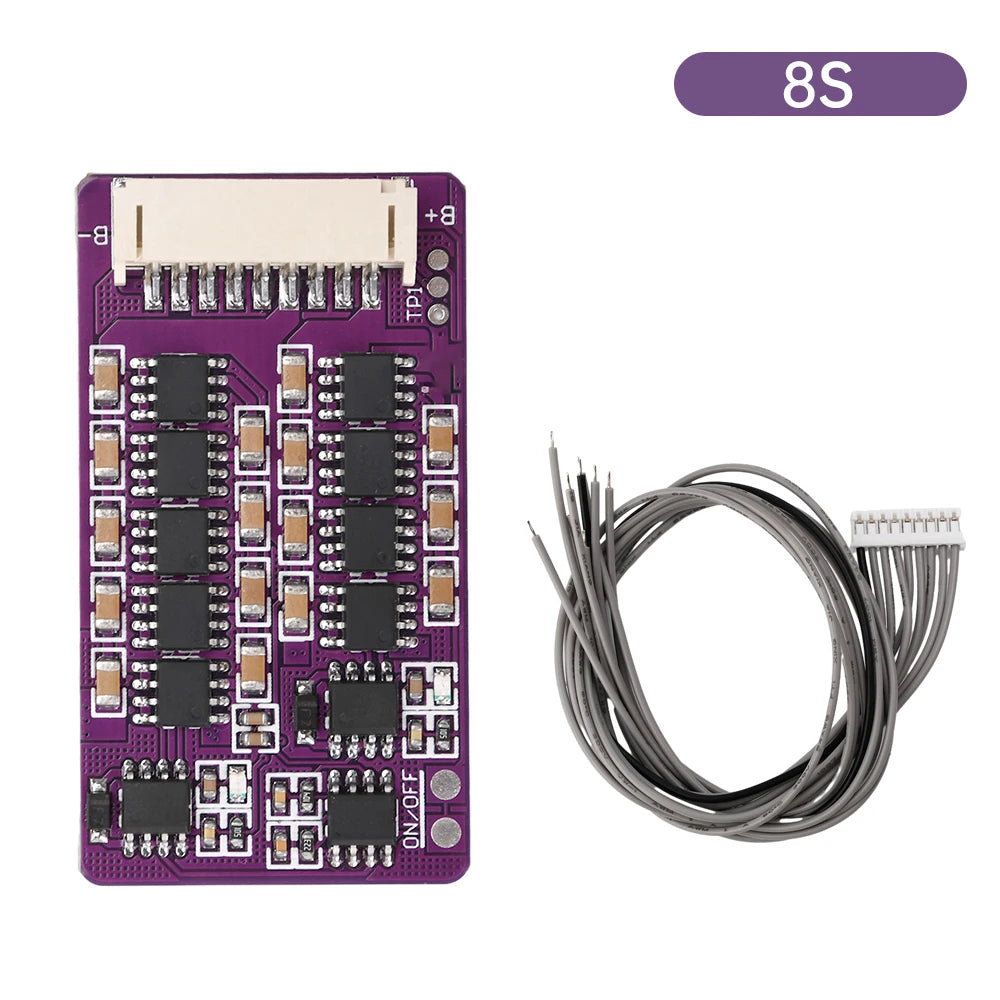

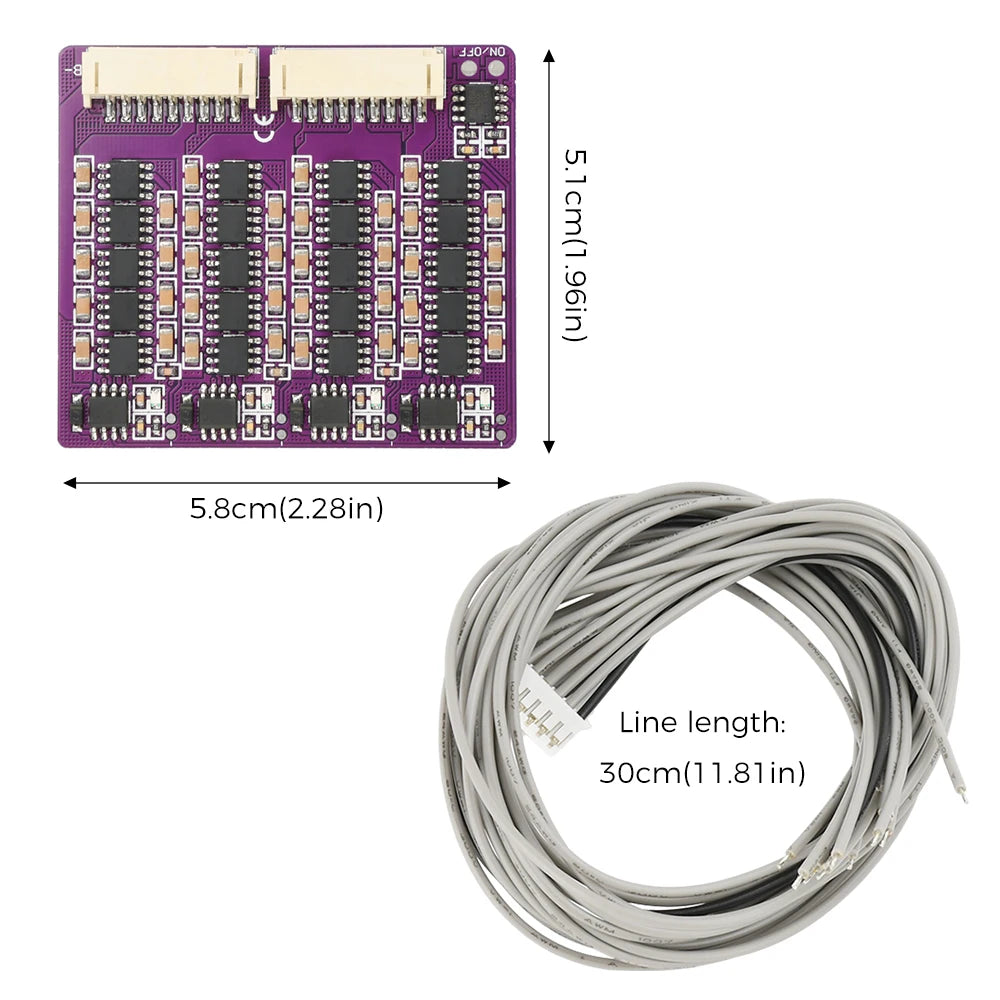

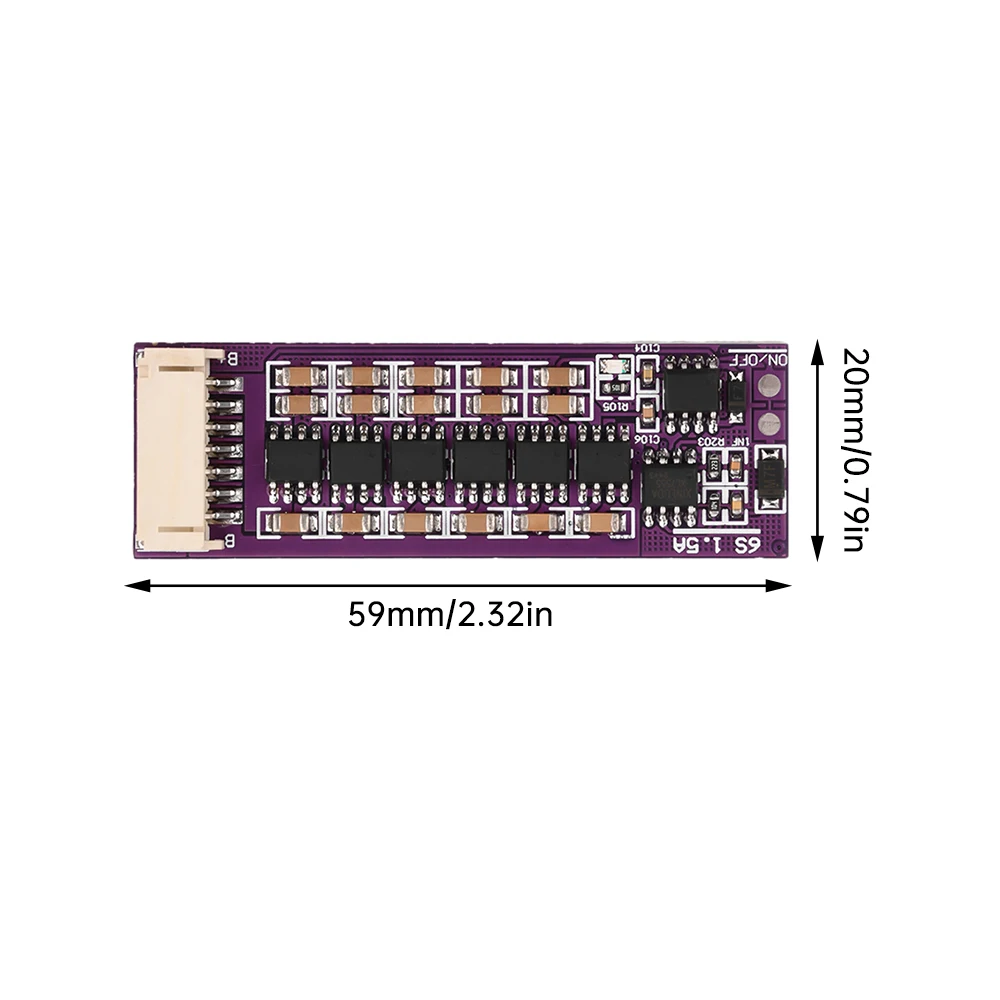

- Connection: Matching lead with plug, 30 cm
- Installation: Inside a pack or external for maintenance
- Quantity: 1 board
Match the series count to your pack and keep the cells level between charges.
