ZK-SMC05 Stepper & Servo Pulse Controller, Colour Display

Set direction and pulse speed at the machine instead of relying on a bare signal board. The ZK-SMC05 controller works with compatible pulse-input stepper or servo drives. It is for automation builders who need a local control panel for a matched motor-drive system.

• ✅ Adjust while watching the mechanism — Use the front knob and direction keys when setting up a compatible motor-drive assembly.
• ✅ See the operating state locally — The colour display groups speed, pulse count and mode information at the control point.
• ✅ Add controls where the work happens — Expansion-button inputs allow external controls to become part of your machine layout.
• ✅ Bring limit inputs into the setup — Four limit-switch inputs provide connection points for a properly configured motion-control arrangement.

Put pulse control at the machine

The SMC05 supplies control signals to a compatible motor drive; it is not a complete motor-and-driver package. Check the drive's input requirements against the controller's common-anode connection and collector-output arrangement before wiring.

Use the local keys and dial to select a motion mode, direction and pulse setting, with the screen showing the current state. The interface offers English and Chinese. Four output channels, four limit inputs and three expansion-button inputs provide connection points for a custom machine layout.

Provide a suitable 12–24 V supply and the matching drive, motor and wiring separately. The controller does not replace a machine's independently planned safety controls. Communications and wireless accessories should be confirmed for the exact supplied revision rather than assumed from the gallery.

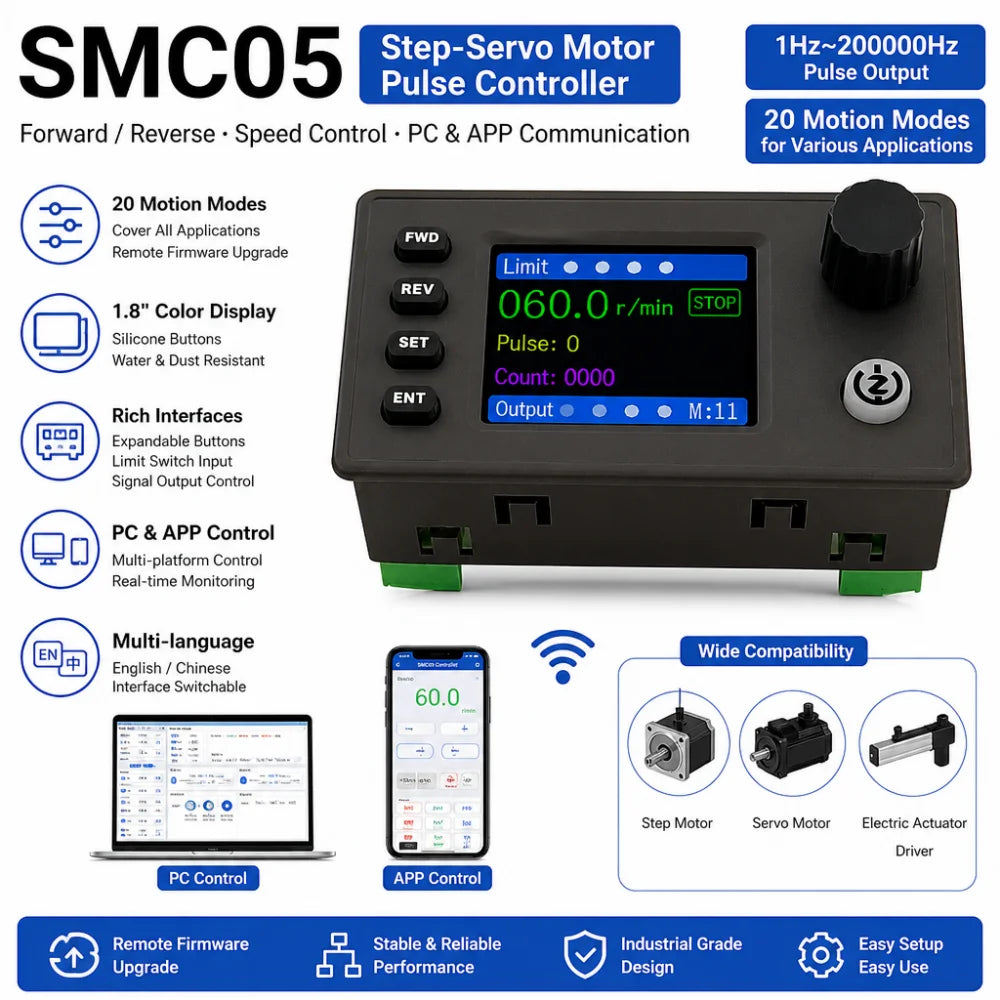

The controller is the local interface; motors, drivers, phones and computers shown are separate equipment.

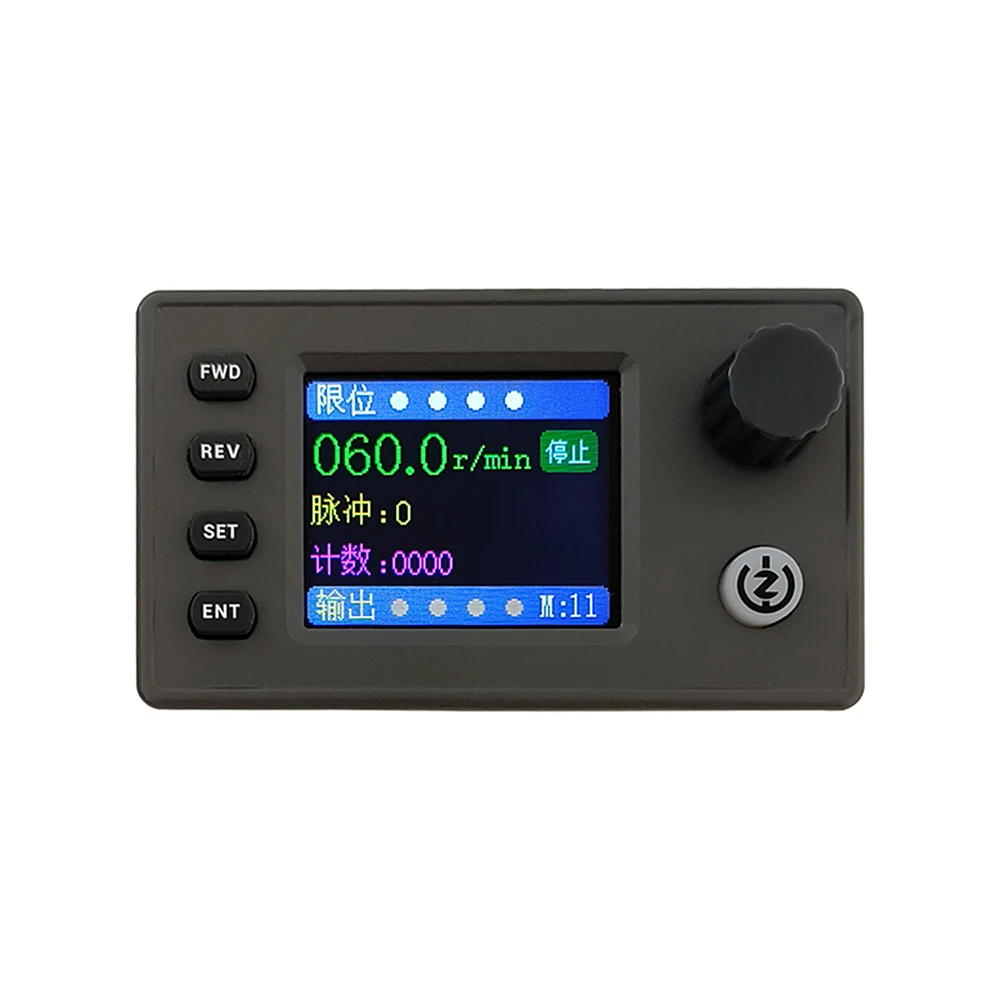

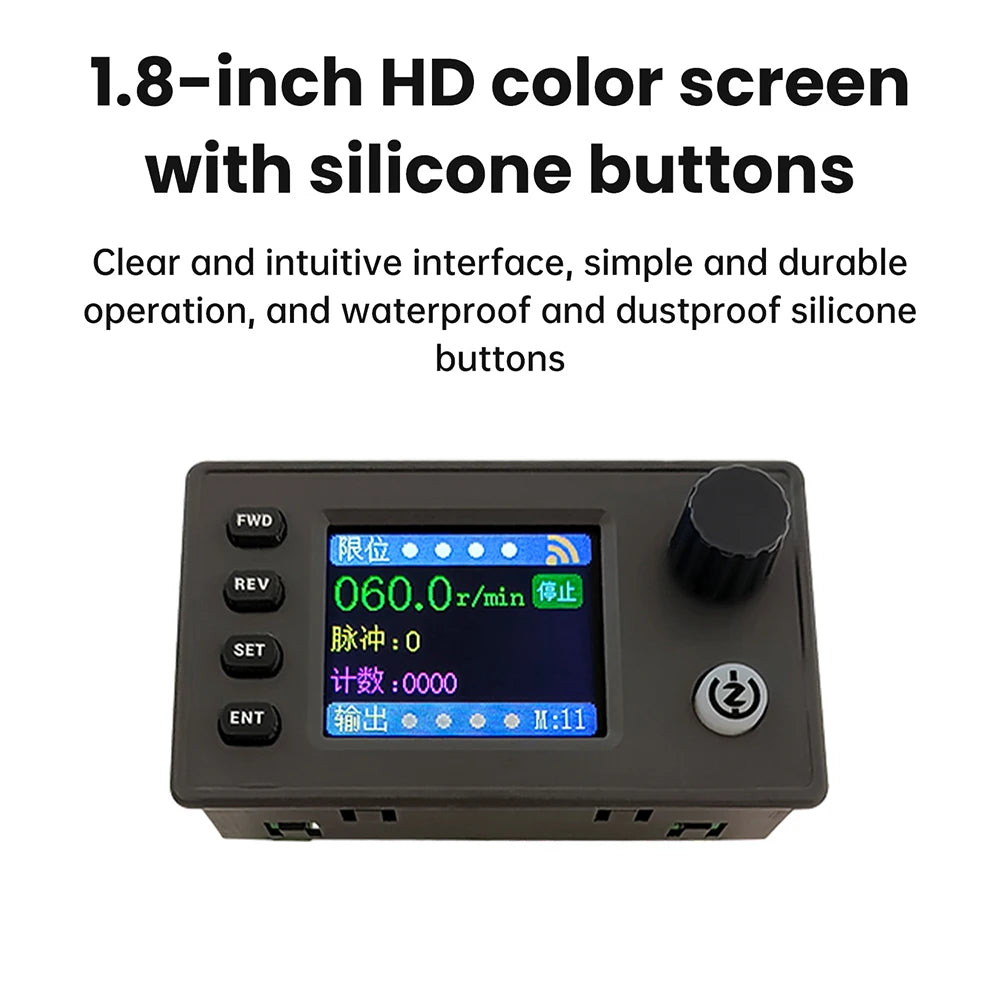

Read the state on the screen while using the front keys and adjustment knob.

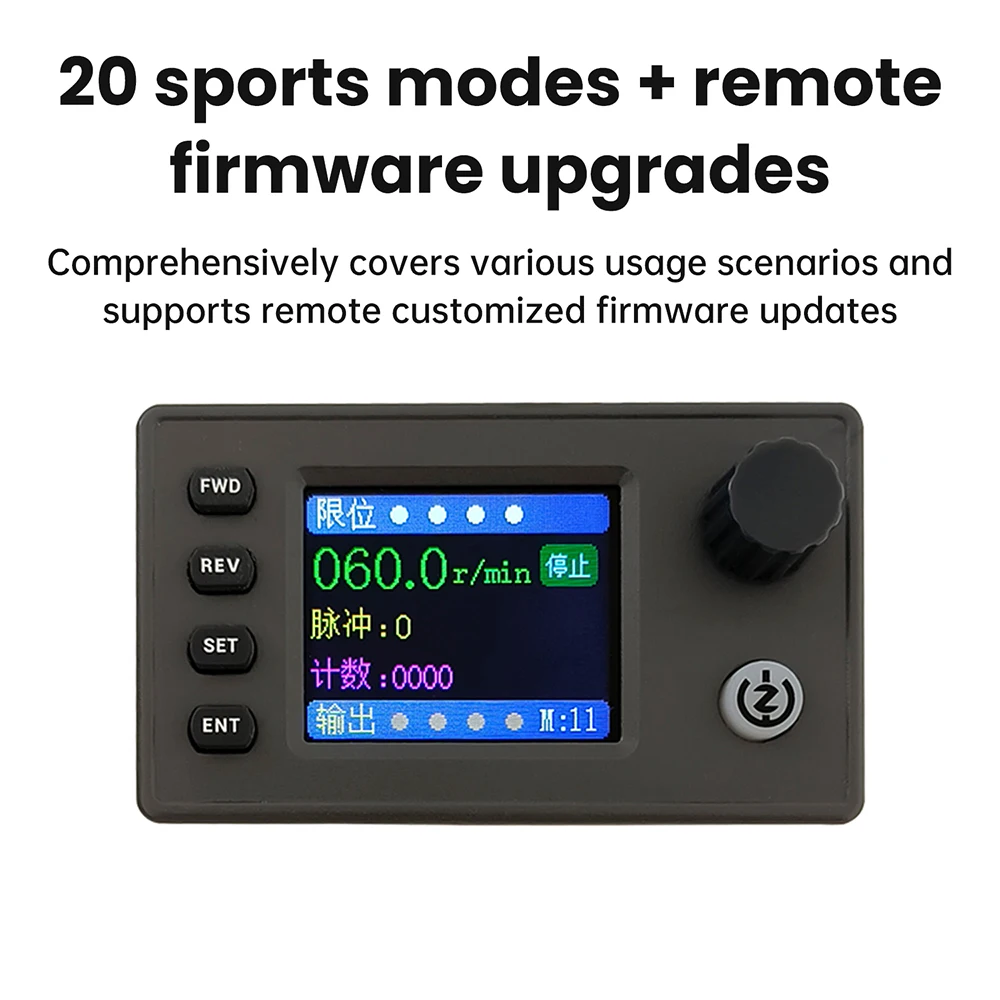

Select a suitable motion mode for the mechanism after checking the controller instructions.

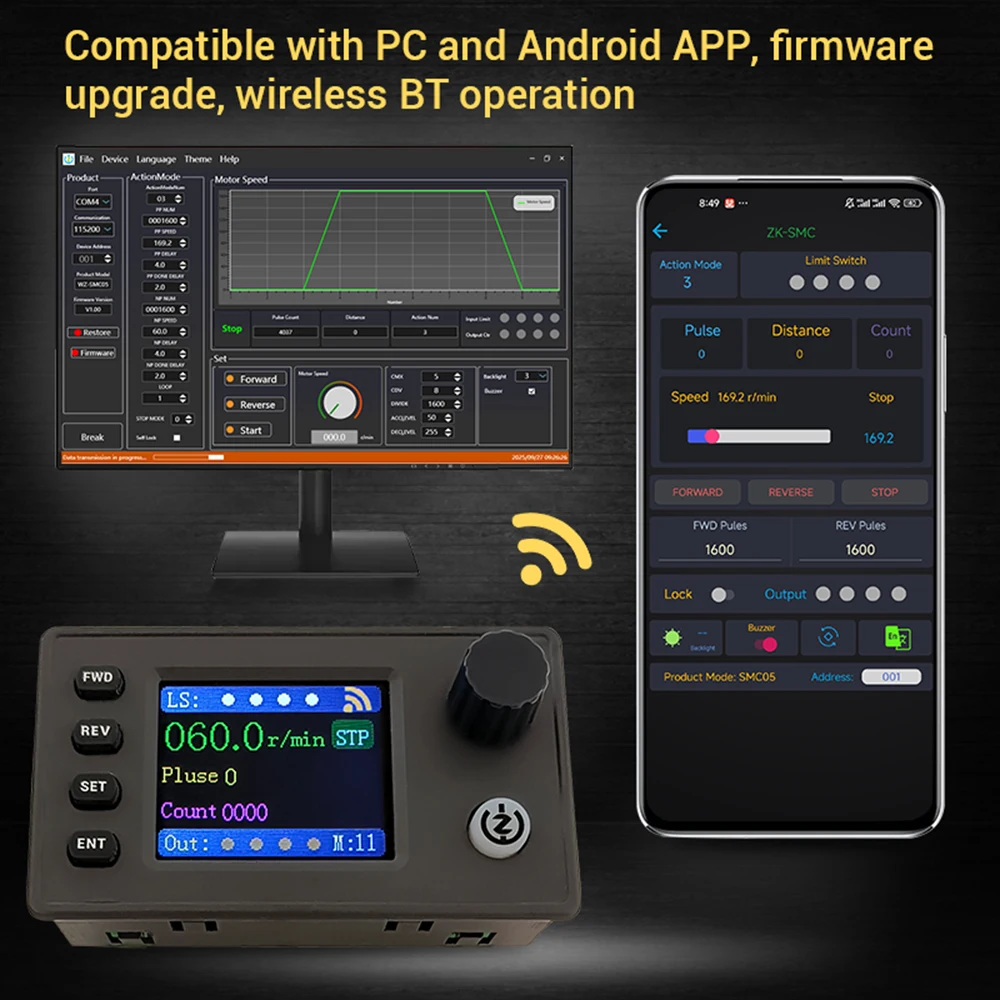

PC and app illustrations do not establish that every communication accessory is included.

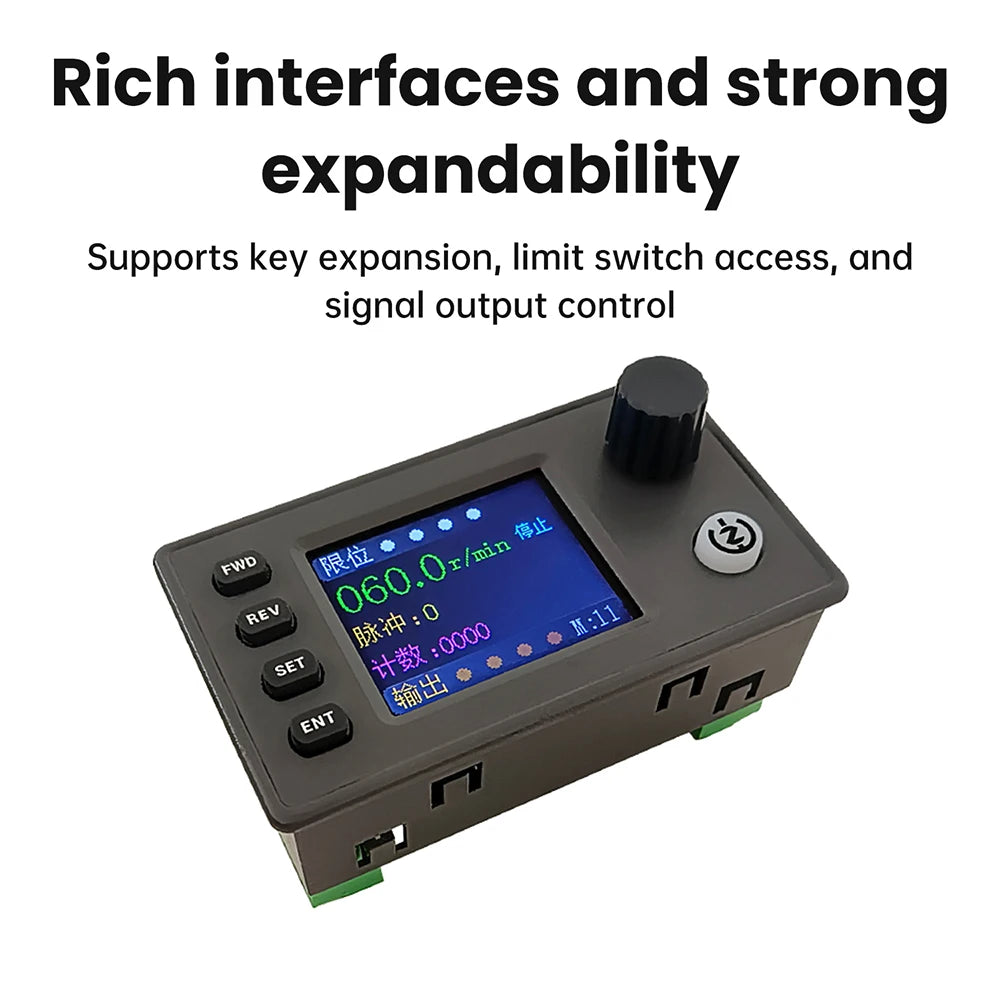

Plan external buttons and limit-switch connections before building the control panel.

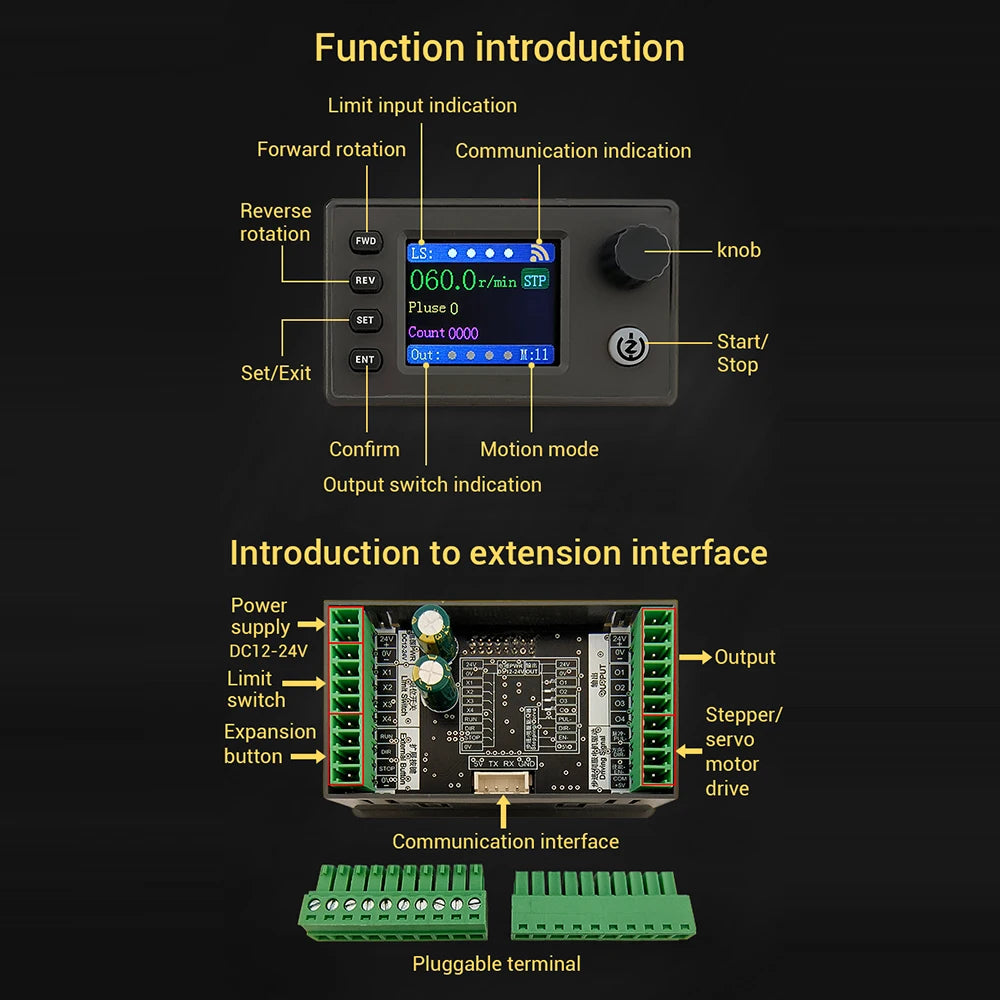

Compare the front controls with the way you want to operate the machine.

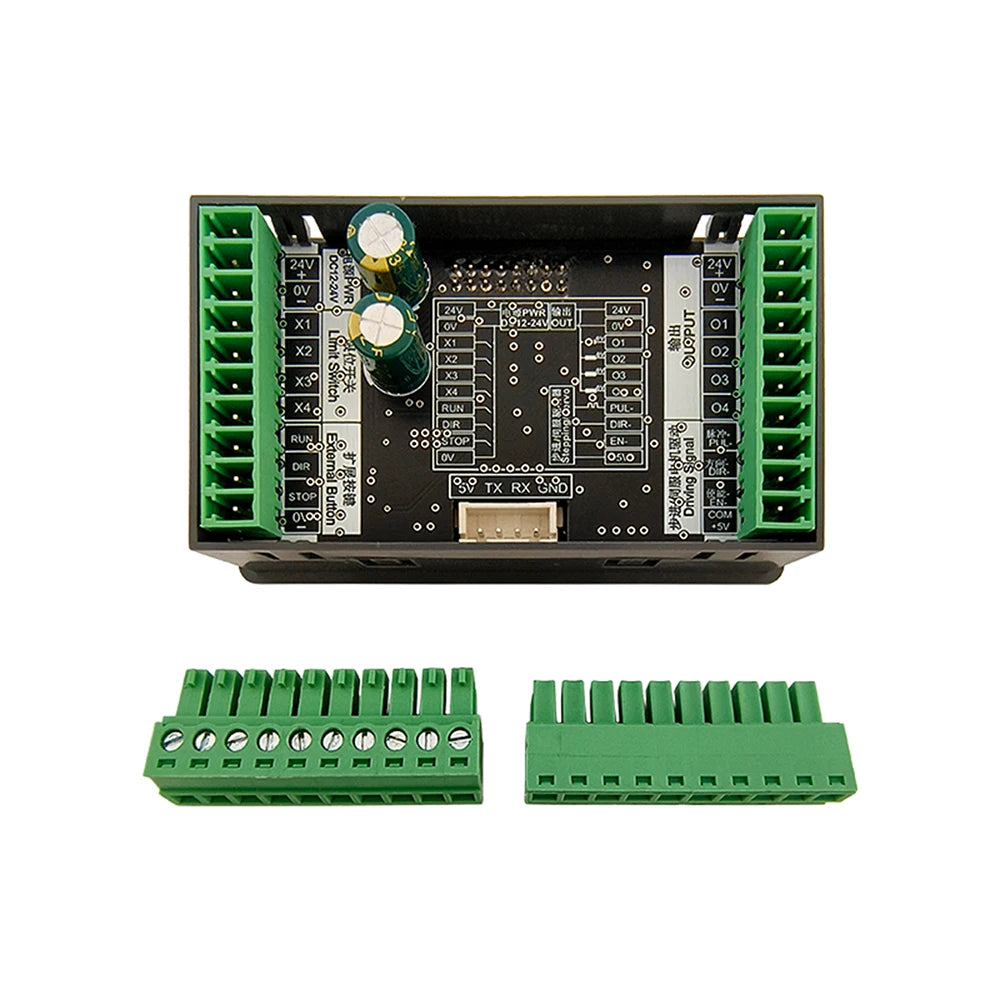

Check terminal labels and the drive's electrical requirements before making connections.

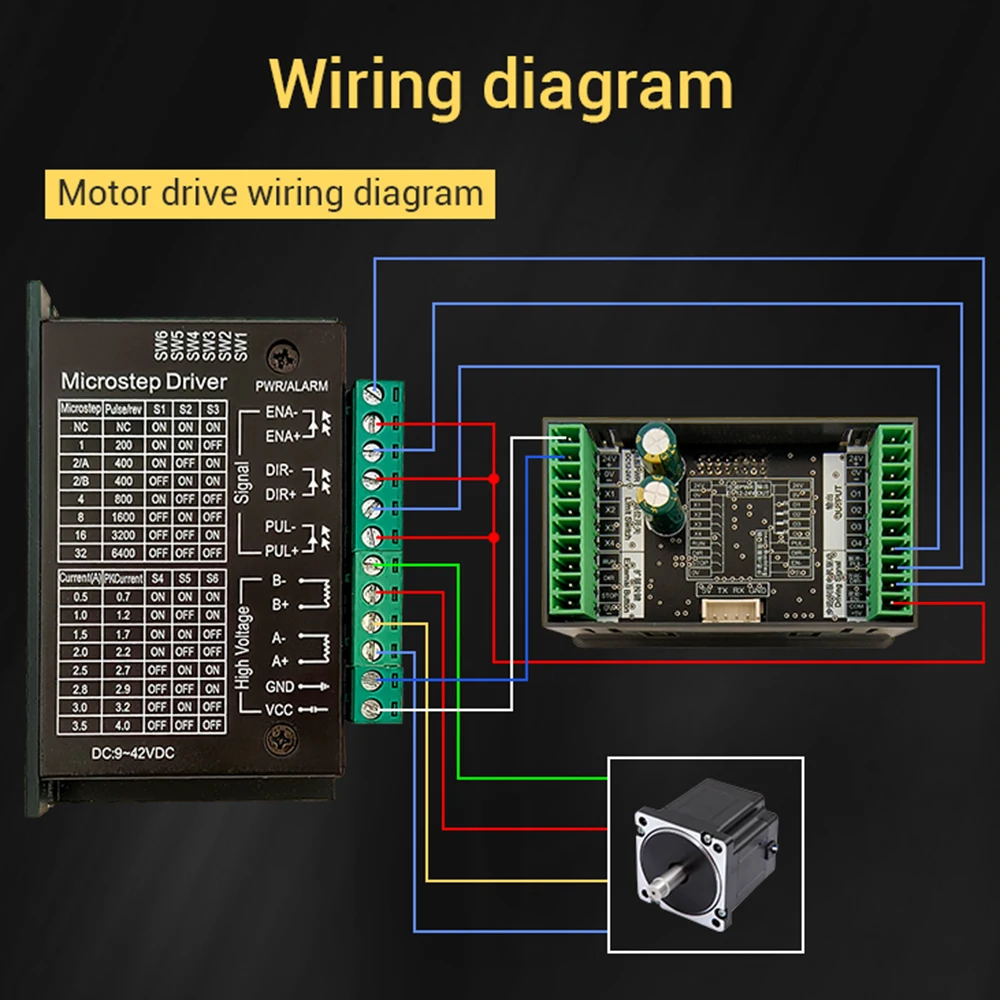

The connection overview separates power, limit inputs, expansion buttons and drive outputs.

The motor and driver in the diagram are not supplied with the controller.

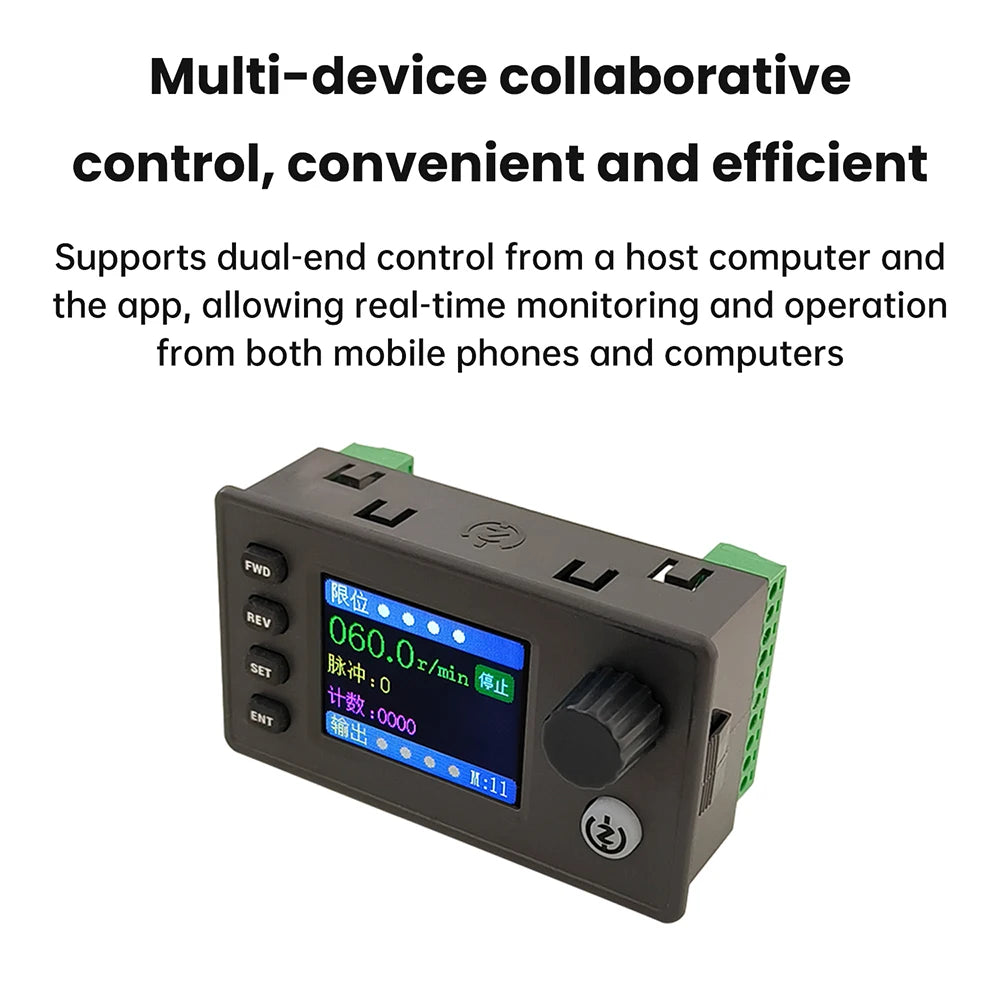

Confirm the supplied revision's communication requirements before planning computer or mobile integration.

Technical details

• Model: ZK-SMC05 / SMC05
• Type: stepper and servo motor pulse controller
• Drive compatibility: compatible pulse-input drives; verify electrical interface
• Supply: 12–24 V
• Pulse frequency: 1–200,000 Hz
• Pulse output: collector-output arrangement, common-anode connection
• Display: 1.8-inch colour screen
• Inputs: 4 limit-switch and 3 expansion-button inputs
• Outputs: 4 channels; interface languages English/Chinese
• Included: 1 controller; motor, motor drive and power supply not included

Match the drive interface and supply, then bring local pulse control to your next automation build.
