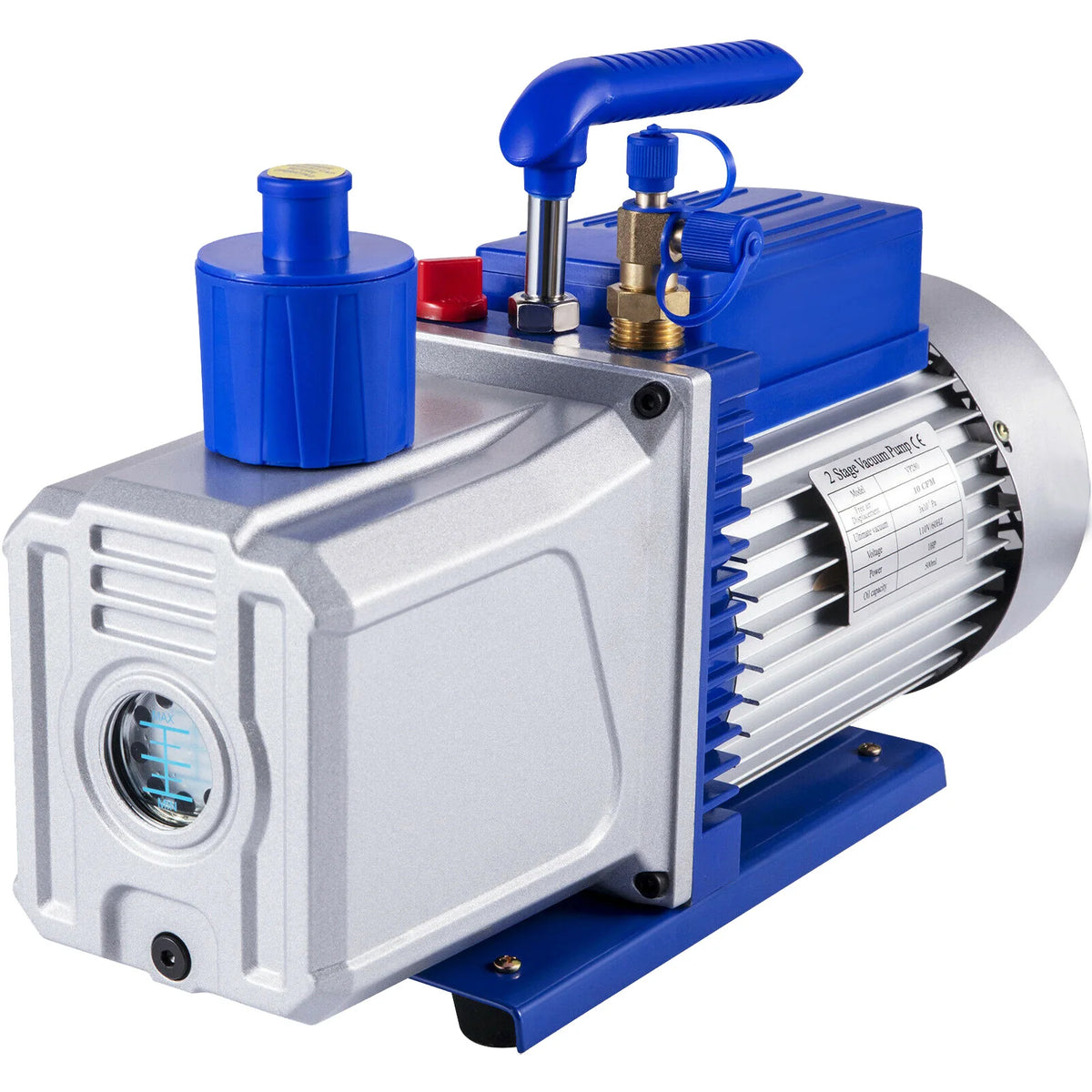

10 CFM Two-Stage HVAC Vacuum Pump

Evacuate a compatible sealed refrigeration system with a two-stage rotary-vane pump. The 10 CFM format provides a workshop tool for supported HVAC and vehicle air-conditioning service.

✅ Prepare a system for further service - The pump removes gas from a correctly connected sealed system.

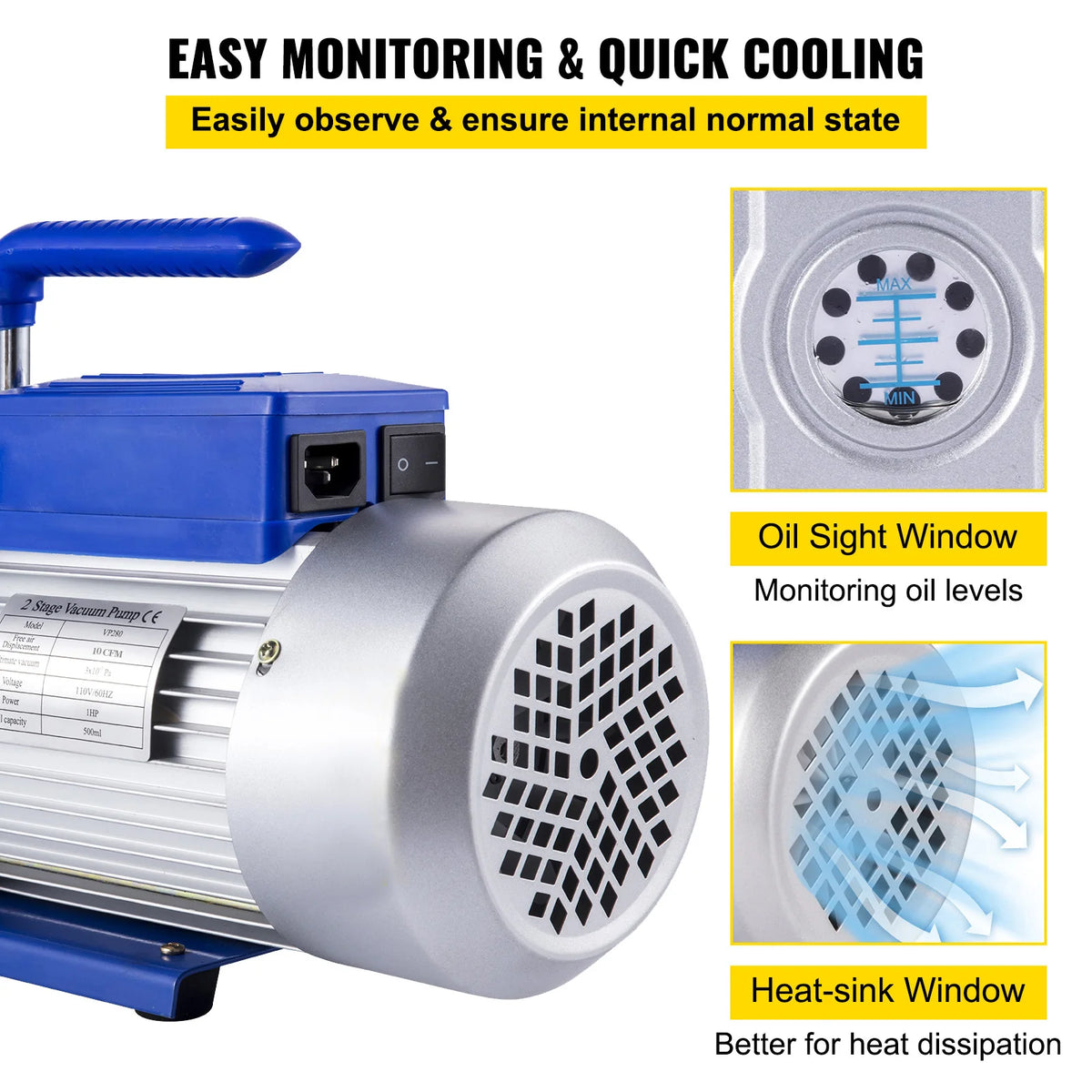

✅ Check oil at a glance - A viewing window makes the oil level visible.

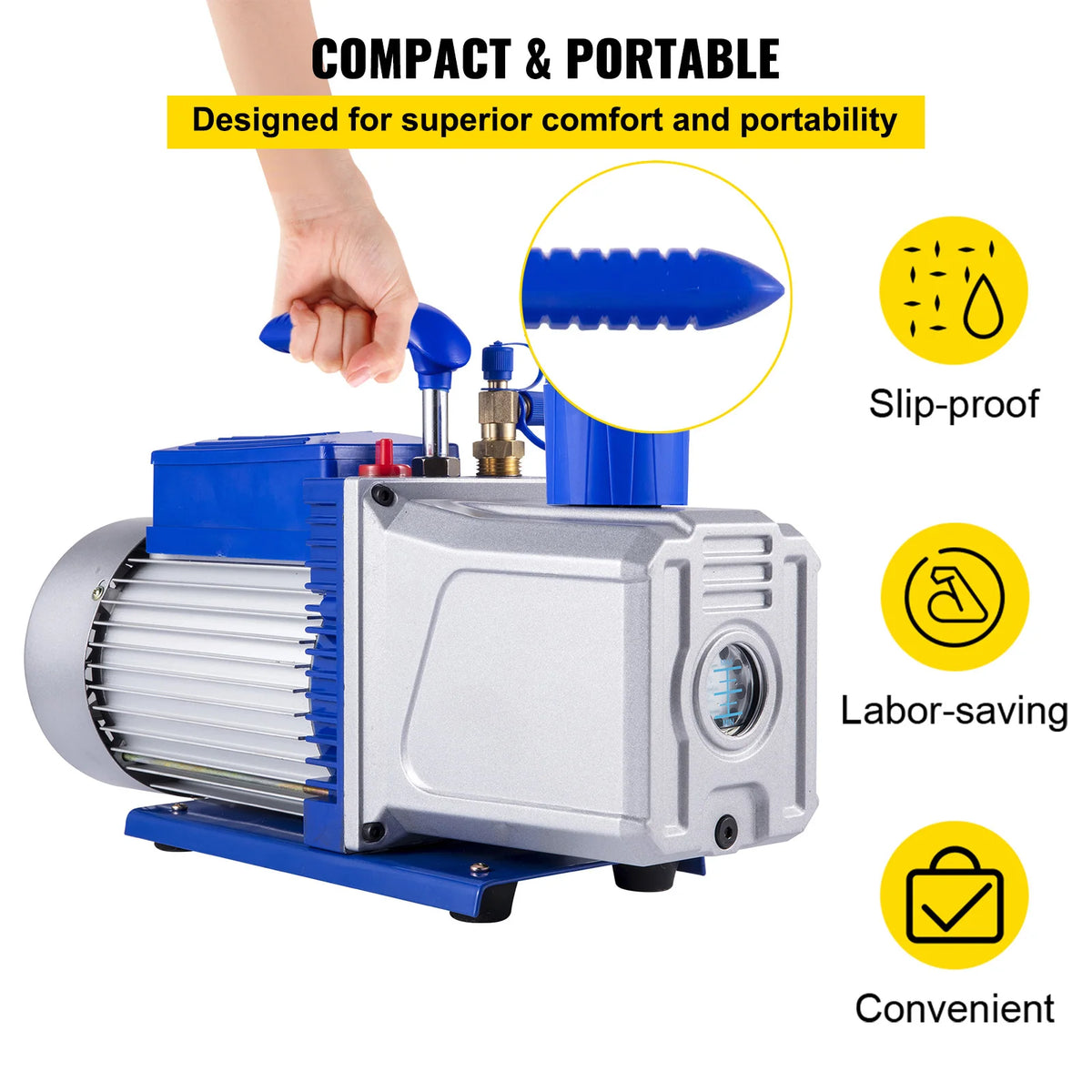

✅ Move it between work areas - A carrying handle provides a practical grip.

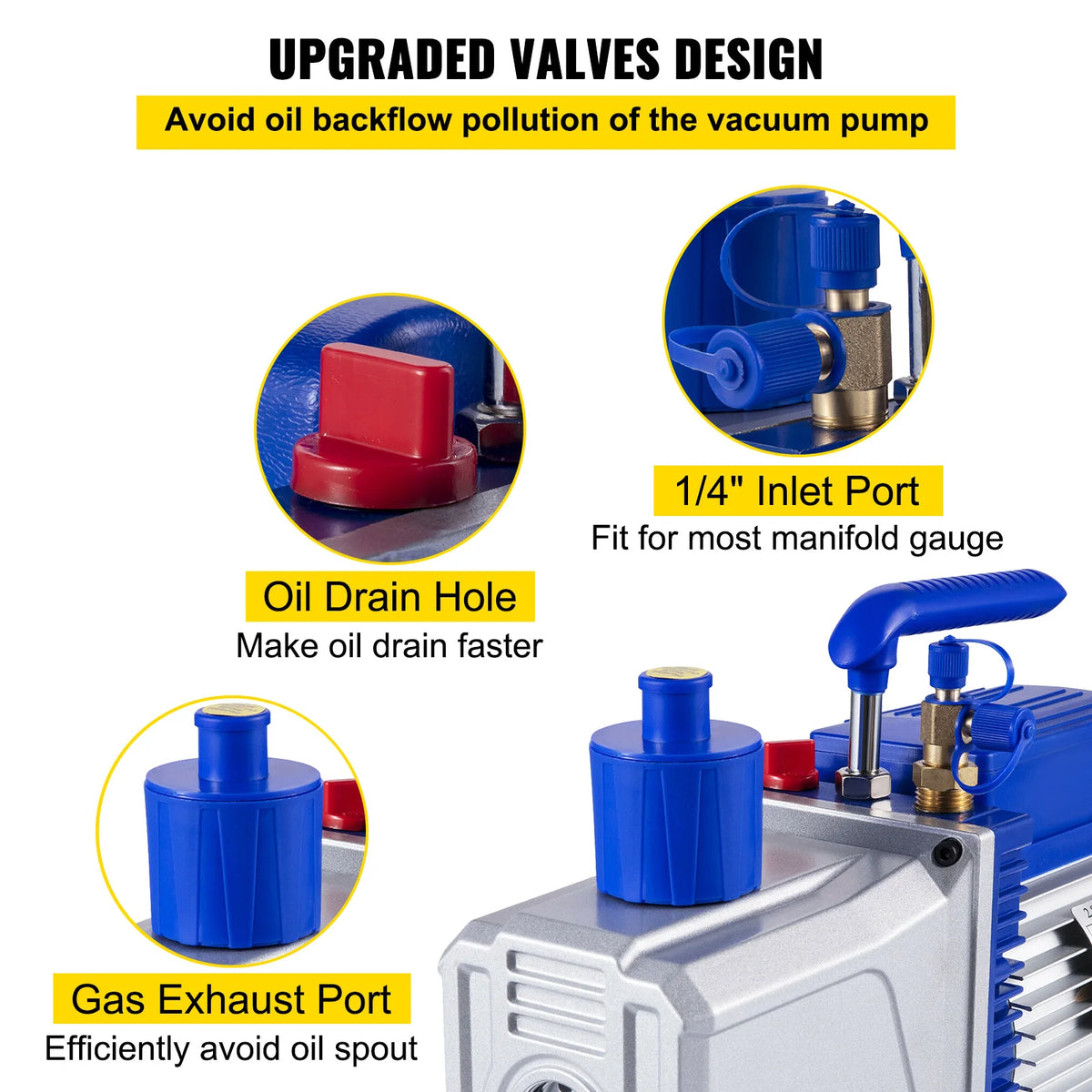

✅ Maintain the working setup - Accessible oil filling and draining points support routine servicing.

Match the System and Electrical Version

Choose the EU 220 V or US 110 V version to match the actual supply. The 1 HP pump has a 500 ml oil capacity and is supplied without oil.

Check refrigerant compatibility before use: this pump is not applicable to R32. Use suitable service equipment and follow the system and pump procedures; evacuation is distinct from refrigerant recovery.

Technical details

• Two-stage rotary-vane pump
• 10 CFM rated displacement
• 1 HP motor
• Approximately 2000 rpm
• 500 ml oil capacity
• EU 220 V / US 110 V variants
• Oil not included
• Not for R32

Equip your compatible HVAC service setup with a two-stage pump.
