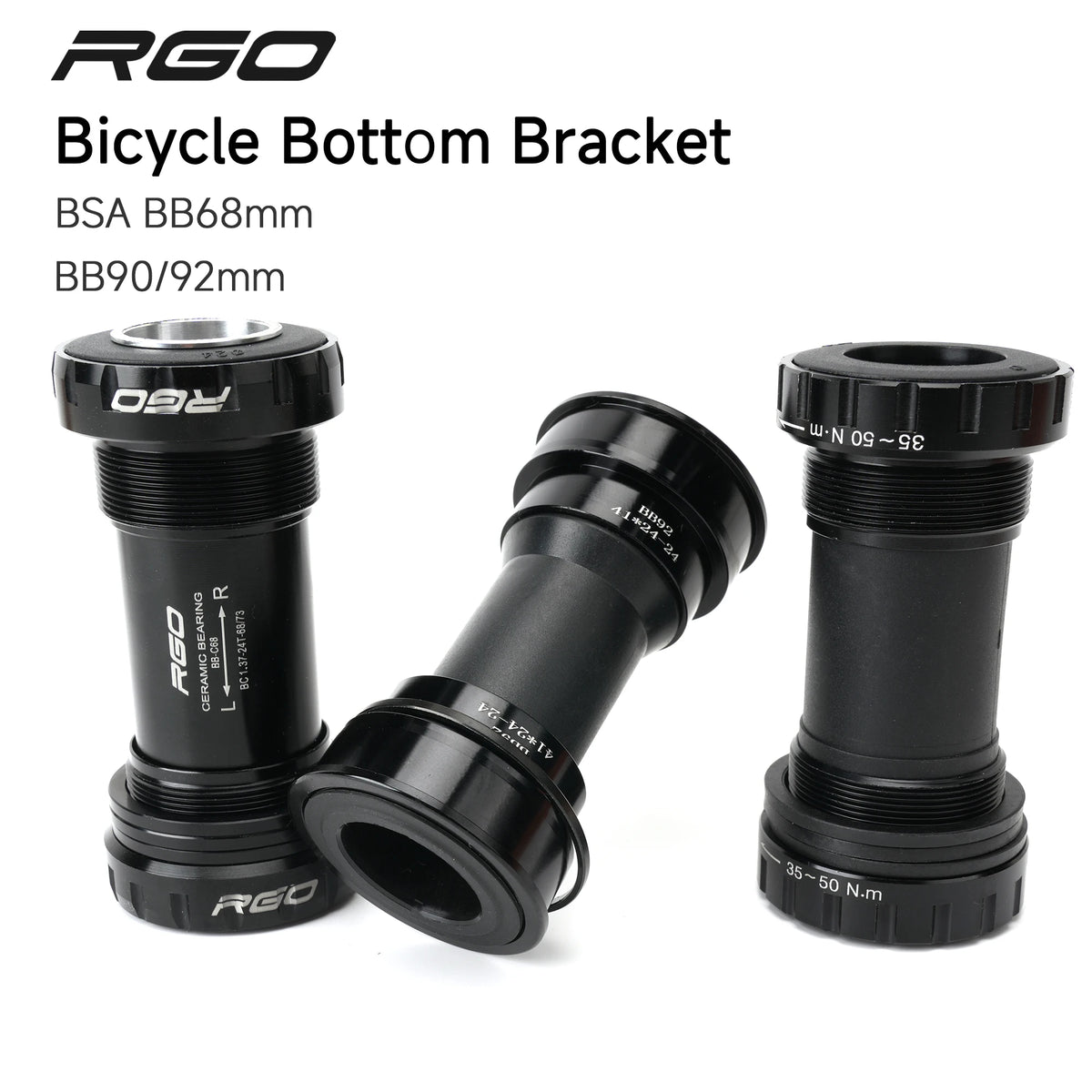

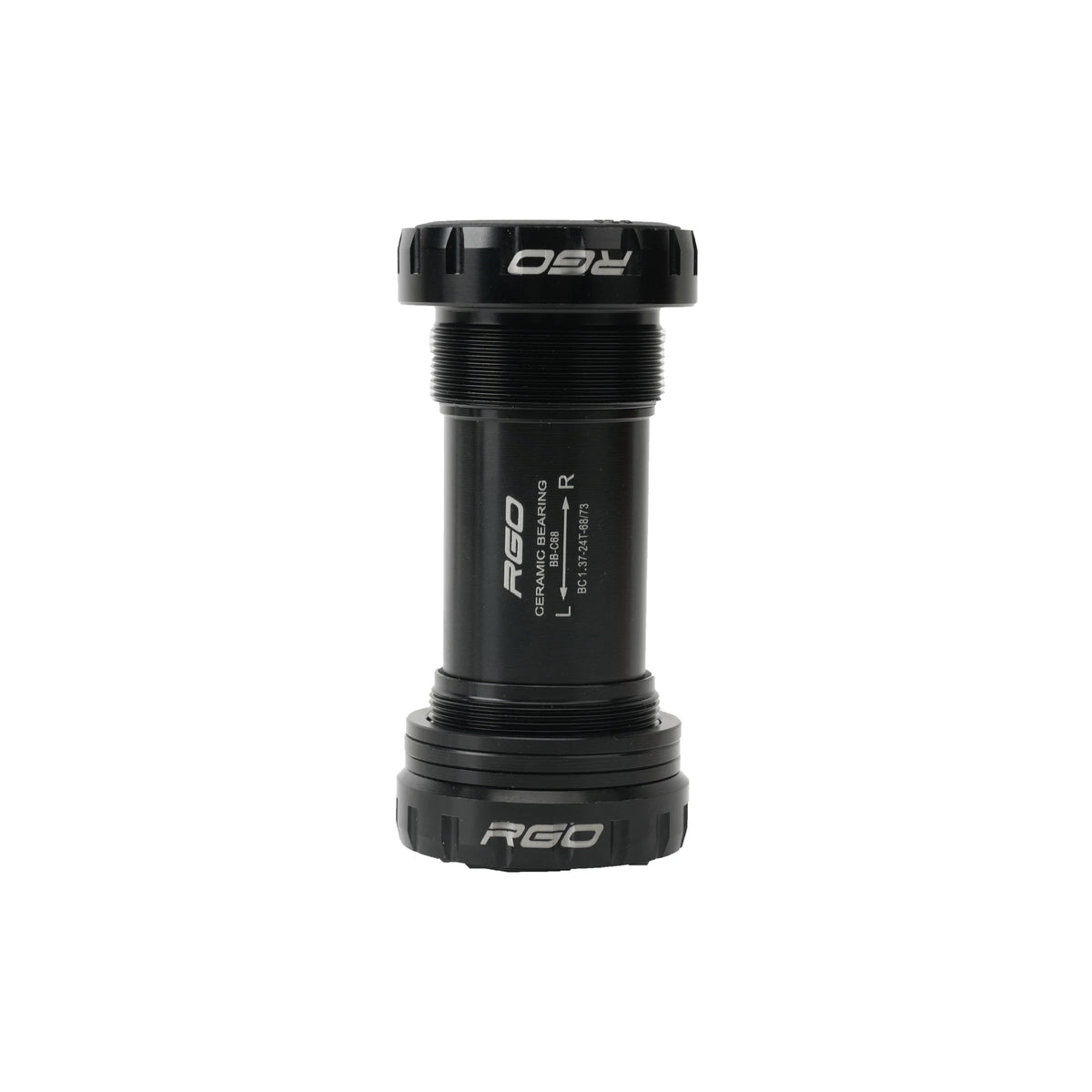

BSA 68 Bottom Bracket in Alloy, 24 mm Spindle, Threaded Cups

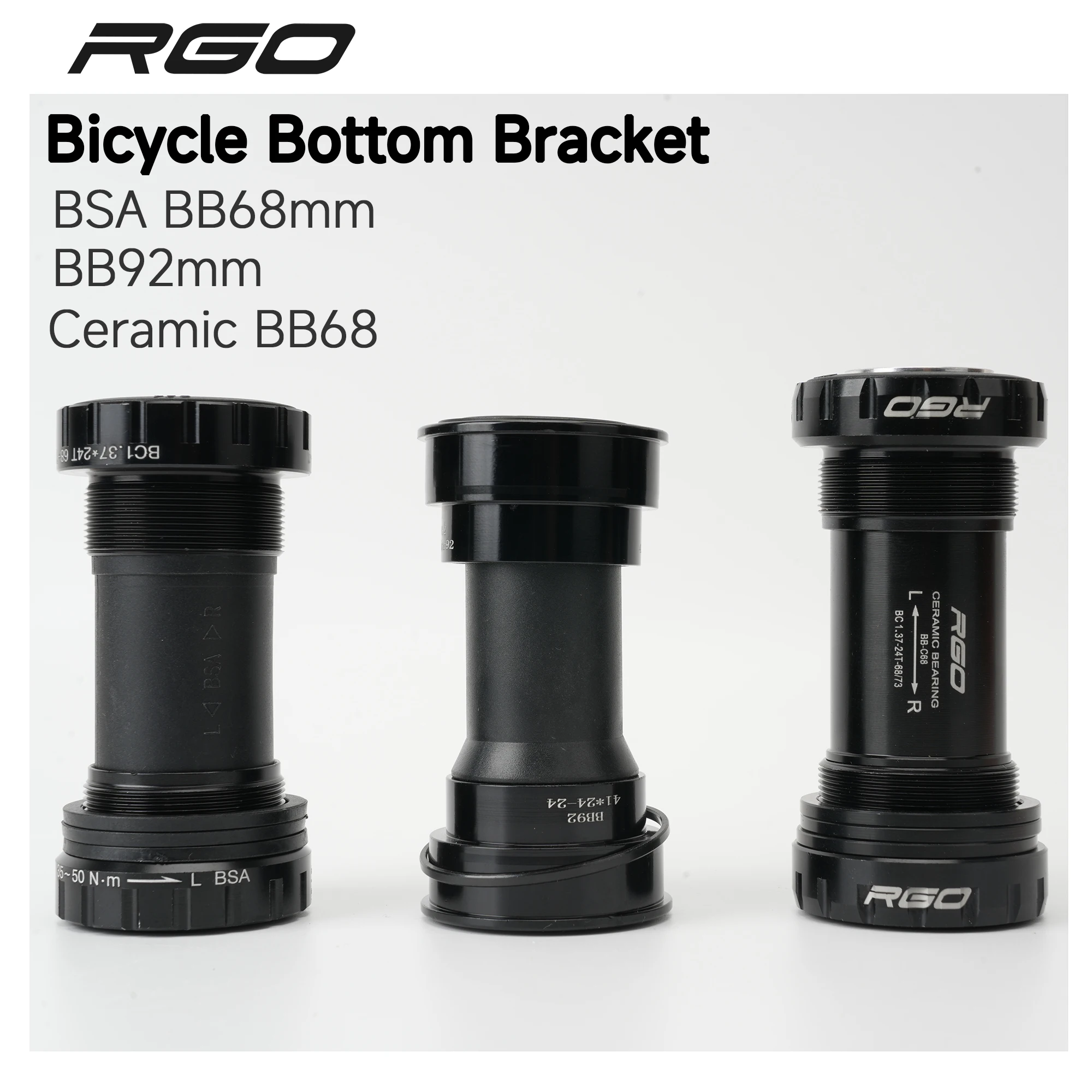

A worn bottom bracket announces itself as a click under load, once per pedal stroke. Aluminium alloy cups threaded for a 68 mm or 73 mm BSA frame replace it, with a ceramic version for GXP SRAM cranks and a press-fit BB92 for 41 mm shells. About 97 g.

A Bottom Bracket That Matches the Frame

✅ Silences a creaking crank When the bearing wears, the crank clicks and creaks under load, and a new unit replaces it.

✅ Threaded fit for BSA frames The BB68 version screws into 68 mm and 73 mm threaded shells, so no press is needed.

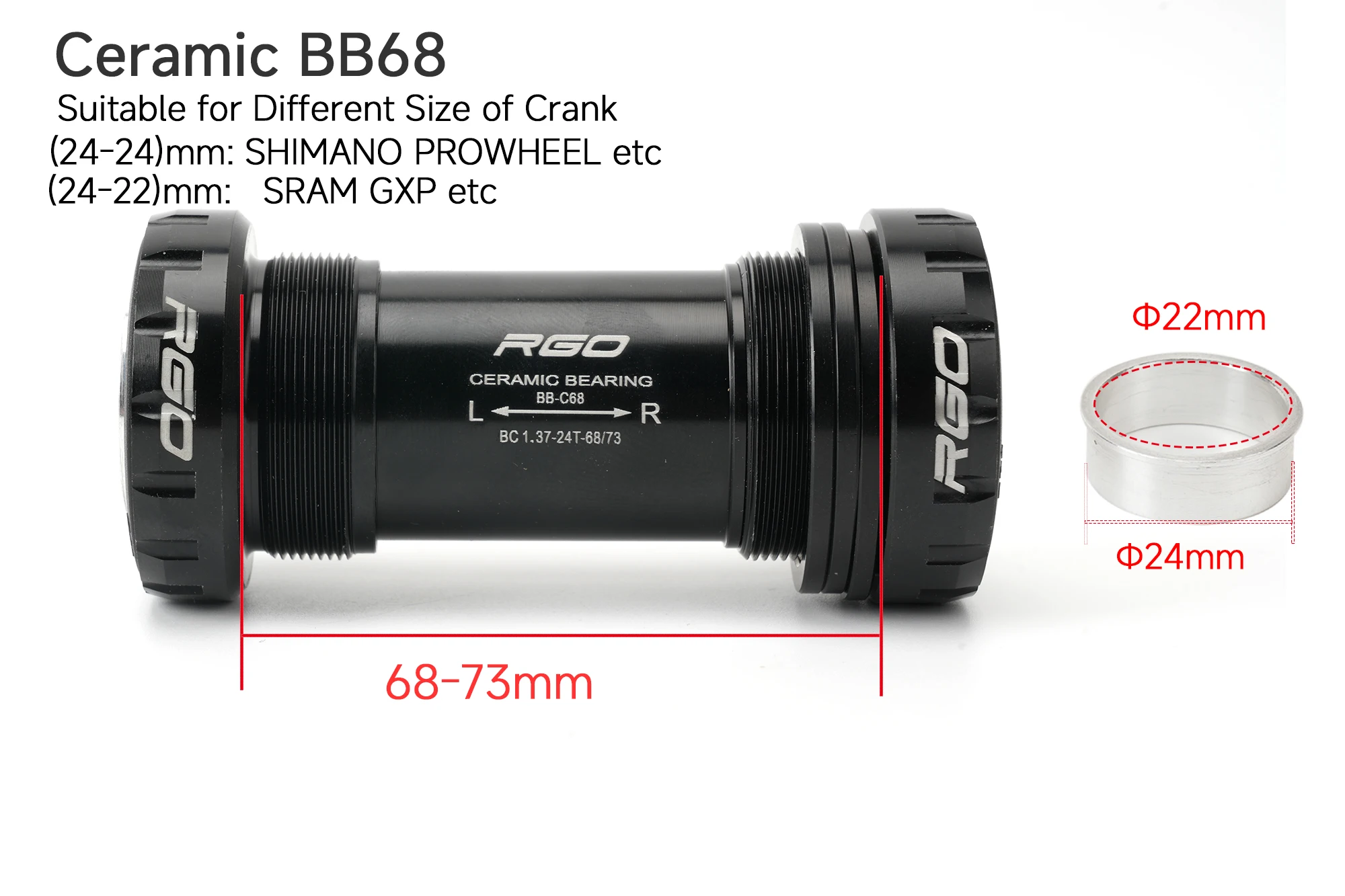

✅ Ceramic option for GXP cranks The Ceramic BB68 suits GXP SRAM cranks with 24-24 mm or 24-22 mm spindle steps.

✅ Fitted with a bracket tool Cups come out and go back in with a standard bottom bracket tool.

Start with the frame rather than the cranks. A threaded shell takes the BB68 version; a press-fit shell with a 41 mm bore and an 86, 90 or 92 mm width takes BB92. The Ceramic BB68 is the one for GXP SRAM cranks, where the spindle steps from 24 mm to 22 mm.

Both aluminium versions use a 44 mm outer cup diameter and a 24 mm bore, and the quoted weights sit close together: about 97 g for BB68, 100 g for BB92 and 100 g for the ceramic BB68. Those figures are nominal, so expect a gram or two either way.

Fitting is a bench job with a bottom bracket tool rather than a press for the threaded version. Have the old cups out, clean the shell threads and follow your crank maker's chainline and spacer instructions before the new cups go in.

Technical details

• Material: Aluminium alloy
• BB68 fitment: Threaded 68 mm and 73 mm shells

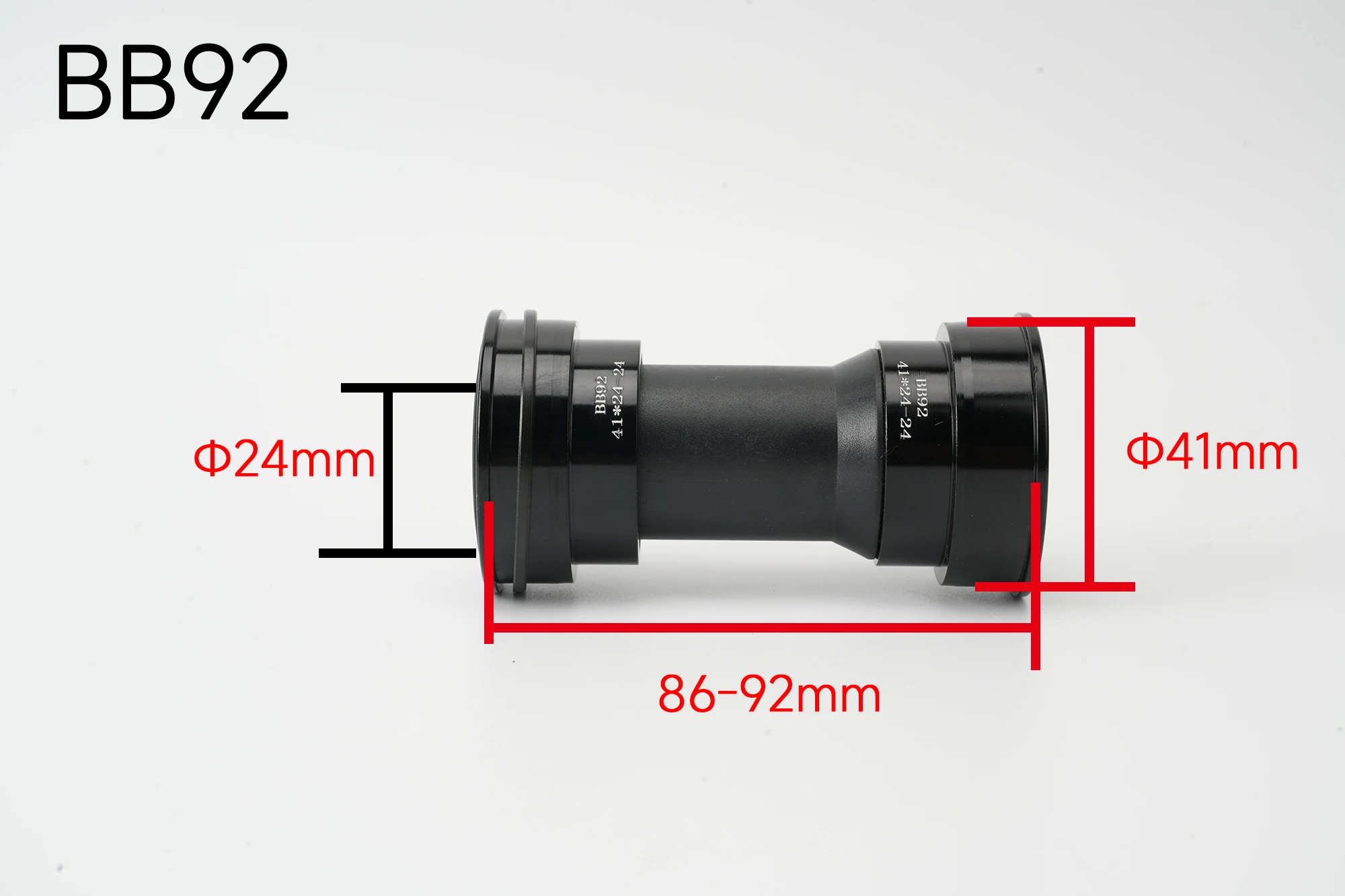

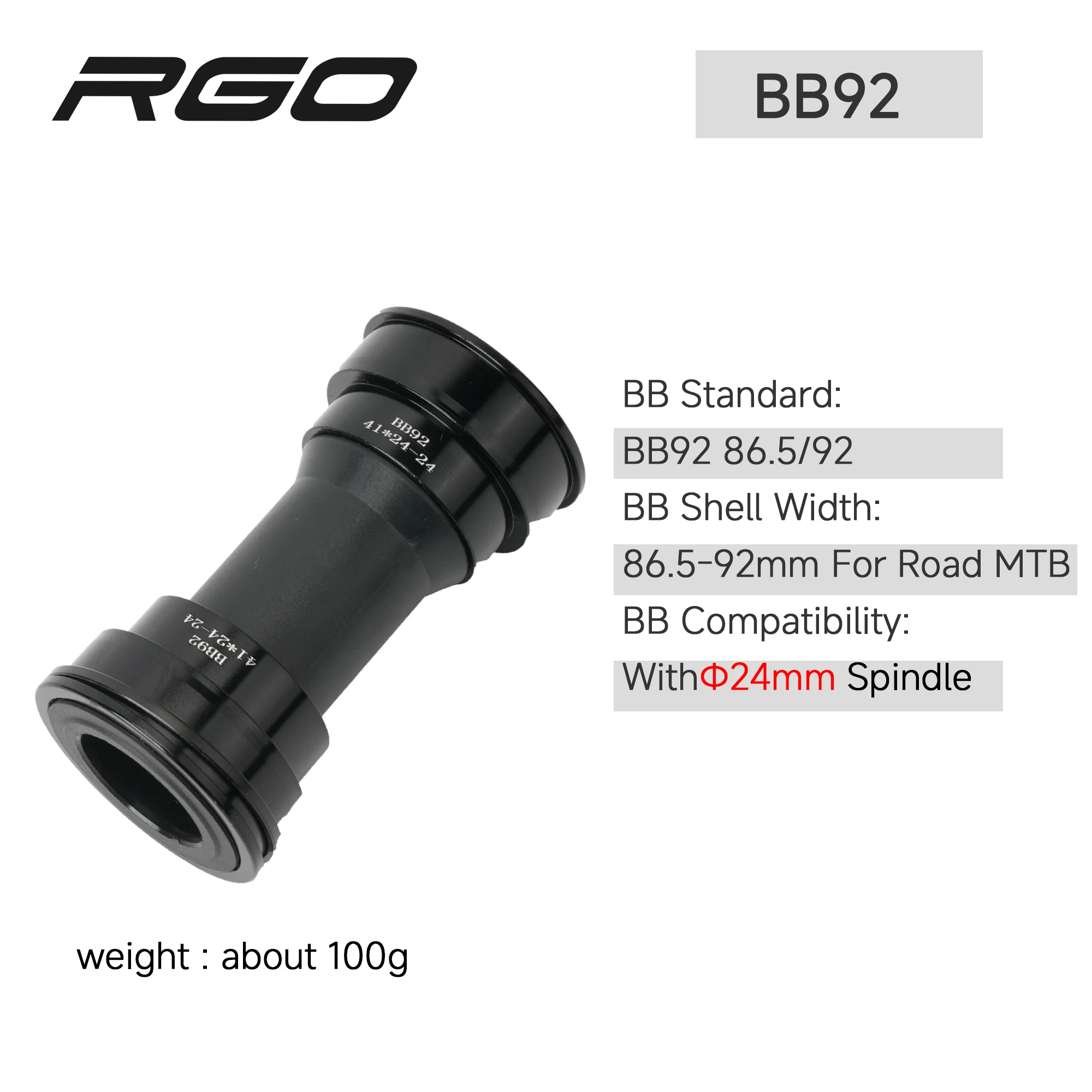

• BB92 fitment: Press-fit 86, 90 and 92 mm shells with 41 mm bore

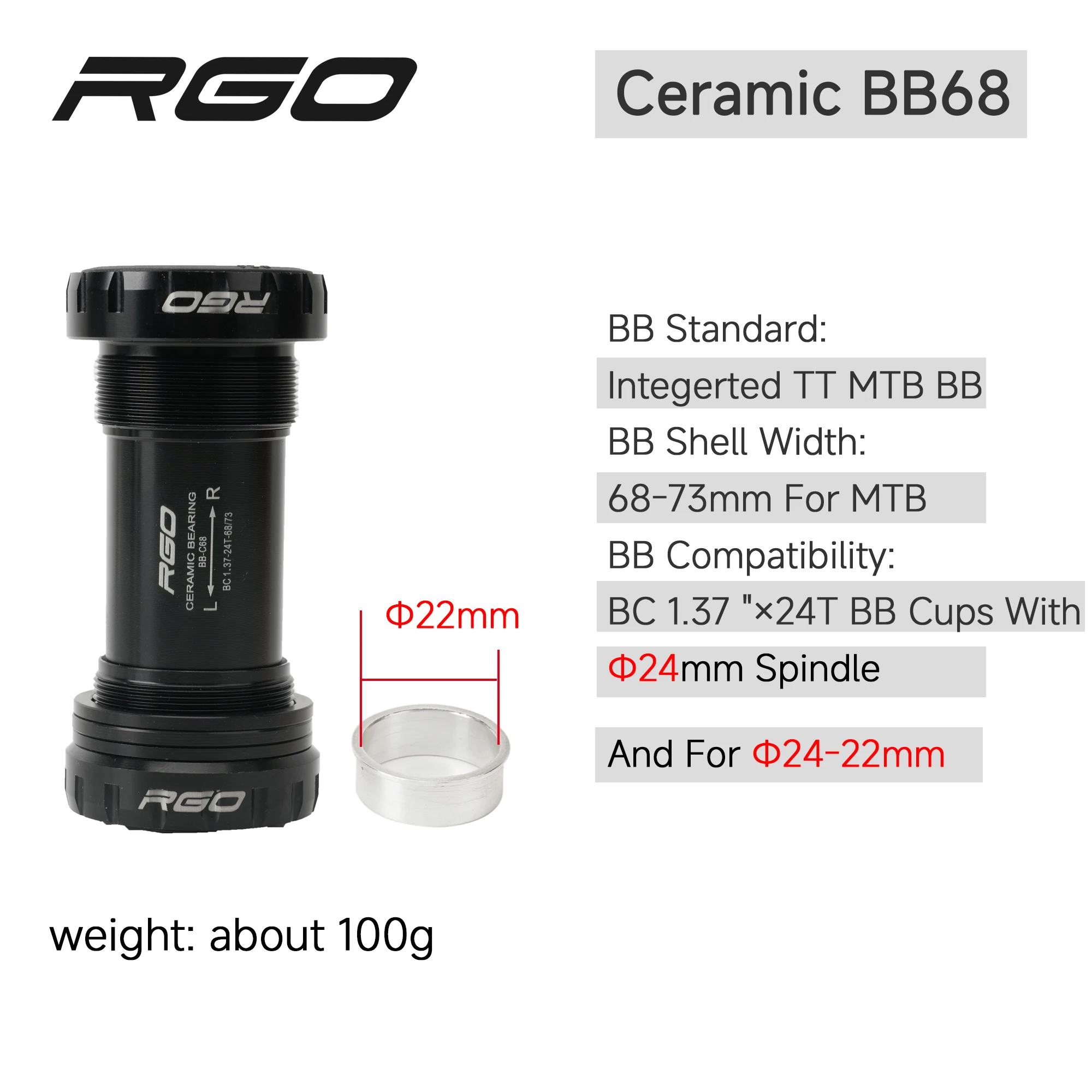

• Ceramic BB68 fitment: GXP SRAM cranks, 24-24 mm and 24-22 mm spindle steps

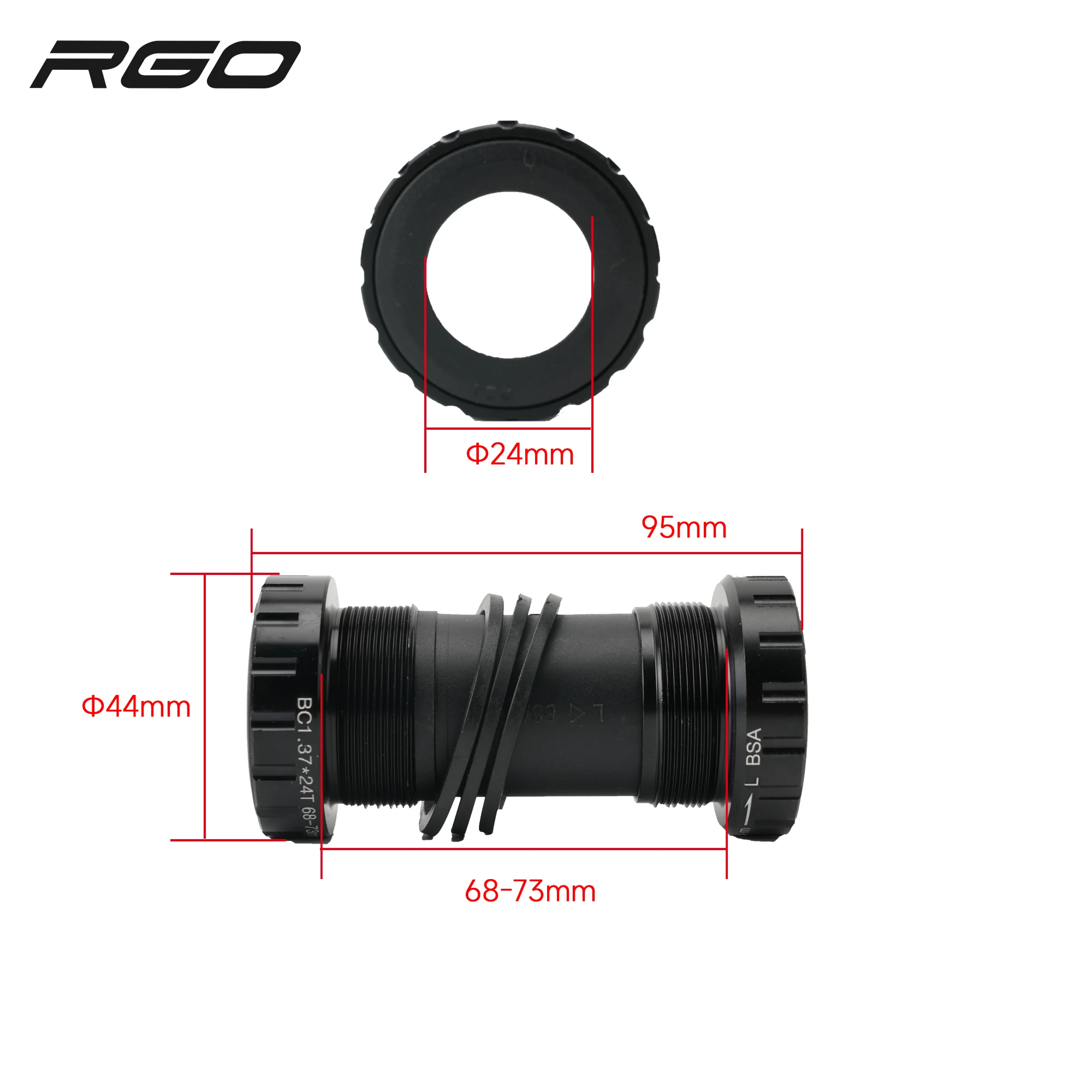

• Outer diameter: 44 mm
• Inner diameter: 24 mm

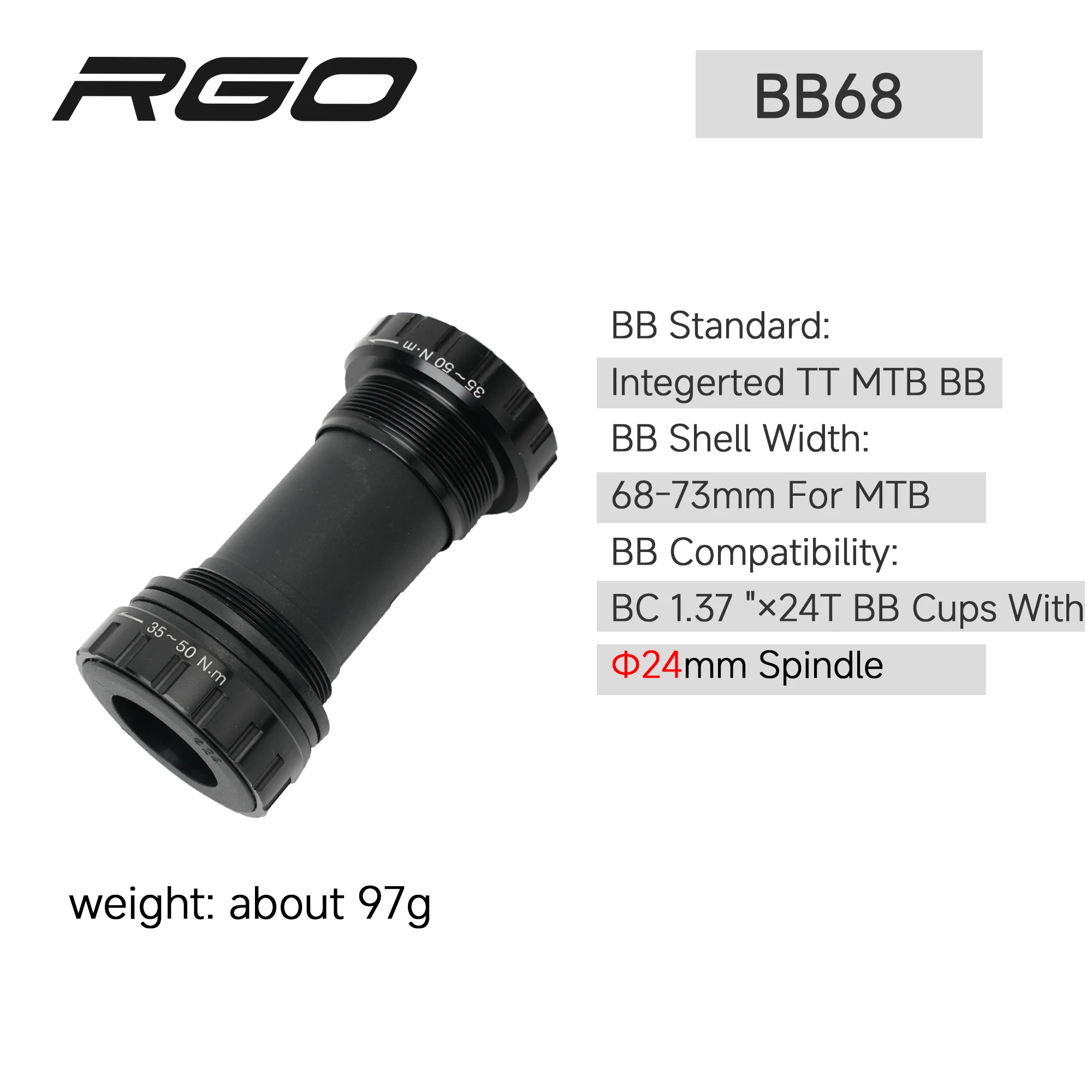

• Weight: BB68 about 97 g; BB92 about 100 g; Ceramic BB68 about 100 g

Measure your shell first, then pick threaded 68 or press-fit 92 for a quiet crank.
