5840-31ZY DC Worm-Geared Motor, 12/24V Options

Choose a geared DC motor around the supply and movement your mechanism requires. The 5840-31ZY range includes different voltage and output-speed configurations.

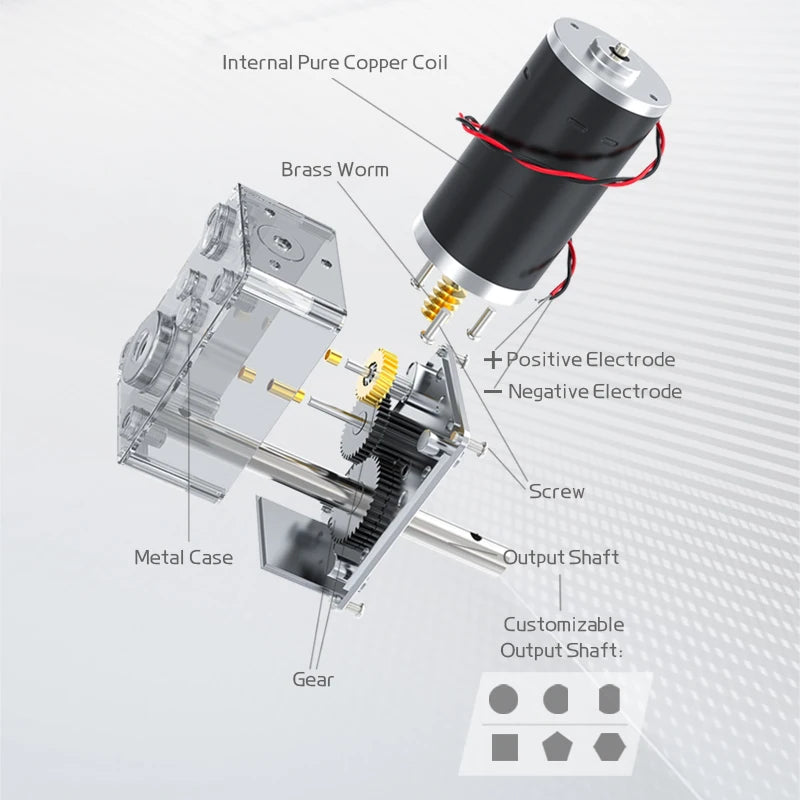

• ✅ Reduce speed through gearing - the worm gearbox provides a geared output.
• ✅ Choose the electrical version - 12V and 24V options are separate.
• ✅ Match the nominal speed - several RPM-labelled variants are available.
• ✅ Select mounting hardware when needed - motor-only and bracket packages differ.

Select the Motor Around the Whole Mechanism

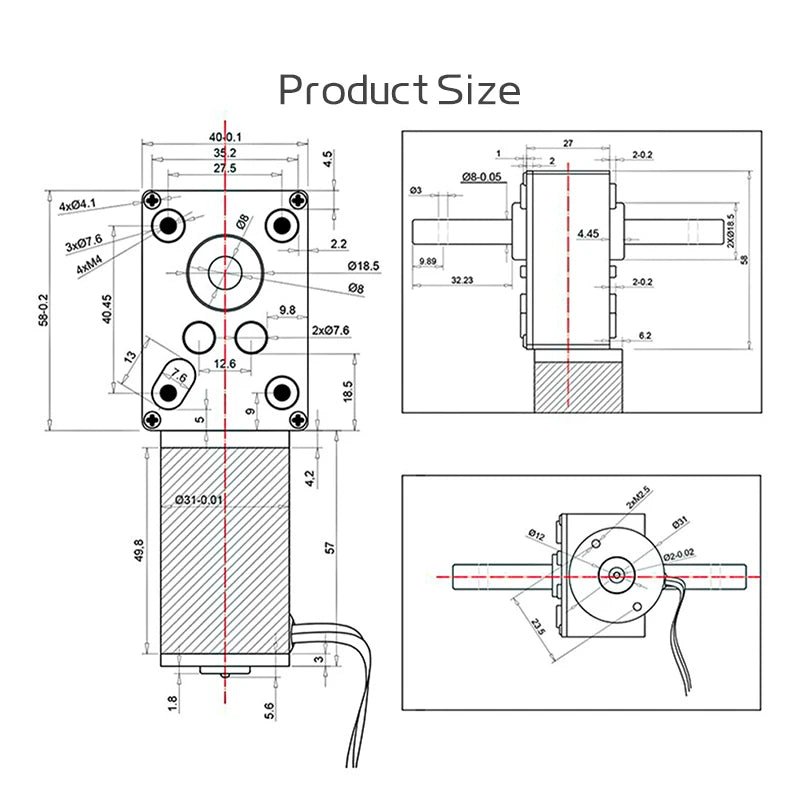

Check shaft dimensions, mounting holes, rated load and startup current before purchase. A slow-speed label does not establish the torque or continuous-duty performance required by your project.

Use a suitable motor controller, power supply and protective arrangement for moving parts. Confirm the selected output-shaft configuration from the image. Do not assume the gearbox is self-locking or suitable for lifting a person or safety-critical load.

Technical details

• Model: 5840-31ZY.
• Motor: brushed permanent-magnet DC type.
• Supply options: 12V or 24V.

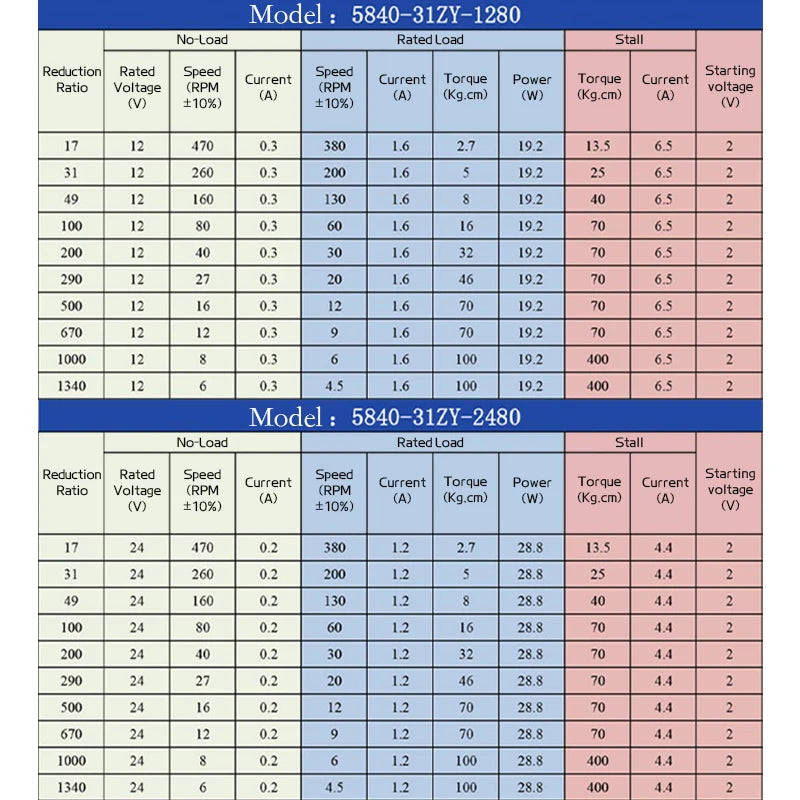

• Nominal speeds listed: 7–470 RPM by variant.

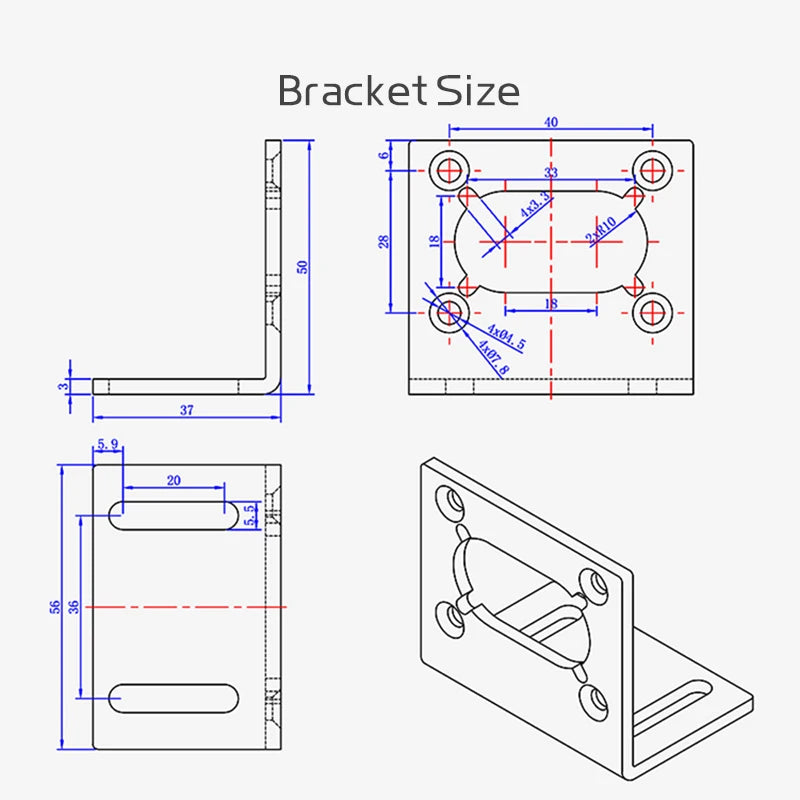

• Packages: single motor or bracket motor.

Match voltage, speed and mounting before building the drive.
