Single-Phase DIN-Rail kWh Meter, 220 V, 5(60) A
Read accumulated electricity use at a suitable distribution enclosure. This single-phase kWh meter has an LCD, reset control and a 35 mm DIN-rail mounting arrangement. It is for qualified installers adding local energy measurement to a compatible 220 V AC circuit.
- ✅ Compare energy use between readings — The LCD presents an accumulated kWh total.
- ✅ Start a new measurement interval — The front reset control provides a zeroing function.
- ✅ Keep readings after a power interruption — Stored accumulated energy is stated to remain when power is off.
- ✅ Fit into an existing distribution layout — The rear mounting arrangement accepts a suitable DIN rail.
A local energy total within the enclosure
A front kWh display makes it possible to record the connected circuit's consumption at different times. Compare the difference between readings over an equivalent period to understand changes in use. It is a local meter without confirmed wireless reporting or app control.
The stated rating is single-phase 220 V AC, 50 Hz, with a 5(60) A current marking. Select wiring, circuit protection and enclosure according to the actual installation and supplied instructions. The meter is not a circuit breaker and no billing approval is confirmed.
One meter is offered. DIN rail, enclosure, protective equipment and wiring shown or needed for installation are excluded unless separately supplied. Fit and connect only with the supply isolated by a qualified installer. Follow the terminal markings and actual model instructions rather than treating illustrative diagrams as universal wiring directions.
A local LCD displays accumulated energy in kWh.
The stated memory function retains accumulated energy after power loss.
An appropriate distribution enclosure is required.
The confirmed energy reading is the accumulated kWh value.
The rear arrangement fits a suitable 35 mm DIN rail.
The housing does not replace an appropriate installation enclosure.
A front reset control provides the stated zeroing function.

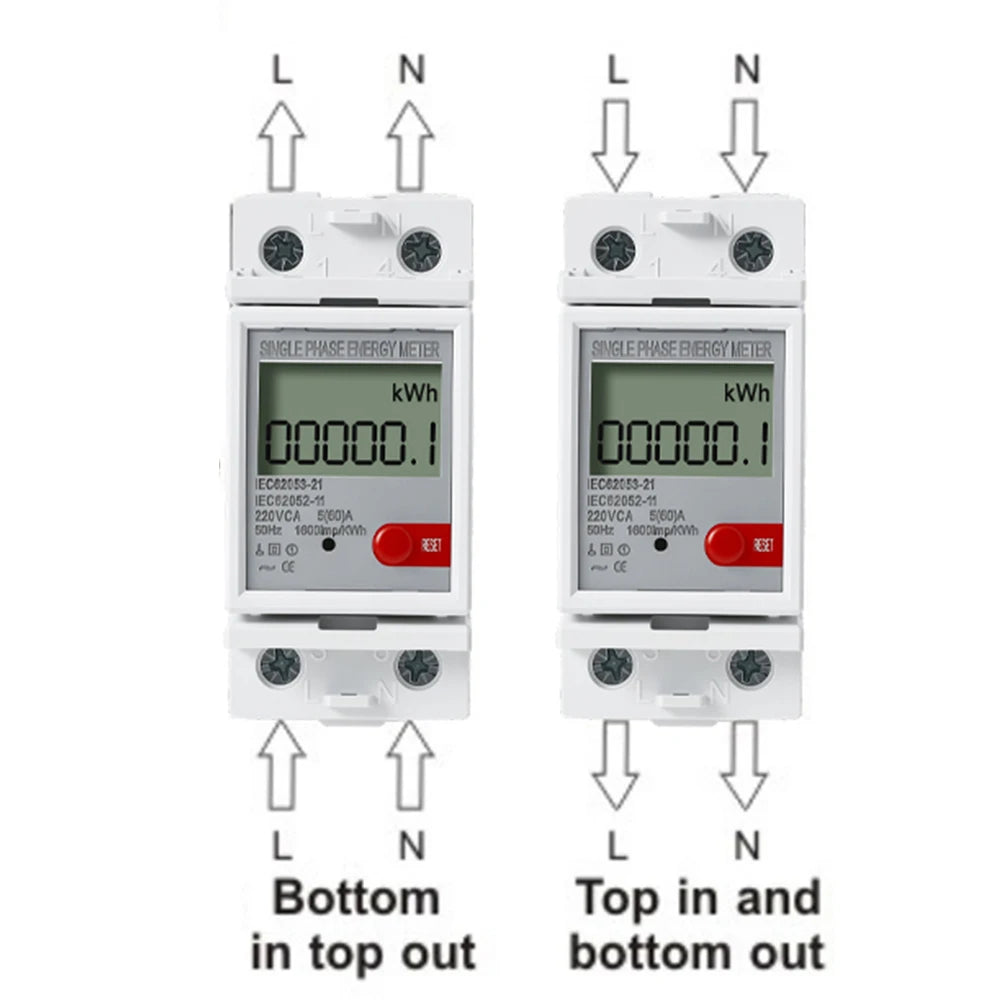

Use the actual terminal labels and supplied instructions.
No separate battery or auxiliary supply is stated.
Select the current rating for the actual installation.
Qualified installation and the correct terminal arrangement are required.

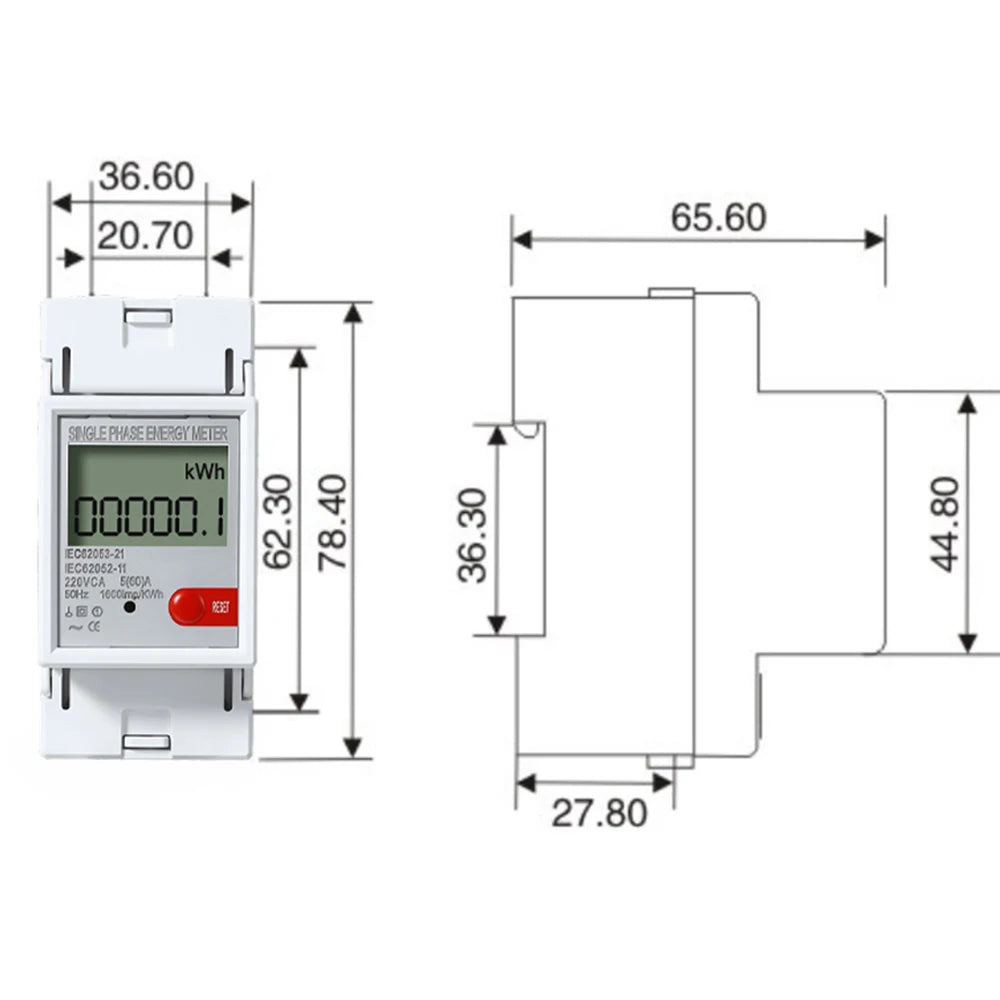

Check clearance and mounting dimensions before fitting.
Application images do not confirm suitability for every illustrated system.
Technical details
- Type: single-phase direct-connected energy meter
- Display: LCD accumulated kWh
- Rated voltage stated: 220 V AC
- Frequency stated: 50 Hz
- Current marking stated: 5(60) A
- Mounting stated: suitable 35 mm DIN rail
- Reset: front zeroing control
- Memory: accumulated energy retention after power loss stated
- Connectivity: no wireless function stated
- Package: 1 meter; rail, enclosure, wiring and circuit protection excluded
Check the installation requirements and add a readable local energy total to your compatible circuit.
