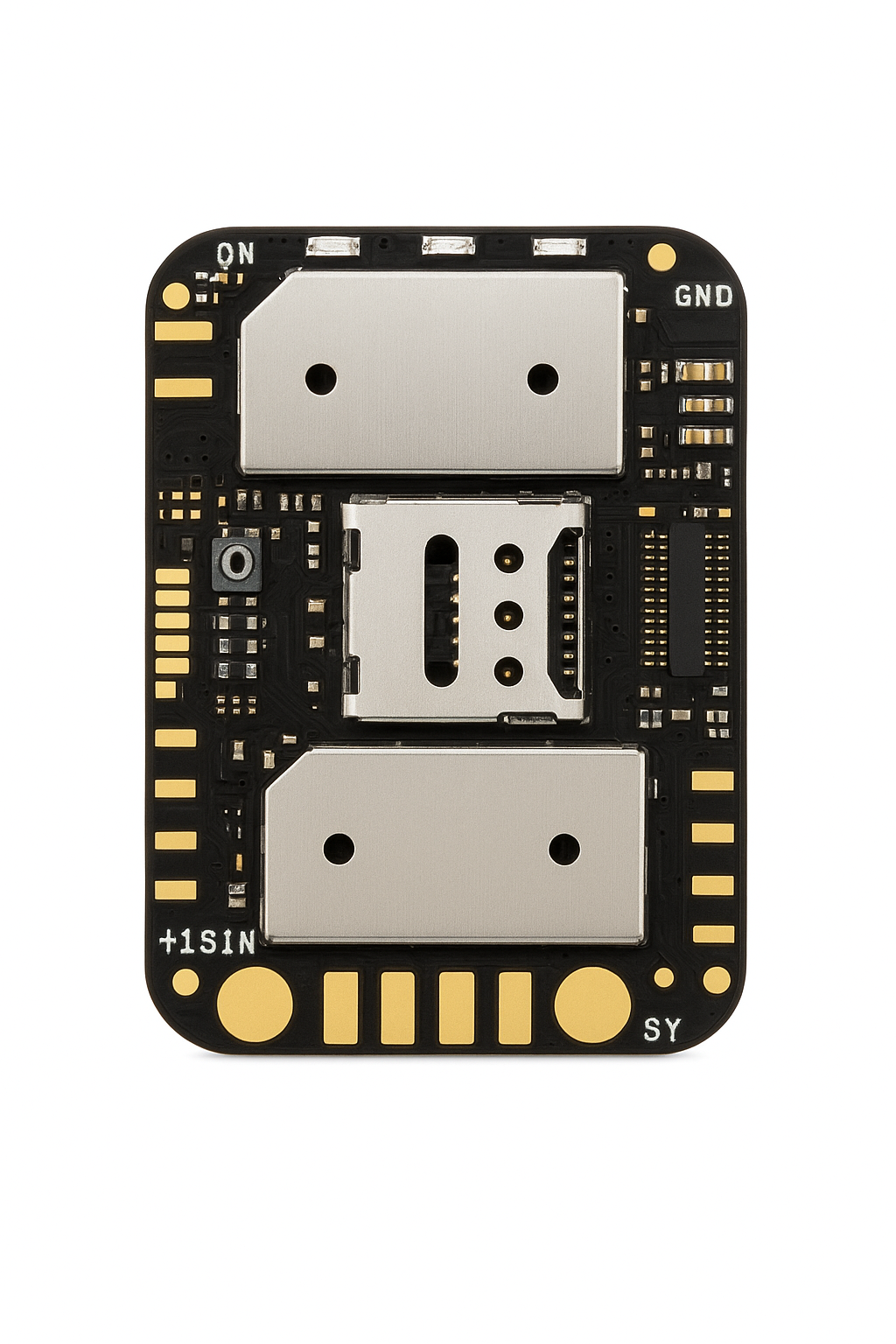

Mini ZX905 2G + 4G GPS Tracker Chip LTE CAT-1 Tracking PCBA Module Board Anti-Lost WIFI Beidou Satellite For Kids Pets Cat Dog

Couleur:

zx905

Variant

€64,95

€77,66

SPECIFICATIONS

Brand Name: WAPUNO

Certification: CE

Choice: yes

Display Type: No display

GPS type: GPS Tracker

Gps Module: Yes

High-concerned chemical: none

Human interface input: Others

Is it wireless: Yes

Item Size: 10.5CM*5.5M*2.8M

Model Name: ZX905 GPS CAR Tracker

Origin: Mainland China

Out Power: 12-24V

Screen Size: No screen

Shape: Rectangular

Special Features: Internet Connected

Voltage: 12 V

4G ZX905 Mini GPS Tracker CAT1 PCBA Chip Board for Vehicle Car Person Tracking System Wireless WIFI Beidou Satellite Locator

support both: 2G + 4G networks

Main specification:

Function	Realtime GPS/AGPS/Wifi/4G Cat 1/ LBS Positioning, SOS, Voice, Call Family Numbers, Geo Fence Alarm Reminder, historical track, Alarm Clock, Class Mode, Power Save
CPU	1
PCB Size	35253.8mm (thickness include PCBA and GPS antenna)
Working Temperature	-20℃ - +70℃
Network	4G: LTE-FDD:B1/B3/B5/B7/B8/B20 , LTE-TDD:B34/B38/B39/B40/B41 2G GSM Bands: B3 / B5 / B8
Wifi	WiFi 802.11b/g/n
GPS	Support external active GPS antenna support GPS+AGPS+Wifi+LBS+BeiDou
SIM slot	Support NANO sim card
GPS Positioning Accuracy	Within 10 meter outdoor
GPS Motion Accuracy	0.1 meter/second
GPS Positioning Time	Cold Boot-38s(Open field), Warm Boot-2s(Open field),The specific time is affected by the environment
WIFI Positioning Accuracy	Within 50 meters
GSM/4G Positioning Accuracy	50-200 meters(Depending on the network)
Battery	Support rechargeable 3.7V Li-polymer battery(optional different capacity batteries upon different struction design)
Charging port	Type C port
Charging Current:	DC 5V/0.5A-1A(depend on your battery capacity)
MIC	external High-Definition Silicon microphone
Sensor	Build-in 3D G-sensor

Attention:

1.Note: This is 2G + 4G GPS tracker --

4G Bands : LTE-FDD:B1/B3/B5//B7/B8/B20 , LTE-TDD:B34/B38/B39/B40/B41

2G Bands: B3 / B5 / B8

3. QR code scanning access

The client for the Android and iOS phones can be downloaded after the QR code has been scanned.

Please feel free to ask test ID experience our APP.

Please contact us to get test ID and password experience our APP, thanks.

Package includes:

1 X GPS Tracker PCBA with all antennas, mic ( without battery, need to weld 3.7V battery to power the PCBA by self )

1 X Use manual

1 xZX905 GPS Tracker
