52 mm Tachometer Gauge with 7-Colour Backlight for Car and Boat

A diesel generator with no rev counter leaves you guessing at idle and load. This 52 mm tachometer reads revs from an RPM signal, lights the face in one of seven colours, and runs from a 12 V or 24 V supply. It suits cars, trucks, boats and generator sets without a factory gauge.

Add a Rev Counter to Car, Boat or Generator

✅ Rev counter where there is none For cars, trucks, boats and generator engines that came without a rev gauge.

✅ Set the ratio to match Adjust the speed ratio for your engine's signal and the gauge keeps the setting.

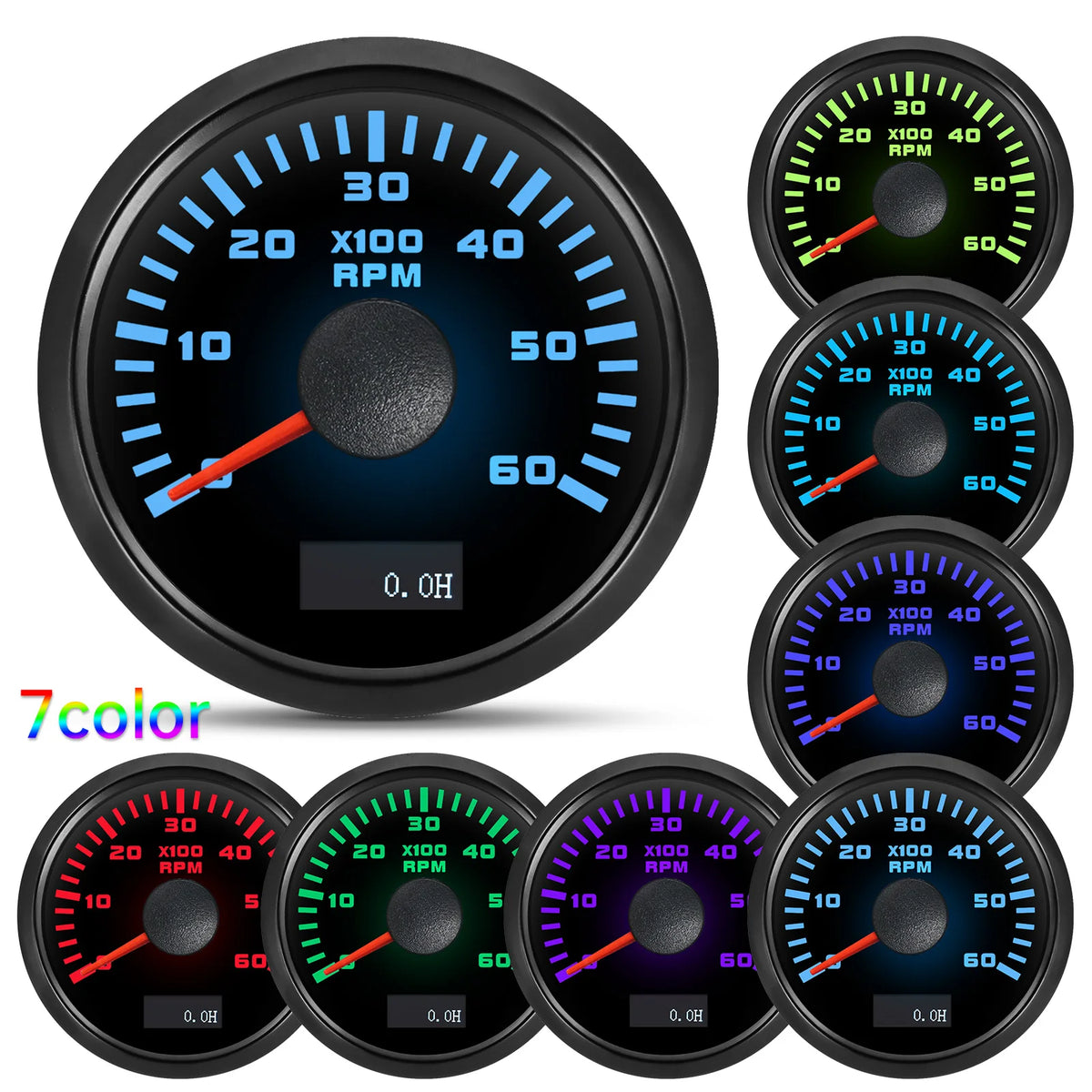

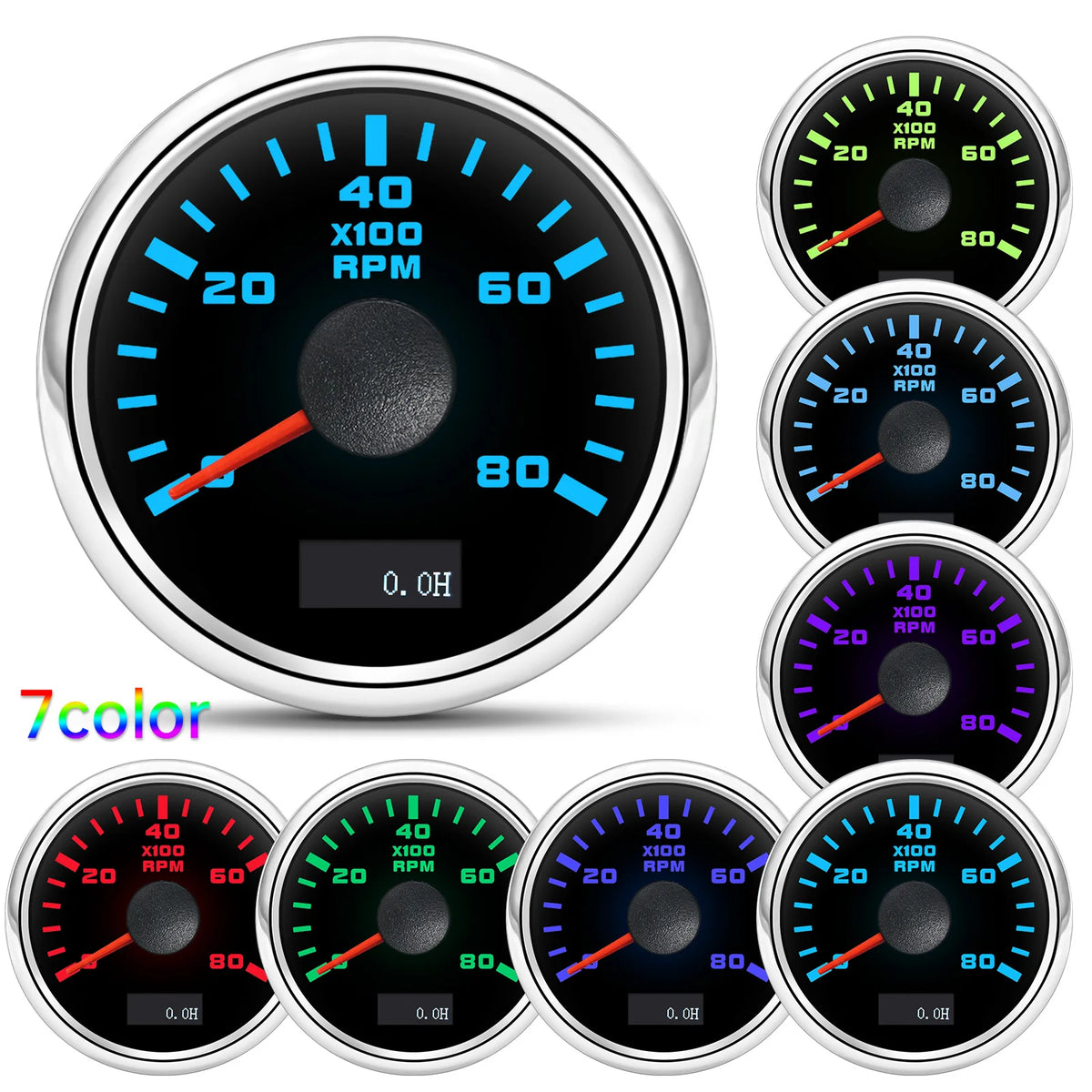

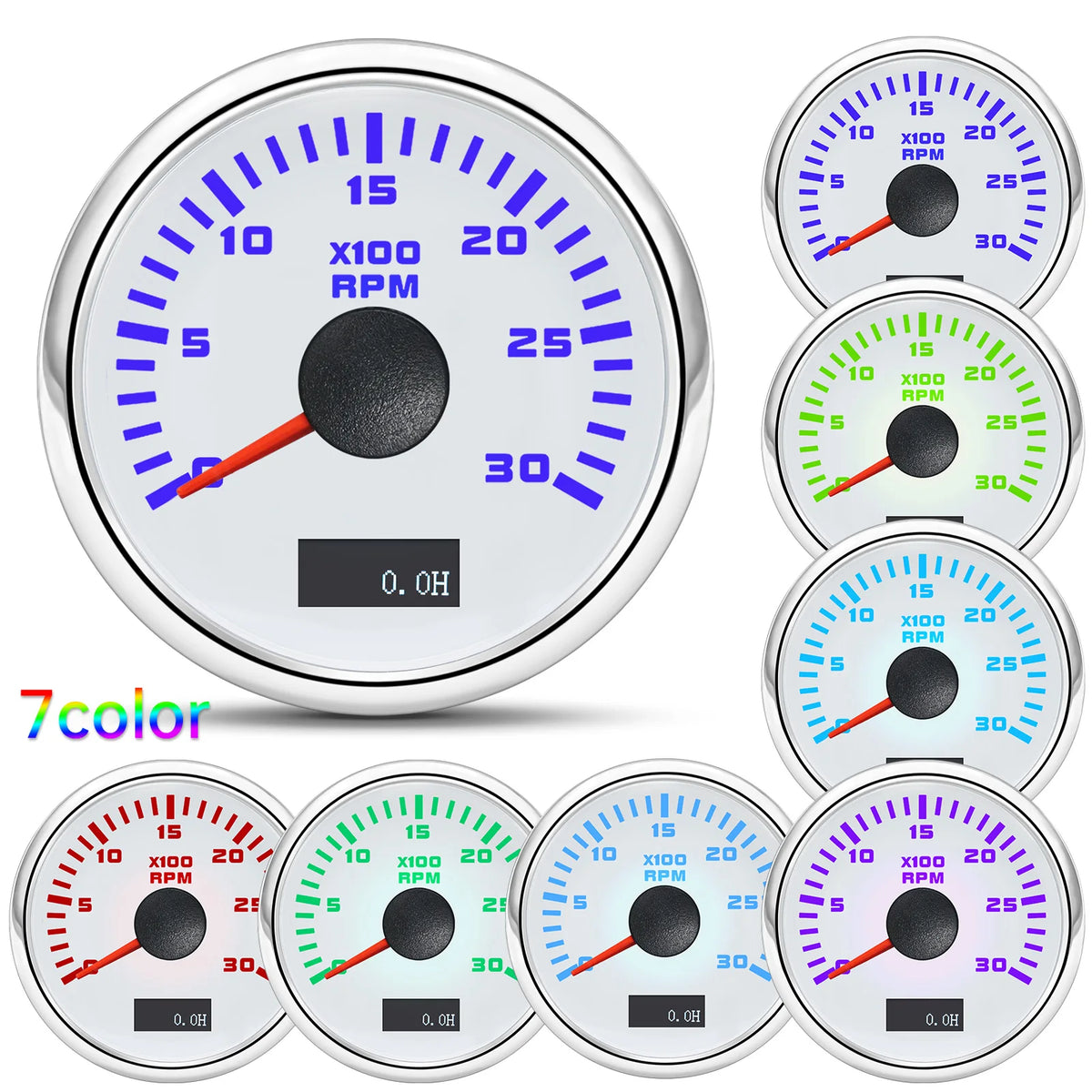

✅ Seven backlight colours Tap the white wire to step through the colours until the face matches your other instruments.

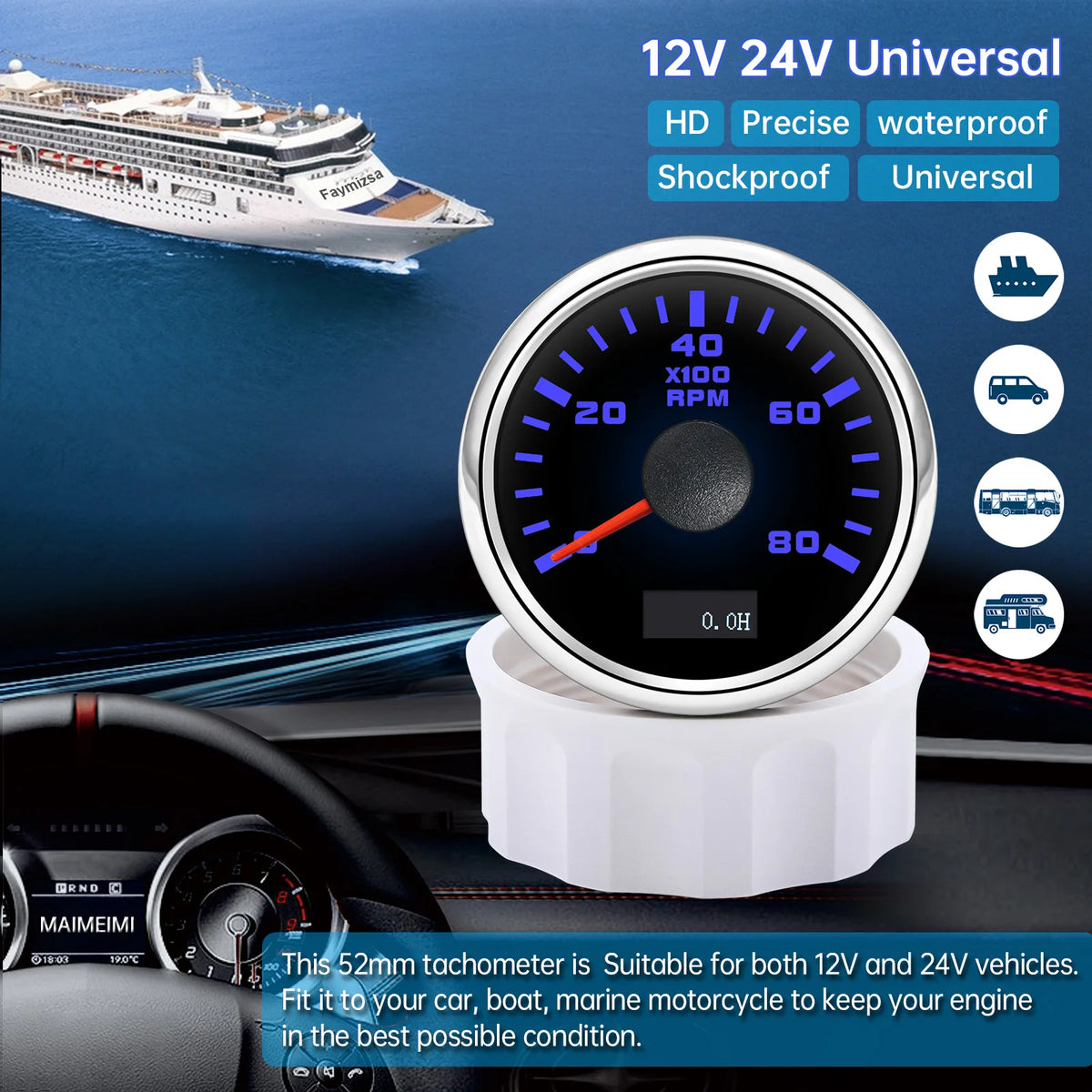

✅ Runs on either vehicle supply One gauge takes a 12 V or 24 V feed, covering car and truck wiring alike.

✅ Rated for wet engine bays The housing carries an IP67 rating, which covers dust and temporary immersion.

The wiring is five cores: black to ground, red to a 9-32 V DC supply, blue for the RPM signal, yellow for the backlight and white for adjustment. An installation manual comes with the gauge, so the wire colours do not have to be remembered from a forum post.

Most installs need one adjustment. Hold the white wire to ground for about three seconds to enter the speed-ratio setting, then pulse it until the reading matches the engine and release. Leave the wire alone for three seconds and the gauge stores the figure itself, so the setting survives the next start.

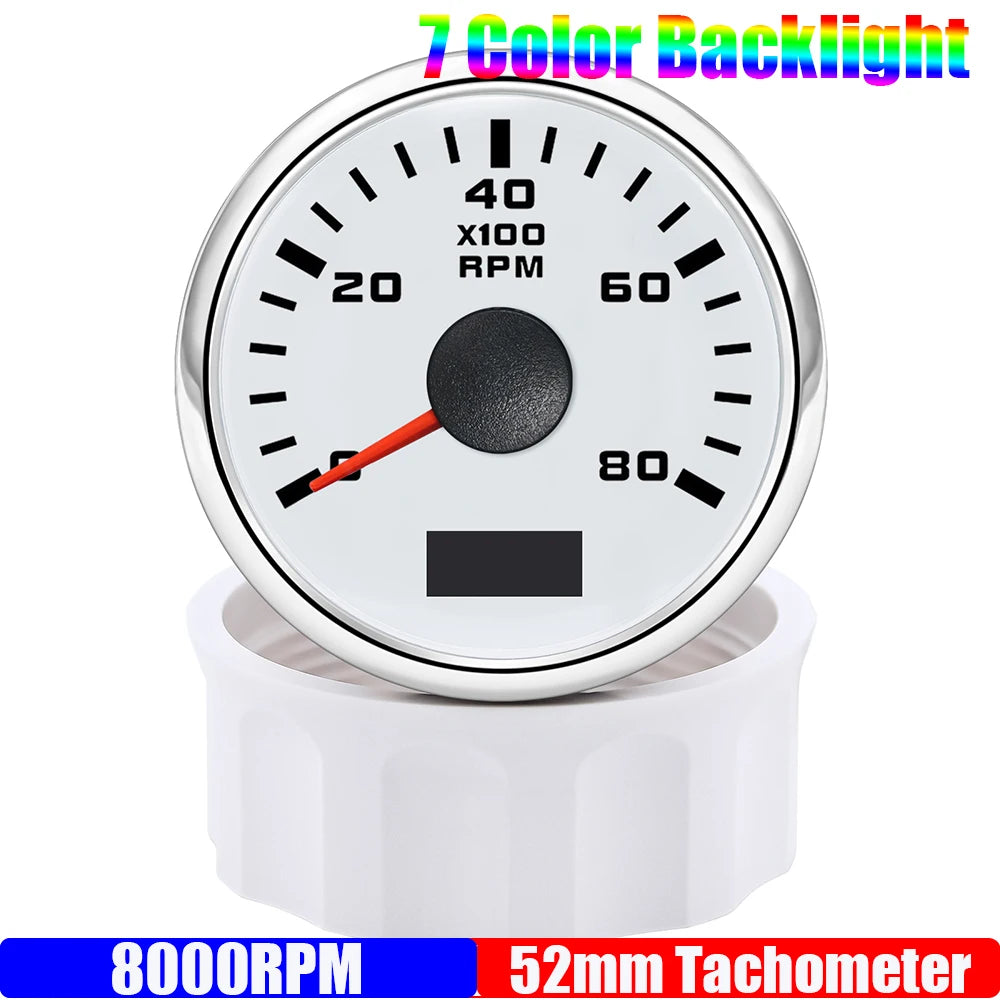

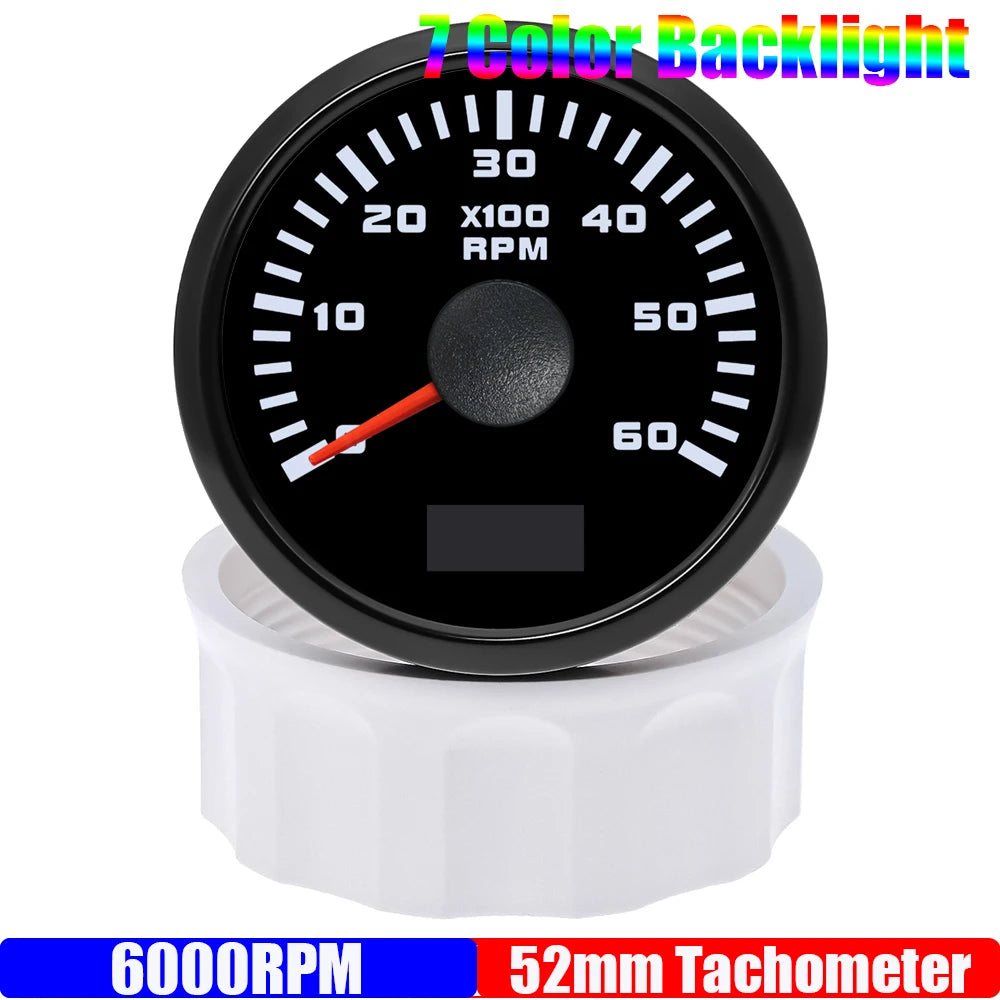

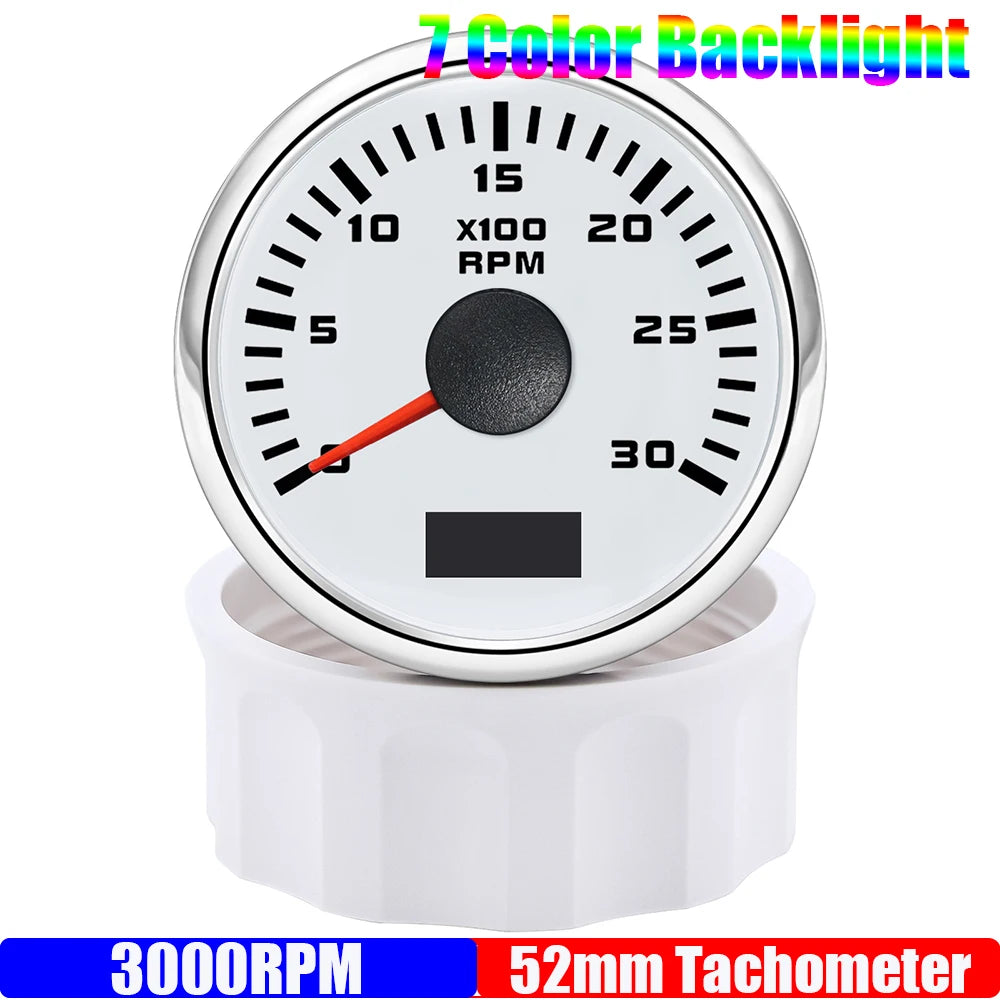

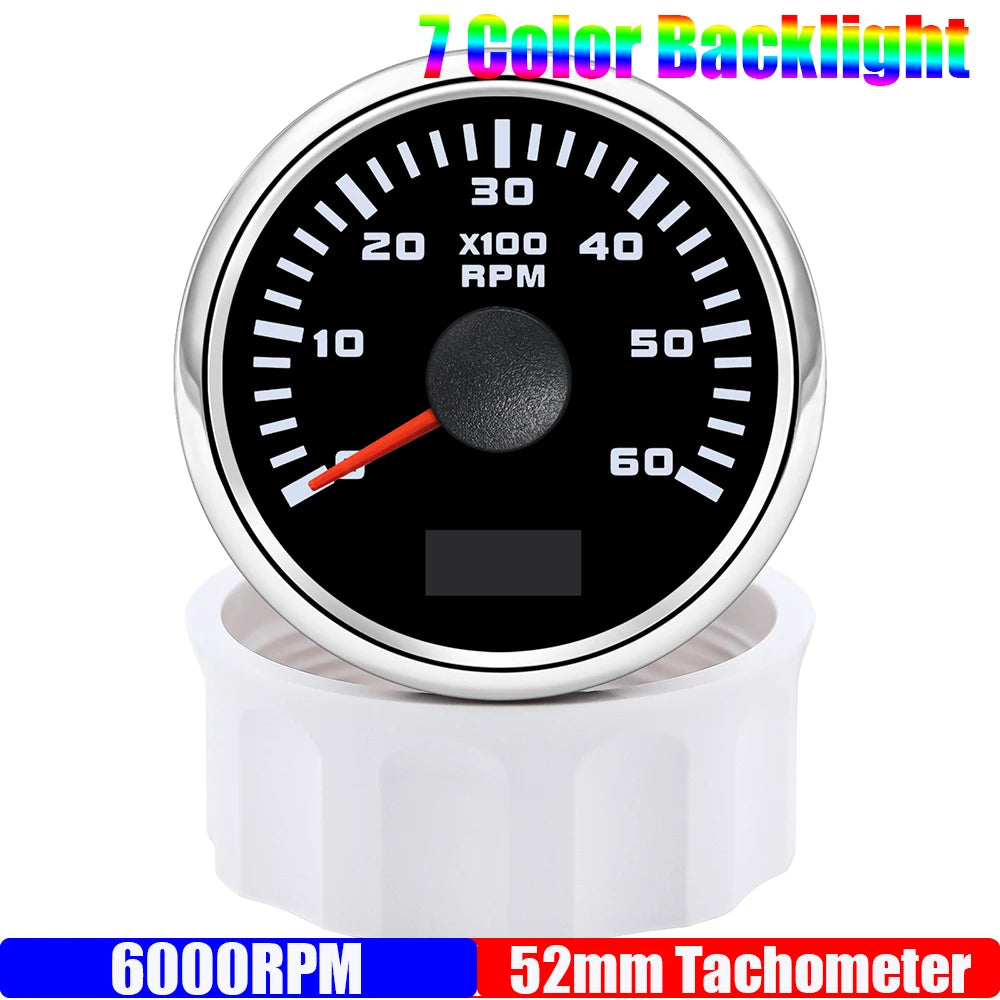

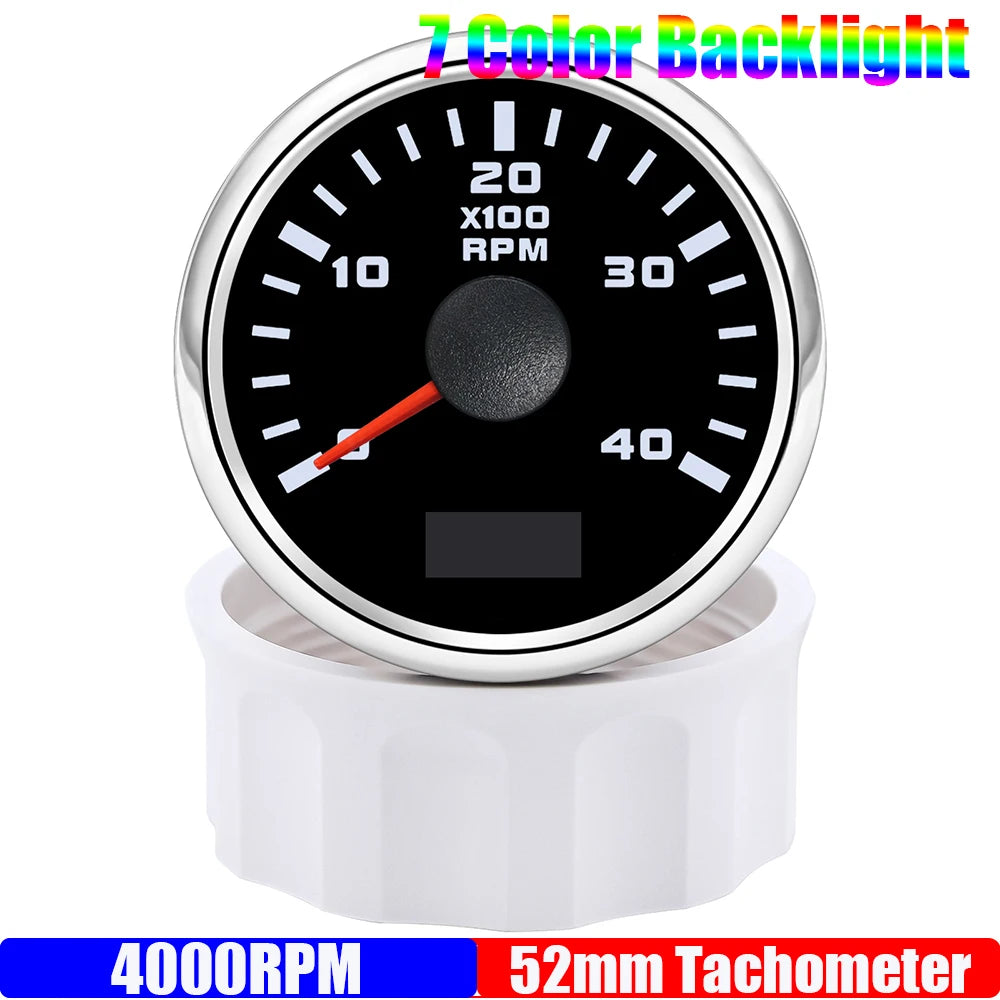

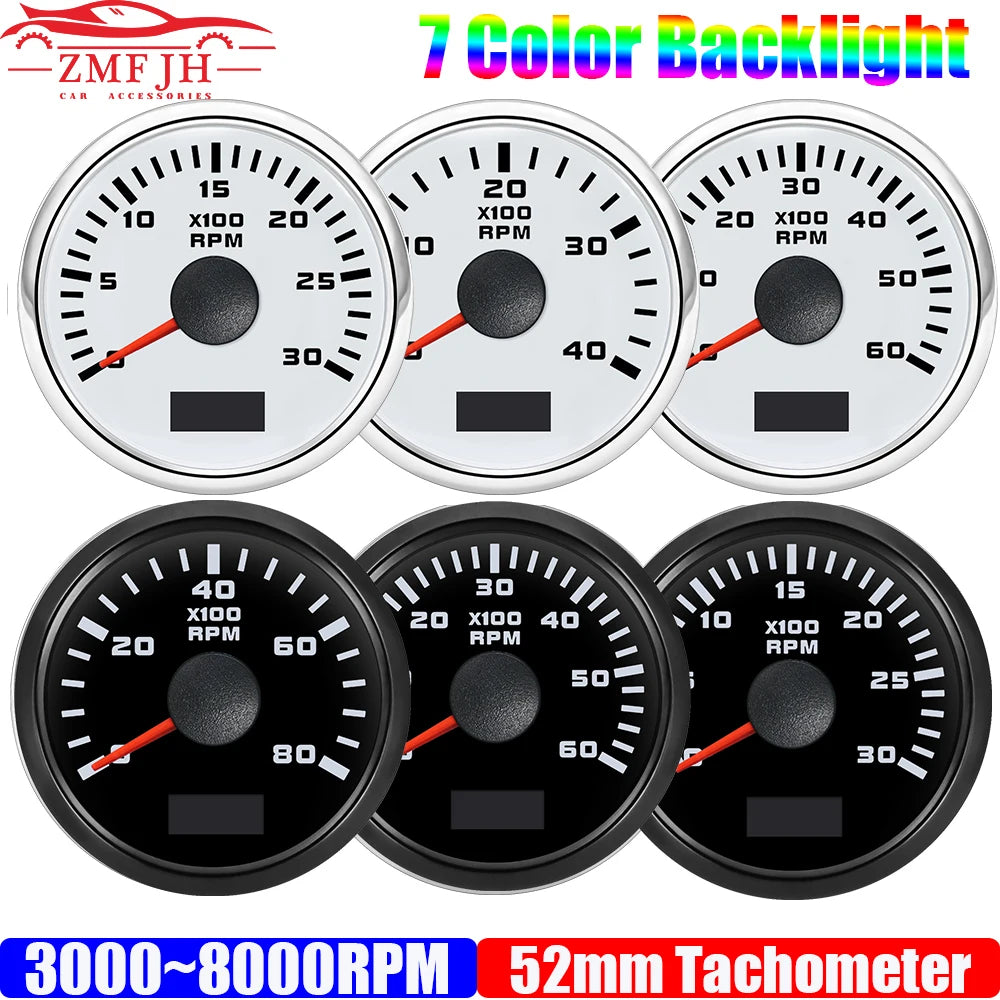

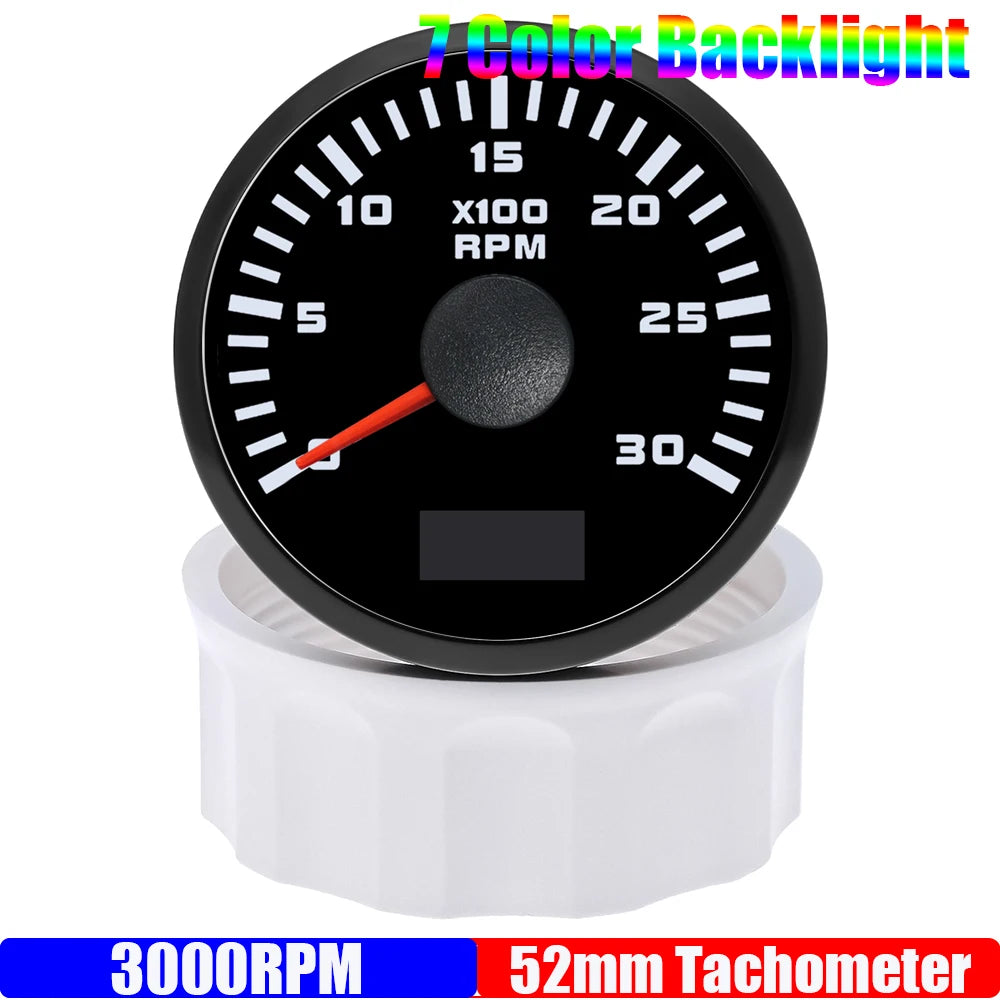

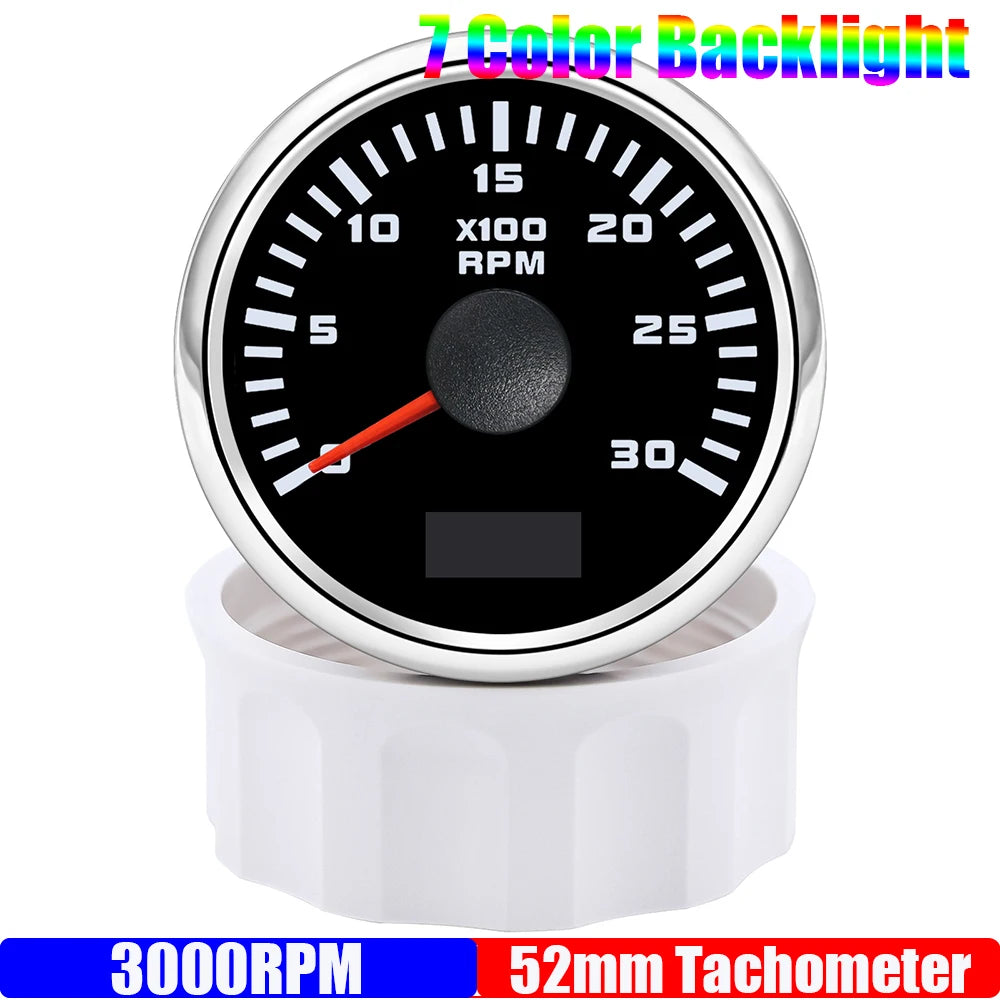

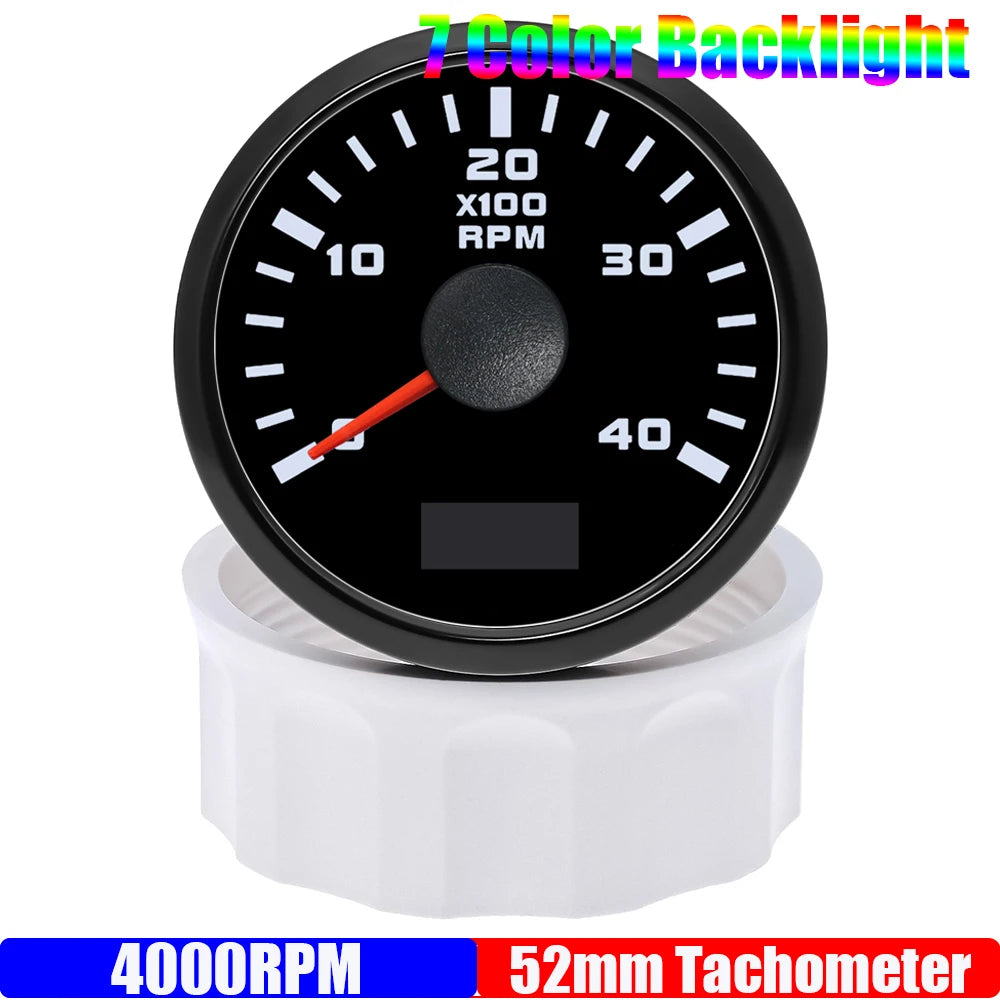

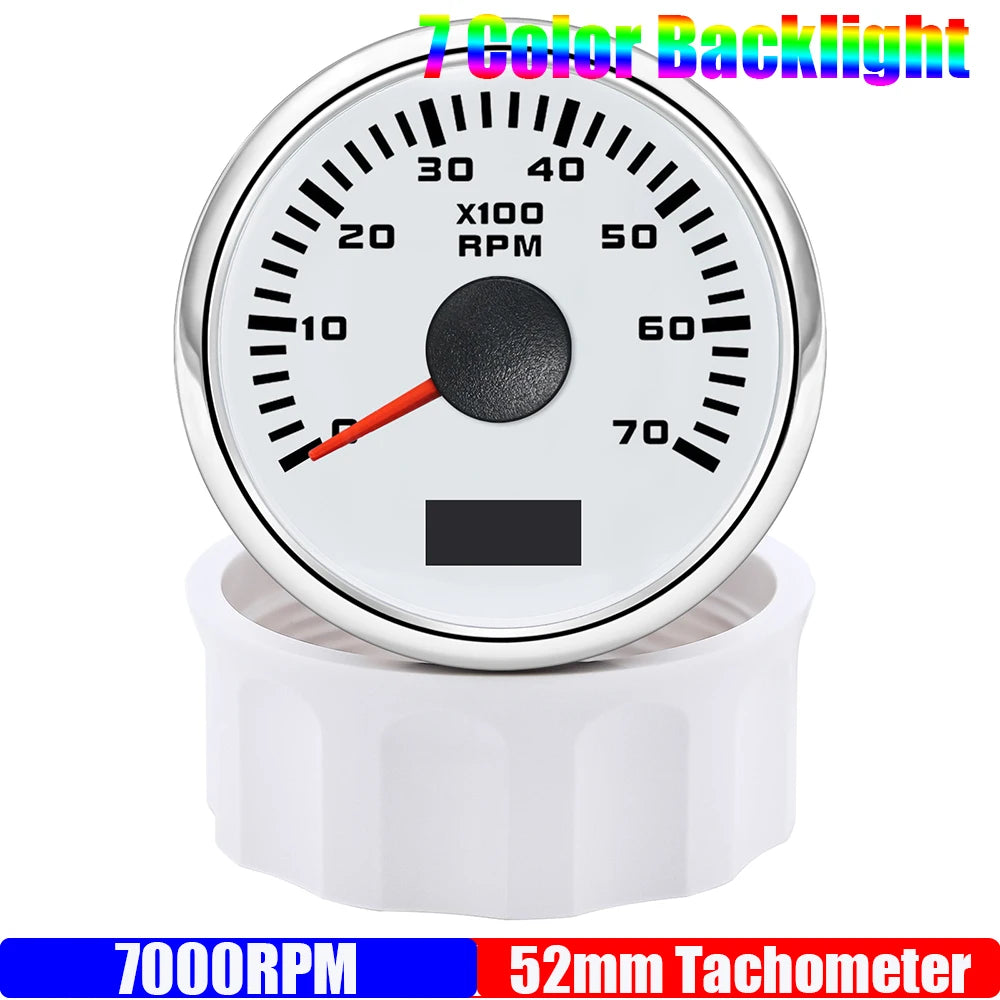

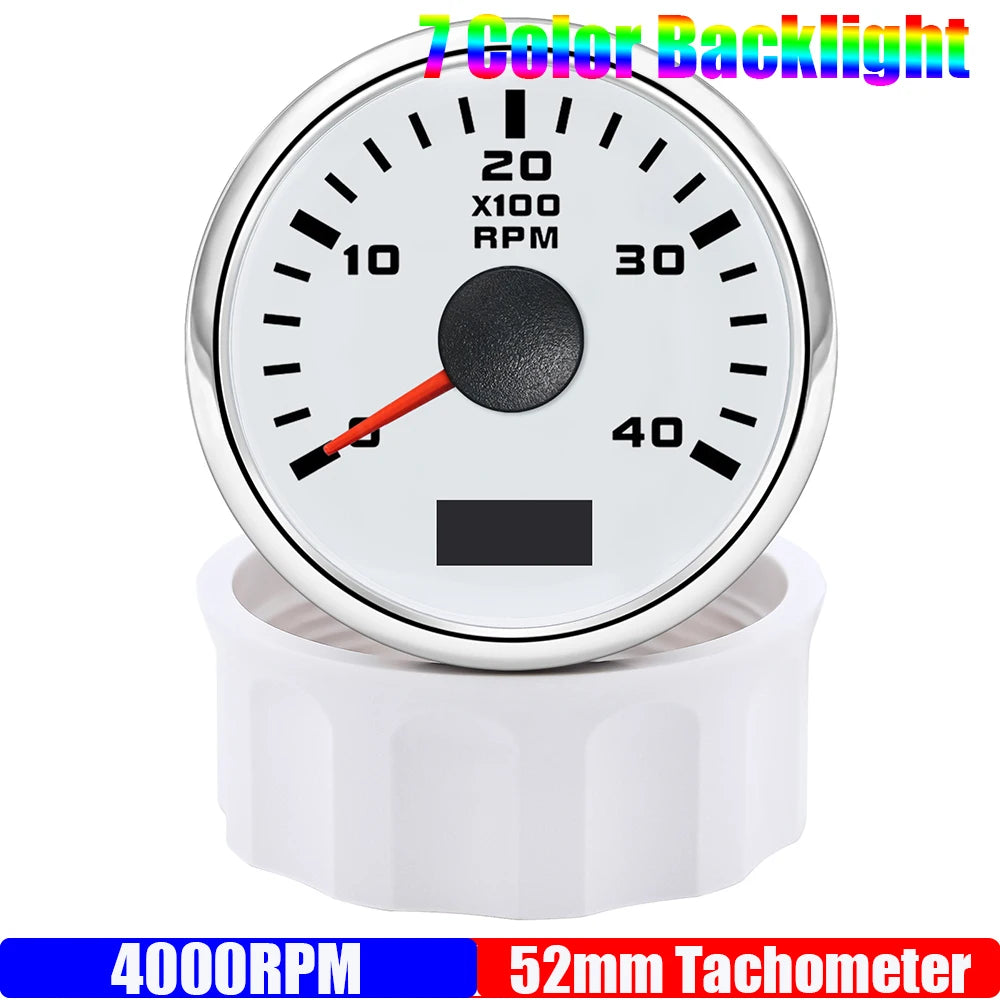

Five indicating ranges are offered: 3000, 4000, 6000, 7000 and 8000 RPM. The right one is the smallest range that still covers your engine's maximum, because a scale that just fits the engine is easier to judge at a glance than one that races past it.

The housing measures 52 mm across and weighs 150 g, in stainless steel and nickel-plated plastic. The IP67 rating covers dust and temporary immersion, which is worth having on a boat or in a wash-down bay, but it is a rating rather than a licence to leave the gauge submerged.

Technical details

• Type: 52 mm (2 in) tachometer gauge
• Indicating ranges: 3000, 4000, 6000, 7000 or 8000 RPM
• Supply: 12 V or 24 V, red wire 9-32 V DC
• Protection: IP67
• Backlight: 7 colours, yellow wire for power and white wire to adjust
• Speed ratio: adjustable to suit the engine signal
• Wiring: black ground, red supply, blue RPM signal, yellow backlight, white adjust
• Materials: stainless steel and nickel-plated plastic
• Weight: 150 g

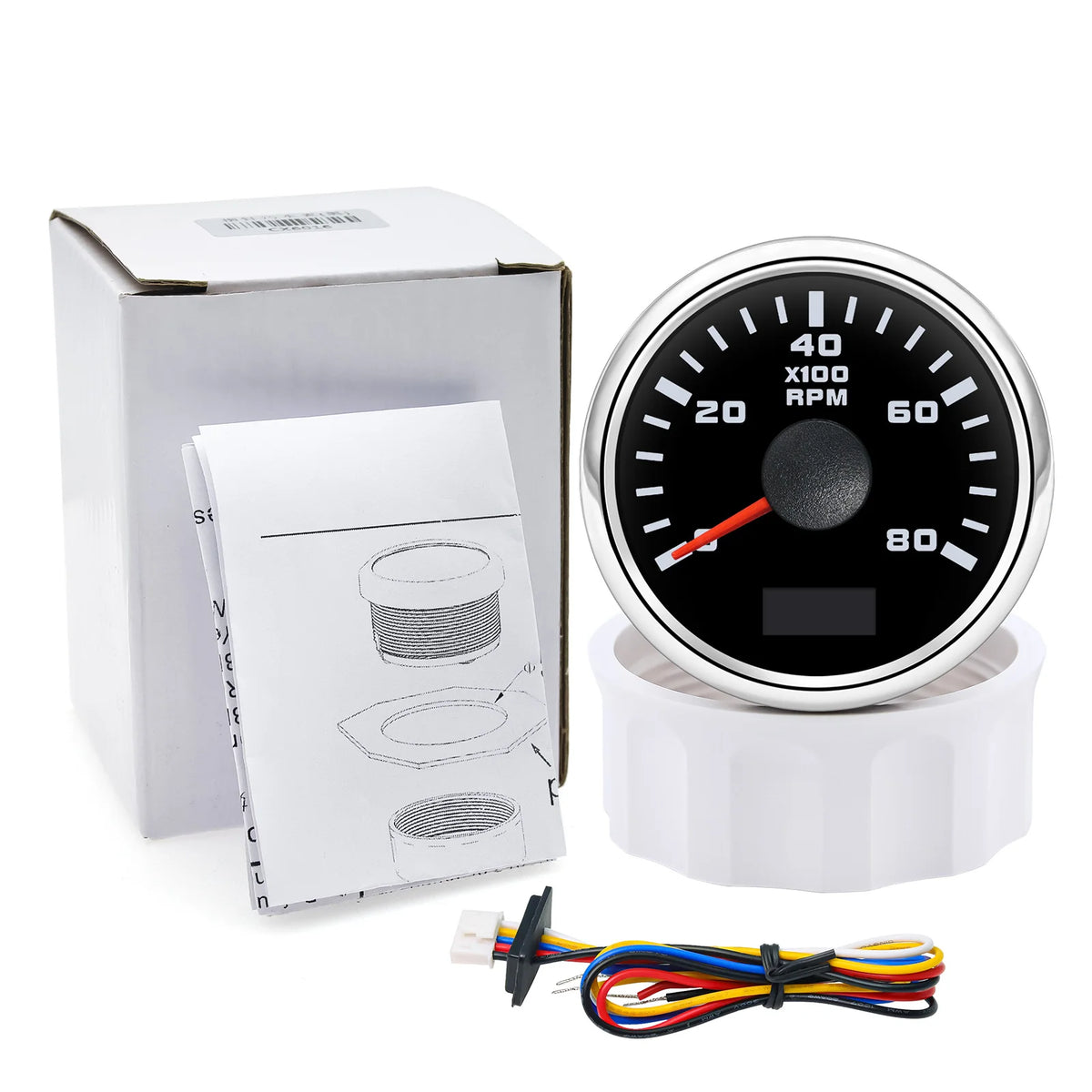

• In the box: tachometer and installation manual

Choose the rev range that covers your engine, then wire it in and read the revs.
