Dual-Band 2.4/5.8 GHz Panel Antenna, SMA or RP-SMA Options
Replace a matching external antenna when arranging compatible wireless equipment. This dual-band panel antenna covers the stated 2.4 and 5.8 GHz ranges and comes in separate SMA or RP-SMA options. It is for users who can verify both radio frequency and connector compatibility.
- ✅ Position the panel during setup — The hinged base lets you adjust its angle.
- ✅ Replace a matching screw-on antenna — The selected connector attaches directly to a compatible socket.
- ✅ Use one antenna across the stated bands — Dual-band operation covers the specified frequency ranges.
- ✅ Match the equipment's appearance — Black and white options are available in the listed connector combinations.
Match the connector as carefully as the frequency
SMA male and RP-SMA male are different connector options and must match the equipment's socket. Check the centre contact as well as the thread before ordering. The white option is listed with RP-SMA male; black options are listed with RP-SMA male or SMA male.
The stated operating ranges are 2400–2500 MHz and 5750–5850 MHz. This does not establish compatibility with every channel labelled 5 GHz, nor with cellular equipment. Confirm that your device accepts a passive external antenna in these bands.
The quoted gain is up to 8 dBi; it is not a promise of connection speed, distance or improved reception in every location. This is one antenna only, without a router, radio, cable or adapter. No verified ingress-protection rating is provided.
The white RP-SMA option has a hinged base; check connector compatibility.

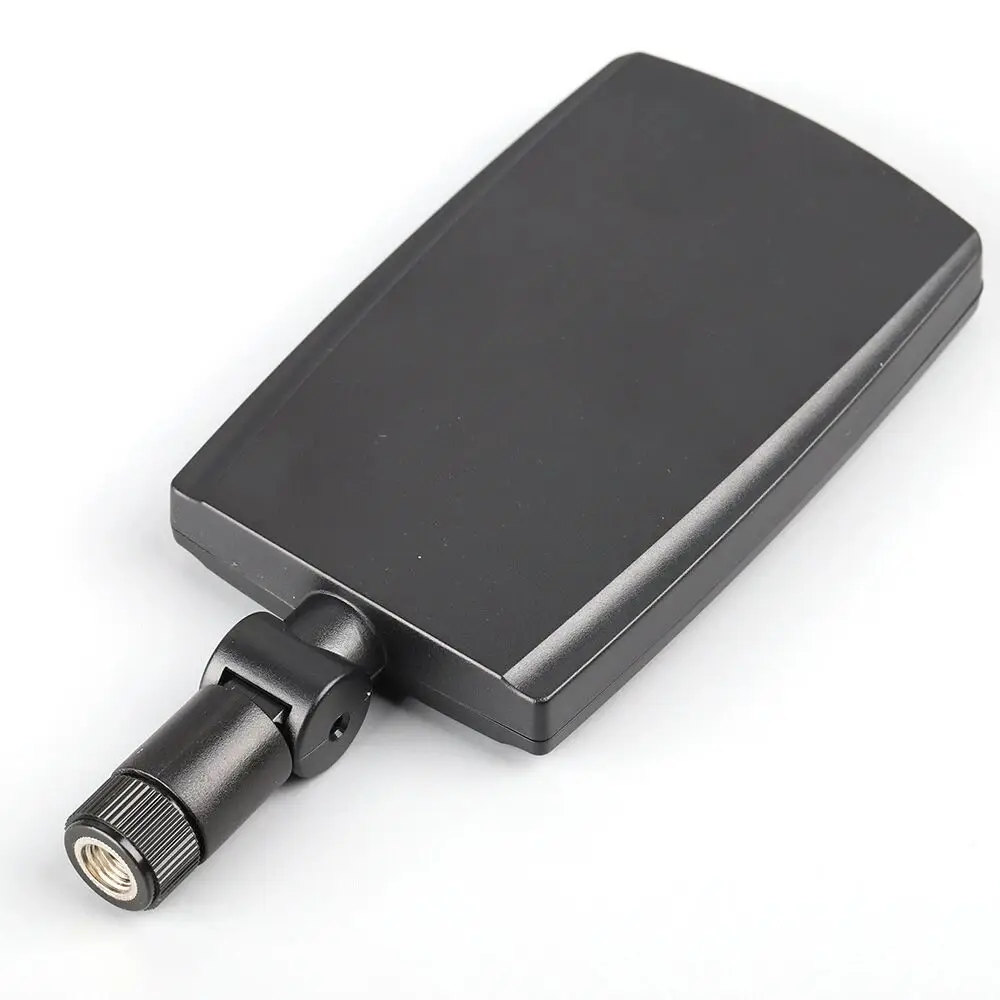

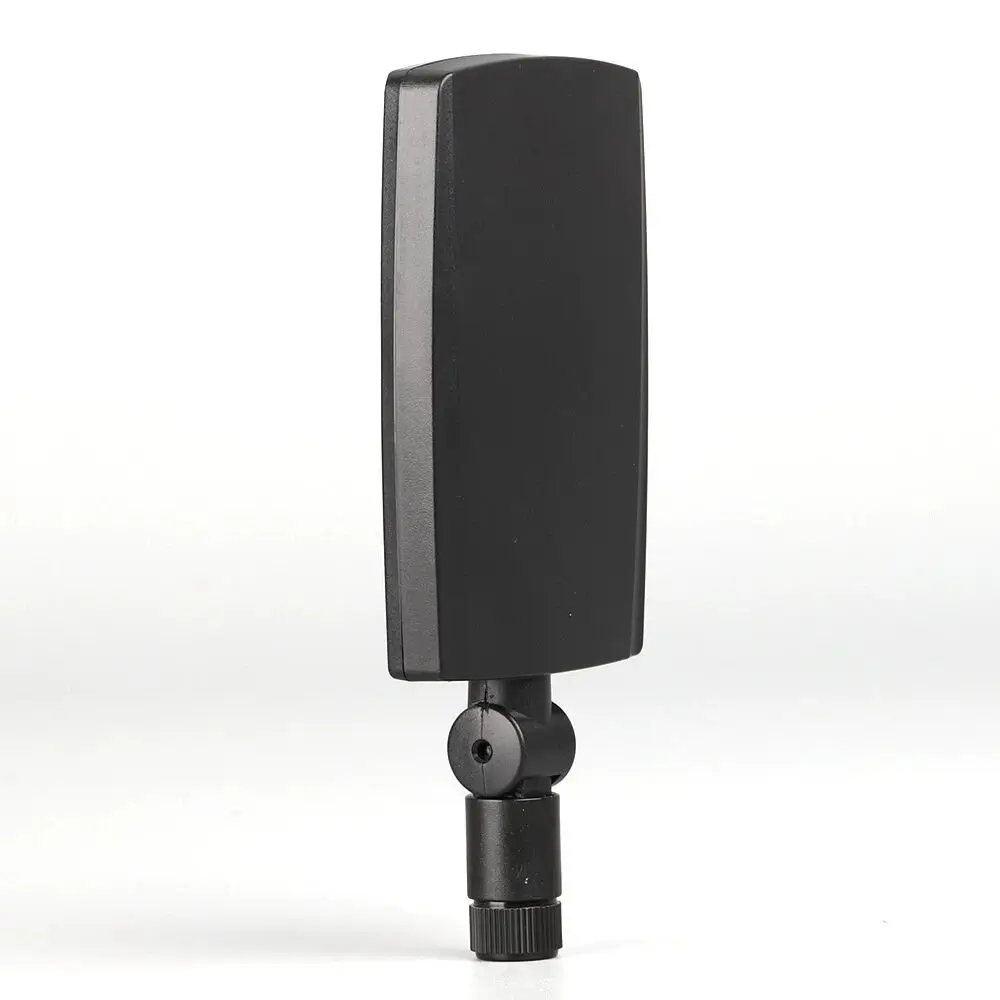

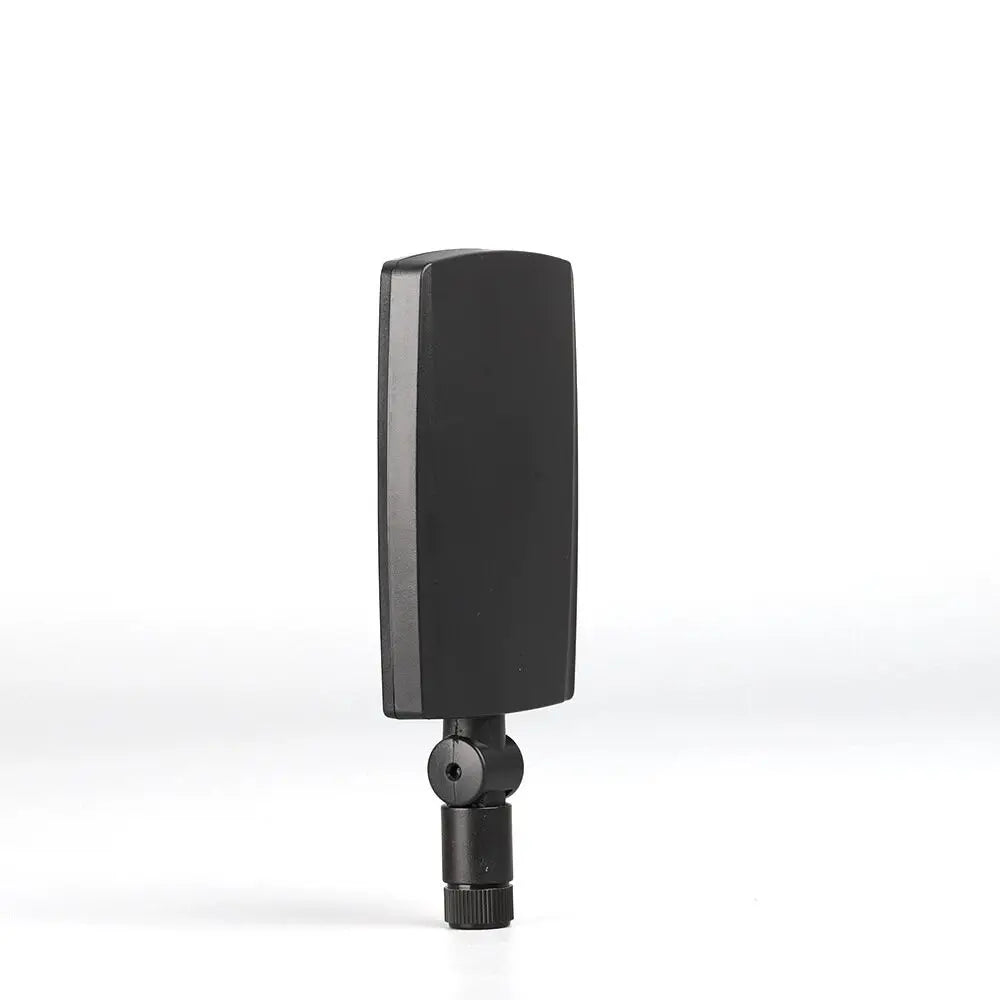

The panel can be angled at its joint.
Allow room around the device for the panel.

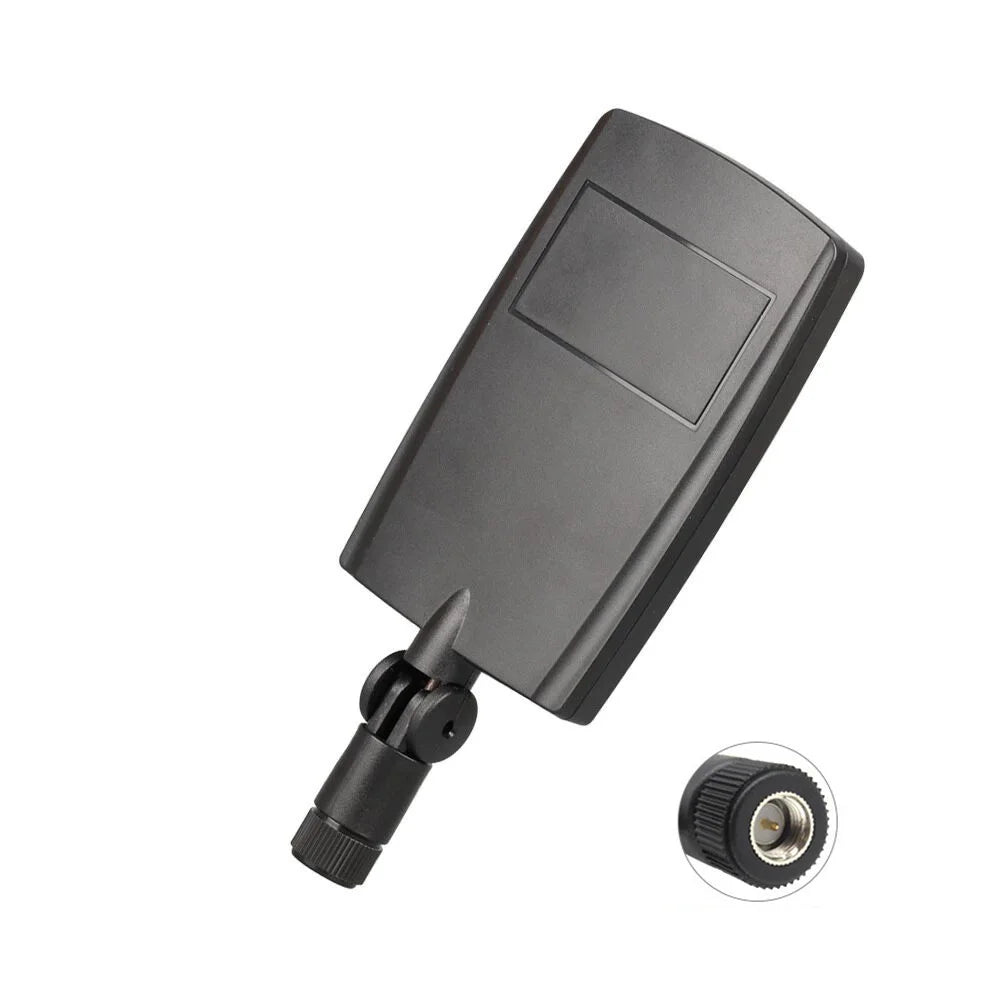

Compare the centre contact and thread with your socket.
SMA and RP-SMA options must not be treated as interchangeable.
One selected antenna is supplied without wireless equipment.
Technical details
- Product: passive dual-band panel antenna
- Frequency ranges stated: 2400–2500 MHz and 5750–5850 MHz
- Gain stated: up to 8 dBi
- Impedance: 50 ohms
- VSWR stated: ≤1.5
- Black options: SMA male or RP-SMA male
- White option: RP-SMA male
- Positioning: hinged base
- Package: 1 selected antenna; router, radio, cable and adapter excluded
Check your radio's bands and connector, then choose the antenna option that matches your setup.
