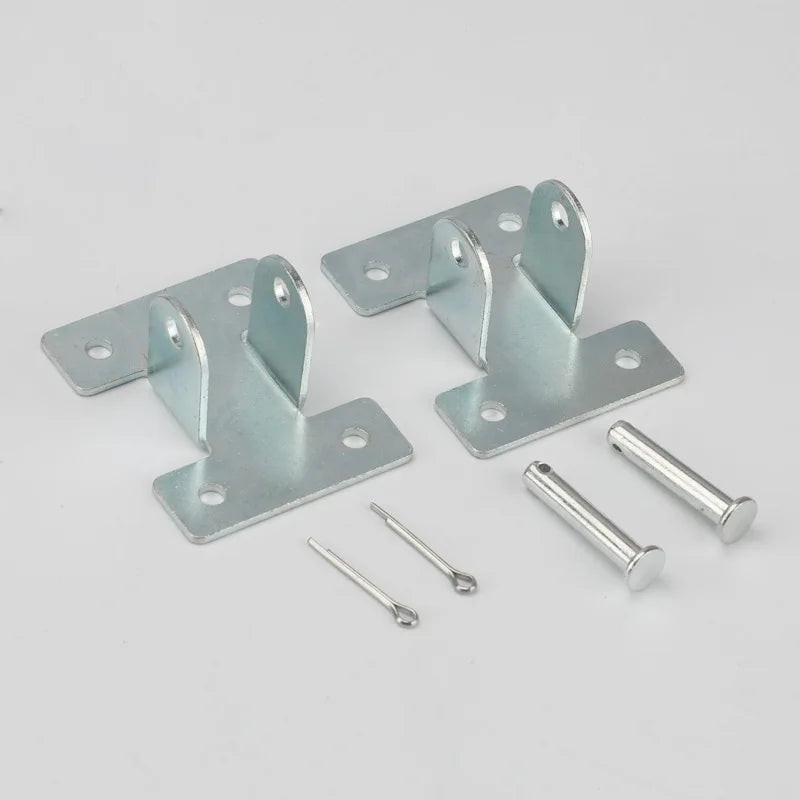

Metal Linear-Actuator Mounting Brackets

Plan the mounting points for a compatible linear actuator with a separate metal bracket. Three pictured shapes let you choose the connection style required by the mechanical arrangement.

• ✅ Add a dedicated mounting component - use a matching bracket rather than improvising a connection.

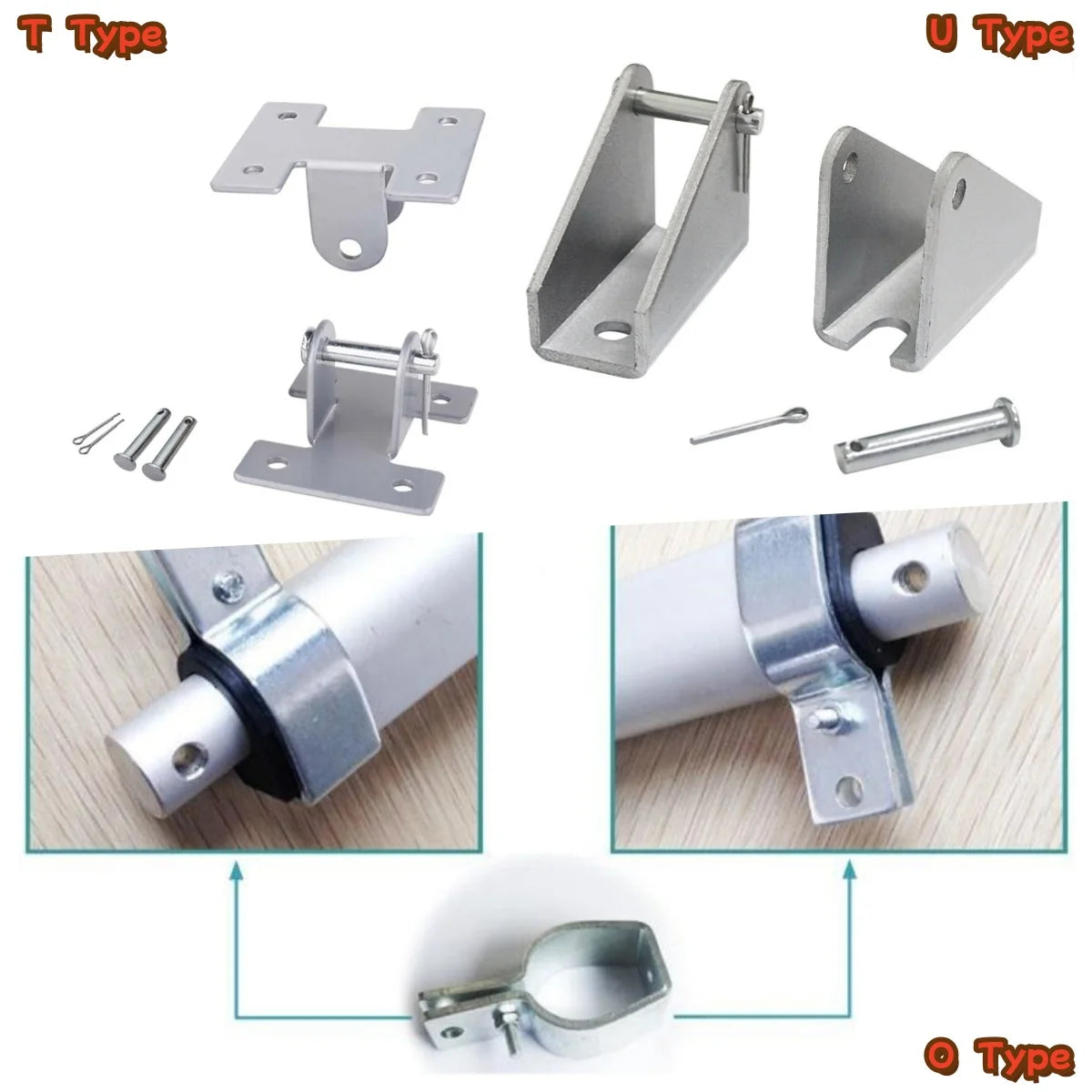

• ✅ Choose the shape for the design - U, T and O options are listed.
• ✅ Buy the required quantity - pair and single-piece packages are identified separately.

Match the Bracket to the Actuator and Motion Path

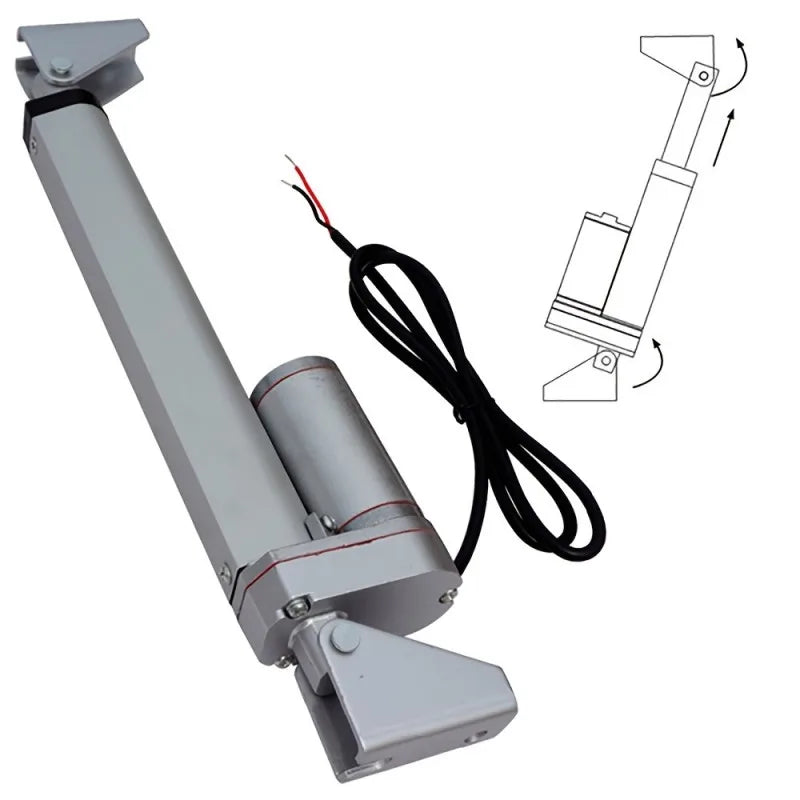

Compare hole diameter, spacing and overall dimensions with the actuator's end connection. Check that the full movement path leaves enough clearance and does not load the bracket in an unintended direction.

The U and T options are listed as pairs, while the O-shaped option is one piece. No verified force rating or complete fixing kit is established. The actuator, motor and project structure are not included.

Technical details

• Material: metal.
• Model listed: SLM01.

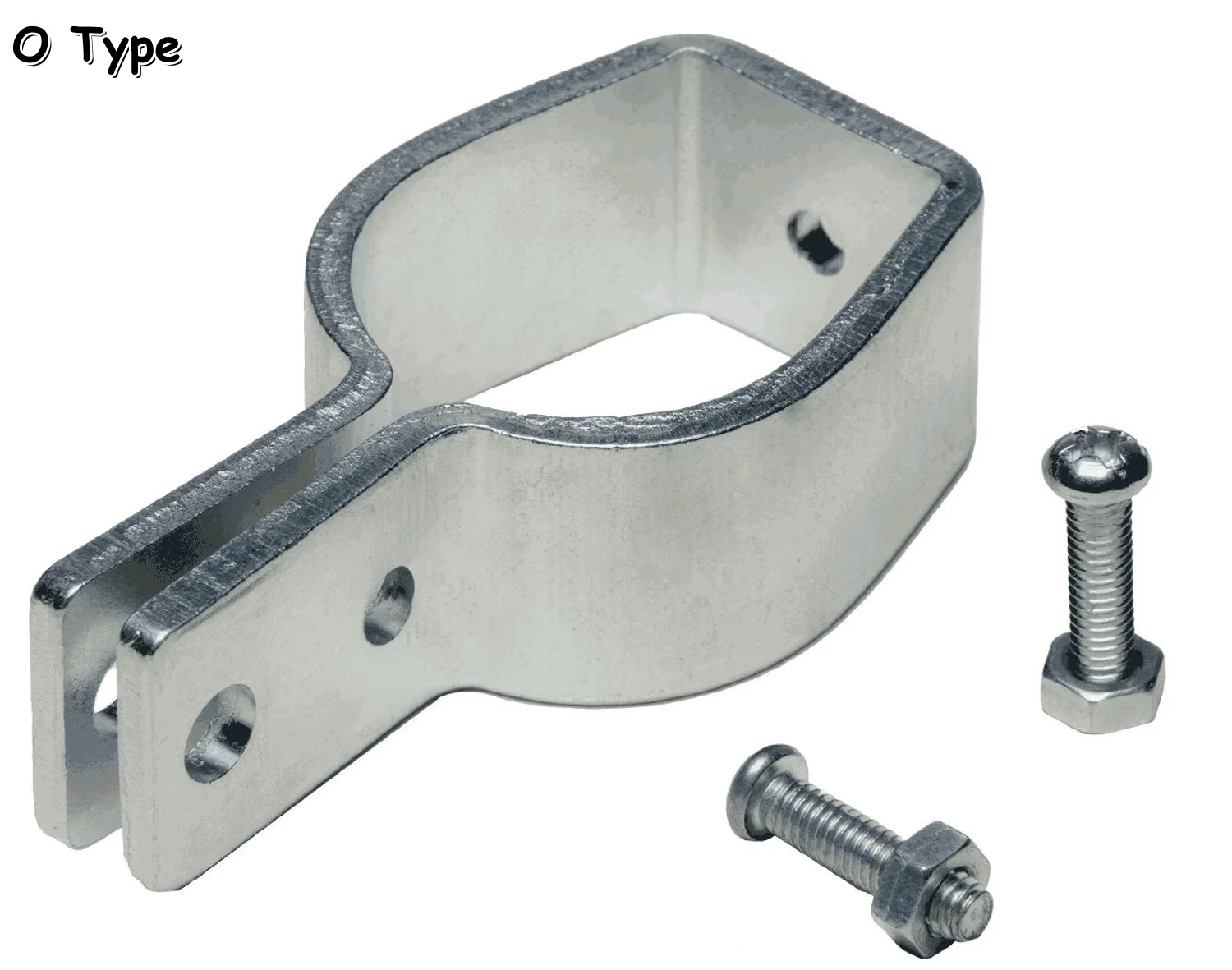

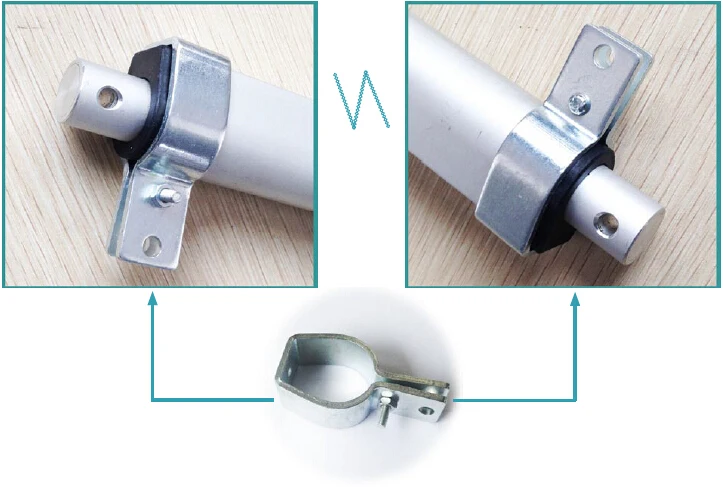

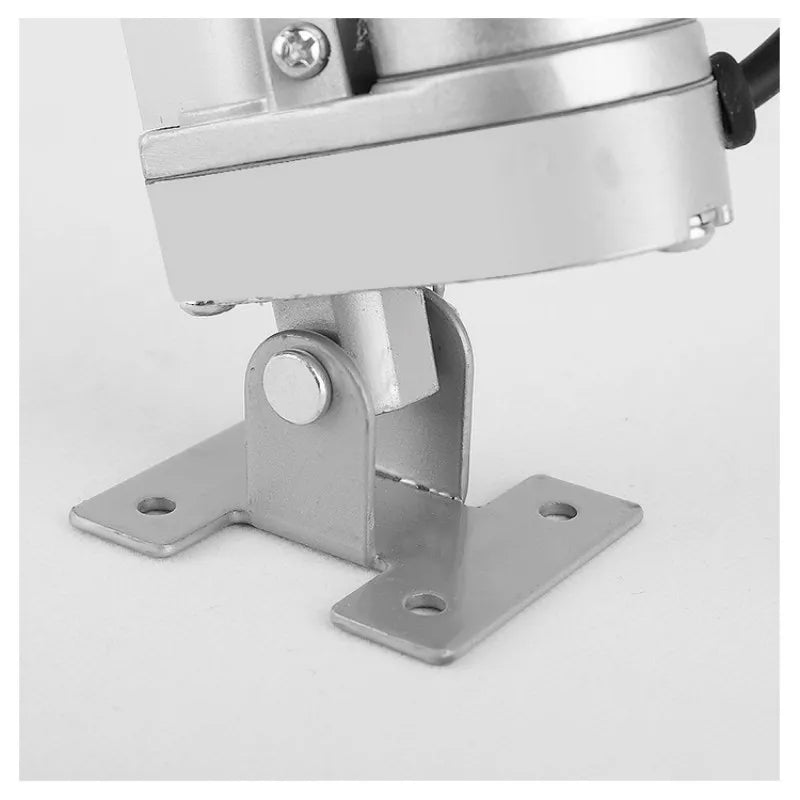

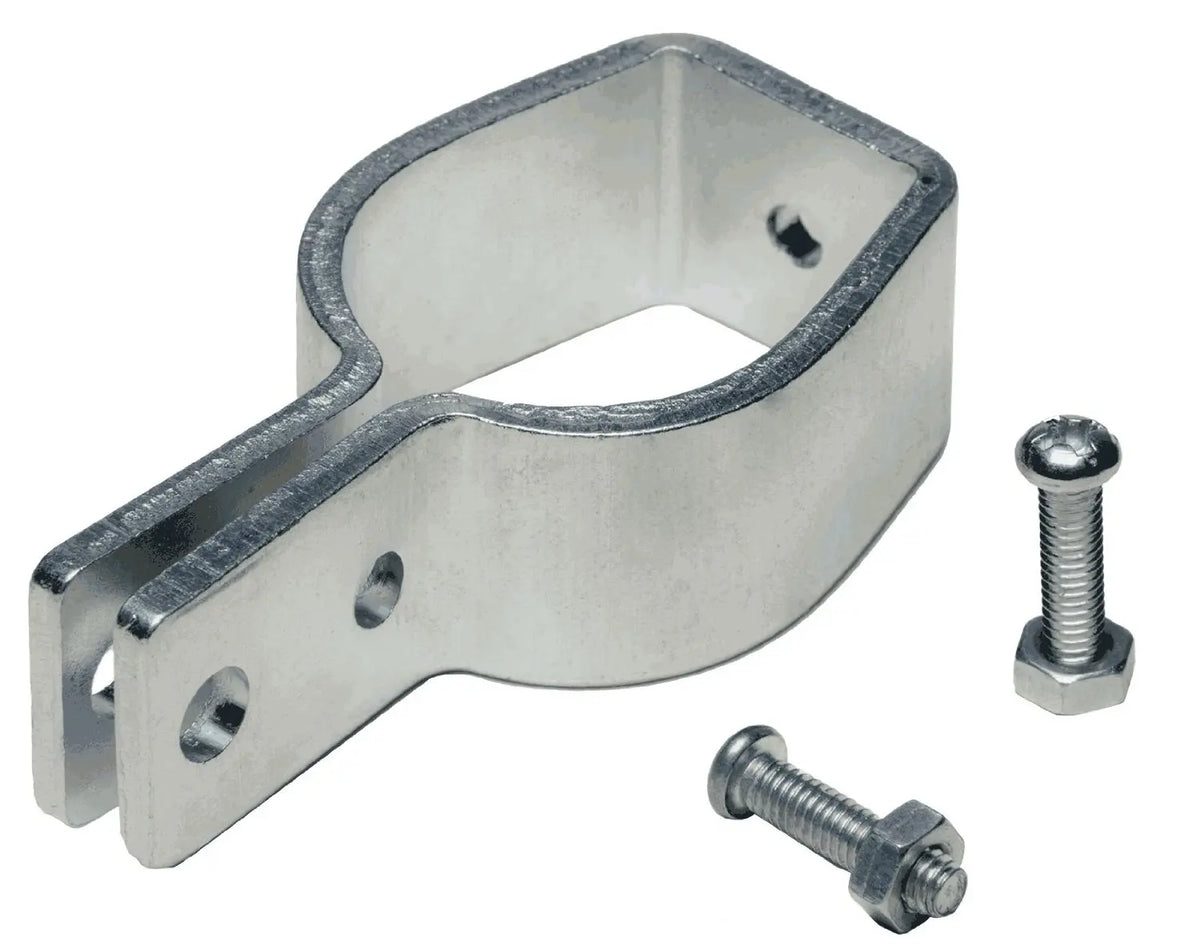

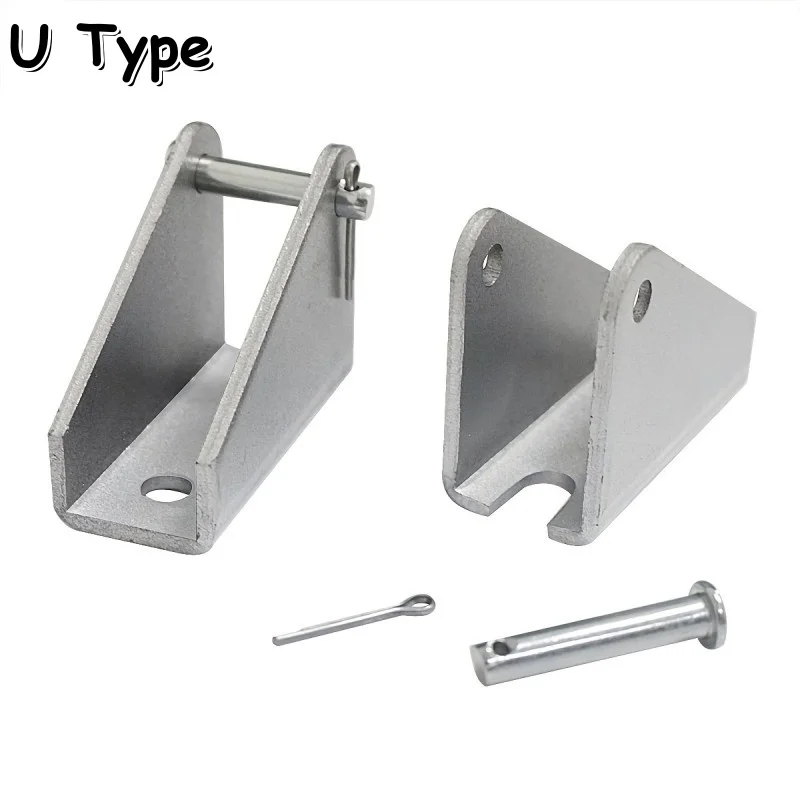

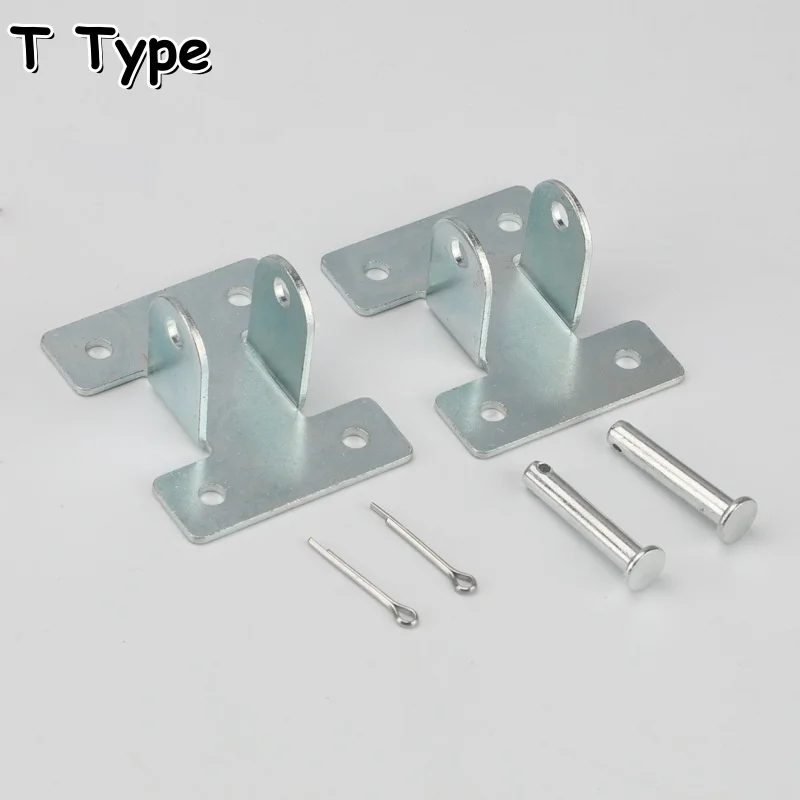

• Options: U-shaped pair; T-shaped pair; O-shaped single piece.
• Package: selected brackets only.

Confirm the mechanical fit and choose the bracket shape for your actuator design.
