Infrared Surface Thermometer, IR01C/D, IR02C & IR03A/B
Compare surface temperatures around the workshop without placing a probe on each spot. These handheld infrared thermometers offer laser aiming and model-specific measuring ranges. They are for DIY and maintenance users choosing between IR01C, IR01D, IR02C, IR03A and IR03B.
- ✅ Check a surface without touching it — Infrared measurement reads the target surface from a suitable distance.
- ✅ Compare spots as you investigate — The trigger-operated format makes repeated checks straightforward.
- ✅ Aim at the area you want to measure — Laser positioning helps indicate the target location.
- ✅ Read the result after releasing the trigger — Data retention keeps the reading on the display for review.
Choose the range and functions for your checks
Use the handheld grip to aim at a suitable surface and press the trigger for a reading. Non-contact measurement is useful for comparing accessible equipment surfaces and looking for temperature differences. The reading is a surface temperature, not an internal or core temperature, and this is not a medical body thermometer.
Choose IR03A for −50 to 400°C or IR03B for −50 to 600°C. IR01C is specified at −50 to 550°C and adds ambient temperature/humidity display; IR01D offers those environmental readings with a −50 to 800°C range. IR02C also has a −50 to 800°C range, ambient temperature/humidity and a supplied contact-temperature probe. IR03A/B are the simpler surface-reading choices and do not include those environmental functions.
The specified distance-to-spot ratio is 12:1, so the measured area grows as you move further away. Match the target size, emissivity setting and measuring distance to the supplied instructions. Two AAA batteries are required and not included. IR02C shows a probe, pouch, manual and box; those extras are not promised for the other model choices.
A handheld infrared thermometer makes repeated surface-temperature checks straightforward.
Use the model's controls to adjust available settings, including units and emissivity.

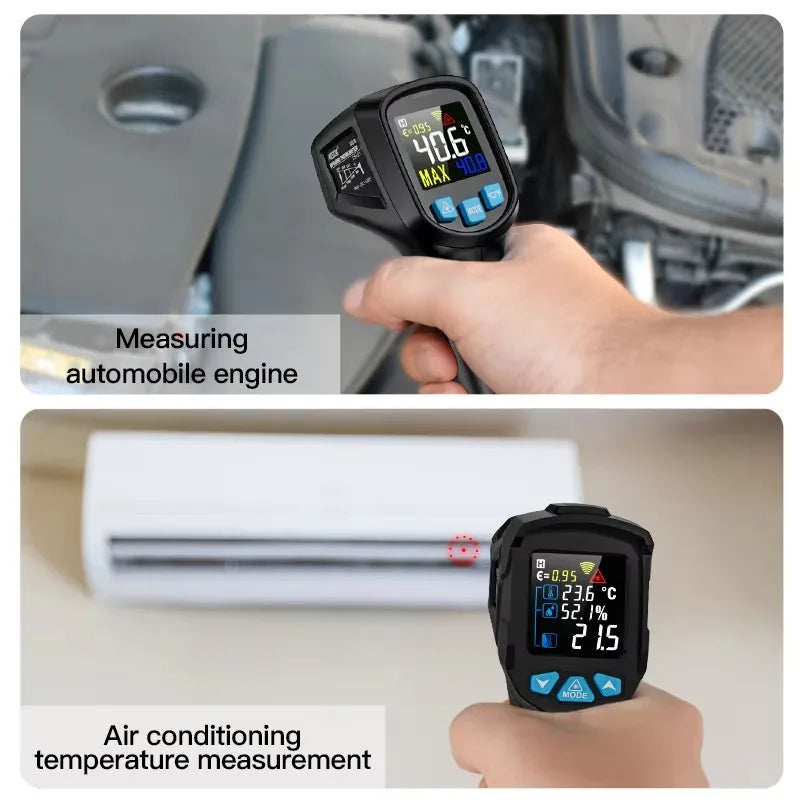

Check accessible surfaces without placing a contact probe on each point.

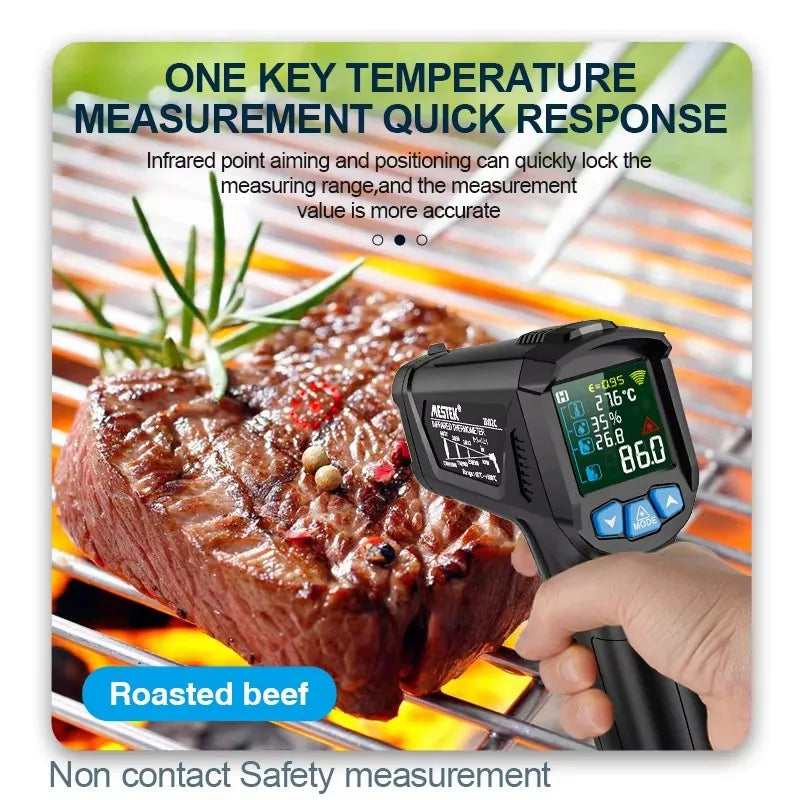

Infrared readings concern the visible target surface, not the internal temperature of food or equipment.
A surface reading does not replace a suitable food-core temperature measurement.
The MAX function shown helps compare readings during a scan on equipped models.
Ambient temperature and humidity belong to IR01C/IR01D, with these functions also specified for IR02C.
Automatic sleep reduces idle power use on the illustrated model.
Keep steam away from the sensing area and follow the supplied measuring guidance.
High/low indicators are a configurable instrument function, not a hazard-detection guarantee.
At 12:1, the measurement spot grows with distance; keep the target larger than the spot.
Laser aiming indicates position; do not direct the beam towards eyes.
Install two AAA batteries, select the settings and use the trigger to measure.
Environmental sensing and laser arrangements vary with the selected model.
IR01C/D add environmental readings; do not assume these appear on IR03A/B.
Set emissivity for the actual target material according to the supplied guidance.
Technical details
- Measurement: non-contact infrared surface temperature; laser aiming

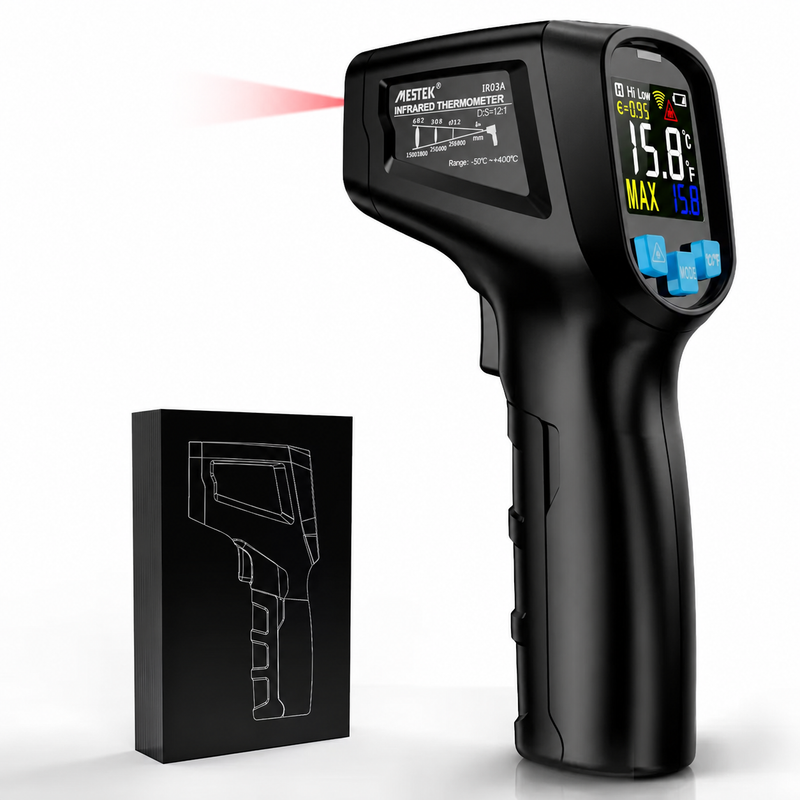

- IR03A range: −50 to 400°C

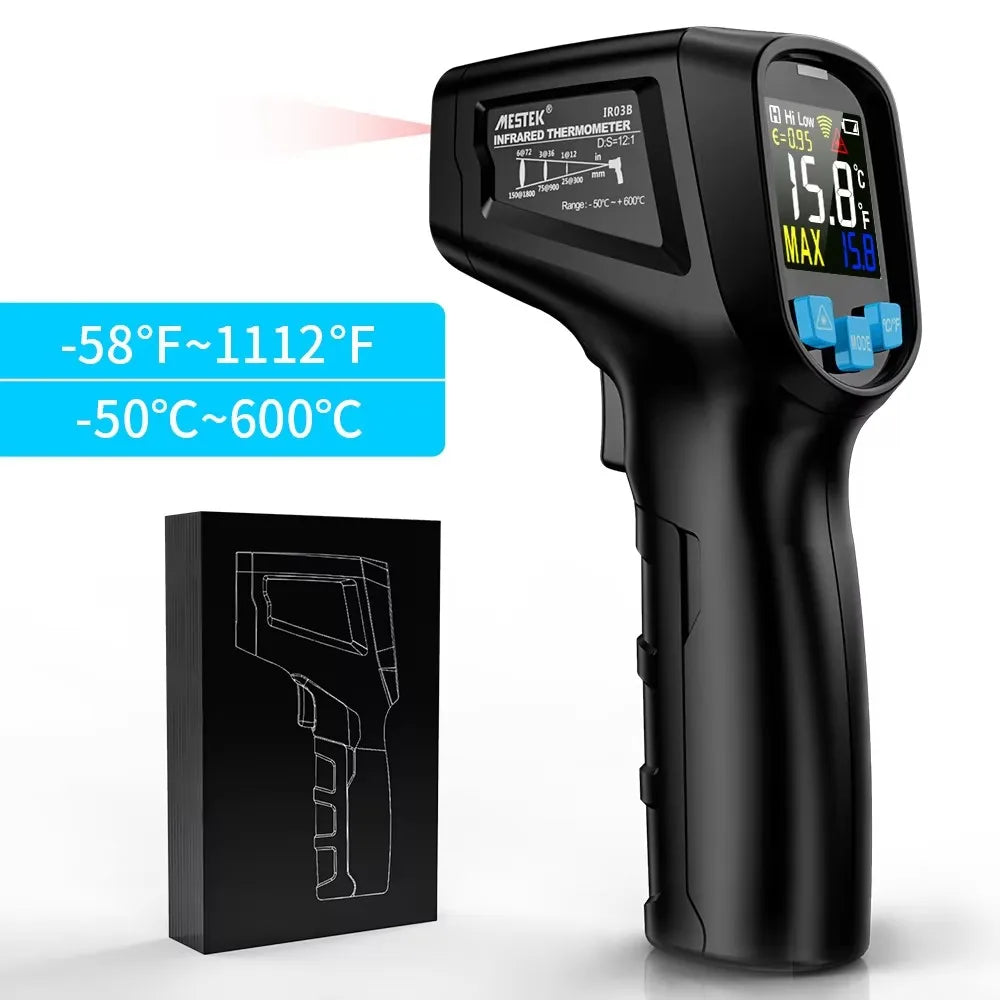

- IR03B range: −50 to 600°C

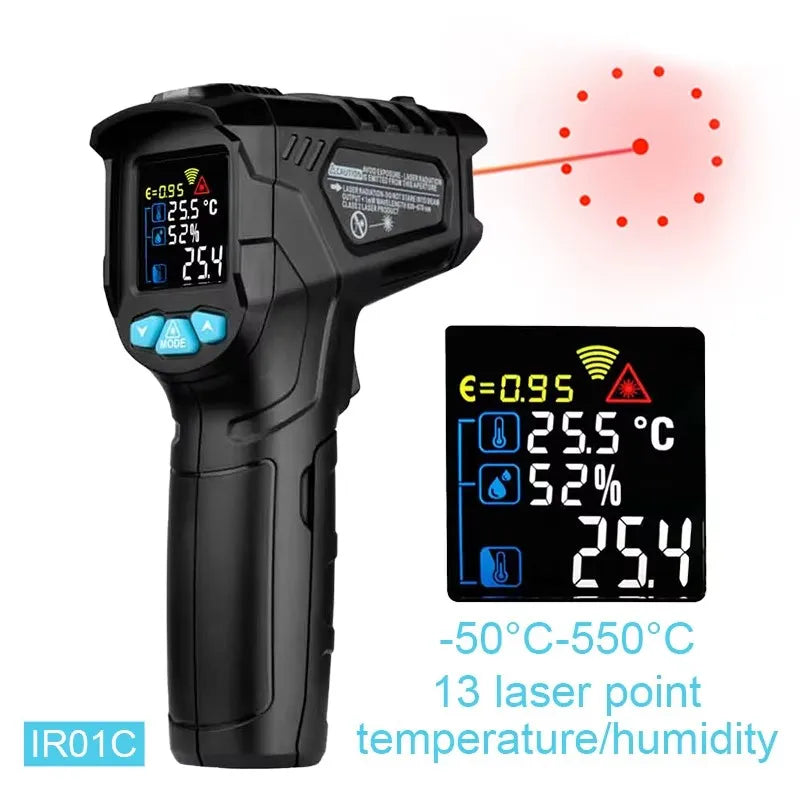

- IR01C range/functions: −50 to 550°C; ambient temperature and humidity

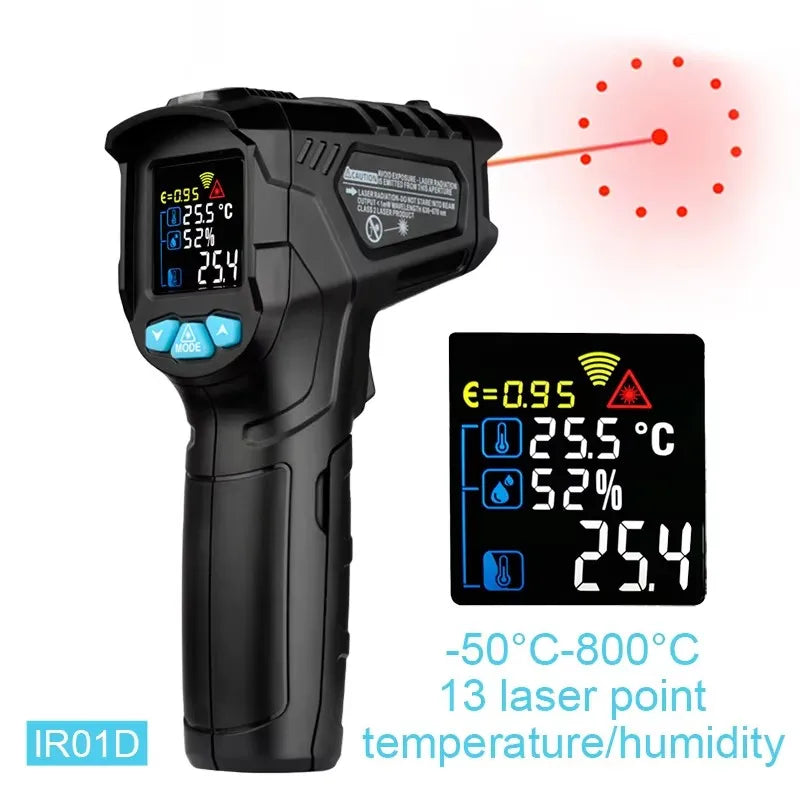

- IR01D range/functions: −50 to 800°C; ambient temperature and humidity

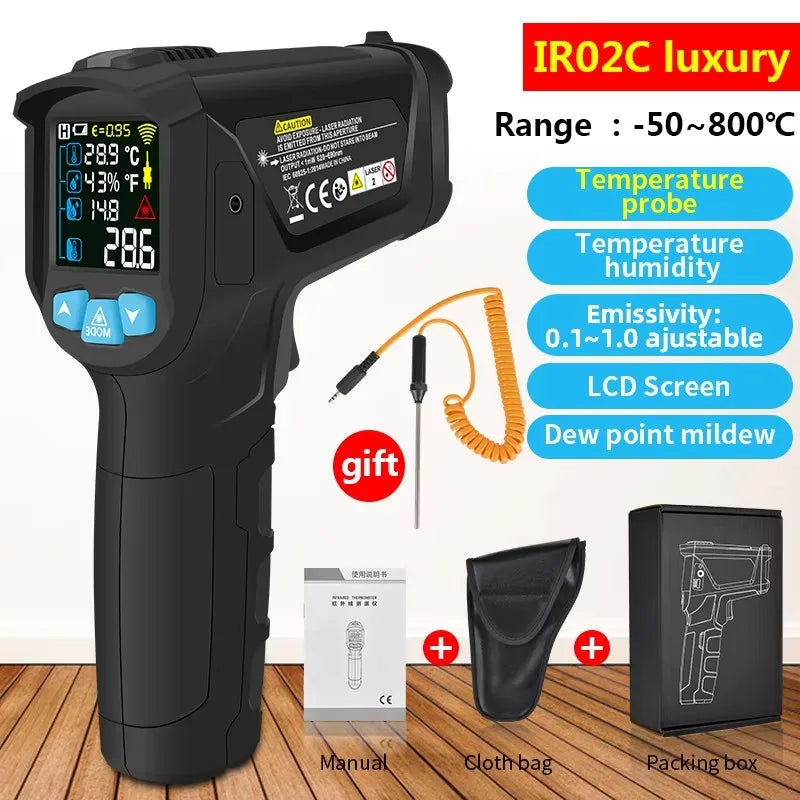

- IR02C range/functions: −50 to 800°C; ambient temperature/humidity and contact-probe function
- Distance-to-spot ratio: 12:1 specified

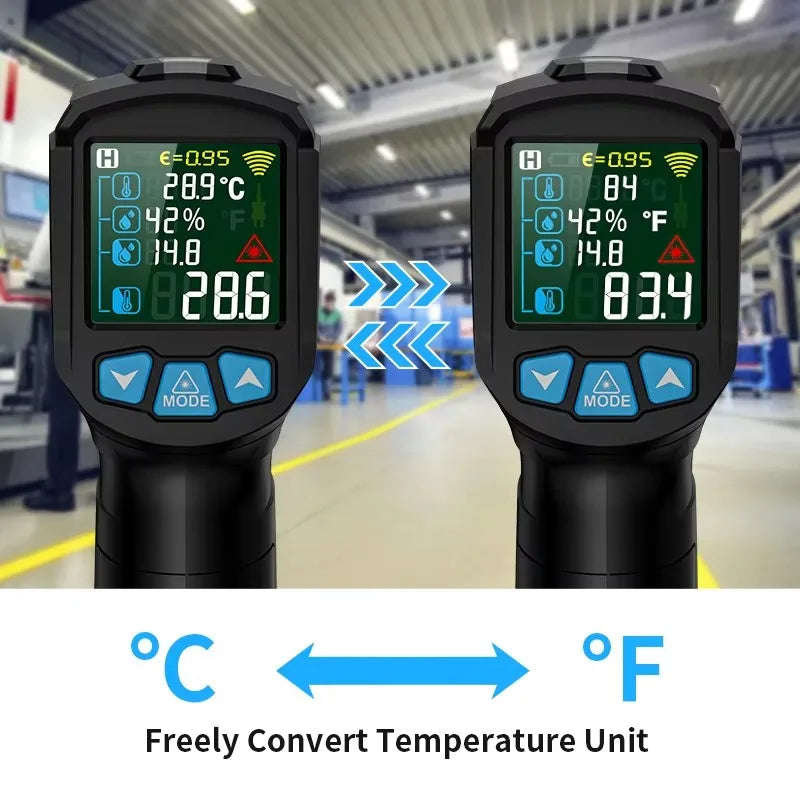

- Units/settings: °C/°F; emissivity 0.1–1.0, default 0.95 specified
- Power: 2 AAA batteries; not included
- Package: 1 selected thermometer; IR02C adds probe, pouch, manual and box
Choose the model range and functions you need, then make surface-temperature comparisons a simpler part of your checks.
