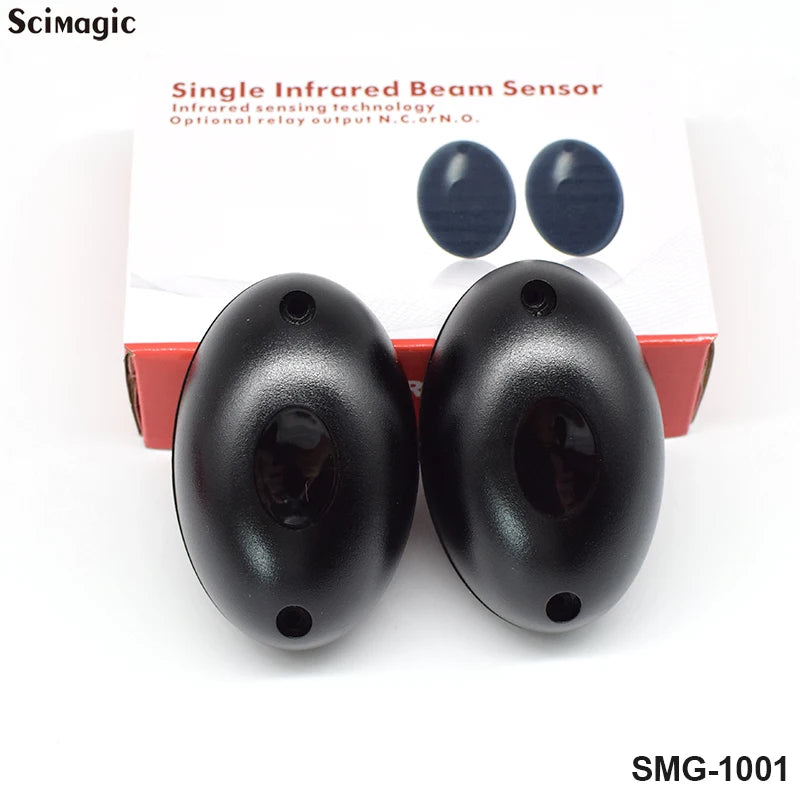

Infrared Photocell Pair for Compatible Gate Controllers

Create a defined beam-interruption input with a matched infrared photocell arrangement. The two parts face each other and report the supported switching condition to a compatible host controller.

• ✅ Monitor a defined line - the matched units establish the beam path.
• ✅ Use a separate controller input - the sensor is a component rather than a standalone alarm.
• ✅ Plan a compact mounting position - the listed housings suit a small installation point.

Align Both Units and Verify the Controller Interface

Match the actual relay/contact output and supply to the controller before wiring. Alignment, weather and obstacles affect detection, so test the complete arrangement in its installed conditions.

The sensor is not established as certified gate-safety equipment. Use only where its actual approvals and the complete gate risk assessment permit it. No guaranteed 15 m outdoor range is promised. Controller and cabling are not included.

Technical details

• Technology: infrared photocell beam.
• Supply label: 12-24 V AC/DC; verify actual markings.

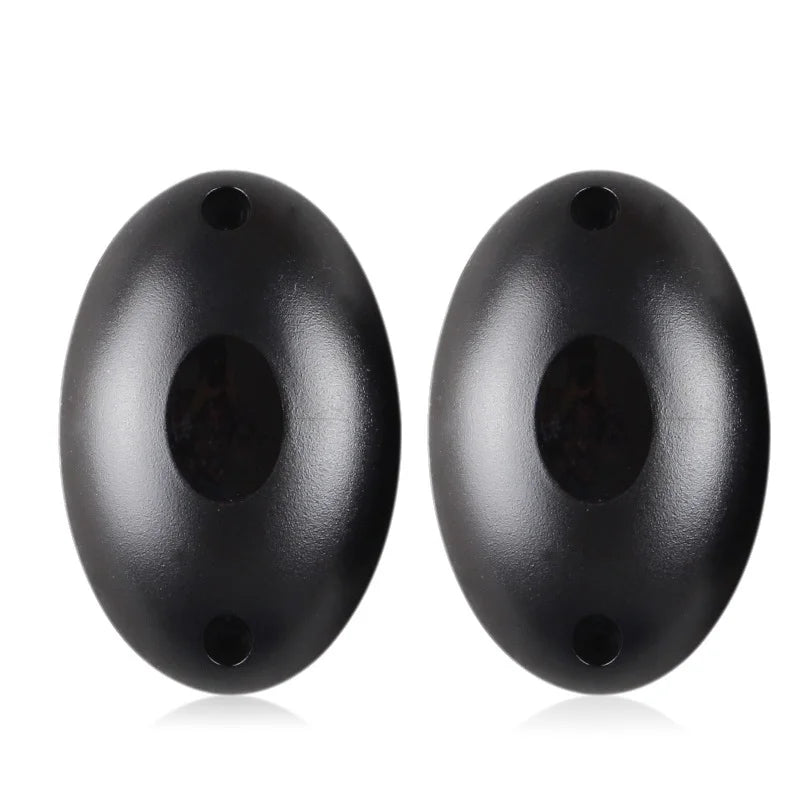

• Listed housing size: 76 x 49.2 x 21.6 mm.

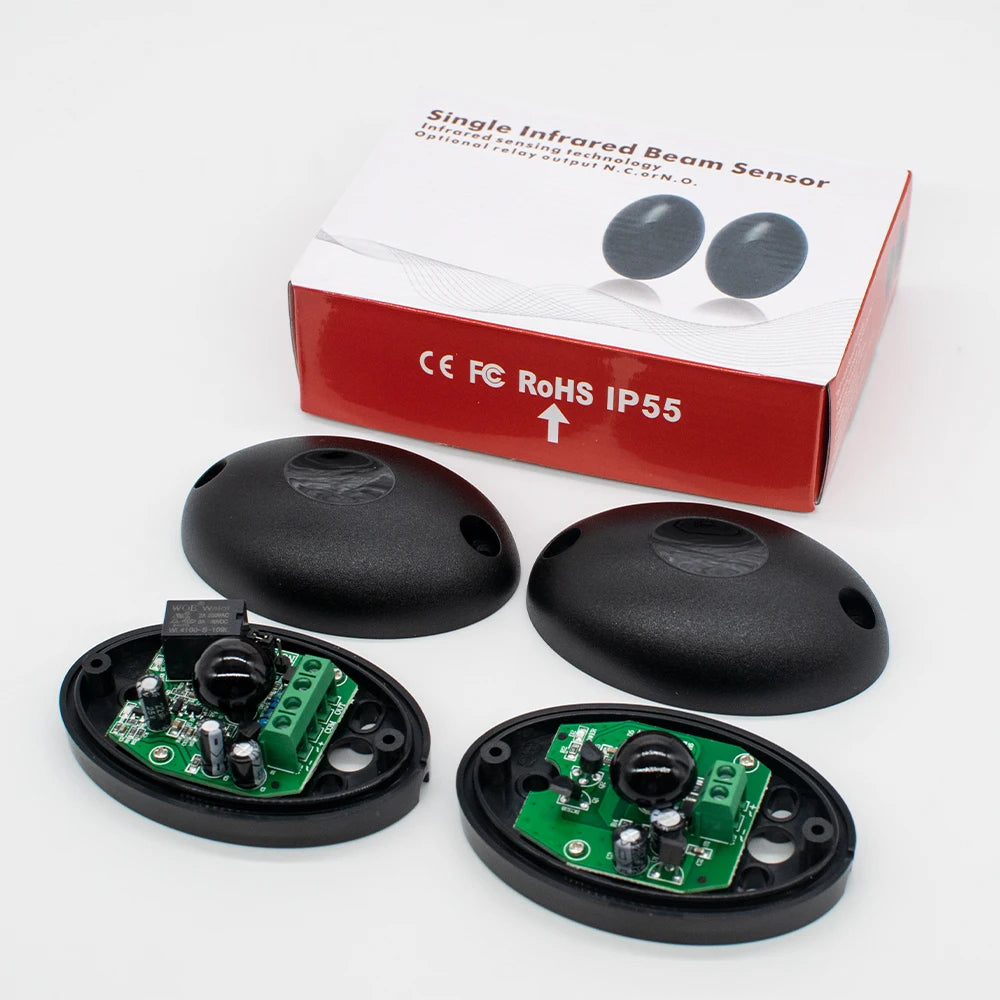

• Package: selected matched detector components and instructions.

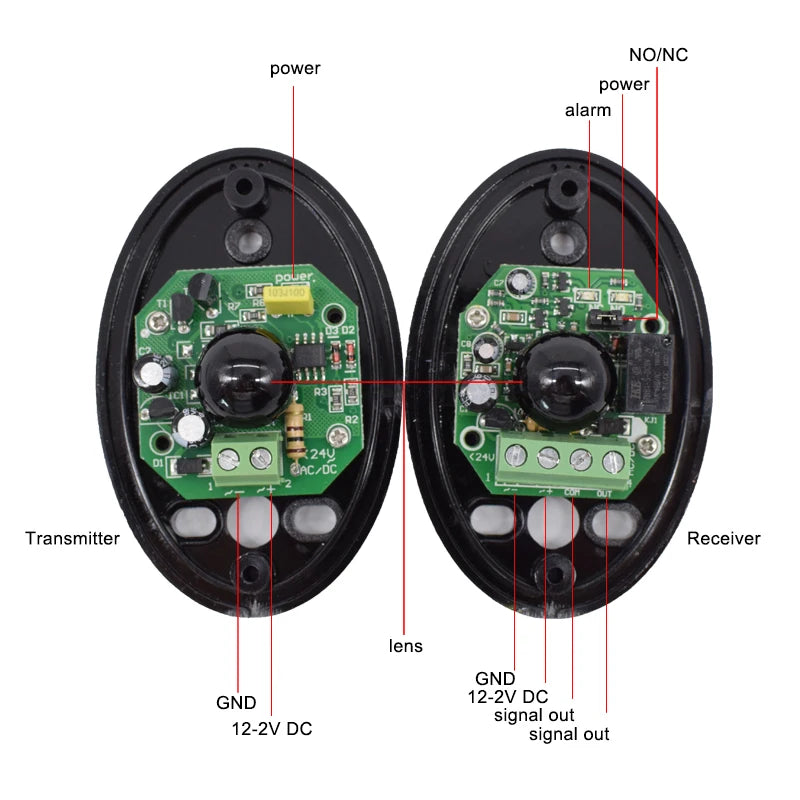

• Verify output contact and mounting details.

Confirm the controller and safety requirements before selecting the photocells.
