DS3235 Digital RC Servo - 180 or 270 Degrees

Add position-controlled movement to a compatible RC or robotics project. The DS3235 servo combines metal gears with a choice of 180- or 270-degree versions.

✅ Choose the travel for the mechanism - Two rotation-range versions let you match the intended movement.

✅ Connect a matched servo arm - The included 25T metal arm provides a mechanical attachment starting point.

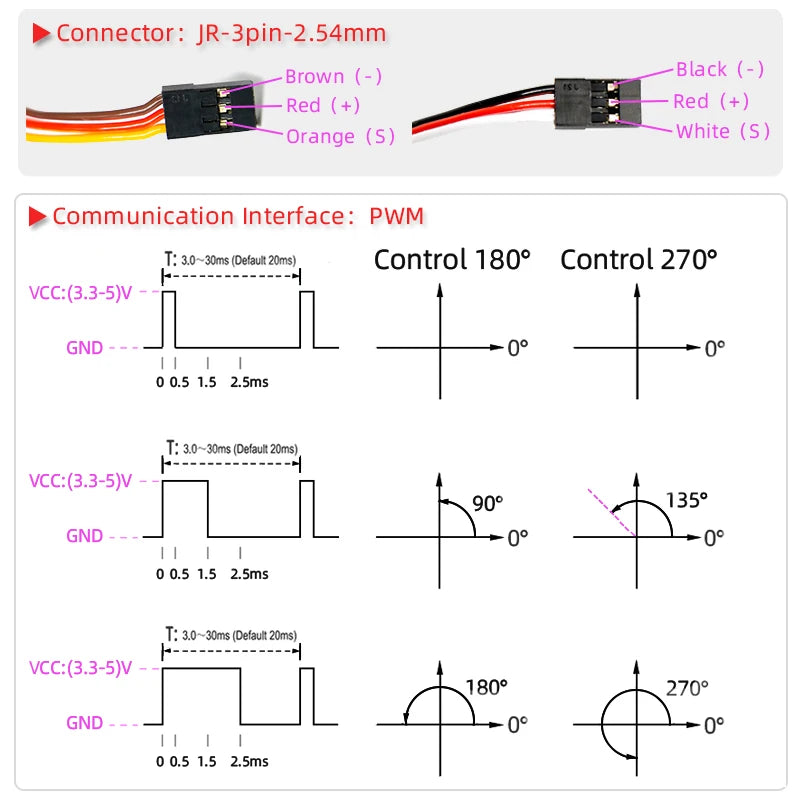

✅ Use digital position control - The servo provides movement within a correctly specified control and power setup.

Match the Power and Movement Before Assembly

Plan the arm geometry, travel and required torque around the actual mechanism. Check the servo command range so the linkage does not drive into a mechanical stop.

The 35kg-cm figure is a stall-torque specification at the stated voltage, not a safe lifting-load rating. Provide the appropriate supply current and follow the actual water-use limits. A controller and power supply are separate.

Technical details

• Model: DS3235
• 180/270-degree options
• 5-7.4V DC supply

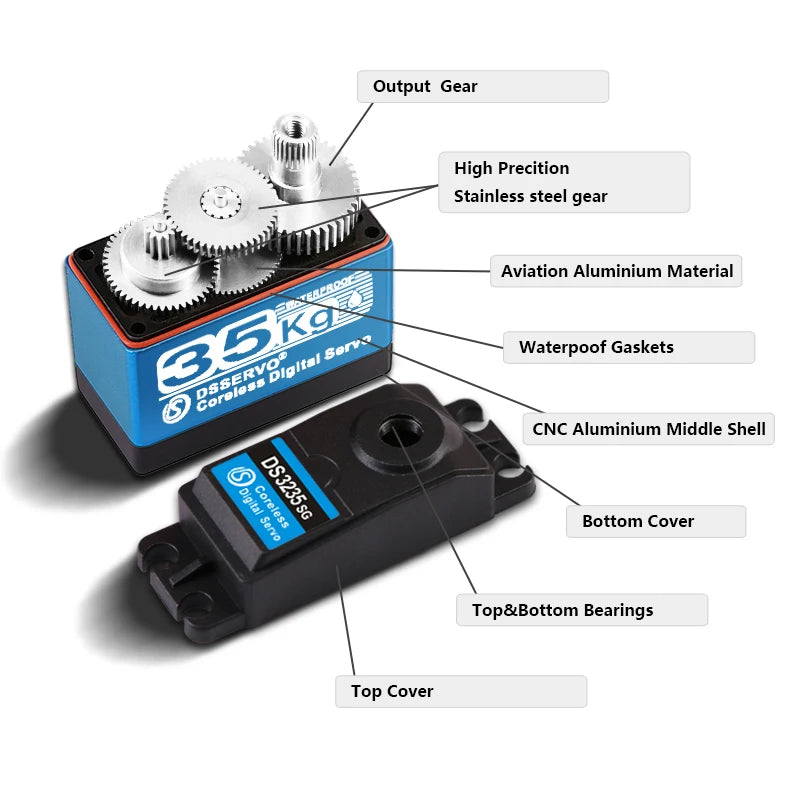

• Metal gears and coreless-motor description

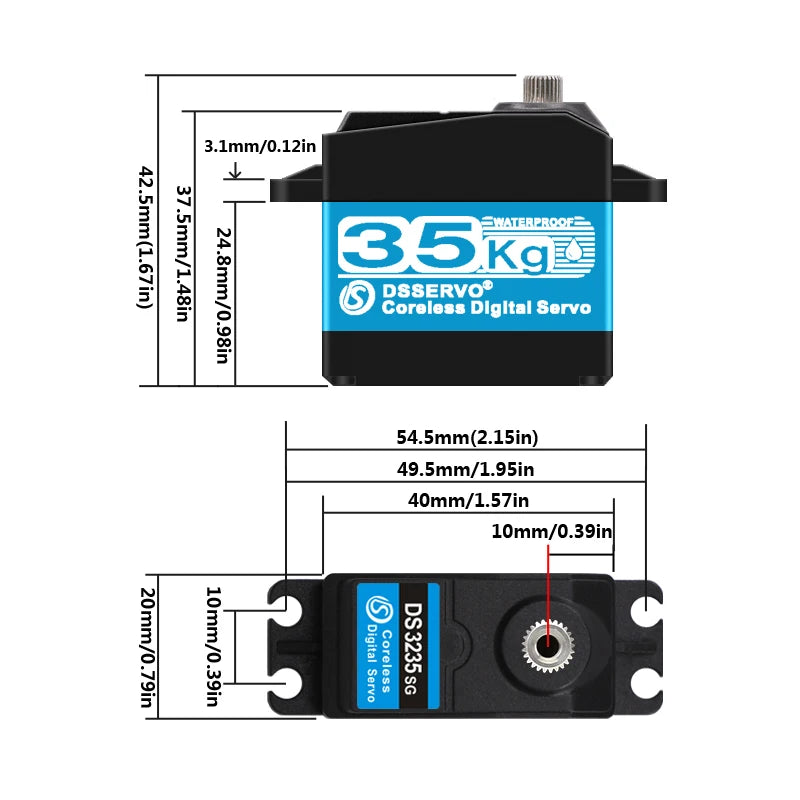

• Approximately 40 x 20 x 38.5mm

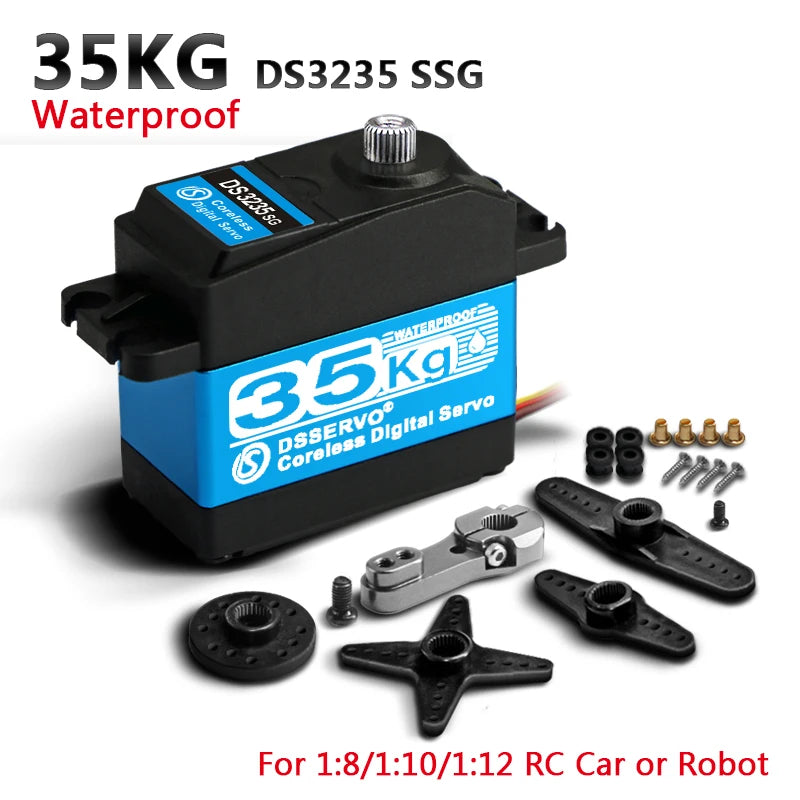

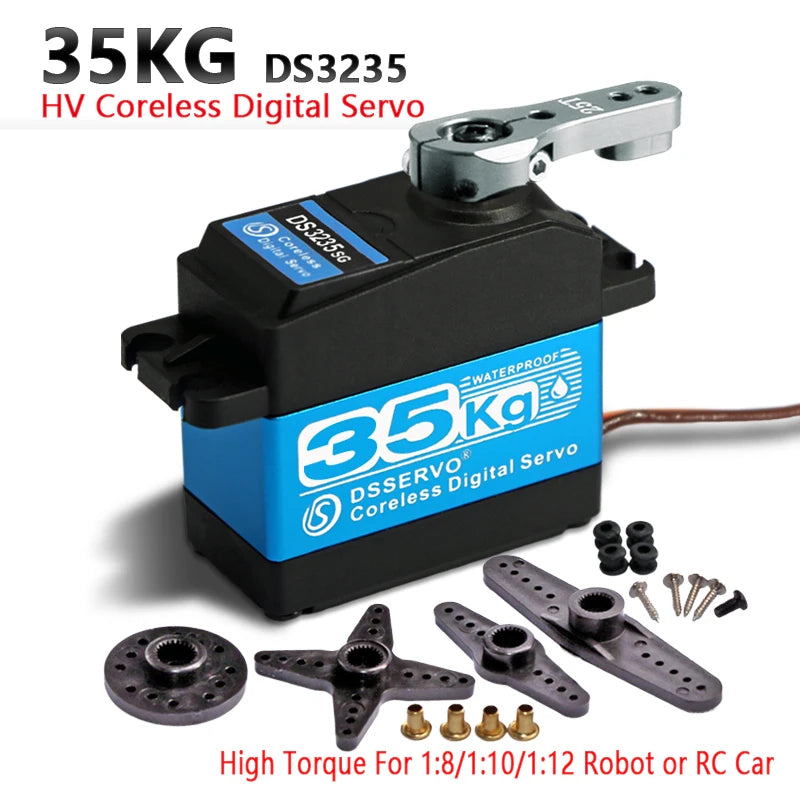

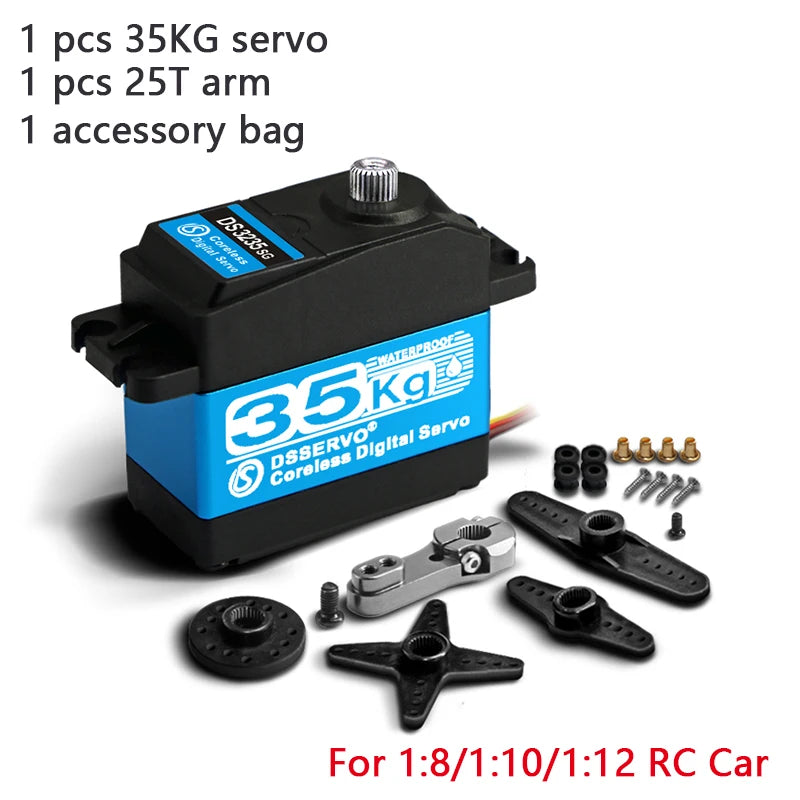

• 25T adjustable metal arm and accessories

Choose the travel version and design the linkage around the servo's real limits.
