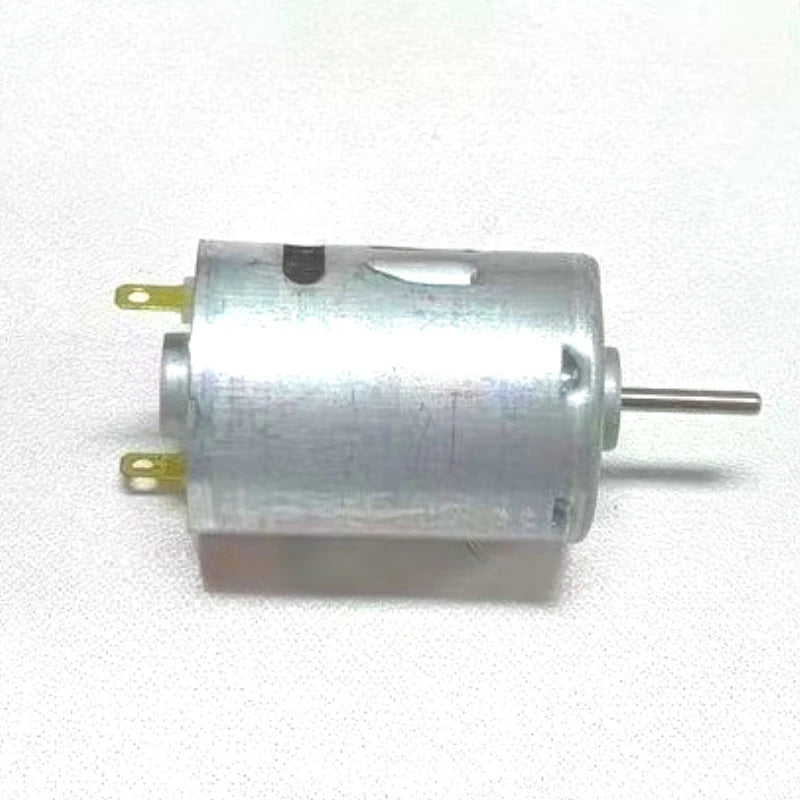

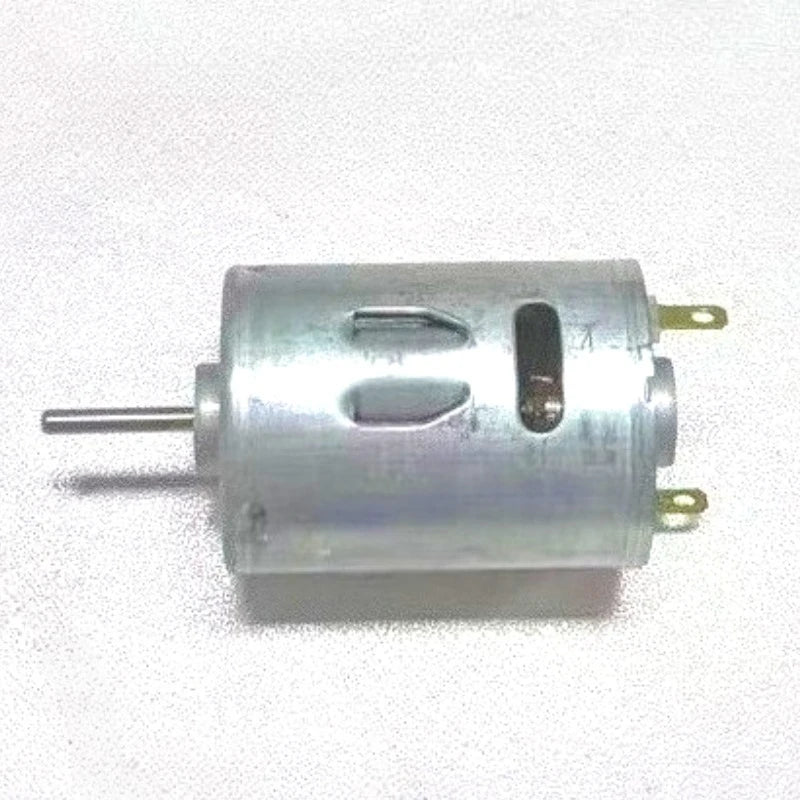

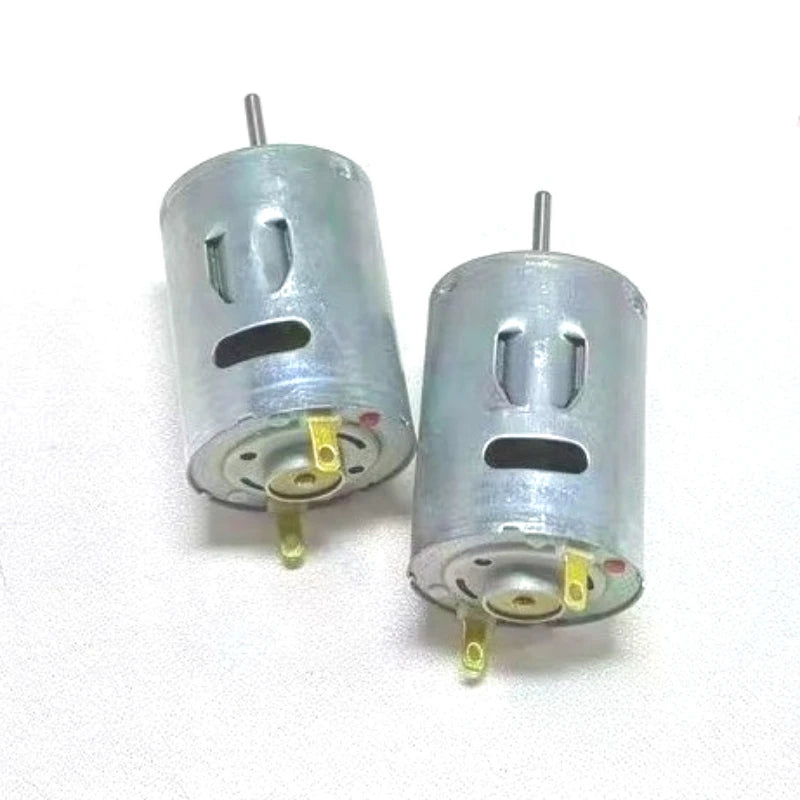

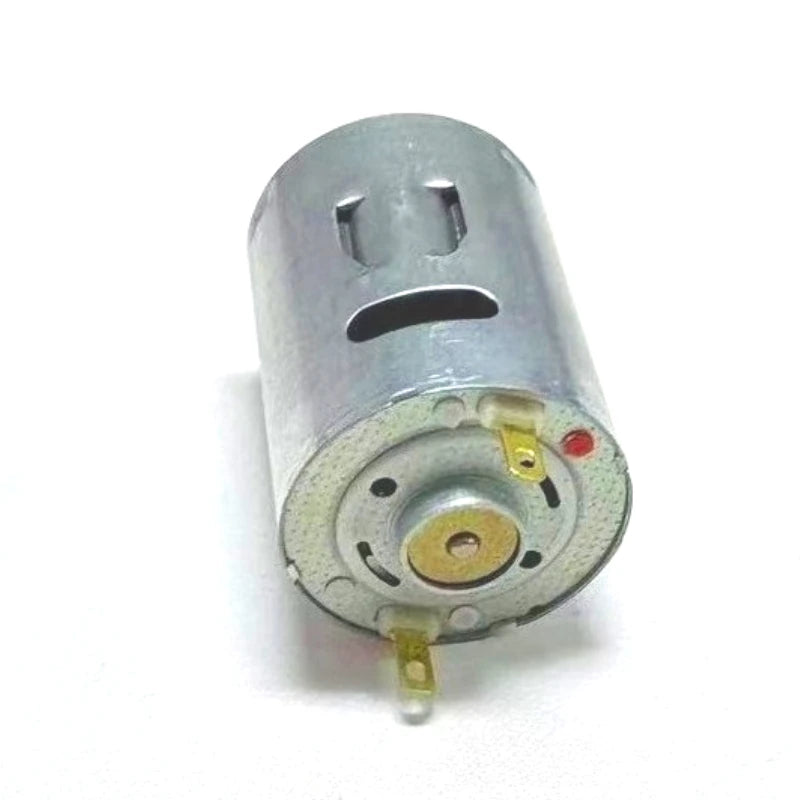

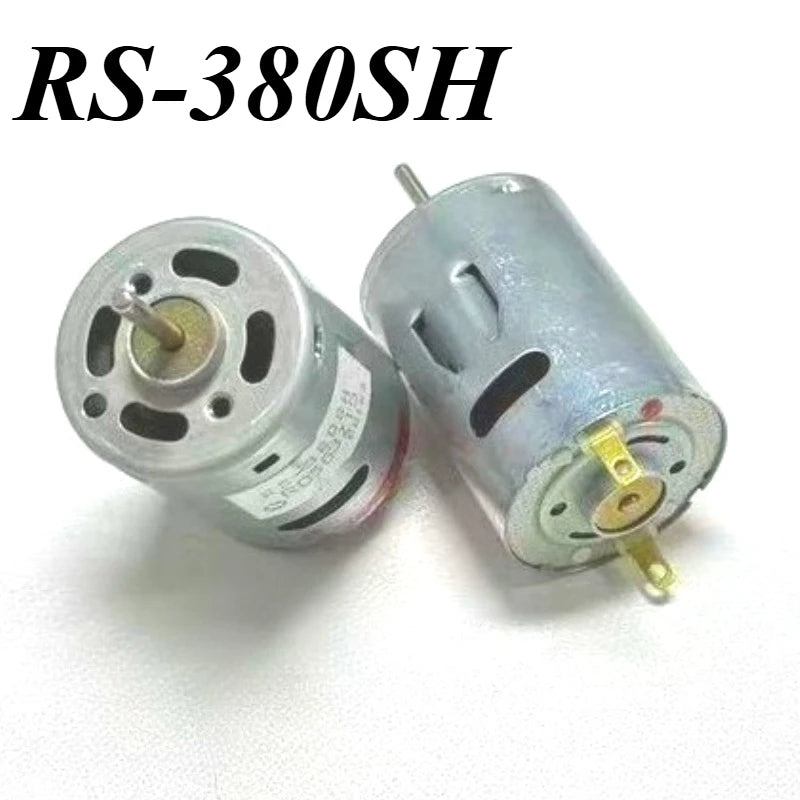

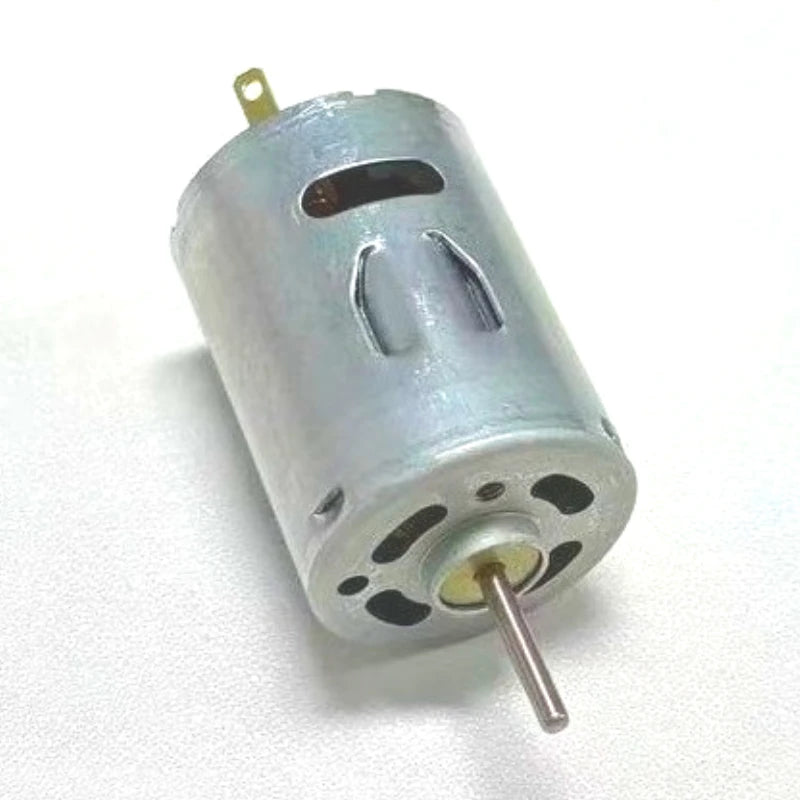

RS-380SH-20150 Brushed DC Motor

Build a small powered mechanism around an RS-380SH-20150 brushed DC motor. Its compact body and projecting shaft provide a starting point for a matched low-voltage mechanical project.

• ✅ Fit a small mechanism - the approximately 27.5 mm diameter body suits a compact design.
• ✅ Match the driven component - a 2.3 mm shaft can be compared with the intended coupling or gear.
• ✅ Choose the motor separately - integrate it with your own appropriate controller and supply.

Match the Electrical and Mechanical Requirements

Compare body size, mounting points, shaft length and load with your project. Supply requirements must be confirmed on the actual motor, particularly because starting and stalled current can be much greater than no-load current.

The motor is a component rather than a complete tool. No explosion-proof, fixed output-power or loaded-speed rating is established. Use a suitably protected supply and prevent access to moving parts in the finished assembly.

Technical details

• Model: RS-380SH-20150.
• Type: brushed permanent-magnet DC motor.
• Approximate body size: 27.5 x 37.4 mm.
• Shaft diameter: 2.3 mm; listed projecting length about 14.3 mm.
• Package: one motor; supply and coupling excluded.

Confirm the ratings and fit before adding the motor to your project.
