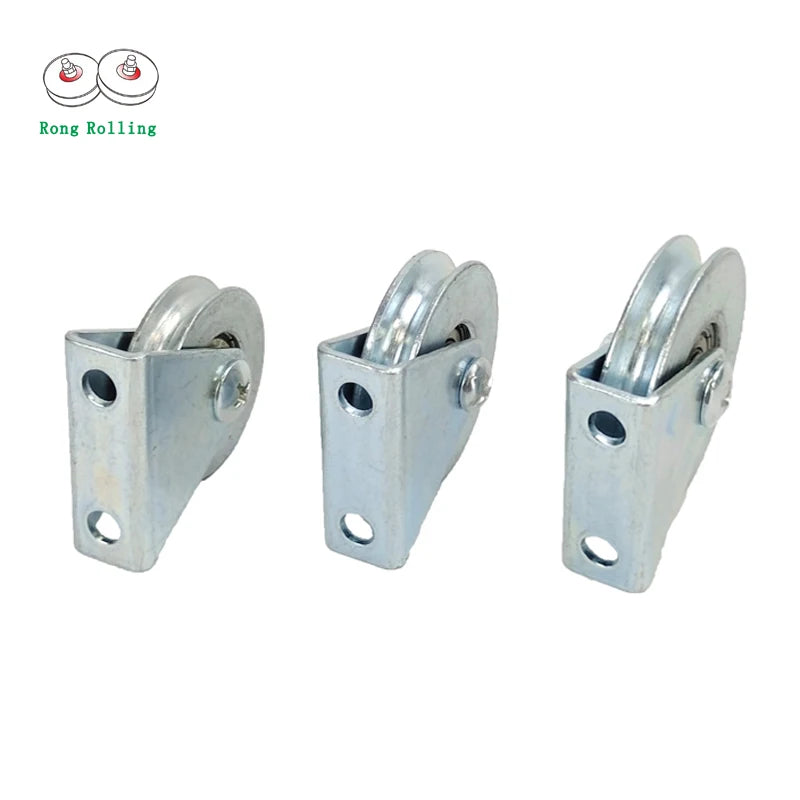

Fixed U-Groove Wire-Rope Pulleys, Pair

Guide a suitable wire rope through a fixed pulley arrangement with these bracket-mounted U-groove wheels. Three wheel diameters let you match the component to a planned mechanism.

✅ Keep the rope on a defined path - The U-groove provides a track for compatible wire rope.

✅ Support wheel rotation - A 635ZZ bearing sits inside each pulley.

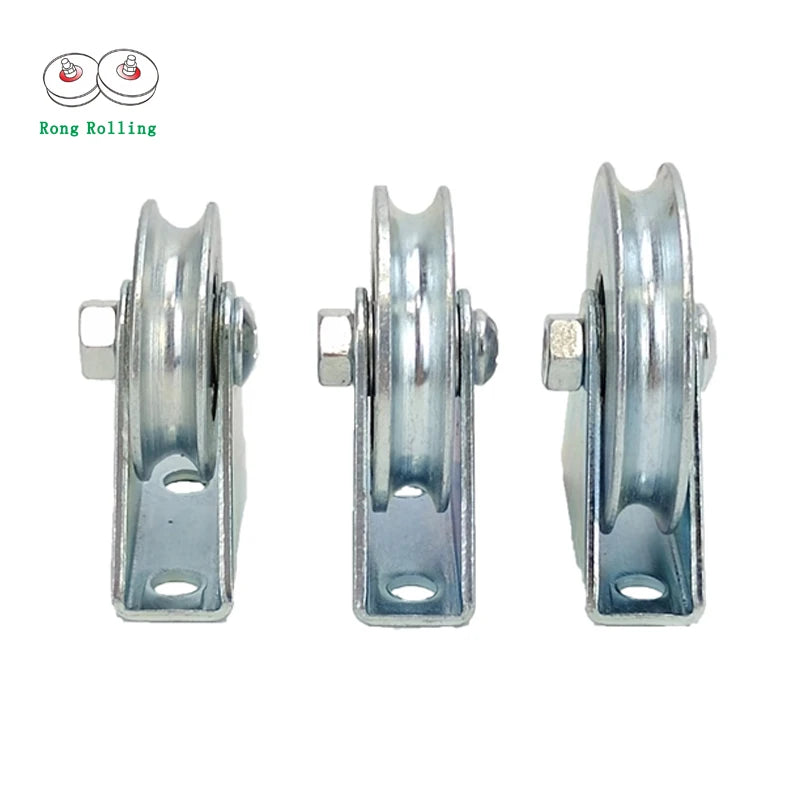

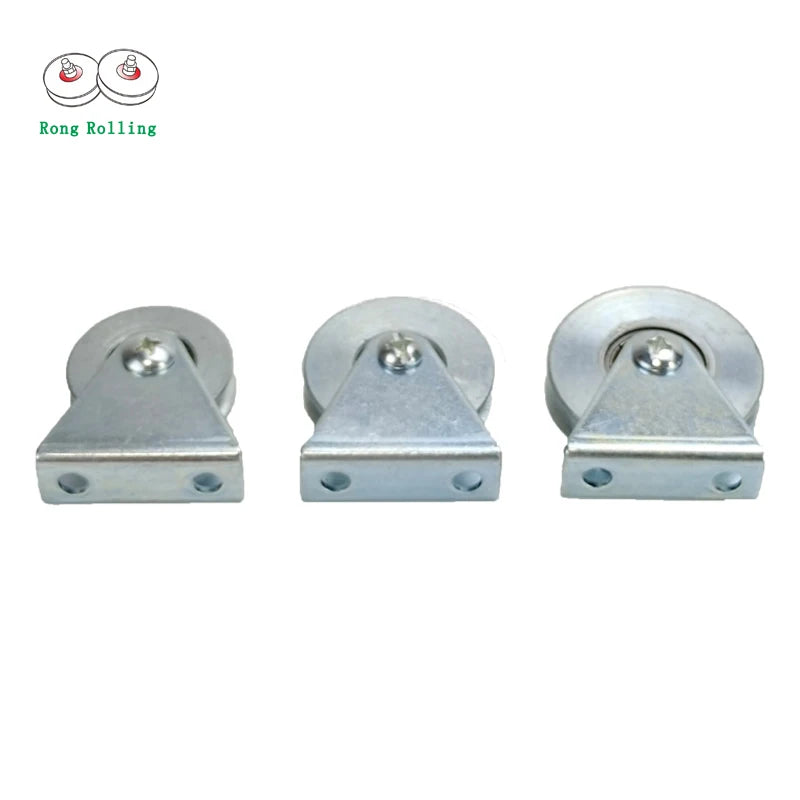

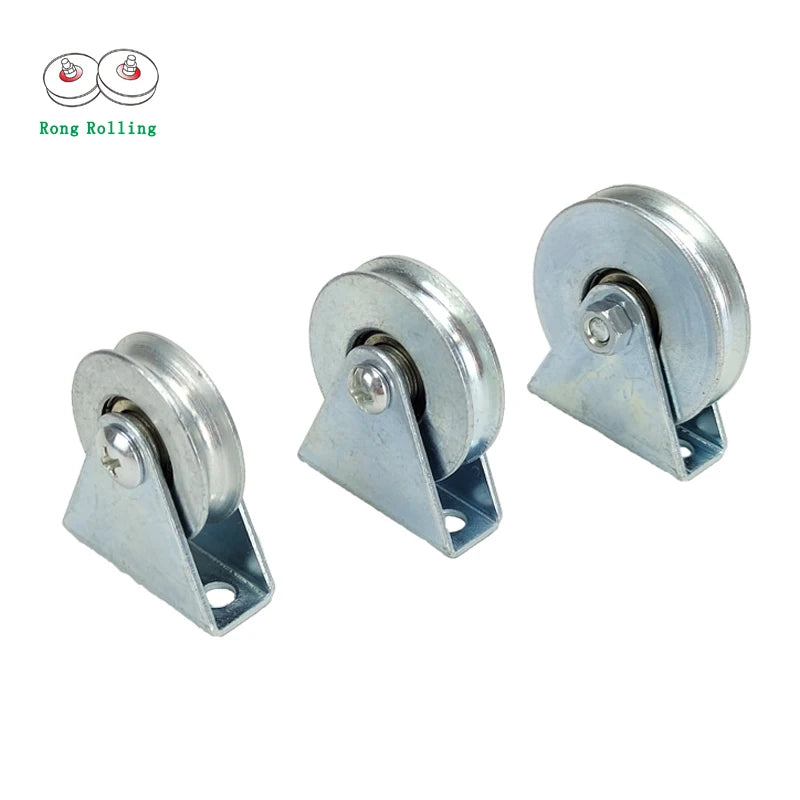

✅ Choose the wheel diameter - 30 mm, 35 mm and 40 mm options fit different layout needs.

Match the Rope, Bracket and Load Together

The pulley is specified for wire rope up to 3 mm diameter. Compare the bracket dimensions, groove and rope bend requirements with the mechanism before fitting.

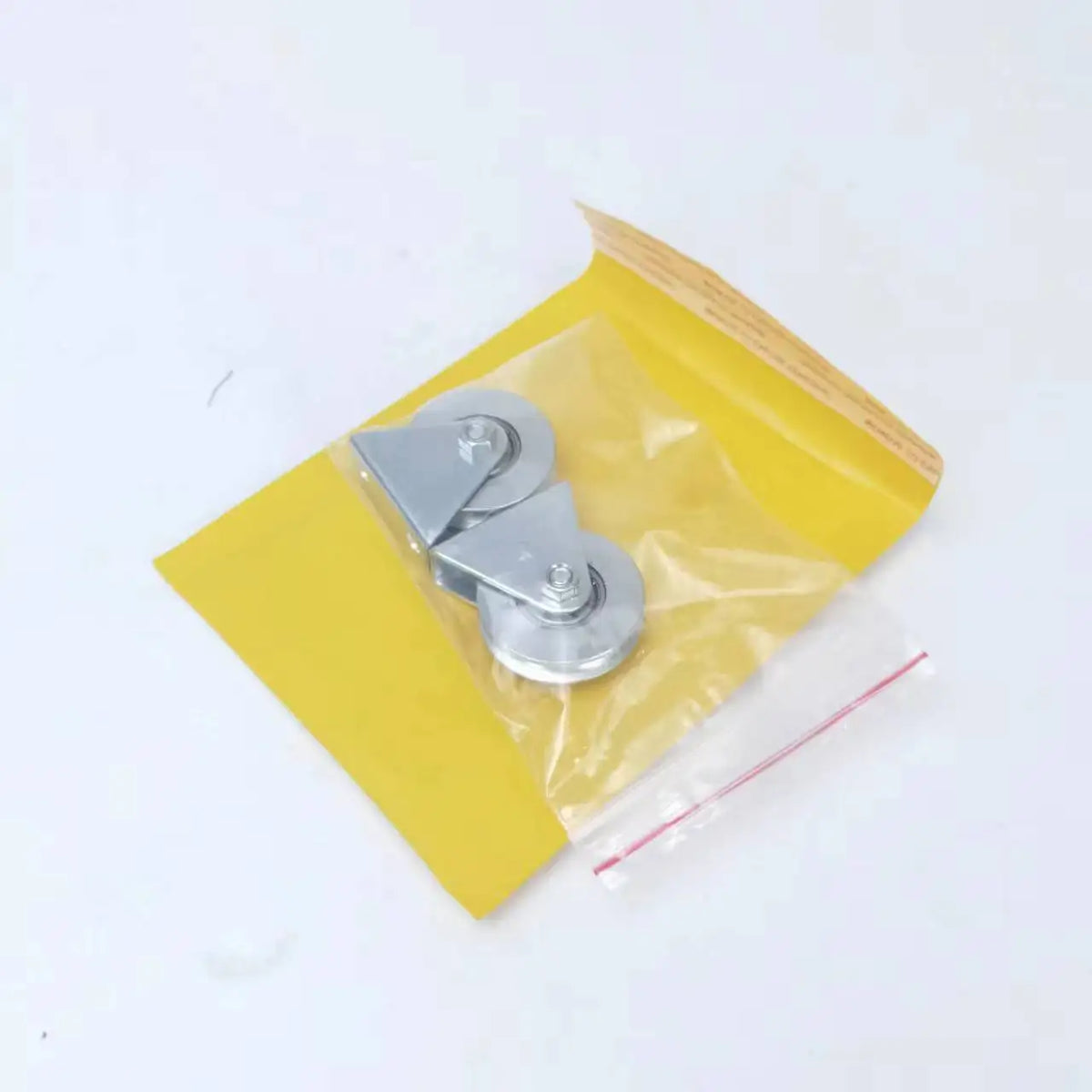

Each selected lot contains two pulleys. Secure the brackets appropriately and verify the complete assembly's working load and intended use before applying tension.

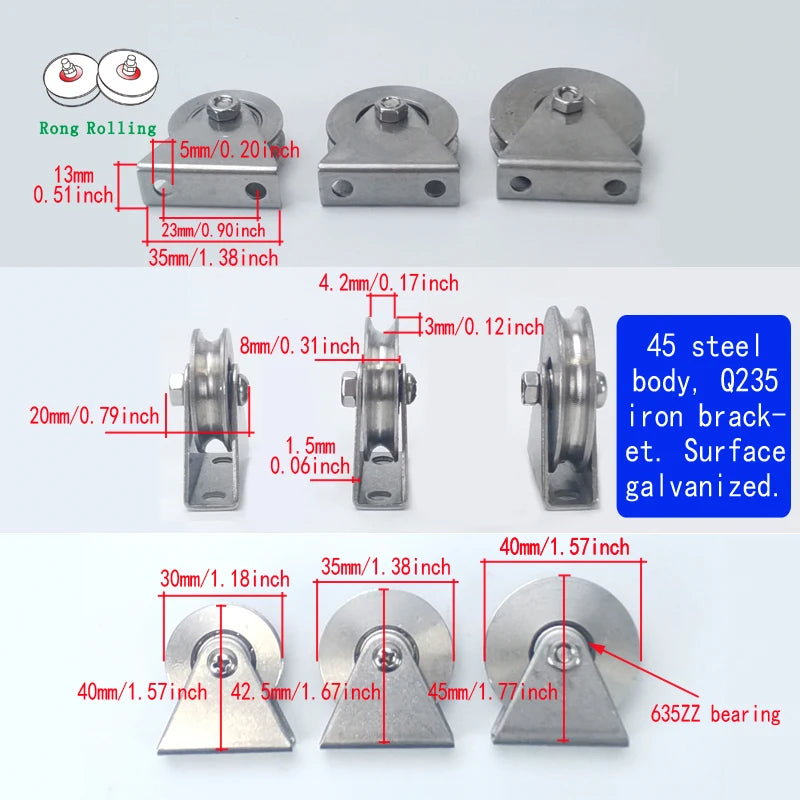

Technical details

• Pair of fixed U-groove pulleys

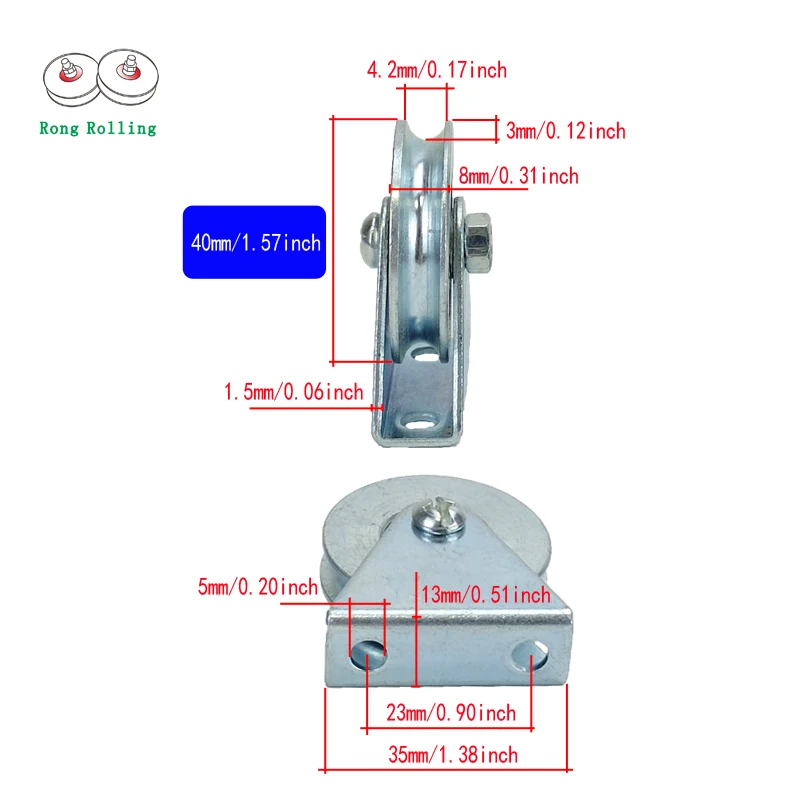

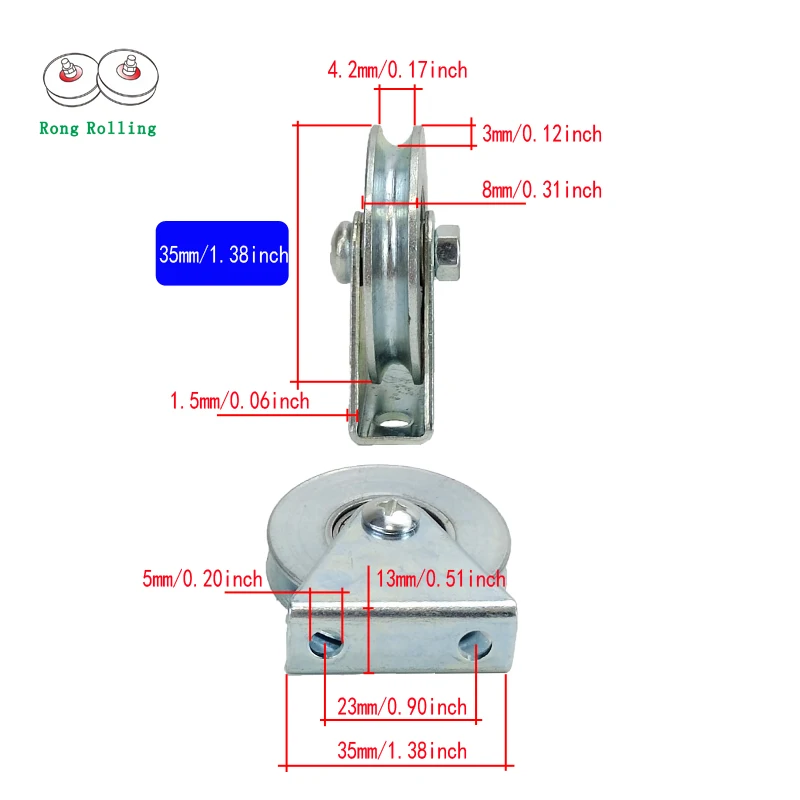

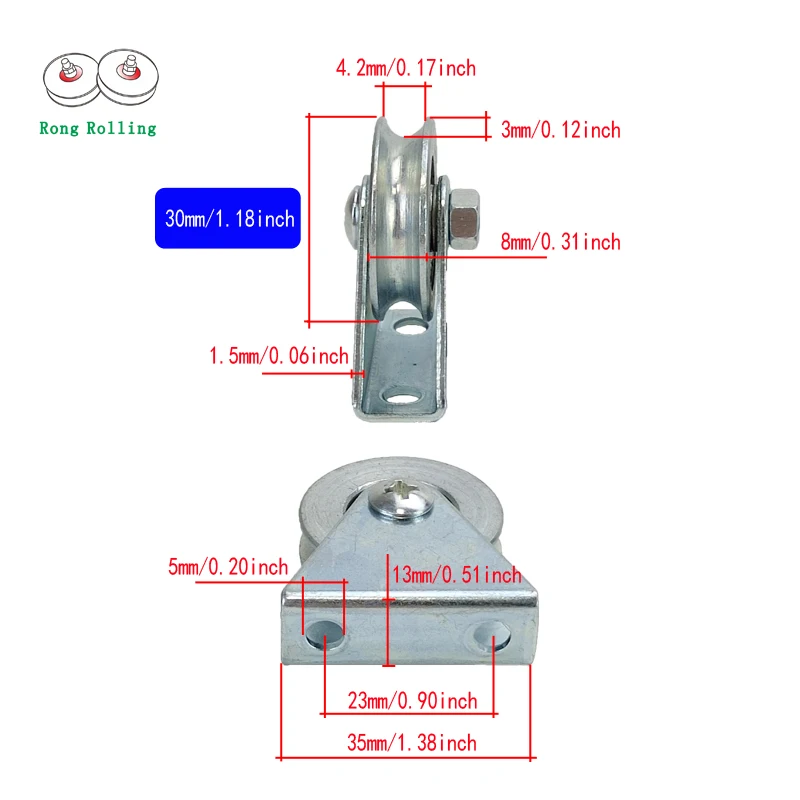

• 30 / 35 / 40 mm wheel options
• For wire rope up to 3 mm
• 45# steel wheel
• Q235 steel bracket
• 635ZZ bearing

Choose the pulley size for your compatible wire-rope mechanism.
