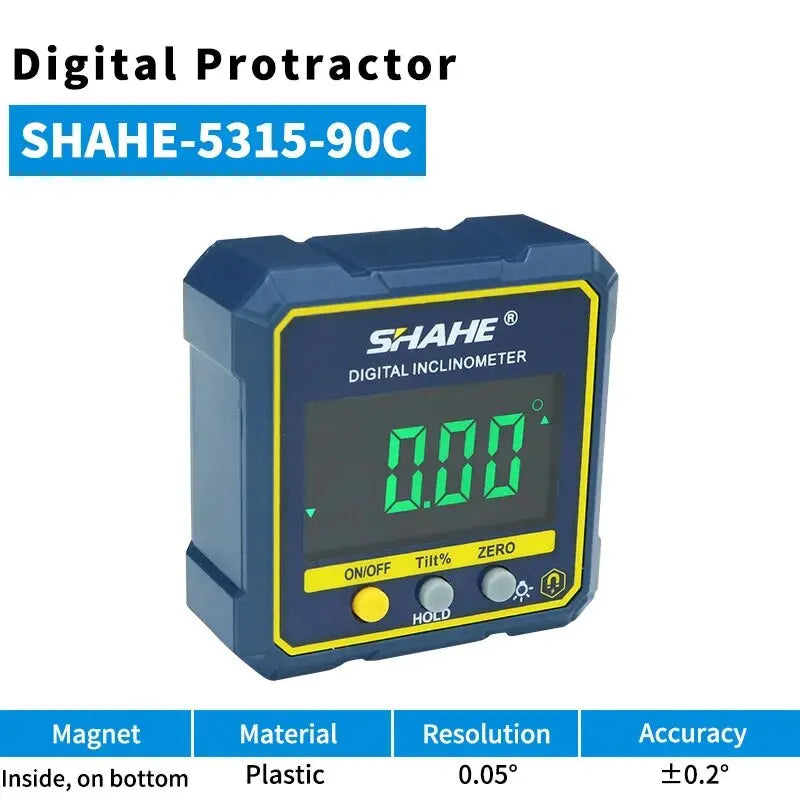

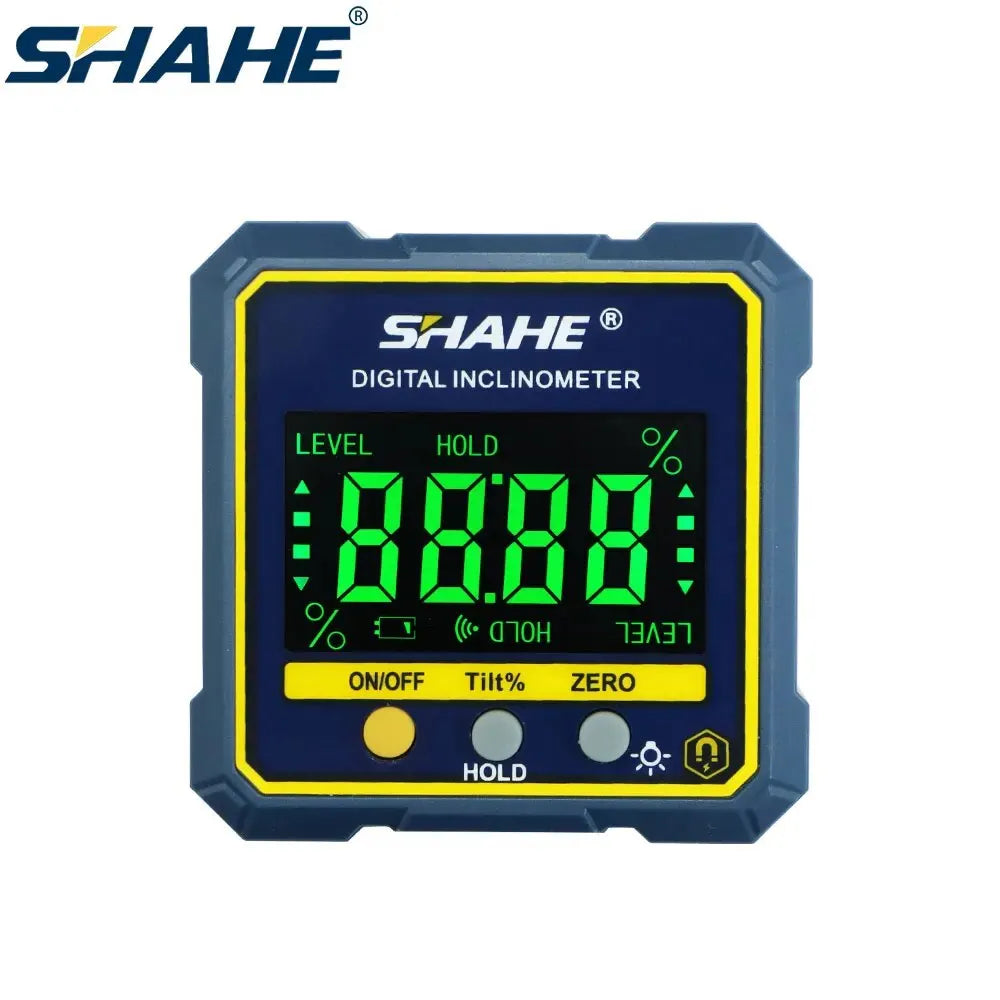

5315-90C Magnetic Digital Angle Gauge with Backlight
Compare a workpiece angle with your reference surface without reading a small mechanical scale. The 5315-90C digital angle gauge has a magnetic base for suitable ferrous surfaces and a backlit display. It is for DIY users checking angles and slope during setup.
- ✅ Compare against your starting surface — Set zero on a reference, then read the relative angle at the next position.
- ✅ Keep a reading to view — Use Hold before moving the gauge from an awkward measurement position.
- ✅ Attach to suitable steel — The magnetic base holds against a compatible ferrous surface while you check the display.
- ✅ Read from another orientation — The display reverses when the gauge is inverted, with a backlight for dim work areas.
Take the reference with you

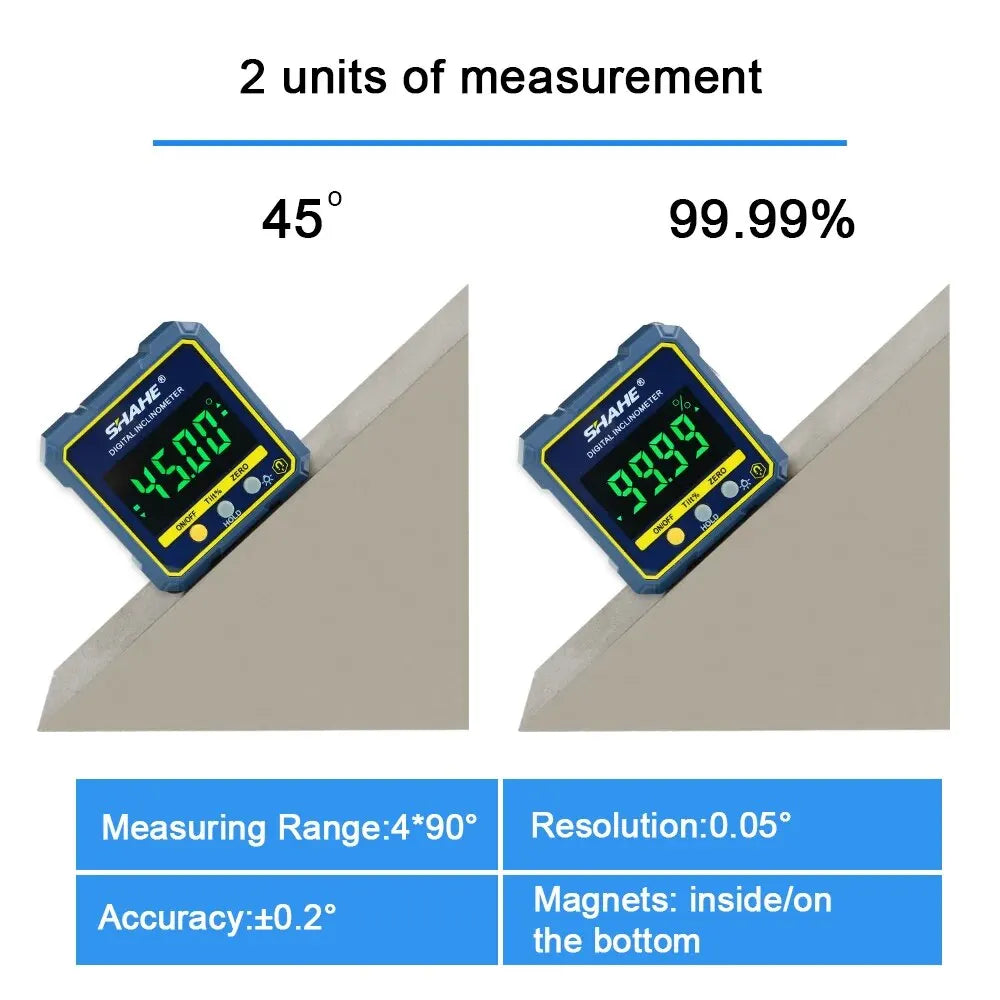

Use absolute measurement for an angle reading or set a local zero to compare two surfaces. The gauge can display degrees or percentage slope, making the same tool useful for different setup checks.
Place the base flat against the surface being measured. The magnet works on suitable ferrous materials, not every metal. When used near machinery, take readings with the equipment stopped and isolated rather than leaving the gauge attached during operation.
The package includes one gauge, screwdriver and instructions. Fit two AAA batteries before use; they are not included. The compact plastic body fits in a tool bag between measurements.
Use digital angle and slope readings with a reference zero when needed.

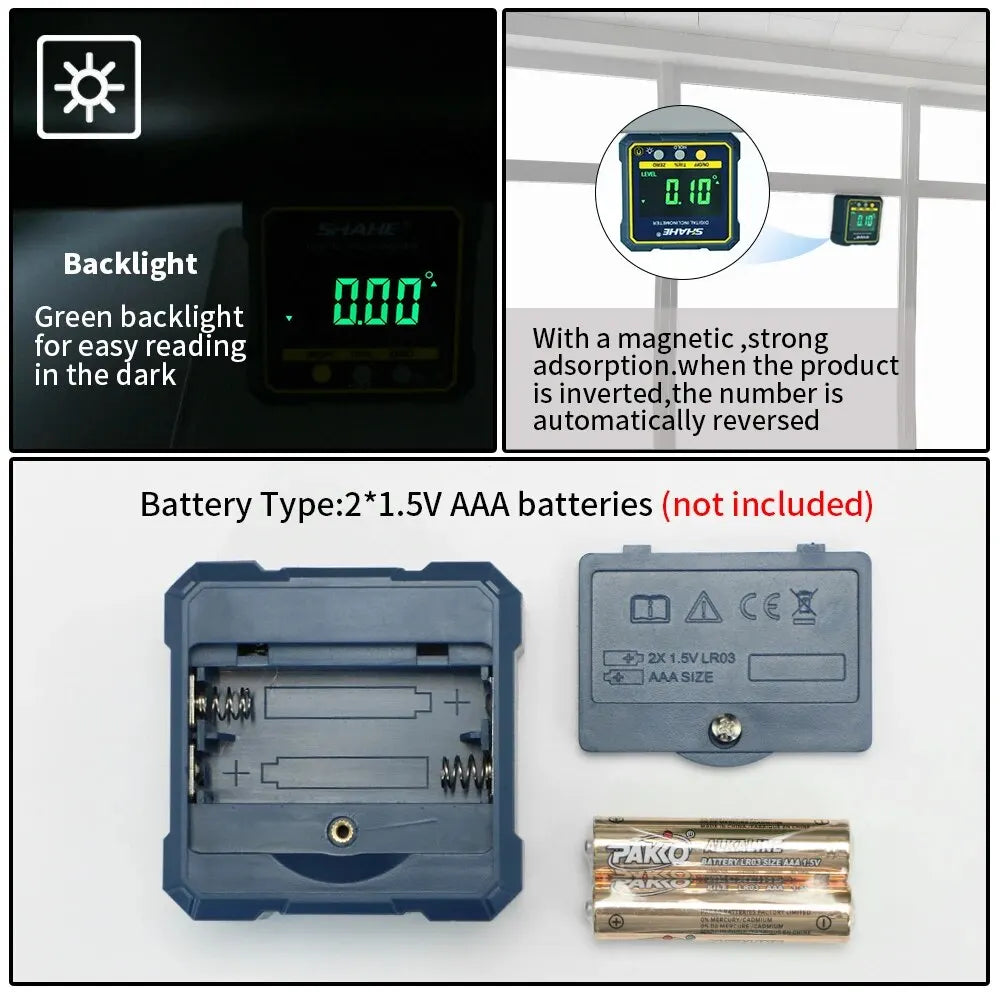

The backlit display makes the figures easier to see in a dim work area.

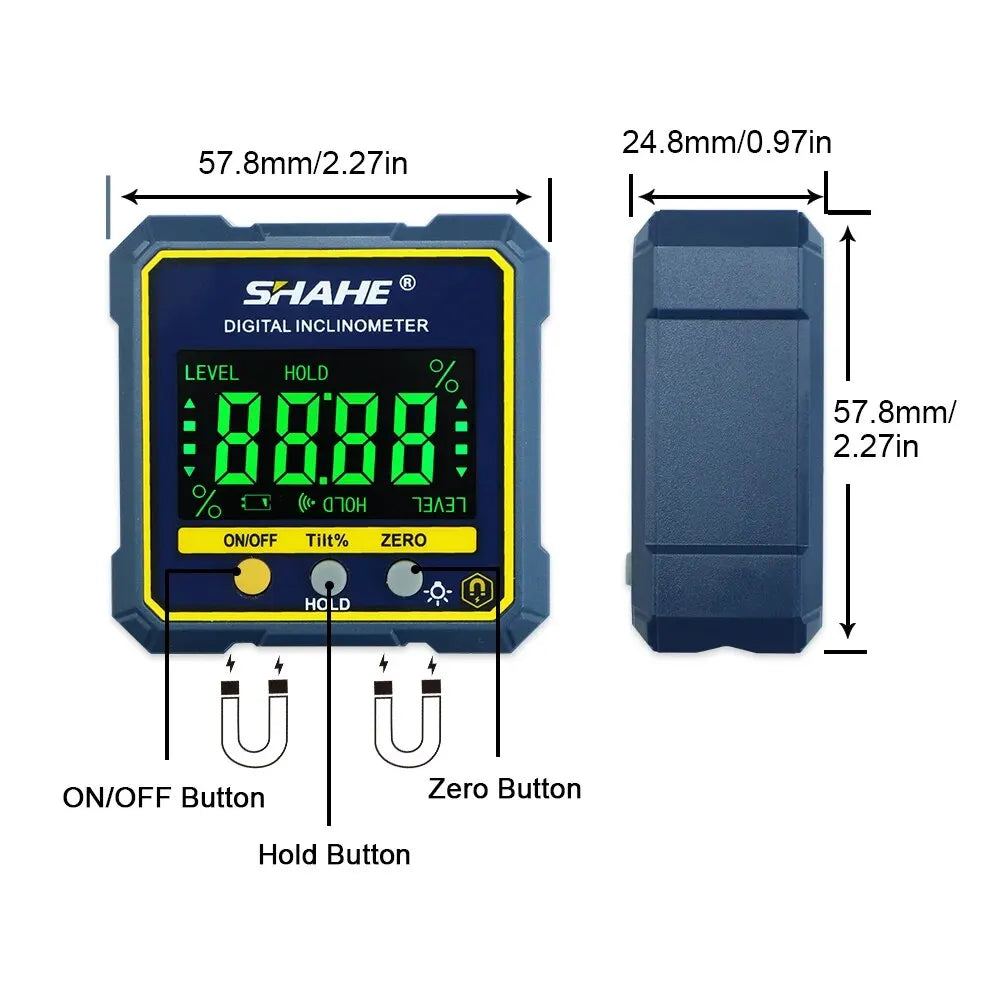

Hold, zero and display reversal help when taking measurements in different positions.
Check equipment angles only while the machinery is stopped and isolated.

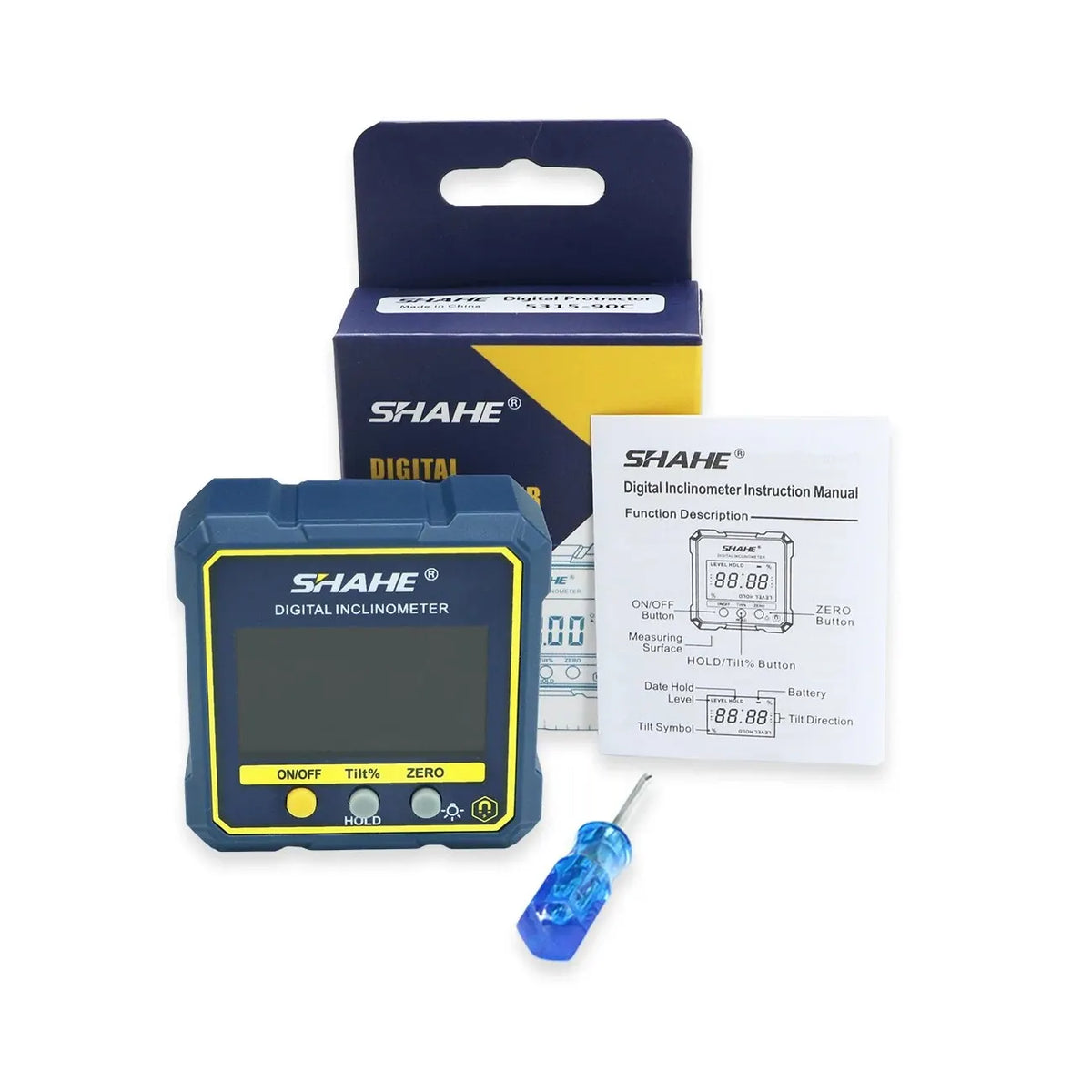

One gauge, screwdriver and instructions are supplied; AAA batteries are separate.
Technical details
- Model: 5315-90C
- Measurement range: 4 × 90°
- Stated accuracy: ±0.2°
- Display resolution: 0.05°
- Units: Degrees and percentage slope
- Functions: Relative zero, absolute measurement and Hold
- Display: Backlit, automatically reverses when inverted
- Base: Magnetic, for suitable ferrous surfaces
- Power: Two 1.5 V AAA batteries, not included
- Package: One gauge, screwdriver, instructions and box
Add a compact angle gauge to your kit for reference checks before the work begins.
