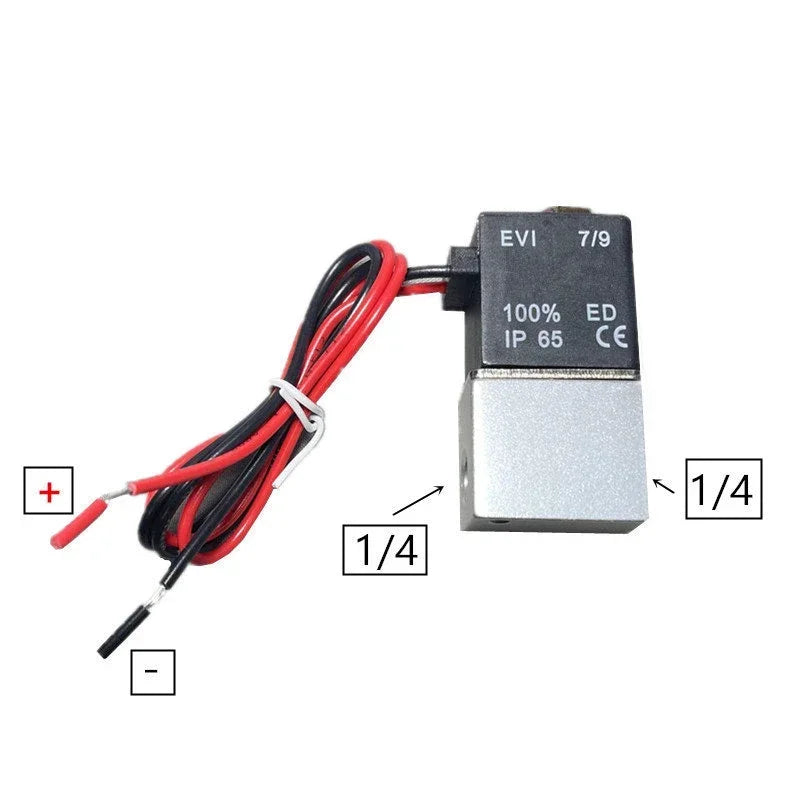

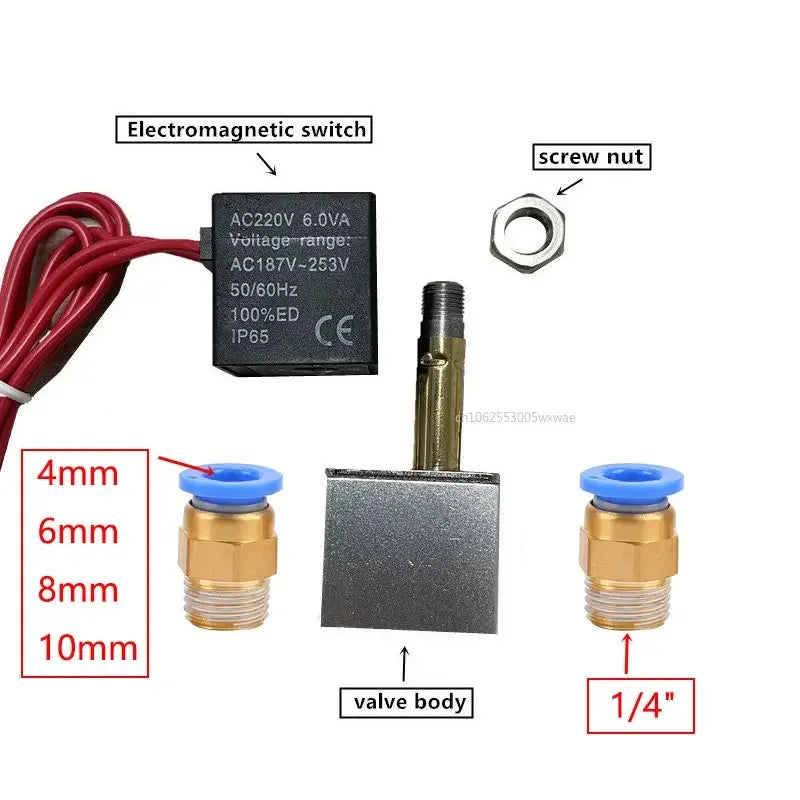

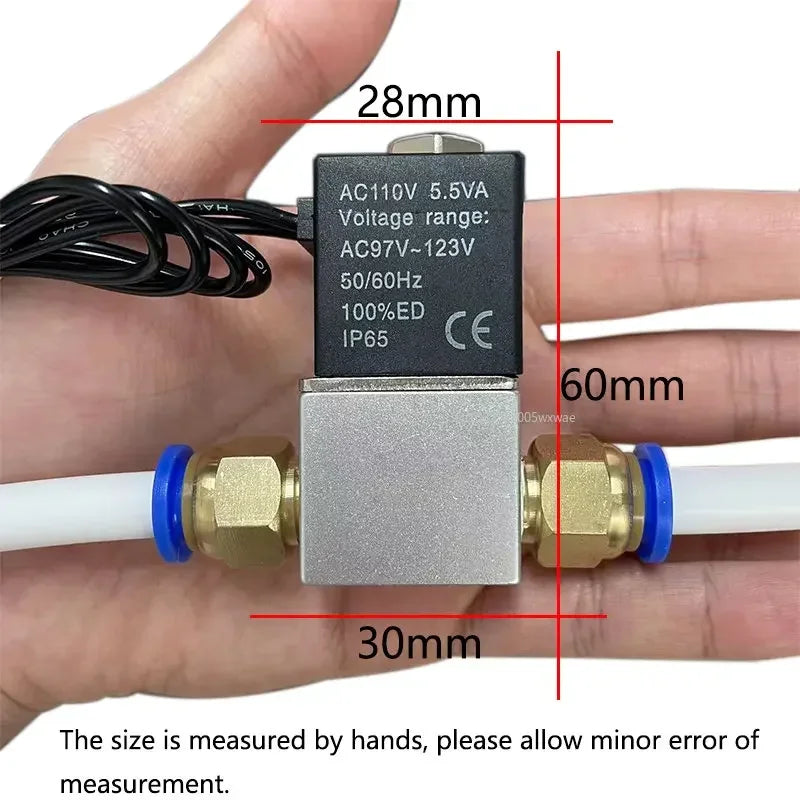

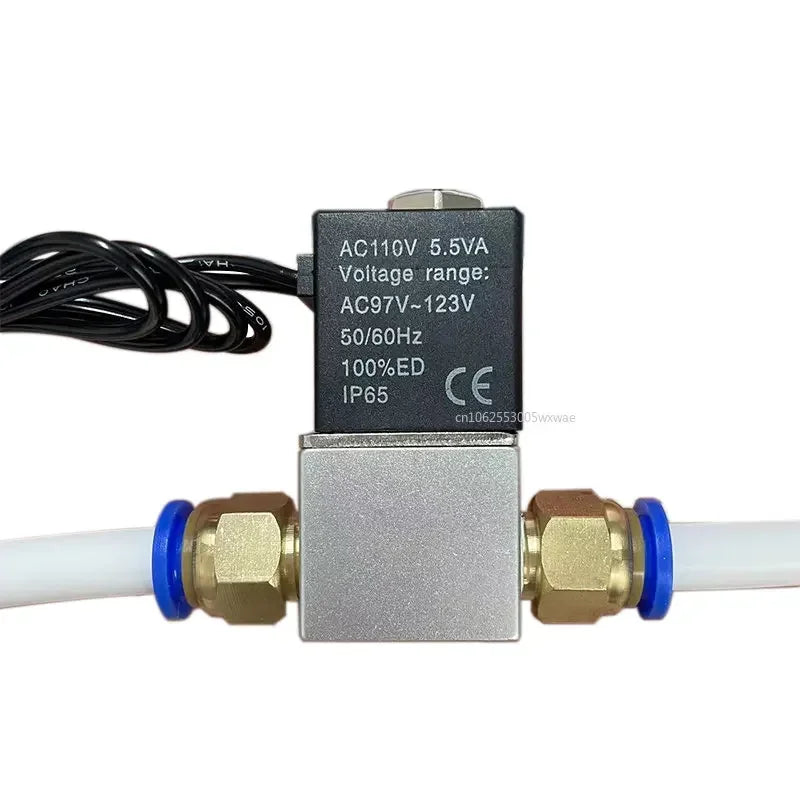

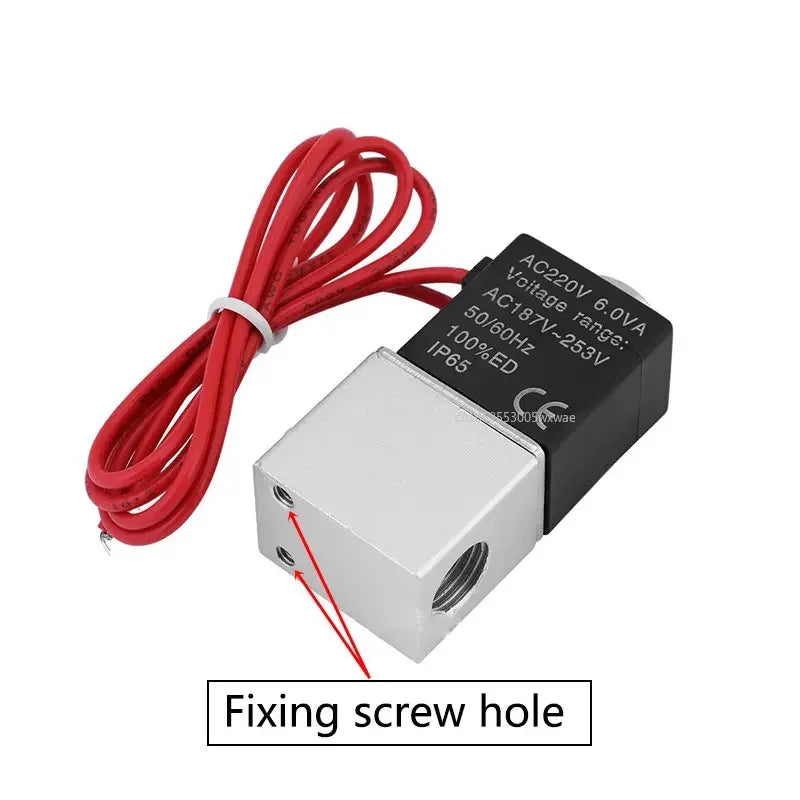

2V025 Normally Closed 1/4-Inch Solenoid Valve
Control flow in a compatible gas or water system with a normally closed 2V025 valve. The two-way valve opens when its correctly rated coil is energised.
✅ Control flow electrically - A matching control circuit can switch the valve open.
✅ Return to the closed state - The normally closed design closes when coil power is removed.
✅ Match the supply and fittings - Separate coil-voltage and connection selections suit different installations.
Choose the Coil Voltage Before Ordering

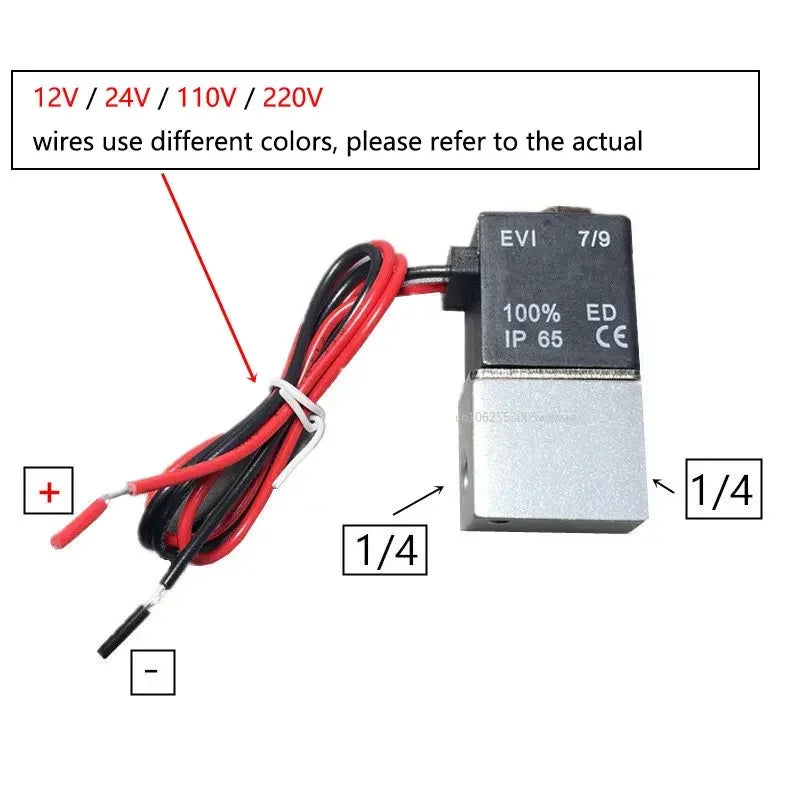

Select DC 12 V, DC 24 V, AC 110 V or AC 220 V to match the actual supply. These coil versions are different products and must not be interchanged.

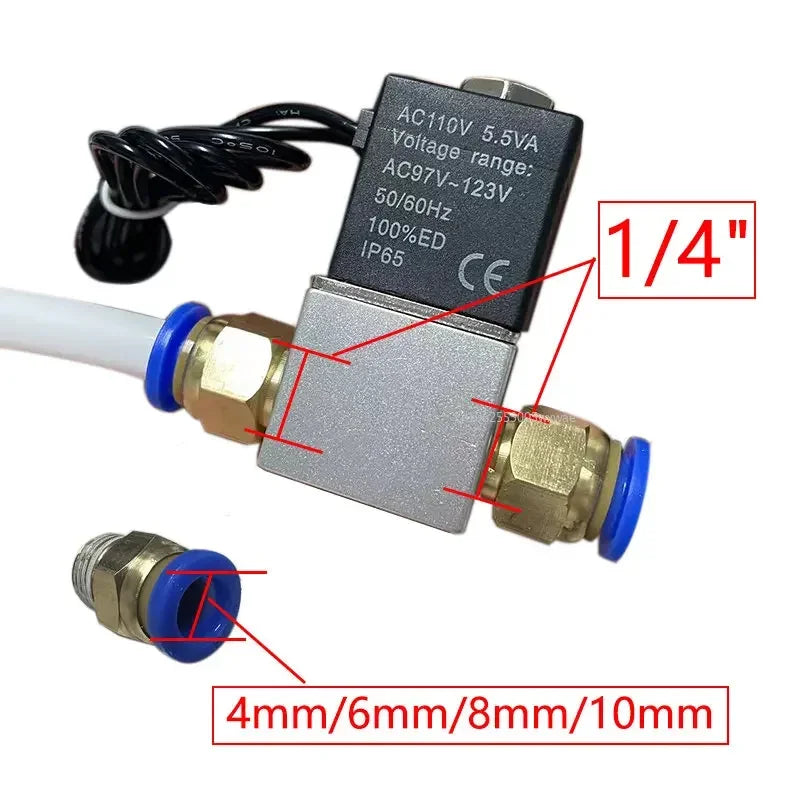

The valve has 1/4-inch female ports, with joint-size options shown separately. Check medium compatibility, pressure, temperature and fitting dimensions before installation.
Technical details
- Model 2V025-1/4
- Two-way, normally closed
- 1/4-inch female ports
- Gas / water applications
- -5 to 70 C working range
- 0-8 kgf/cm2 operating pressure
- Coil voltage and joints vary by selection
Choose a correctly matched valve for your flow-control project.
