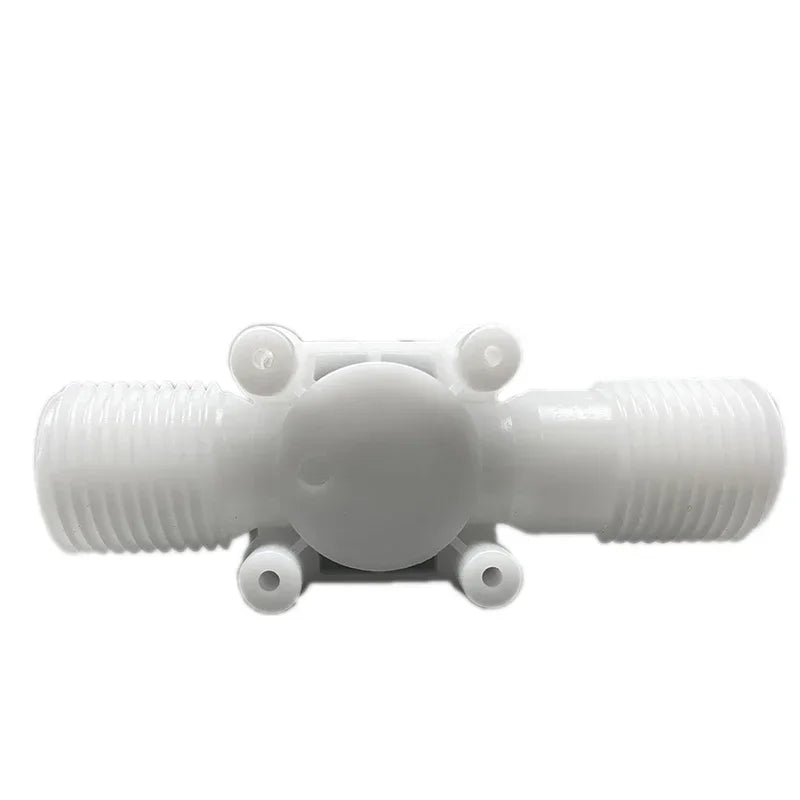

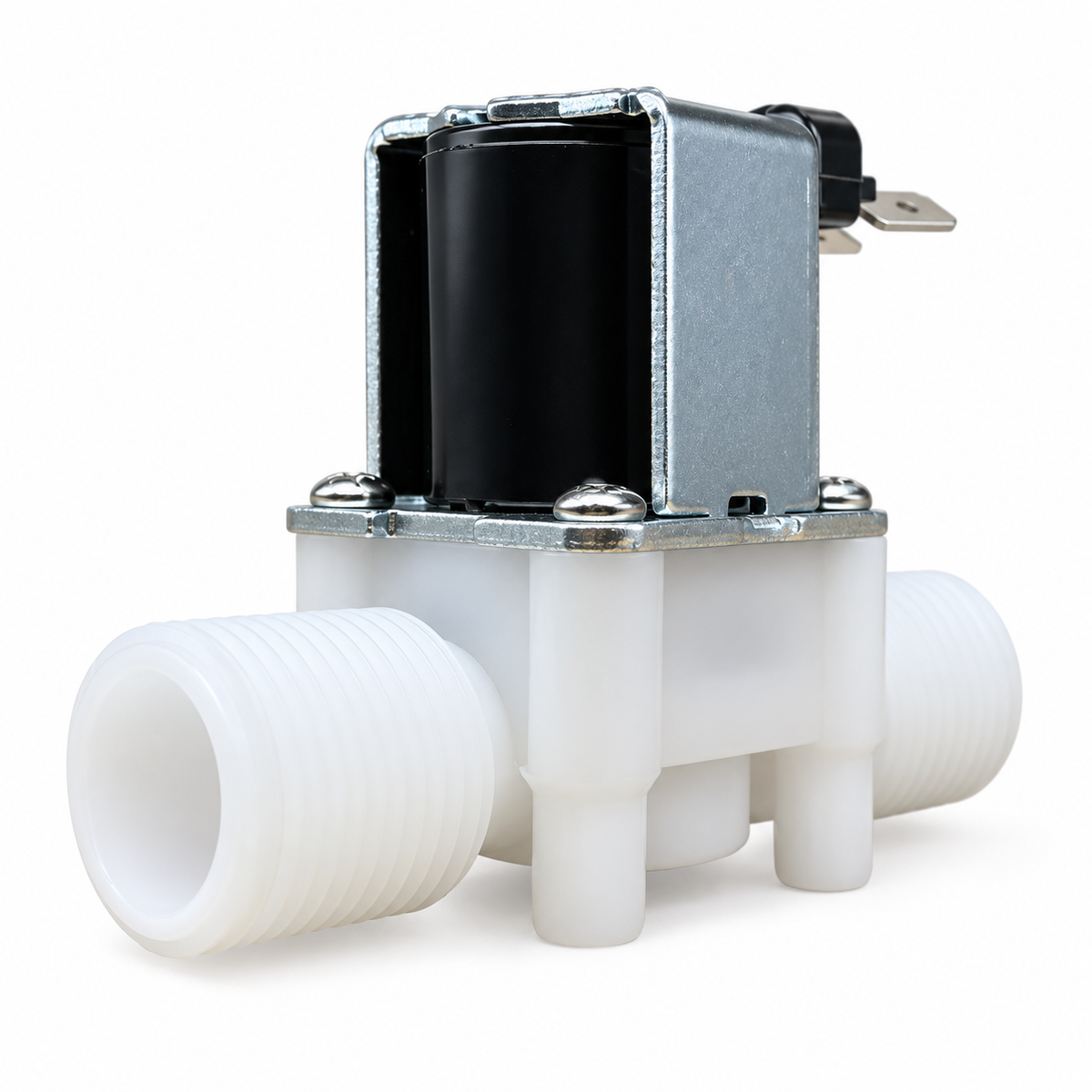

Water Solenoid Valve - Voltage and Thread Options

Switch a suitable water line electrically instead of turning a manual valve for every cycle. This solenoid-valve range offers normally closed or normally open operation, with several coil voltages and two male-thread sizes for a matching installation.

✅ Put water flow under electrical control - The solenoid operates the valve in response to the correct supply.

✅ Choose the unpowered state - NO and NC options match different requirements for what happens when power is absent.

Choose the Valve Around the Control Plan

An automated water arrangement needs a valve that matches both the pipe and the control output. Selecting the resting state first helps define how the line behaves before the controller energises it.

Then match the coil voltage and thread size to the installation. The listed working pressure starts at 0.02 MPa, so this is not a confirmed zero-pressure valve; use it only with suitable media, pressure and electrical conditions.

Technical details

• Media: water or compatible low-viscosity liquid

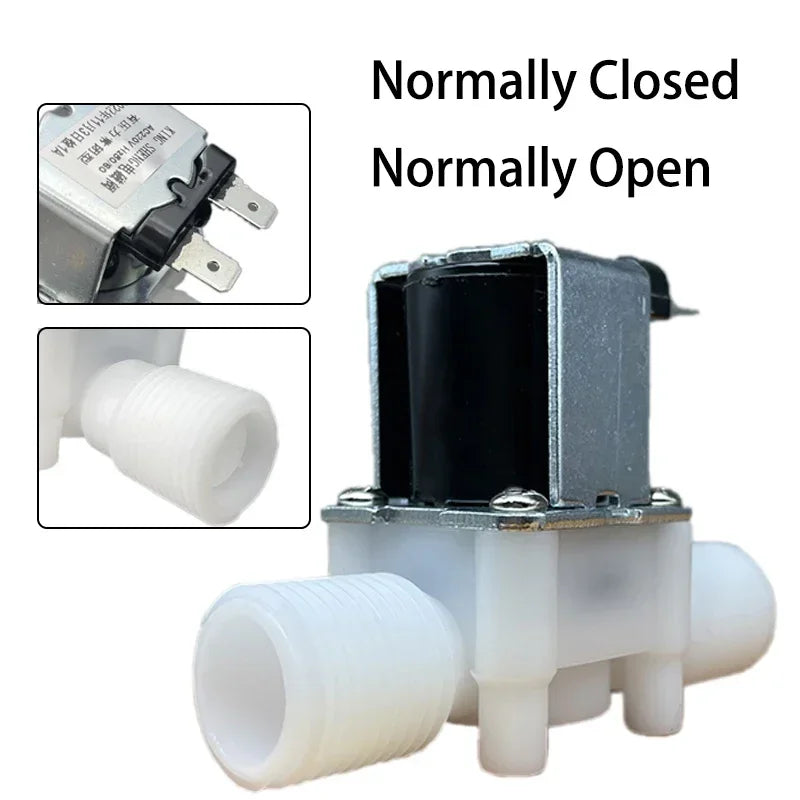

• States: Normally Closed or Normally Open

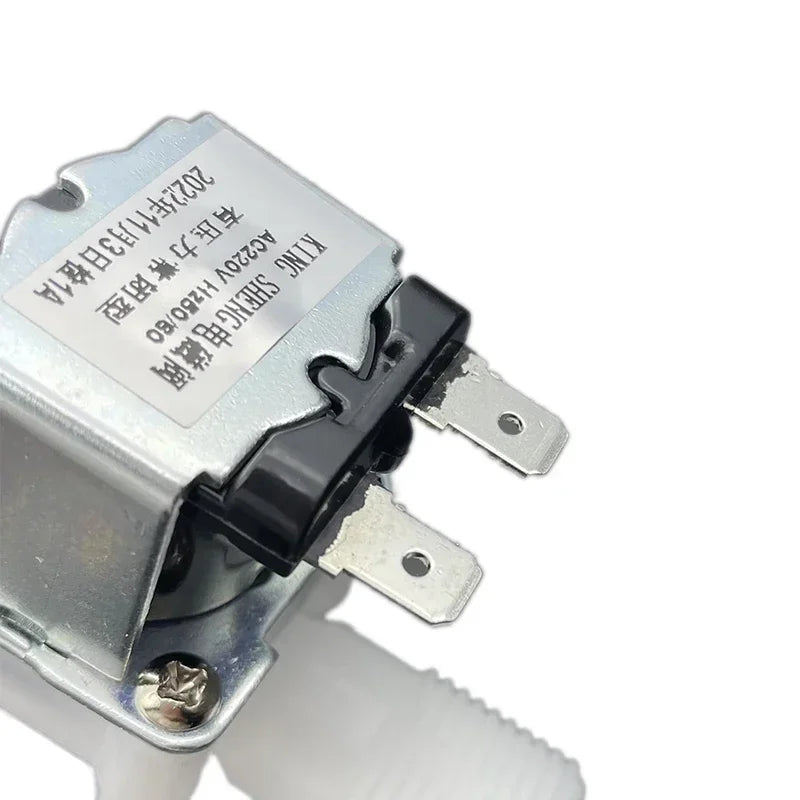

• Coils: 12 V DC, 24 V DC or 220 V AC

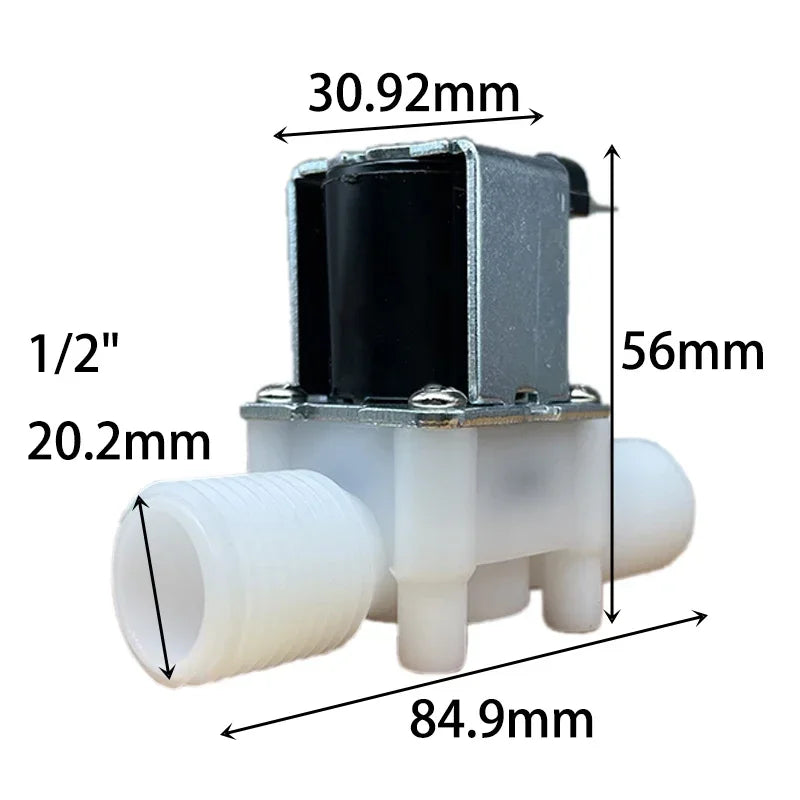

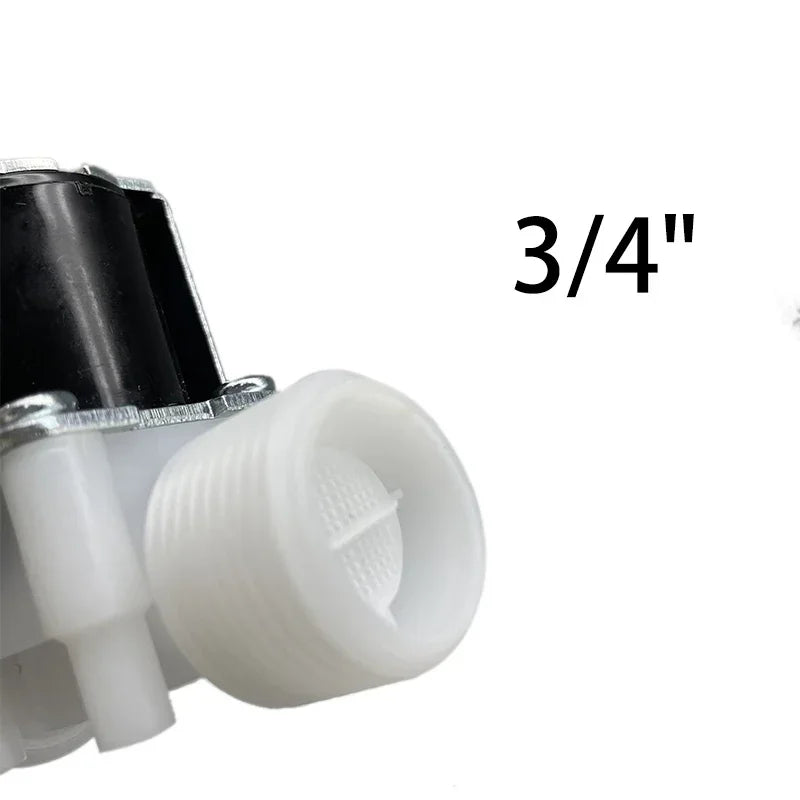

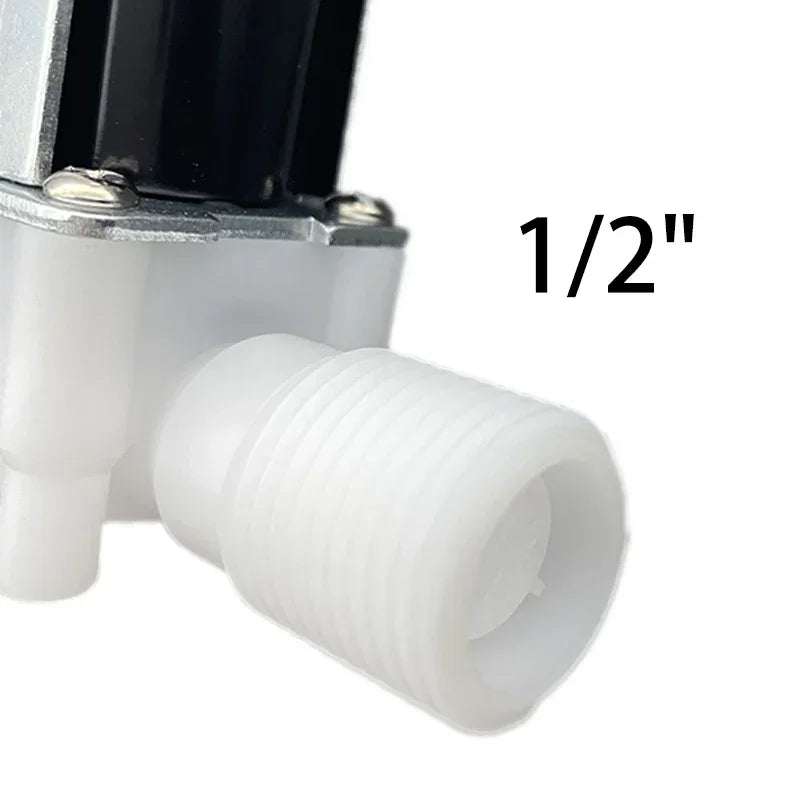

• Male-thread options: 1/2 inch or 3/4 inch
• Listed pressure: 0.02-0.8 MPa
• Package: one selected valve

Select the state, voltage and thread together before adding electrical control to the water line.
