SK23D05 8-Pin 2P3T PCB Slide Switches

Select between three circuit positions with an SK23D05 PCB slide switch. Two actuator styles let you match the switch to the available space and access in your electronics project.

Match the slide control to your PCB layout

• ✅ The three-position mechanism gives you a manual selection point in a compatible circuit.
• ✅ PCB pins allow the component to be fitted to a matching board footprint.
• ✅ Choose the pictured A or B actuator style to suit the control opening.

Model: SK23D05. Configuration: 2P3T, three positions, eight pins. A and B have different actuator heights as pictured. The mixed A/B option contains five of each style. Match the electrical configuration, pin footprint and dimensions to your board before assembly.

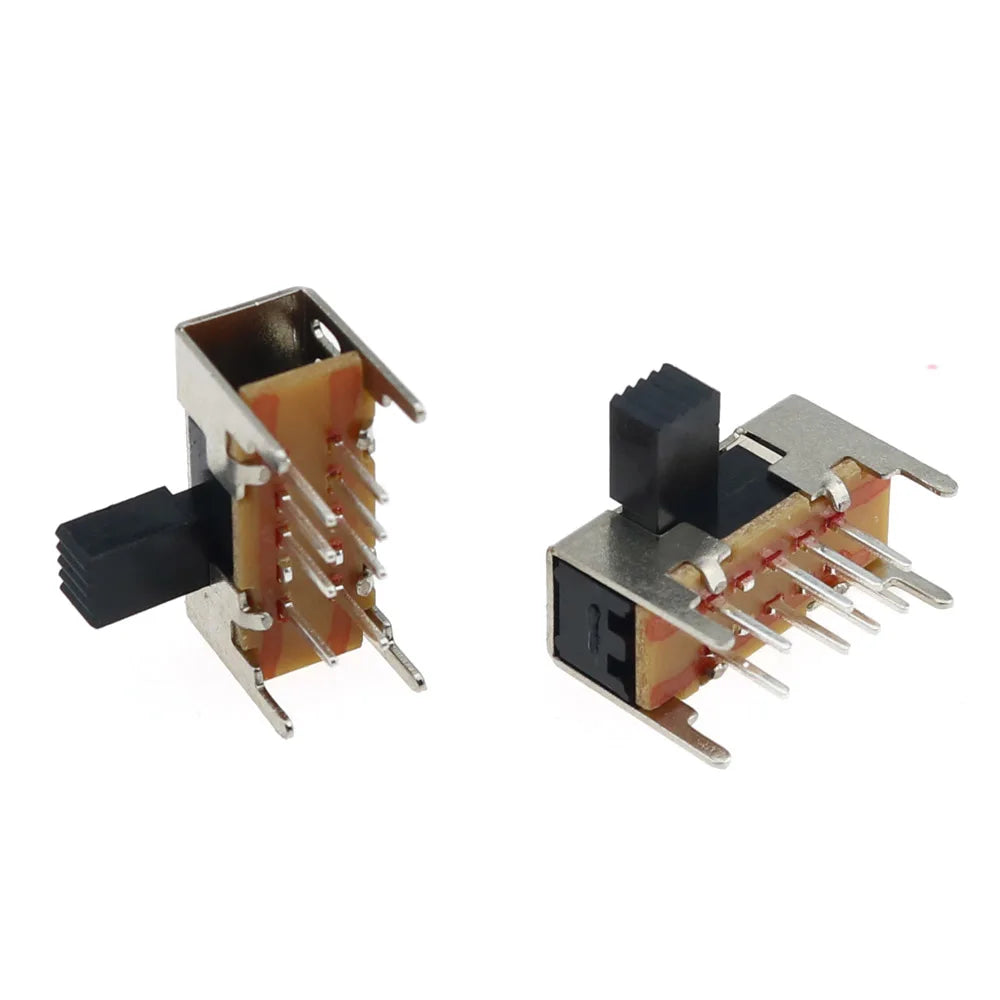

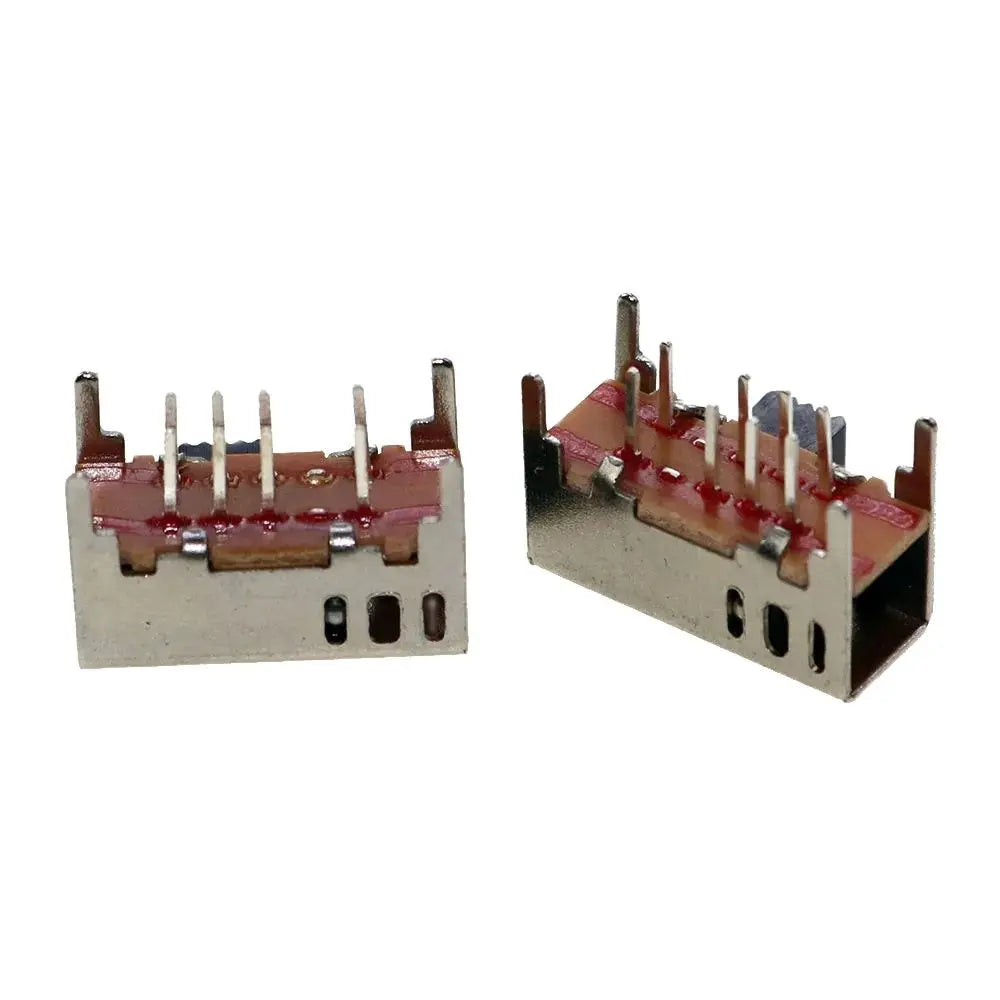

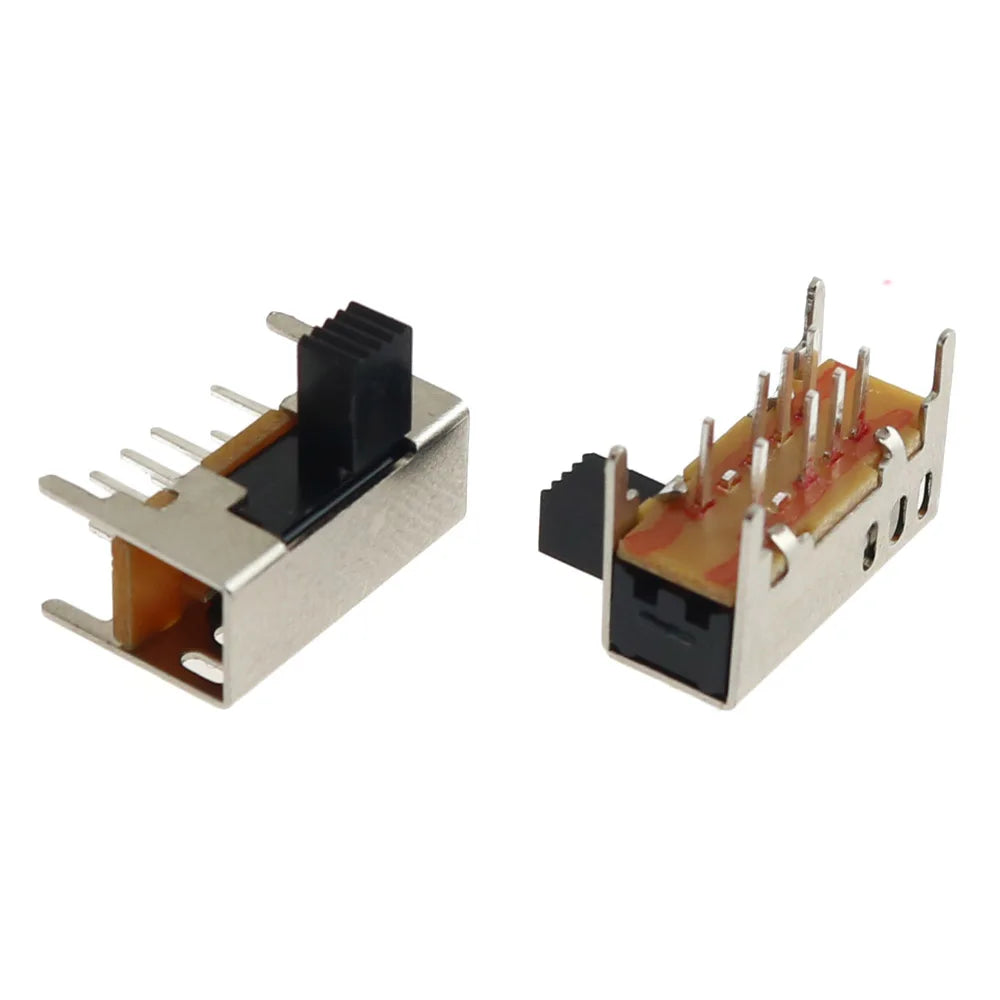

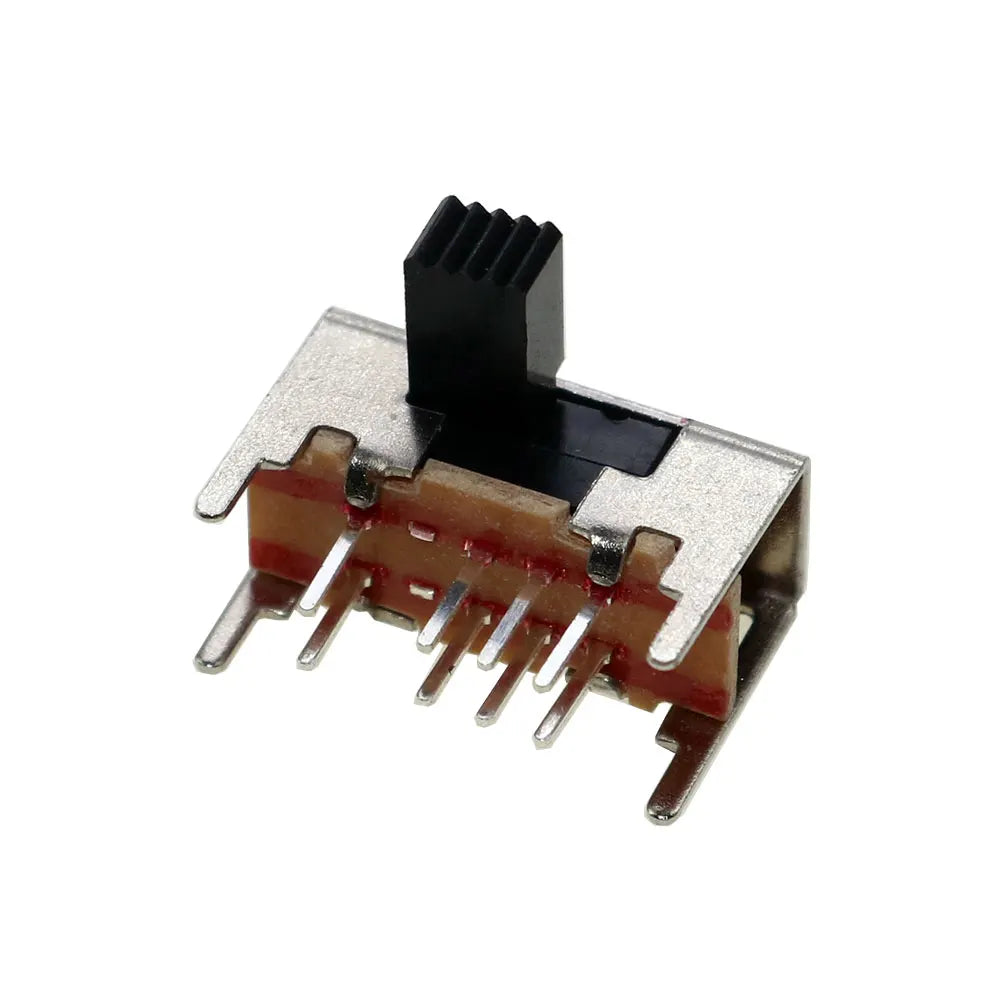

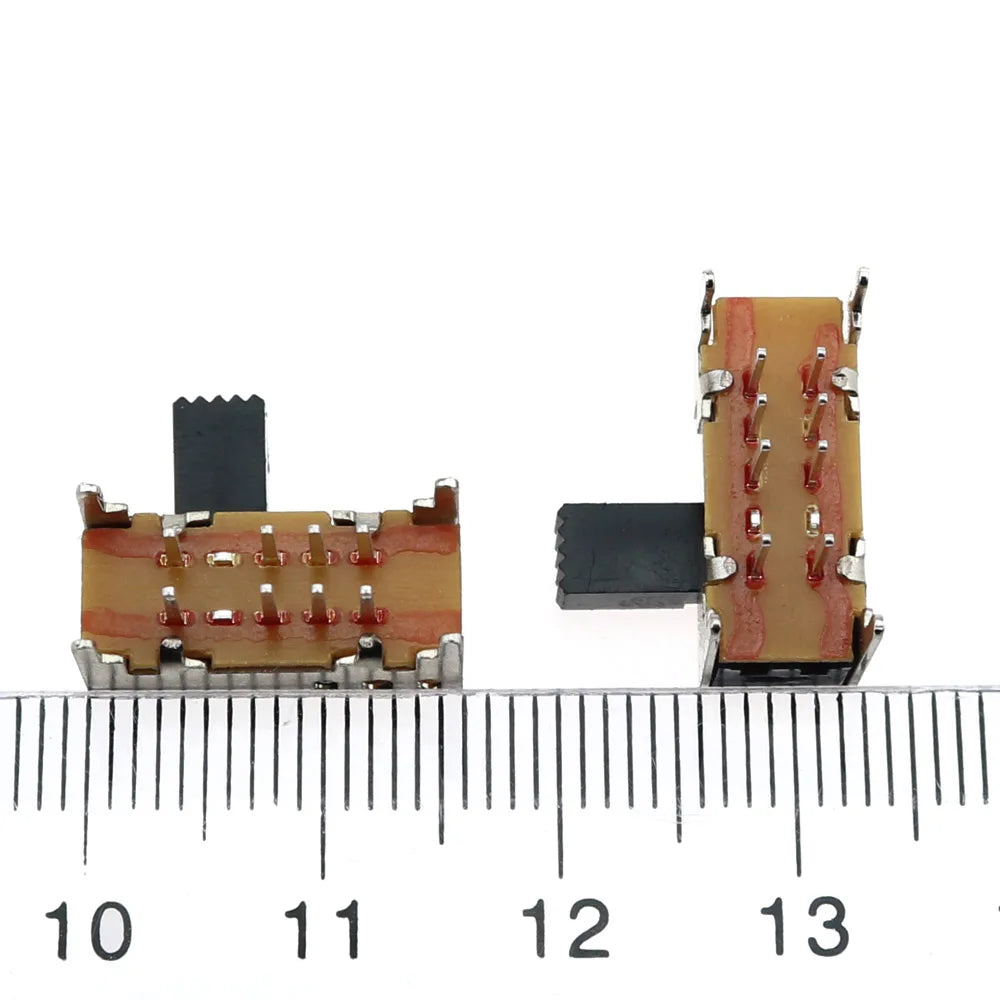

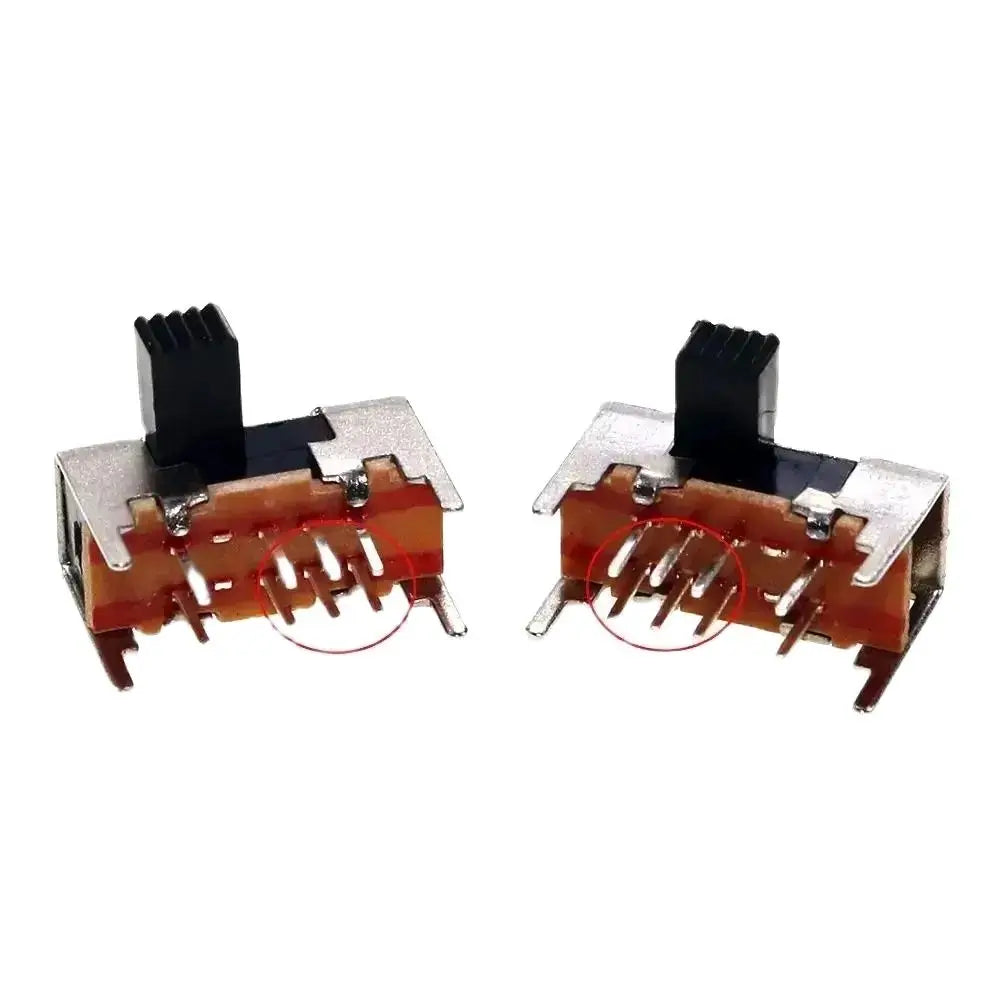

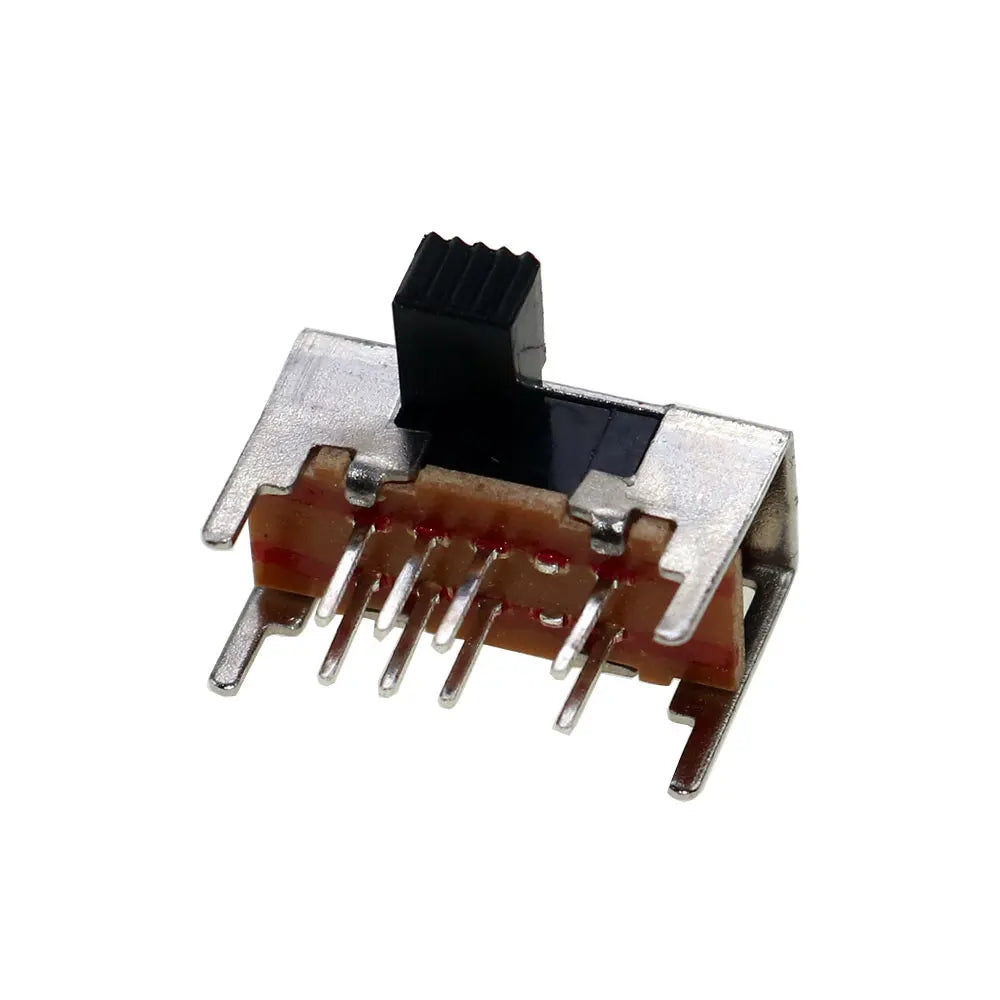

The photographs compare switch styles and viewing angles; they do not show a complete assembled device.

Check your PCB footprint and choose the matching switch style.
