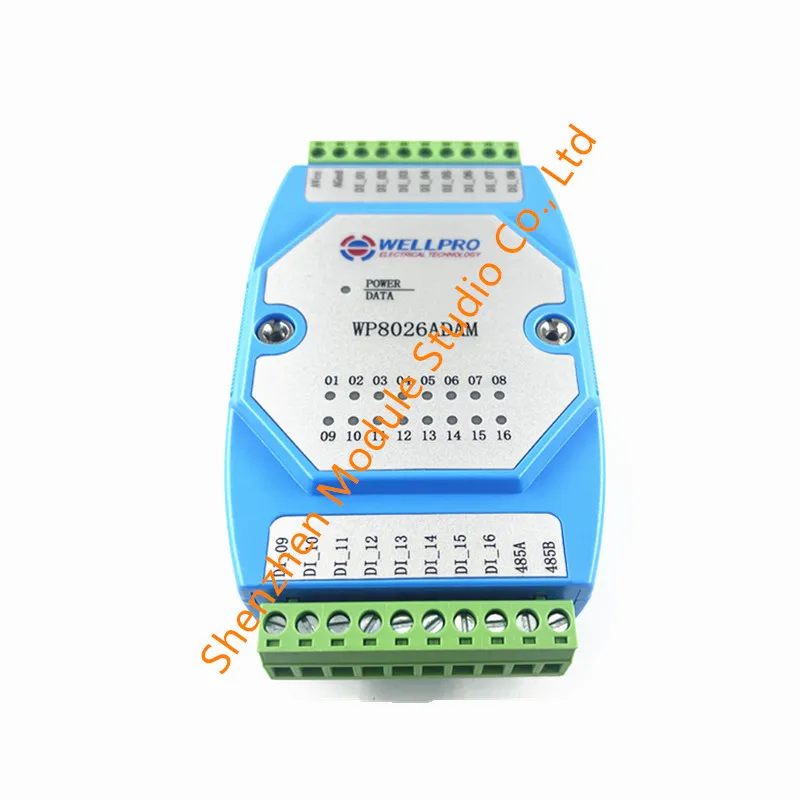

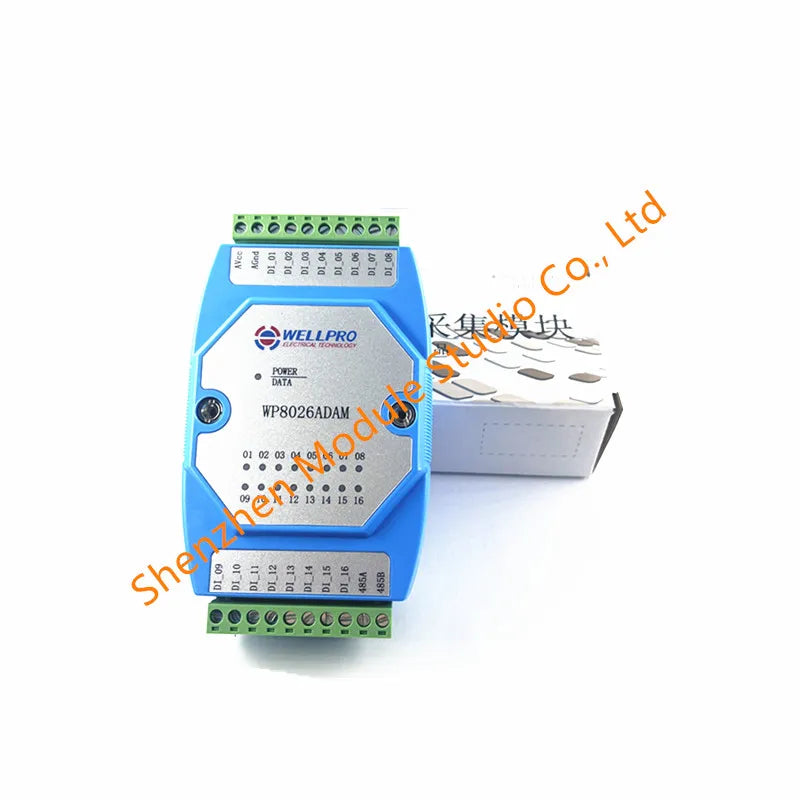

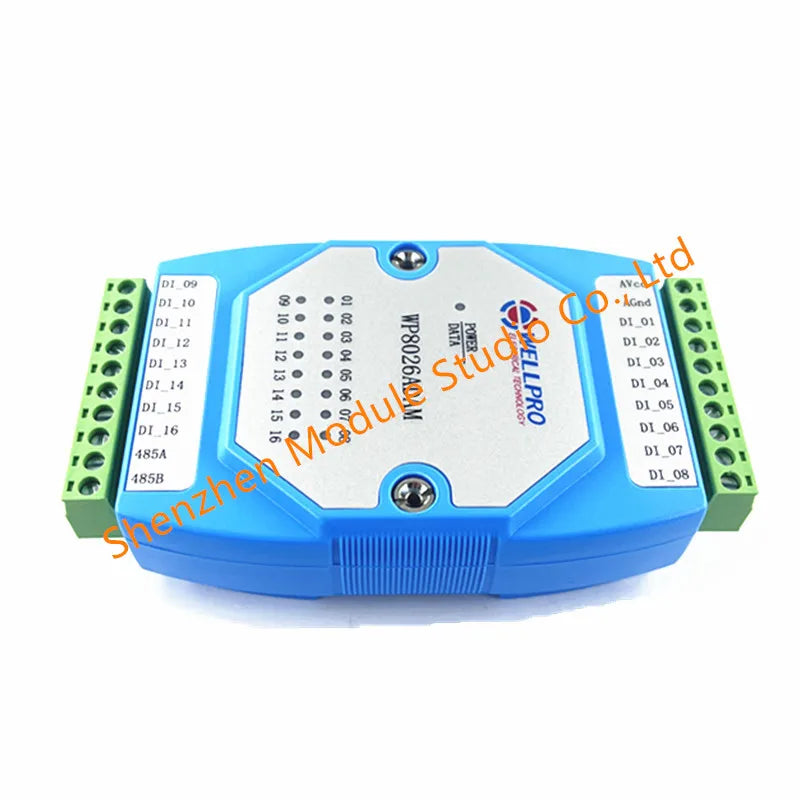

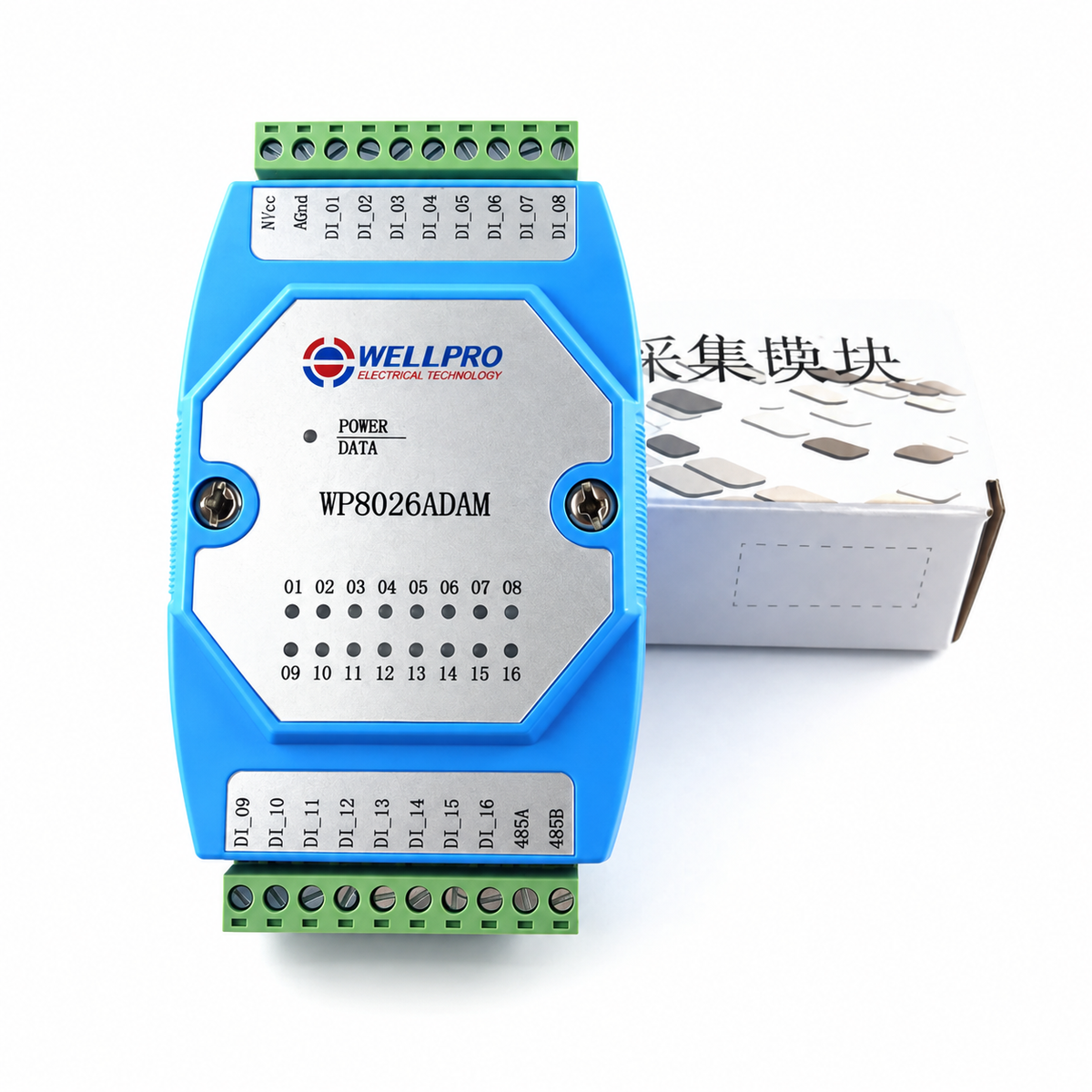

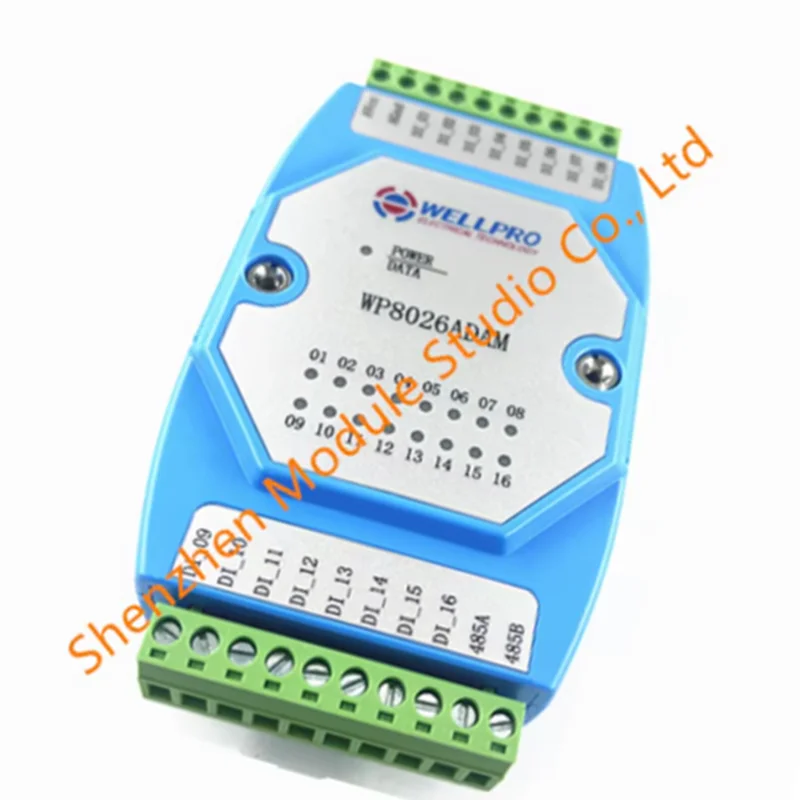

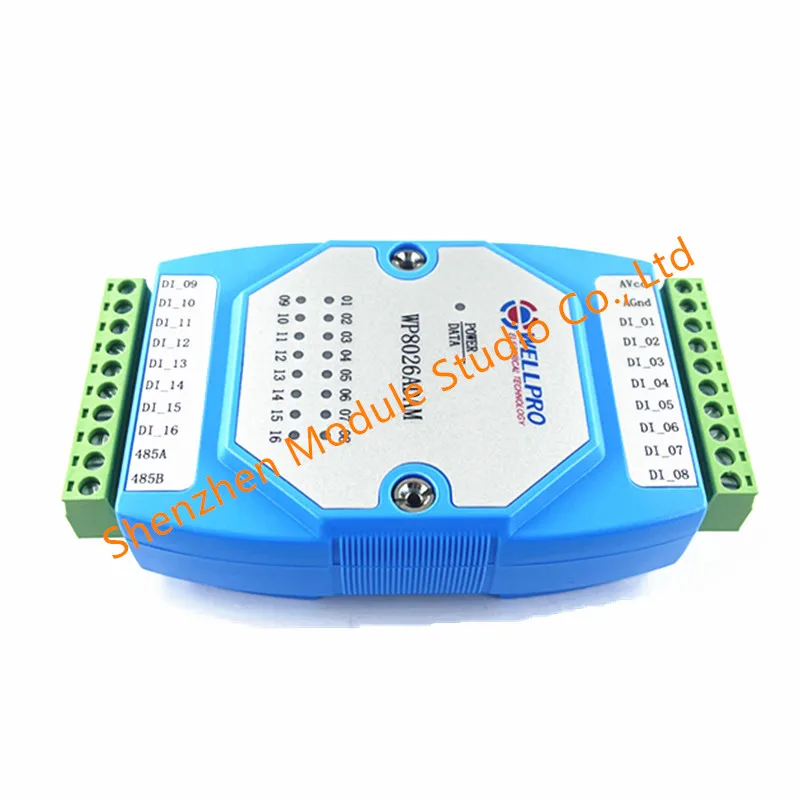

WP8026ADAM 16-Channel Digital Input Module, RS485 Modbus RTU

Collect sixteen compatible digital inputs through RS485 Modbus RTU with a WP8026ADAM acquisition module.

✅ Group several inputs in one unit - Sixteen active-low channels bring matching switch signals into the module.

✅ Link the inputs to a configured controller - RS485 Modbus RTU provides communication with a compatible network arrangement.

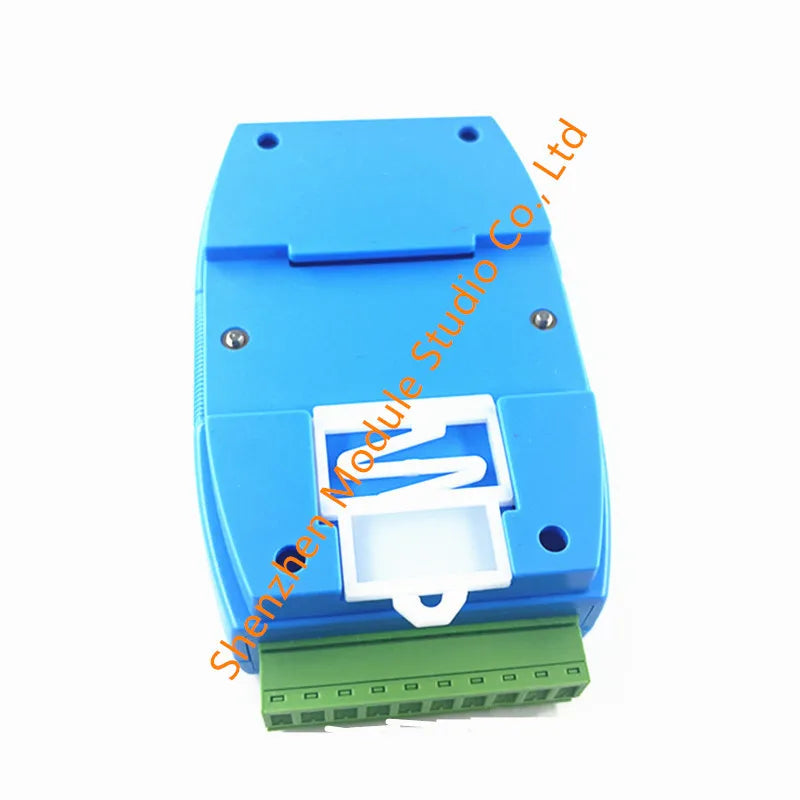

✅ Choose the mounting method for the cabinet - DIN-rail and screw mounting support different installation layouts.

✅ Check module activity during setup - Listed status indicators give visible references at the connection point.

Plan the Inputs and Communication Settings

Map the input wiring and polarity before connecting the module to the supply. The sixteen channels give a common acquisition point, while the controller and software determine how the signals are used.

Configure the Modbus communication and prepare a compatible RS485 interface before commissioning. Select the mounting arrangement around the available cabinet space and cable layout.

Technical details

• DC 9-30 V; listed 2 W; sixteen active-low inputs.
• Approximately 125 × 73 × 35 mm; listed -20 to 70°C.
• WP8026ADAM; RS485 Modbus RTU.

Match the inputs and prepare the module for your controller network.
