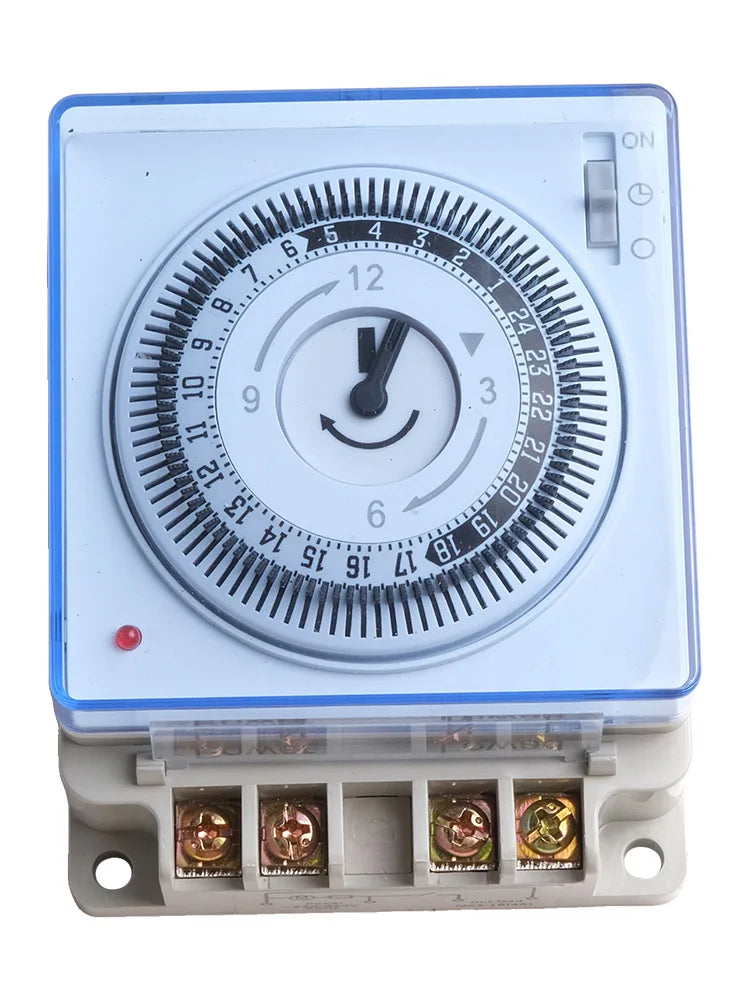

TH-195 Mechanical Daily-Cycle Timer

Add a repeating daily schedule to a compatible control circuit with the TH-195 mechanical timer. Its timed cycle is useful where equipment should follow a regular pattern instead of relying on manual switching each time.

Set a repeating daily routine

• ✅ Repeat a daily switching routine so compatible equipment follows the chosen schedule.
• ✅ Set the timing directly on the mechanical dial and see the selected periods without a software menu.
• ✅ Integrate the terminal base into a matching wired control installation.

Model: TH-195. Supply: AC 110–240 V, 50/60 Hz. Mechanical daily-cycle timer; one unit supplied. Confirm terminal arrangement and the connected load rating before installation.

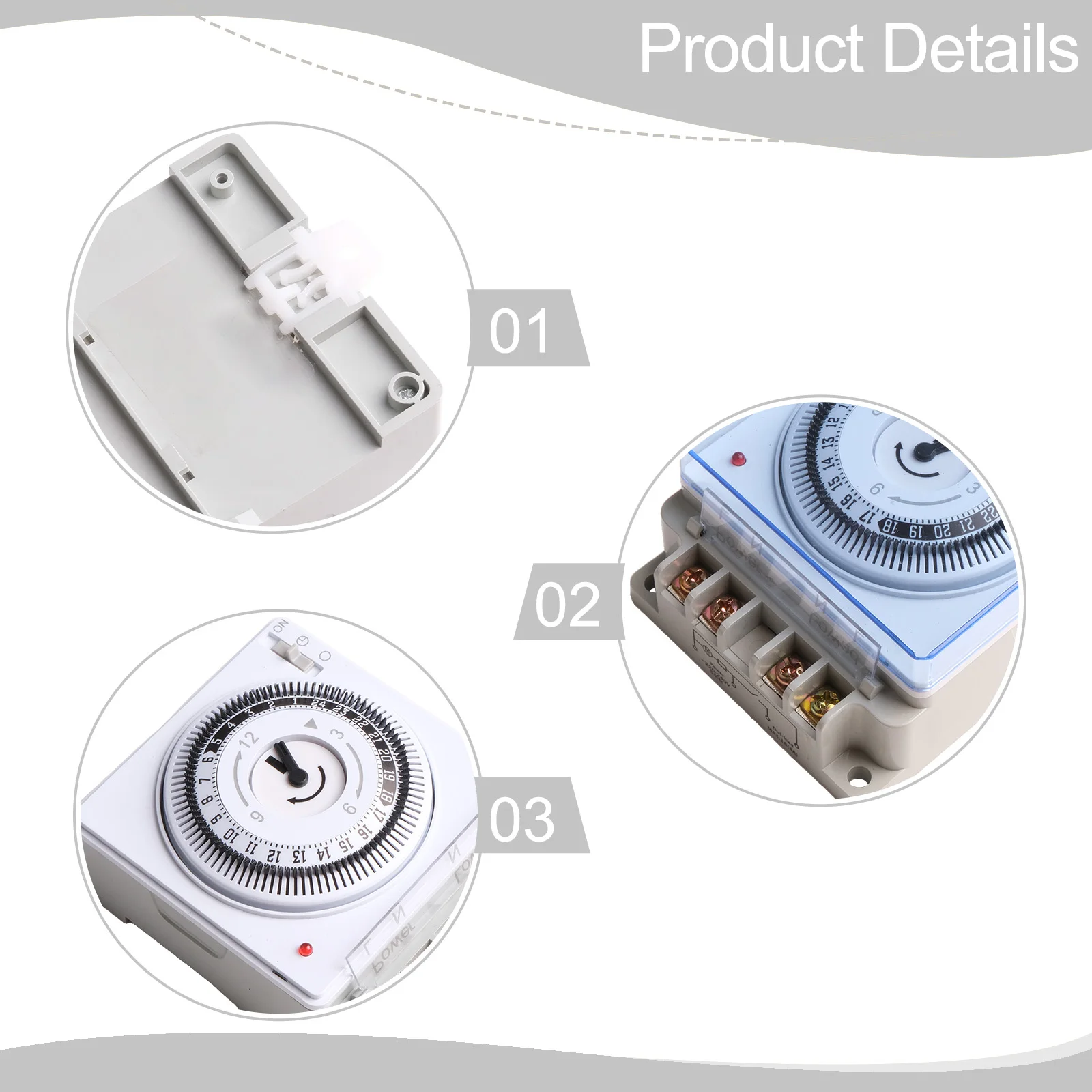

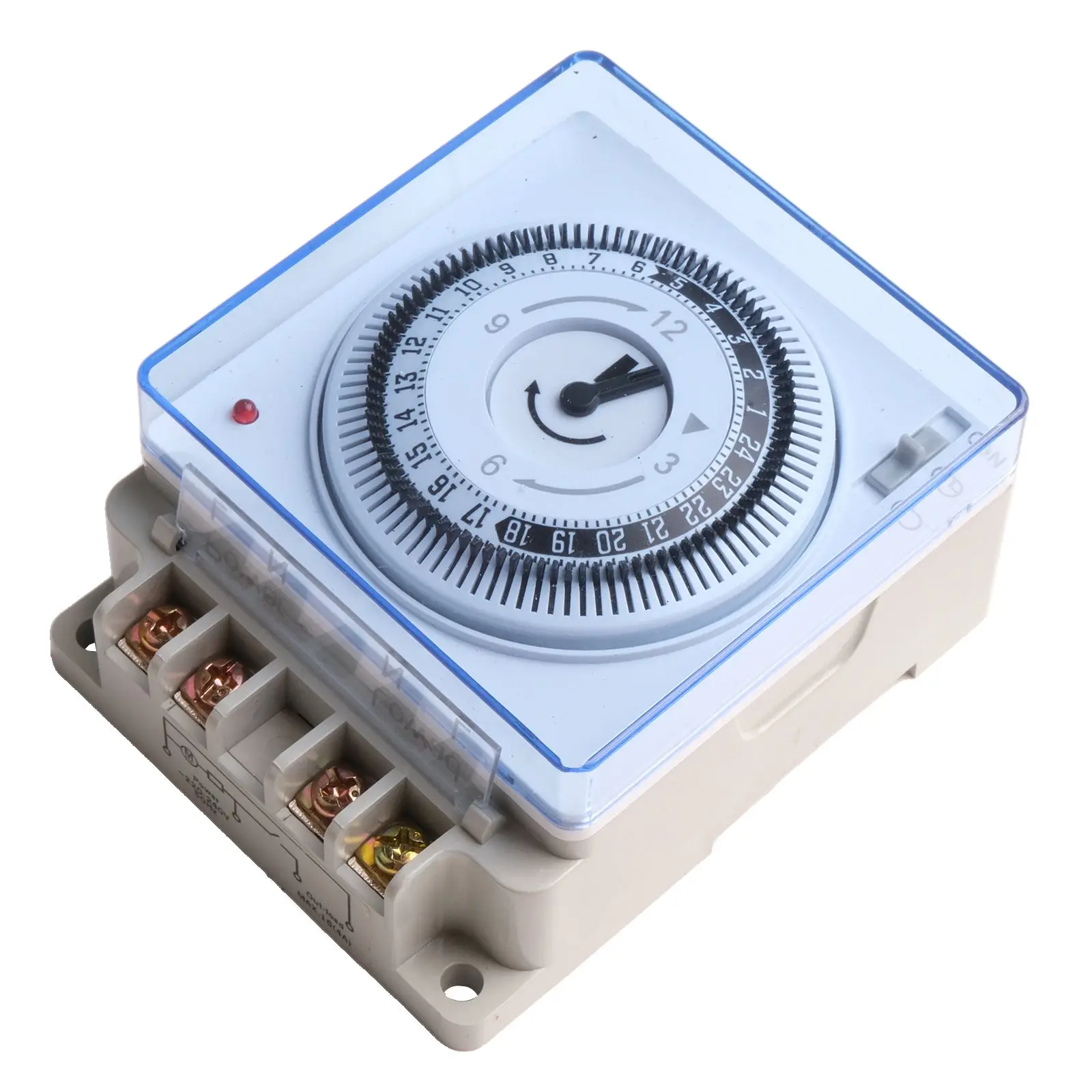

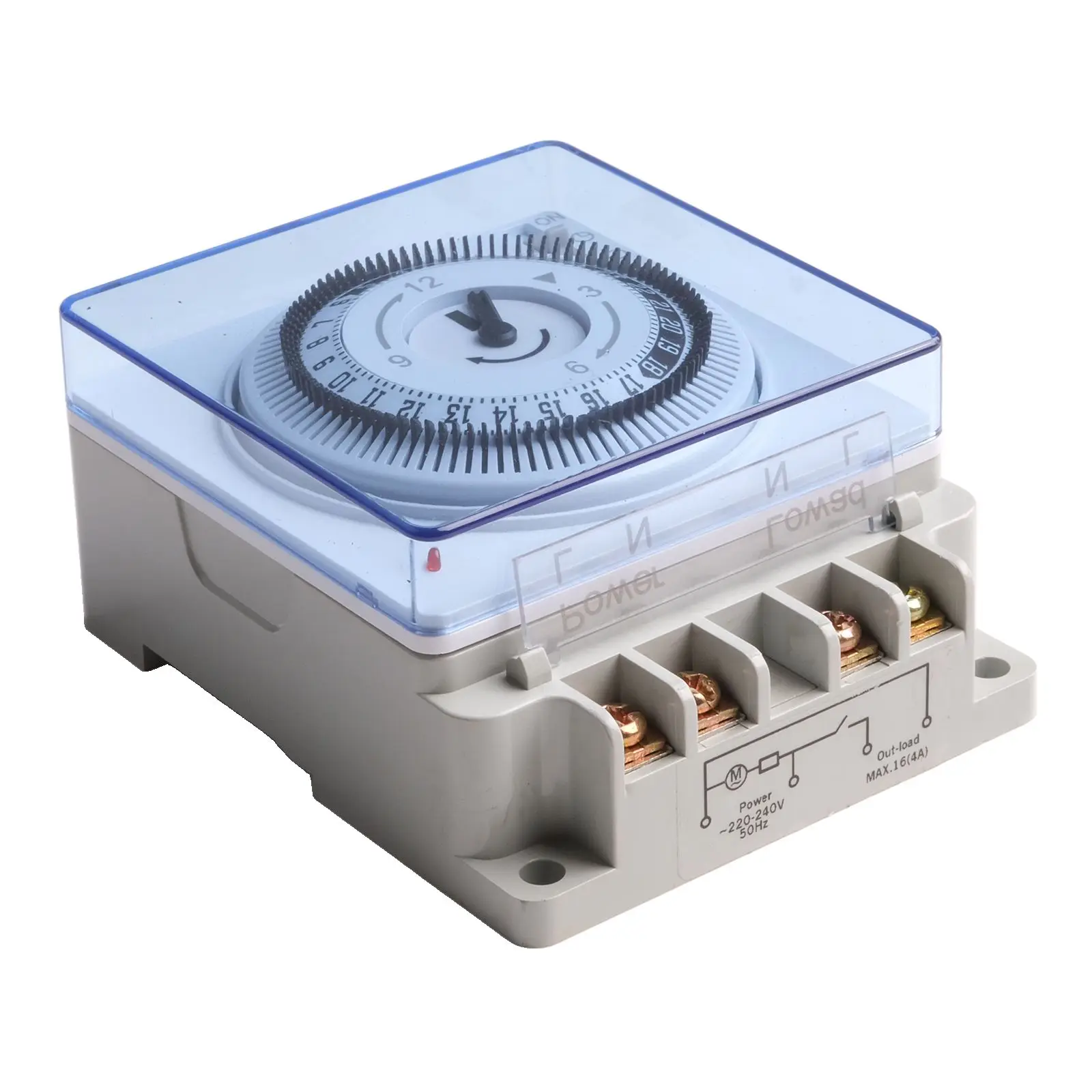

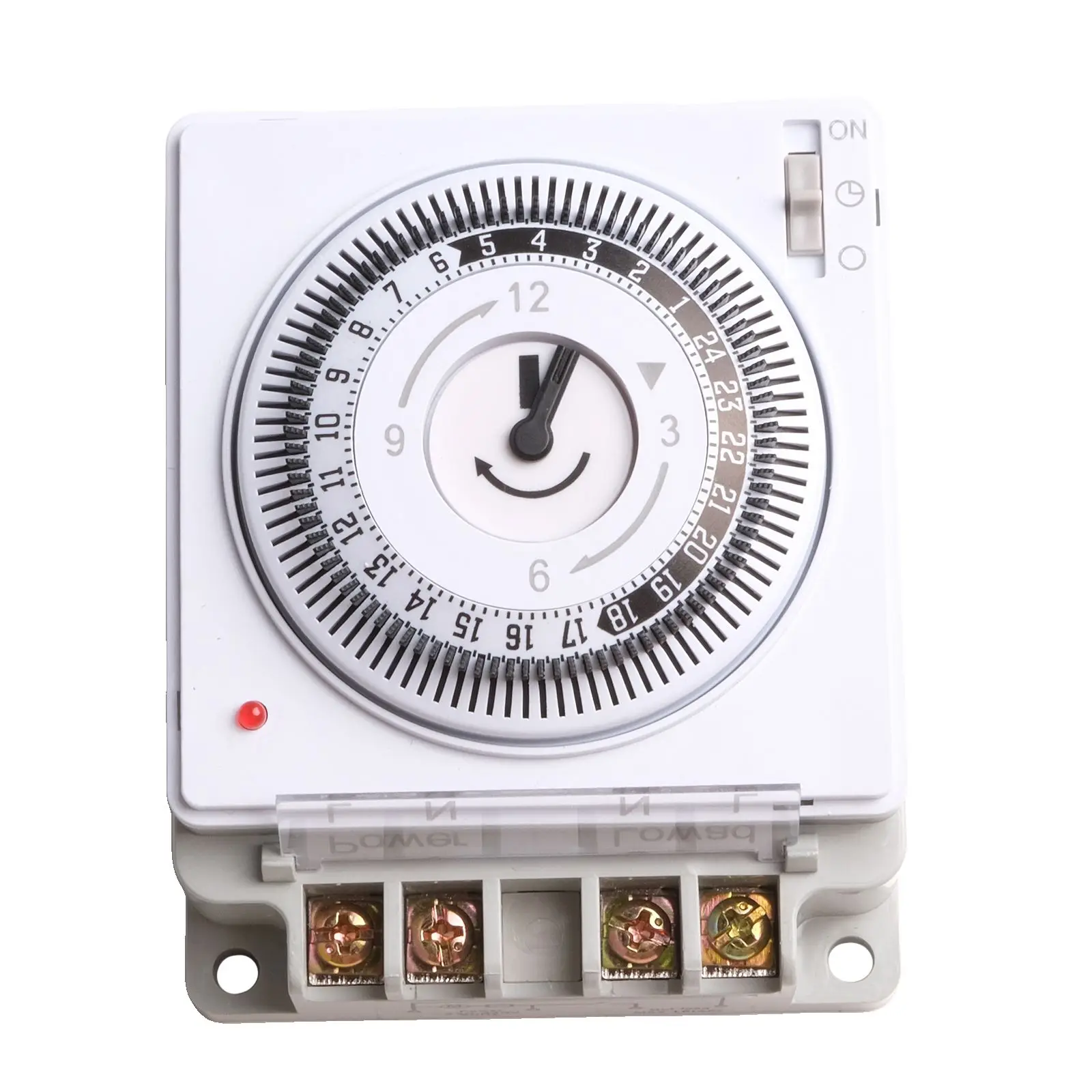

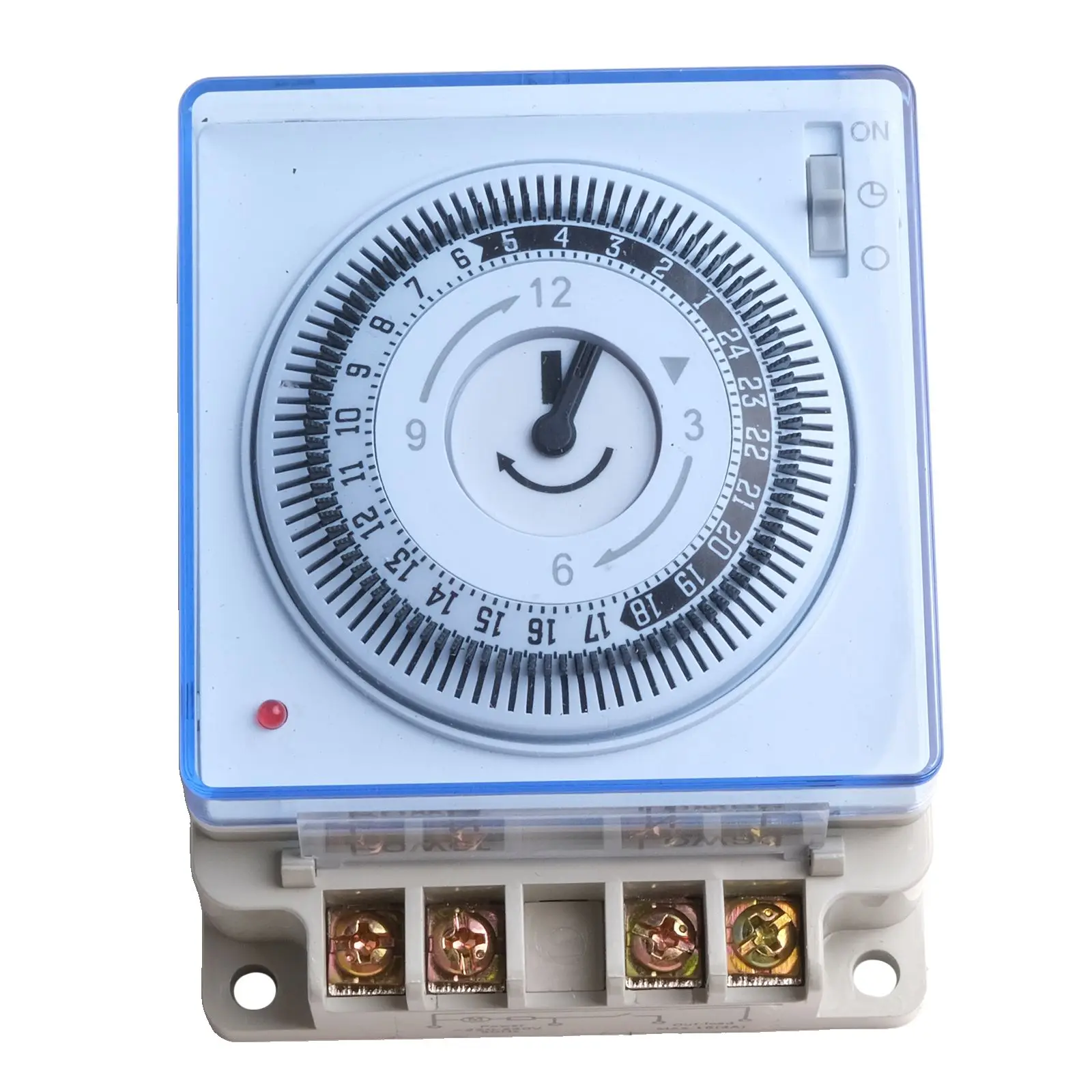

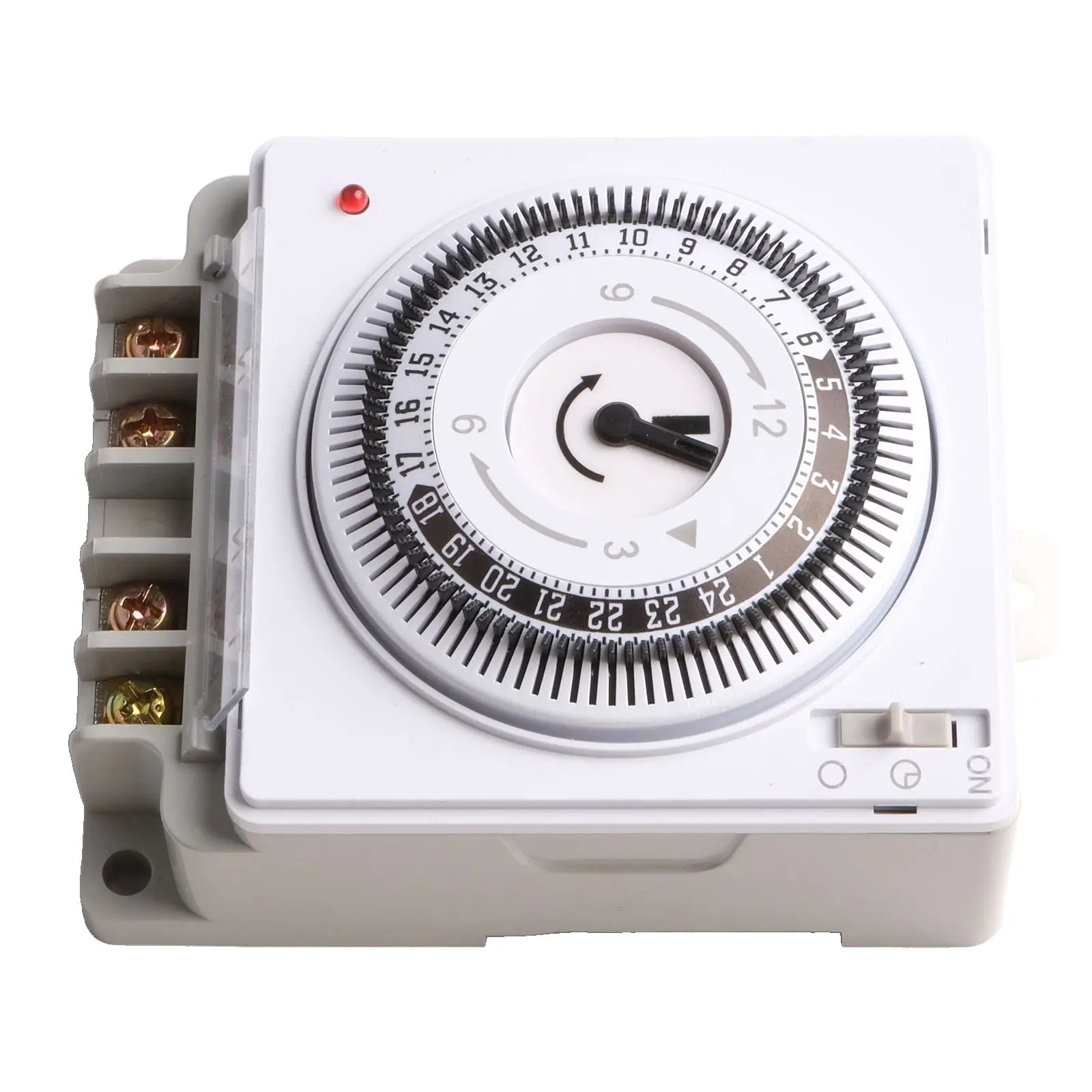

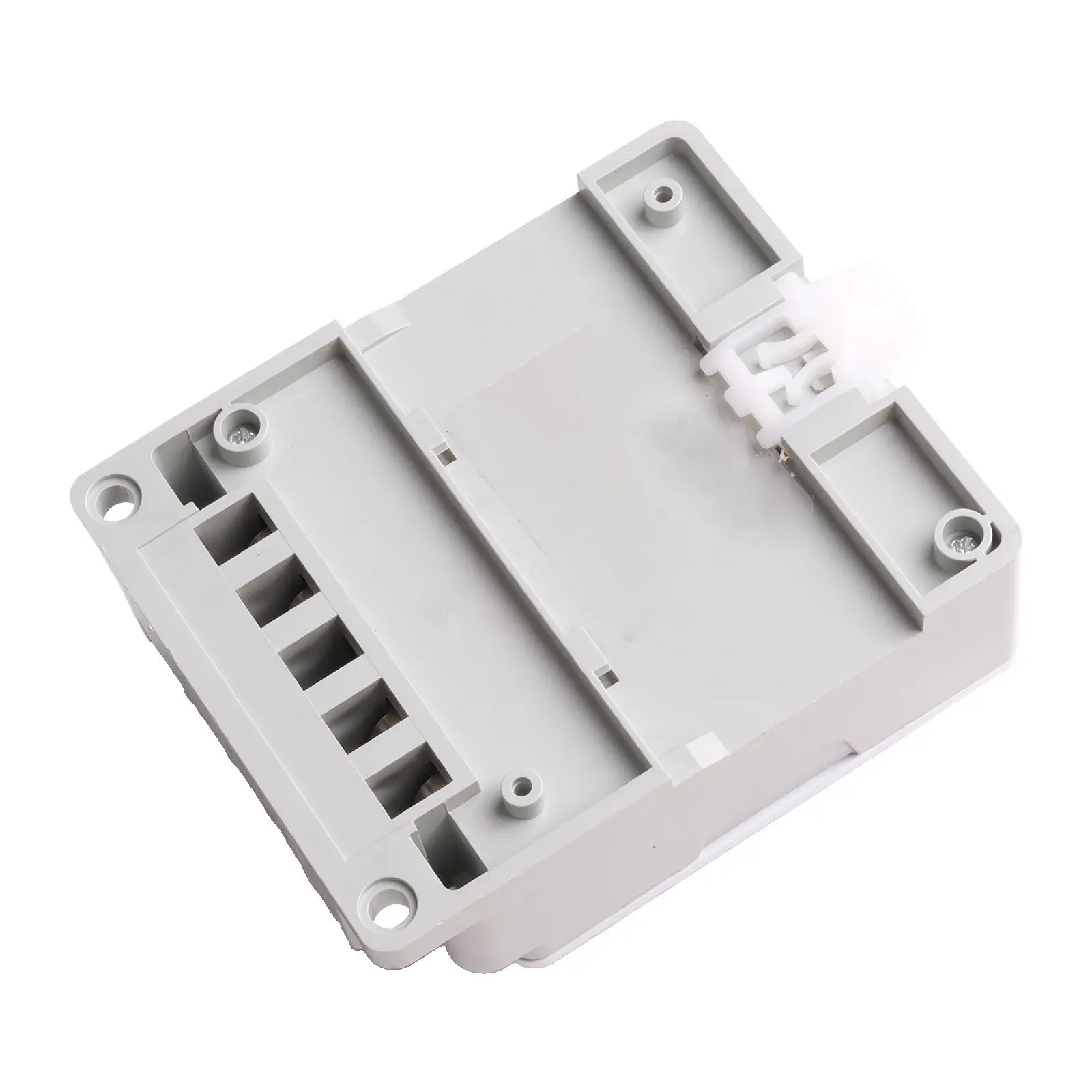

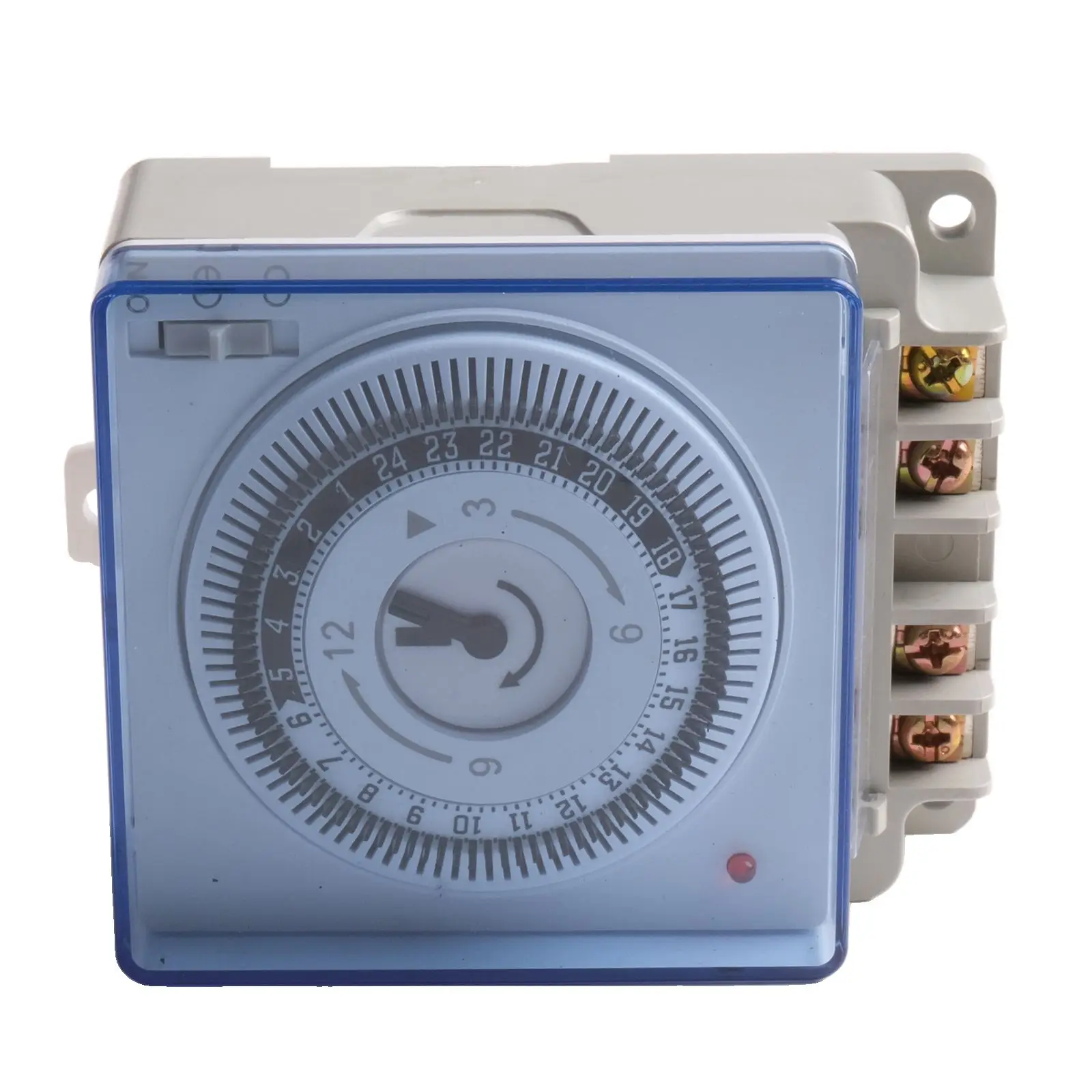

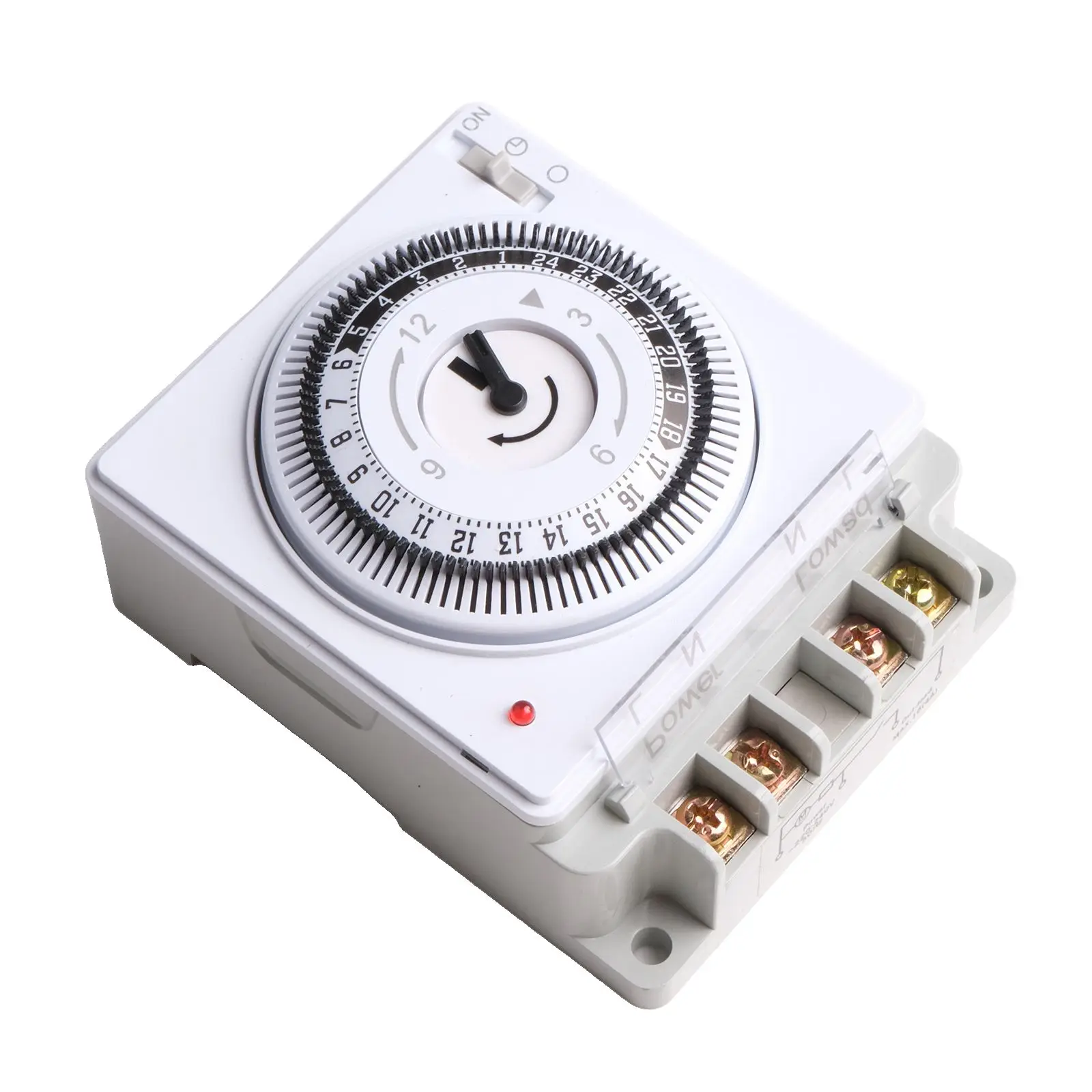

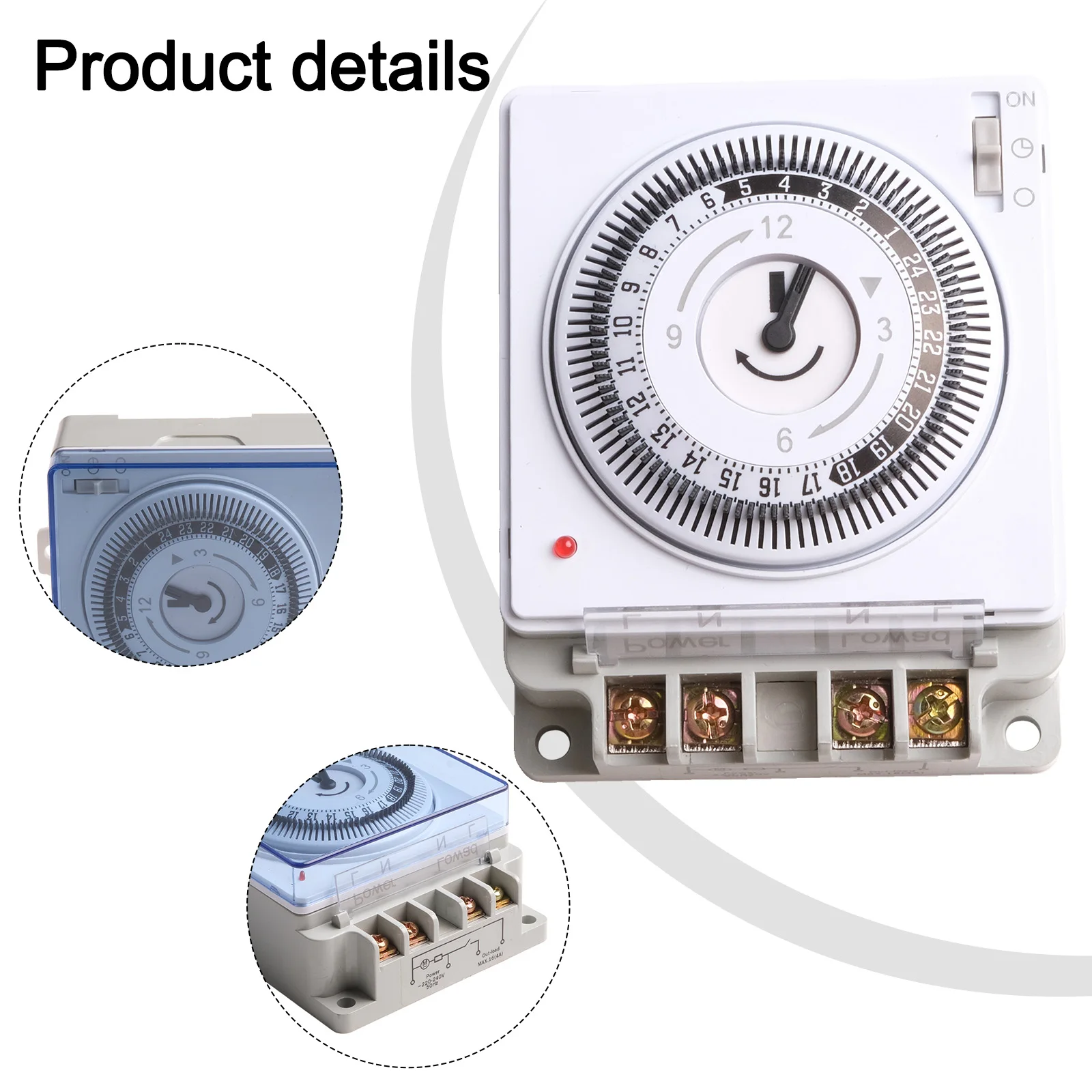

One TH-195 timer is supplied. Front, rear and terminal views show the same unit with its cover; swimming-pool scenes illustrate an application and are not included.

Check your control circuit and choose the timer that matches its requirements.
