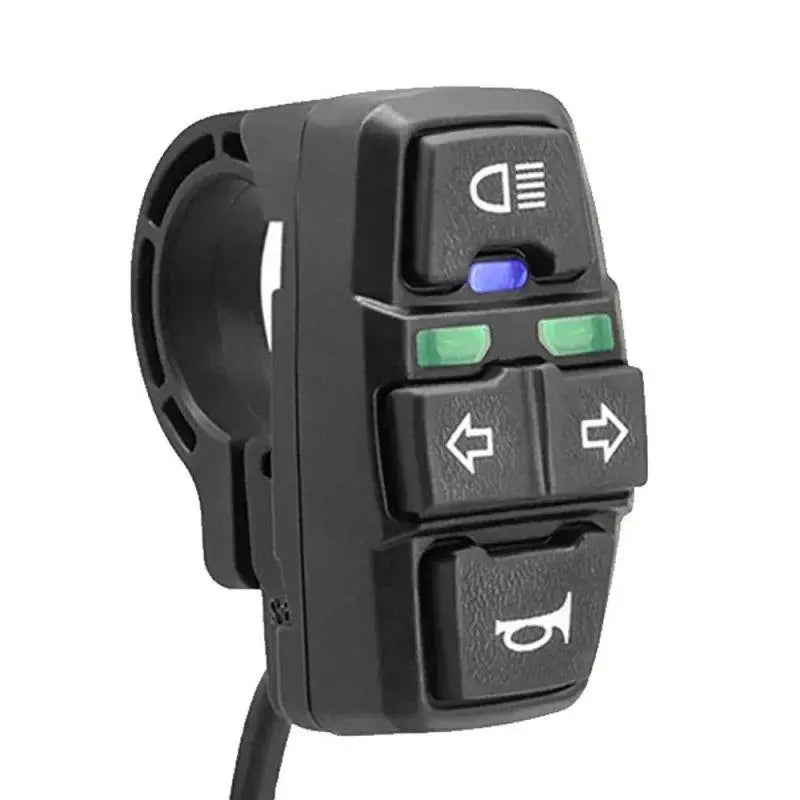

DK336 E-Bike Headlight, Indicator and Horn Switch

Bring headlight, turn-indicator and horn controls together on a compatible e-bike handlebar. The DK336 combines three control sections in one compact clamp-mounted unit.

Keep Everyday Controls Together at the Handlebar

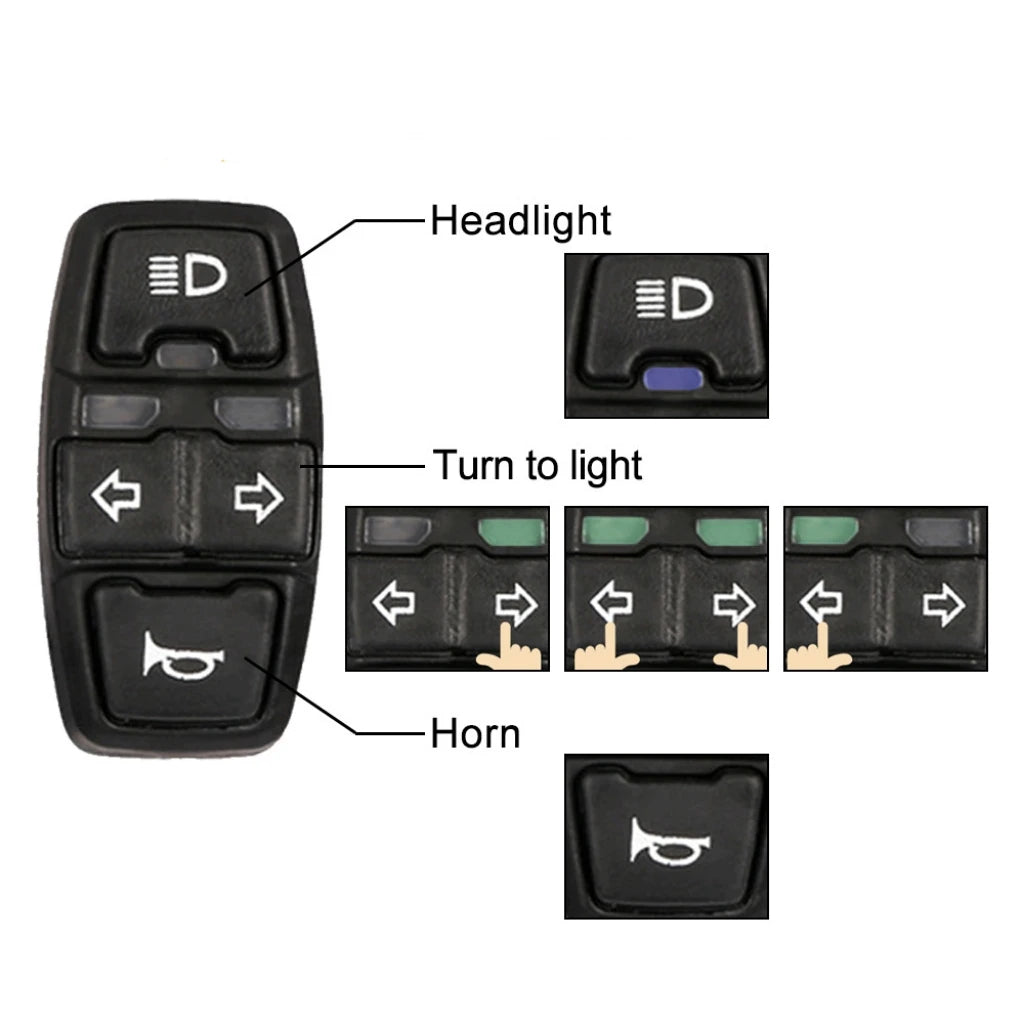

• ✅ Switch the headlight from the grip area - The upper control gives the light circuit its own on/off switch.
• ✅ Select a turn direction - Separate left and right controls operate the matching indicator circuits.
• ✅ Reach the horn button directly - A dedicated lower button separates the horn function from the lighting controls.

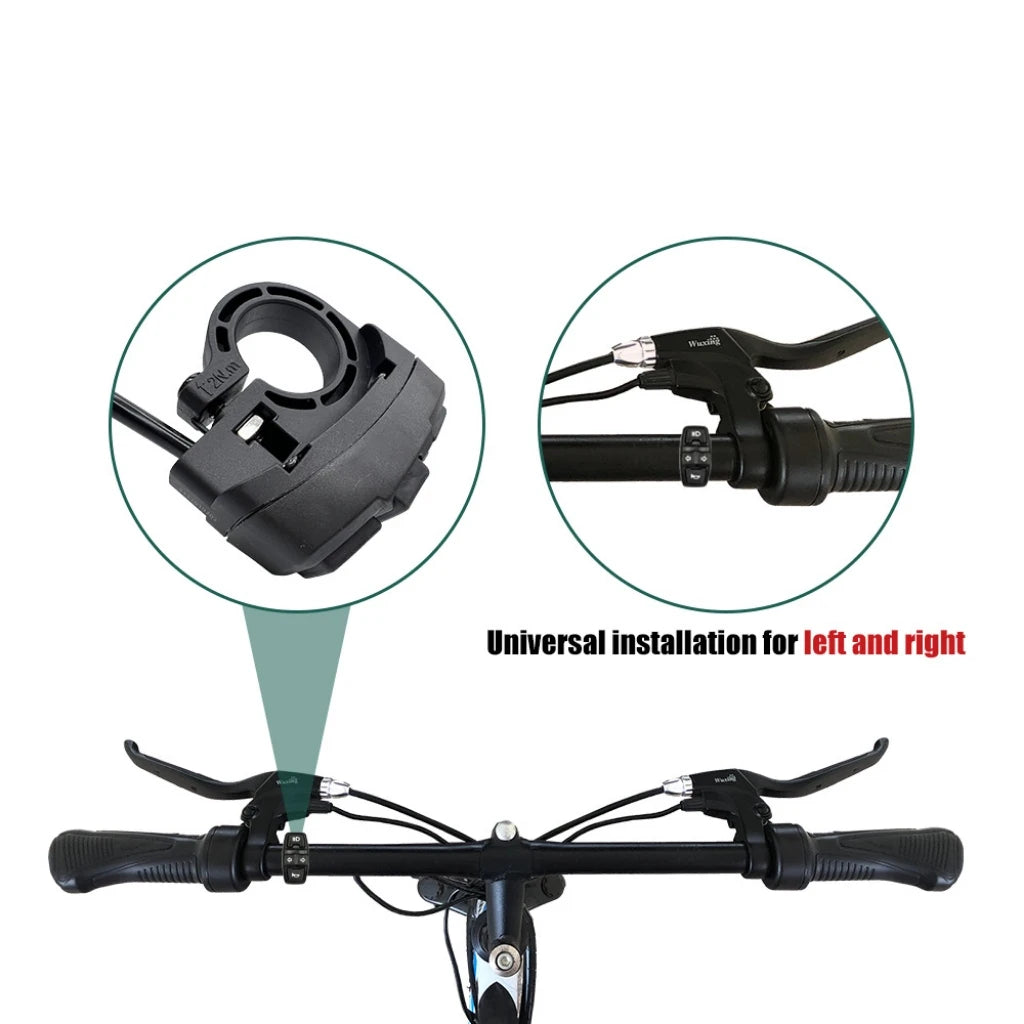

The switch is designed for a compatible 36 V or 48 V installation and has an approximately 22.2 mm mounting opening. Check the electrical requirements, handlebar fit and wiring arrangement before installation.

The attached lead is approximately 1.5 m long, ending in individual wires. This is a control-switch assembly rather than a complete light, indicator or horn kit.

One switch assembly; bicycle, headlight, indicators, horn and separate wiring components are not included.

Technical details

• Model: DK336 three-function handlebar switch
• Headlight, left/right indicator and horn controls
• Compatible supply configuration: 36 V or 48 V

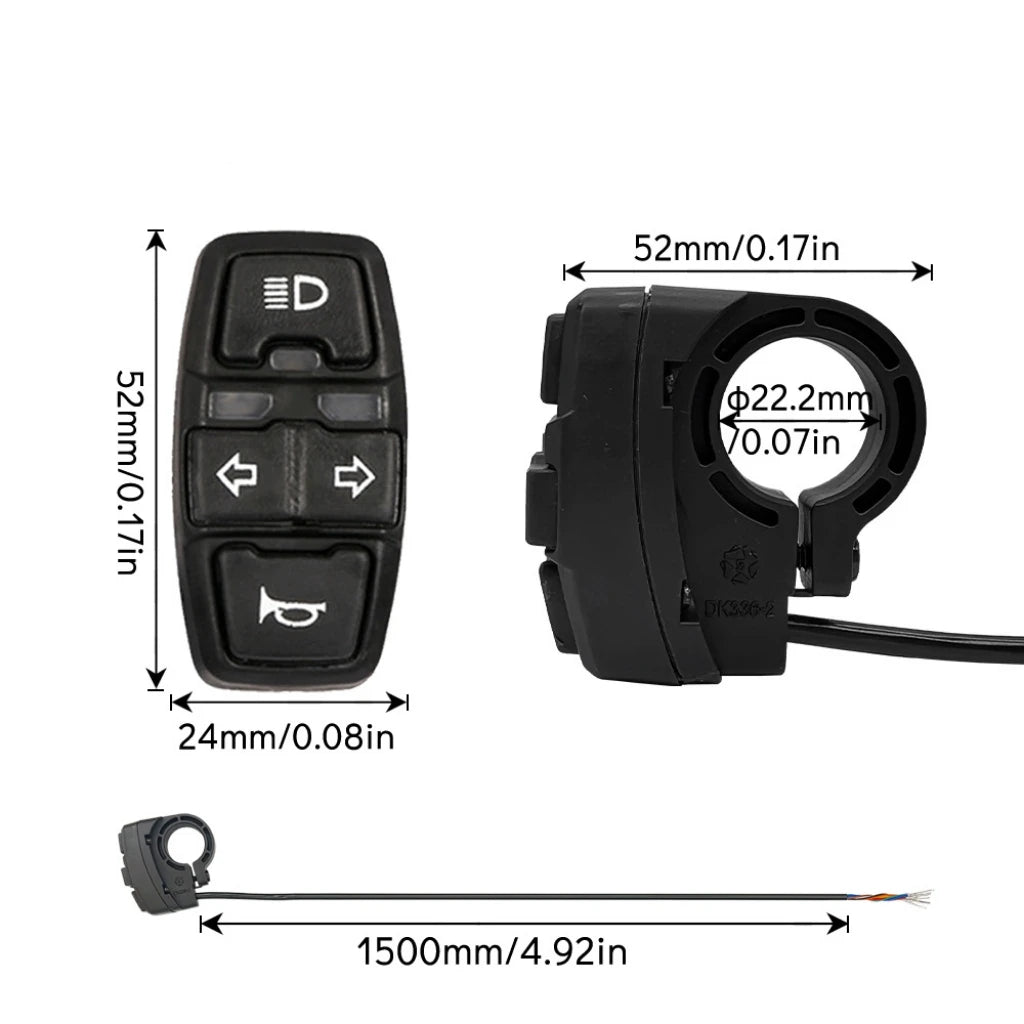

• Approximate mounting diameter: 22.2 mm
• Approximate body dimensions: 52 × 52 × 24 mm
• Attached lead approximately 1.5 m; black finish

Check your handlebar and circuit requirements before adding the DK336 controls.
