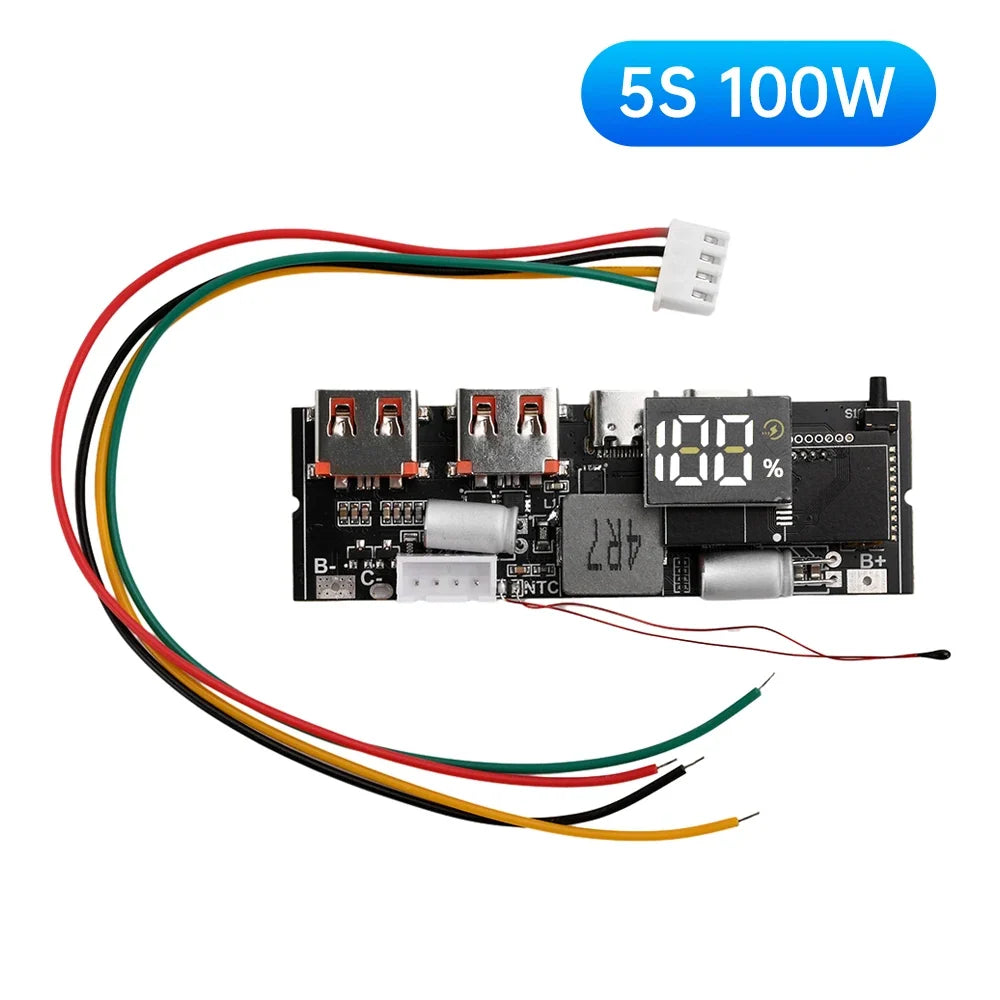

SPECIFICATIONS

Application: Mobile Power Module

Brand Name: DIY NOW

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SOP

Quantity: 1

Type: Module

is_customized: Yes

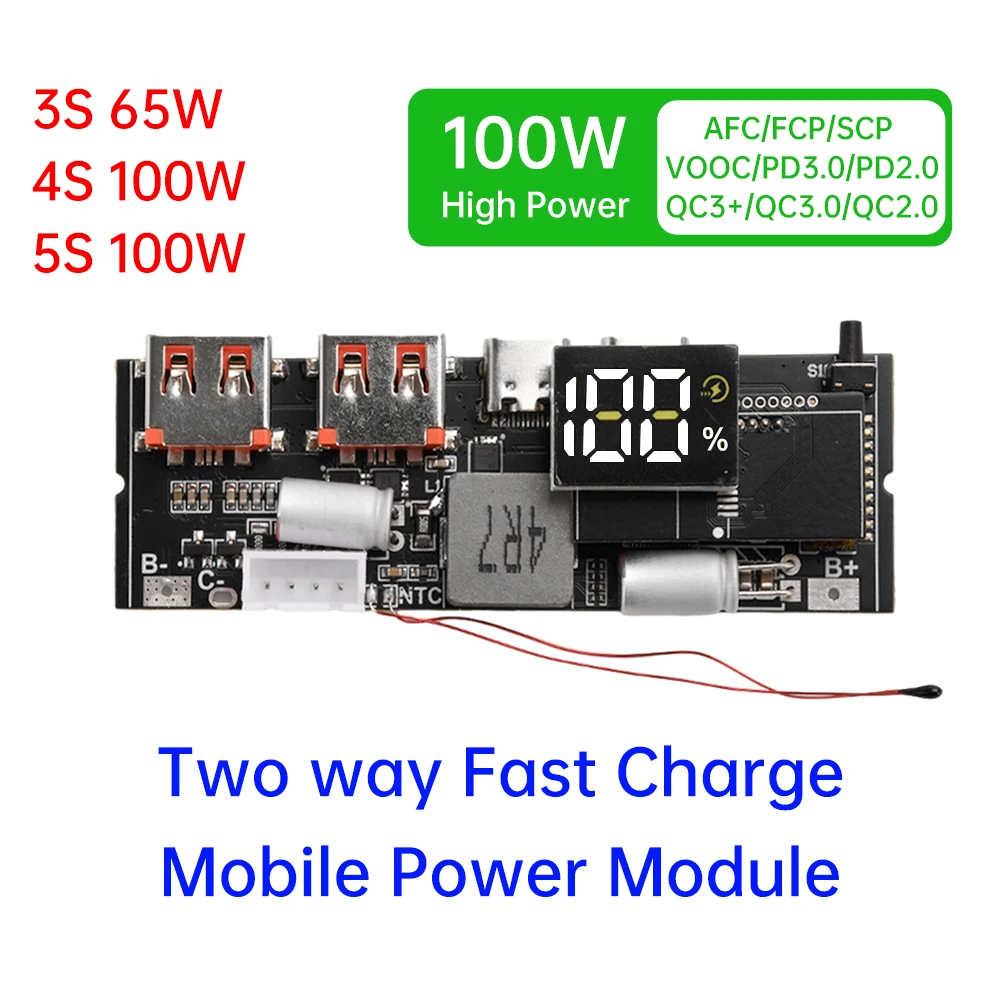

Product Highlights:

1. Fully compatible with multiple fast charging protocols including QC, PD, PPS, SCP, and VOOC, meeting the charging needs of most electronic devices on the market, ensuring worry-free charging with just one power supply.

2. Supports MPPT function, allowing charging via solar panel connection.

3. High-efficiency automatic buck-boost switching, eliminating concerns about overcharging and damaging your phone. Automatic PWM and PSM mode switching achieves efficient buck-boost.

4. Supports various protection mechanisms, including overcurrent, overvoltage, short circuit, and overtemperature protection, ensuring safer and more reliable use.

5. Not only does it output fast charging, but it also charges itself quickly, supporting PD bidirectional fast charging, significantly reducing self-charging time and improving ease of use.

6. Large-capacity solid-state capacitor filtering ensures low ripple output, with the USB-C port Vpp as low as 6-9mV. Effective protection for electronic devices

7. Designed specifically for DIY enthusiasts, providing clear circuit layout and labeling, easy assembly and debugging, suitable for personalized power bank projects, meeting individual needs

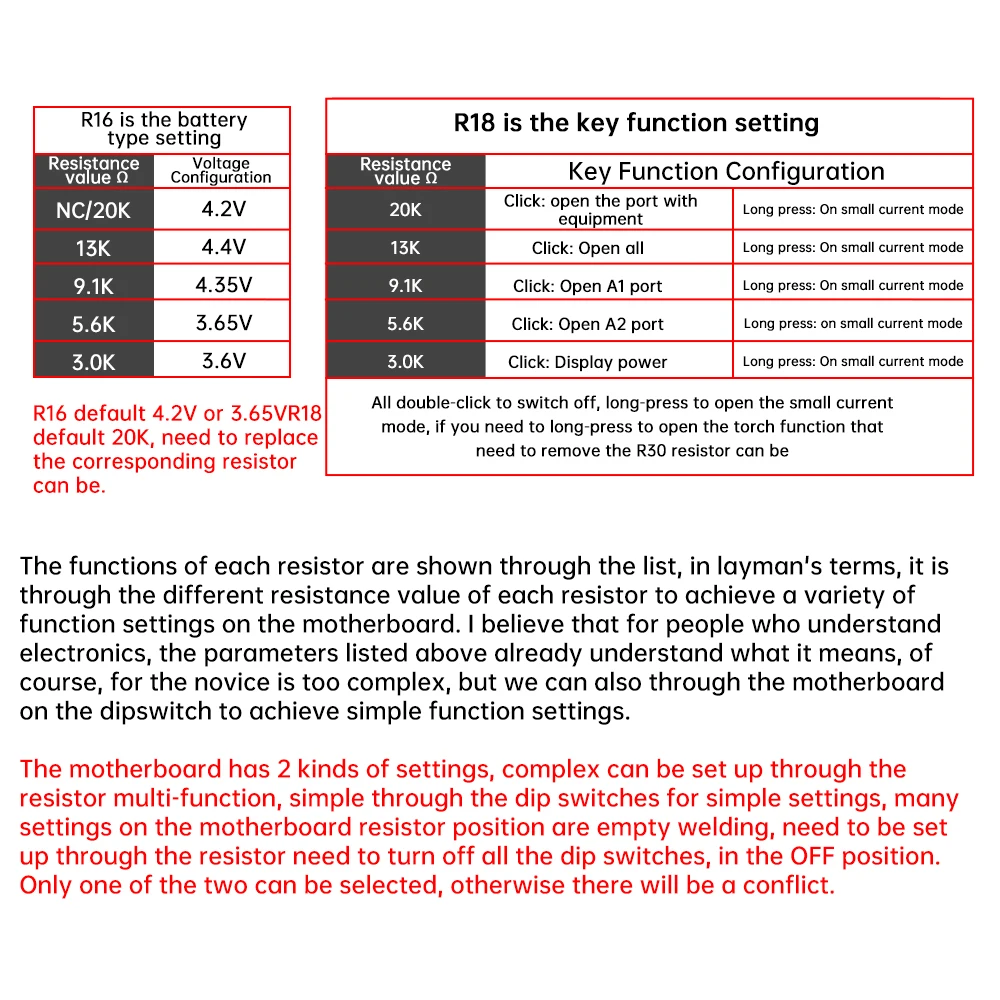

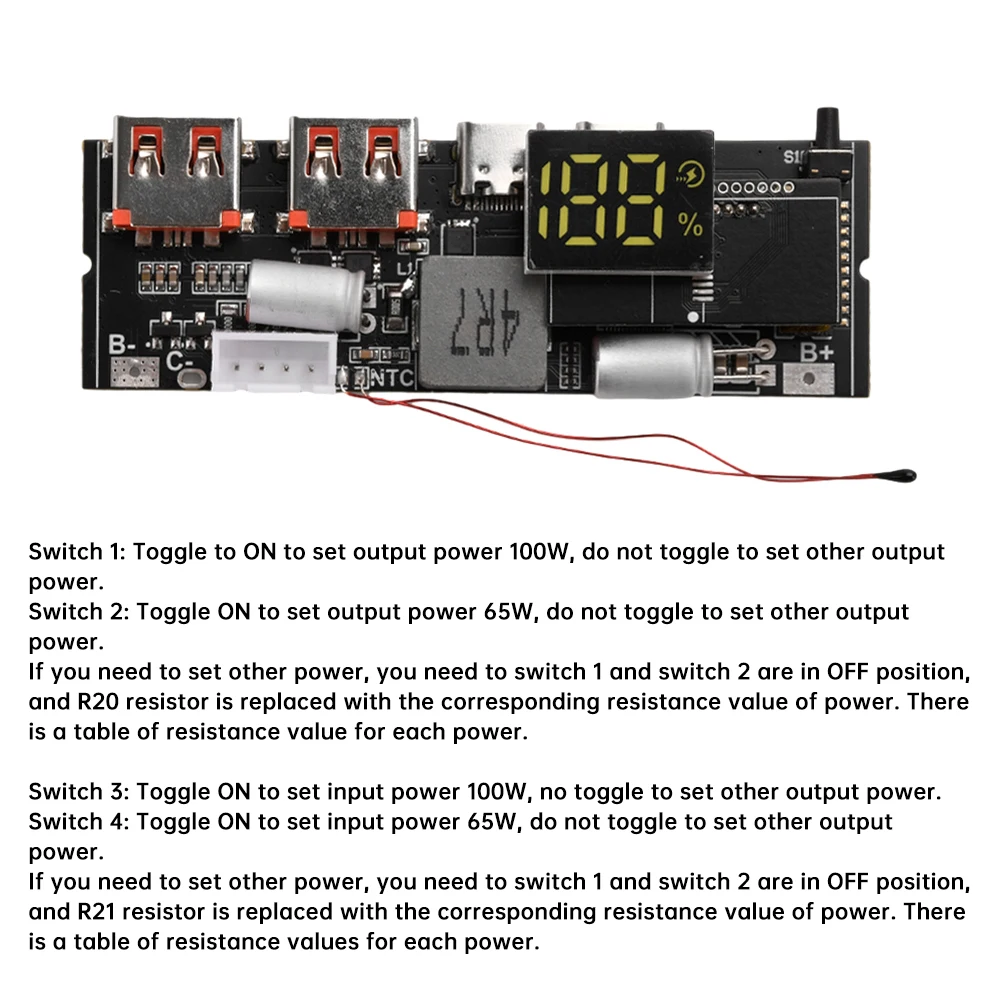

Product Parameters:

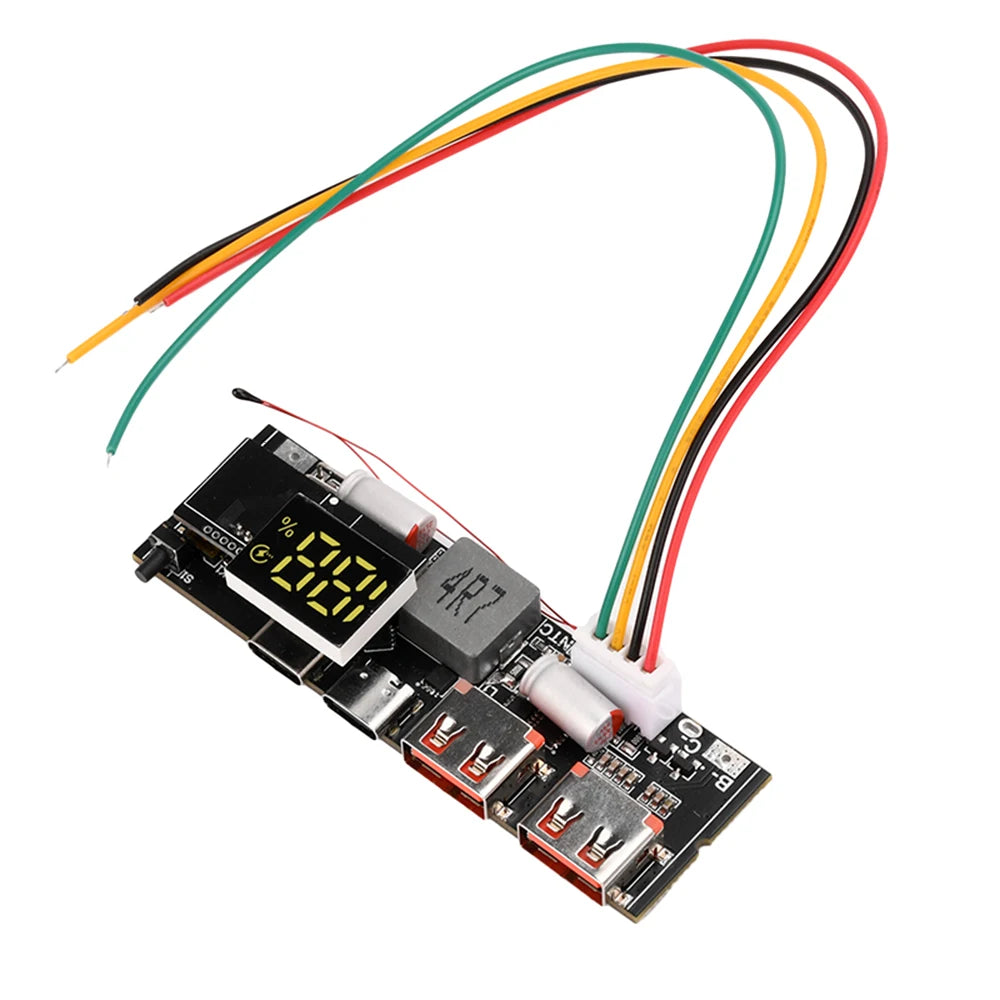

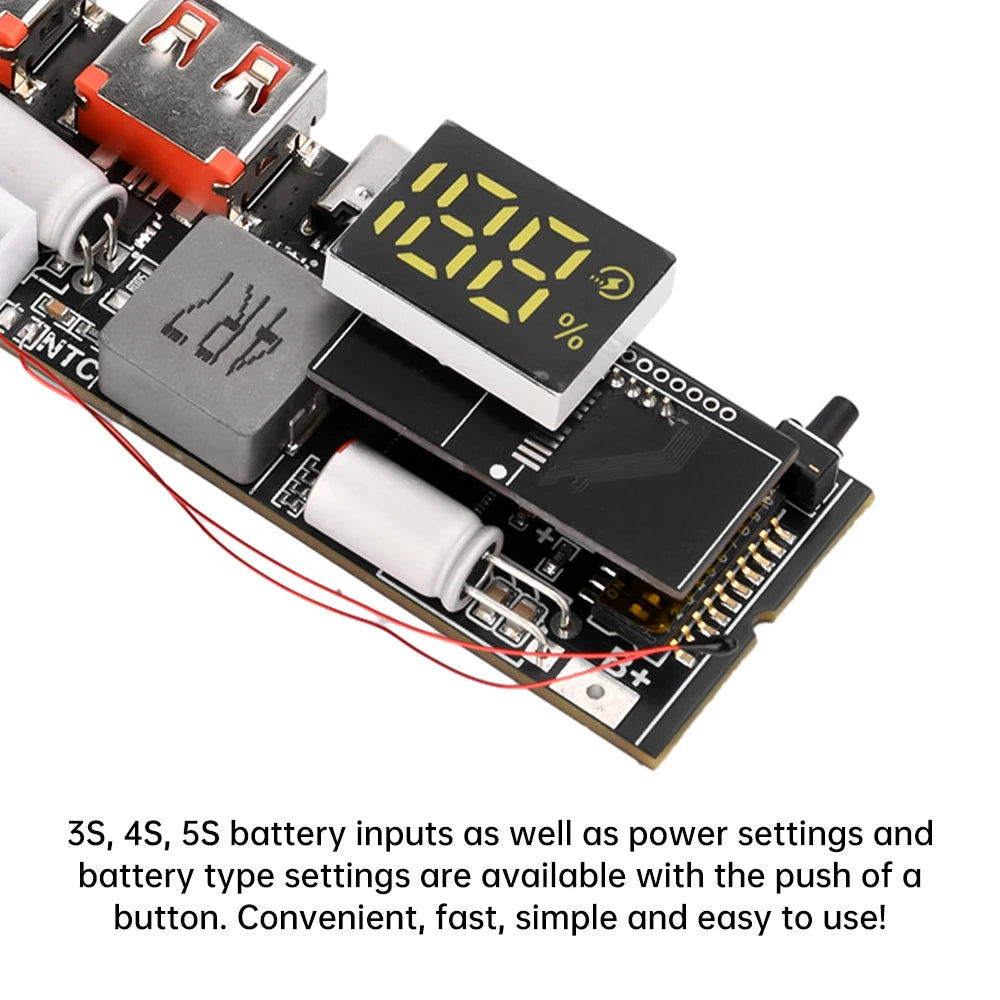

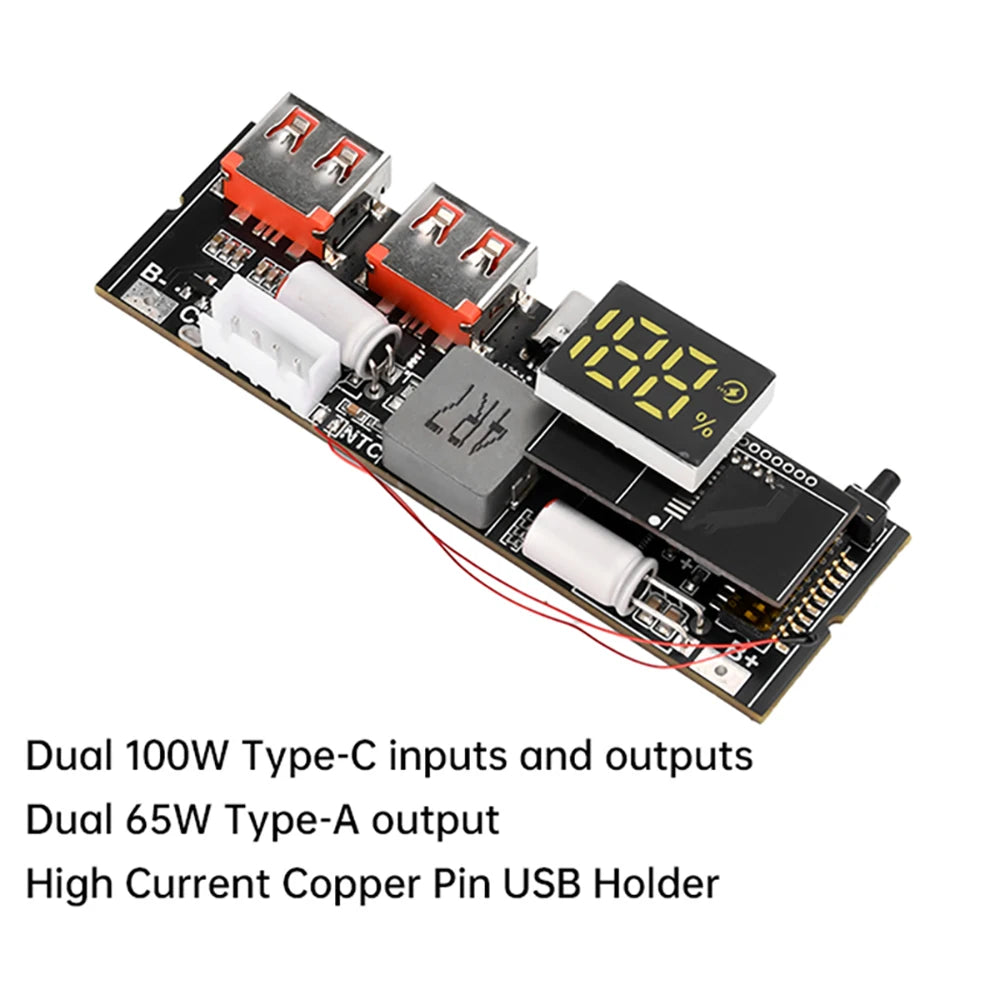

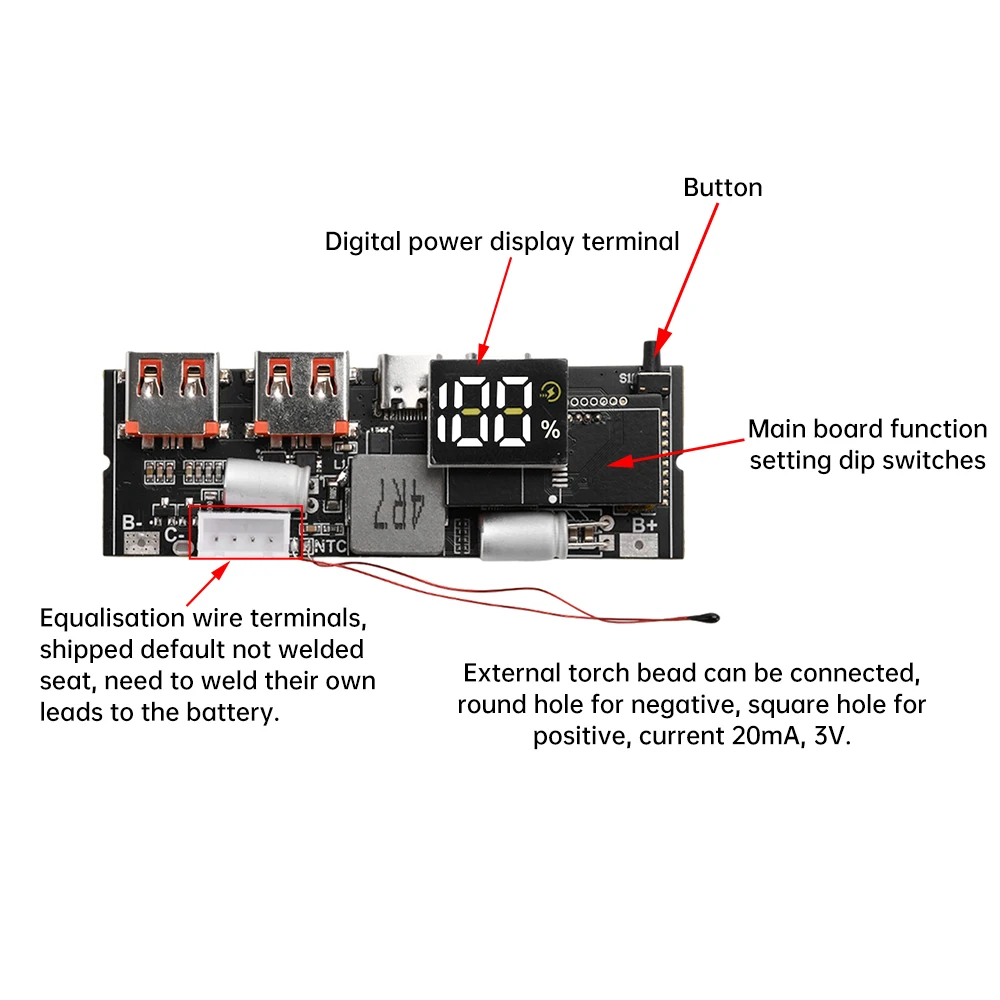

The motherboard has 4 USB ports by default: Type-C1, Type-C2, Type-A1, and Type-A2.

Type-C1 and Type-C2 support AFC/FCP/SCP/PD3.1 input protocols.

Supports PPS/PD3.1/UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP output protocols.

Type-A1/Type-A2 support UFCS/PE1.1/PE2.0. .0/QC3+/0C3.0/QC2.0/AFC/FCP/SCP/SFCP Output Protocols

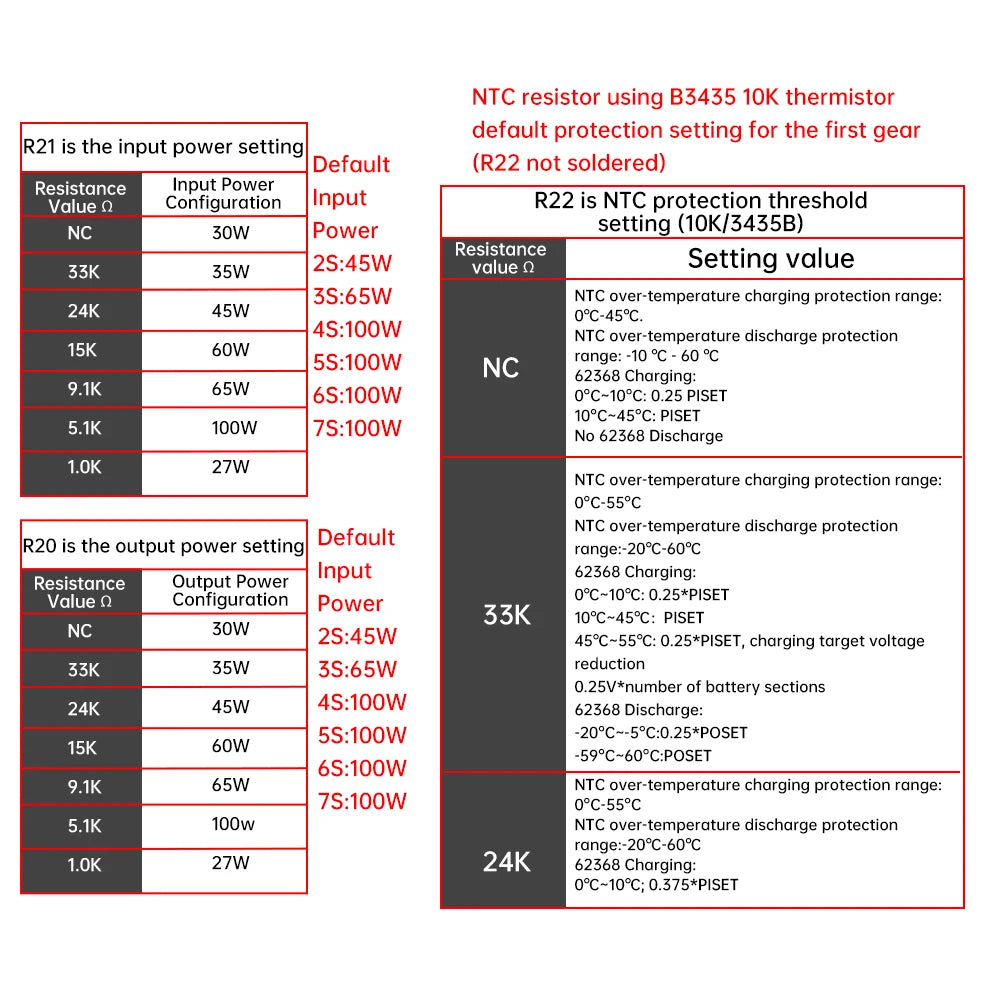

Voltage, Current, Power:

PPS/PD3.1: 20V@5A, 3.3V-21V@5A, Maxin 100W/Maxout 60W

UFCS: 3.4-21V@5A, Maxin 100W/Maxout 60W

QC2.0: 5V 3A/9V 3A/12V 2.8A/20V 1.5A

QC3.0: 3.6V-20V@200mV/step! 5V@3A/9V@3A/12V@2.8A/20V@1.5A

0C3+: 3.6V-20V@20mV/step! 5V@3A/ 9V@3A/12V@2.8A/20V@1.5A

AFC: 5V3A/9V3A/12V2.8A

FCP: 5V3A/9V3A/12V2.8A

SCP: OUT 3.3V-12V, IN 5V/9V/10V/12V, supports 10V4A

PE1.1: 5V/7V/9V/12V

PE2.0: 5V-12V@500mV/step

SFCP: 5V/9V/12V

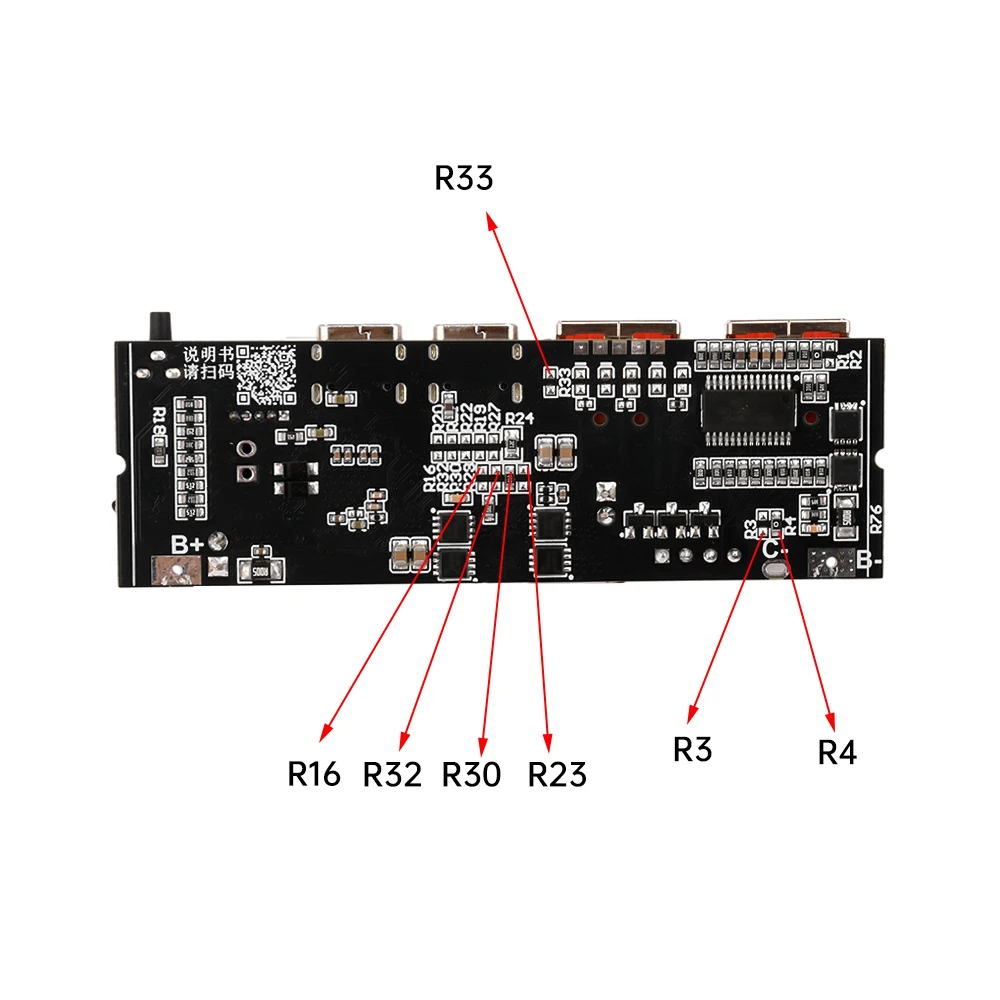

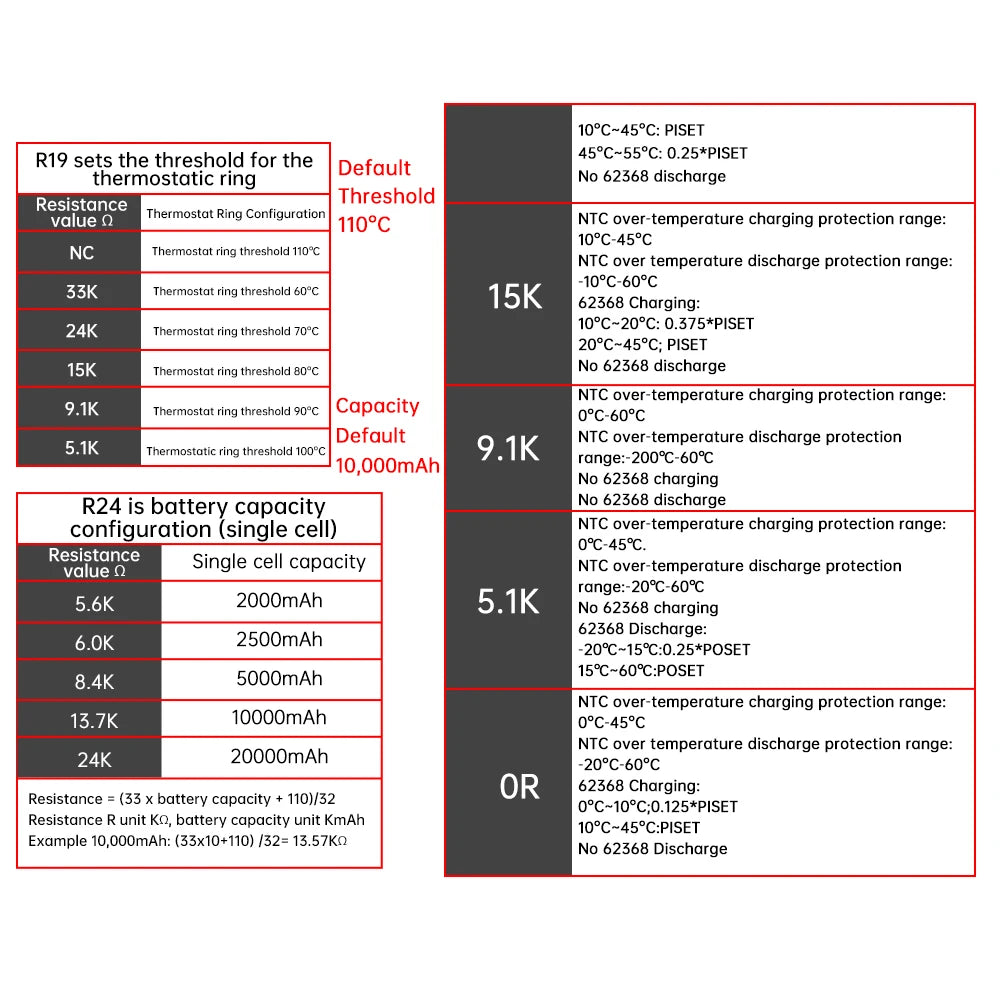

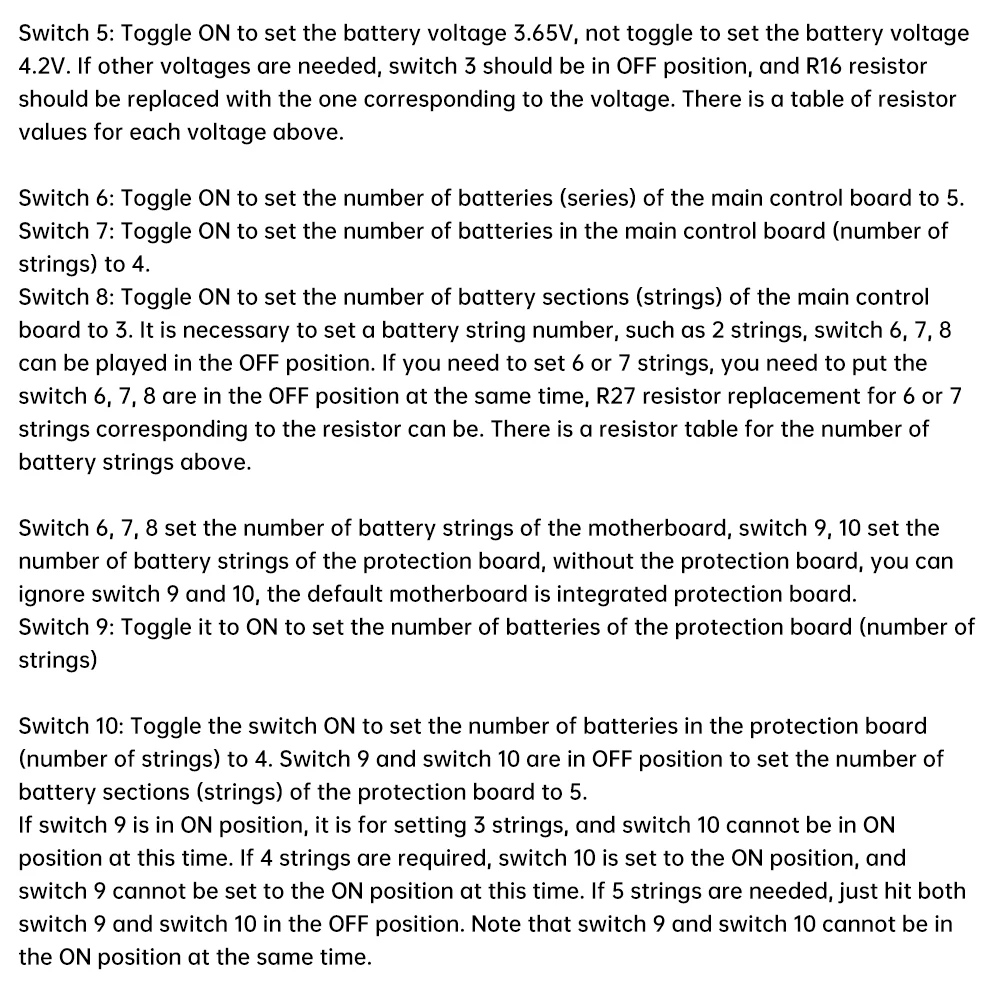

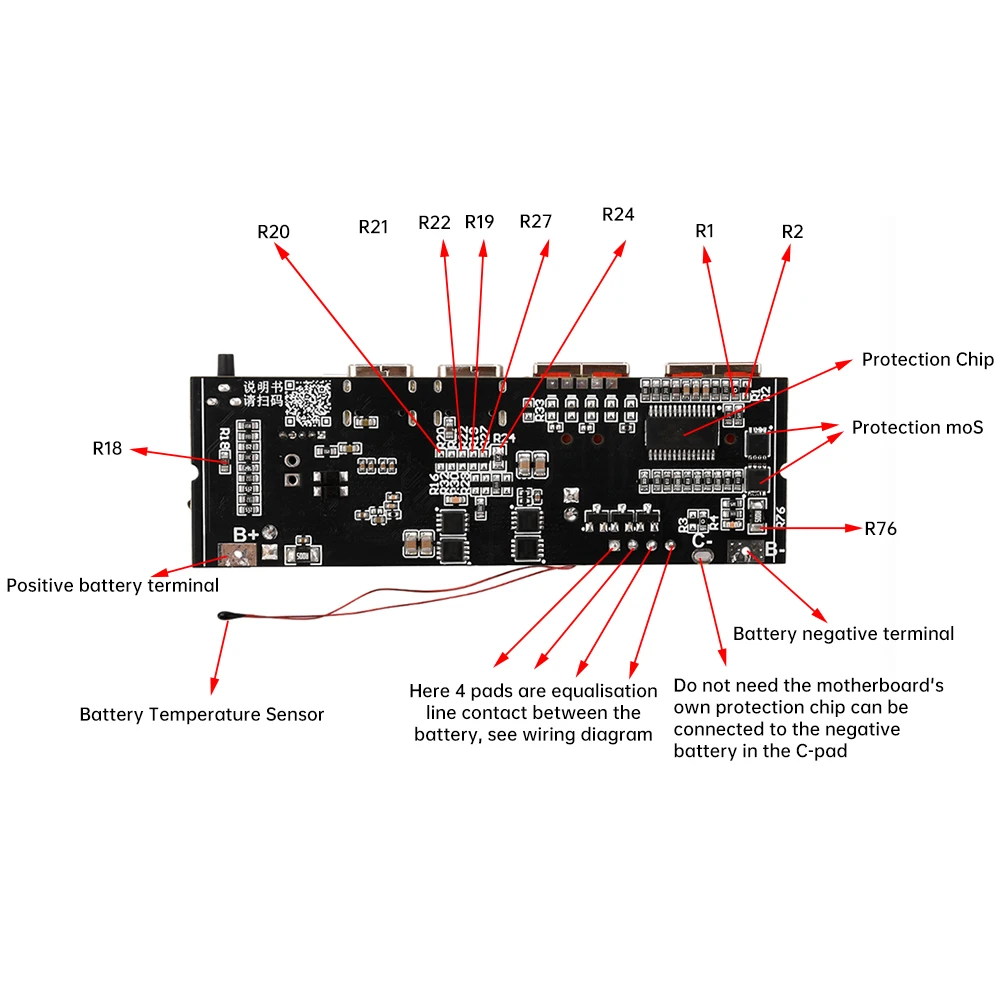

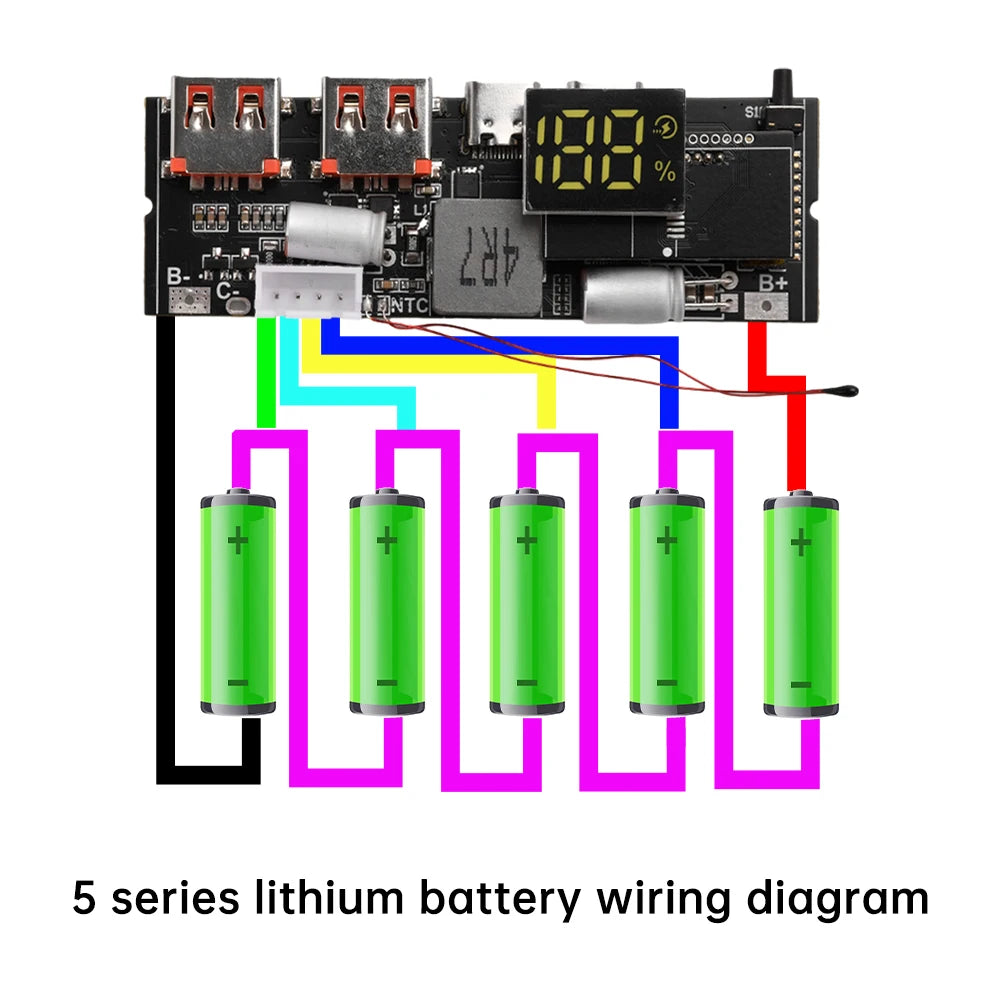

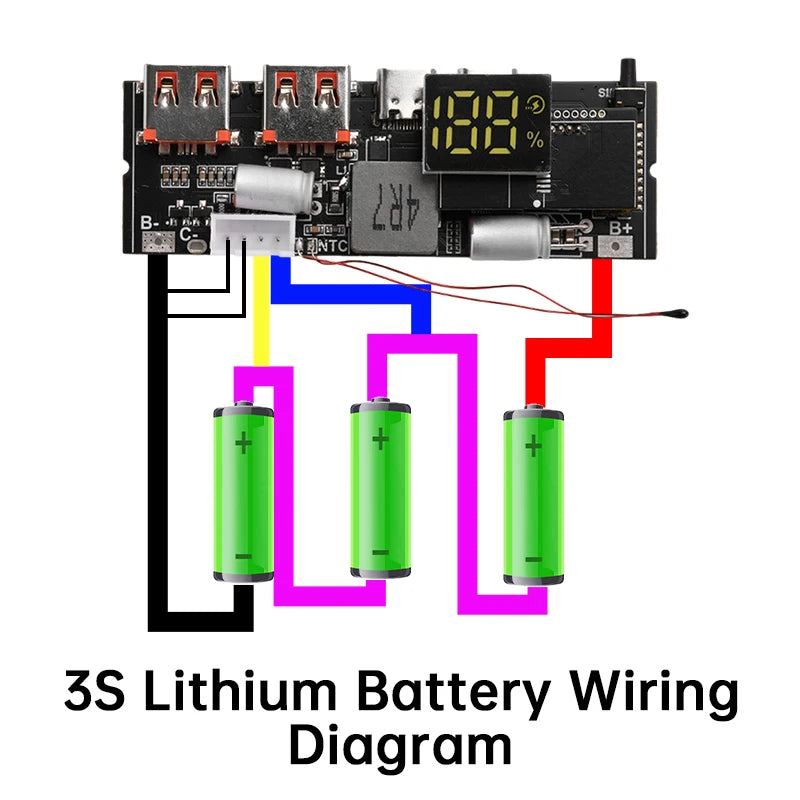

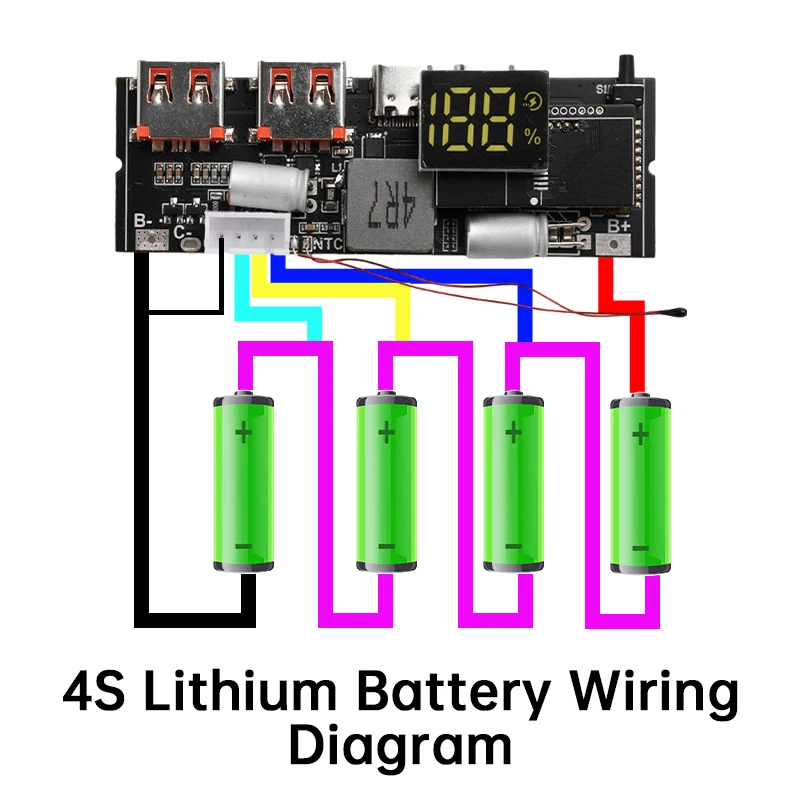

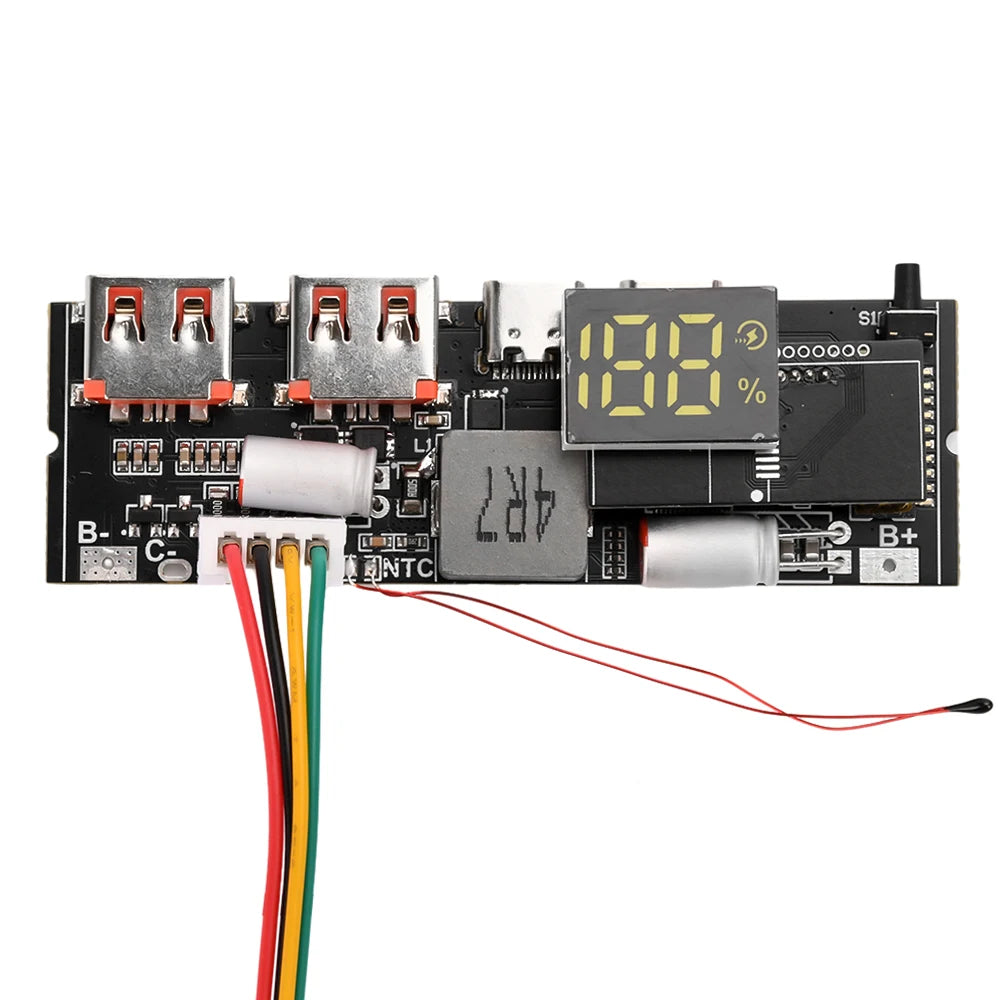

The motherboard must be connected to the battery according to the wiring diagram. If the battery has its own protection board, simply connect the battery's positive and negative terminals to the B+ and C- pads on the motherboard. Otherwise, if the motherboard has integrated protection, the wiring must be done according to the diagram, and an equalization wire must be connected; otherwise, it will not activate and function properly!

Precautions:

1. The external battery cable for the motherboard must be able to handle 10A of current. Use copper wire of at least 1 square millimeter (1.5 square millimeters if using standard wire). It doesn't need to be too thick, but it also shouldn't be too thin, as this poses a safety hazard (due to the high current draw at the battery end). 16AWG wire is recommended.

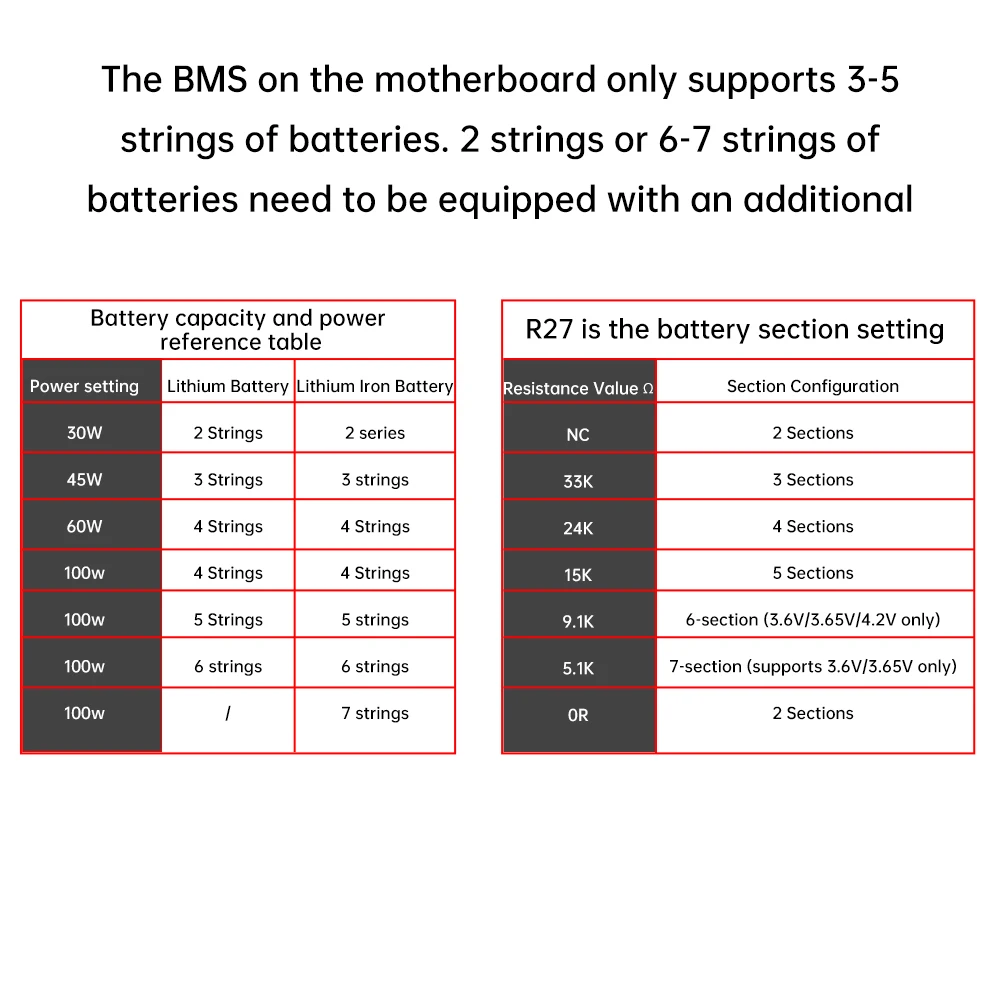

2. The motherboard has a built-in protection chip that only supports 2-5 cells. For 6- or 7 cells, the battery requires its own protection board. The overcurrent protection current of the built-in protection board must be greater than 15A; otherwise, it will not function properly and may seriously damage the motherboard chip.

3. Due to the high current draw at the battery end, a thick wire must be used to solder the battery for testing. Do not use alligator clips to hold the pads for charging and discharging tests.

4. Supports OPO flash charging and HW super fast charging. Different protocols have different power outputs. 65W and 100W refer to the PD protocol power; VOOC is 20W and SCP is 22.5W. Please confirm your needs before ordering. Returns are not accepted if your phone cannot fast charge. Soldered items are not eligible for return or exchange. (Unsupported phones are due to their proprietary, unpublished protocols, making them unusable by third parties.)

5: The battery connected to this motherboard must meet certain requirements and be connected in series.

Package List:

Power bank module *1

15cm equalizing cable *1
