LCD Battery Voltage and Charge Indicator Module

Add a visible voltage and estimated-charge display to a compatible battery setup with an LCD indicator module. Configurable battery modes let you match the display to the appropriate pack rather than relying on one fixed scale.

• ✅ See voltage at the installation - the panel-style LCD gives the setup a local display.
• ✅ Match the charge estimate - selectable battery chemistry and series settings support a compatible pack.
• ✅ Choose the display behaviour - backlight and low-voltage settings are described.

Configure the Indicator for the Actual Battery

Select the correct battery chemistry, series count and voltage limits before use. A voltage-based charge estimate is affected by load and battery characteristics, so it is not a measurement of remaining amp-hour capacity.

Confirm the actual unit's input range and wiring instructions before connecting the pack. The module does not balance cells, control charging or replace a battery-management system. Audible alarm and temperature functions must be confirmed for the selected option.

Technical details

• Display: LCD.

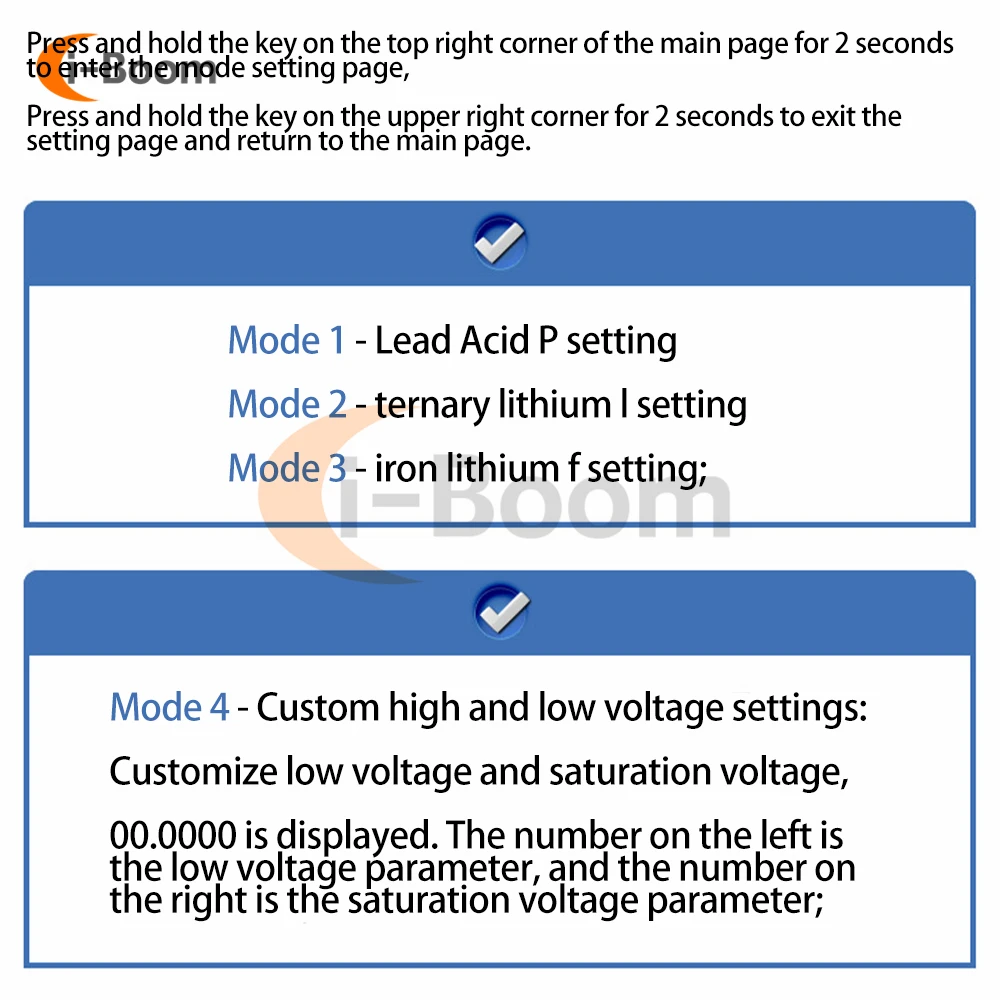

• Modes listed: lead-acid, lithium-ion, LiFePO4 and custom limits.

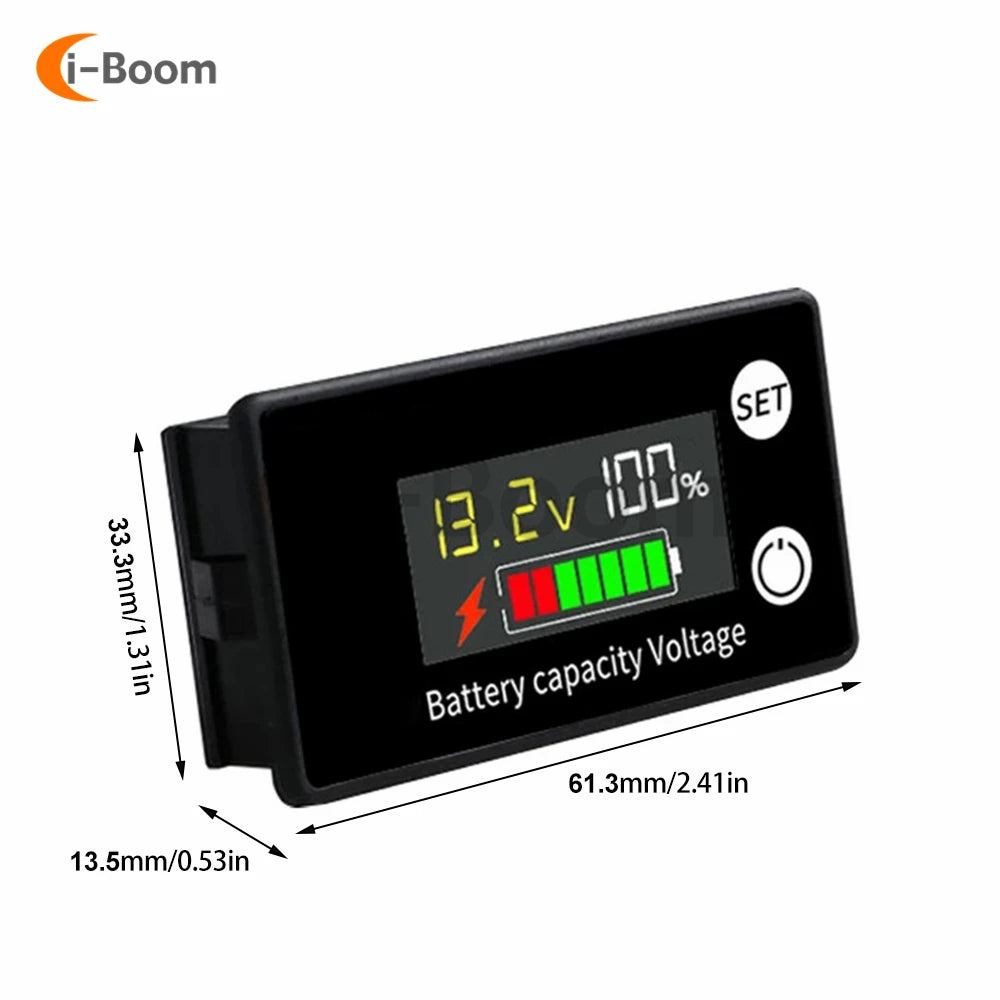

• Approximate panel size: 61.3 x 33.3 x 13.5 mm.
• Listed cut-out: 58.5 x 28.5 mm.
• Package: selected indicator and cable leads.
• Battery excluded.

Match the pack settings and add a clear local voltage display to your setup.
