Introducing the IPC-HFW2831S-S-S2: An Advanced Security Solution

SPECIFICATIONS

Brand Name: Dahua

Origin: Mainland China

High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

Supported Operating Systems: Windows XP

Supported Operating Systems: Windows Vista

Supported Operating Systems: Windows 7

Supported Operating Systems: Windows 8

Supported Operating Systems: Windows 10

Supported Operating Systems: Windows 2000

Supported Operating Systems: Windows 2008

Supported Operating Systems: Windows 2003

Lens (mm): 3.6mm

Lens (mm): 2.8mm

Style: Bullet Camera

Connectivity: IP/Network Wired

Installation: Normal

Scene: Indoor and outdoor

Megapixels: 8MP

Storage: 256GB

Video Compression Format: H.264

Video Compression Format: H.265

IR Distance(m): 30M

Certification: CE

Certification: FCC

Certification: UL

Dimensions (L x W x D)(mm): 166.2 x 70 mm

Alarm Action: telefon Alarm

Alarm Action: Email Photo

is_customized: No

Model Number: IPC-HFW2831S-S-S2 & IPC-HFW2841S-S

Supported Mobile Systems: Symbian

Supported Mobile Systems: Windows Mobile

Supported Mobile Systems: Android

Supported Mobile Systems: IOS

Smart home platform: none

AI Functions: Human Detection

IP Rating: IP67

Special Features: Waterproof / Weatherproof

TF Card: None

Power Supply(V): DC12V;PoE (802.3af)

Power Consumption(W): 5.5W

Sensor: CMOS

Shell Material: Metal

Power Supply: With POE

DELIVERY POLICY:

1-3pcs +0usd = china post shipping for free
1pcs + 19usd = DHL shipping (EMS fedex optional)
2pcs + 24usd = DHL shipping (EMS fedex optional)
3pcs + 29usd = DHL shipping (EMS fedex optional)
4pcs or more = FREE DHL shipping (EMS UPS Fedex optional)

Incase anything i can help you with , pls feel free to contact our servicer,  wish you happy shopping here!

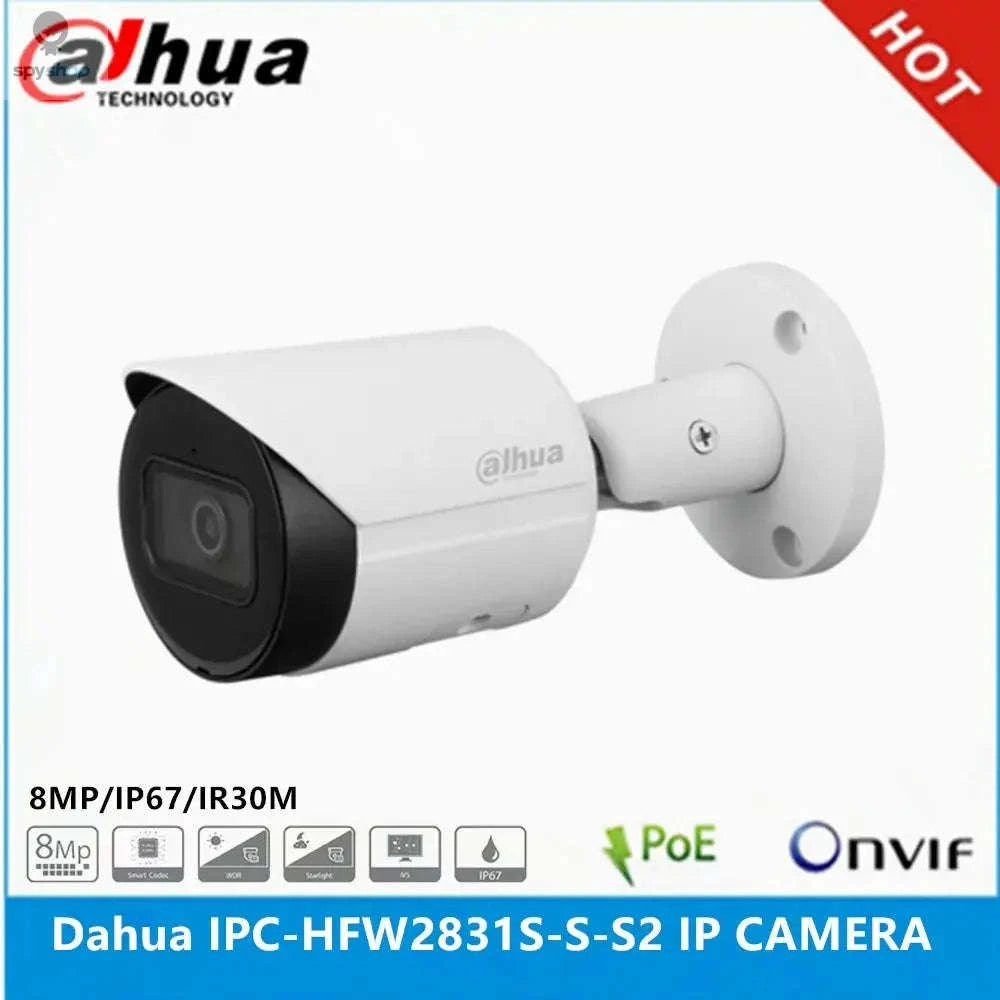

IPC-HFW2831S-S-S2

8MP Lite IR Fixed-focal Bullet Network Camera

> 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
> Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max IR distance: 30 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access,voltage detection
> Supports max. 256 GB Micro SD card
> 12V DC/PoE power support
> IP67 protection

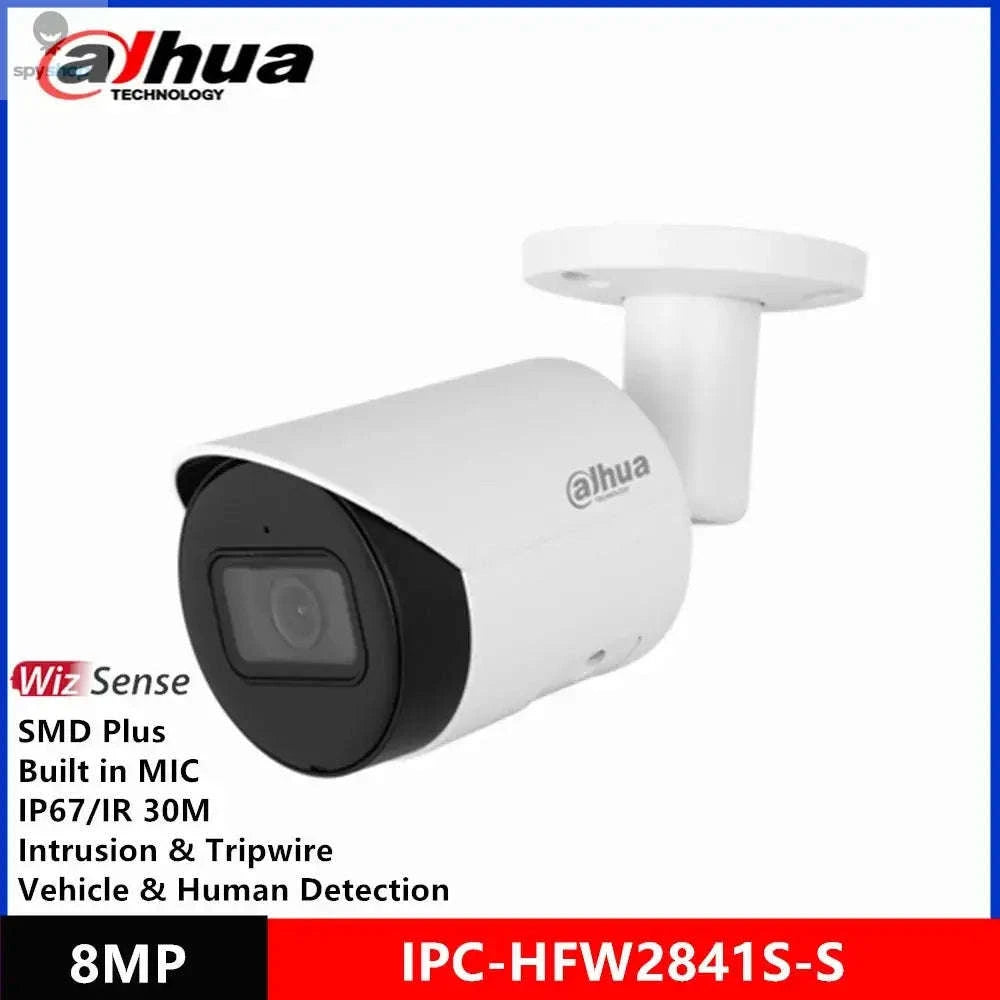

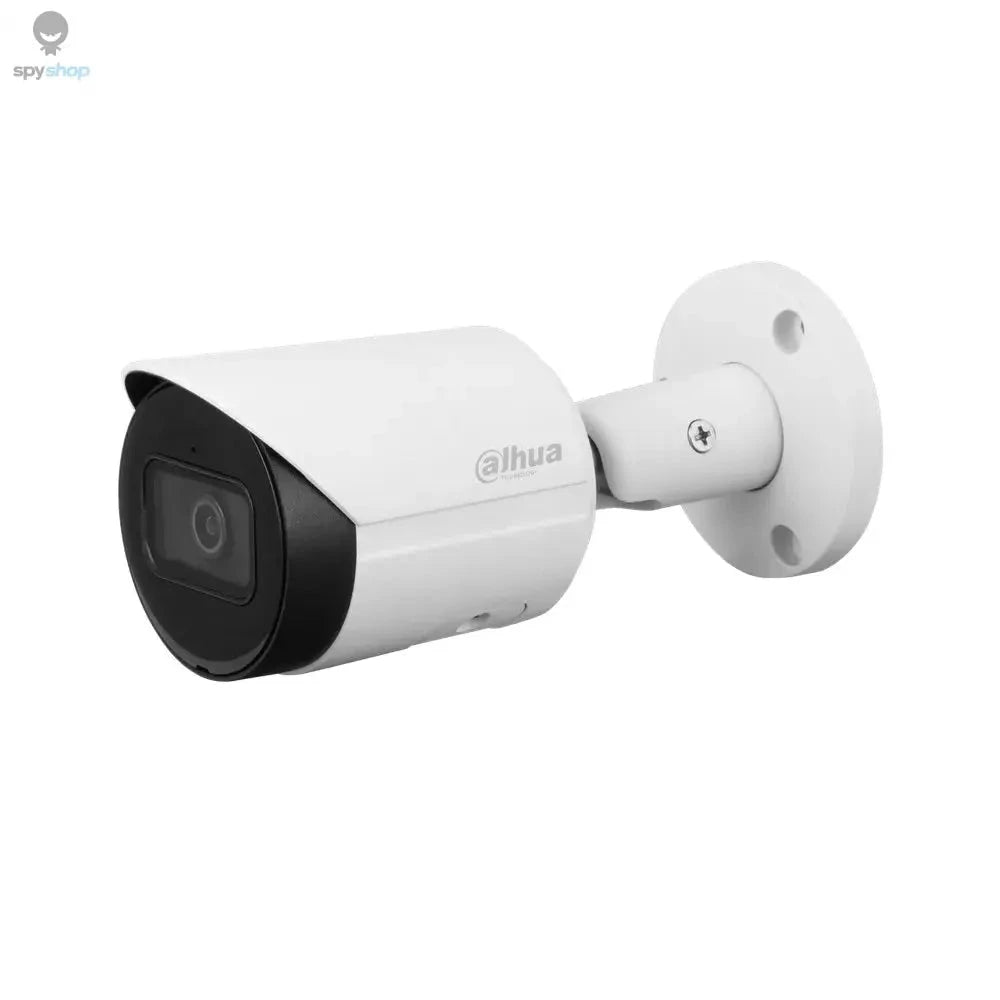

IPC-HFW2841S-S

8MP IR Fixed-focal Bullet WizSense Network Camera

> 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 30 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Supports max. 256 G Micro SD card; built in MIC.

> 12 VDC/PoE power supply.

> IP67 protection.

> SMD Plus.

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.009 lux@F2.0 (Color, 30 IRE) 0.0009 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft) (IR)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

1 (IR LED)

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 88°; V: 46°; D: 104°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.3 m (4.27 ft) 3.6 mm: 1.9 m (6.23 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

88.0 m (288.71 ft)

35.2 m (115.49 ft)

17.6 m (57.74 ft)

8.8 m (28.87 ft)

3.6 mm

106.7 m (350.07 ft)

42.7 m (140.09 ft)

21.3 m (69.88 ft)

10.7 m (35.10 ft)

Intelligence

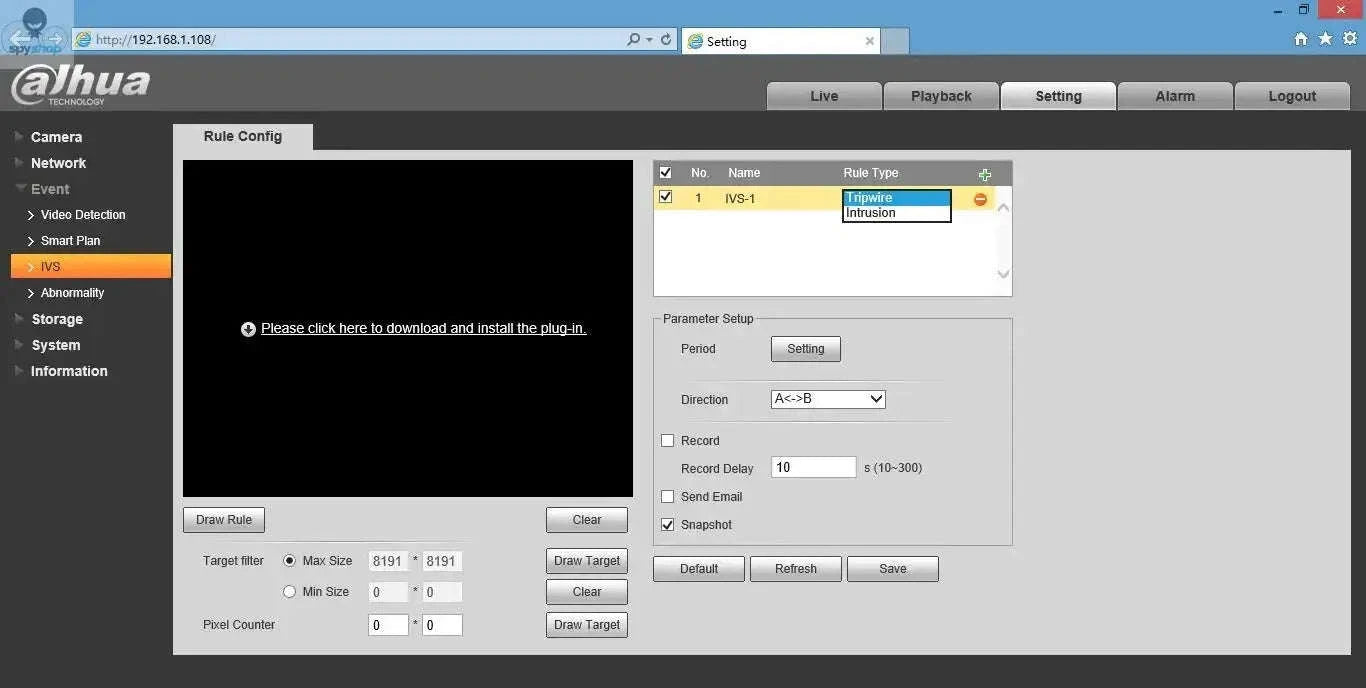

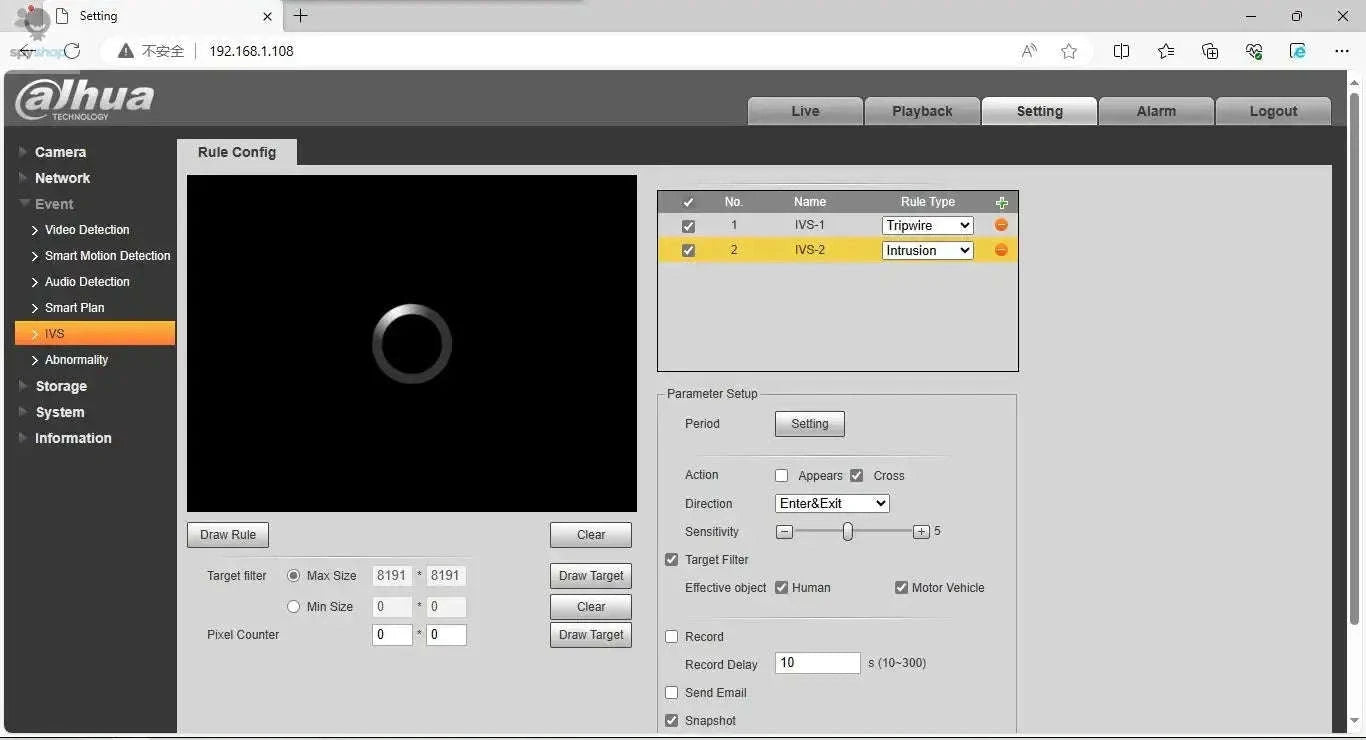

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

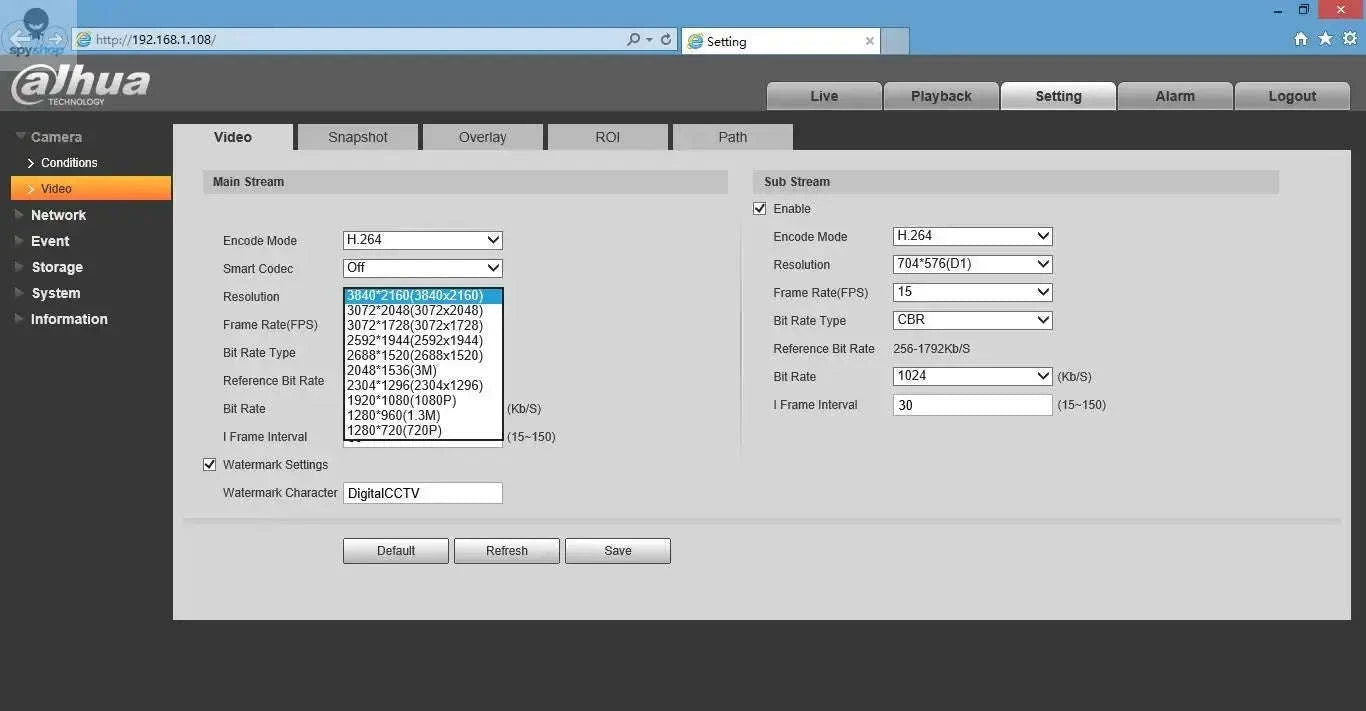

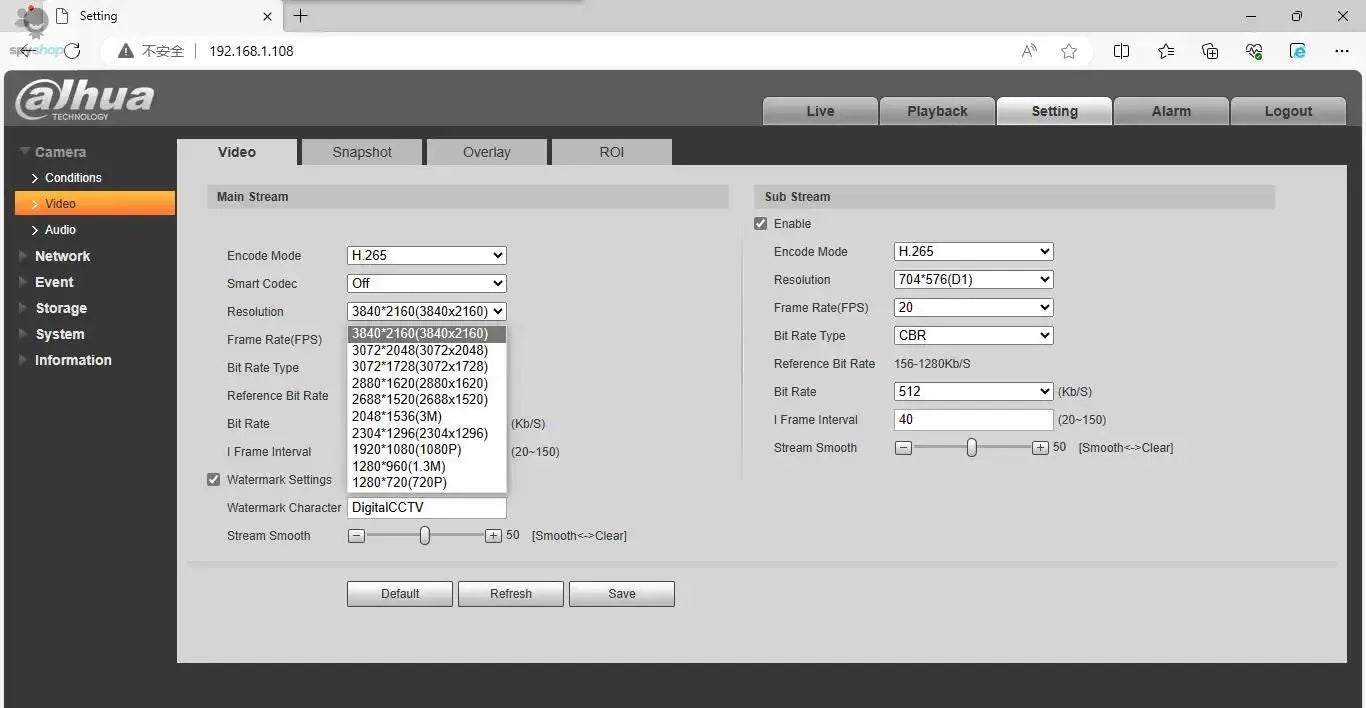

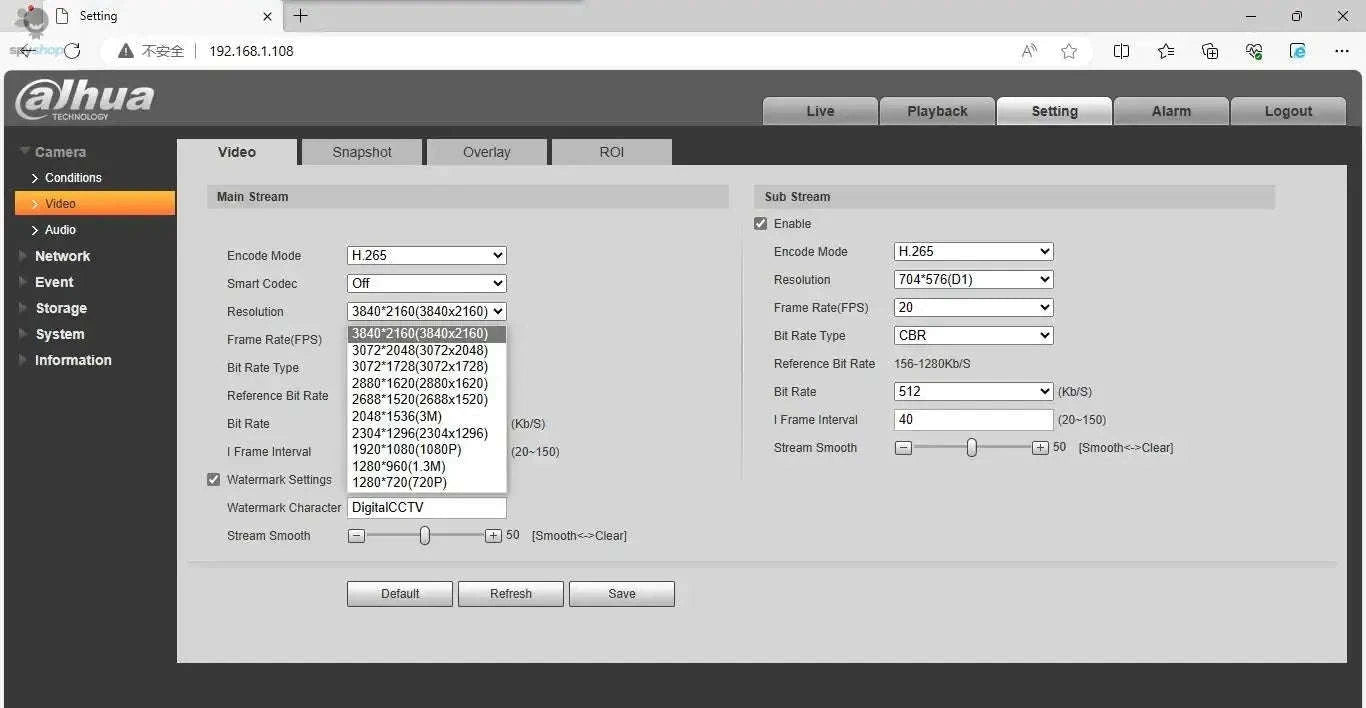

Resolution

3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

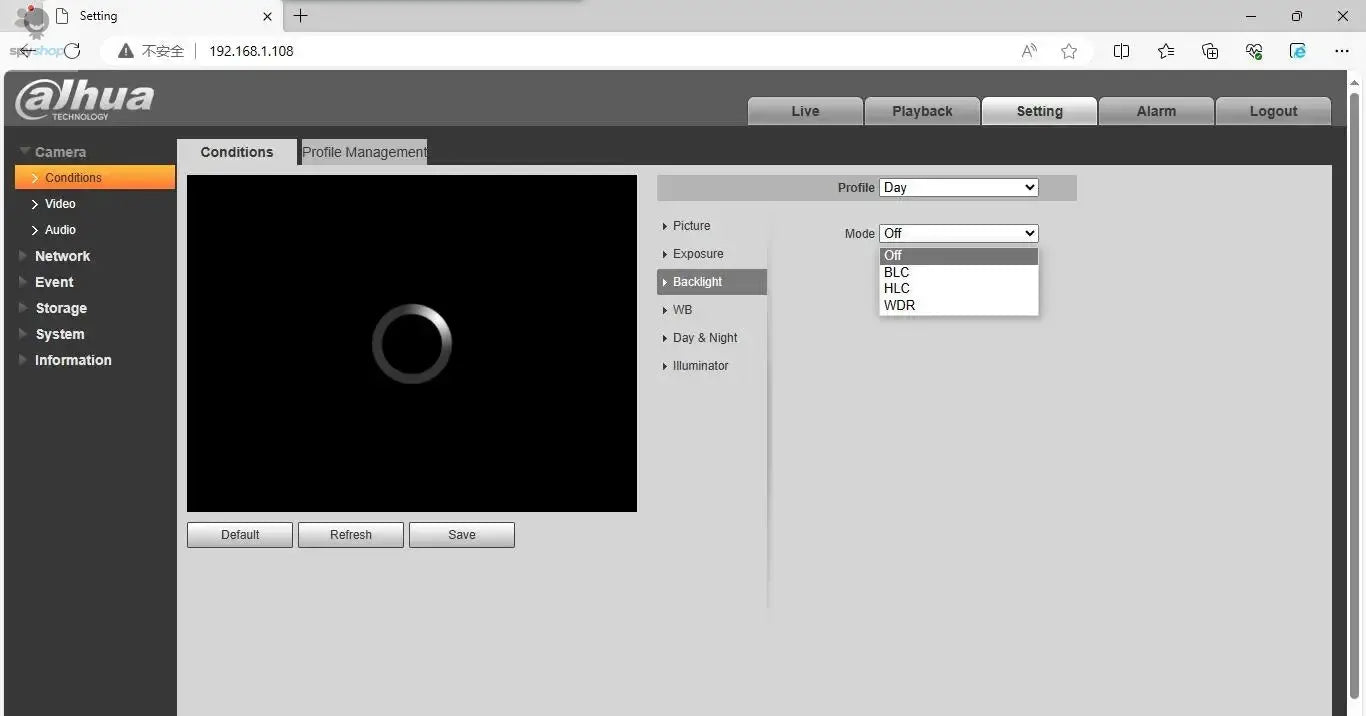

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

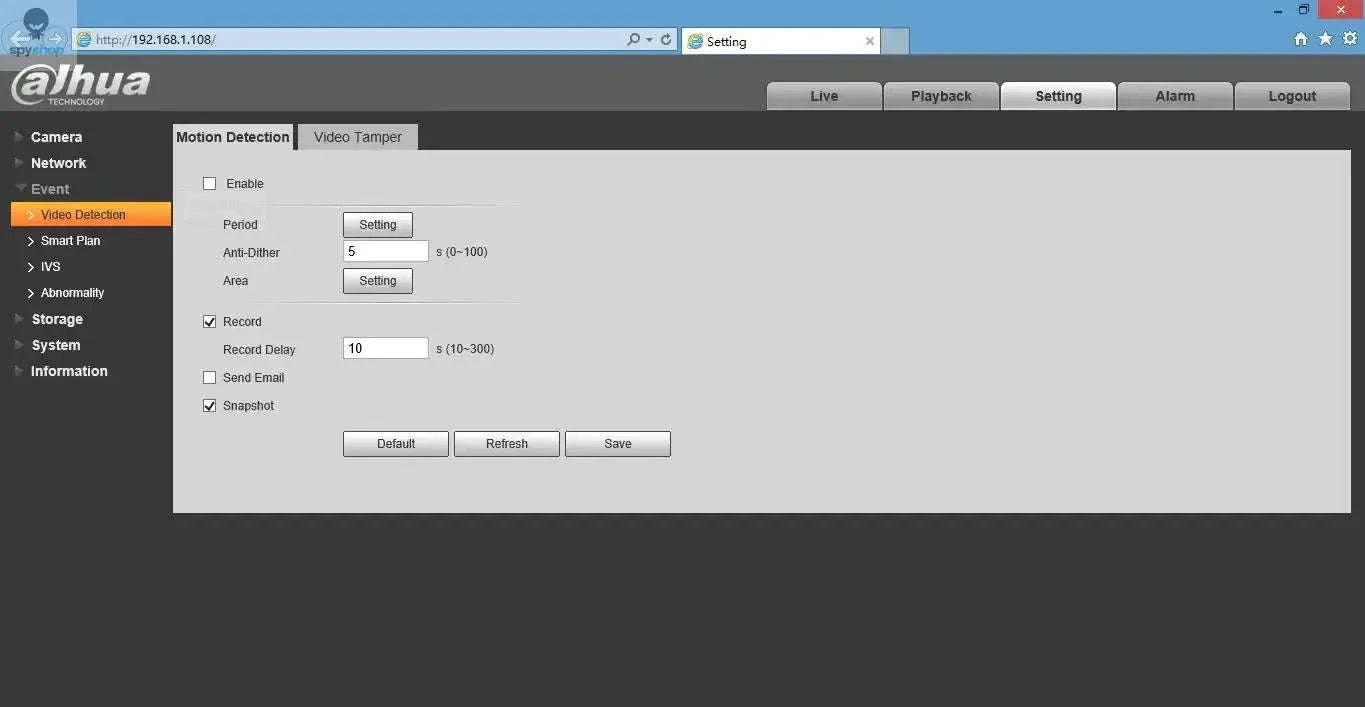

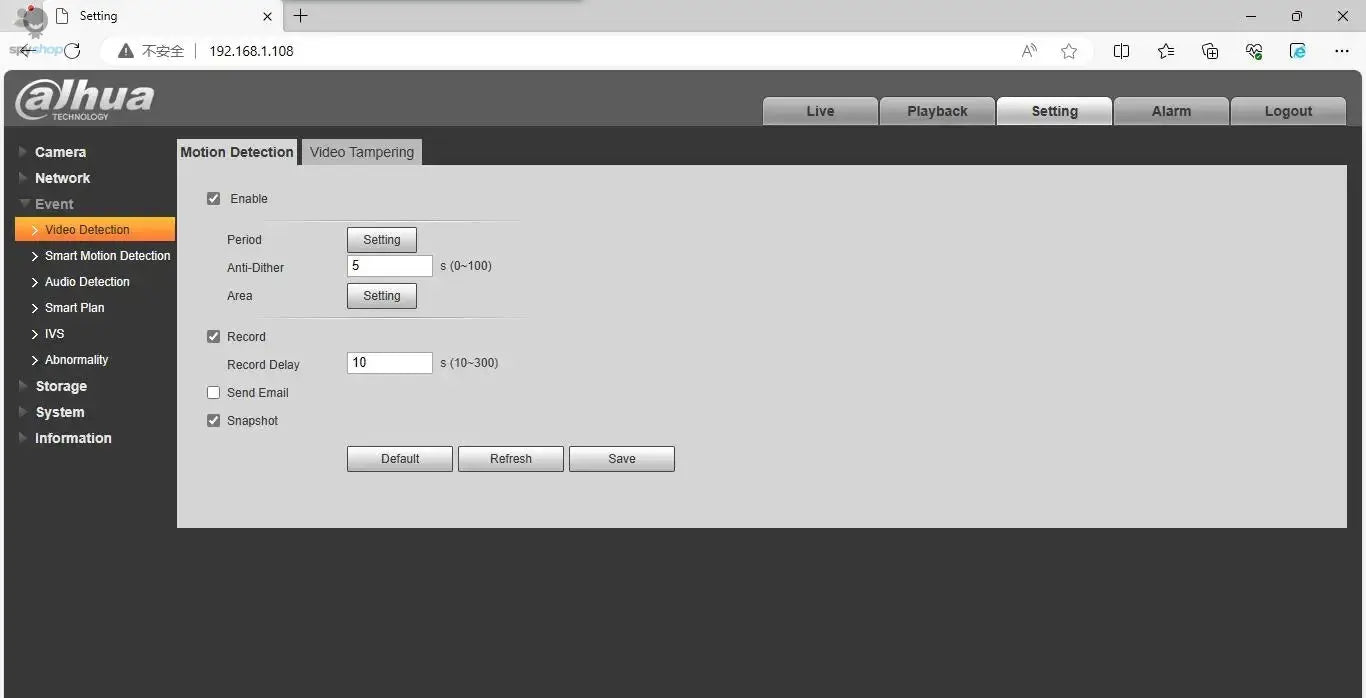

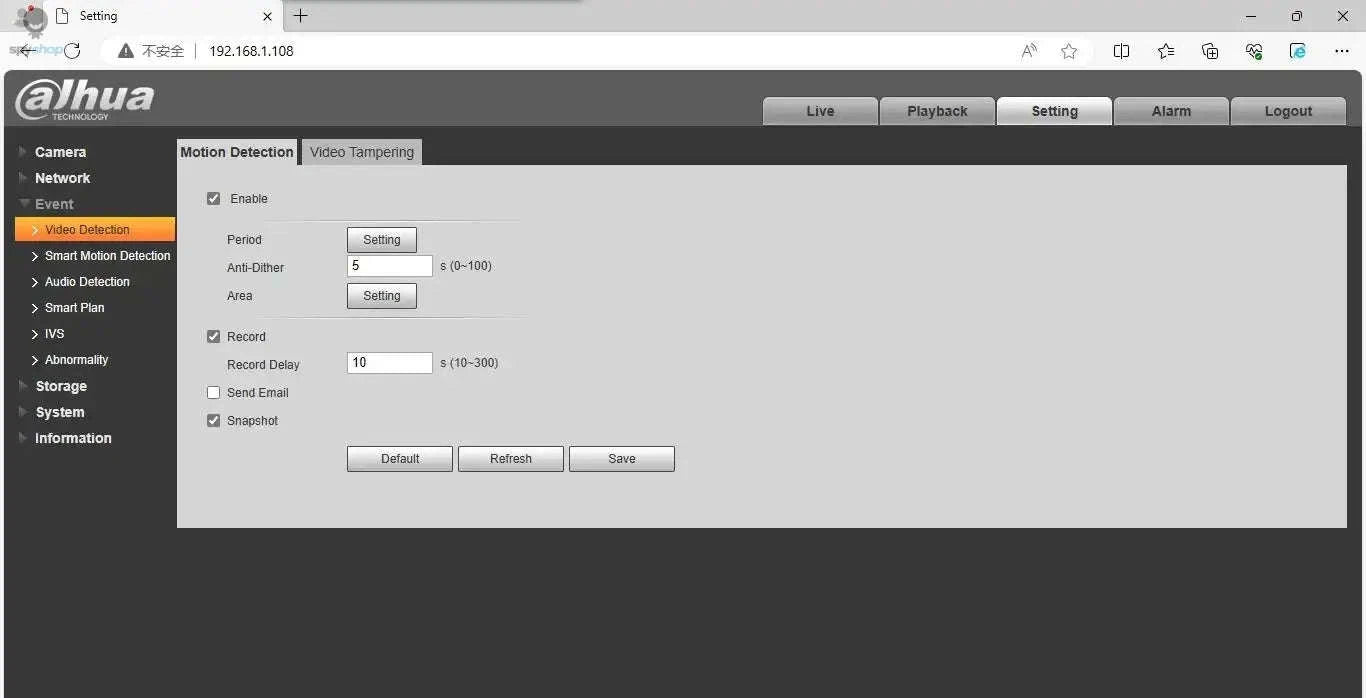

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

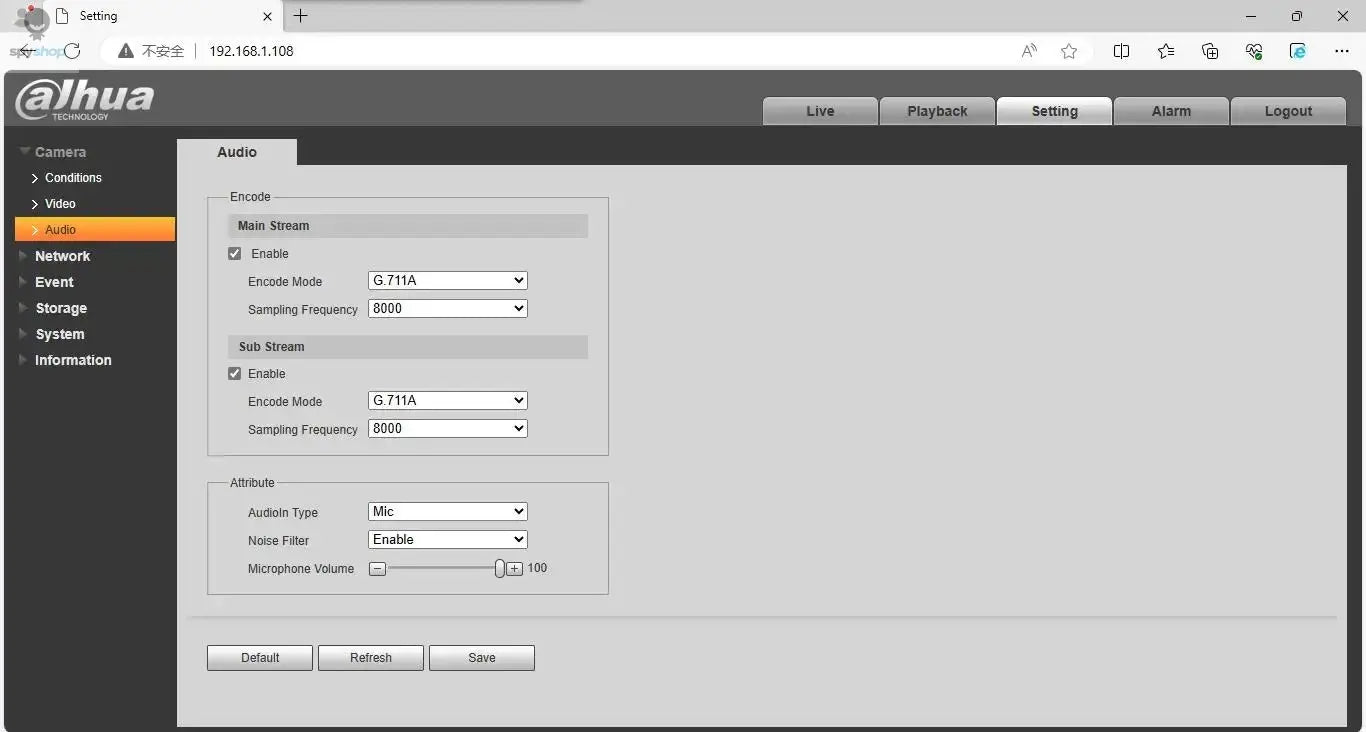

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

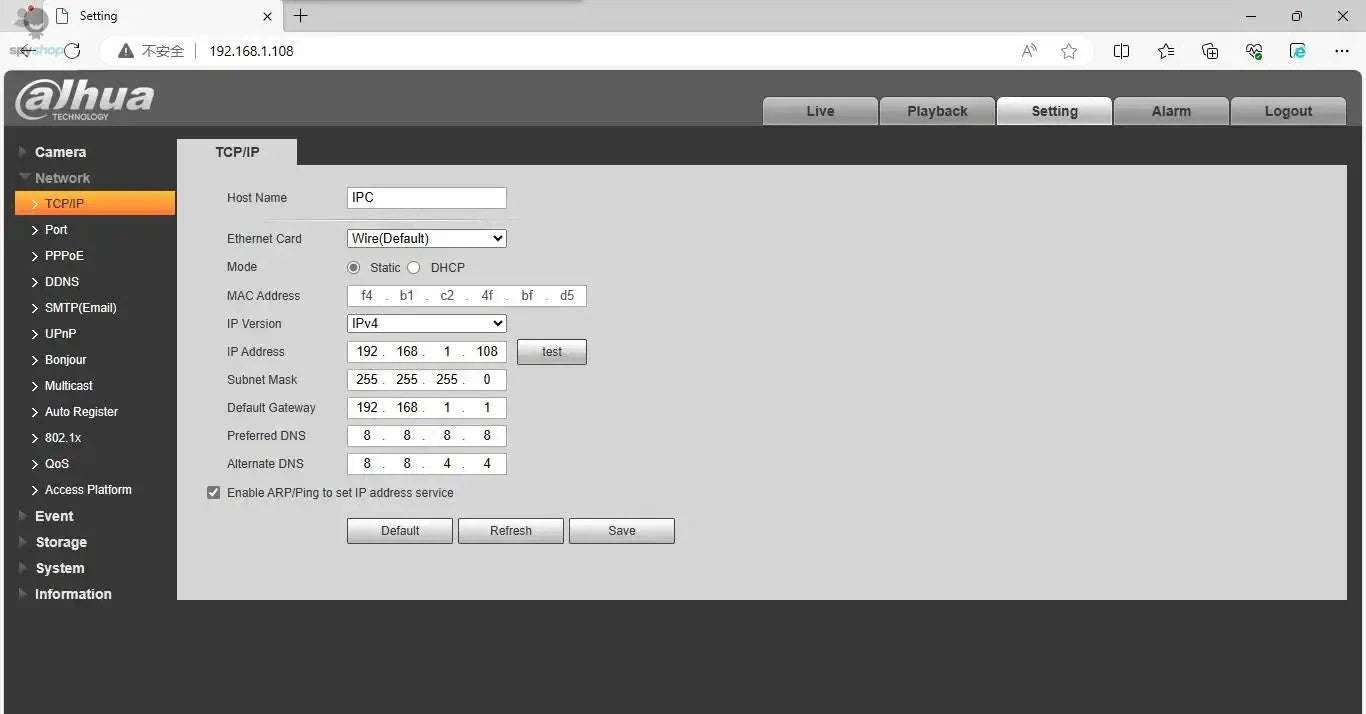

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48 M)

Storage

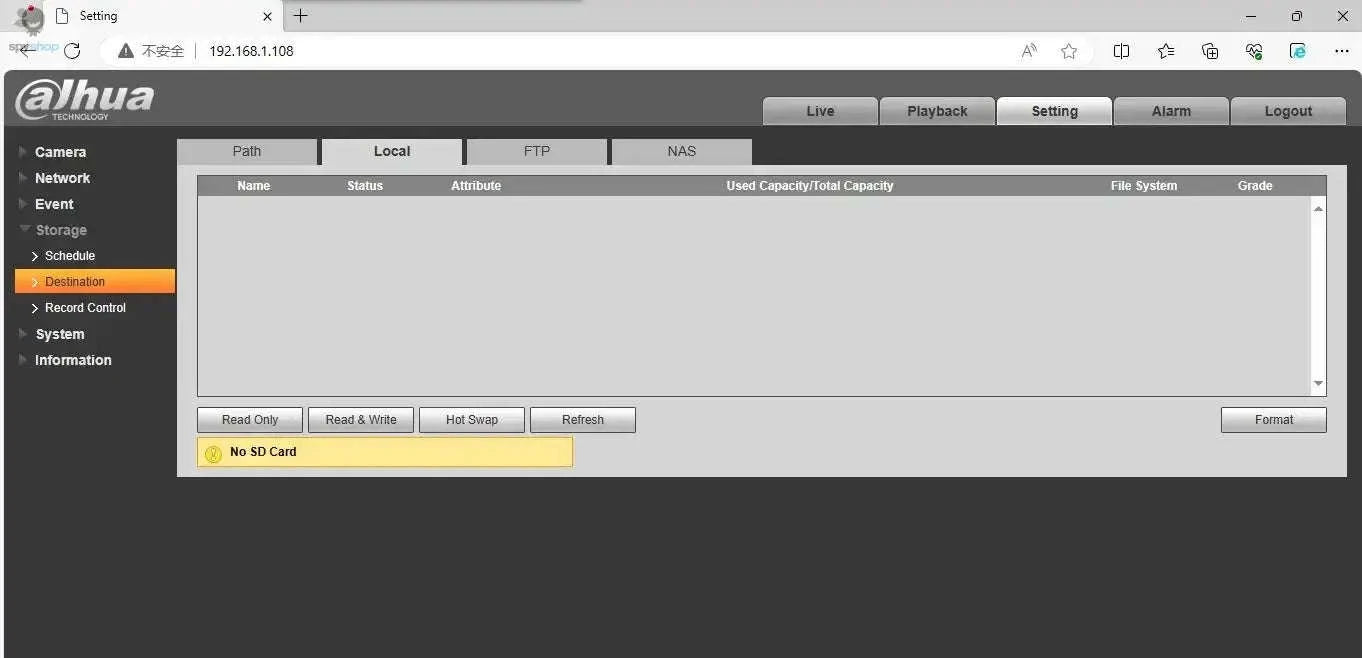

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE Chrome Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2.7 W (12 VDC); 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 4.5 W (12 VDC); 5.4 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95%

Protection

IP67

Structure

Casing Material

Metal

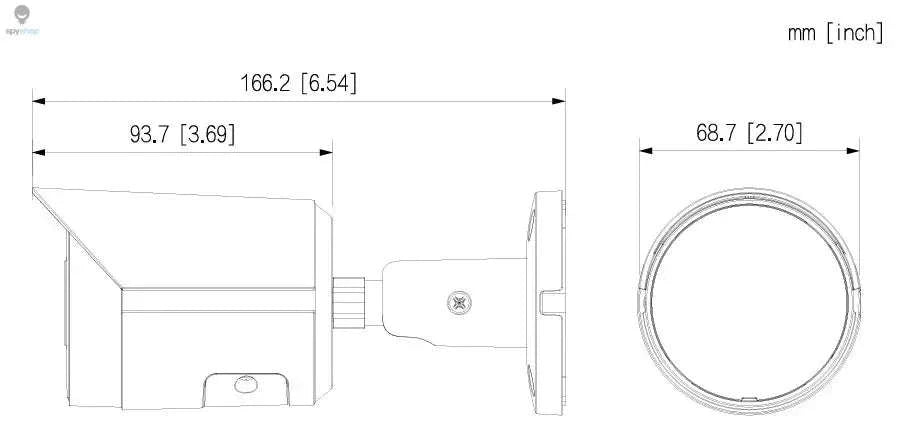

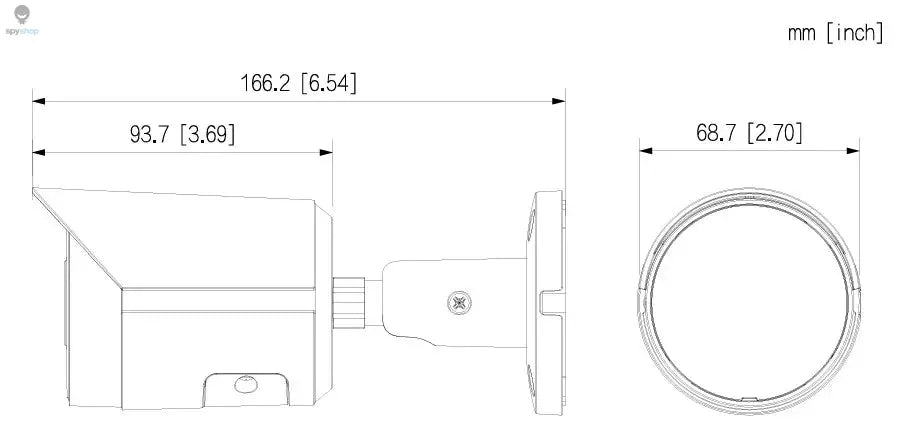

Product Dimensions

166.2 mm × 70 mm × 70 mm (6.54" × 2.76" × 2.76") (L × W × H)

Net Weight

0.48 kg (1.06 lb)

Gross Weight

0.59 kg (1.30 lb)

High-Resolution Surveillance with IPC-HFW2831S-S-S2

The IPC-HFW2831S-S-S2 is a top-of-the-line IP camera that boasts an impressive 8MP resolution. Because of its high-definition capabilities, it provides crystal clear images, making it ideal for a variety of surveillance applications. It features starlight technology, which enhances low-light performance, allowing you to capture detailed footage even in complete darkness. Therefore, you can rest assured knowing that your property is under constant, high-quality surveillance.

Durable Design with Advanced Features

This camera is built to withstand harsh weather conditions, earning an IP67 rating for water and dust resistance. The sturdy design ensures that it remains functional in rain, snow, and extreme temperatures. Additionally, with a 30-meter infrared (IR) range, the IPC-HFW2831S-S-S2 seamlessly adapts to changes in lighting conditions. As a result, it can provide reliable monitoring both day and night. So, you will never miss a crucial moment when it counts.

Smart Connectivity and Easy Setup

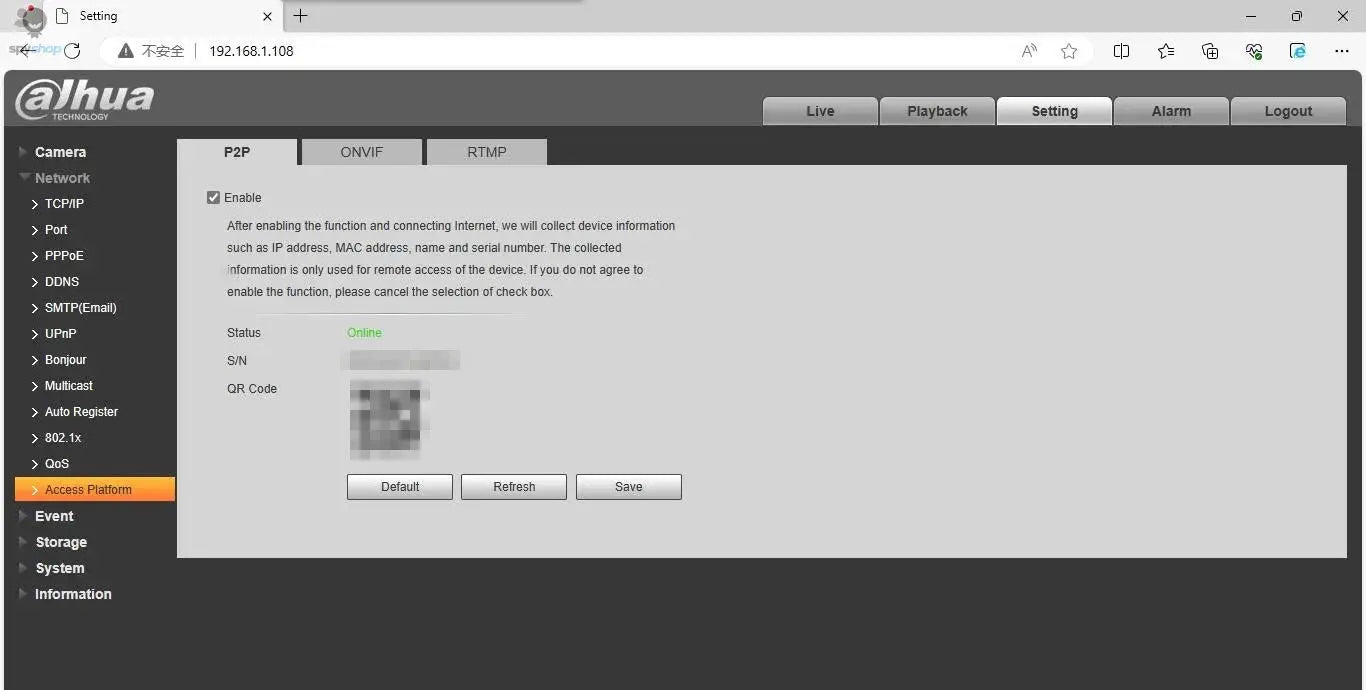

With Power over Ethernet (POE) capabilities, installation of the IPC-HFW2831S-S-S2 becomes a hassle-free experience. Users can save time and effort, as they only need one cable for both power and data transmission. Also, its Point-to-Point (P2P) technology simplifies remote access, allowing you to monitor your surveillance feeds from anywhere in the world. This means you can check real-time footage on your mobile devices with ease, providing peace of mind wherever you are.
