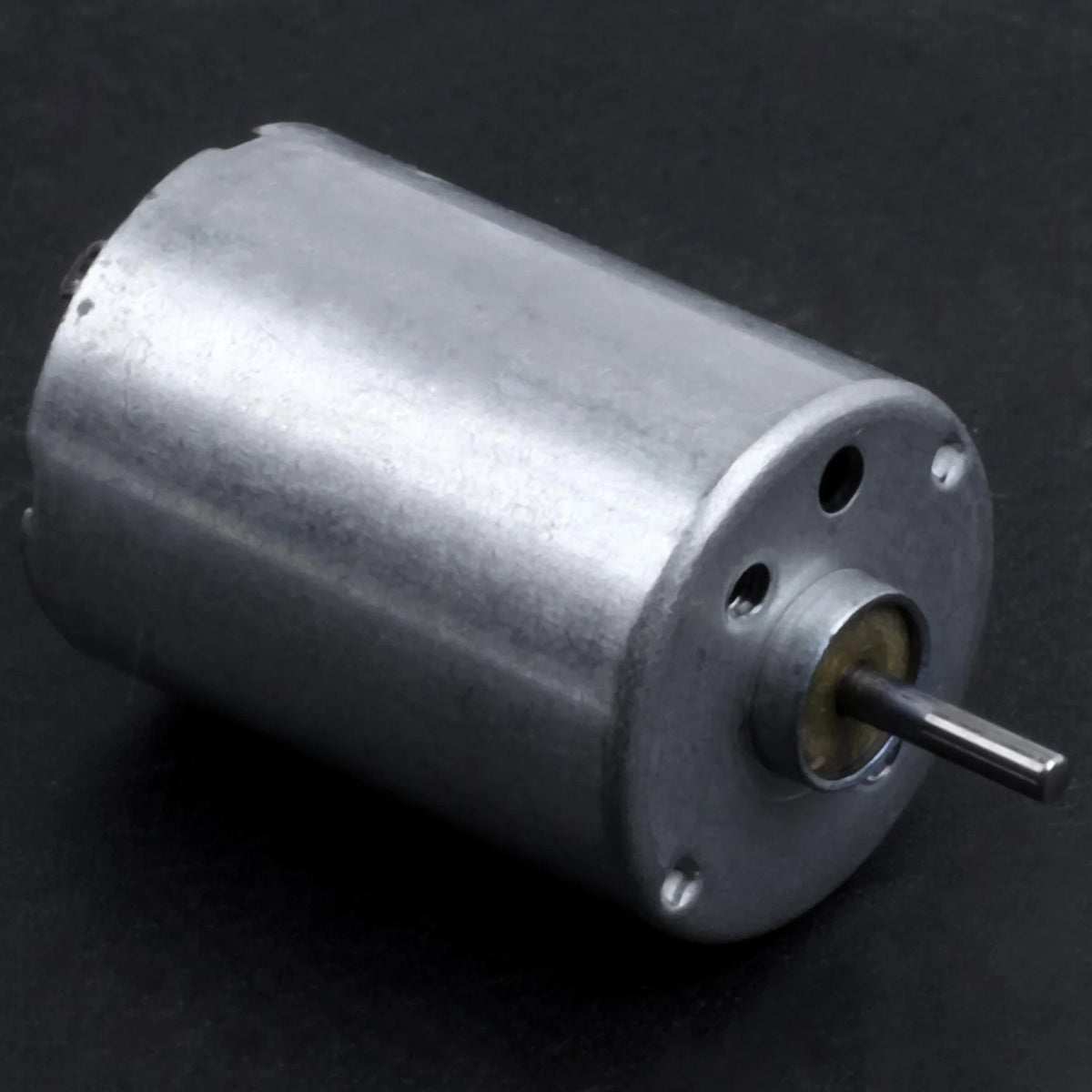

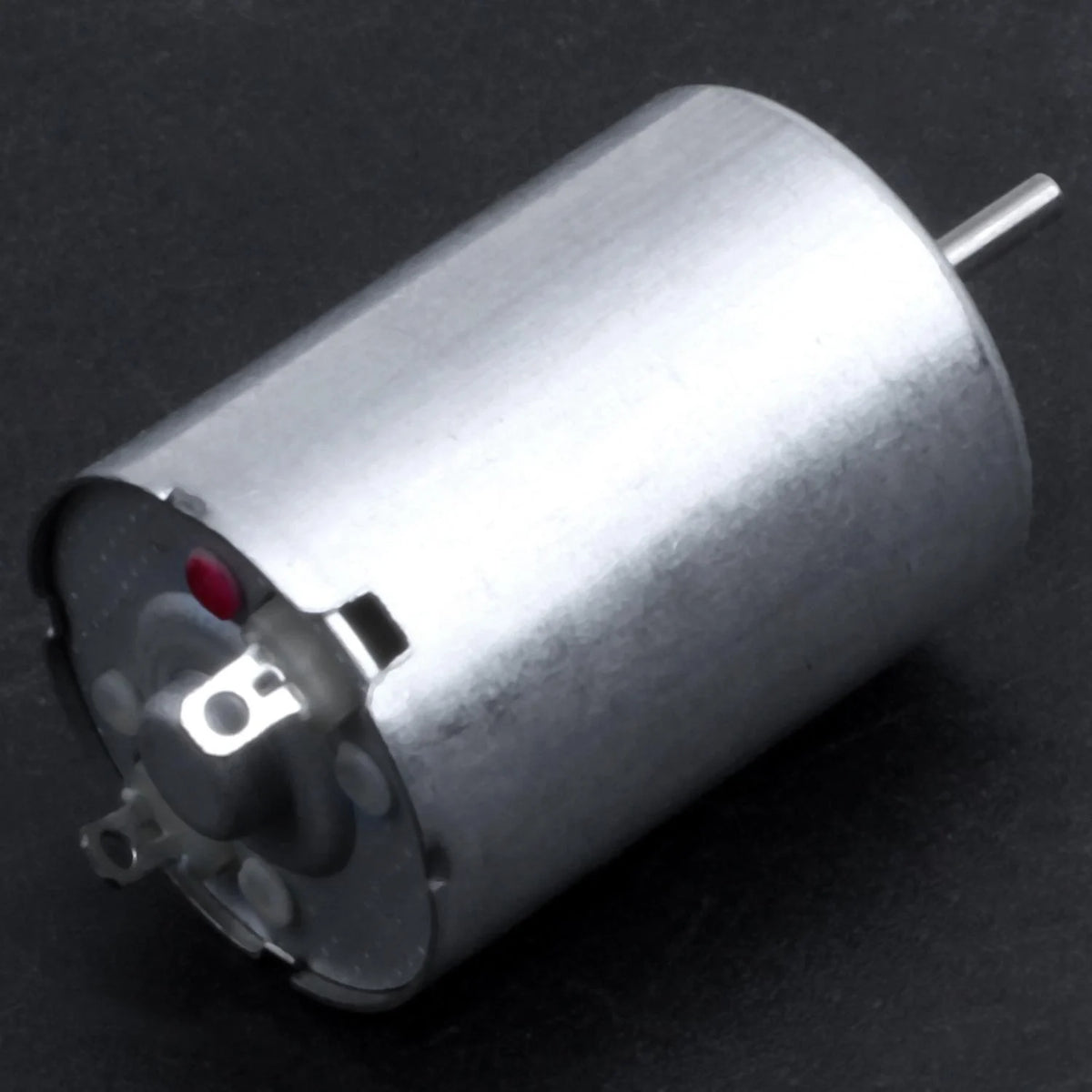

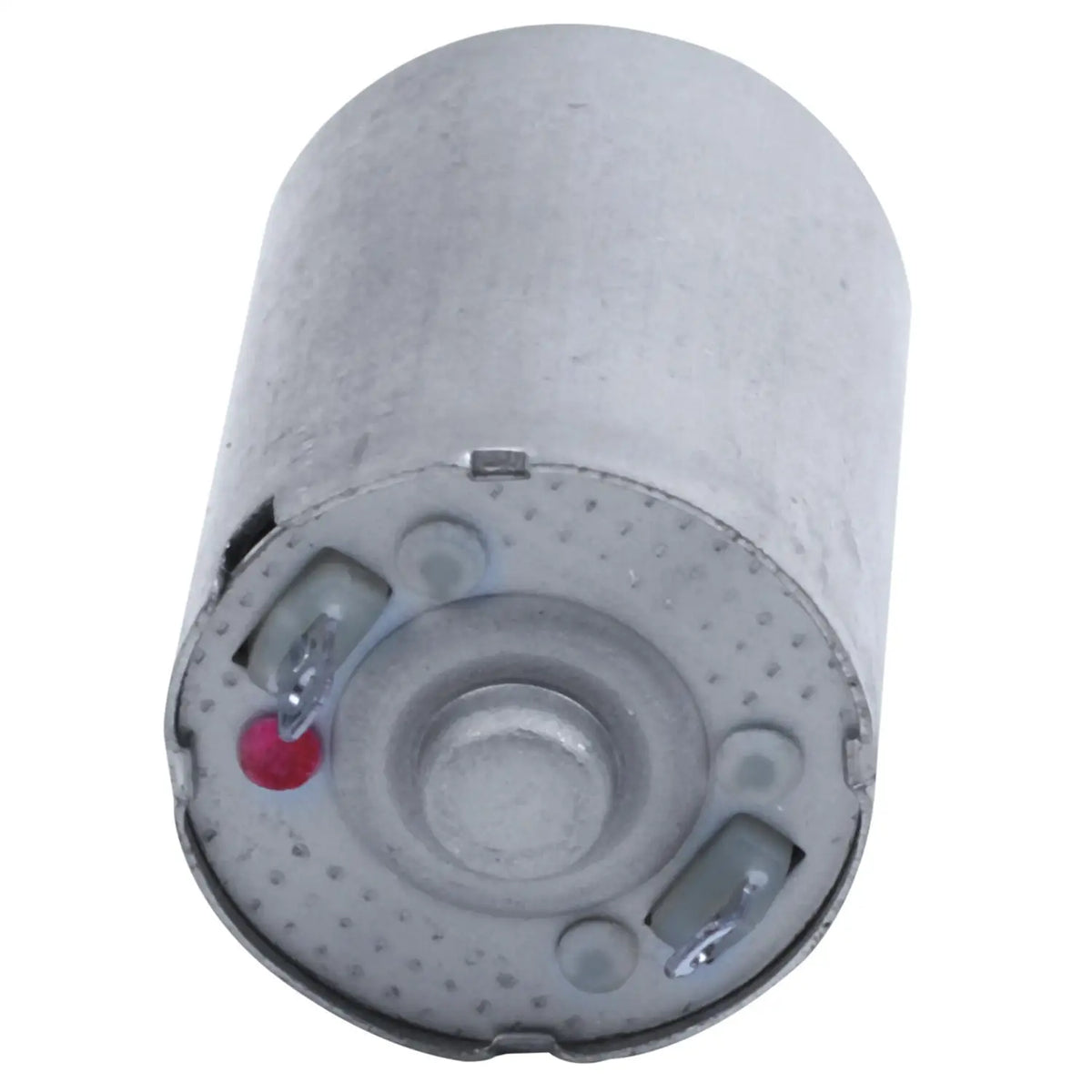

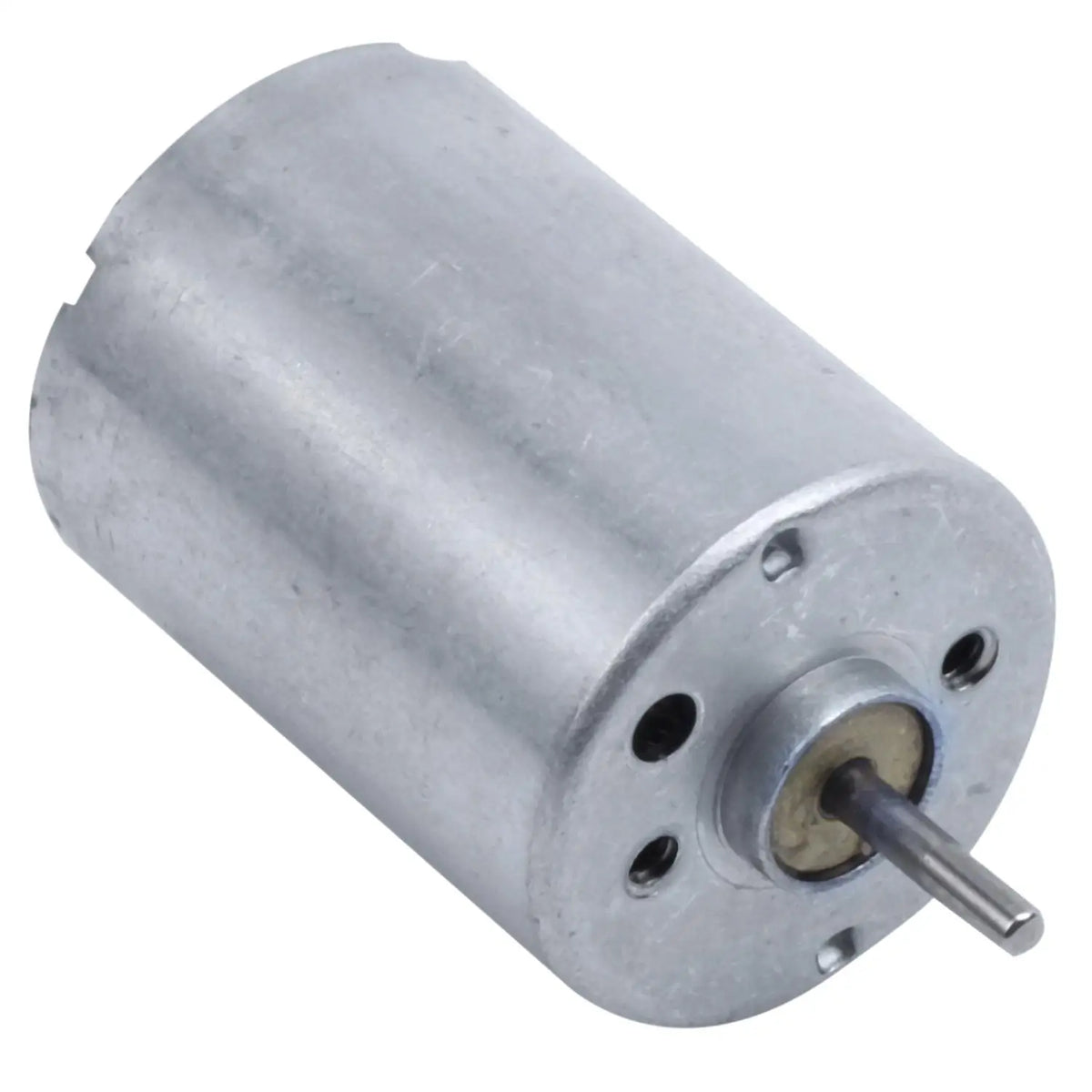

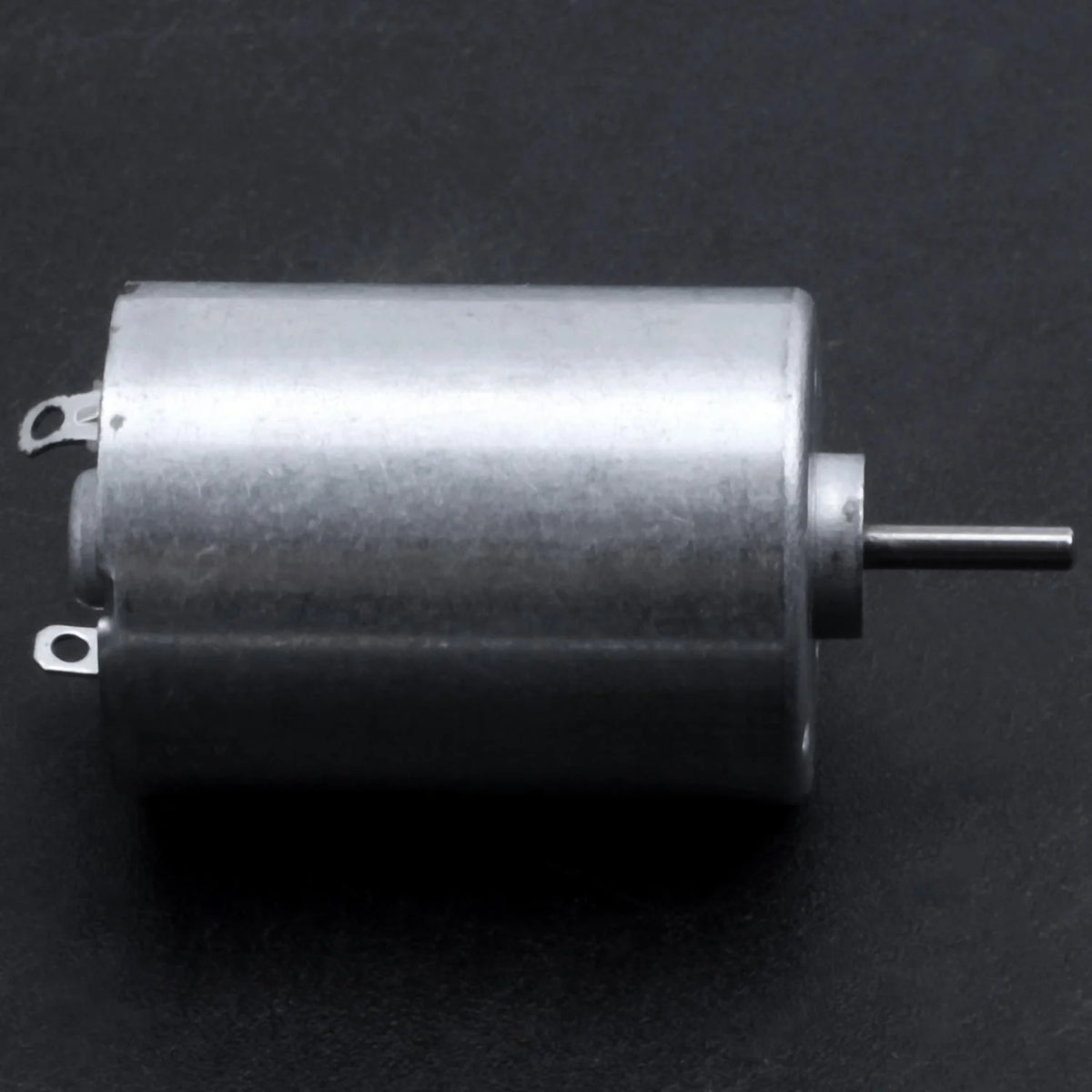

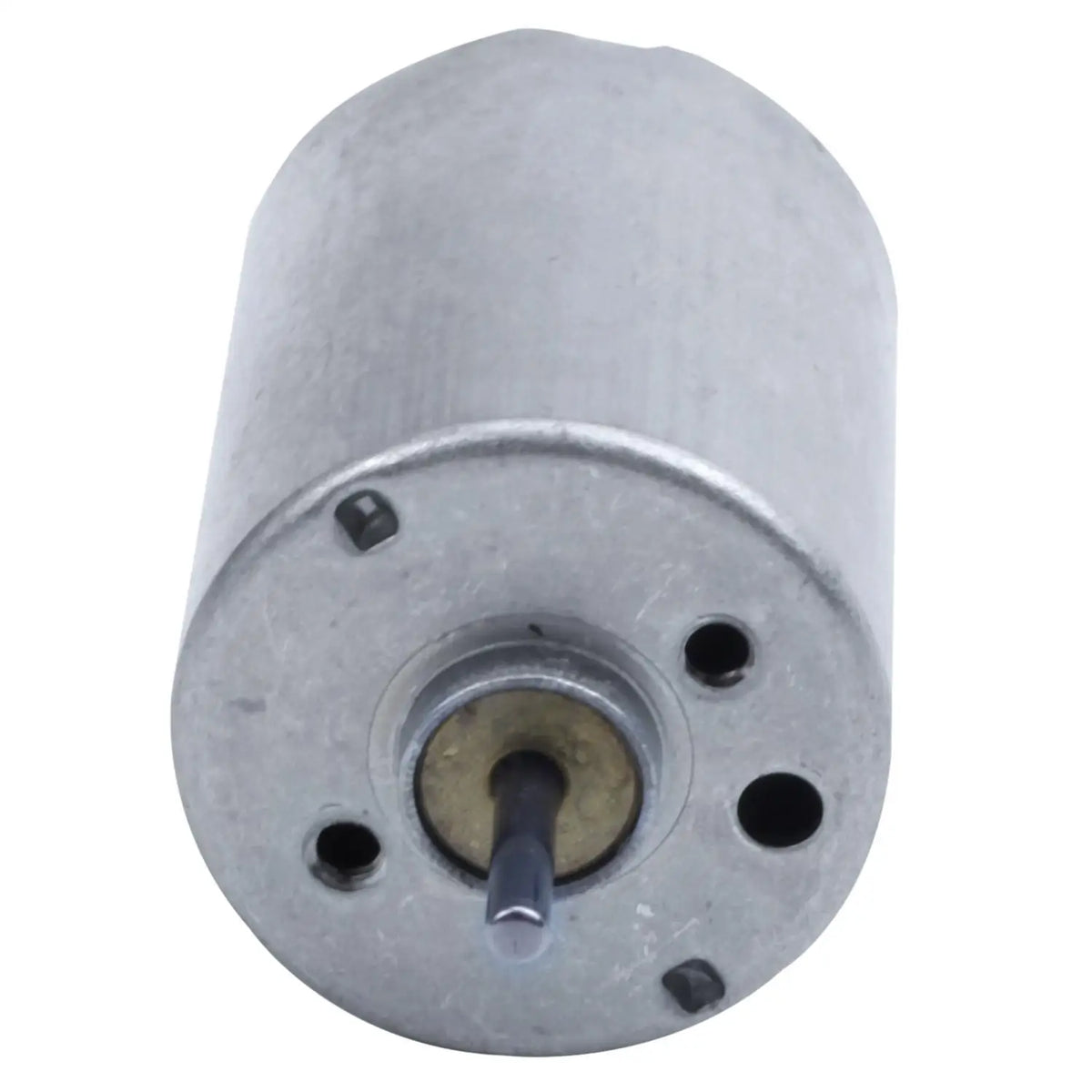

Mini DC Motor, 1.5–9 V, 17 mm Body for Small Projects

✅ Fit movement into tight builds. The body is approximately 17 mm across, so it suits a project with limited mounting space.

✅ Match the output shaft. The 1.5 mm shaft takes a suitably sized coupling or driven component.

✅ Replace a matching motor. It can stand in for the same motor in a compatible toy or hobby mechanism.

✅ Use a small supply. The supply range is DC 1.5–9 V, with the power source supplied separately.

A compact motor for small hobby mechanisms

A small DC motor with a 17 × 23 mm body and a 1.5 × 6 mm output shaft, for projects where mounting space is tight. It runs on DC 1.5–9 V and can replace a matching motor in a compatible hobby or toy mechanism. One motor is supplied, while wiring, coupling and power source are not.

Technical details

• Supply range: DC 1.5–9 V.
• Shaft: approximately 1.5 × 6 mm.
• Body: approximately 17 × 23 mm; total length including pins: 34 mm.
• One motor supplied; power source is not included.
• One motor only; external wiring, coupling and power source are not included.

Check the shaft, mounting space and supply before choosing your motor.
